Product Drawings:

A keyed switch is an electrical switching device that uses one of the manufacturer’s matching keys to control the switching status of a device’s circuit.

This keyed switch usually has two or three positions, each of which corresponds to a different circuit state or a different function of the device. Only by inserting the correct key and rotating the switch to a specific position can the associated circuit be opened or closed.

Product Parameters:

Production Series	FLM19-11KJ	Light Guide Button
Button Shape	round	Actuator	304 Stainless steel
Button LED Color		Housing Sleeve	H59 nickel plated brass/304Stainless steel
Mechanical Life	The 500 thousand time	Button Pin	H62 copper alloy
Electrical Life	The 100 thousand time	Rubber Ring	SIL silica gel
Protection Level	IP65 IK08	Nut	H59 nickel plated brass
Rated Voltage	36V（DC）250V(AC)	Housing	PA66+GF20% nylon
Rated Current	1A（DC）5A(AC)	Light Source
Rated Power	180W（DC）1250W(AC)	Resistor	Metal film
Operating Temperature	-25℃~+85℃	Contact	AgCdO12

Push Button Switch Wiring Method:

There are two connection ways, as follows.

1. The normally open wiring way, press it, the load is energized, press it again, the load is blackout.

2. The normally closed wiring way, the product is energized, the load is energized, press down the push-button, the load is blackout.

FILN Pushbutton Switch Customization

With its wide range of applications, the push button key switch is suitable for use in electronics, appliances, automobiles, machinery, computers, access control systems, and more. Please refer to the picture below for a visual representation.

Related products:

Difference Between Keyed Switch and Push Button Switch

The keyed switch and the push button switch differ in operation and function.
The following are the main differences between them:

Different operation methods: Keyed switch requires the use of a key to operate, while push button switch only requires the push of a button. keyed switch usually requires the rotation of a key to change the switch position, while push button switch only requires the push or release of a button to switch the switch state.

Access restrictions are different: Keyed switches are usually equipped with two keys, one for daily use and one as a spare key or stored in the hands of two people, and only the correct key can be used to operate the switch. A push button switch, on the other hand, usually has no access restrictions, and anyone can push the button to change the switch state.

Different switch states: Keyed switches usually have two or more fixed positions, and each position of the internal parts corresponds to a different circuit state or function of the device. Turning the key toggles to a different position. The push button switch usually has two states: open when pressed and closed when released. However, there are many functions of push button switch, such as latching push button switch and momentary push button switch.

Different application areas: Keyed switches are commonly used in security systems, electronic devices, and automobiles where security control is required, such as access control systems, etc. Push button switches are commonly used in various applications, including electronic devices, machine control, lighting, etc.

In general, the main differences between a keyed switch and a push button switch are the mode of operation, access restrictions, switch status, and application areas. The push button switch is operated by pressing a button and is commonly used in a variety of applications.

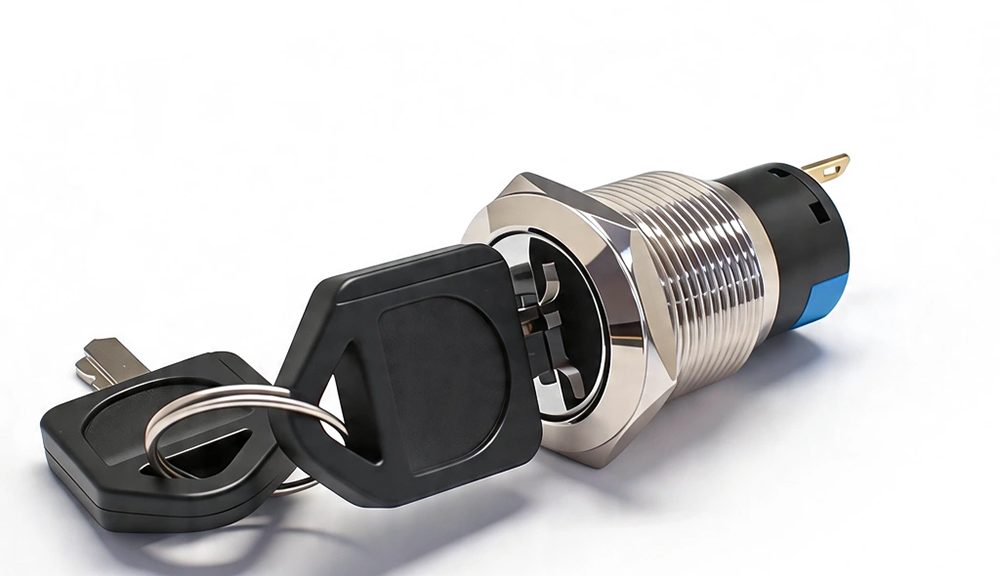

The Description of the 19MM Metal Round Keyed Switch

This metal keyed switch features a 19mm mounting diameter and operates as a self-locking type. It is designed for various applications and provides reliable functionality in harsh environments.

The switch has a rated voltage of 4A, accommodating AC/DC3V-220V. It offers excellent protection with an IP66/IK90 rating, ensuring resistance to water and high impact. The built-in waterproof sealing ring enhances its waterproof capabilities.

The base material, made of PA66, is known for its temperature resistance and flame retardant properties, making it suitable for demanding environments. The shell material options include stainless steel and copper-plated nickel.

The stainless steel variant employs durable 304 stainless steel, offering resistance to oxidation, effective flame retardancy, and a longer service life. On the other hand, the copper-plated nickel variant features an attractive appearance after plating treatment and is often used in test equipment and automation devices. It also provides cost-effectiveness compared to the other two materials.

The push button key utilizes silver contacts, ensuring excellent conductivity. The contact form options include 1NO1NC (single-pole, single-throw, and single-pole, double-throw) and 2NO2NC (double-pole, double-throw).

Description of the Function of the Metal Keyed Switch:

FILN keyed switch has the same two functions of self-locking and self-resetting.

Self-locking push button key means that if you turn the key with your finger, the contact point of the key will not return automatically and the machine is energized.

If the key is turned back, the push button switch will be closed and the machine will be powered off.

How to Get a Sample of Keyed Switch:

If you are interested in our keyed switch products or have specific requirements, we encourage you to inquire by emailing us at inquiry@cnylin.com.cn. Our dedicated sales team will promptly respond to your email, providing you with the best services and competitive prices.



For customers with smaller purchase quantities, you can conveniently place your order on our website at www.cnfiln.com. Rest assured that we will arrange same-day delivery for your order.

Now, let’s discuss the available payment methods for your purchase. Our company accepts several payment options to accommodate your needs. You can choose from PayPal, T/T (bank transfer), or West Union for completing your payment.

We strive to provide a seamless purchasing experience for our valued customers, and we look forward to serving you with our high-quality keyed switch products. Feel free to reach out to us with any further inquiries or specific requirements you may have.

How to Ensure the Quality of the Keyed Switch?

The waterproof push-button switch of Filn had passed the certifications of UL, CE, RoSH, ISO90001. Besides, it also has a professional push-button switch testing laboratory, which can ensure the product’s quality.

Filn has 11 years of experience in push-button producing and also has a professional research and development technology team.

Except for this push button key, Filn also produces other different types of push-button switches, such as indicator lights, rocker switches, smart touch screens, etc. If you want to know more, please visit our homepage.

Product Drawings:

A rotary switch is a type of electrical switch that uses a rotating mechanism internally to select different positions or electrical contacts. It usually consists of a central shaft with multiple positions or indentations and a rotatable actuator or knob.

FILN is a pushbutton switch manufacturer that differs from traditional pushbutton switches in that it does not have a pushbutton on the surface and is rotatable to select its function.FILN can provide two-position and three-position rotary switches with lights.

Product Parameters:

Production Series	FLM19-11RE	Light Guide Button	PC plastic
Button Shape	round	Actuator	304 Stainless steel
Button LED Color	Red blue green yellow white	Housing Sleeve	H59 nickel plated brass/304Stainless steel
Mechanical Life	The 500 thousand time	Button Pin	H62 copper alloy
Electrical Life	The 100 thousand time	Rubber Ring	SIL silica gel
Protection Level	IP65 IK08	Nut	H59 nickel plated brass
Rated Voltage	36V（DC）250V(AC)	Housing	PA66+GF20% nylon
Rated Current	5A（DC）5A(AC)	Light Source	LED
Rated Power	180W（DC）1250W(AC)	Resistor	Metal film
Operating Temperature	-25℃~+85℃	Contact	AgCdO12

Types of Rotary Switch：

Rotary switches come in various types, each designed for specific applications and with different configurations. Here are some common types of rotary switches:

Classic rotary switch:

The use of a square panel, clearly marked gear, the switch as a whole is heavy, held in the hand is very weighty, suitable for installation on large equipment use.

Button Type Rotary Switch:

The appearance of a traditional metal pushbutton switch, using a rotating head instead of the keycap of the switch, with lights on the surface, can have five different colors, with two and three gear options.

3 Way Push Button Switch:

FILN is one of the professional Push Button Switch manufacturers in China, FILN can offer you the most attractive price. Just provide the requirements of 3 way push button switch, we can find it all for you.

Comparison of Rotary Switch Features:

Here’s a comparison table showing the key differences between a rotary switch with a 2-way push button switch and a rotary switch with a 3-way push button switch:

Aspect	Rotary Switch with 2-Way Push Button Switch	Rotary Switch with 3-Way Push Button Switch
Number of Positions	2	3
Number of Contacts	2	3
Functionality	Provides two selectable options	Provides three selectable options
Terminal Configuration	Single-pole/double-throw (SPDT)	Single-pole/double-throw (SPDT)
Actuation Method	Rotary movement combined with push button	Rotary movement combined with push button
Typical Applications	Simple on/off control	Selection between three modes/options
Examples	Power on/off switch, toggle switch	Fan speed control switch, mode selector

Note: This table listing the differences between these rotary switches is a general overview.

Different products, each with specific features and applications vary depending on the brand, design and intended use of the switch. filn supports custom switches to meet customer needs.

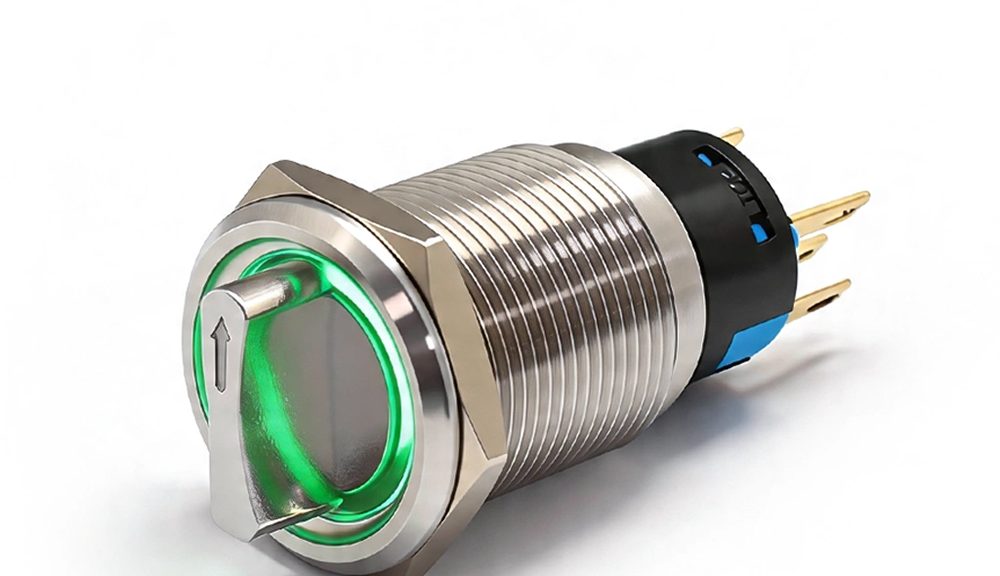

Rotary Switch’s 3-way Pushbutton Switch is Introduced:

This 19mm 3 way push button switch is independently researched and developed by us. According to market demand, many customers need to use the original 2 way selection buttons. We developed the 3 way, which is also illuminated with an arrow. It is more beautiful and elegant after it is lit. It is widely used in cars and motorcycles.

Through the understanding of customers and the market, this newly designed button meets five requirements:

1. The opening is 19mm, which requires a 2NO2NC switch combination, which symbolizes the customer’s requirements for multiple circuit combinations.

2. A variety of beautiful and elegant button heads, built-in LED, so that it lights up more beautifully.

3. Multi-color optional, multi-voltage meets the voltage standard of the national market.

4. Built-in waterproof structure to meet outdoor application scenarios.

5. The shell can be made of 316 stainless steel for better corrosion resistance and durability.

On these foundations, we have greatly shortened the development cycle, and the products can be delivered to the market as soon as possible.

For this reason, FILN decided to develop a cost-effective normally on push for him for free.

1.  This customized 3 way push button switch adopts 304 stainless steel shell material, so the stainless steel parts are made by high-precision lathes, and the surface is polished, which shines in the light or outdoor sunlight, and the shell accepts 316 Stainless steel customization.

2.  This 3 way push button switch adopts a 19 mm panel opening design, the total length of the shell is controlled at 33 mm, and the button on the top is protruding with an arrow indicator, which is easier to operate.

3.  The button of this 3 way push button switch is purchased from an environmentally friendly high-translucent PC, built-in LED, and the light is very beautiful when it lights up. Especially at night, the light is soft and not dazzling.

4.  The tail adopts a 2.8×0.5mm quick connection terminal, which can be directly plugged into the female seat, or can be connected by direct welding wire, which is simple and fast.

How to Wire the 3 Way Rotary Switch:

When it comes to connecting a 3-way push button rotary switch, there are a few important considerations. This particular switch features a built-in LED structure, where the LED lamp bead is relatively independent of the switch pin. You have the option to connect the two LED lamp pins individually or connect one LED lamp pin with a switch pin to control the load and LED lights simultaneously.

The switch pins are designated as 1NO1NC and 2NO2NC. If the pins are normally closed, you don’t need to connect them. Additionally, the two sets of switches can be combined if desired.

Now, addressing the question about waterproof performance, this rotary switch is equipped with a built-in waterproof structure and a dedicated waterproof device. It is designed to withstand outdoor environments and conditions with fog.

Lastly, in terms of certifications for export to Europe, this rotary switch has obtained CE certification, ensuring its compliance with European safety, health, and environmental standards. Furthermore, it is compliant with the latest RoHS 3.0 directive, indicating that it is free from restricted hazardous substances.

Overall, this rotary switch offers versatile connectivity options, waterproof functionality, and the necessary certifications for European export.

Q & A Content of 3-way Rotary Switch



1. What is the shelf life of this 3 way push button switch?

–  The shelf life of this button is 5 years. If you want better quality, FILN can customize it for you, and the service life can be 500,000 times. If you encounter any problems during the warranty period, you can write an email to contact FILN technical after-sales group inquiry@cnylin.com.cn, we will contact you immediately within 12 hours to solve any of your product quality problems and solutions.

2. What is the protection level of this 3 way push button switch?

–  We use a waterproof ring design inside this button, with a waterproof rating of IP65.

3. What is the current of this 3 way push button switch?

–  The maximum current of this button is 5A 250VAC. If it is higher than 5A, its service life will be very short, and it may burn out in about 1000 times. If you have a large current button demand, please contact us. We are currently developing high-current products. The highest can reach 16A.

4. What is the LED lamp voltage of this 3 way push button switch?

–  At present, the safe voltage of 12V is mostly used in the market, and there are more countries in Asia that use 24V. If customers need to customize high voltage, such as 110v, 220v, we can also produce according to customized requirements.

5. What is the combination of this switch?

–  This one can produce 1NC1NO, 2NO2NC.

6. How to buy this 3 way push button switch?

–  If you use less, you can go directly to FILN’s AliExpress website to buy, https://filn.aliexpress.com/store/414696, you can choose 15-20 days delivery express delivery, so that the freight is cheaper.

–  If you are in a factory and use this button switch extensively, you can write an email to contact the sales staff of FILN company sales2@filn.com.cn, the FILN button switch sales team has more than 10 years of sales experience in foreign trade and Service, we will get back to you within 24 hours.

7. Can FILN company customize the buttons we need that are not available in the market?

–  FILN company has more than 10 professional button R&D engineers who specialize in customizing various types of button switches with different functions. As long as you need, FILN company can provide various customized services. Moreover, it only takes 30 days for a new button from your idea to research and development design, the development of the abrasive tool to the completion of the finished product sample. FILN company can also provide OEM services, can be marked with your trademark and so on. As long as you pay for the button switch and research and development costs, FILN will only provide you with exclusive use and sales, which can greatly enhance your competitiveness and profit.

8. Is there a pen button with a larger opening size?

–  Currently, we are researching and developing a 22 mm 3 way push button switch with rotation. Once completed, we will put it on the market after quality verification.

9. How about the price of this 3 way push button switch?

–  This question is a very interesting question, you can only contact us for this question, but we promise to give you unexpected surprises, please contact us immediately inquiry@cnylin.com.cn.

How Much Does a 3-Way Push Button Switch Cost?

When it comes to purchasing a 3-way push button switch, the price can vary significantly depending on factors such as the model, brand, and specific features. Understanding the pricing structure is crucial to ensure you get the best value for your money. In this article, we will explore the different price ranges offered by various suppliers and provide insights to help you make an informed decision.

Price Comparison Chart

Let’s take a look at the price distribution of 3-way push button switches from different suppliers:

Supplier	Minimum Price	Maximum Price	Specific Model Price
Home Depot	$10	$150	–
Made-in-China	$0.01	$100	–
All Electronics	–	–	$0.70

Home Depot: A Wide Range of Options

Home Depot offers a broad range of 3-way push button switches, catering to a wide audience. Their prices start from as low as $10 and go up to $150. With such a diverse price range, Home Depot is a reliable source for finding a switch that suits your budget and requirements.

Made-in-China: Affordable Choices

If you’re looking for more affordable options, the Made-in-China platform is worth considering. They provide 3-way push button switches with prices ranging from as low as $0.01 to a maximum of $100. However, it’s important to note that the quality and functionality of switches from this platform may vary significantly. Thorough research and customer reviews can help you make an informed decision.

All Electronics: Specific Model at a Bargain Price

For those who have a specific model in mind, All Electronics offers a 3-way push button switch with a 1/4″ bushing and a red plastic button for an incredibly low price of just $0.70. This option is ideal if you have specific requirements and want to save money without compromising on quality.

Conclusion: Research and Budgeting

The market for 3-way push button switches offers a diverse range of prices. To ensure you make the best purchase decision, it’s essential to thoroughly research and cross-reference your needs with your budget. Consider factors such as quality, functionality, and customer reviews before making your final choice.

Remember, understanding the pricing structure and exploring different suppliers can help you find the perfect 3-way push button switch that meets your requirements while staying within your budget. Happy shopping!

Note: Prices mentioned in this article are subject to change and may vary depending on the time and location of purchase.
