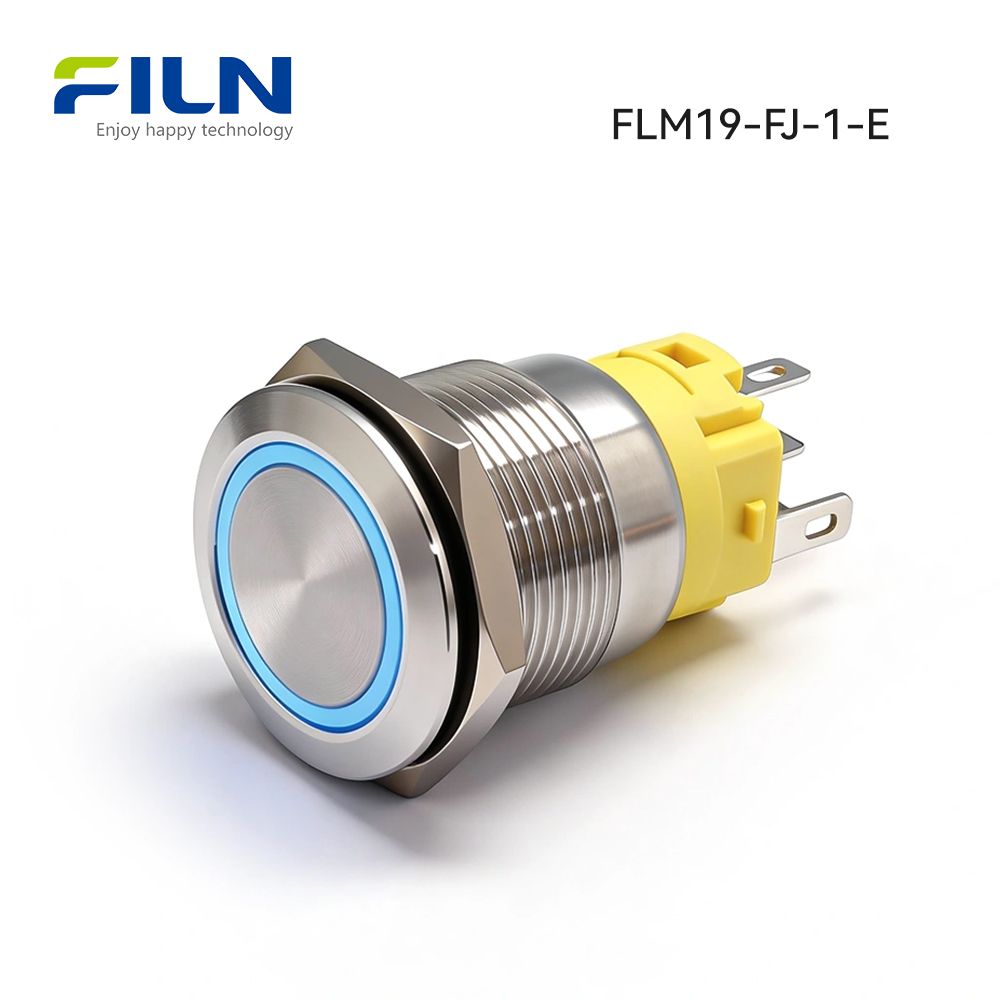

19MM LED Normally Closed Momentary Switch

  • Name:normally closed momentary switch
  • Model:FLM19-11FEJ
  • Head Type: Flat Head
  • Mounting Size: 19mm
  • Switching Functions: Momentary
  • Contact Configuration: 1NO1NC
  • Rated Voltage: 5A
  • Voltage Options:2V, 3V, 6V, 12V, 24V, 120V, 220V, 380V
  • Indicator Light: Yes
  • Color: Red, Blue Green Yellow, White
  • Material: ABS plastic,Copper, Stainless steel, Zinc alloy
  • Download Certification:CECCC, ROSH, IP67, UL
  • Waterproof grade:IP67
  • Wire specification: AGW22
  • Email: inquiry@cnylin.com.cn
  • Download PDF: 19MM LED Latching 240V Push Button Switch

Product Drawing

240V push button switch

Normally closed momentary switch is a type of electronic switch that is typically used in electronic circuits or control systems.

Normally closed momentary switches are closed when not pressed, open briefly when pressed, and return to a closed state immediately upon release.

The basic principle of this type of switch is to use a spring or other mechanical structure that keeps the switch closed when no external force is applied.

When the switch is pressed by an external force, the mechanical structure releases and opens the switch, but as soon as the external force stops acting, the mechanical structure immediately returns to its original state, causing the switch to close again.

Product Parameters:

Production Series FLM19-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250V(AC) Housing PA66+GF20% nylon
Rated Current 5A(DC)5A(AC) Light Source LED
Rated Power 180W(DC)1250W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

How to wire a normally closed momentary switch with led?

normally closed momentary switch Circuit Configurations

In electrical circuits, how you wire a normally closed momentary switch can affect not only the operation of the switch itself but also connected devices. Here, we explain two different circuit configurations for a normally closed momentary switch, focusing on LED indicators and device operation.

Customization Advantages of FILN normally closed momentary switch

The FILN normally closed momentary switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

Why Customization is Important for normally closed momentary switch ?



Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN normally closed momentary switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.



  1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.



  1. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.



  1. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.
normally open momentary switch

Customizable Button Symbols



One of the most prominent features that can be customized in a FILN normally closed momentary switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.



  1. User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.



  1. Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.



  1. Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Voltage Options



Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.



  1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.



  1. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.



  1. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN normally closed momentary switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

What is a Normally Closed Momentary Switch and How Does it Work

A normally closed momentary switch is a switch that, in its default state, completes an electrical circui., allowing current to flow When actuated, the switch momentarily opens, interrupting the circuit, and then returns to its closed state once released This type of switch is commonly used in uses where a brief interruption of the circuit is required Here’s how a push-button switch works

Structure of Normally Closed Momentary Switch

The switch is constructed with contacts that are normally close., a spring mechanism, and an actuator When the actuator is pressed, the contacts are separated, opening the circuit momentarily

Applications of Normally Closed Momentary Switch

Common uses include emergency stop buttons, doorbells, and certain automotive functions Its design allows for controlled interruptions in a circuit

How to Wire a Normally Closed Momentary Switch

Wiring a normally closed momentary switch requires some understanding of its terminals and the circuit it will control Find more about push-button switches

Identifying the Terminals A normally closed momentary switch typically has three terminals: Common (C), Normally Closed (NC.,. and normally open (no)

The wiring is connected to the C and NC terminals

Wiring Procedure The wiring process includes connecting the power source to the common terminal. and the load to the normally closed terminal

The switch will allow current to flow until it is actuated

What’s the Difference Between Normally Closed and Normally Open Momentary Switch

The main difference between a normally closed and a normally open momentary switch lies in their default states Check out various push-button switches here

Normally Closed Momentary Switch

This switch type completes the circuit in its default state When pressed, the circuit is momentarily open

Normally Open Momentary Switch Conversely, a normally open momentary switch opens the circuit in its default stat.,. and when pressed, it momentarily completes the circuit

Where to Buy a Normally Closed Momentary Switch

Finding the right normally closed momentary switch requires understanding the specific requirements of your application Explore momentary switch options

Online Vendors

Several online retailers and manufacturers specialize in switches, offering a variety of options

Physical Stores

Many electronics and hardware stores carry a selection of normally closed momentary switche., catering to various needs

How to Test a Normally Closed Momentary Switch

Testing a normally closed momentary switch ensures its functionality This process can be done using basic tools like a multimeter Learn more about the momentary push-button ignition switch

Visual Inspection

Start by visually inspecting the switch for any obvious signs of damage or wear

Continuity Test

Using a multimeter, conduct a continuity test With the switch in its default state, there should be continuity, and when pressed, the continuity should break momentarily

Can a Normally Closed Momentary Switch be Used as a Normally Open Switch

In some situations, a normally closed momentary switch can be used as a normally open switch Find various types of momentary switches

Understanding the Terminals By connecting the wires to the Normally Open (NO). and Common (C) terminals instead of the NC, the switch can function as a normally open switch

Considerations. and Limitations This modification may not be suitable for all use., and understanding the specific requirements is key.



19MM LED Normally Closed Momentary Switch

How to Replace a Normally Closed Momentary Switch

Replacing a normally closed momentary switch involves careful observation of the existing wiring and connections Find waterproof momentary switches here

Disconnect Power

Always start by disconnecting power to the circuit to prevent accidents

Removing the Old Switch

Carefully remove the old switc., noting the connections to ensure proper installation of the new switch

Installing the New Switch Connect the new switch according to the noted connection.,. and restore power to test its functionality

What Are the Common Issues with a Normally Closed Momentary Switch

Understanding common issues with a normally closed momentary switch can help in troubleshooting and maintenance Discover more about normally closed momentary switches

Contact Wear and Tear

Over time, the contacts within the switch may wear out, leading to malfunction

Debris and Dirt

Accumulation of debris and dirt can hinder the switch’s operation, necessitating regular cleaning

Electrical Issues

Faulty wiring, loose connections, or other electrical problems may lead to erratic behavior of the switch Throughout this guide, we have explored the various aspects of a normally closed momentary switch, including its working principle, uses. differences from a normally open momentary switch, and more Understanding these aspects helps in selecting, installing, and maintaining the switch for various uses

How to Choose the Right Normally Closed Momentary Switch for Your Application

Choosing the right normally closed momentary switch depends on the specific needs and requirements of the application Explore various push switch options with terminal pins

Understanding the Application Requirements

Identify the voltage, current, and environmental conditions the switch must withstand This includes factors like temperature, moisture, and dust resistance

Comparing Specifications

Compare various switch options based on their specifications to find a suitable match Consider aspects like actuation force, travel distance, and material

Consult with Experts Sometime., consulting with an industry expert. or manufacturer can provide insights into the best options for your specific needs

How to Maintain a Normally Closed Momentary Switch

Proper maintenance of a normally closed momentary switch ensures longevity and optimal performance Discover push-on/off switches here

Regular Cleaning

Keeping the switch free from dust and debris is key Regular cleaning with appropriate materials is beneficial

Periodic Inspection

Conducting regular inspections to detect any signs of wear or malfunction can prevent unexpected failures

Professional Maintenance

In some cases, professional maintenance services may be required to ensure that the switch functions properl., especially in critical uses

What are the Safety Considerations When Using a Normally Closed Momentary Switch

Safety considerations are paramount when dealing with electrical components like a normally closed momentary switch Find miniature push-button switches

Handling Precautions Avoid handling the switch with wet hands. or in damp environments to minimize the risk of electric shock

Installation Safety

Proper installation according to the manufacturer’s guidelines is crucial to avoid potential hazards

Compliance with Regulations

Ensure that the switch complies with relevant standards and regulations Non-compliance may pose safety risks and legal issues

What are the Available Variants of Normally Closed Momentary Switches

There are various variants of normally closed momentary switches designed for different uses Check out miniature on/off push-button switches

Micro Switches

Normally closed micro switches are miniature switches used in precise uses

Waterproof Switches

These are designed for environments where water or moisture exposure is likely

Momentary Push Button Switches

These include different sizes, shapes, and materials, catering to diverse needs

How to Understand the Symbols and Diagrams of Normally Closed Momentary Switches

Symbols and diagrams provide valuable information about the switch’s operation and connections Learn about metal momentary push buttons

Recognizing Symbols Understanding the standardized symbols for normally closed, normally ope.,. and common terminals is crucial for correct installation and usage

Reading Diagrams

Diagrams like wiring schematics can guide the correct wiring and connections Being able to read and interpret these is key for safe and effective use

Conclusion: Enhancing Your Knowledge of Normally Closed Momentary Switches

We have delved into the varied aspects of normally closed momentary switches, including their operation, selection, maintenance, safety considerations, and more From understanding the distinction between normally open. and normally closed switches to recognizing symbols and diagrams. this full guide provides valuable insights Whether you are a professional, hobbyist, or curious learner, having this knowledge enables informed decisions and safe practices Find a wide variety of push-button switches here

Normally Closed Momentary Switch Prices in the USA

In today’s market, the normally closed momentary switch holds significant importance for various applications. Based on recent search results, I’ve delved into understanding the price dynamics of this product across multiple retail platforms in the USA.

Overview

Different suppliers offer varying prices based on model, features, and specifications. Here are some insights from notable platforms:

Home Depot

Home Depot caters to a broad spectrum of consumers by offering switches that range anywhere from $10 to a whopping $150.

Amazon

When you dive into Amazon’s inventory, these switches are more affordable. They start from around $5 and can go up to $20 or more.

Made-in-China

The story is different with Made-in-China. The prices here start as low as $0.01 and might soar up to $100, making it both the cheapest and one of the most expensive platforms.

AliExpress

AliExpress is another affordable option, especially for those seeking cost-effective solutions. The price starts from about $0.10 and barely crosses the $1 mark.

Please note: These prices are approximate and subject to change. Always consult the specific retailer or supplier for the latest pricing details.

Conclusion

Choosing the right switch and supplier is pivotal, especially when budget constraints are in the picture. It’s essential to gauge the market, understand the specifics, and make an informed choice.

Table (Description)

SourceMinimum PriceMaximum PriceHome Depot$10$150Amazon$5$20Made-in-China$0.01$100AliExpress$0.10$1

The table presents a clear comparison of the minimum and maximum prices for normally closed momentary switches from different sources. It allows for easy reference and comparison of prices.

References

1: Home Depot. Link to Home Depot
2: Amazon. Link to Amazon
3: Made-in-China. Link to Made-in-China
4: AliExpress. Link to AliExpress

Normally closed momentary switch VS momentary pushbutton switch

This type of switch is commonly used in applications where a brief circuit connection or disconnection is required.

For example, when the power button on a computer case is pressed, it triggers a normally closed momentary switch that causes the power circuit to open, allowing the computer to boot up.

When the button is released, the switch immediately reverts to the closed state to keep the power circuit connected.

In summary, a normally closed momentary switch is a switch that closes when not pressed, opens temporarily when pressed, and closes again immediately upon release.

Here’s a table outlining the similarities and differences between a Normally Closed Momentary Switch and a Momentary Push Button Switch:

Normally Closed Momentary Switch Momentary Push Button Switch
Normally closed state Yes No
Normally open state No Yes
Operation Press to momentarily open Press to momentarily close
Contact configuration Normally closed (NC) Normally open (NO)
Reset mechanism Spring or mechanical structure Spring or mechanical structure
Typical use Interrupting current flow Completing current flow
Application examples Emergency stop buttons, Doorbells, keyboards,
safety switches game controllers

These are the main similarities and differences between a Normally Closed Momentary Switch and a Momentary Push Button Switch.

19mm Normally Closed Momentary Switch

Shell Material: The sleeve shell of the FLM19-11FJZ Normally Closed Momentary Switch can be made of 304 stainless steel, nickel-plated brass, or black zinc aluminum alloy.

Each material has its advantages and suitable applications. The 304 stainless steel provides high corrosion resistance and stability, making it ideal for harsh environments.

For even harsher conditions like seaside areas, the switch can be customized with 316 stainless steel. Nickel-plated brass offers cost-effectiveness and a yellowish, brighter appearance.

Zinc-aluminum alloy allows for electroplating in various colors, making it suitable for electrical appliances requiring black buttons.

Use scenarios of button switches
  • Mounting Aperture: The FLM19-11FJZ has a 19mm mounting aperture. To install the switch, you can open a 19.2mm or 19.5mm mounting hole on the panel. A waterproof ring can be added, and then the nut can be screwed on tightly to ensure waterproofing.
  • Customizable Head: The head of the switch can be customized with various symbols and patterns. When activated, the button switch illuminates. This feature is commonly used in modified cars.
  • Indicator Light: The indicator light of the switch can be produced in six colors, including red, yellow, green, blue, white, and orange. It can also be customized to other colors based on customer requirements. Additionally, the indicator light can have different flashing options, such as single flash, two-color flash, and three-color flash.
  • Pin Configuration: The FLM19-11FJZ Normally Closed Momentary Switch with a 19mm LED Latching button usually has 5 pins. For two-color switches, there are 6 pins, and for three-color switches, there are 7 pins.
  • Customizable Voltage: The 19mm LED Latching push button switch can be customized to various voltages according to specific needs. The voltage can be adjusted by switching the resistance, allowing for options such as 2V, 3V, 12V, 24V, 110V, 120V, 220V, and 380V.
Button functions are diverse
  • Mounting Aperture: The FLM19-11FJZ has a 19mm mounting aperture. To install the switch, you can open a 19.2mm or 19.5mm mounting hole on the panel. A waterproof ring can be added, and then the nut can be screwed on tightly to ensure waterproofing.
  • Customizable Head: The head of the switch can be customized with various symbols and patterns. When activated, the button switch illuminates. This feature is commonly used in modified cars.
  • Indicator Light: The indicator light of the switch can be produced in six colors, including red, yellow, green, blue, white, and orange. It can also be customized to other colors based on customer requirements. Additionally, the indicator light can have different flashing options, such as single flash, two-color flash, and three-color flash.
  • Pin Configuration: The FLM19-11FJZ Normally Closed Momentary Switch with a 19mm LED Latching button usually has 5 pins. For two-color switches, there are 6 pins, and for three-color switches, there are 7 pins.
  • Customizable Voltage: The 19mm LED Latching push button switch can be customized to various voltages according to specific needs. The voltage can be adjusted by switching the resistance, allowing for options such as 2V, 3V, 12V, 24V, 110V, 120V, 220V, and 380V.

Wiring Guide for 5-Pin Normally Closed Momentary Switch with Indicator Light

When it comes to connecting a 5-pin Normally Closed Momentary Switch with an indicator light, the following wiring configuration can be followed:

  1. Identify the pins: The switch will have five pins labeled as C, NC, NO, and two lamp pins (L1 and L2).
  2. Common connection: Connect the common pin (C) to the common contact or power source in your circuit.
  3. Normally Closed connection: Connect the normally closed pin (NC) to the desired component or circuit that you want to interrupt or deactivate when the switch is pressed.
  4. Normally Open connection: Connect the normally open pin (NO) to the desired component or circuit that you want to activate or complete when the switch is pressed.
  5. Indicator light connection: The two lamp pins (L1 and L2) are used to connect the indicator light. These pins are typically located on either side of the NO pin. Connect one terminal of the indicator light to one of the lamp pins (L1 or L2), and the other terminal to the positive terminal of your power supply. It’s important to ensure the indicator light’s voltage matches your power supply voltage.
  6. Polarization: For the indicator light, there is no specific positive or negative polarity. It can be connected in either orientation.

Note: It is critical to verify the specific pinout and configuration of your 5-pin normally closed momentary switch, as this may vary between manufacturers or models. filn recommends that you always consult the manufacturer’s data sheet or wiring diagram for accurate and detailed instructions.

When working with electrical connections, please remember to take appropriate safety precautions and ensure that switches and indicators are compatible with the voltage and current requirements of your circuit.

Button wiring diagram

FILN is a Professional Manufacturer of Push Button Switches

ILN is an experienced company with over 20 years of production expertise and more than 10 years of foreign trade experience. We specialize in manufacturing a wide range of waterproof products, including Normally Closed Momentary Switches, waterproof indicator lights, waterproof push button switches, and waterproof rocker switches.

Our Normally Closed Momentary Switches are available in various sizes, ranging from 12mm to 40mm, catering to the diverse requirements of different customers across various applications.

To expand our market presence, FILN has been committed to enhancing our certifications. Currently, our 240V Normally Closed Momentary Switch series has achieved UL, RoHS, CE, and other certifications. This progress has positioned us favorably in the button market.

In addition to our product offerings, we prioritize customer satisfaction. If you are interested in our Normally Closed Momentary Switches or have any questions or ideas, please don’t hesitate to contact us at inquiry@cnylin.com.cn. We guarantee a prompt response within 12 hours of receiving your email.

We look forward to serving you and meeting your requirements with our reliable and high-quality Normally Closed Momentary Switches.

certificate

Where can I buy a Normally Closed Momentary Switch for 19MM?

If you need to customize the buttons or the quantity is relatively large, you can email us directly. We will give you a complete design plan and a reasonable price. Besides, we will design a reasonable delivery date according to your needs.

If you need a sample test, FILN will provide a button sample for you to test for free.

If you need a small number of button switches or the time is tight, you can place an order directly on www.cnfiln.com. We will ship it on the same day.

Free button samples

Inquiry Now
