19MM 3 Pins Waterproof Metal Push Button Stop Switch

Product Drawings:

push-button-stop-switch

A mushroom type pushbutton switch is an electrical switch as long as the appearance of the button is designed in the shape of a mushroom.

It is commonly used in industrial control panels and machinery, and this one combines a mushroom type switch with an emergency stop pushbutton switch.

The red metal mushroom head is more eye-catching and can be pressed immediately in case of emergency.

Product Parameters:

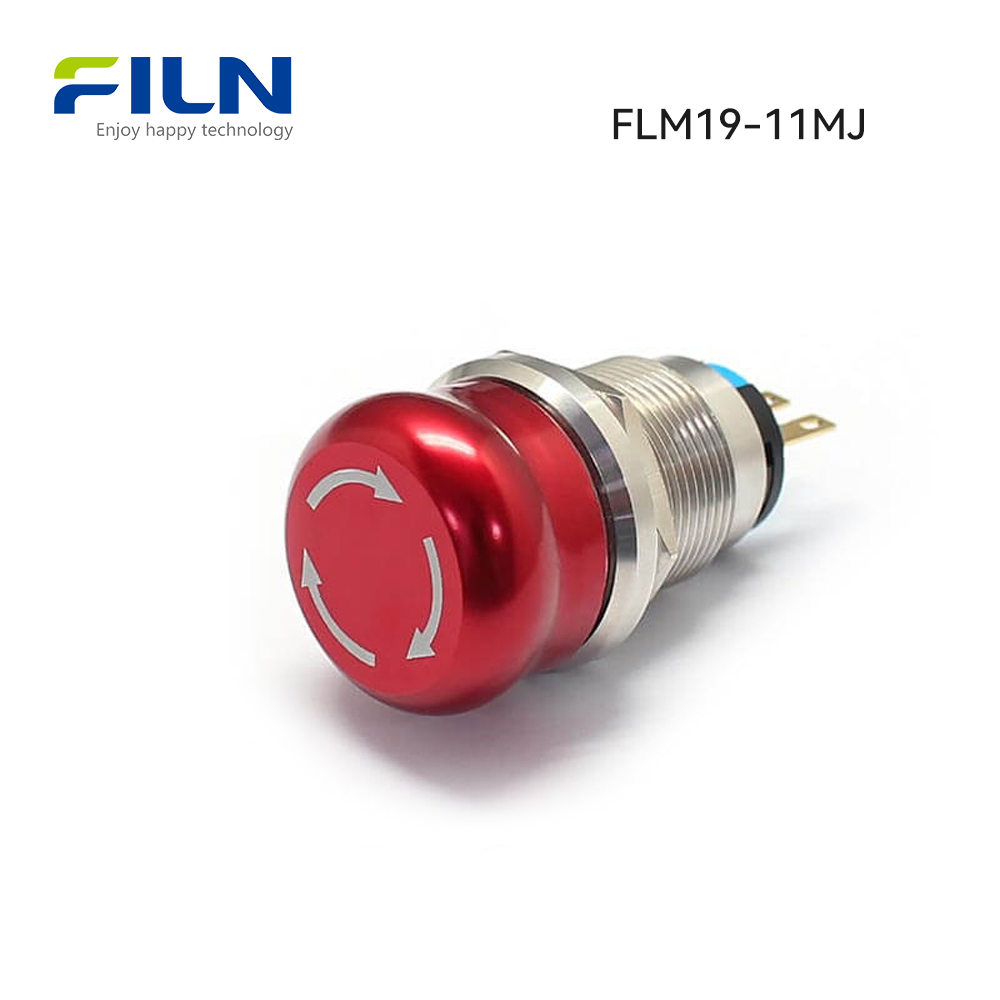

Production Series FLM19-11MJ Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC)250V(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)5A(AC) Light Source
Rated Power 180W(DC)1250W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

FILN Pushbutton Switch Customization

Advantages of Customization:

  • Personalization: Symbols tailored to individual preferences.
  • Customizable Voltage and Color: Tailored voltage and color options.
  • Diverse Wiring Options: Multiple wiring methods to suit diverse needs.
  • More Affordable Pricing: Cost-effective pricing choices.

Applications:

  • Industrial Applications
  • Home Automation
  • Automotive Integration
  • Medical Devices
  • Consumer Electronics
  • Public Infrastructure
  • Commercial Use
  • Security Systems
  • Hospitality Industry
  • Transportation Use

Related products:

Shape Features: The switch displays a round button with a mushroom-like appearance where it is mounted. Compared to standard buttons, it is usually larger in size, but there are also smaller ones like the page, which are more eye-catching in red.

Functional features: The FILN switch usually works on the principle of instantaneous action, which means that as long as it is pressed, it will remain in the position it was pressed. Once released, it returns to its original position. However, this mushroom pushbutton switch is an emergency stop switch that immediately pauses the device when pressed, and requires rotation to return to normal if you want to release it.

Contact Configurations: Mushroom pushbutton switches are available in a variety of contact configurations, including normally open (NO) or normally closed (NC) contacts. These contacts determine the electrical state of the switch when it is at rest (not pressed).

Enclosure Features: The entire switch is typically made of metal. This effectively protects the internal components from damage and increases durability and safety of the equipment in industrial environments.

Colors and Indicators: Mushroom-type pushbutton switches are usually available in different colors to indicate different functions or states. For example, a red button is usually associated with an emergency stop function. In addition, FILN switches can be manufactured with built-in indicators such as LED lights to provide visual feedback as long as there is a ring symbol, power symbol, and you can customize any symbol.

Mounting: These switches are designed for panel mounting and have a threaded ring or nut to secure them to the control panel or device.

The Description of the 19mm Metal Push Button Stop Switch

The description of the product is as below:

  • Regarding the mounting hole size of the product, the mounting hole size in the picture is 19mm. In addition to the size, it also has the size of 16mm, 22mm, 25mm.

  • The head shape of the product defaults to the mushroom head. The push button’s head can be also customized with large gear-shaped buttons.

  • The metal material of the product is mainly divided into stainless steel and zinc alloy. The shell material of the product is stainless steel, which has good corrosion resistance function. The red button of the product is zinc and aluminum alloy. The appearance can be plated in a variety of different colors.

  • The current of the product is 5A/ 250V AC. It can be used on the electrical product, which power is under 1000W.

  • Except for the product with 3 pins of 1NO1NC, we can also produce the product with 6 pins of 2NO2NC.

  • The mechanical life of the product is 50,000 times, and the warranty is 5 years. Filn will replace the problem product free of charge during the warranty period.

  • The waterproof rating of the product is IP65.
Emergency stop button switch

How to Wire the Push Button Stop Switch?

  1. When you press and lock the mushroom push button switch, the device will start. When you press the switch again and reset it, the device will stop.

The wiring method is as follows: First, connect the positive pole of the power to the C pin of the switch. Second, connect the negative pole of the power to the negative pole of the device. Third, connect the positive pole of the device to the NO pin of the switch.

  1. When you press and lock the mushroom push button switch, the device will stop. When you press the switch again and reset it, the device will start.

The wiring method is as follows: First, connect the positive pole of the power to the C pin of the switch. Second, connect the negative pole of the power to the negative pole of the device. Third, connect the positive pole of the device to the NC pin of the switch.

Using Mushroom Push Button Switch in Case

The product is a kind of main order control electrical appliances. When the machine is in danger, it will cut off the power through the emergency stop switch, stop the device operation to protect the safety of people and devices.

The “emergency stop switch” is usually a manually controlled pressing switch(red button), connects the control circuit of the device in series. Disconnecting the control circuit in an emergency to quickly stop the equipment to avoid abnormal operation.

19MM 3 Pins Waterproof Metal Push Button Stop Switch

Where to Buy the LED Push Button Switch?

You can purchase the product through offline email communication, the weight per piece is about 0.04KG. We will choose the delivery way according to customer’s quantity. The quantity per box is 50 pieces, and one carton has 1000 pieces. The product has no MOQ. We can supply samples free of charge for your test.

If you are interested in our product and need the samples, etc. Please contact us directly, our email address is inquiry@cnylin.com.cnFILN online shop

Online-e-commerce
