FILN Push Button Switch Types:Mini 12MM 2 PIN Momentary Switch

Product Drawings:

The variety of pushbutton switches is very rich.

There are normally closed pushbutton switches, normally open pushbutton switches, momentary pushbutton switches, locking pushbutton switches key switches, plastic pushbutton switches, metal pushbutton switches, etc.

Each type of pushbutton switch has its own unique appearance and use function, and you can purchase pushbutton switches according to your actual needs.

Product Parameters:

Push Button Switch Wiring Method:

Normally open wiring way, press the push button to energize the load and release it to power off the load.

The wiring way is as follows, connect the C pin to the positive pole of the power, connect the NO pin to the positive pole of the device, connect the negative pole of the device to the negative pole of the power.

FILN Pushbutton Switch Customization

With the development of the push button switch industry, push button switch types will become more and more abundant and can cover all aspects of society, people’s lives are already inseparable from these various push button switch types.

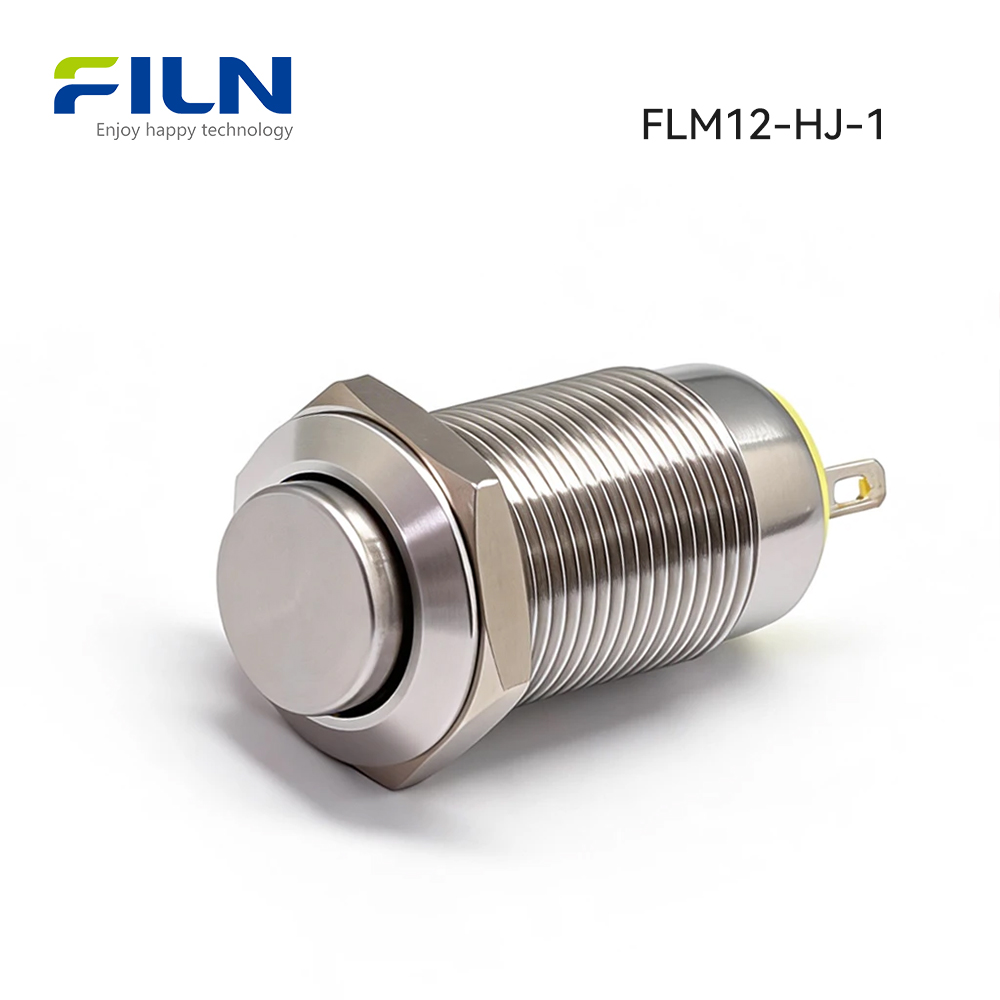

Push Button Switch Types-12MM Push Button Switch

The push button switch shown on the page it has a mounting hole size of 12mm. In addition to this, FILN has other mounting hole sizes such as 8mm, 10mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm, FILN has a full range of push button sizes.

The head shape of the momentary pushbutton switch is a high head. The main reason is that people in western countries have larger fingers, and since the product is a 12mm flat head button, their fingers cannot press the button hole.

The picture is simply a product with a high head. FILN also offers 12mm pushbutton switches with lights, such as ring-shaped pushbutton switches, those with power symbols, pushbutton switches with dots, and those with ring-shaped power symbols.

The metal push button switch types are available in brass, stainless steel, and zinc alloy materials. The cost of brass is relatively low, stainless steel is corrosion resistant, and the appearance of zinc alloy can be plated in a variety of different colors.

The plastic materials used are PC and nylon PA66, which can withstand temperatures up to 160 degrees.

push button switch types are different, the appearance effect is also different, as far as the push button switch with light, it can achieve red, yellow, blue, green, white five light colors, FILN can only do one color, 4 pins, 1NO function at present, but it can achieve self-locking and self-resetting function.

Different push button switch types have different wiring methods, the page of this button is 2-pin soldering method, FILN also has screw pin and direct lead and other wiring methods.

Information on the 12mm button:

How Push Button Switch Types Work and Their Applications

12MM push button switch is a kind of manual control main command apparatus. It is mainly used to issue operation commands to turn on or off the control circuit and control the operation of electromechanical equipment.
FILN button factory can produce different types of buttons such as normally open and normally closed.
The working principle of the button is very simple. For normally open contacts, the circuit is open until the button is pressed, then the normally open contacts are connected and the circuit is connected.
For normally closed contacts, the contacts are closed until the button is pressed, then the contacts are broken and the circuit is shunted. Due to the need to control the circuit, a button comes with multiple pairs of contacts that are used simultaneously.

Push button switch products are also widely used.
The first is small electrical equipment, including some kitchen equipment, such as coffee machine button switches, buttons for dishwashers, ice machine switches and so on.
There is also an outdoor use of equipment, such as outdoor power switches, large speaker switches and so on.
For people with strong hands, they can also do their own DIY and use this 12mm button in their creations.
FILN offers a variety of push button switch types, there is always something for you.

Buy Different Push Button Switch Types

If you are interested in a push button switch you can contact us directly, we will provide you with any switch you want according to your needs, including the size of the button, the function of the switch, the appearance of the button, the voltage of the button and the wiring method, etc.

If you are interested in a variety of buttons and want to try the actual installation effect of different push button switch types, you can place an order in our store, before placing an order store contact customer service, you can be provided with a discount code to experience more push button switch types.

Filn’s pushbutton switches have a competitive price in the same industry and a complete range of styles.We guarantee the quality of our products and have received many positive comments from customers at home and abroad.

FILN will continue to develop new push button machine switches to create a better image brand power of the company.

There are five professional production lines in FILN’s workshop, and there is no MOQ requirement for customers to place orders.

If you want FILN push button switch samples, please contact us. inquiry@cnylin.com.cn.
