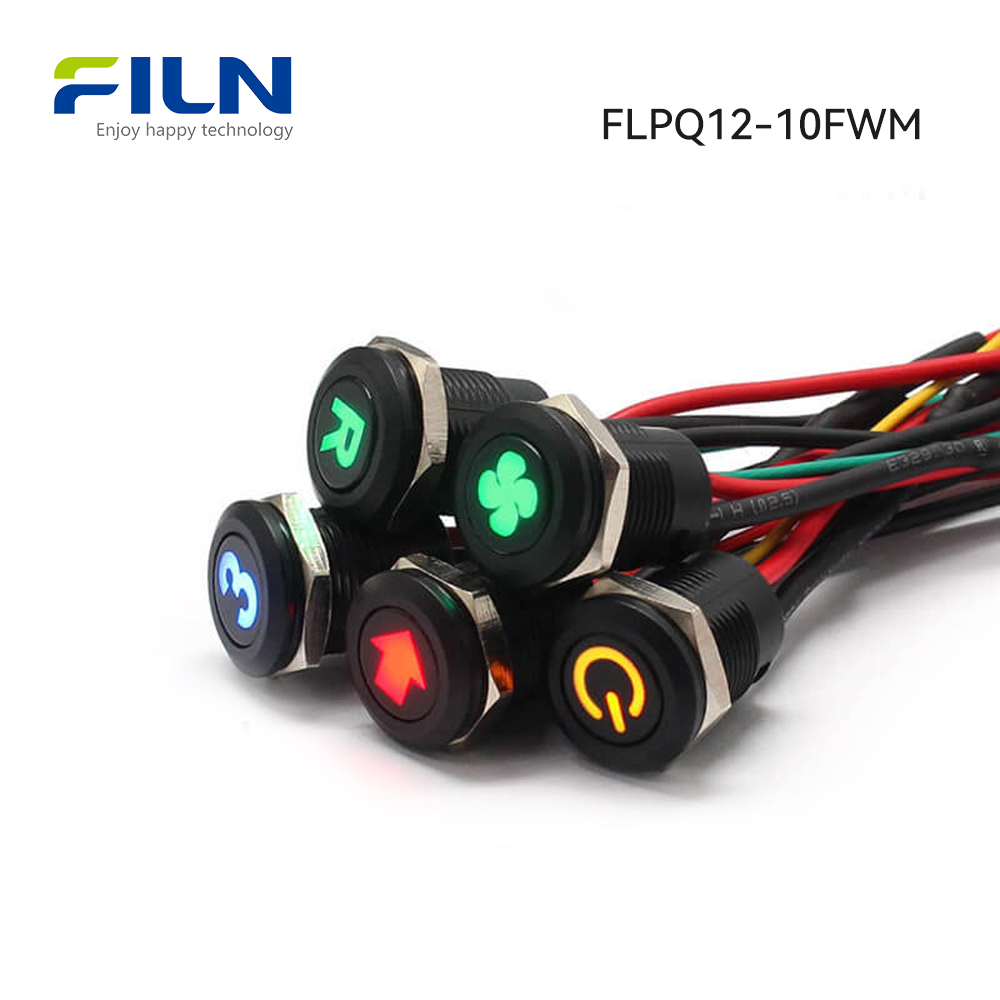

12MM RED LED CUSTOM 12v PUSH BUTTON SWITCH

Product Drawing

Product Parameters:

How to wire a 12v push button switch with led?

12V Push Button Switch Circuit Configurations

In electrical circuits, how you wire a 12V push-button switch can affect not only the operation of the switch itself but also connected devices. Here, we explain two different circuit configurations for a 12V push-button switch, focusing on LED indicators and device operation.

12V PUSH BUTTON SWTICH draw Graph One: LED Off When Idle, Device Off

In the first setup, the LED light on the push-button switch is off under normal conditions, and the connected device does not operate unless the button is pressed.

Wiring Diagram

1. Power positive (12V) connects to Button Switch Wire 1
2. Button Switch Wire 2 connects to LED positive
3. LED negative connects to Device positive
4. Device negative connects to Power negative

Explanation

1. Under normal conditions, i.e., when the button is not pressed, the circuit remains open. This means no power flows through the LED or the device.
2. Once the button is pressed, the circuit closes, causing the LED to light up and the device to operate.
3. It appears that the device and LED are wired in series in this configuration.

Considerations

1. This configuration ensures that the device only operates when explicitly turned on.
2. The LED serves as an indicator that the device is operational.
3. You must press the button to initiate any activity, which can be an additional safety feature.

12V PUSH BUTTON SWTICH draw Graph two : LED On When Idle, Device Off

In the second setup, the LED light on the 12V push-button switch is on under normal conditions, but the connected device does not operate unless the button is pressed.

Wiring Diagram

1. Power positive (12V) connects to both Button Switch Wire 1 and LED positive
2. Button Switch Wire 2 connects to Device positive
3. Power negative connects to both LED negative and Device negative .

4. Explanation

5. In this configuration, the LED remains on as it is directly connected to the power supply.
6. However, the device remains off under normal conditions as it is only connected via Button Switch Wire 2.
7. The device and the LED appear to be wired in parallel in this setup.

Considerations

1. This configuration allows for constant illumination of the LED, serving as a ready indicator.
2. Pressing the button completes the circuit for the device, making it operational while the LED stays on.
3. This setup could consume more energy as the LED is always on.

Both circuit setups are viable options depending on your needs, but they offer different advantages and disadvantages. Knowing how the 12V push-button switch operates in each setup helps you choose the right configuration for your application.

Customization Advantages of FILN 12v Push Button Switch

The FILN 12mm push button switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

 Why Customization is Important for 12mm Push Button Switches?

Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN 12v push button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.

1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.

2. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.

3. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.

Customizable Button Symbols

One of the most prominent features that can be customized in a FILN 12v push button switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.

1. User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.

2. Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.

3. Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Voltage Options

Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.

1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.

2. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.

3. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

Customizable Button Connectors

The FILN 12v push button switch also offers customizable button connectors, making it easier for customers to use the switch in their unique setups.

1. Ease of Installation: Custom connectors can make the installation process simpler and quicker, saving both time and money.

2. System Compatibility: Different systems may require different types of connectors. Customization ensures that the push button switch can be integrated seamlessly.

3. Durability: The type of connector can also affect the durability of the switch, especially in harsh conditions.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN 12v push button switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

1.What Is a 12V Push Button Switch?

12V Push Button Switch is a specially designed electrical switch that operates at a voltage of 12V. Commonly found in a variety of machines and devices, this type of switch is particularly prevalent in automotive and marine applications.

From an electrical engineering perspective, the switch requires a 12V power source for activation and operation. If the supply voltage falls below 12V, the switch will not function correctly, which means that the corresponding device or machinery will not start or operate. Conversely, if the supply voltage exceeds 12V, the switch, along with any LEDs or other sensitive components on it, might get damaged.

From a user experience perspective, 12V push button switches are generally designed to be user-friendly and easy to operate. They are commonly found in vehicles for horns, lighting, and other electronic devices, primarily because these devices also typically operate on a 12V power source.

Applications of 12V Push Button Switches

12V push button switches are predominantly used in electronic devices for vehicles and boats. The most common applications include light controls, horns, window lifters, and other auxiliary devices. As these devices usually run on a 12V power supply, a 12V push button switch is a highly suitable choice.

In vehicles, these switches often serve as momentary switches. For instance, the horn of a vehicle is commonly controlled by a 12V momentary push button switch. This means that the circuit remains closed as long as you hold down the button, breaking the circuit once you release the button.

Besides transportation vehicles, these switches also find usage in other devices and applications. For instance, some types of household appliances, security systems, and portable electronic products may also employ 12V push button switches.

2.How to Choose the Right 12V Push Button Switch?

When it comes to selecting a 12V push button switch, several key factors need to be considered.

First, you’ll need to identify the type of switch you require: normally open, normally closed, or momentary. A normally open switch means that the circuit is open by default, and only closes when you press the button. In contrast, a normally closed switch works in the opposite way—the circuit is closed by default and opens when you press the button. A momentary switch closes the circuit when pressed and opens it when released.

Secondly, consider the installation method and size of the switch. Some switches require screw mounting, while others can be directly inserted into circuit boards. Ensure that the size of the switch you choose fits your application.

Next, consider the current and voltage specifications. Even though these switches are designed for a 12V power supply, different switches may have varying current capacities.

From a material and manufacturing quality perspective, high-quality 12V push button switches are usually made from durable materials like stainless steel or high-grade plastics to ensure long-term reliability.

Finally, consider any additional features of the switch, such as the presence of LED indicators, waterproof capabilities, and so on. These extra features may affect the price of the switch but could also provide added convenience for your application.

3.What Are 12V Push Button Switches Used For?

As previously discussed, 12V push-button switches are commonly utilized in automotive and marine applications. However, their usage is not limited to these sectors. These switches are versatile and find applications across various industries.

 Industries Using 12V Push Button Switches

 Automation Equipment Industry

In the automation equipment sector, 12V push-button switches are typically employed for controlling various types of machinery and automated processes. Their reliability and ability to handle certain levels of current and voltage make them highly suitable for applications requiring precision control and durability.

 Kitchen Appliances Industry

In the realm of kitchen equipment, these switches are commonly seen in ovens, toasters, and even in commercial kitchen setups. Their reliability and ease of use make them appropriate for applications where user interaction and safety are of paramount importance.

 Automotive Parts Industry

In the automotive parts sector, 12V push-button switches are frequently used across a range of components. These may include but are not limited to, controlling headlights, windshield wipers, and other auxiliary systems in cars and other vehicles.

 Energy Storage Industry

In the energy storage sector, particularly in contexts involving battery technology or renewable energy storage, these switches play a crucial role. They are generally used in the control circuits of battery management systems or interfaces of energy storage devices.

Home Appliances Industry

Last but certainly not least, 12V push-button switches are commonly used in various household appliances, like washing machines, vacuum cleaners, and electric fans. Their utility in these devices lies in their reliability and user-friendly design, making them the go-to choice for many manufacturers.

By considering these different industrial applications, it is clear that 12V push-button switches are not just limited to automotive or marine use, but have a much wider range of applications that impact various aspects of daily life.

5.How do push button switches work?

Here is the information about the self-locked and self-reset functions of the 12V push button switch.

6.How to install push button switch 12v?

The 12V push button switch can be installed using two different modes: thread style and buckle style.

For the thread style installation:

1. Place the push button switch on the panel where you want to install it.
2. Position a waterproof ring under the panel to provide protection.
3. Screw the copper nut onto the switch from the backside of the panel, tightening it to secure the switch in place.

For the buckle style installation:

1. Identify the appropriate mounting panel with a hole size of 12.2mm.
2. Simply insert the push button switch into the hole of the mounting panel.
3. The product’s design, featuring two ears at both sides, allows it to be fixed in panels ranging from 0.5mm to 3mm in thickness.
4. The buckle style installation is convenient and reduces the installation time required.

By offering the two installation modes, thread style and buckle style, users can choose the most suitable method based on their specific needs and preferences.

7.Production process of FILN button switch

1. The button head is assembled automatically using specialized equipment, enabling mass production through automation. This streamlined process helps in reducing costs and improving overall efficiency.
2. The assembly process involves placing the button’s head onto the wire base, followed by the installation of the LED. The assembled unit is then positioned on a fixture, which applies pressure to securely attach the head and base together.
3. After assembly, the product undergoes testing by placing it on a dedicated test bench. This testing includes checks for both power functionality and LED performance to ensure quality and reliability.
4. Once the product has passed the testing phase, it is placed in a box along with the corresponding lamp. Typically, packaging involves placing 100 pieces of the tested product into a single box, ensuring convenient storage, transportation, and distribution.

Through this optimized production process, the manufacturing of button switches is efficiently carried out, from automated assembly to rigorous testing and packaging.

8.How to purchase the 12V push button switch?

If you are looking for a factory to purchase a large volume of 12V push button switches or require customization, we can provide favorable pricing and tailored solutions. Please feel free to reach out to us via email at inquiry@cnylin.com.cn. We are pleased to offer free samples for testing purposes.

For customers with smaller purchase quantities and urgent timelines, you can conveniently place your order on our website www.cnfiln.com. We prioritize swift order processing and same-day delivery arrangements to ensure your needs are met promptly.

By offering options for both large-volume customization and smaller, time-sensitive orders, we aim to provide a seamless purchasing experience for our customers in need of a push button on off switch 12v.

9.Push button switch product drawings

Filn push button switch has obtained various certifications including UL, CE, ROHS, and ISO9001, ensuring the product’s quality and compliance with international standards. Apart from push button switches, Filn also manufactures a wide range of products including indicators, rocker switches, microswitches, and smart touch switches.

If you have any inquiries or questions regarding our push button switches, please don’t hesitate to contact us. We are committed to providing prompt and satisfactory responses. You can reach us via email at inquiry@cnylin.com.cn.

At Filn, we offer a diverse range of button switches to cater to different market needs, including various voltage options. Whatever your requirements may be, we are dedicated to providing you with suitable solutions.

By emphasizing our certifications, product range, and prompt customer support, we strive to establish trust and confidence among customers seeking 12V push button switches and related products.
