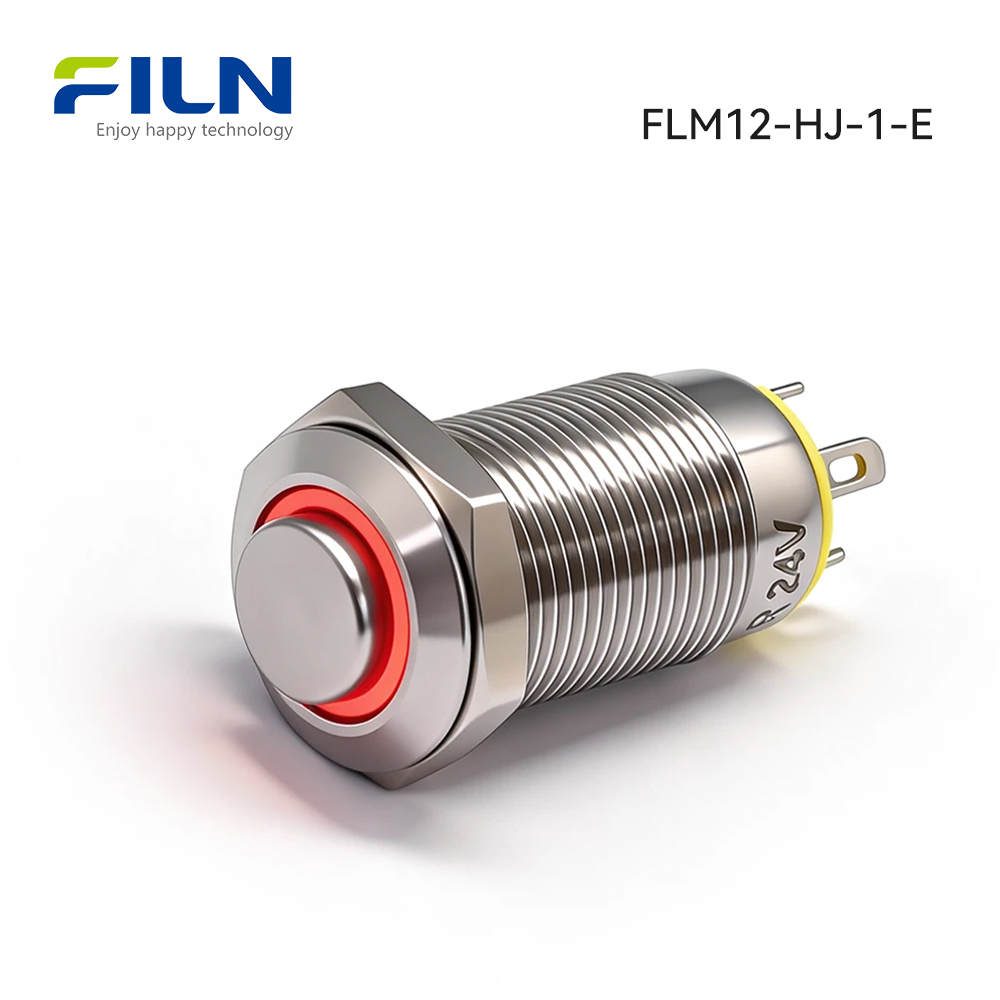

12MM 4Pins 12V Illuminated Latching Small Push Button Switch

Product Drawings:

The small button switch is a type of button in the button switch.It is a button switch that looks relatively small.

Generally, the small button switch without light has two pins. Like the conventional button switch, they can control the on and off of the circuit by pressing.Usually, (NO) stands for normally open, (NC) stands for normally closed.

There is a difference between a small push button switch and a micro button, and the size of the micro button is even smaller.

Product Parameters:

Pushbutton Switch Wiring Method:

The product has 2 wiring ways, which is with 4 pins and 1 NO . You can save this image and test it.

The wiring way is very simple, first of all we need to know that the product has 4 pins, 2 are switch pins, the other 2 are light pins, the light pins are regardless of positive pole or negative pole, the wiring way is as follows.

Wiring way 1

The switch near the lamp line is connected to a line, then connect to the device again.

The other line of the device is connected to the light line and power line, the power’s other line is connected to the switch’s other pin.

When press down the push button, the device starts to work and the light of the product will light up, when release the hand , the light and device are both disconnected.

Wiring way 2

The switch pin and light pin are connected to one pole of the power, the other pole of the power is connected to the other LED pin and device.

The light of the product will be on always. When you press down the switch, the device starts to work.
