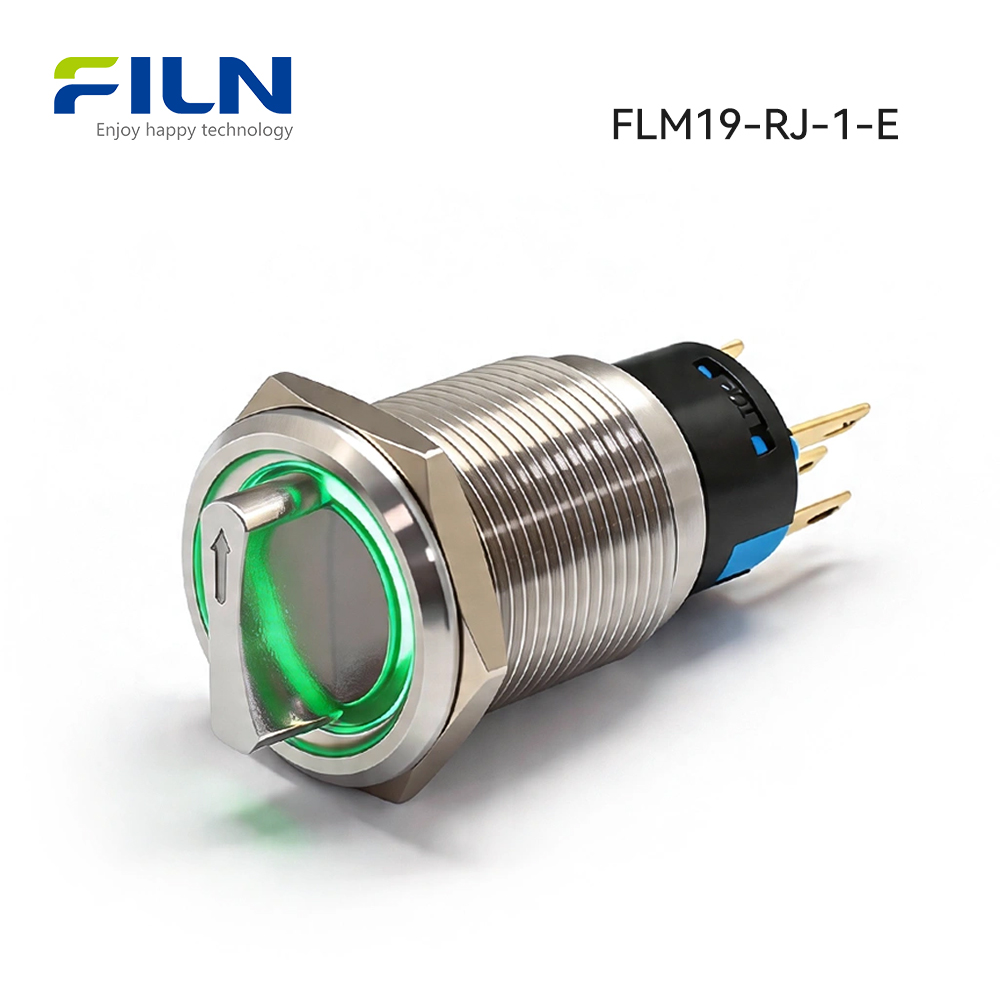

3 Way Push Button Switch Metal Rotary Latching Illuminated

Introducing 3 Way Push Button Switch Product in Detail



This 19mm 3 way push button switch is independently researched and developed by us. According to market demand, many customers need to use the original 2 way selection buttons. We developed the 3 way, which is also illuminated with an arrow. It is more beautiful and elegant after it is lit. It is widely used in cars and motorcycles.

Through the understanding of customers and the market, this newly designed button meets five requirements:

1. The opening is 19mm, which requires a 2NO2NC switch combination, which symbolizes the customer’s requirements for multiple circuit combinations.

2. A variety of beautiful and elegant button heads, built-in LED, so that it lights up more beautifully.

3. Multi-color optional, multi-voltage meets the voltage standard of the national market.

4. Built-in waterproof structure to meet outdoor application scenarios.

5. The shell can be made of 316 stainless steel for better corrosion resistance and durability.

On these foundations, we have greatly shortened the development cycle, and the products can be delivered to the market as soon as possible.

For this reason, FILN decided to develop a cost-effective normally on push for him for free.

1.  This customized 3 way push button switch adopts 304 stainless steel shell material, so the stainless steel parts are made by high-precision lathes, and the surface is polished, which shines in the light or outdoor sunlight, and the shell accepts 316 Stainless steel customization.

2.  This 3 way push button switch adopts a 19 mm panel opening design, the total length of the shell is controlled at 33 mm, and the button on the top is protruding with an arrow indicator, which is easier to operate.

3.  The button of this 3 way push button switch is purchased from an environmentally friendly high-translucent PC, built-in LED, and the light is very beautiful when it lights up. Especially at night, the light is soft and not dazzling.

4.  The tail adopts a 2.8×0.5mm quick connection terminal, which can be directly plugged into the female seat, or can be connected by direct welding wire, which is simple and fast.

Then the customer will ask this question, how to connect a 3 way push button switch?

This 3 way push button switch has a built-in LED structure. The LED lamp bead is relatively independent of the switch pin. You can connect 2 LED lamp pins individually, or you can connect the LED lamp pin and the switch pin together, so that you can control the load. You can also control the LED lights at the same time.

The switch pins are 1NO1NC and 2NO2NC. If the pins are normally closed, the customer does not need to connect them. At the same time, the two sets of switches can also be combined.

Customers will also ask, what is the waterproof performance of this button?

This is a 3 way push button switch with a built-in waterproof structure, which is equipped with a waterproof device. It can be used outdoors and in foggy spaces.

At the same time, the customer asked a question. Some of our complete machines will be exported to Europe. What certification do you have?

This product is currently completed, CE certification, and the latest RoHS 3.0.



The following is the question and answer of this 3 way push button switch



1. What is the shelf life of this 3 way push button switch?

–  The shelf life of this button is 5 years. If you want better quality, FILN can customize it for you, and the service life can be 500,000 times. If you encounter any problems during the warranty period, you can write an email to contact FILN technical after-sales group [email protected], we will contact you immediately within 12 hours to solve any of your product quality problems and solutions.



2. What is the protection level of this 3 way push button switch?

–  We use a waterproof ring design inside this button, with a waterproof rating of IP65.



3. What is the current of this 3 way push button switch?

–  The maximum current of this button is 5A 250VAC. If it is higher than 5A, its service life will be very short, and it may burn out in about 1000 times. If you have a large current button demand, please contact us. We are currently developing high-current products. The highest can reach 16A.



4. What is the LED lamp voltage of this 3 way push button switch?

–  At present, the safe voltage of 12V is mostly used in the market, and there are more countries in Asia that use 24V. If customers need to customize high voltage, such as 110v, 220v, we can also produce according to customized requirements.



5. What is the combination of this switch?

–  This one can produce 1NC1NO, 2NO2NC.



6. How to buy this 3 way push button switch?

–  If you use less, you can go directly to FILN’s AliExpress website to buy, https://filn.aliexpress.com/store/414696, you can choose 15-20 days delivery express delivery, so that the freight is cheaper.

–  If you are in a factory and use this button switch extensively, you can write an email to contact the sales staff of FILN company [email protected], the FILN button switch sales team has more than 10 years of sales experience in foreign trade and Service, we will get back to you within 24 hours.



7. Can FILN company customize the buttons we need that are not available in the market?

–  FILN company has more than 10 professional button R&D engineers who specialize in customizing various types of button switches with different functions. As long as you need, FILN company can provide various customized services. Moreover, it only takes 30 days for a new button from your idea to research and development design, the development of the abrasive tool to the completion of the finished product sample. FILN company can also provide OEM services, can be marked with your trademark and so on. As long as you pay for the button switch and research and development costs, FILN will only provide you with exclusive use and sales, which can greatly enhance your competitiveness and profit.



8. Is there a pen button with a larger opening size?

–  Currently, we are researching and developing a 22 mm 3 way push button switch with rotation. Once completed, we will put it on the market after quality verification.



9. How about the price of this 3 way push button switch?

–  This question is a very interesting question, you can only contact us for this question, but we promise to give you unexpected surprises, please contact us immediately [email protected].



Releated Product: metal indicator light

Production Series FLM19-11RE Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC)250V(AC) Housing PA66+GF20% nylon
Rated Current 5A(DC)5A(AC) Light Source LED
Rated Power 180W(DC)1250W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12
