In the realm of modern technology, LED push button switches have become indispensable components in various electronic devices and systems.
These innovative switches not only provide bright indicator lights but also offer convenient operation and versatile applications.
Whether you are searching for LED push button switches for personal projects or commercial needs, we, at FILN, provide a valuable resource to explore, offering an innovative and convenient experience with LED push button switches.

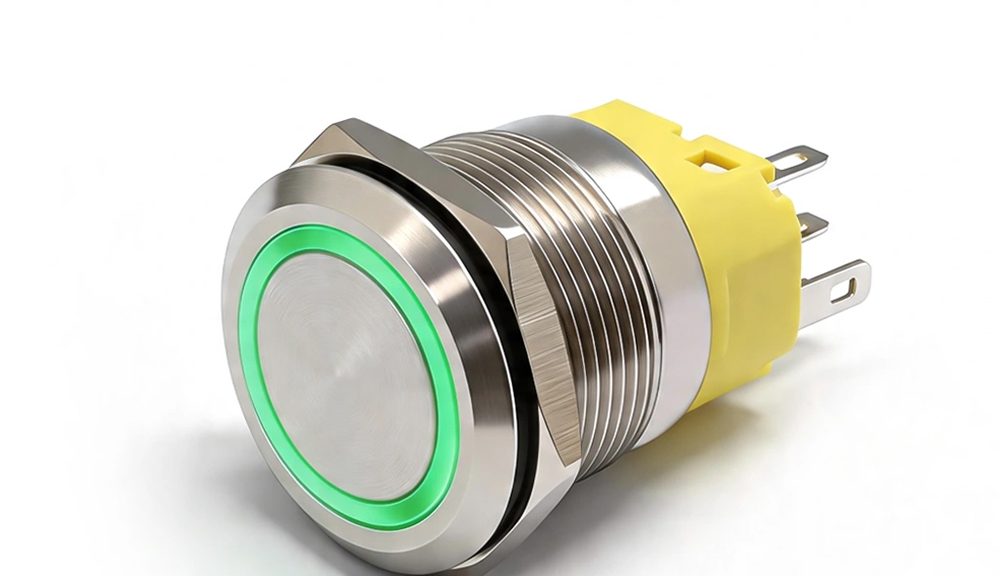

|Production Series||FLM22-10FJZ||Light Guide Button||PC plastic|
|Button Shape||round||Actuator||304 Stainless steel|
|Button LED Color||Red blue green yellow white||Housing Sleeve||H59 nickel plated brass/304Stainless steel|
|Mechanical Life||The 500 thousand time||Button Pin||H62 copper alloy|
|Electrical Life||The 100 thousand time||Rubber Ring||SIL silica gel|
|Protection Level||IP67 IK09||Nut||H59 nickel plated brass|
|Rated Voltage||36V（DC） 250V（AC）||Housing||PA66+GF20% nylon|
|Rated Current||1A（DC）0.5A（AC）||Light Source||LED|
|Rated Power||36W（DC）125W（AC）||Resistor||Metal film|
Push Button Switch Wiring
An LED push button switch is a type of switch that incorporates an LED light within its design. These switches emit different colors of light upon being pressed or released, indicating various states or providing informative cues.
LED push button switches offer several features and advantages, including:
- Simplified Usage: These switches are designed to be user-friendly, allowing for effortless control with a simple press, eliminating the need for complex operations or installations.
- Durability and Reliability: Constructed with high-quality materials and craftsmanship, LED push button switches exhibit resistance to dust, water, shocks, and corrosion, ensuring their long-term usage in diverse environments.
- Aesthetic Appeal: With LED lights capable of emitting a wide range of colors such as red, green, blue, and yellow, LED push button switches can be selected or combined to create visually striking effects, adding a touch of elegance and style.
- Versatility in Functionality: LED push button switches come in different types to cater to diverse needs, including:
|Momentary Type||Immediately disconnects upon release. Ideal for basic control functions like lights, doorbells, and car horns.||Lights, doorbells, car horns, etc.|
|Latching Type||Maintains its state upon being pressed and returns to the initial state upon a second press. Ideal for memory-based operations.||Fans, air conditioners, stereos, etc.|
|Flat Type||Features a smooth surface and is dust and water-resistant. Suitable for harsh environments like kitchens, bathrooms, and factories.||Kitchens, bathrooms, factories, etc.|
|Raised Type||Offers a protruding button surface for easy and quick responsiveness. Suitable for emergency stops, alarms, and similar applications.||Emergency stops, alarms, etc.|
Note: This table provides a concise summary of the different types of LED push button switches and their suitable applications.
FILN Pushbutton Switch Customization
Extensive Product Selection:
At FILN, we provide a diverse range of LED push button switches on our website. Our offerings include switches in different colors, sizes, and shapes to meet various project requirements.
Each product page features detailed descriptions and technical specifications, allowing you to gain precise insights into the features and performance of the switches.
We specialize in providing customized LED push button switch solutions to meet your specific requirements.
Whether you need specific voltage, current ratings, or operational characteristics, we can accommodate your needs.
Utilizing intelligent filtering options on our website, you can quickly narrow down the selection to switches that align with your requirements. Our technical team collaborates with you to ensure the best-fit solution.
Innovative Designs and Application Examples:
LED push button switches not only serve as functional components but also enhance the aesthetics and innovation of your projects.
On our website, you can explore a variety of innovative designs and application examples, ranging from sleek modern styles to vibrant light effects, catering to diverse project needs.
We also provide practical application cases to help you understand how LED push button switches can be integrated into various scenarios.
Ideal Source for DIY Projects:
If you are an enthusiastic DIY project enthusiast, our LED push button switches are an ideal choice.
They are suitable for electronic art projects, creative installations, DIY robots, smart homes, and other innovative applications.
By browsing our website, you can find switches that suit your project requirements and refer to our tutorials and resources to bring your creative ideas to life.
Flexible and Reliable Purchasing:
Experience enhanced control and visual appeal with FILN’s Dual-Color LED Push Button Switch.
Designed to provide seamless operation and customizable voltage options, these switches are perfect for a wide range of applications.
With a variety of sizes, including the popular 16mm LED Push Button Switch, and versatile functions like the Push Button On/Off Switch 12V, FILN delivers exceptional quality and performance.
These illuminated switches offer dual-color capabilities, combining functionality with eye-catching aesthetics.
At FILN, we understand that different projects require specific voltage settings.
Our Dual-Color LED Push Button Switches can be customized to suit your needs, including the popular 12V LED Push Button Switch.
This flexibility ensures compatibility with various electronic devices, lighting systems, and automation applications.
Diverse Size Options:
FILN offers a diverse range of sizes for LED push buttons, with the 16mm LED Push Button Switch being a popular choice.
This compact yet ergonomic size makes it suitable for various control panels, equipment, and DIY projects. With its precise construction and attention to detail, our switches provide reliable and efficient operation.
The Push Button On/Off Switch 12V is just one example of the versatile functionality offered by FILN’s Dual-Color LED Push Button Switches.
These switches are designed to handle various control functions, allowing users to easily turn devices on or off. With their intuitive design, they are ideal for applications such as automotive systems, home appliances, industrial machinery, and more.
FILN’s Dual-Color LED Push Button Switches feature built-in LED lights that offer dual-color illumination. This unique feature allows for visual feedback and adds a touch of style to your control panel or project.
Choose from a range of color combinations to suit your preferences or application requirements, enhancing the overall visual appeal and user experience.
Flexible and Reliable Purchasing:
At FILN, we prioritize providing a flexible and reliable purchasing experience.
Our website offers secure and convenient online channels for purchasing, ensuring high-quality and reliable products.
Additionally, we provide customer support and after-sales services to ensure a smooth and worry-free buying and usage process.
Whether you are an individual user or a corporate customer, LED push button switches from FILN will bring innovation, convenience, and a smart experience to your projects.
LED push button switches are essential components incorporating LED lights within button switches, emitting different colors upon being pressed or released.
At FILN, we offer an extensive selection of LED push button switches, catering to various project needs. With customization capabilities, innovative designs, and application examples, our switches provide convenience and versatility for projects in different industries.
Explore our website to discover the range of LED push button switches and find the perfect fit for your requirements. cnfiln.com for more information on our comprehensive product line.
