What’s the rocker switches difference to other switches?

Rocker switches have an on and an off position, and they break the electrical circuit to interrupt the current just as other switches do. The rocker switches are very simple though when compared with other types of switches. The thing that makes the switches unique is the rocker property of the actuator. You do not have to turn a knob, and it is even simpler to operate even than a toggle switch, which is very similar. Simply rocking the switch back and forth will open or close the circuit.

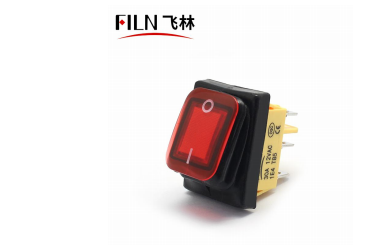

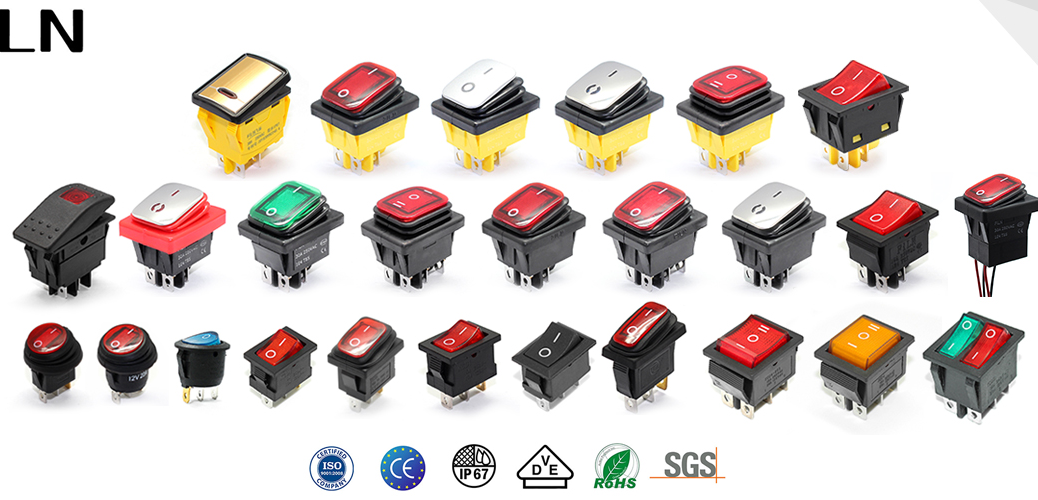

Rocker Switches photo as below.

What’s the rocker switches difference to other switches?

Note the following points when selecting a rocker switch:

Is the certification complete?

Our rocker switch with CE, ROHS and UL certificate, if you need other certificate, we also can approve for you.

IP waterproof standard.

Waterproof rocker switch sealing performance exceeds the standard. When paired with related accessories, it can achieve IP65, IP66, IP67 or even IP68 waterproof rating.

Design issues, etc.

Whether the waterproof rocker switch is designed reasonably, has a long service life, high-temperature resistance, and high current impact, these should be considered.

The specific application of the waterproof rocker switch is subject to many factors, such as the installation method and the installation direction of the product, the airflow, the pressure difference acting on the product, the strength of the fluid rebound and the working voltage; Even waterproof rocker switch, which has excellent sealing performance, has achieved a leading level of sealing technology and means that the switch is completely sealed and also needs to prevent the ingress of corrosive gases or substances.

6MM 0.236 Inches Waterproof Metal Indicator Lamp With Wire

We are Yueqing Yulin electronic. our company mainly produces and sells all kinds of indicator light, our company has strong technology and advanced technology and complete production equipment. Our lights not only in Europe and the United States and the world have a certain degree of visibility. We specialize in a variety of mechanical and electrical equipment, such as coffee machines, kitchen equipment, household appliances, automobile, medical equipment, industrial equipment, etc.. Indicating lamp beads using America KINGBRIGHT brand, regardless of the positive and negative DC general. With the advantages of high luminous efficiency, low power consumption, low heat generation, long service life, stable and waterproof work, etc.. The indicator light body parts adopt imported materials, small size, lightweight, high brightness, beautiful appearance, strong and durable.

6MM 0.236 Inches Waterproof Metal Indicator Lamp With Wire

Now let me introduce our light, “FL1M-6SW-1”, I believe you will like it. It is installed with a diameter of 0.23inches, the shell is made of brass plated nickel, with linear, optional color is red, green, yellow, blue, white. Voltage can be according to customer demand for customized (3V, 6V, 12V, 24V, 36V and 48V, 60V, 72V, 110V, 220V, 380V), protection grade IP65. Indicator obtained patent of appearance and CE certification, certification of environmental protection, the service life can be as high as more than 10 million hours. For the cable length, We can make 20cm,30cm,35cm cable, etc. We can follow your requirement to make customized cable length.

6MM 0.236 Inches Waterproof Metal Indicator Lamp With Wire

Production indicator lamp for more than 12 years, the company in good faith for the purpose, committed to providing customers with cost-effective products, efficient and timely delivery, professional and technical support, such as a full range of services. We will make the sample and send it out in one week, with high efficiency and timely delivery. We will continue to strive to improve our service quality, to meet your needs, beyond your expectations. If there any question please contact email: inquiry@cnylin.com.cn, we will be very honored to be able to provide you with services.



Welcome to FILN LED Indicator World

With over 10 years experience and a commitment to quality, FILN is an industry leader in the design, manufacture and distribution of LED products. Equipped with state-of-the-art design, engineering and manufacturing facilities in China, along with a dedicated and enthusiastic team, FILN is able to offer a wide range of indication products and services to customers around the world.

FILN product range includes LED indication components. FILN also offers custom design and manufacturing services including electro-mechanical assembly and a vast array of electrical and environmental test facilities.



Welcome to FILN LED Indicator WorldWelcome to FILN LED Indicator WorldWelcome to FILN LED Indicator World

INDICATION,ILLUMINATION,INNOVATION

WELCOME!!!

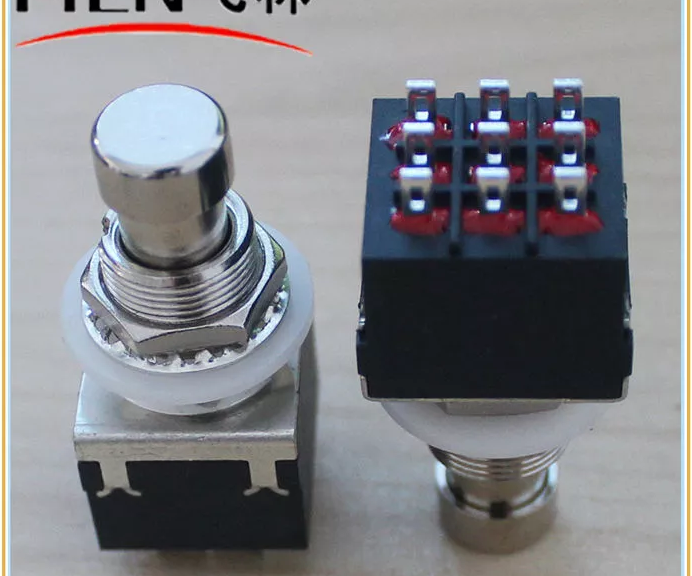

Guitar switch factory and new product introduction

Yueqing Yulin Electronics Co., Ltd. is a modern enterprise specializing in product production. The company is located in Liushi Town, Yueqing City, which is known as the “Capital of Electric Appliances in China” and the main production base of Chinese electronic components in Yueqing City, Zhejiang Province. The company has established a complete and effective quality assurance system, and its products have been rated as “high-quality suppliers” by many customers.

Since the establishment of the company, after several years of hard work, it has experienced a process of self-strengthening and self-development from small to large, from less to more, from weak to strong. The company implements a modern enterprise management system and actively advocates people-oriented management. Philosophy, always regard employees as the precious wealth of the enterprise. Now it has a group of high-level technical and management talents, and the staff is well-trained, which has accumulated valuable human resources for the company to achieve extraordinary and leap-forward development. Adhering to the business and management philosophy of “Science and technology innovation, quality forging the market” and “people-oriented, God rewards diligence”, we have won the trust and support of our customers.

In the face of global economic integration today, CCC people are actively working with a united, enterprising, pioneering and innovative work attitude, striving to become stronger, better, and larger, build a good corporate image, and meet the challenges of the new era. The company is sincerely cooperating with new and old customers at home and abroad with excellent quality, first-class service, and good reputation. With the concept of humanized management, people with lofty ideals from all walks of life are welcome to join insincerely. The people of Guokong warmly welcome new and old friends to negotiate business To create a better future.

New guitar with a light switch start formal global sales before the guitar switch is not to bring more light, in order to be closer to the customer individuality demand, FILN designed a guitar with line with lamp switch, mounted on a sound effect on very bright spot, when people are very happy to play the music, whenever I see a guitar with lamp switch can trample down, is very convenient.

This guitar switch with light has a hole of 16MM, with 5 monochromatic colors of red, yellow, green, blue and white, as well as two colors of red, green, red and blue. It is very convenient to use. The light is led out by the wire, and the welding wire is also very convenient

Accessory name material
button Aluminum alloy
Sleeve Zinc alloy
Stud Copper alloy
Swing rod Zinc alloy
Iron shell stainless steel
Midfoot footboard Copper alloy
lampshade PC
shell PBT
Base PBT
support POM
circuit board PCB
Lamp beads led

Electrical performance:

Project Test Conditions Skills requirement
6.1 Switch rating 250V2A/125V5A
6.2 Lamp rating White light 3V20mA/red light 2V20mA/green light/3V20mA blue light 3V20mA/yellow light 2V20mA
6.3 Insulation resistance A DC500V was applied between the copper legs and between the copper legs and the outer casing, measured after one minute. ≥100MΩ
6.4 Withstand voltage Apply AC2000V between the copper foot and the outer casing, 0.5mA, 10 seconds; No breakdown or flashover.
6.5 Electrical durability Underrated load, it is operated 30 times per minute for a total of 10,000 operations. 1. Appearance and feel are acceptable;

2. Contact resistance ≤ 2Ω;

3. The pressure test is qualified.

7 Mechanical behavior:
7.1 Operating force The switch is placed perpendicular to the direction of operation, applying a force on one side of the button to measure the maximum force required to turn the switch on. 10-20N according to customer requirements.
7.2 Copper foot strength A 60 N static load was applied to the top of the copper foot for an inward push for 60 seconds. The terminal has no damage, falls off, and the switch function works normally.
7.3 Solderability The copper feet were immersed in a molten tin bath at a temperature of 235 ± 5 ° C for a time of 3 ± 0.5 seconds. More than 90% of the surface of the immersed portion is covered with tin.
7.4 Resistance to soldering heat The welded portion of the copper foot was immersed in a molten tin furnace at a temperature of 260 ± 5 ° C for 3 ± 1 second. 1. The body has no obvious deformation;

2. Mechanical performance, electrical performance test qualified.

Manual soldering iron welding, welding temperature 350 ± 5 ° C, welding time 3 ± 1 second. Do not apply pressure to the copper feet during welding.
8 Mechanical behavior:
8.1 High-temperature resistance It was allowed to stand in an environment of 85 ± 2 ° C for 72 hours, and then placed in a natural environment for 1 hour and then tested. 1. Appearance and feel are acceptable;

2. Contact resistance ≤ 2Ω;

3. The pressure test is qualified;

Qualified mechanical performance.

8.2 Heat and humidity resistance It was placed at 40 ± 2 ° C, humidity 91% – 95% RH for 96 hours, and then placed in a natural environment for 1 hour and tested.
8.3 Low-temperature resistance It was allowed to stand in an environment of -25 ± 2 ° C for 12 hours, and then placed in a natural environment for 1 hour and then tested.
8.4 Temperature alternation The temperature was alternated according to the temperature and time shown in the figure, and the test was carried out 5 times in a row and then placed in the natural environment for 1 hour.

The sheet pictured about 19mm guitar switch without wires.

And mounting hole size.

Guitar switch factory and new product introductionGuitar switch factory and new product introduction

Our guitar switch can be with or without light,And guitar switch base color can be black and blue,

Guitar switch have different color caps as pictures show.It include five colors:yellow,red,blue,black,green.

Guitar switch factory and new product introduction

8mm bi-color Indicator Light

Indicator lights refer to devices that use light to monitor the operation or position state of circuits and electrical equipment. The indicator light is usually used to reflect the working state of the circuit (with or without electricity), the working state of the electrical equipment (running, down or testing) and the position state (closed or disconnected). Usually installed in the low-voltage distribution device of the screen, disk, table, cabinet on the panel, some low-voltage electrical equipment, instruments on the disk or other prominent position. Indicator light reflecting the working state of the equipment. Usually, when the light is on, it means the equipment is live; when the light is off, it means the equipment is out of power.

Indicator lights are very versatile and are usually used in The coffee machine, The water heater, Water dispenser, Baked Fried furnace, Meat grinder, automation, Test equipment, Disinfection cabinet, The dishwasher, Barbecues, Cleaning machine, Food machinery, The freezer, A blender, blender, The fault, Modified car, Shoe machine, Refrigeration equipment, Insulated rice stand, Cooking stove, Waterproof air case, Induction cooker, Lampblack purifier, Cooking noodles barrels, Vending machines, Charging pile, The solar energy, Powerbox, The subway, The dashboard, wine, Audio equipment, Distribution box, Sound effector, The cinema, Medical equipment, Car panel, player, Audio equipment, Distribution box, Medical equipment, Power amplifier player, Education, school lab, The generator, Electric welding machine, Cable tray, inverter, Voltage regulator, Access control device, Automobile and motorcycle accessories, Industrial air purifier,

FILN indicator light through the United States UL certification, Germany VDE certification, European Union CE certification, ISO90001 quality management system certification and so on, the quality is stable, the style is complete, can be customized according to the customer’s needs of different styles of indicator light.

Today, I would like to introduce one of our flagship products –8mm metal red and green dual color indicator light with wire.

8mm bi-color Indicator Light8mm bi-color Indicator Light

Its model name is FL1M-8FW-D. It is a bi-color flat head metal indicator light with wire. Metal indicator light commonly used in coffee makers, electrical installations, refrigeration equipment, motor vehicle, motorcycle and medical.

LED Color: Two colors of common negative or common positive. The normal two colors is red and green, and can also be red and green, blue and green, yellow and green. The longevity of LED is up to 100,000 hours.

Volatge:The normal voltage is 6v, 12v, 24v, 36v, 110v, 220v, and 380v.

Wire: PVC line AWG 24 has a length of 20cm for each wire. Of course, teflon line can also be made, and the line length can be increased or decreased.We can add connection terminal according to different length of wire from Customizes’requirements.

Material: Metal material of indicator lamp is made of Copper H62 which under the work of CNC machinezinc in high precision, and chromium plated appearance looks nice as well.

Our company focus on customized services, if you are interested, please contact us.

Our official website is

www.indicatorlight.com

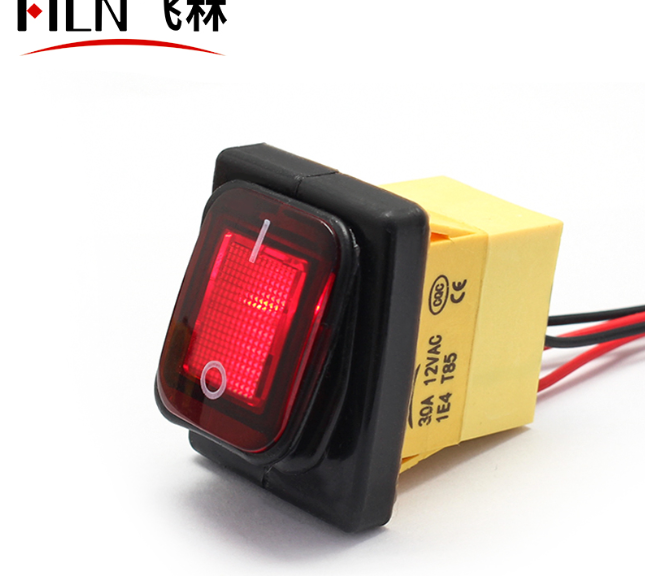

The specific output of KCD4 rocker switch with light

The rocker switch is also called rocker switch and wave switch. Its structure is the same as that of the toggle switch, except that the knob is replaced with a boat shape. The ship-type switch is often used as a power switch for electronic equipment. Its contacts are divided into single-pole single-throw and double-pole double-throw, and some switches also have indicator lights. There are some pad printing on its surface. It is convenient to distinguish the position status of rocker work.

The ship-type switch is used in drinking fountains, treadmills, computer speakers, battery cars, motorcycles, ion TVs, coffee pots, plugs, massage machines, etc. It is mainly used in household appliances and the like.

The rocker switch has some types, first is single pole single throw: 1 moving contact and 1 static contact. Only 1 channel. Second is Single pole double throw: 1 moving contact and 2 static contacts, (the static contacts on both sides can be connected separately). The third is double pole single throw, 2 moving contacts, and 2 static contacts, with 2 channels. Fourth is double pole double throw, 2 moving contacts, and 4 static contacts, with 4 channels (can connect 2 static contacts on both sides).

According to the size classification, the ship type switch can be divided into KCD1 series boat switch, KCD2 series boat switch, KCD3 series boat switch, KCD4 series boat switch, KCD5 series boat switch. The product model of our company is FL3-X (X=1, 2, 3…).The button mode has reset and do not reset.

There are some technical parameters as below.

Rated voltage/current: 6A 250VAC/10A 125VAC

Contact resistance: ≤50mΩ

Withstand voltage: 1500V, AC/min

Insulation resistance: ≥100mΩ

Rated load: 2/8A 250V AC

Electric strength: ≥1500VAC/min

Temperature range: -25~85℃

Electrical life: ≥10,000 times

If you have a problem like: The boat-shaped switch, the kind of red light that is very common when it is turned on. Sometimes I can’t turn it off, but I can’t get it back, and the air switch often fails. The solution to the fault: There is a metal sheet inside the boat-shaped switch with a spring fulcrum in the middle, spring displacement and aging deformation of the plastic bracket, the switch is not flexible, you can disassemble it after power off to see if it is not damaged by plastic parts, maybe it can be restored. The neutral line inside the switch is straight through and has nothing to do with the switch parts. Therefore, if the switch jumps to the air switch, the insulation layer of the neutral line of the switch is damaged. The damaged section can be cut off and rewired. Pay attention to the insulation. . It may also be that there is a short circuit in the foot of the indicator, just re-wire.

And I want to introduce our KCD4-0112-22 to you, the picture and drawing as below.

The specific output of KCD4 rocker switch with light

Some information i will tell you about its accessoriee name and material.

Actuator: PC

light guiding part :PC

holder :ABS

Waterproof cover: Rubber

Up base :ABS

Bottom base :PA66

Middle base: ABS

Pin/spring board :H62 Brass H62

Contact: AgCdO12

Spring: 72#

Iron case :08F

Washer:Rubber

Some information of out looking and operation feeling:

Clear and firm marking; The appearance is clean and beautiful, no deformation, no damage, no cracking; No rust, no electroplating;  The components are firmly connected, no looseness, no falling off; The switch operation is flexible, no jamming, no obvious friction

Some information of electrical Endurance for you: Under rated load, 30 operations per minute for a total of 10,000 operations.There are some technical requirements:  1. Appearance and feel are acceptable; 2. Contact resistance ≤ 2Ω; 3. Terminal temperature rise ≤ 55K; 4. The pressure test is qualified.

Some information of alternative temperature for you:According to the temperature and time shown in the figure, the temperature alternation was carried out for 5 consecutive cycles, and then the test was carried out in the natural environment for 1 hour.

The specific output of KCD4 rocker switch with light

Some information on resistance to soldering Heat for you: Terminal welding part of the immersion temperature for 260 ± 5 ℃ molten tin furnace 3 ± 1 second. Manual soldering iron welding, the welding temperature of 350 ± 5 ℃, welding time 3 ± 1 seconds. No pressure shall be applied to the terminals during welding. There are some technical requirements: 1. The body has no obvious deformation; 2.Mechanical performance, electrical performance test qualified.

Some information of operation force for you: The switch is placed perpendicular to the direction of operation, applying a force on one side of the button to measure the maximum force required to turn the switch on.

Some information on solderability for you: The terminal into the molten tin bath, the temperature of 235 ± 5 ℃, time of 3 ± 0.5 seconds. There are technical requirements: More than 90% of the immersed portion is covered with tin.

Some information on withstanding Voltage for you: Working at DC500V Between pins, in 10 seconds; Working at DC500V Between pins and housing, in 10 seconds. There are technical requirements: No breakdown or flashover.

And some other information i want to tell you :

1.What is waterproof rocker switch ?
It designed based on normal rocker switch with waterproof function, so it can prevent the water from inside rocker switch when it used outdoor and water surface.
2.When start designing the rocker switch ?
FILN company began to product and design KCD4 waterproof switch series in 2016. It is very popular all over the world especially in the UAS market.
The introduction of KCD4 waterproof rocker switch series as follows :
How many kinds of voltage can the waterproof rocker switch have?
The range of voltage could be 3V,6v,12v,24v,36v,110v,220v,380v,440V.
3.What current of rocker switch can be reach ?
It has designed a high-current ship-type switch that could reach 30A at 12v and 250V. Its power can reach 5000W.
4.What is the size of the mounting hole of the rocker switch?
It has 3 sizes can be chosen, like 28X22, 30X22 ,31X22mm.
5.How about the waterproof degree of switch ?
It can be reach IP67 and IP68.
6.How many colors of switch ?
It can be made red, yellow,green, blue,white,black and orange etc. We also can use LED as the light source.
7.How many types of rocker switch for the use function?
It has ON-OFF, ON-ON,ON-(OFF),ON-(ON),ON-OFF-(ON),(ON)-OFF-(ON) etc 7 function.
8.How many different styles are there on the surface of the rocker switch? Can the Rocker Switch be customized with a customer logo?
The rocker switch surface has stainless steel surface, painted surface, and plastic surface, and can support the customization of various logos on the rocker switch surface.
9.What international certifications are there for rocker switches?
Rocker switch has CE, UL, CQC, ROSH certification, etc.
10.Where are waterproof rocker switches usually used?
Waterproof rocker switch is used very widely, usually used in kitchen equipment, yacht equipment, automation equipment, electrical products, baby carriages, cars, motorcycles, refrigerator refrigeration, etc.
11.What is the MOQ of the rocker switch?
FILN is a direct factory that produces waterproof switches, so there is no MOQ limit, and you can order from one.

New product release of push button switch

Today our new design of 19mm plastic push button works out.

It is a normally open, momentary button, and with LED light.

They are directly pushed snap-in versions, less cost, and in stainless steel front. Competitive in the market.

New product release of push button switch

Complete of the 19mm 12v LED push button switch push snap-in version

In Nov 2019, At the invitation of Korean customers. We go on business travel. during the travel, a beauty apparatus company’s boss sees our catalog, and after research, they think the metal push button switch use in their equipment will be more beautiful. Because before there use the rocker switch to control the equipment.
We talked more details, and they also visit our web:www.indicatorlight.com.
they talk their thoughts, they we very willing to use our 19mm metal push button, but at a high price. and also the switch needs the nuts to fix, it wastes time. As you know now the Korean labor cost is high. 8 hours takes about 760rmb. And their equipment is in huge quantity, it is a fast-moving consumer good.
After the meeting, our push-button R&D dept engineers work out a solution.to help solve the problems that the customer cares about.
1.About price: our new 19mm push button use in the plastic bushing, and stainless steel front.in this way. From the front view: it still a stainless steel push button. and cut the much cost. about a 30% reduction.
2. The old design of 12v with LED push button needs the nut to fix.and our new only push snap-in.it is very easy and convenient.
When customers see our new CAD design .they very happy. and it meets what they needed. And when we back the factory. send the samples to customers in 10 days. And new tooling will come out soon.
We have been innovative to solve the problems of our customers and well serves. If you have any problems with the metal button switch, please contact me at sales2@filn.com.cn.

New product release of push button switch

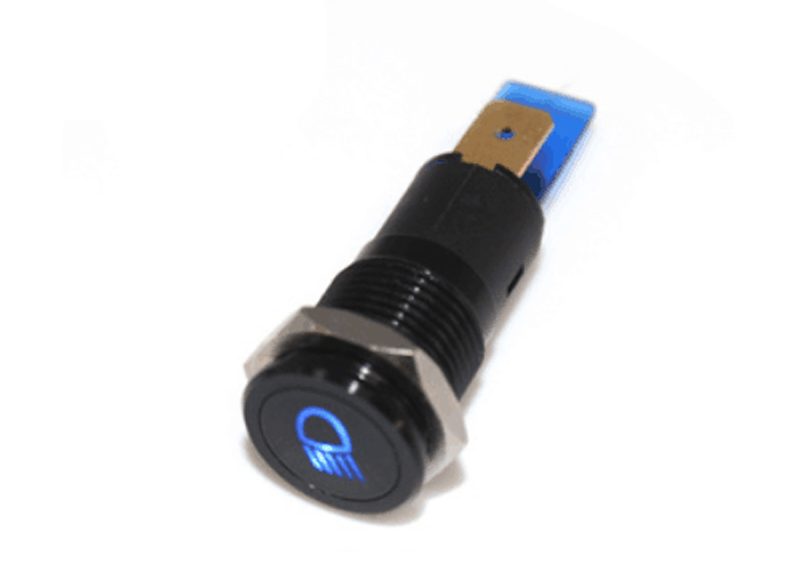

The Story Behind The 14MM Metal Indicator Light

The new indicator light was developed out, it ‘s a brand new called 14MM 12V Green LED Black Plated Metal Flat Waterproof IP6 Cars Low Beam Indicator Light, which head is made of zinc with 6.3 pin. And inside is the USA imported LED, whose service life can be up to 100,000 hours.

The origin of developing this type of product was from an Italian guest who do the auto parts business and has been looking for LED with near light mark, he tries to buy the goods from the USA before, however, not only the goods were bad quality, but also got a very long production cycle that the United States factory always delivered more than 1 month, thus he is distressed, with continue finding, although the founded product either was non-professional or unqualified, he still spare no effort to spent his all-time to seek again around the world, just the moment he was almost helpless, our salesman found his information on GOOGLE and then contacted with him, the guest was very interested after we introduced our company that we are an over 10-years professional manufacturer which specialized in producing indicator lights. Then he told us his requirements and concepts of products, within 2 hours, our engineer has sent him drawings and effect charts, as soon as received the pictures, the guest was much too satisfied that he sign the contract with us immediately even without asking for samples. He hoped that his product can be delivered within 15 days.

The Story Behind The 14MM Metal Indicator Light

The next day, we received the full payment form this guest. In order to thank the trust of our customers, our whole staff worked overtime, finally, we finished producing just on the 7th day of the contract. Today, we have sent all consignment to guest by DHL with shipping photos as well. The guest is very happy, he said that it’s the best birthday gift for him. Wow! My god! The original, today is his birthday!
 Our website is www.indicatorlight.com
If you meet any needs or problems, Welcome to contact us by sending email Sales2@filn.com.cn, and we will solve your problems within 12 hours. Thank you for watching!



What is a rocker switch

Rocker switches also can be called ship switches, boat switches, are often used as power switches for electronic equipment, household appliances, and small household appliances. They are divided into single-pole single-throw, double-pole double-throw, etc. according to their contact functions. switch.

The role of the ship-shaped switch is the same as that of all other switches, and its role is to cut off and connect the current. On the main circuit, it plays an important role in the process of AC grid input and DC output, including inverter, rectification and filtering.

The role of the rocker switch and rocker switch on the entire control circuit, on the one hand, the data provided for the test circuit, after the protection circuit is identified, the control circuit is provided to provide various protection measures for the entire machine. On the other hand, the sample from the output, compared with the set circuit standard, and then control the inverter to change its frequency or pulse width to achieve stable output.

The rocker switch has a protective effect on the control of the current.

Q: What is a waterproof rocker switch?
A: It designed based on normal rocker switch with waterproof function, so it can prevent the water from inside rocker switch when it used outdoor and water surfaces.
Q: When start designing the rocker switch?
A: FILN company began to product and design KCD4 waterproof switch series in 2016. It is very popular all over the world, especially in the UAS market.
The introduction of KCD4 waterproof rocker switch series as follows :
Q: How many kinds of voltage can the waterproof rocker switch have?
A:The range of voltage could be 3V,6v,12v,24v,36v,110v,220v,380v,440V.
Q: What current of rocker switch can be reached?
A: It has designed a high-current ship-type switch that could reach 30A at 12v and 250V. Its power can reach 5000W.
Q: What is the size of the mounting hole of the rocker switch?
A: It has 3 sizes that can be chosen, like 28X22, 30X22,31X22mm.
Q: How about the waterproof degree of a switch ?
A: It can be reaching IP67 and IP68.
Q: How many colors of a switch ?
A: It can be made red, yellow, green, blue, white, black and orange, etc. We also can use LED as the light source.
Q: How many types of rocker switch for the use function?
A: It has ON-OFF, ON-ON, ON-(OFF), ON-(ON), ON-OFF-(ON),(ON)-OFF-(ON), etc 7 functions.
Q: How many different styles are there on the surface of the rocker switch? Can the Rocker Switch be customized with a custom logo?
A: The rocker switch surface has a stainless steel surface, painted surface, and plastic surface, and can support the customization of various logos on the rocker switch surface.
Q: What international certifications are there for rocker switches?
A: Rocker switch has CE, UL, CQC, ROSH certification, etc.
Q: Where are waterproof rocker switches usually used?
A: Waterproof rocker switch is used very widely, usually used in kitchen equipment, yacht equipment, automation equipment, electrical products, baby carriages, cars, motorcycles, refrigerator refrigeration, etc.
Q: What is the MOQ of the rocker switch?
A: FILN is a direct factory that produces waterproof switches, so there is no MOQ limit, and you can order from one.

Connect methods

Rocker switch can be with wires or with pins

What is a rocker switch 1What is a rocker switch 2

And with wire type, we will add black waterproof glue in the base so that the product can be reached IP67 waterproof.

What is a rocker switch 3

Surface material

Our rocker switches have different surface material.

And we have it with and without waterproof rubber.

With the waterproof rubber can be used in the water very well, will be safer and the usig time will be longer.

What is a rocker switch 4What is a rocker switch 5

About the surface material,it have several types,

It have with light and without light,

It have plastic surface,(transparent lid and not transparent with black and white painting surface)stainless steel surface,Aluminum surface etc.

Base

Our rocker switch have balck and yellow base,and different mounting hole size.

Big size housing:22*30mm

Smaller size housing:22*28mm

Round head and square housing:20mm

Small square housing:19*13mm

The base will be writed our FILN logo,voltage,current etc.

And Sort by size,our rocker switch have different part NO.:KCD1.KCD2,KCD3,KCD4.

Function

The rocker switch have several types of function,

SPST(Single pole single throw):

What is a rocker switch 6

SPDT(Single pole double throw):

What is a rocker switch 7

DPST(Double pole single throw):

What is a rocker switch 8

DPDT(Double pole double throw):

What is a rocker switch 9

And rocker switch have locking or momentary function,It depends on customers’ requests.

Lighting

The rocker switch with light can be different colors,we have normal five colors:Blue Yellow Red Green White.

And the rocker switch have different printing:I/O,II/O/I,It means that ON-OFF, ON-OFF-ON or ON-ON function.

Voltage and current

About the voltage,our rocker switch voltage can be 3V-380V,and our current can be reached at 30A.

Fault problem

The boat-shaped switch, the kind of red light that is very common when it is turned on. Sometimes it can’t be turned off, just can’t bounce back, and often break the air switch failure

Solution to the fault:

There is a metal sheet inside the boat-shaped switch, with a spring fulcrum in the middle, spring displacement and aging deformation of the plastic bracket, the switch is not flexible, you can disassemble it after power off to see if it is not damaged by the plastic parts, maybe it can be restored. The neutral line inside the switch is straight through and has nothing to do with the switch parts. Therefore, if the switch jumps to the air switch, the insulation layer of the neutral line of the switch is damaged. You can cut off the damaged section and rewire, pay attention to the insulation to ensure . It may also be that there is a short circuit in the foot of the indicator light, just rewire.

30MM IP67 Plastic Metal Push Button Switch With Wire

A push button switch can be interpreted as a simple power control switch for a machine or device.Push button switches are usually metal or thermoplastic switches designed to be easy for the user to use. The idea is that current should flow continuously through multiple wires and components. However, circuits that are always complete are not as useful as circuits that are only useful when needed.

A push button switch is a switch hidden inside the machine or inserted. In layman’s terms, you can see and use them. There are two main types of button switches – momentary(reset) and latching(self-lock). These switches are commonly used in calculators, push-button telephones, kitchenware, magnet locks, and other mechanical and electronic devices used in the home or industry.

The buttons are designed to accommodate a person’s fingers for easy control of the system. For machines with complex operations and various buttons, different colors are indicated for the buttons. This enables the user to identify the functions that the switch must perform. For our everyday applications, there are few guidelines for button colors because only a few are common across multiple industries. For example, red buttons are often used as power buttons, while yellow means pause. For industrial applications such as machinery, the meaning of color has been more strictly defined in international standards.

Today, I would like to introduce one of our flagship products –30mm plastic metal button with wire.

1.Appearance and Size

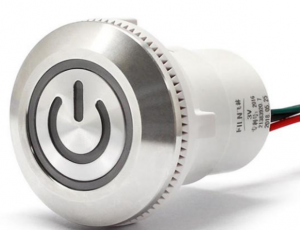

30MM IP67 Plastic Metal Push Button Switch With Wire

30MM IP67 Plastic Metal Push Button Switch With Wire

2.Material

Light guide bracket:  PC Plastic

Casing sleeve: PA66 nylon flame retardant (30% enhanced)

Button: 304 stainless steel (30% enhanced)

Button pin: with wire, default Teflon wire 0.75mm2 20cm long

Rubber ring: SIL silica gel ring

Plated brass: H59 Nickel Plated brass

Housing: nylon PA66 nylon

LED lights: are either positive or negative, ring lights or ring lights with power symbol

Resistor: Metal film Resistor

Contact: Silver contact

3.The performance parameters

Rated voltage of the switch: Rated 220V AC

Rated voltage of indicator light: 3V-220V

Rated current of the switch: Rated current 10A

Rated current of indicator light: ≤20mA

Rated power or rated power: 2200W

Insulation and voltage resistance: 2000V

Mechanical life: 500,000 cycles

Electrical Life: 200000 times (3A) / 50000 times (10A)

Operating temperature: -25℃~+85℃

IP degree: IP67 IK09. Special black glue is used at the bottom of the button to make it waterproof and oil-proof. At present, our company’s button is mainly used in commercial kitchen equipment.

Indicator color: red, blue, green, yellow and white

Functions: 2NO self-lock and momentary

Momentary(reset): When you push the button, the button will be down, when you release, the button will come back.

Latching(self-lock): When you push the button, the button will be down and stay, you need to push again, then the button will come back.

Following is our official website:www.indicatorlight.com. All specifications are put on it. If any interested in, please feel free to contact me.

Resistor in LED Indicator Light

What is resistor

Resistor is an electrical component that reduces the electric current.

The resistor’s ability to reduce the current is called resistance and is measured in units of ohms (symbol: Ω).

If we make an analogy to water flow through pipes, the resistor is a thin pipe that reduces the water flow.

Ohm’s law

The resistor’s current I in amps (A) is equal to the resistor’s voltage V in volts (V)

divided by the resistance in ohms (Ω):

I=V/R

The resistor’s power consumption P in watts (W) is equal to the resistor’s current I in amps (A)

times the resistor’s voltage V in volts (V):

P=I*V

The resistor’s power consumption P in watts (W) is equal to the square value of the resistor’s current I in amps (A)

times the resistor’s resistance R in ohms (Ω):

P=I*R

The resistor’s power consumption P in watts (W) is equal to the square value of the resistor’s voltage V in volts (V)

divided by the resistor’s resistance R in ohms (Ω):

P=V/R

Resistors in parallel

The total equivalent resistance of resistors in parallel RTotal is given by:

Resistor in LED Indicator Light

So when you add resistors in parallel, the total resistance is decreased.

Resistors in series

Resistor in LED Indicator Light

The total equivalent resistance of resistors in series Rtotal is the sum of the resistance values:

Rtotal = R1R2R3+…

So when you add resistors in series, the total resistance is increased.

Dimensions and material affects

The resistance R in ohms (Ω) of a resistor is equal to the resistivity ρ in ohm-meters (Ω∙m) times the resistor’s length l in meters (m) divided by the resistor’s cross sectional area A in square meters (m2):

Resistor image

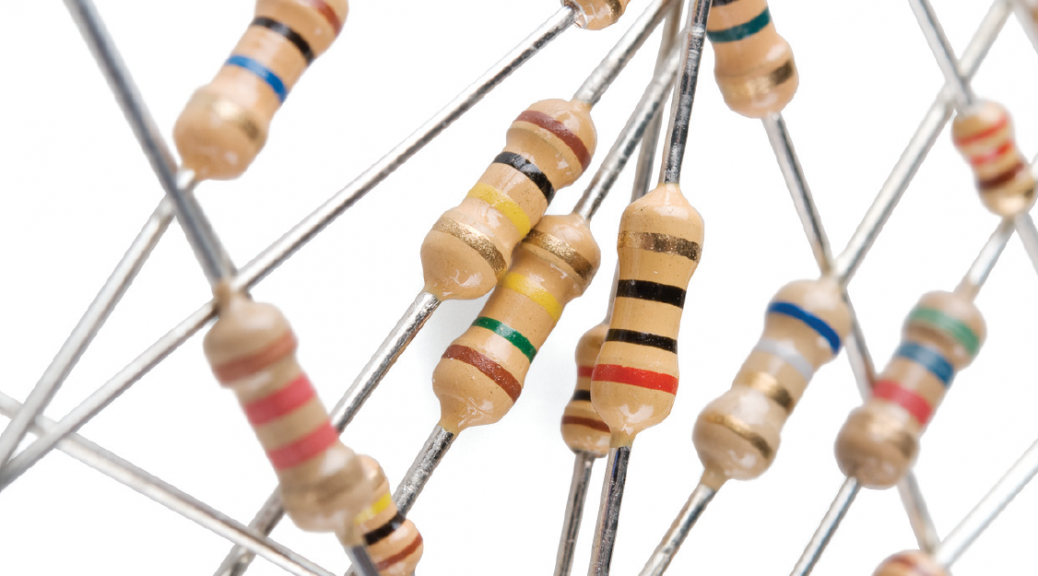

Resistor in LED Indicator Light

Resistor symbols

Resistor in LED Indicator Light

Resistor color code

The resistance of the resistor and its tolerance are marked on the resistor with color code bands that denotes the resistance value.

There are 3 types of color codes:

4 bands: digit, digit , multiplier, tolerance.

5 bands: digit, digit, digit , multiplier, tolerance.

6 bands: digit, digit, digit , multiplier, tolerance, temperature coefficient.

Resistance calculation of 4 bands resistor

R = (10×digit+ digit2) × multiplier

Resistance calculation of 5 or 6 bands resistor

R = (100×digit+ 10×digit2+digit3) × multiplier

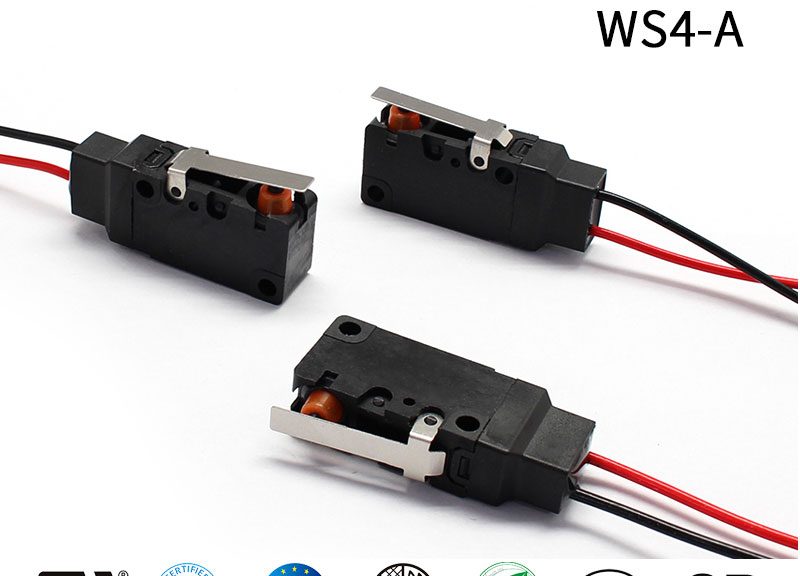

Waterproof Micro Switch

Waterproof micro switch

Q: What certification does the microswitch have?

A: The button has ul ccc CE certification etc.

Q: Where is the microswitch used?

A: micro switch is used in automatic machines, electrical products, toy products, etc.

Q: Is the micro switch sold well?

A: Due to the high-cost performance, the buttons are sold very many, and they are the best selling on Amazon and eBay.

Q: What is the maximum current of micro switch?

A:micro switch maximum current can do 10a.

Q: What is the warranty of the micro switch?

A: The warranty on the buttons is 2 years.

Q: Can the button be customized?

A: Filn can customize various buttons according to customer’s requirements.

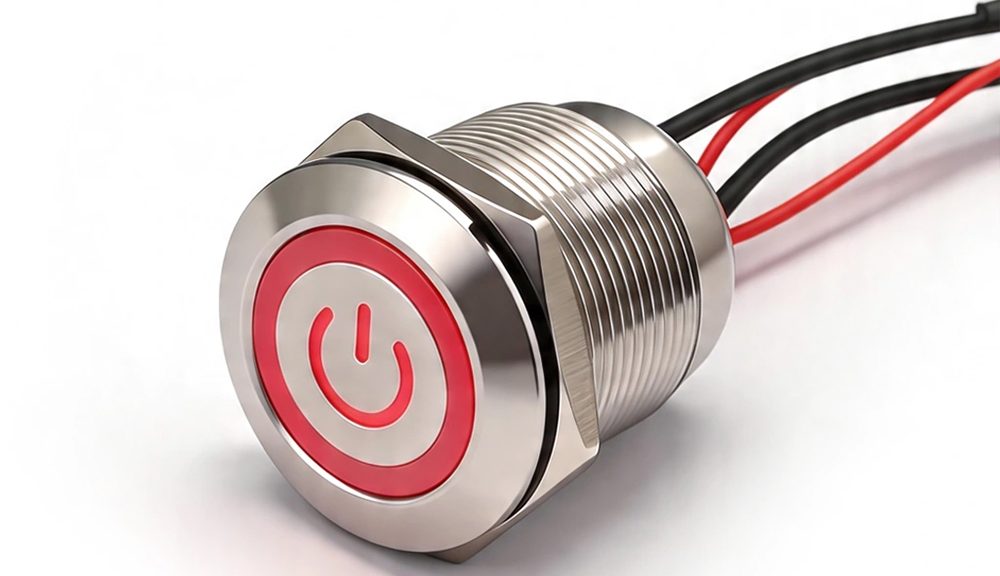

22mm 10A IP68 Blue Momentary 4 Pole Push Button Switch

4 pole push button switch drawings

4-pole-push-button-switch

4 pole push button switch parameters

Production Series FLM22-FW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 10A Light Source LED
Rated Power 2200W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

The description of the 22mm 10A IP68 blue 4 pole momentary push button switch

The biggest feature of the product is the bottom with glue and a direct lead line. This can achieve the overall waterproof and reduce costs. The following is the detailed description of the 4 pole push button switch.

  • The mounting hole size of the product is 22mm, you just need to open the hole which size is between 22.2 mm to 22.5mm, then put the product into the install hole.
  • The product has 4 lines. The color of the lamp line represents the color of the switch, and the other 2 lines are switch lines.
  • The head of the product can achieve a variety of bush button shapes, such as flat head without lamp, high head without lamp, flat head with ring circle, flat head with power symbol, high head with ring lamp, high head with power symbol and so on.
  • The product’s shell has a variety of materials.



  1. The product with stainless steel(has high corrosion resistance, usually used in the environment of salt fog and wet, which has high quality).
  2. The cost of the product with brass is low and economical.
  3. The product with zinc aluminum alloy is plated to black (in addition to black, we can produce silver, blue, yellow, green, red and many other colors).
push button switch material
  • The product has a variety of colors, such as red, green, yellow, blue, white.
  • The product can achieve a variety of voltage, such as 3V, 6V, 12V, 24V, 36V, 110V, 220V.
  • The mechanical life of the product is 100,000 times, and its current are 3A, 5A etc.
  • The waterproof rating of the product is IP68, the waterproof design of the bottom with glue allow the switch to achieve a better waterproof effect.
  • The pressure tolerance standard of the product is 1800 V, which temperature resistance is between minus 40 degrees and 80 degrees.
  • The 4 pole push button switch is a direct lead connection, we can connect different fast terminals according to customer’s demand, which is convenient for wiring.
4 pole push button switch

How does the 22mm 4 pole push button switch work?

The product is divided into two types of momentary push button switch and push button switch with lock.

The product is installed on the mechanical equipment, in the case of electric circulation, press the push button switch, the machine starts. When release the push button, the machine is power off and stop working.

The product with lock is installed on the mechanical equipment, in the case of electric circulation, press the push button switch and release your hand, the machine is power on and starts. When press the push button again and release your hand, the machine is power off and stop working.

push-button-switch

Other users also asked the following questions

The difference between two-color light line and pubic line of the product:

We have two types of public lines, one is the common anode line (positive pole) and the other is the common cathode line (negative pole).

The number of lamp volts of 4 pole push button switch:

The product has a variety of voltage, such as 3V, 6V, 12V, 24V, 36V, 110V, 220V, we will adjust our resistance value according to customer’s requirement.

How to connect the wire with the 12V red green 4 pole push button switch?

The switch line and lamp light of the product is independent, 2 switch lines NO control equipment, the lamp line, red and green line and the public line link with the module, through the module to control the color change of the lamp.

22mm 10A IP68 Blue Momentary 4 Pole Push Button Switch
green 4 pole push button switch

How to purchase the 4 pole momentary push button switch?

The product has a variety of applications of coffee machine, doorbell, controller, access control.

You can purchase the product at www.cnfiln.com, or you can via offline email communication to purchase the product.

Per weight of the product is about 0.05 kg, based on customer’s quantity to determine the delivery way. The quantity of one box is 200 pieces, and the quantity of one carton is 800 pieces.

The product has no MOQ requirement. We can provide the samples free of charge for your test.

If you are interested in our product or you need the samples, please contact us directly, our email address is inquiry@cnylin.com.cn

Online-e-commerce
Quickly place an order online

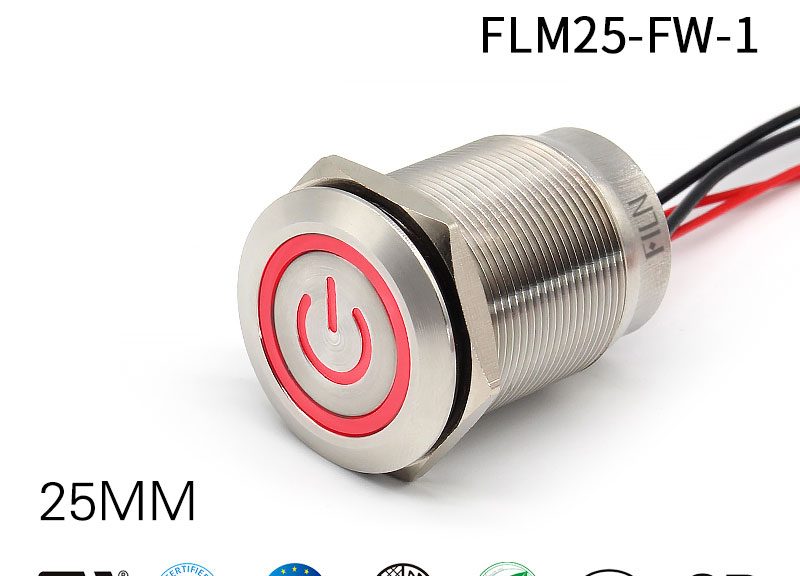

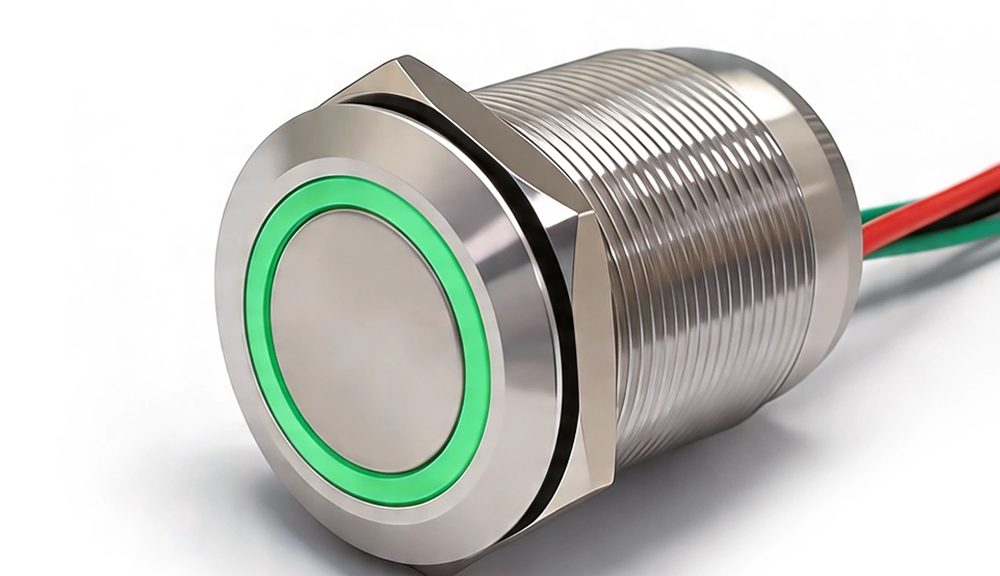

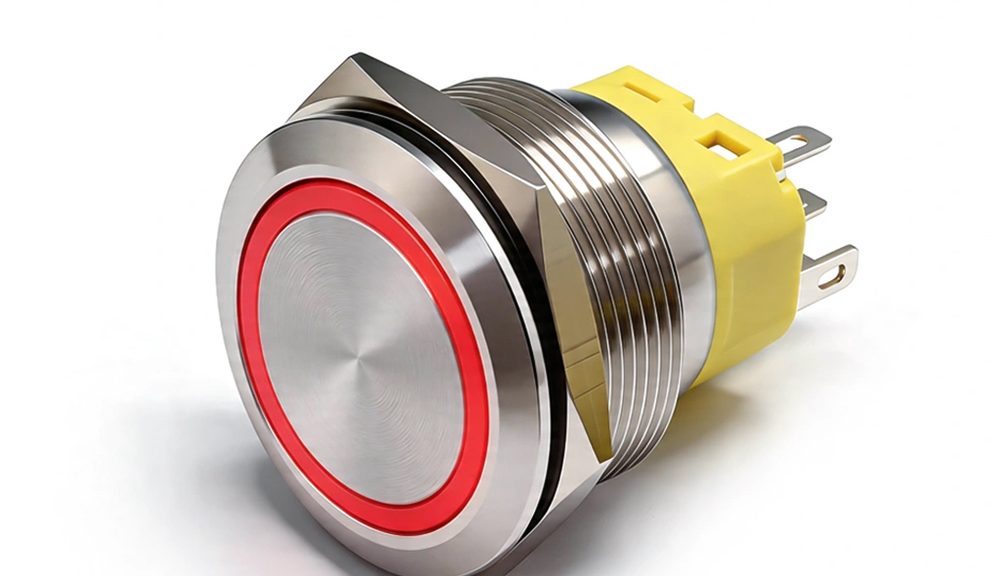

25MM 10A 24V Waterproof Metal Push Button Switch

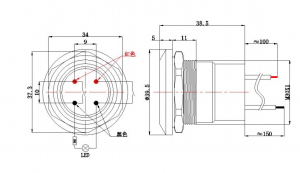

Product drawings


Metal push button switch parameters

Production Series FLM25-FW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

The description of the 25MM 10A 24V metal push button switch

The mounting aperture of the 25MM 10A 24V illuminated metal push button switch is 25MM.

The panel opening size is between 25.2MM and 25.5MM, then put the product into the mounting hole, cover the waterproof ring, and tighten it with 25MM copper nut.

The material of the product’s metal part is divided into three materials.

  • Stainless steel product adopt 304 or 316L material, which contains nickel material, so it has corrosion resistance function and it is suitable for outdoor and seaside use.
  • Brass product has the advantage of beautiful appearance after electroplating treatment, usually used in test equipment and automation equipment.
  • Zinc alloy product has the advantage that it can be electroplate a variety of different colors, such as red, green, black, and so on. The appearance of the whole button is with color after electroplating.
push button switch material



  • The plastic material of the product is PC and PA66, which can withstand temperature of 160 degrees and it is usually used in an environment between minus 40 degrees to 80 degrees.



  • The product has the reset function, it is a normally open function, its contact point is a silver point which size is 3.5mm. Its current can reach 10A. It is a direct lead design and the bottom is epoxy resin filling glue, which can achieve the function of fully waterproof. The wire adopts AWG18 high temperature Teflon wire.
push Button switch function
25MM 10A 24V Waterproof Metal Push Button Switch
  • The product has a waterproof ring designed inside. Its waterproof rating is IP68, which can be used outdoors or directly in water.
  • The mechanical life of the product is 500,000 times and the service life is 100,000 times.
  • The product can achieve a variety of colors, such as red, green, yellow, blue, white, orange, etc.
  • The product has a variety of voltage, such as 2V, 12V, 24V, 110V, 120V, 220V, 380V and so on.
  • The wire end of the product can be connected to various terminals according to customer’s requirements, such as 2.54 terminal and so on.

How does the metal push button switch work?

  1. The product has the function of self-locking and self-replicating. Self-locking product means when you press a button, it does not return automatically. You need to press the button again to return the button to its original position.
  2. Automatic product means press the button down, when the handle is released, the button will automatically return to the original position.

How to wire illuminated metal push button switch?

Install the product on the control panel, press the metal button switch, the device will start and the light on the button will turn on. Press the switch again, the device will turn off directly.

Connect the device’s positive wire with the load pin of the switch, and connect the other load pin with the LED light wire of the switch and the device’s positive pole.

Connect the negative pole of the device and the LED lamp pin’s negative pole of the button can achieve this function, please refer to below picture.

push button switch wiring

What is the smallest size of the metal push button switch?

Filn is a factory specializing in the production of buttons, there is no MOQ, you can purchase from 1 piece. We can provide samples free of charge for your test.

How to purchase the metal push button switch?

Indicator light factory

If you are a factory in need of a large volume of button switches, or you need to customize the product, you can email us at inquiry@cnylin.com.cn.

Indicator store

If you need a small quantity, you can place the order directly at www.cnfiln.com, we will arrange the delivery on the same day.

How to ensure the quality of the metal push button switch?

Indicator light certification

The waterproof push button switch of Filn had passed the certifications of UL, CE, ROSH, ISO90001. Besides, Filn has a professional push button switch testing laboratory to ensure the quality of the button.

Moreover, Filn has 11 years of experience in button production and a professional R&D team.

In addition to the 25MM metal push button switch, we also produce other different styles of push button switches, indicator lights, rocker switches and so on.

If you have any questions about metal push button switch, please contact us immediately and we will give you a satisfactory reply within 24 hours.

Quickly place an order online

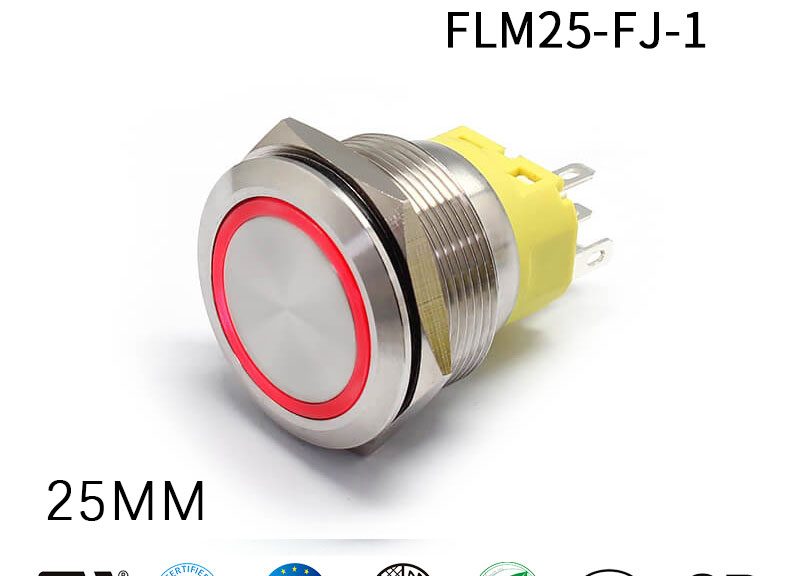

Push Button Switch with LED Indicator 25MM Stainless Steel

Push Button Switch with LED Indicator Product Introduction



Yueqing FILN Electronics Co. , Ltd. specializes in the production of led illuminated push button switch industries. According to different sizes, different shapes, different functions, colors, voltages, and specifications, our indicator lights account for the largest variety in the country. During the period, in order to better serve the customers of global indicator lights, we applied for the quality certification of led illuminated push button switch such as ROHS, CE, VDE, UL, ISO9000. The customers who bought our led illuminated push button switch so far are mainly distributed in Europe, America, North America, Asia, South Africa, Southeast Asia and other regions.

Our led illuminated push button switch has a wide range of applications, including packing machines, coffee machines, water dispensers, automatic marking machines, and all kinds of furniture about ovens, electric fryer, washing machines, refrigerators, massage chairs, etc. electrical equipment.

An improved push button switch with led indicator, including an insulated base, a signal light assembly and a push button switch with led indicator assembly, the signal light assembly is set on one side of the insulated base, push button switch with led indicator The component is set on the other side of the insulating base. The signal light assembly contains a PCB board, two wiring screws, a vertical signal light bracket, and the PCB board is fixedly connected to the insulating base. A signal light is provided on the signal light bracket. The push button switch with led indicator component includes a push button switch with led indicator, static contact, push button switch with led indicator is equipped with a button, a moving contact is arranged under the button, and a locking device is arranged under the moving contact. The reaction force spring, the moving contact is located above the static contact, the moving contact, the static contact, the signal lamp and the PCB board form a series circuit. This utility model installs the signal lamp assembly and push button switch with led indicator assembly and their functional modules On the same insulating base, the structure is simplified, space is saved, production efficiency is improved, the material is saved, and product cost is reduced.

The utility model provides a fully-sealed push button switch with led indicator, which includes a push handle, an inner waterproof ring, a light assembly, a tension spring, a pressing piece, a moving contact piece, a short conductive piece, along the conductive piece, and a lamp. Conductive member; It is characterized in that: the bottom of the handle is connected and fixed with an inner waterproof ring, the lower end of the inner waterproof ring is fixed on the upper end of the second housing, the lower end of the second housing is fixed with the first housing, and the first housing and the second housing are both fixed at On the base. The utility model improves the metal shell structure of the push button switch with led indicator and adds glue sealing so that the original panel sealed button with light push button switch with led indicator is fully sealed, and the push button switch with is added. The led indicator ensures the reliability of the normal operation of the push button switch with led indicator in the harsh environment of dust and humidity, eliminates the lack of sealing of the traditional push button switch with led indicator of this type, and improves the sealing reliability of the push button switch with led indicator.

The utility model relates to a push button switch with led indicator, comprising an outer shell, a cap, a base at the bottom of the outer shell, a conductive terminal group inserted in the base, and a push button switch with led indicator installed in the outer shell The push button switch with led indicator assembly includes a key cover body, a spring, a base body, a push rod, a self-locking seat body and a movable contact piece. In the key cover body, the self-locking seat body is rotatable installed under the key press cover body, the push rod passes through the self-locking seat body and is connected to one end of the spring, the movable contact piece is installed on the push rod, and the inner side wall of the base body Longitudinal grooves and self-locking grooves are arranged at intervals, and the outer side wall of the key press cover is protruding with a first guide bar, the first guide bar is limited in the longitudinal groove, and the first guide bar can move along the longitudinal groove, and the self-locking seat body The outer sidewall is convexly provided with a second guide bar, and the second guide bar can be switched between the longitudinal groove and the self-locking slot to realize self-locking or unlocking. The utility model occupies smaller space and has a smaller overall volume.



The following is the question and answer of this led indicator push button switch



1. What is the shelf life of this led indicator push button switch?

The shelf life of this led indicator push button switch metal button is 5 years. If you want better quality, FILN can customize it for you, and the service life can be 700,000 times. If you encounter any problems during the warranty period, you can write an email to contact FILN technical after-sales group inquiry@cnylin.com.cn, we will contact you immediately within 12 hours to solve any of your product quality problems and solutions.



2. What is the current of the led indicator push button switch?

The current of this 12mm metal button is relatively small and belongs to a low current. It is used below 2A ampere. If it is higher than 3A, its service life will be very short, and it may burn out after about 1000 times.



3. How to buy this led indicator push button switch?

You can send us an inquiry through Alibaba or Alibaba to leave us a message online, and we also have a dedicated sales representative to give you professional response.

If you are in a factory and use this button switch extensively, you can write an email to contact the sales staff of FILN company sales2@filn.com.cn. The FILN button switch sales team has 10 years of sales experience and service to foreign trade. We Will get back to you within 24 hours.



4. Can FILN company customizes the buttons we need that are not available in the market?

FILN company has more than 10 professional button R&D engineers who specialize in customizing various types of button switches with different functions. As long as you need it, FILN company can provide various customized services. Moreover, it only takes 30 days for a new button from your idea to research and development design, the development of the abrasive tool to the completion of the finished product sample. FILN company can also provide OEM services, can be marked with your trademark and so on. As long as you pay for the cost of abrasive tools and research and development for the button switch, FILN will only provide you with exclusive use and sales, which can greatly enhance your competitiveness and profit.



Popular product : pilot 24V indicator light

Production Series FLM25-FJ-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

FILN 20A Digital Temperature Controlled Switch for Kitchen

  • Temperaturecontrolled switch features (especially suitable for disinfection cabinet, steamed rice cabinet)

    1. Internal use of switching power supply design, high efficiency and energy saving, standby power consumption is less than 0.3w, and can adapt to AC170 to 390V ultra-wide working voltage
    2. Intelligent circuit design, with perfect protection function
    3. Large knob with indication design, easy to operate, digital display
    4. Optimize the structure design, easy to install and use
