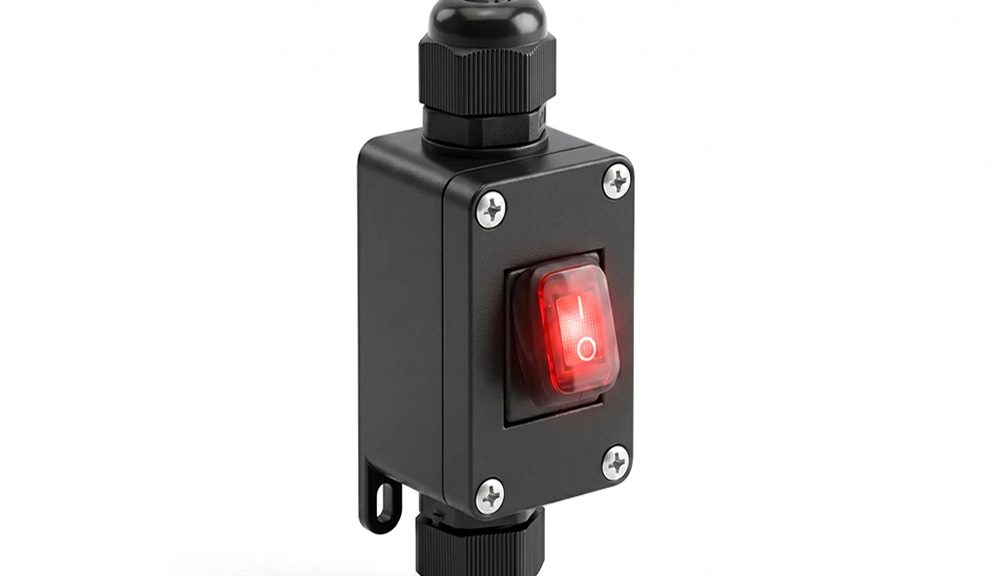

Small Junction Box with Integrated KCD1 Rocker Switch Protective Enclosure | FILN

SUMMARY

The FILN small junction box is a compact, high-efficiency electrical control enclosure engineered to combine environmental shielding with direct manual circuit isolation. Designed with a pre-cut rectangular panel aperture, this specialized housing accommodates a MINI KCD1 series rectangular rocker switch, a widely adopted industry standard for marine yacht and automation control systems. Supporting low-voltage lines from 5V to 24V as well as main grids from 110V to 220V, the integrated switch features a 3PIN rear terminal footprint for streamlined field connections. Available with either non-illuminated black profiles or high-visibility illuminated options in red, green, yellow, blue, and white (RGYBW), the snap-in retention layout simplifies final device assembly while the sealed utility base provides robust protection against dust and fluid ingress.

KEY TAKEAWAYS

  • Integrated Isolation Hub: Pre-cut layout provides a dedicated containment footprint for local manual circuit management.
  • Universal Switching Footprint: Designed for MINI KCD1 rectangular rocker switches, a common standard for yacht and marine panels.
  • Wide Voltage Tolerance: Switch contacts support low-voltage control setups (5-24V) and standard main grids (110-220V).
  • Versatile Indication Configurations: Available in high-visibility illuminated red, green, yellow, blue, and white (RGYBW) or classic non-illuminated black.
  • Streamlined 3PIN Configuration: Rear terminal configuration features a 3PIN footprint to simplify wiring setups.
  • Snap-In Panel Installation: Dual side flexible retention clips allow for tool-less switch installation.
  • Robust Environmental Shielding: Dense black ABS enclosure base helps block internal dust buildup and moisture ingress.
  • Flexible Control Options: Supports standard 2-position ON-OFF paths as well as multi-lane 3-position ON-OFF-ON configurations.
  • Extended Operating Lifespan: Internal spring mechanisms provide reliable mechanical cycling over long operational lifespans.
  • Certified Industrial Build: Manufactured under strict compliance guidelines with global CE, RoHS, and TUV approvals.

WHAT IS A SMALL JUNCTION BOX

A small junction box is a compact, robust electrical enclosure engineered to encapsulate, organize, and safeguard branch wire terminations while providing an integrated platform for manual power control. This version features a pre-machined rectangular cover panel cutout sized specifically for a MINI KCD1 series rocker switch, moving beyond standard passive splicing boxes to serve as a localized operational interface.

The structural value of this design relies on combining weather-resistant containment with an easily accessible switch mechanism. The box body is molded from high-density black ABS plastic, creating an insulated environment that guards internal connections against dust and ambient moisture. Wires enter through compression glands and link directly to the 3PIN rear terminals of the switch, creating a compact node suitable for tight machinery spaces, vehicle dashboards, and marine control panels.

The integrated KCD1 switch options include both illuminated variants for low-light visibility and non-illuminated black profiles for subtle integration. Using a tool-less snap-in design, the switch body inserts into the pre-cut panel opening from above, where flexible side retention clips compress and spring outward against the underside of the panel face. This establishes a firm mechanical mount that resists vibration, allowing operators to make reliable connection adjustments across a broad voltage range from 5-24V up to 110-220V grid paths.

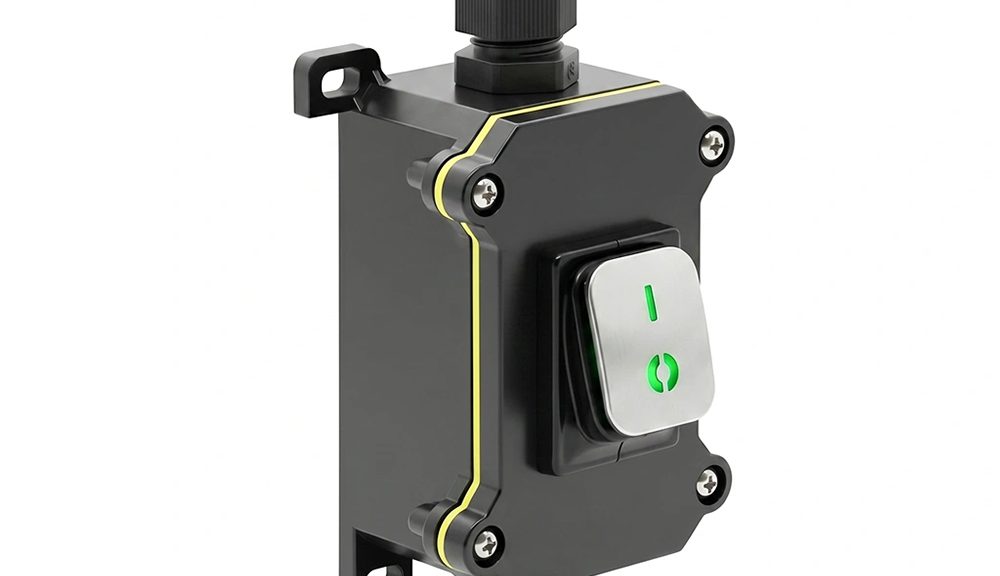

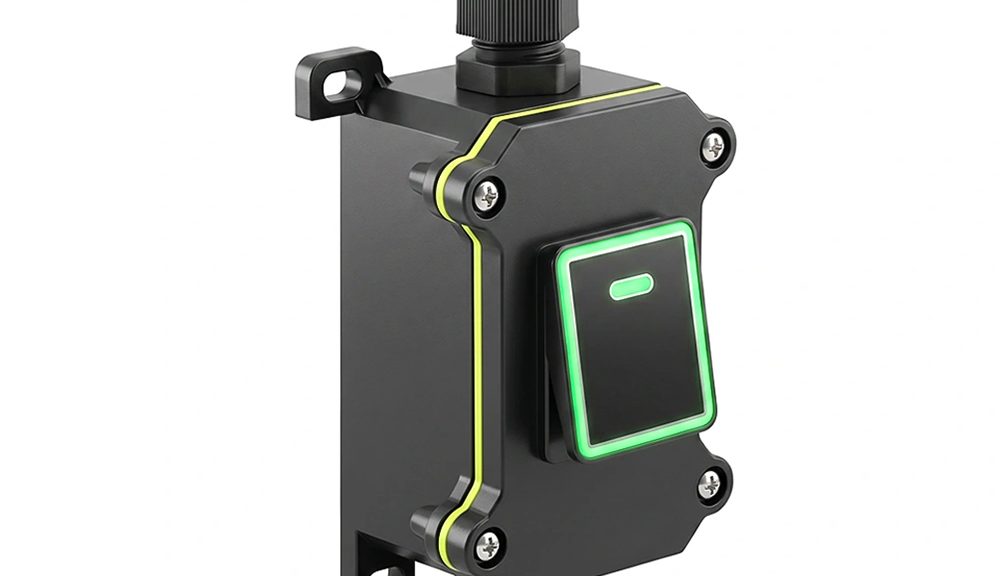

FILN Small Junction Box Configurations with Integrated KCD1 Rocker Switches

EXPLORE OUR COMPLETE ENCLOSURE RANGE

Discover our full collection of premium industrial electrical protection and switching products.

View All Waterproof Junction Box Products

PRODUCT OVERVIEW

The FILN small junction box offers a streamlined, factory-configured solution for localized power control and wiring protection. It features a compact black ABS base paired with a pre-cut panel faceplate that accepts a MINI KCD1 rectangular rocker switch, eliminating the need for manual field modifications. This design serves as a durable, vibration-resistant distribution hub for marine vessels, automotive electronics, and automated machinery lines.

The integrated KCD1 switch operates as a standard 2-position ON-OFF control, with 3-position variants available to handle more complex routing paths. The switch housing features a 3PIN rear terminal footprint that simplifies internal wiring, allowing for clean wire layouts within the compact enclosure. The switch mounts via a snap-in system: installers push the component through the pre-cut panel opening from above, and flexible side retention clips expand to lock the housing securely against the underside of the faceplate.

The control interface is available in several illumination options, including high-visibility red, green, yellow, blue, and white (RGYBW) LEDs, alongside a non-illuminated black profile. The illuminated options provide clear status feedback in dark settings like marine cabins or industrial bays, while the non-illuminated versions offer an understated look for standard panels. Built from flame-retardant PA66 nylon and heavy-duty ABS, this assembly provides long-term operational durability and dust protection across an extended voltage range of 5V to 220V.

QUICK SPECIFICATIONS

Technical Parameter Specification Value
Enclosure Product Brand FILN
Primary Product Assembly Small Junction Box (Integrated Control Hub Enclosure)
Rocker Switch Model Compatibility MINI KCD1 Series Rectangular Yacht Variant
Circuit Functional Configurations 2-Position: ON-OFF / ON-ON; 3-Position: ON-OFF-ON
Switch Operational Voltages Low Voltage Options: 5V – 24V DC; Main Grid Options: 110V – 220V AC
LED Color Options Red, Green, Yellow, Blue, White (RGYBW) / Non-Illuminated Solid Black
Rear Terminal Footprint 3PIN Fast-Connect Lug Footprint
Switch Panel Mounting Layout Tool-less snap-in insertion utilizing dual flexible side retention clips
Enclosure Base Body Finish High-Density Molded Matte Black Plastic Enclosure Base
Primary Box Purpose Combines localized manual power control with a dustproof environment for terminal connections

PERFORMANCE PARAMETERS

Parameter Index Category Verified Engineering Value
Switch Electrical Current Limits Rated at 10A 125VAC / 6A 250VAC continuous load paths
Switch Operational Voltages Broad compatibility spanning low-voltage 5-24V up to main 110-220V runs
Rear Contact PIN Layout 3PIN rear contact pins configured for quick terminal quick-connect tabs
Initial Contact Resistance ≤ 20 milli-Ohms (mΩ) measured at baseline terminal contact nodes
Insulation Breakdown Resistance ≥ 1000 Mega-Ohms (MΩ) evaluated under continuous 500VDC tests
Dielectric Strength Insulation 1500VAC / 5mA under continuous 60-second test conditions
Mechanical Splicing Lifecycle Rocker mechanism verified for ≥ 100,000 non-load mechanical transformations
Electrical Service Lifecycle Switch contacts verified for ≥ 10,000 active automated cycles under full rated load
Ambient Boundary Temperatures -25°C minimum to +85°C maximum operational envelope bounds
Factory Product Certifications ISO9001, CE, RoHS, TUV, VDE, UL, SGS Compliance Matrix

The factory performance certifications detailed above are verified by our internal labs and independent third-party test organizations. The official certification log below outlines our global distribution compliance:

FILN Official Quality Certification Compliance Log

ROCKER SWITCH FUNCTIONAL MATRIX CHART

The MINI KCD1 rectangular rocker switch series can be configured with several functional variations to match specific field circuit tracking requirements. The table below outlines the core 2-position and 3-position wiring structures available for this small control enclosure:

Circuit Mode Type Position Count PIN Layout Internal Contact Splicing Logic & Mechanical Operation
ON – OFF 2 Positions 2PIN / 3PIN Standard single-pole single-throw (SPST) circuit path. One position closes contacts to power the load; the second position opens the contact lane to break the path. Commonly used for basic power isolation.
ON – ON 2 Positions 3PIN Single-pole double-throw (SPDT) two-position configuration. Circuit path remains active across both positions, shifting power from the center common pin to Output Pin A or Output Pin B. Ideal for alternating device paths.
(ON) – OFF 2 Positions 2PIN / 3PIN Momentary automatic-reset configuration. Contacts close to power the circuit only while manual pressure is maintained on the rocker faceplate. The mechanism springs back to the OFF position when released. Suitable for testing or horn triggers.
ON – OFF – ON 3 Positions 3PIN Three-position single-pole double-throw (SPDT) arrangement. The center mechanical detent position acts as a complete system OFF block. Rocking the faceplate left or right directs power from the center pin to independent Output Pin A or Pin B. Useful for speed controls or manual supply selection.
(ON) – OFF – (ON) 3 Positions 3PIN Double momentary automatic-return configuration. The spring mechanism keeps the switch centered in the system OFF block. Pressing the rocker in either direction powers that specific output channel temporarily, returning to center when released. Used for actuator adjustments or trim tabs.

COMPONENT MATERIALS

Component / Accessory Name Material Specified Engineering Purpose & Justification
Enclosure Base Container Acrylonitrile Butadiene Styrene (ABS) Provides a dense, impact-resistant housing that guards internal connections against physical force.
Pre-Cut Enclosure Cover Acrylonitrile Butadiene Styrene (ABS) Features a factory-machined rectangular cutout to ensure secure panel integration for the switch body.
Rocker Switch Body Frame Polyamide 66 Nylon (PA66) High thermal stability and flame retardancy to prevent deformation under continuous current loads.
Flexible Snap Clips Integrated Molded PA66 Nylon Maintains spring tension across temperature shifts to lock the switch firmly against the panel face plate.
Illuminated Rocker Actuator Polycarbonate Resin (PC Polymer) Provides high light transmittance and impact resistance for the illuminated status lens.
Solid Rocker Actuator Opaque Matte Finished PA66 Nylon Provides a durable, low-wear toggle surface for non-illuminated black configurations.
Internal Conductive Busbar H62 High-Grade Pure Copper Maintains low internal resistance to limit thermal buildup across continuous current tracking runs.
Switch Contact Elements Silver-Plated Copper Alloy Ensures high electrical conductivity at contact nodes while resisting surface oxidation.
Rear Contact PIN Footprint 3PIN Tin-Plated Brass Lugs Provides robust support for quick-connect wire terminals and maintains weld integrity.
Internal Clamping Spring Nickel-Chromium Spring Steel Maintains consistent mechanical return force over extended open-close toggle lifecycles.

GENERAL CHARACTERISTICS

This technical profile specifies the environmental and mechanical boundaries for FILN’s pre-cut small junction boxes with integrated KCD1 switches. These parameters help ensure stable, long-term operation across automotive, marine, and machinery control setups.

Environmental Metric Type Target Environmental Threshold Limits
Design Scope Designation General application range profiles for pre-machined small junction box enclosures matching KCD1 switches
Component Nomenclature Compact control enclosure with snap-in rectangular toggle switch module
Active Operating Temperature Boundary -25℃ to +85℃ continuous operational tracking range
Static Storage Temperature Boundary -30℃ to +90℃ maximum safe passive exposure limit
Permissible Relative Humidity Envelope 45% to 85% relative humidity boundaries without internal condensation
Baseline Testing Evaluation Temperature Controlled ambient baseline window of 5℃ to 35℃ for technical certification
Baseline Testing Relative Humidity 45% to 85% reference standard atmosphere limits during diagnostic sweeps
Atmospheric Operational Pressure 86 kPa to 106 Kpa (860 mbar to 1060 mbar) total system tracking matrix

ELECTRICAL AND MECHANICAL CHARACTERISTICS

1. Detailed Electrical Parameters

Electrical Attribute Standard Testing Environment Condition Mandatory Engineering Criteria
Contact Resistance Profile Measured across internal switch terminals using low-current micro-signal sweeps. ≤ 20 milli-Ohms (mΩ) through contact nodes.
Insulation Resistance Capacity Continuous application of 500VDC for 60 ± 5 seconds between all non-connected contact lugs. ≥ 1000 Mega-Ohms (MΩ) isolation value.
Dielectric Voltage Insulation Applies 1500VAC (5mA cutoff) for 60s between open contacts; applies 3000VAC between internal parts and the box shell. Zero structural insulation breakdown, failure, or surface flashover.

2. Mechanical Structural Performance

Mechanical Metric Type Standard Testing Environment Condition Mandatory Engineering Criteria
Actuator Operating Force Force evaluation conducted perpendicular to the rocker faceplate center. Maintains a clean mechanical transition within 3 to 8 Newtons (3-8 N).
Snap-In Clip Structural Strength Applies an axial extraction force to the switch body after panel insertion. Withstands ≥ 50 Newtons (50 N) force without slipping or clip damage.
Enclosure Impact Toughness Drop testing conducted with a standard steel mass onto the box housing. No cracking, body fractures, or clip loosening on the ABS enclosure.

3. Durability Life Requirements

Durability Metric Type Standard Testing Environment Condition Mandatory Engineering Criteria
Mechanical Toggle Lifespan Continuous non-load automated open-close toggle cycling at 30 operations per minute. Retains baseline mechanical performance for ≥ 100,000 cycles.
Electrical Switching Lifespan Continuous automated toggle cycling conducted at full rated resistive load limits. Retains safe contact operation for ≥ 10,000 continuous cycles.

4. Environmental Resistance Matrix

Stress Profiles Testing Environment Parameters Post-Environmental Operational Requirements
High-Temperature Stress Continuous soak at 85 ± 2℃ for 72 hours; 1-hour ambient recovery room cool down. 1. No physical structural deformation or micro-fracturing.
2. Snap-in clips maintain secure panel retention strength.
3. Final contact resistance measures ≤ 40 mΩ.
4. Final insulation resistance tracking remains ≥ 100 MΩ.
5. Dielectric strength performance continues to pass baseline parameters.
Humidity & Heat Stress Continuous soak at 40 ± 2℃ alongside relative humidity bounds of 91% to 95% RH for 96 hours.
Low-Temperature Stress Continuous environmental exposure at -25 ± 2℃ for a period of 12 hours.
Thermal Temperature Cycling 5 complete hot-to-cold thermal shock transitions based on product specification limits.

PRODUCT COMPARISON SOLUTIONS

Selecting the appropriate control enclosure configuration depends on the required installation space and operational visibility. FILN manufactures both compact small junction boxes with integrated miniature KCD1 switches and larger control boxes outfitted with heavy-duty KCD4 switches to meet different field application needs.

The Miniature Control Hub: Small Junction Box with MINI KCD1 Switch

Designed for applications with limited space, this compact control configuration uses a small black plastic enclosure pre-cut for a MINI KCD1 series rectangular rocker switch. This miniature layout allows for local circuit control in tight areas like yacht cockpits, vehicle dashboards, or compact automated equipment housings without adding unnecessary bulk.

The integrated KCD1 switch features a 3PIN rear footprint that supports standard 2-position ON-OFF operations or multi-position routing pathways. This sub-compact enclosure serves as a functional protective hub for small branch terminals, low-voltage 12V DC lines, and standard 220V AC auxiliary connections. The tight design helps protect internal contact links against dust buildup and fine particle entry.

The Heavy-Duty Control Hub: Larger Enclosure with KCD4 Rocker Switch

For systems requiring higher operational current capacities and clear interface visibility, we recommend our specialized large enclosures featuring integrated KCD4 rocker switches. These heavy-duty switches handle larger electrical loads and are built for frequent manual cycling. The factory-machined panel opening allows the switch to snap into place from above, where flexible side clips lock it against the cover plate.

The KCD4 model features a larger illuminated surface, providing clear status tracking across busy factory floors or outdoor installation bays. The illuminated toggle helps operators identify the switch position in dark environments, while non-illuminated black profiles are available for standard panel layouts. This combination of a weather-resistant box and a high-capacity rocker switch is widely used in main power distributions and heavy industrial machinery lines.

FILN Premium Heavy-Duty Rocker Switch Integration and Enclosure Options

APPLICATIONS BY INDUSTRY

The FILN small junction box with an integrated KCD1 switch is used across multiple industries to provide localized circuit control and connection protection. In marine and yacht operations, control engineers use these compact black enclosures to house dashboard wiring, manage cabin lighting zones, and protect auxiliary bilge pump circuits. The illuminated RGYBW rocker options provide helpful visibility during nighttime operations.

In industrial automation and manufacturing plants, these boxes are installed alongside conveyor systems and machine frames to serve as dedicated local ON-OFF nodes for peripheral sensors or cooling fans. The durable ABS plastic housing keeps internal connections clean by blocking fine dust and airborne particulate matter. The compact footprint makes it a practical option for clean rooms, commercial food processing hubs, and test benches with limited space.

Automotive conversions and specialty vehicle builders also use these small switched enclosures to manage auxiliary lighting, power invertor gates, and custom electronics racks. The 3PIN quick-connect layout accommodates varying voltages from 5-24V low-voltage lines up to 110-220V power circuits. This flexibility makes it a reliable choice for commercial fleet upgrades and specialty equipment builds.

FILN Utility Enclosure Applications and Splicing Installations

MINIATURE INTERFACE TERMINAL SPLICING

The small junction box features quick terminal connections through an integrated 3PIN rear contact configuration. This layout supports standard 2-position ON-OFF operations, multi-track ON-ON lanes, and 3-position ON-OFF-ON circuits. The 3PIN configuration allows for straightforward integration of illuminated status lights or alternating line distribution paths inside a compact enclosure.

Connections are made using standard spade push-on terminals or direct wire soldering onto the tin-plated brass contact pins. This flexible contact layout provides low resistance and helps prevent loose connections in high-vibration applications like marine engine rooms or industrial equipment frames. The internal arrangement provides a secure, organized environment for terminal terminations within the protective box.

INSTALLATION GUIDE

Follow these systematic procedures to install the small junction box control enclosure onto your equipment frame or panel structure:

  1. Isolate Electrical Supply: Turn off and lock out upstream circuit breakers following standard electrical safety protocols before handling any system conductors.
  2. Align Panel Profile: Place the small black plastic enclosure base onto the target mounting surface and secure it using appropriate fasteners.
  3. Position Rocker Switch: Align the MINI KCD1 rectangular rocker switch over the factory-machined opening on the enclosure cover faceplate.
  4. Engage Snap Mechanism: Push the switch straight down through the pre-cut panel opening until the integrated side clips expand against the underside of the cover plate.
  5. Terminate Internal Lines: Complete the internal wiring path by attaching female quick-connect terminals to the 3PIN rear contact pins of the switch.
  6. Assemble Box Cover: Align the configured cover over the base enclosure and tighten the retention screws evenly to compress the perimeter dust seal.

SAFETY NOTICE: Ensure the total circuit load does not exceed the maximum current rating of the quick wire connectors to prevent thermal damage.

WIRING GUIDE

Follow this wiring sequence to complete connections for a 3PIN illuminated MINI KCD1 rocker switch inside the small enclosure:

  1. Prepare Circuit Leads: Strip the wire ends back by 6mm and crimp standard insulated female quick-connect terminals onto the conductor leads.
  2. Route Cables into Box: Pass the incoming supply and outgoing load cables through the entry ports and into the enclosure base.
  3. Connect Source Line: Push the main incoming hot supply terminal onto the center common contact pin (Pin 1) of the KCD1 switch.
  4. Connect Load Line: Attach the outgoing power lead to the designated load contact pin (Pin 2) to control the connected equipment.
  5. Connect Neutral Return: Attach the neutral return wire to the remaining illumination indicator pin (Pin 3) to complete the built-in status lamp circuit.
  6. Secure Entry Points: Tighten the compression glands around the entry wires to ensure a reliable dust and particle seal.

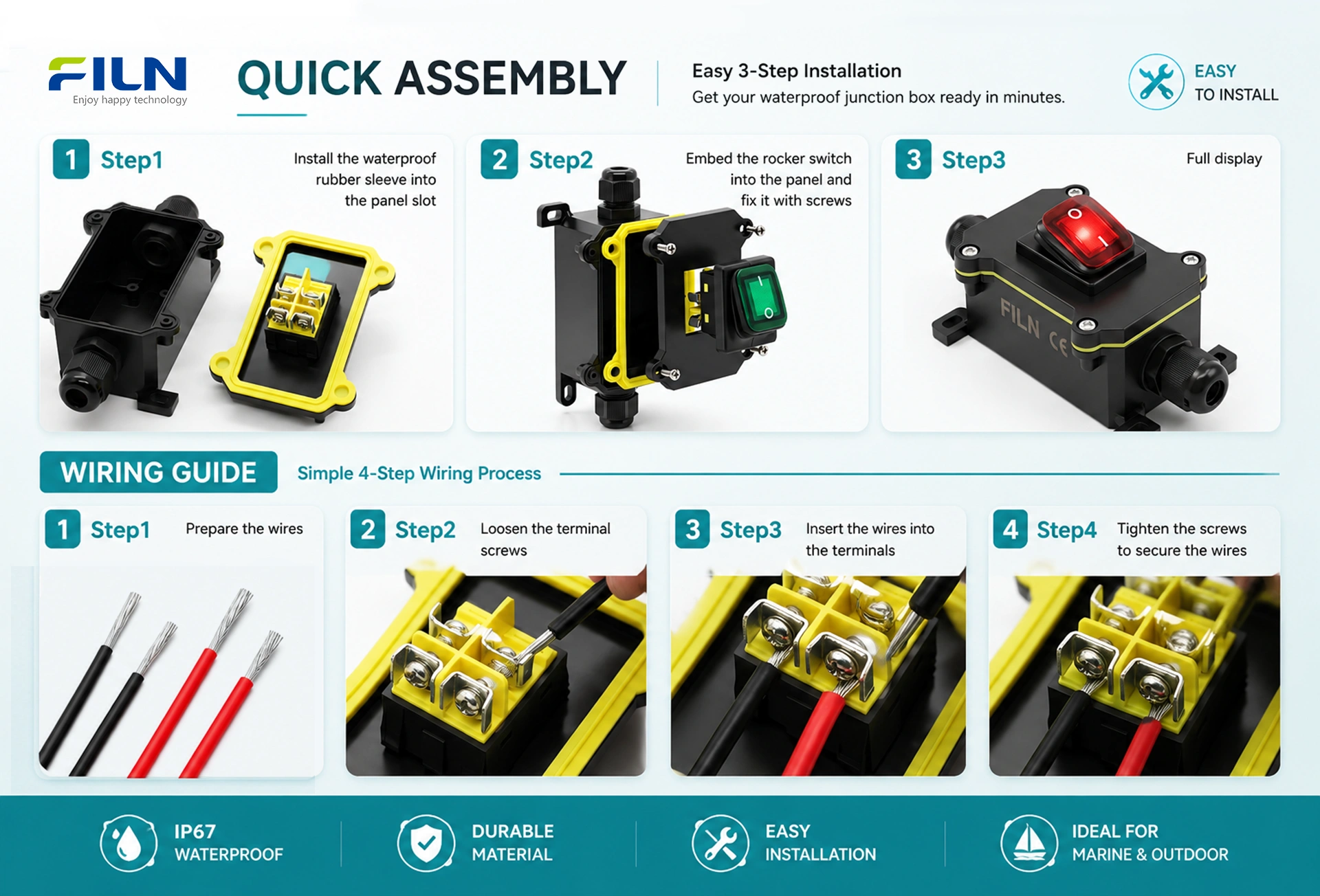

FILN Tool-less Quick Wire Connector Splicing Sequence and Box Assembly

INDUSTRY KNOWLEDGE CENTER

Choosing between illuminated and non-illuminated rocker switches involves balancing visibility requirements with aesthetic preferences. Illuminated KCD1 options feature bright LED or neon indicator lamps that provide status feedback in low-light settings, such as marine cabins, dark automotive dashboards, or industrial machinery corners.

Non-illuminated solid black rocker switches offer an understated look that blends well with standard control panels. They run cooler because they do not contain a built-in indicator bulb, and they simplify installation by eliminating the need for a separate neutral return connection on the switch body.

A common installation mistake with snap-in panel switches is using an incorrect panel cutout size. If the cutout is slightly too large, the side clips cannot compress properly, which can cause the switch to wobble or loosen under vibration. Using factory pre-cut enclosure covers ensures a precise fit, allowing the switch to snap into place securely and maintain long-term alignment.

BUYER DECISION GUIDE

When sourcing small switched electrical enclosures for volume manufacturing or commercial projects, procurement managers should evaluate several primary design factors:

First, match the internal switch current and voltage ratings to the circuit requirements. For low-voltage automation lines or vehicle grids, specify 5-24V DC configurations; for main distribution lines, select 110-220V AC rated switches. Second, select the appropriate functional logic for the application, choosing from standard 2-position ON-OFF paths, alternating ON-ON routing, or 3-position ON-OFF-ON configurations.

Next, consider the visibility needs of the operating environment. Illuminated status indicators in red, green, yellow, blue, or white (RGYBW) are helpful for low-light applications like marine cockpits or automated machinery panels, while non-illuminated black switches offer a subtle appearance for standard enclosures. Finally, ensure that the selected configurations carry verified compliance approvals (such as CE, RoHS, or TUV) to streamline regulatory acceptance for your equipment.

WHY ENGINEERS CHOOSE FILN

Industrial design engineers and corporate purchasing managers choose FILN for our factory-direct manufacturing model and reliable component quality. We eliminate standard distributor markups and minimum order quantity (MOQ) restrictions, helping clients manage costs during prototyping trials and high-volume production rollouts. This direct commercial structure supports consistent pricing and reliable lead times.

Our engineering team offers full ODM customization support, including custom-molded terminal enclosures, integrated wire harnesses, and specific cable gland configurations. With production facilities certified to ISO9001 and products carrying CE, TUV, and RoHS certifications, FILN components are suitable for integration into industrial machinery destined for global markets. We oversee all production steps in-house to maintain quality standards and provide dependable technical support.

FILN Integrated Manufacturing Operations and Engineering Lab

FACTORY DIRECT SUPPLY CAPACITY

Yueqing Yulin Electronic Co., Ltd., operating under the global brand name FILN, was established in 2006 as an integrated designer and manufacturer of specialized electrical components. From our 10,000 square meter facility equipped with 20 advanced production lines, we supply components to industrial clients in over 100 countries. Our catalog includes high-quality indicator lights, pushbutton switches, toggle controls, and custom waterproof enclosure assemblies.

FILN operates an independent testing laboratory and strictly follows ISO9001 quality management guidelines to ensure consistent electrical and mechanical performance. Our product certifications include ISO9001, CE, VDE, RoHS, SGS, UL, IP65, and TUV, facilitating compliance approval for global OEM exports. Our technical sales team acts as a direct engineering contact to assist with custom design requirements and complex application challenges.

For volume pricing requests, customized lead wire integrations, or specific product documentation, contact our international sales desk directly. We provide comprehensive engineering submittals and rapid-ship production sampling to support your project timelines.

Corporate Contact Channels:
• Official Technical Portal: www.filn.com
• Engineering Support Email: inquiry@cnylin.com.cn

FILN Automated Industrial Switch Assembly Lines

FREQUENTLY ASKED QUESTIONS

Q1: What is the main purpose of this small junction box configuration?

A1: It serves as a compact, protective enclosure designed to house wire connections and provide an integrated platform for local manual switch operation.

Q2: Which rocker switch model is compatible with this pre-cut enclosure cover?

A2: The cover panel is factory-machined to accept a standard MINI KCD1 series rectangular rocker switch.

Q3: What voltage ranges do the integrated switch contacts support?

A3: The switch is compatible with low-voltage control circuits from 5V to 24V, as well as standard main power lines from 110V to 220V.

Q4: What illumination choices are available for the KCD1 control interface?

A4: Buyers can choose high-visibility illuminated red, green, yellow, blue, and white (RGYBW) LEDs, or a non-illuminated solid black profile.

Q5: What is the rear terminal layout of the integrated switch?

A5: The switch features a 3PIN rear connection lug layout designed for standard quick-connect spade terminals or direct soldering.

Q6: How does the rocker switch mount into the enclosure cover panel?

A6: It utilizes a tool-less snap-in installation system, where flexible side retention clips expand to lock the switch firmly into the pre-cut panel opening.

Q7: What circuit configurations can the KCD1 yacht switch handle?

A7: It supports 2-position operations like standard ON-OFF and ON-ON configurations, as well as 3-position ON-OFF-ON setups.

Q8: What material is used to construct the compact box housing base?

A8: The enclosure base and cover panel are molded from high-impact black ABS plastic to provide reliable physical protection.

Q9: Does an illuminated rocker switch require a neutral wire connection?

A9: Yes, the 3PIN illuminated versions require a neutral line connected to the third pin to complete the internal indicator lamp circuit.

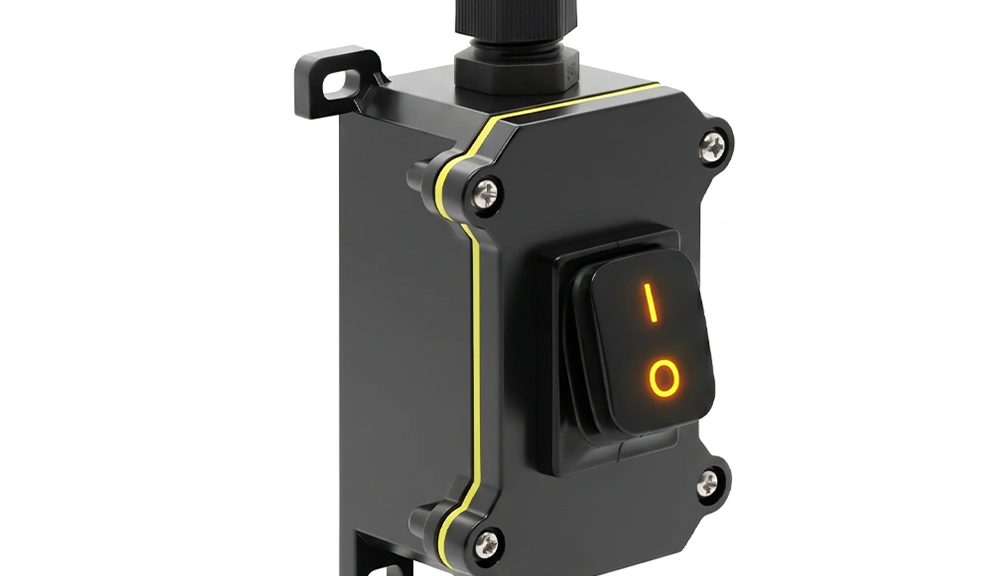

Q10: What are the advantages of the non-illuminated black switch option?

A10: The non-illuminated version offers a subtle look for standard panels, operates without indicator bulb heat, and simplifies wiring by omitting the neutral return line.

Q11: What is the continuous current rating for the KCD1 contact assembly?

A11: The switch contacts are continuously rated for loads up to 10 Amperes at 125VAC or 6 Amperes at 250VAC.

Q12: What is the operational temperature threshold for this switched box assembly?

A12: The assembly is designed to operate reliably across ambient temperature ranges from -25°C up to +85°C.

Q13: Which international quality certifications does this product series hold?

A13: The component group carries official compliance certifications including CE, RoHS, TUV, VDE, UL, and SGS approvals.

Q14: How does a factory pre-cut opening improve on manual field cutting?

A14: Pre-machined cutouts ensure a precise rectangular fit, saving installation time and allowing the switch clips to snap securely into place without wobbling.

Q15: What material is used to construct the illuminated switch toggle lens?

A15: The illuminated rocker face uses high-transmittance polycarbonate resin (PC) to ensure clear status visibility and impact resistance.

Q16: Can I buy these pre-configured small switched enclosures directly from the factory?

A16: Yes, FILN supplies these components direct from the factory with zero minimum order quantity (MOQ) limits to support both prototyping and volume production runs.

Q17: What type of wire leads work best with the 3PIN switch contacts?

A17: The tin-plated brass contact pins work effectively with insulated female quick-connect terminals or direct wire soldering.

Q18: What is the verified electrical operating lifespan of the KCD1 contacts?

A18: The internal contact points are rated to complete a minimum of 10,000 active switching cycles under full rated electrical loads.

Q19: How does the black ABS body handle dust and fine debris entry?

A19: The solid ABS enclosure walls create a protective barrier that seals out fine dust and airborne particulates from the internal wire terminations.

Q20: How can I request custom pre-wired toggle setups from FILN?

A20: You can contact our technical support team at inquiry@cnylin.com.cn to share your technical drawings and arrange custom wire assemblies or specific lead lengths.

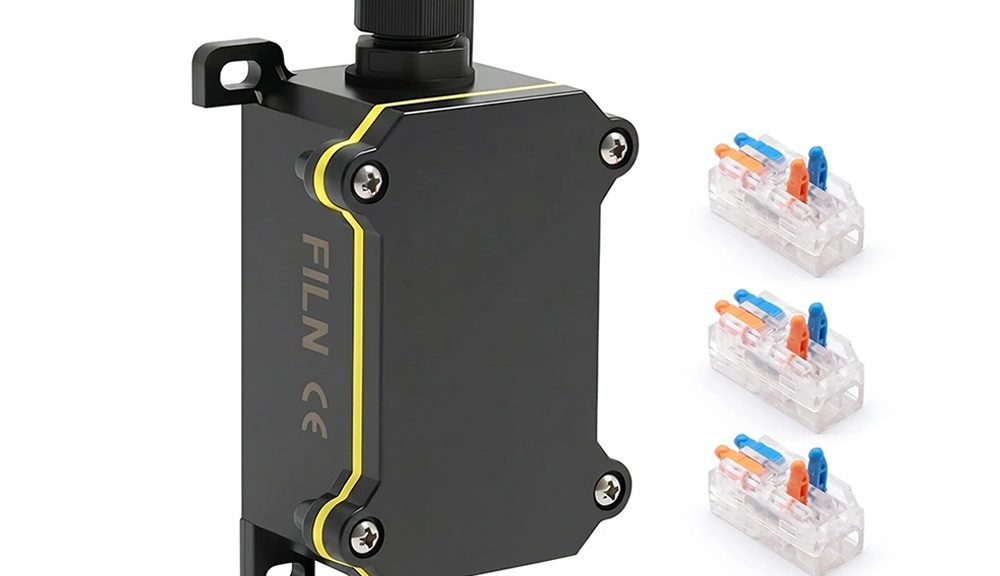

Waterproof Electrical Junction Box IP65 Sealed Polycarbonate Enclosure Factory Direct | FILN

SUMMARY

The FILN electrical junction box is a professional-grade, uncut environmental enclosure engineered to provide complete IP65 protection for field wire splicing. Designed with a solid, continuous cover without pre-drilled switch openings, this standard utility enclosure acts as a watertight shield against dust, ambient moisture, and liquid jets. It comes equipped with a 2 in 2 out quick wire connector, and its spacious internal chamber can accommodate a storage quantity of 1 to 3 connectors. Built from premium ABS and PA66 nylon materials, it ensures stable dielectric performance and high impact resistance across an extended operating temperature range of -40°C to +125°C.

KEY TAKEAWAYS

  • Complete Enclosure Integrity: Supplied as a solid, uncut structural housing without pre-machined apertures, ensuring total barrier sealing.
  • Certified Environmental Shielding: Full IP65 rated performance prevents the entry of particulate matter and moisture.
  • Integrated Splicing Accessories: Includes a premium 2 in 2 out fast wire connector to simplify terminal branch wire matching.
  • Flexible Chamber Capacity: Internal physical volume supports a flexible storage quantity of 1 to 3 connector units.
  • Universal Electrical Utility: Operates strictly as a protective splicing enclosure designed to safeguard wiring arrays.
  • High-Grade Construction Materials: Injection-molded from robust ABS and PA66 nylon for elevated dielectric and impact resistance.
  • Vibration-Proof Cable Entry: Outfitted with high-compression PG9 or PG11 cable glands to maintain uniform strain relief.
  • Broad Thermal Performance: Certified for safe, continuous operation within environmental boundaries from -40°C to +125°C.
  • Standardized Factory Compliance: Meets industrial standards backed by ISO9001, CE, RoHS, TUV, VDE, and SGS approvals.
  • Streamlined Wiring Access: Configured in a single-in, single-out layout for efficient line-in and line-out point distribution.

WHAT IS AN ELECTRICAL JUNCTION BOX

An electrical junction box is a specialized, environmentally protected enclosure designed to contain, isolate, and safeguard critical electrical conductor terminations and wire splices. Unlike custom application enclosures with built-in control mechanisms, this standard utility variant features a solid cover profile without pre-cut openings or integrated switches. Its primary industrial value lies in establishing a continuous physical barrier that shields electrical connections from ambient moisture, particulate entry, and accidental contact.

The structural layout relies on a tight mechanical seal formed between the base container and its cover using an integrated rubber gasket matrix. Wires enter the internal chamber through threaded compression glands, maintaining the enclosure’s environmental rating. Inside, the box houses terminal blocks or quick wire connectors, providing a secure, insulated environment that prevents short circuits and ground faults in demanding field installations.

For applications requiring user operation, this standard utility box can be paired with or upgraded to an illuminated KCD4 rocker switch assembly. These snap-in control components provide a clear user interface and a reliable service life. For projects requiring direct manual control, installers can modify the enclosure cover to accept these switches, which secure into position via dual integrated retention clips to combine local power isolation with environmental protection.

FILN Industrial Electrical Enclosure Options and Switched Modular Configurations

EXPLORE OUR COMPLETE ENCLOSURE RANGE

Discover our full collection of premium industrial electrical protection and switching products.

View All Waterproof Junction Box Products

PRODUCT OVERVIEW

The FILN standard electrical junction box provides a versatile, sealed containment environment for routine line-to-line electrical connections. Featuring an uncut solid-top cover, this version is designed solely to house safe wire splices without external switching interfaces. The mechanical principle relies on a compression-molded rubber gasket clamped tightly by cover fasteners to maintain a consistent IP65 environmental barrier.

The assembly includes an efficient 2 in 2 out fast wire connector that simplifies terminal splicing and eliminates the need for manual screw blocks. The internal chamber is sized to support a total storage quantity of 1 to 3 connectors, allowing for multi-wire branch distribution within a single enclosure. This flexibility makes it a practical solution for organizing field wiring across automated systems and power distribution runs.

Manufactured from high-impact ABS and heat-resistant PA66 nylon, the enclosure maintains structural integrity and electrical insulation across an operating temperature range of -40°C to +125°C. Factory-threaded entry ports accommodate standard PG9 or PG11 compression glands, providing reliable strain relief at cable entry points. Full regulatory compliance simplifies integration into commercial machinery, outdoor lighting arrays, and industrial equipment setups.

QUICK SPECIFICATIONS

Technical Parameter Specification Value
Enclosure Product Brand FILN
Primary Product Assembly Standard Electrical Junction Box (Complete Uncut Utility Box)
Operator Integration Interface None (Solid cover layout without pre-cut openings or built-in switch mechanisms)
Waterproof Joint / Gland Model PG9 / PG11 High-Compression Strain Relief Glands
Wiring Configuration Path Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out)
Included Connection Accessories Lever-Actuated Fast Wire Connector (2 In 2 Out Layout)
Internal Base Connector Quantity 1 Unit included standard (Internal area accommodates a storage quantity of 1 to 3 units)
Enclosure Mounting Options Surface-mount integrated ear channels (Dimensions optimized for standard millimeter/inch layout)
Primary Enclosure Purpose Provides watertight protection and structural routing containment for terminal splices

PERFORMANCE PARAMETERS

Parameter Index Category Verified Engineering Value
Enclosure Operational Profile Solid-top sealed protection terminal enclosure
Maximum Working Voltage Limit Rated up to 450V AC/DC across internal splicing lanes
Continuous Terminal Amperage 32 Amperes maximum capacity per fast wire connector
Initial Contact Resistance ≤ 15 milli-Ohms (mΩ) through terminal junctions
Insulation Breakdown Resistance ≥ 1000 Mega-Ohms (MΩ) evaluated at 500VDC
Dielectric Strength Insulation 2500VAC / 5mA under continuous 60-second test conditions
Mechanical Splicing Lifecycle Fast connectors certified for over 500 continuous lever open-close adjustments
Ambient Boundary Temperatures -40°C minimum to +125°C maximum structural class threshold
Ingress Protection Classification IP65 Dustproof and Waterproof certified alignment
Factory Product Certifications ISO9001, CE, RoHS, TUV, VDE, SGS Compliance Verification

The factory performance certifications detailed above are verified by our internal labs and independent third-party test organizations. The official certification log below outlines our global distribution compliance:

FILN Official Quality Certification Compliance Log

COMPONENT MATERIALS

Component / Accessory Name Material Specified Engineering Purpose & Justification
Solid Enclosure Cover Acrylonitrile Butadiene Styrene (ABS) Provides a uniform structural faceplate that blocks liquids and particulates without weakening points.
Main Enclosure Base Box Acrylonitrile Butadiene Styrene (ABS) High impact strength and structural rigidity to protect internal terminal splices from external force.
Perimeter Compression Gasket Premium Vulcanized Rubber Establishes a flexible continuous seal between the base and cover to prevent moisture ingress.
Connector Outer Shell Polyamide 66 Nylon (PA66) High dielectric strength and heat deflection performance to handle high current loads safely.
Connector Control Levers Reinforced PA66 Nylon Maintains mechanical fatigue resistance across repetitive tool-less terminal opening operations.
Internal Conductive Busbar H62 High-Grade Pure Copper Excellent electrical conductivity with minimal resistance to mitigate heat buildup at wire junctions.
Connector Contact Elements Silver-Plated Copper Alloy Optimizes current transfer across terminal junctions while resisting oxidation in humid air.
Internal Clamping Spring Nickel-Chromium Spring Steel Exerts continuous contact pressure on inserted wires, preventing relaxation from vibration.
Cable Gland Strain Washer Premium Vulcanized Rubber Provides a reliable compression seal along the entry port boundaries to keep out moisture.
Gland Assembly Body Polyamide 66 Nylon (PA66) Provides robust thread engagement and weather resistance for industrial field wire routing.

GENERAL CHARACTERISTICS

This technical profile specifies the general application parameters for FILN’s uncut utility electrical junction boxes. These characteristics help ensure stable long-term performance across standard industrial and commercial wiring layouts.

Environmental Metric Type Target Environmental Threshold Limits
Design Scope Designation General application range profiles for solid-top utility electrical protection enclosures
Component Nomenclature Weather-shielded electrical splicing containment box without integrated control interfaces
Active Operating Temperature Boundary -40℃ to +125℃ continuous operational tracking range
Static Storage Temperature Boundary -40℃ to +125℃ maximum safe passive exposure limit
Permissible Relative Humidity Envelope 45% to 85% relative humidity boundaries without internal condensation
Baseline Testing Evaluation Temperature Controlled ambient baseline window of 5℃ to 35℃ for technical certification
Baseline Testing Relative Humidity 45% to 85% reference standard atmosphere limits during diagnostic sweeps
Atmospheric Operational Pressure 86 kPa to 106 Kpa (860 mbar to 1060 mbar) total system tracking matrix

ELECTRICAL AND MECHANICAL CHARACTERISTICS

1. Detailed Electrical Parameters

Electrical Attribute Standard Testing Environment Condition Mandatory Engineering Criteria
Contact Resistance Profile Measured across internal 2 in 2 out connector channels using low-current micro-signal sweeps. ≤ 15 milli-Ohms (mΩ) through terminal junctions.
Insulation Resistance Capacity Continuous application of 500VDC for 60 ± 5 seconds between all adjacent terminal channels. ≥ 1000 Mega-Ohms (MΩ) isolation value.
Dielectric Voltage Insulation Applies 2500VAC (5mA cutoff) for 60s between terminal poles; applies 3500VAC between internal terminals and the outer box shell. Zero structural insulation breakdown, failure, or surface flashover.

2. Mechanical Structural Performance

Mechanical Metric Type Standard Testing Environment Condition Mandatory Engineering Criteria
Connector Clamping Force Pull-out force evaluation conducted on inserted solid and stranded copper conductor lines. Maintains alignment with standard industrial safety retention specifications.
Gland Entry Thread Strength Applies a continuous 50 Newton (50 N) axial load to threaded entry ports for 60 seconds. No thread stripping, physical body deformation, or loose connections.
Enclosure Impact Toughness Drop testing conducted with a standard structural steel mass from predefined heights onto the box exterior. No cracking, fracturing, or seal degradation of the ABS box housing.
Cover Retaining Fastener Integrity Torque application sweeps conducted on the cover screws to verify maximum compression limits. Maintains a positive seal without body distortion or wall fracturing.

3. Durability Life Requirements

Durability Metric Type Standard Testing Environment Condition Mandatory Engineering Criteria
Connector Lever Mechanics 500 manual open-and-close lever cycles conducted on internal wire clamping points. Retains baseline spring pressure and structural wire retention force.
Enclosure Material Aging Continuous environmental exposure under thermal cycling conditions designed to simulate long-term service.

4. Environmental Resistance Matrix

Stress Profiles Testing Environment Parameters Post-Environmental Operational Requirements
High-Temperature Stress Continuous soak at 125 ± 2℃ for 72 hours; 1-hour ambient recovery room cool down. 1. No physical structural deformation or micro-fracturing.
2. Gasket maintains positive environmental sealing properties.
3. Final contact resistance measures ≤ 30 mΩ.
4. Final insulation resistance tracking remains ≥ 100 MΩ.
5. Dielectric strength performance continues to pass baseline parameters.
Humidity & Heat Stress Continuous soak at 40 ± 2℃ alongside relative humidity bounds of 91% to 95% RH for 96 hours.
Low-Temperature Stress Continuous environmental exposure at -40 ± 2℃ for a period of 12 hours.
Thermal Temperature Cycling 5 complete hot-to-cold thermal shock transitions based on product specification limits.

PRODUCT COMPARISON SOLUTIONS

In electrical wiring layouts, selecting the appropriate enclosure profile depends on the required environmental sealing and control access. FILN manufactures both standard solid-top junction boxes and upgraded control panel enclosures with integrated switching to match specific field requirements from simple branch distribution to manual machinery isolation.

The Standard Utility Enclosure: Uncut Solid Top Configuration

Designed for general inline splicing, cable extensions, and branch wire routing, the standard utility box features an uncut cover that maximizes environmental sealing. With no pre-cut apertures or operator cutouts, this layout offers reliable resistance to liquid ingress and dust build-up, making it a functional choice for clean, continuous cable splices.

The internal layout includes a tool-less 2 in 2 out quick wire connector to speed up field wiring. The internal chamber can accommodate a storage quantity of 1 to 3 connectors, allowing for multi-wire branch distribution within a single footprint. This utility configuration acts as a reliable protection box for automated systems, lighting grids, and commercial equipment terminations where external control switches are not required.

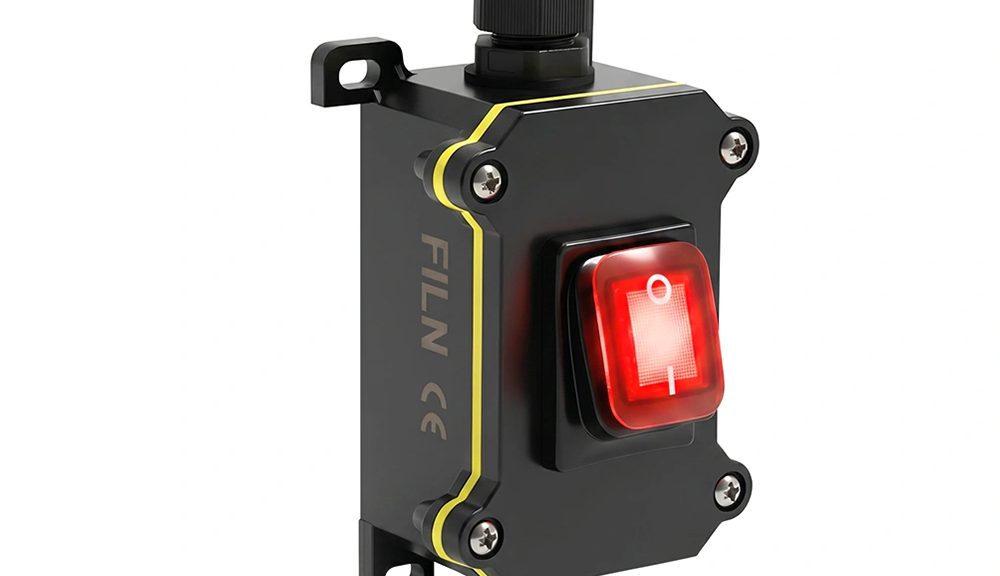

The Upgraded Control Enclosure: Integrated KCD4 Rocker Switch

For installations requiring a direct manual control interface alongside environmental protection, we recommend our specialized enclosures featuring built-in KCD4 rocker switches. These high-amperage switches provide reliable circuit isolation and a long mechanical service life. The pre-machined cover panel simplifies installation by allowing the switch to snap directly into place, combining localized control with weather protection.

The switch mounts securely via dual integrated retention clips that snap into place against the pre-drilled panel opening. Once seated, wires connect to the switch terminals inside the box, and the perimeter gasket seals the assembly against dust and moisture. This configuration is widely used in marine systems, automated equipment, and distribution panels that require quick manual overrides and positive status tracking.

FILN Premium Heavy-Duty Rocker Switch Integration and Enclosure Options

APPLICATIONS BY INDUSTRY

The FILN standard utility electrical junction box is deployed across various industrial sectors to protect field wire terminations. In industrial automation, control engineers use these boxes to contain inline sensors, link peripheral limit indicators, and protect power line splices from moisture and dust. The IP65 rating keeps internal terminations clean in manufacturing plants with routine equipment washdowns.

In outdoor solar arrays and agricultural systems, the UV-stabilized housing shields terminal connections from rain and extreme temperatures, helping to ensure consistent power transfer. In transportation and marine environments, the box serves as a secure containment point for auxiliary lines, navigation sensors, and lighting systems. The tool-less 2 in 2 out fast wire connectors provide low contact resistance and help prevent connection loosening caused by physical vibration.

Commercial facilities and medical equipment assembly zones also utilize these solid-top enclosures to organize distribution lines in wet locations or clean rooms. The box accommodates a storage quantity of 1 to 3 quick-connect terminal blocks, helping installers group branch wiring efficiently. This standard configuration provides a reliable alternative for simple line splicing where external user control switches are not required.

FILN Utility Enclosure Applications and Splicing Installations

QUICK TERMINAL INTERFACE SPLICING

The utility electrical junction box features tool-less branch wiring through integrated lever-actuated quick wire connectors. The standard package includes one 2 in 2 out fast wire connector, and the internal chamber size can accommodate a storage quantity of 1 to 3 units. This configuration enables installers to handle simple straight lines or multi-conductor branch splicing without the need for manual screw blocks or specialized crimping tools.

To complete a connection, lift the integrated locking lever on the connector housing, insert the stripped copper conductor, and snap the lever back down. The internal spring mechanism maintains constant clamping pressure on the wire, helping to prevent connection relaxation caused by thermal cycling or environmental vibration. This internal splicing design keeps conductors secure and insulated within the protective box.

INSTALLATION GUIDE

Follow these systematic procedures to install the solid utility electrical junction box onto equipment frames or wall structures:

  1. Isolate Electrical Supply: Turn off and lock out upstream circuit breakers following standard electrical safety protocols before handling any system conductors.
  2. Verify Gasket Placement: Check that the continuous rubber gasket is seated evenly in its retaining channel and free of debris.
  3. Mount Enclosure Body: Position the base enclosure against the mounting surface and secure it using appropriate fasteners through the integrated mounting ears.
  4. Install Cable Glands: Thread the provided PG9 or PG11 compression glands into the entry ports, tightening them securely to establish an environmental seal.
  5. Organize Connector Tracks: Place the included 2 in 2 out quick wire connector into the internal chamber, verifying it fits within the 1 to 3 unit storage area.
  6. Close Box Cover: Align the solid top cover over the base and tighten the cover screws evenly to compress the perimeter seal.

SAFETY NOTICE: Ensure the total circuit load does not exceed the maximum current rating of the quick wire connectors to prevent thermal damage.

WIRING GUIDE

Follow this wiring sequence to complete wire splices using the 2 in 2 out quick-connect terminal block inside the box:

  1. Strip Conductor Ends: Strip the outer cable jacket back by 30mm, then strip the individual wire leads by 10mm to expose clean copper strands.
  2. Insert Through Glands: Guide the prepared line-in and line-out cables through the compression glands and into the box interior.
  3. Open Clamping Levers: Lift the orange entry levers on the quick wire connector to open the internal clamping springs.
  4. Terminate Line Conductors: Insert the incoming hot and neutral conductors into the first input side, then snap the levers down to secure the wires.
  5. Terminate Load Conductors: Insert the corresponding outgoing hot and neutral load leads into the opposite output side and snap the levers down.
  6. Secure Cable Glands: Tighten the outer gland compression nuts until the internal rubber rings seal firmly around the cable jackets.
FILN Tool-less Quick Wire Connector Splicing Sequence and Box Assembly

INDUSTRY KNOWLEDGE CENTER

Selecting the correct electrical enclosure layout is essential for ensuring long-term system reliability. A standard solid-top utility box provides a continuous, uncut barrier that prevents dust and moisture ingress, making it suitable for inline splices and branch distributions in wet or dusty industrial environments.

Tool-less quick wire connectors provide a reliable alternative to traditional screw-type terminal blocks. They utilize pre-loaded steel springs that exert constant mechanical pressure on the inserted wires, compensating for minor conductor settling and helping to prevent connection loosening caused by vibration or thermal expansion.

A common installation error is failing to match the cable diameter with the appropriate gland size. If the cable is too small for the PG9 or PG11 gland, the internal rubber washer cannot compress adequately, potentially compromising the environmental seal. Installers should select cables within the recommended diameter ranges and tighten the glands until the rubber ring seals firmly against the outer cable jacket.

BUYER DECISION GUIDE

When procuring electrical enclosures for commercial projects or volume manufacturing, buyers should evaluate several primary design factors:

First, determine the required internal connection capacity. While a single 2 in 2 out connector handles straightforward inline extensions, projects involving multi-wire branches or parallel paths require an enclosure chamber that can accommodate a storage quantity of 1 to 3 terminal blocks. Second, match the cable outer diameter to the appropriate gland; use the PG9 gland for smaller control lines (4-8mm) and the PG11 gland for thicker power conductors (5-10mm).

Next, match the box configuration to the application requirements. For simple line splicing in wet locations, a solid-top utility box provides a reliable, continuous seal. For applications requiring a manual override or status indicator, select a model with an integrated KCD4 rocker switch, which installs securely via snap-in retention clips. Lastly, confirm that the housing materials and electrical certifications (such as CE, RoHS, or TUV) align with your local regulatory guidelines.

WHY ENGINEERS CHOOSE FILN

Industrial design engineers and corporate purchasing managers choose FILN for our factory-direct manufacturing model and reliable component quality. We eliminate standard distributor markups and minimum order quantity (MOQ) restrictions, helping clients manage costs during prototyping trials and high-volume production rollouts. This direct commercial structure supports consistent pricing and reliable lead times.

Our engineering team offers full ODM customization support, including custom-molded terminal enclosures, integrated wire harnesses, and specific cable gland configurations. With production facilities certified to ISO9001 and products carrying CE, TUV, and RoHS certifications, FILN components are suitable for integration into industrial machinery destined for global markets. We oversee all production steps in-house to maintain quality standards and provide dependable technical support.

FILN Integrated Manufacturing Operations and Engineering Lab

FACTORY DIRECT SUPPLY CAPACITY

Yueqing Yulin Electronic Co., Ltd., operating under the global brand name FILN, was established in 2006 as an integrated designer and manufacturer of specialized electrical components. From our 10,000 square meter facility equipped with 20 advanced production lines, we supply components to industrial clients in over 100 countries. Our catalog includes high-quality indicator lights, pushbutton switches, toggle controls, and custom waterproof enclosure assemblies.

FILN operates an independent testing laboratory and strictly follows ISO9001 quality management guidelines to ensure consistent electrical and mechanical performance. Our product certifications include ISO9001, CE, VDE, RoHS, SGS, UL, IP65, and TUV, facilitating compliance approval for global OEM exports. Our technical sales team acts as a direct engineering contact to assist with custom design requirements and complex application challenges.

For volume pricing requests, customized lead wire integrations, or specific product documentation, contact our international sales desk directly. We provide comprehensive engineering submittals and rapid-ship production sampling to support your project timelines.

Corporate Contact Channels:
• Official Technical Portal: www.filn.com
• Engineering Support Email: inquiry@cnylin.com.cn

FILN Automated Industrial Switch Assembly Lines

FREQUENTLY ASKED QUESTIONS

Q1: What is the primary purpose of this standard utility junction box?

A1: It operates as a solid-top, protective electrical box designed to enclose inline wire splices and terminations, shielding them from moisture and dust.

Q2: Does this model come with pre-cut switch openings in the cover?

A2: No, this variant features a solid, uncut cover surface without any built-in operator or switch openings to maintain a continuous seal.

Q3: What ingress protection rating does this uncut utility box carry?

A3: The complete housing is certified to an IP65 protection rating, verifying it is dust-tight and resistant to low-pressure water spray.

Q4: What splicing accessories are included in the standard enclosure package?

A4: Each unit includes one premium tool-less 2 in 2 out quick wire connector to simplify branch conductor terminations.

Q5: How many quick wire connectors can fit inside the box internal chamber?

A5: The internal physical dimensions are sized to accommodate a storage quantity of 1 to 3 fast-connect terminal blocks.

Q6: What wiring configuration path do the entry ports support?

A6: The enclosure ports are set up for a single-in, single-out path, suitable for straight line-in and line-out power routing.

Q7: What cable gland options are supplied with the port openings?

A7: The threaded entry channels can be specified with standard PG9 or PG11 nylon compression glands with rubber strain washers.

Q8: Can this box be modified to include an integrated control switch later?

A8: Yes, the solid ABS cover can be drilled or machined to accept a snap-in KCD4 rocker switch, which secures via built-in retention clips.

Q9: What are the primary construction materials used for the box housing?

A9: The main housing base and cover are molded from impact-resistant ABS, while the internal terminal parts utilize high-dielectric PA66 nylon.

Q10: What is the continuous current rating for the included quick wire connector?

A10: The 2 in 2 out fast wire connector supports a maximum electrical load of 32 Amperes at voltages up to 450V.

Q11: What is the certified operational temperature range for this utility box?

A11: The entire assembly is designed to operate safely across environmental temperature boundaries from -40°C up to +125°C.

Q12: Does the quick-connect block support stranded or solid copper wires?

A12: Yes, the lever-actuated internal spring clamps accept both solid copper conductors and flexible stranded wire leads.

Q13: Which international regulatory compliance approvals does this product line carry?

A13: The component family complies with international standards, carrying official CE, RoHS, TUV, VDE, and SGS certifications.

Q14: How does the lever mechanism prevent loose wiring connections over time?

A14: The internal nickel-chromium steel spring exerts continuous pressure on the conductor, helping to prevent loosening from physical vibration or thermal expansion.

Q15: Is this standard utility box suitable for outdoor industrial environments?

A15: Yes, the combination of a solid ABS body, continuous rubber gasket, and IP65 rating provides reliable protection against dust and rain in outdoor installations.

Q16: Can I buy these electrical boxes directly from the factory without a minimum order quantity?

A16: Yes, FILN sells components direct from the factory with zero minimum order quantity (MOQ) limits to support prototyping and small production runs.

Q17: What are the primary advantages of the tool-less connector over screw terminals?

A17: The lever-operated connector simplifies field wiring by eliminating the need for screwdrivers and helping to ensure consistent clamping force across all wires.

Q18: What is the verified service lifetime of the quick-connect lever assembly?

A18: The internal clamping mechanisms are rated to handle a minimum of 500 open-and-close lever cycles while retaining full wire retention force.

Q19: Does the housing material offer resistance to high relative humidity?

A19: Yes, the ABS housing and rubber gasket maintain stable insulation values under continuous relative humidity conditions ranging from 45% to 85% RH.

Q20: How do I submit a request for a custom pre-assembled internal wire layout?

A20: You can contact our technical sales desk at inquiry@cnylin.com.cn to share your drawings and request custom wire lengths or pre-installed terminal groupings.

Outdoor Junction Box with 30A Waterproof Rocker Switch UL CE Certified | FILN

SUMMARY

The FILN Outdoor Junction Box is an industrial-grade, IP65-rated weatherproof electrical enclosure integrated with a high-current KCD4 rectangular rocker switch. Engineered for heavy-duty applications, the system supports 5-24V and 110-220V electrical configurations with a robust 30A rated current capacity. Featuring a standard 22x30mm panel cutout and stable 4-pin screw terminal architecture, this enclosure is widely deployed in marine, industrial automation, RV, and solar environments. The product is manufactured in an ISO9001 certified facility and holds UL, CE, TUV, and RoHS international certifications, ensuring reliable dust and water ingress protection.

KEY TAKEAWAYS

  • High-Current Capacity: Equipped with a KCD4 rectangular rocker switch capable of handling up to 30A at 250VAC for heavy machinery.
  • IP65 Ingress Protection: Engineered to completely prevent dust ingress and withstand low-pressure water jets from any direction.
  • Industry Standard Cutout: Features a universal 22x30mm mechanical cutout configuration for seamless field replacement and integration.
  • Illumination Options: Available with high-visibility LED illumination in Red, Green, Yellow, Blue, and White for low-light environments.
  • Robust Termination: Designed with a reliable 4-pin screw terminal layout providing exceptional mechanical vibration resistance.
  • Premium Material Matrix: Constructed utilizing premium ABS and PA66 polymers paired with AgCdO12 silver alloy contacts for extended electrical life.
  • Global Compliance: Fully certified under UL, CE, TUV, VDE, RoHS, and REACH frameworks for direct international deployment.
  • Flexible Wiring Configurations: Supplied in line-in and line-out configurations utilizing high-tensile PG9 or PG11 waterproof cable glands.

WHAT IS AN OUTDOOR JUNCTION BOX?

An Outdoor Junction Box is a specialized industrial electrical enclosure designed to enclose, protect, and manage electrical wiring connections in exposed environmental conditions. Its primary function is to prevent moisture, dust, and corrosive elements from compromising electrical integrity, ensuring continuous system operation and preventing hazardous short circuits.

The design integrates an ergonomic control mechanism directly into the sealed environment. FILN offers a comprehensive portfolio of integrated rocker switch variants to match specific environmental and mechanical challenges, including Aluminum Rocker Switches, Transparent Rocker Switches, Black Painted Rocker Switches, Stainless Steel Rocker Switches, and Non-Illuminated Rocker Switches.

FILN Waterproof Junction Box Rocker Switch Material Types

PRODUCT OVERVIEW

The FILN Outdoor Junction Box represents a high-reliability solution combining an industrial-grade plastic housing with a heavy-duty KCD4 rocker switch. Operating via a manual snap-action mechanical principle, the integrated switch alternates seamlessly between ON and OFF states. This mechanism ensures instant contact migration, preventing electrical arcing and maximizing operational life under demanding inductive loads.

The electrical system is optimized for dual-range voltages, covering low-voltage 5-24V DC control circuits as well as standard 110-220V AC industrial power grids. Illumination options feature advanced LED configurations in Red, Green, Yellow, Blue, and White (RGYBW). The illuminated translucent cover significantly enhances operator safety by providing unmistakable operational status tracking within dark industrial environments, while the non-illuminated black switch offers a versatile, low-profile alternative.

Constructed from precision-molded ABS and flame-retardant polyamide PA66, the enclosure delivers excellent mechanical impact resistance and thermal stability. The assembly maintains an IP65 protection rating through custom-engineered rubber seals and integrated PG9/PG11 liquid-tight cable glands, creating an absolute barrier against ambient moisture, heavy rainfall, and abrasive dust particles.

Explore Our Complete Technical Range

View All Waterproof Junction Box Products

QUICK SPECIFICATIONS

Parameter Specification Details
Product Series FILN Waterproof Junction Box Series
Switch Model KCD4 Rectangular Series
Waterproof Gland Model PG9 /Liquid-Tight Glands
Wiring Architecture Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out)
Panel Cutout Dimensions 22mm x 30mm / 0.86″ x 1.18″
Switching Function 2-Position Maintained ON-OFF
LED Illumination Options Non-illuminated / Red / Green / Yellow / Blue / White (RGYBW)
Switch Actuator Profile Rectangular / Square Visual Aspect
Termination Protocol 4-PIN Heavy-Duty Screw Terminals

TECHNICAL OVERVIEW OF KCD4 2-POSITION SWITCH FUNCTIONS

The KCD4 rocker switch series integrates precise internal contact architecture to manage power state distribution. Below is the technical breakdown of the 2-position operational functions configured for industrial enclosures.

Function Code Circuit Layout Operational Behavior Typical Industrial Use Case
ON – OFF SPST / DPST Maintained positions. Latches in active or inactive state when pressed. Primary system master power isolation, outdoor pump control, lighting grids.
(ON) – OFF Momentary SPST Spring returns to OFF position automatically when manual pressure is released. Engine starters, localized machine calibration controls, safety fluid purging.

PERFORMANCE PARAMETERS

Technical Parameter Certified Rating Value
Operational Functions ON-OFF (2-Position Maintained)
Rated Voltage Limits 5V to 24V DC / 110V to 220V AC (Max Capacity: 250VAC)
Rated Thermal Current 30A 250VAC / 18(12)A 125VAC
Initial Contact Resistance ≤ 50 mΩ
Insulation Resistance ≥ 100 mΩ at 500VDC
Dielectric Isolation Strength 1500VAC / 5mA for 60 seconds
Mechanical & Electrical Endurance ≥ 10,000 continuous switching cycles
Ambient Operating Temperature 40T125 (-40°C to +125°C operational envelope)
Ingress Protection Rating IP65 Dustproof and Waterproof Certificated
Compliance Frameworks UL, CE, VDE, RoHS, SGS, TUV, ISO9001
FILN Industrial Electrical Switch Component Certifications

COMPONENT MATERIALS

Accessories Name Material Choice Engineering Justification
Transparent Sheet Polycarbonate (PC) High impact resilience and excellent transparency for internal light propagation.
Light Guiding Part Polycarbonate (PC) Optimizes light distribution across the actuator surface for status visibility.
Holder ABS Polymer Provides structurally rigid physical retention for internal mechanical arrays.
Waterproof Cover Industrial Rubber Flexible elastic physical membrane preventing external liquid ingress.
Up Base ABS Polymer High impact resistance housing protecting structural components.
Bottom Base Polyamide PA66 Superb heat deflection temperatures and dielectric properties under high current loads.
Middle Base ABS Polymer Dimensional stability for exact tolerance positioning of dynamic metal parts.
Pin / Spring Board H62 Brass Alloy Superior electrical conductivity paired with excellent tensile fatigue resistance.
Contact Material Silver Cadmium Oxide (AgCdO12) Exceptional anti-welding properties and low contact resistance over long duty cycles.
Spring 72# Spring Steel Delivers predictable mechanical throw forces and high fatigue endurance thresholds.
Iron Case 08F Low Carbon Steel Structural electromagnetic shield framework maximizing physical retention stability.
Washer Industrial Rubber Compression seal isolating entry points from ambient environmental micro-particles.
Light Module Solid-State LED Matrix Highly efficient illumination signature offering minimal power draw and extended operating life.

GENERAL CHARACTERISTICS

The performance matrix detailed within this section defines the universal operational boundaries for the FILN KCD4 series rocker switches deployed inside weatherized environments.

Environmental Parameter Operational Boundaries / Reference Limits
Product Allocation Name KCD4 Heavy-Duty Rocker Switch Element
Operating & Storage Temperature Range -40°C to +125°C (-40°F to +257°F)
Relative Operational Humidity Envelope 45% to 85% RH (Non-condensing state)
Standard Bench Testing Ambient Temp 5°C to 35°C
Standard Bench Testing Humidity 45% to 85% RH
Atmospheric Barometric Pressure Range 86 kPa to 106 kPa (860 mbar to 1060 mbar)

ELECTRICAL AND MECHANICAL CHARACTERISTICS

1. Electrical Performance Criteria

Characteristic Test Methodology Conditions Engineering Requirements
Contact Resistance Measured via 1 kHz AC micro-current induction framework. ≤ 50 mΩ initial boundary value.
Insulation Resistance Continuous application of 500 VDC for 60 ± 5 seconds across insulated pathways. ≥ 100 MΩ threshold across all paths.
Dielectric Isolation Apply 1500 VAC (5mA) over 60s for terminals; 3000 VAC (5mA) over 60s for housing. Zero structural breakdown; zero dielectric flashover events.

2. Mechanical Structural Parameters

Characteristic Test Methodology Conditions Engineering Requirements
Operating Throw Force Perpendicular actuator positioning with progressive linear force progression. Calibrated to specific client mechanical requirements.
Terminal Structural Rigidity Application of an inward static mechanical force load of 80 N for 60 seconds. Zero structural fracture; terminal retention remains intact.
Pin Solderability Profile Immersion of terminations within molten tin bath at 235 ± 5°C for 3 ± 0.5s. > 90% surface area achieves complete uniform tin wetting.
Thermal Welding Shielding Tin bath immersion at 260 ± 5°C for 3 ± 1s OR manual iron at 350 ± 5°C for 3 ± 1s. Zero structural deformation; electrical integrity stands qualified.

3. Durability & Operational Lifespan Matrix

Characteristic Test Methodology Conditions Engineering Requirements
Mechanical Life Cycles 20,000 cycles executed at a rate of 60 cycles per minute under zero electrical load. Must maintain ≥ 75% of baseline dielectric voltage capability post-test.
Electrical Life Cycles 10,000 cycles executed at a rate of 15 cycles per minute under full rated current load. Must maintain ≥ 75% of baseline dielectric voltage capability post-test.

4. Environmental Degradation Resistance

Environmental Stress Test Specific Testing Parameters & Chamber Profiles Post-Exposure Requirements
Thermal Ageing Acceleration Chamber heating at 125 ± 2°C for 72 consecutive hours; 1-hour recovery stage. Zero structural cracking; normal tactile response; contact resistance ≤ 200 mΩ; insulation resistance ≥ 2 MΩ; full compliance with baseline dielectric criteria.
Damp Cyclic Humidity Heat Chamber mapping at 40 ± 2°C paired with 91% to 95% RH for 96 hours; 1-hour stabilization.
Cryogenic Cold Exposure Sustained stabilization at -40 ± 2°C for 12 continuous hours; 1-hour normalization.
Thermal Shock Cycling 5 continuous temperature shock loop sequences mapped across extreme gradients.

PRODUCT COMPARISON

FILN specializes in precision-engineered electrical switch components. Every design optimization serves to refine your integration workflows and maximize equipment service life. We offer two core structural configurations—the Reinforced White-Frame Edition and the Classic Standard Edition—to meet demands spanning heavy industrial deployment to mainstream commercial applications.

Premium White-Frame Enhanced Edition: Engineered for High-Stress Industrial Applications

For engineering projects requiring exceptional structural stiffness and absolute environmental sealing, the Enhanced White-Frame version offers superior technical performance. Its embedded high-strength structural frame functions as a protective exoskeleton. This architecture absorbs mechanical installation stress when mounting into thick or slightly narrow panel cutouts, preventing housing fractures and ensuring clean retention latch engagement.

The wide-edge positioning frame acts as a reliable compression seat for the integrated rubber boot. This design prevents long-term thermal deformation or frequent operation from flipping the edge of the seal, creating a dependable barrier against fluid and dust entry. Additionally, the broad bezel neatly covers minor panel cutout imperfections, burrs, or dimensional variances, delivering a clean, modern aesthetic. This version is highly recommended for medical devices, high-vibration marine controls, off-road equipment, and high-spec export machinery.

Classic Frameless Standard Edition: Clean, Space-Saving Efficiency

The frameless standard edition provides excellent electrical performance within a space-saving, cost-effective footprint. It eliminates external bezel bulk, making it ideal for dense control panels or instrument matrices with tight switch spacing.

Built with the same premium internal silver contacts and brass terminal components as the enhanced model, it delivers identical electrical performance and life cycle ratings. For controlled indoor environments, protected enclosures, or uniform mounting conditions, this model provides excellent long-term reliability and an optimized cost structure for high-volume manufacturing.

FILN Premium vs Standard Waterproof Rocker Switch Architecture

APPLICATIONS BY INDUSTRY

The FILN Outdoor Junction Box with an integrated KCD4 rocker switch provides versatile, reliable performance across diverse sectors, including industrial automation, marine power infrastructure, solar power arrays, and agricultural fluid distribution.

Industry Segment Primary Application Scenario Environmental Challenge Solved
Industrial Automation Conveyor systems, localized packaging line controls, motor isolation. Resists airborne particulate accumulation, washdown fluid ingress, and mechanical vibration.
Marine & Yachts Bilge pump activation, deck lighting distribution, anchor windlass controls. Withstands high-salinity corrosive atmospheres and localized wave impact water spray.
RV & Transport External power distribution blocks, hydraulic leveling system isolation switches. Prevents dust entry during highway transit and protects against rain penetration.
Solar Infrastructure Photovoltaic combiner output isolation, localized solar tracker override panels. Withstands severe ambient temperature fluctuations and continuous UV exposure.
FILN Waterproof Junction Box Industrial Real World Applications

MODULAR JUNCTION BOX ARCHITECTURE

The complete product assembly consists of a weatherized plastic enclosure body and a specialized waterproof rocker switch. This configuration balances easy component maintenance with exceptional sealing integrity. High-current KCD4 switches are typically wired using a standard 4-pin layout, where power feed lines connect to the primary input terminals and downstream lines run to the load device. This modular approach allows users to swap switch variants or cable sizes without discarding the main junction box enclosure.

INSTALLATION GUIDE

  1. Pre-installation Inspection: Verify the supply circuit is completely de-energized. Confirm that panel cutout dimensions match the standard 22x30mm specification.
  2. Switch Seating Orientation: Align the rectangular KCD4 rocker switch with the pre-cut enclosure slot, ensuring the flexible rubber waterproof seal is seated correctly.
  3. Snap-In Mechanical Retention: Push the switch firmly through the front panel face until the self-adjusting side retention clips snap securely into place.
  4. Enclosure Securing: Mount the junction box base to the target substrate using appropriate structural fasteners through the pre-molded mounting channels.
  5. Sealing Inspection: Tighten all perimeter screws using an alternating cross-pattern torque sequence to ensure uniform compression of the elastomeric rubber gasket.

Technical Note: Avoid over-torquing structural screws to prevent housing stress micro-fractures. Ensure line entry points maintain downward loop geometry to prevent water tracking.

WIRING GUIDE

Executing clean termination on the 4-pin screw terminal KCD4 switch is critical for maintaining low electrical contact resistance. Follow these steps for safe, robust wiring connection:

  1. Cable Preparation: Route the exterior service cable through the PG9 or PG11 cable gland. Strip back the outer jacket by 35mm and strip individual conductor insulation back by 8mm.
  2. Input Line Termination: Connect the primary incoming live lines to terminal pins 1 and 2, then secure the integrated clamp screws tightly.
  3. Output Load Termination: Connect the downstream lines feeding the equipment to terminal pins 3 and 4 to complete the circuit loop.
  4. Gland Environmental Sealing: Tighten the outer dome nut of the cable gland until the internal rubber seal compresses firmly around the wire jacket.
FILN 4-Pin Screw Terminal Rocker Switch Connection Diagram

INDUSTRY KNOWLEDGE CENTER

Understanding Ingress Protection (IP) Mapping: An IP65 rating signifies complete protection against dust ingress (6) and protection against low-pressure water jets from any angle (5). For environments exposed to heavy weather, washdowns, or sea spray, an IP65 rating ensures long-term reliability where standard, unrated enclosures would fail.

Mitigating Contact Material Arc Degradation: Switching inductive loads like motors or pumps creates localized electrical arcing across contacts. FILN switches use Silver Cadmium Oxide (AgCdO12) contacts, which provide excellent arc-erosion resistance, maintaining low contact resistance and preventing terminal welding over long service lifespans.

Common Integration Mistakes: A frequent installation error is failing to adequately tighten the cable glands or using undersized cables that prevent the internal rubber sleeve from compressing correctly. This creates an ingress path for moisture, leading to internal condensation and eventual short circuits.

BUYER DECISION GUIDE

When sourcing outdoor switch enclosures, procurement officers and engineering teams must evaluate several critical technical variables to ensure field reliability:

  • Continuous Current Allocation: Ensure the total steady-state current draw does not exceed the switch’s 30A thermal maximum.
  • Voltage Configuration Matching: Select the correct internal LED resistor configuration to match your system voltage (5-24V DC control lines vs 110-220V AC utility grids).
  • Cable Diameter Compatibility: Match your cable outer diameter to the proper gland specification (PG9 for 4-8mm cables; PG11 for 5-10mm cables).
  • Polymer Material Selection: Use impact-resistant ABS for general outdoor installations, or select premium polycarbonate compounds for applications with high UV exposure or aggressive chemical contact.

WHY ENGINEERS CHOOSE FILN & FACTORY DIRECT SUPPLY

Yueqing Yulin Electronic Co., Ltd., operating under the global premium brand FILN, was established in 2006 as an integrated industrial electrical switch manufacturer combining R&D, high-volume production, and custom sales. FILN operates a modern, 10,000 m² production facility equipped with more than 20 advanced manufacturing lines and an independent testing laboratory in Wenzhou, Zhejiang. Adhering strictly to the ISO9001 quality management system, FILN delivers industry-leading component innovation, robust mechanical structures, and stable electrical performance across more than 100 countries.

Our certified product portfolio includes indicator lights, pushbutton switches, rocker switches, toggle switches, and custom wire-harness assemblies. These components are widely specified across kitchen appliances, energy storage systems, EV charging networks, automotive systems, marine electronics, and commercial security installations. Holding certifications from UL, CE, RoHS, REACH, TUV, and CB, FILN provides direct engineering assistance, flexible no-MOQ production capabilities, rapid manufacturing lead times, and tailored custom engineering solutions.

Contact our engineering team today to receive direct pricing updates and full technical drawings:

Official Technical Platform: www.filn.com
Direct Procurement Routing: inquiry@cnylin.com.cn

FILN Industrial Electrical Switch Component Corporate Factory Manufacturing Capabilities
FILN Advanced Automation Production Lines Workshop

FREQUENTLY ASKED QUESTIONS

Q1: What is the standard ingress protection level of this outdoor junction box?

A1: The complete system achieves an IP65 protection rating, which ensures total sealing against dust penetration and reliable defense against low-pressure water streams from any direction.

Q2: Can the integrated KCD4 rocker switch handle a continuous 30A current load?

A2: Yes, the switch is structurally rated to handle a maximum thermal current of 30A at 250VAC, making it suitable for demanding industrial and heavy machinery control circuits.

Q3: What are the exact structural panel cutout dimensions required for this switch?

A3: The KCD4 switch utilizes a standard rectangular cutout sizing configuration of 22mm x 30mm (0.86″ x 1.18″) for seamless panel integration.

Q4: What voltage options are available for the built-in LED illumination modules?

A4: The integrated LED modules can be configured to support low-voltage 5-24V DC systems as well as standard 110-220V AC utility power setups.

Q5: What are the advantages of using 4-pin screw terminal connections over quick-connect spade tabs?

A5: Heavy-duty 4-pin screw terminals offer superior mechanical retention and higher resistance to vibration, preventing wire pull-out and minimizing contact resistance in high-current applications.

Q6: What material choices are used for the internal electrical switch contacts?

A6: The switch elements utilize premium Silver Cadmium Oxide (AgCdO12) contacts, providing excellent electrical conductivity and high resistance to contact welding or arc degradation.

Q7: Is the plastic enclosure material UV stable for direct outdoor installation?

A7: Yes, the housing options are constructed using stabilized ABS or premium polycarbonate blends engineered to withstand prolonged UV exposure without cracking or degrading.

Q8: What cable gland sizes are supplied with the FILN outdoor junction box?

A8: The enclosure is configured with liquid-tight PG9 or PG11 cable glands to match a wide range of external wire jacket diameters.

Q9: Does this electrical product hold safety certifications for export to the US and Europe?

A9: Yes, the component array is fully certified under UL, CE, TUV, VDE, RoHS, and REACH international safety standards.

Q10: What LED illumination colors are available for the KCD4 switch?

A10: FILN offers five high-visibility LED colors: Red, Green, Yellow, Blue, and White (RGYBW), along with a standard non-illuminated black version.

Q11: Can this product be deployed in marine or saltwater environments?

A11: Yes, the combination of an IP65 sealed housing, rubber sealing boots, and non-corrosive H62 brass alloy terminal structures makes it ideal for marine and yacht wiring applications.

Q12: What is the baseline mechanical service life rating of the internal rocker switch?

A12: The mechanical structural architecture is engineered and tested to achieve a minimum lifespan of 20,000 operational cycles under zero-load bench testing.

Q13: Does FILN require a minimum order quantity (MOQ) for custom wiring configurations?

A13: FILN offers a flexible, no-MOQ policy for standard products and prototype samples to support industrial engineering design verification.

Q14: How does the internal light-guiding PC element improve safety in low-light environments?

A14: The integrated polycarbonate light guide projects sharp, uniform illumination across the translucent cover, allowing operators to quickly identify switch locations and status in dark work areas.

Q15: What is the ambient operational temperature range for this enclosure assembly?

A15: The unit features a certified 40T125 thermal class rating, allowing reliable operation in extreme environments ranging from -40°C up to +125°C.

Q16: How do the PG series cable glands prevent water tracking along incoming wires?

A16: The glands compress an internal rubber sleeve tightly around the cable jacket as the dome nut is tightened, creating a secure environmental seal at the wire entry point.

Q17: What is the functional circuit configuration of the standard KCD4 switch?

A17: The standard configuration uses a 2-position maintained ON-OFF functional layout, allowing positive circuit latching in both electrical states.

Q18: Can I request customized pre-terminated internal wiring harnesses directly from the factory?

A18: Yes, FILN provides comprehensive OEM/ODM engineering services, including custom internal lead preparation, specialized terminal crimping, and modified housing layouts.

Q19: How does the snap-in mounting mechanism function during final assembly?

A19: The switch body features flexible molded side retention tabs that compress during insertion and expand securely against the back of the panel to lock the unit in place.

Q20: Who should I contact for large-volume wholesale pricing and custom technical assistance?

A20: Please route technical design specifications and volume quote requests directly to our global engineering group via email at inquiry@cnylin.com.cn.

Waterproof Junction Box with 30A Aluminum LED Rocker Switch UL CE Certified | FILN

SUMMARY

The FILN waterproof junction box integrates a premium KCD4 rectangular illuminated rocker switch with a heavy-duty electrical enclosure engineered for challenging industrial environments. Featuring a high-current rating of 30A at 250VAC, this component utilizing an aluminum faceplate with an LED ring light ensures exceptional power distribution control. It possesses an IP65 protection rating, UL, CE, RoHS, and TUV certifications, making it suitable for marine, automotive, and automation systems across the United States, Europe, and Australia. Designed with a 22x30mm mounting cutout and a 4PIN screw terminal mechanism, this single-in single-out configuration offers reliable operation under extreme temperatures ranging from -40°C to +125°C.

KEY TAKEAWAYS

  • High-Amperage Control: Features a premium built-in KCD4 switch supporting 30A 250VAC / 18(12)A 125VAC heavy-duty industrial loads.
  • Engineered Enclosure Protection: Complete IP65 dust-tight and water-resistant execution ensuring safe distribution.
  • Universal Mounting Dimensions: Leverages the industry-standard 22mm x 30mm rectangular panel cut-out profile.
  • Robust Screw Terminal Interface: Equipped with a 4PIN heavy-duty screw terminal layout ensuring stable field wiring connections.
  • Illumination Configurations: Offered with energy-efficient LED light options across Red, Green, Yellow, Blue, and White (RGYBW) spectrums.
  • Premium Aluminum Faceplate: Metallic ring-lit design offers superior structural integrity compared to standard plastic alternatives.
  • Global Compliance Approvals: Fully tested and certified under ISO9001, UL, CE, TUV, VDE, CB, RoHS, and SGS standards.
  • Extreme Environmental Resiliency: Confirmed operating capability spanning ultra-low and high-temperature boundaries from -40°C to +125°C.
  • Optimized Field Cable Entry: Integrated factory-threaded PG9 or PG11 strain-relief compression cable glands pre-configured.
  • Versatile Operational Layouts: Available in precise ON-OFF, ON-ON, and 3-position ON-OFF-ON electrical mechanical configurations.

WHAT IS A WATERPROOF JUNCTION BOX WITH ROCKER SWITCH

A waterproof junction box is a highly resilient electrical enclosure specifically engineered to shield critical electrical wiring connections from ambient moisture, particulate ingress, and corrosive substances. Integrated with a high-performance KCD4 rocker switch, this distribution assembly establishes localized control over high-amperage sub-circuits. Operating as a safe point of termination, the box houses rugged terminal paths and provides robust mechanical strain relief via compression glands.

The internal architecture consists of an engineered plastic housing combined with a sealed operator interface that isolates live currents from dangerous grounding shorts. Electrical installers deploy these units within demanding machinery zones, commercial washdown environments, and marine applications where conventional switch panels fail. This design reduces circuit layout complexity by unifying environmental sealing with local power isolating controls.

To satisfy diverse industrial engineering mandates, FILN offers multiple premium rocker switch configurations within this sealed enclosure product family. Control panel builders can specify Aluminum Rocker Switches for heavy mechanical protection, Transparent Rocker Switches for direct internal visual feedback, Black Painted Rocker Switches for specialized aesthetic integration, Stainless Steel Rocker Switches for highly corrosive chemical exposures, or No Light Rocker Switches for standard light-sensitive applications.

FILN Waterproof Junction Box and Various Rocker Switch Types

EXPLORE OUR COMPLETE ENCLOSURE RANGE

Discover our full collection of premium industrial electrical protection and switching products.

View All Waterproof Junction Box Products

PRODUCT OVERVIEW

The FILN waterproof junction box assembly represents a factory-integrated solution combining a rigid, dust-tight base housing with an illuminated rectangular KCD4 rocker switch. The primary mechanical principle involves a robust snap-in retention system paired with a compressed rubber gasket matrix that resists external pressure. Electrically, the internal switch utilizes premium silver alloy contacts to handle continuous currents up to 30 Amperes without overheating.

This component utilizes an isolated internal circuit design supporting selectable LED operating voltages from 5-24V up to 110-220V. Cable termination uses industrial 4PIN heavy-duty screw terminals that provide superior vibration resistance compared to standard quick-connect spade lugs. This structural rigidity helps ensure consistent electrical performance in maritime yachts, automated machinery, and power distribution setups.

Manufactured from high-grade ABS and PA66 nylon, the assembly exhibits strong dielectric strength and physical impact durability. Integrated PG9 or PG11 cable compression glands maintain the IP65 seal integrity at the wire access points. Complete compliance with international testing frameworks ensures straightforward integration into municipal control infrastructure and high-volume OEM equipment builds.

QUICK SPECIFICATIONS

Technical Parameter Specification Value
Enclosure Product Brand FILN
Primary Product Assembly Waterproof Junction Box with Integrated Switch
Switch Series Profile KCD4 Rectangular Series
Waterproof Joint / Gland Model PG9 / PG11 High-Compression Strain Relief Glands
Wiring Configuration Path Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out)
Switch Actuator Geometry Square / Rectangular Profile Appearance
Switch Mounting Cutout 22mm x 30mm (0.866″ x 1.181″) Dimensions
Primary Switching Functions ON-OFF / ON-ON / ON-OFF-ON 3-Position Option
Integrated LED Indicator Color No Light Option / Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W)
Wiring Connection Mechanism 4PIN Heavy-Duty M3 Screw Foot Terminals
Input Control Voltage Range 5V to 24V DC / 110V to 220V AC Options

PERFORMANCE PARAMETERS

Parameter Index Category Verified Engineering Value
Electrical Function Matrix Two-position latching ON-OFF
Maximum Rated Load Voltage 30A 250VAC / 18(12)A 125VAC High Load Range
Continuous Working Amperage 30 Amperes peak structural tolerance
Initial Contact Resistance ≤ 50 milli-Ohms (mΩ) baseline maximum
Insulation Breakdown Resistance ≥ 100 Mega-Ohms (MΩ) evaluated at 500VDC
Dielectric Strength Voltage 1500VAC / 5mA under continuous 60-second test
Electrical Lifecycle Endurance ≥ 10,000 cycles completed at maximum electrical load
Ambient Boundary Temperatures -40°C minimum to +125°C maximum (40T125 thermal class)
Ingress Protection Classification IP65 Dustproof and Waterproof certified alignment
Factory Product Certifications ISO9001, CE, UL, TUV, VDE, RoHS, SGS, CB Compliance

The factory performance certifications detailed above are verified by our internal labs and independent third-party test organizations. The official certification log below outlines our global distribution compliance:

FILN Official Quality Certification Compliance Log

COMPONENT MATERIALS

Component / Accessory Name Material Specified Engineering Purpose & Justification
Transparent Sheet Polycarbonate (PC) High clarity combined with high impact strength and thermal resistance.
Light Guiding Part Polycarbonate (PC) Optimizes light refraction for high-efficiency, uniform LED luminance distribution.
Switch Holder Structural Ring Acrylonitrile Butadiene Styrene (ABS) Provides mechanical rigidity and structural stability to prevent body flexing under load.
Waterproof Protection Cover Premium Vulcanized Rubber Maintains a flexible, long-lasting environmental seal across cold and hot temperature cycling.
Up Base Shell Housing Acrylonitrile Butadiene Styrene (ABS) High external impact resistance and surface hardness to protect against physical abuse.
Bottom Isolation Base Polyamide 66 Nylon (PA66) High dielectric strength and heat deflection performance under heavy electrical load.
Middle Interlocking Seat Acrylonitrile Butadiene Styrene (ABS) Maintains alignment between internal switching points and external mechanical components.
Pin, Edge Leg & Spring Board H62 High-Grade Industrial Brass Excellent electrical conductivity combined with a low resistance coefficient to reduce thermal load.
Electrical Switch Contacts Silver Cadmium Oxide (AgCdO12) Resists arc erosion and prevents contact welding under peak 30A inrush loads.
Actuator Internal Spring 72# Carbon Spring Steel Wire Provides consistent mechanical recoil and actuation force across prolonged duty cycles.
Iron Frame Structural Case 08F Low-Carbon Automotive Steel Structural enforcement matrix preventing physical housing shift within heavy panel integrations.
Enclosure Compression Washer Premium Vulcanized Rubber Provides positive compression seal tracking along the gland entry boundaries to block water.
Illumination Core Element Solid-State LED Matrix Module High-efficiency, low-power visual monitoring with a service life exceeding 50,000 operational hours.

GENERAL CHARACTERISTICS

This technical specification profile defines the general application envelope for the KCD4 series rocker switches integrated within FILN’s protective industrial enclosures. These characteristics guide electrical engineers during system design and field integration.

Environmental Metric Type Target Environmental Threshold Limits
Design Scope Designation General application range profiles for KCD4 heavy-duty rocker switch modules
Component Nomenclature High-amperage rocker mechanism and weather-shielded industrial enclosure
Active Operating Temperature Boundary -40℃ to +125℃ continuous operational tracking range
Static Storage Temperature Boundary -40℃ to +125℃ maximum safe passive exposure limit
Permissible Relative Humidity Envelope 45% to 85% relative humidity boundaries without internal condensation
Baseline Testing Evaluation Temperature Controlled ambient baseline window of 5℃ to 35℃ for technical certification
Baseline Testing Relative Humidity 45% to 85% reference standard atmosphere limits during diagnostic sweeps
Atmospheric Operational Pressure 86 kPa to 106 Kpa (860 mbar to 1060 mbar) total system tracking matrix

ELECTRICAL AND MECHANICAL CHARACTERISTICS

1. Detailed Electrical Parameters

Electrical Attribute Standard Testing Environment Condition Mandatory Engineering Criteria
Contact Resistance Profile Measured via 1 kHz AC micro-signal source under a low-current configuration. ≤ 50 milli-Ohms (mΩ) initial rating.
Insulation Resistance Capacity Continuous application of 500VDC for a period of 60 ± 5 seconds across all adjacent terminals. ≥ 100 Mega-Ohms (MΩ) isolation value.
Dielectric Voltage Insulation Applies 1500VAC (5mA cutoff) for 60s across terminals; applies 3000VAC (5mA cutoff) between terminal and frame. Zero structural insulation breakdown, failure, or surface flashover.

2. Mechanical Structural Performance

Mechanical Metric Type Standard Testing Environment Condition Mandatory Engineering Criteria
Actuator Operating Force Switch fixed perpendicular to toggle travel vector; incremental load is applied to calculate peak force. Maintains alignment with custom engineering specification bands.
Connection Terminal Strength Applies a continuous 80 Newton (80 N) static load directed along the terminal terminal axis for 60s. No component deformation, fracturing, loose pins, or tracking disconnects.
Terminal Solderability Path Immerse connection leads into a molten tin bath at 235 ± 5℃ for a period of 3 ± 0.5 seconds. Solder wetting must cover more than 90% of the active immersion zone.
Welding Thermal Resistance Immerse pins at 260 ± 5℃ for 3 ± 1s, OR apply manual soldering irons at 350 ± 5℃ for 3 ± 1s. Zero structural deformation; mechanical toggle and electrical functions remain nominal.

3. Durability Life Requirements

Durability Metric Type Standard Testing Environment Condition Mandatory Engineering Criteria
Mechanical Working Life 20,000 cycles at 60 operations/minute under zero electrical load conditions. Withstands ≥ 75% of the original dielectric breakdown tracking voltage post-test.
Electrical Load Life 10,000 cycles at 15 operations/minute under maximum rated inductive and resistive load. Withstands ≥ 75% of the original dielectric breakdown tracking voltage post-test.

4. Environmental Resistance Matrix

Stress Profiles Testing Environment Parameters Post-Environmental Operational Requirements
High-Temperature Stress Continuous soak at 125 ± 2℃ for 72 hours; 1-hour ambient recovery room cool down. 1. No physical structural deformation or micro-fracturing.
2. Consistent contact tactile response.
3. Final contact resistance measures ≤ 200 mΩ.
4. Final insulation resistance tracking remains ≥ 2 MΩ.
5. Dielectric strength performance continues to pass baseline parameters.
Humidity & Heat Stress Continuous soak at 40 ± 2℃ alongside relative humidity bounds of 91% to 95% RH for 96 hours.
Low-Temperature Stress Continuous environmental exposure at -40 ± 2℃ for a period of 12 hours.
Thermal Temperature Cycling 5 complete hot-to-cold thermal shock transitions based on product specification limits.

PRODUCT COMPARISON SOLUTIONS

In electrical distribution architectures, specific detail adjustments significantly influence long-term operational reliability. FILN provides two structural variants within the KCD4 rocker switch family—the Reinforced Framed White-Border Series and the Standard Frameless Series—to balance specific application requirements from heavy-duty industrial processing to cost-sensitive equipment builds.

The Enhanced Framed Series: White Frame Structural Optimization

Designed for high-vibration control panels, machinery exports, and heavy duty industrial environments, the white-frame option incorporates an integrated structural exoskeleton. This design reinforces the switch housing, helping to prevent body deformation during installation into rigid or slightly undersized cutouts. This protection ensures reliable snap-arm recoil and secure engagement.

Additionally, this perimeter frame acts as an anchor for the vulcanized rubber waterproof cover, preventing edges from rolling or unseating under repetitive use or high temperatures. This design provides a reliable physical barrier against water droplets and fine abrasive dust in marine, outdoor solar, and automated equipment applications. The extended frame geometry also covers minor panel cutout imperfections like burrs or slight edge chips, yielding a clean, premium integration.

The Standard Frameless Series: Compact Profile Efficiency

The classic frameless variant offers a space-efficient layout for high-density control panels and general purpose electronics. By eliminating the extended outer frame, this profile allows for closer multi-switch grouping where mounting area is limited. It utilizes the same silver-alloy contacts and internal brass current tracks as the framed series, maintaining matching electrical performance. For interior, low-moisture environments with precise cutouts, this variant delivers consistent switching lifetimes while reducing total component cost in high-volume production projects.

FILN Premium Framed vs Frameless Rocker Switch Structural Variants

ROCKER SWITCH CIRCUIT FUNCTION MODES

The integrated rectangular KCD4 series rocker switch can be configured with specific circuit logic paths to match various application control requirements. The table below details the electrical behaviors, terminal path links, and typical system use cases for 2-position and 3-position configurations.

Circuit Function Type Mechanical Positions Internal Terminal Path Behavior Typical Industrial Engineering Use Case
ON – OFF 2 Positions (Latching) Maintains a closed circuit in the ON position and completely opens the path in the OFF position. Disconnects both lines when using a 4PIN layout. Primary system power isolation, sub-circuit on/off control, single-phase motor isolation.
ON – ON 2 Positions (Latching) Alternates electrical path delivery between Output Set A and Output Set B, preventing a shared open state. Dual power source selection, alternating system operation, instrumentation circuit routing.
ON – OFF – ON 3 Positions (Latching) The center position opens all terminal connections. Actuating left or right closes separate target circuits. Manual motor directional controls (Forward-Stop-Reverse), alternative grid/generator sourcing.
(ON) – OFF / ON – (OFF) 2 Positions (Momentary) Maintains active loop continuity only while holding down the actuator actuator. Spring-returns to baseline open state when released. System testing, fluid purge loops, jog controls, localized calibration routines.

APPLICATIONS BY INDUSTRY

The FILN waterproof junction box assembly is deployed across various heavy-duty industrial sectors due to its integrated design and environmental protection ratings. In industrial automation, control engineers use these boxes to distribute localized field power and provide manual isolation switches for conveyors and sortation lines. The IP65 enclosure protects the terminal connections from routine chemical washdowns and airborne particulates.

In marine and recreational vehicle applications, the assembly provides centralized power control for onboard bilge pumps, internal lighting grids, and navigation arrays. The H62 brass current paths and optional white-frame sealing help resist salt fog oxidation and mechanical stress from hull vibration. In solar energy arrays and automated agricultural systems, the UV-stabilized housing shields terminal connections from rain and extreme sun exposure, helping to ensure consistent operation.

Commercial building operations and medical manufacturing facilities utilize these assemblies in sanitization zones, climate-controlled clean rooms, and outdoor HVAC configurations. For dark or low-light operating conditions, the integrated KCD4 switch with an active LED ring light provides clear status tracking. Conversely, for darkroom or light-sensitive applications, the unilluminated matte black option integrates cleanly into standard equipment configurations.

FILN Waterproof Junction Box Industrial Applications and Environments

WATERPROOF JUNCTION BOX SWITCH INTEGRATION

This industrial junction box unifies an IP65 polycarbonate protective enclosure with a high-current rectangular rocker switch to provide a sealed power control node. The internal layout supports straightforward cable routing, featuring dedicated line-in and line-out paths secured by compression glands. The 4PIN screw terminal block eliminates the need for manual soldering or push-on crimp lugs, providing a reliable connection that resists mechanical relaxation from thermal expansion and vibration.

Proper integration requires running the incoming supply line through the compression gland directly to the input pins of the KCD4 switch. The corresponding output pins route power to the load device, while the independent LED pins are linked to the switched hot line to provide illumination when the circuit is active. Maintaining correct terminal alignment preserves structural isolation between phases and ensures the integrated rubber gasket seats firmly against the enclosure lip.

INSTALLATION GUIDE

Follow these systematic engineering procedures to mount the waterproof junction box onto structural support frameworks or equipment chassis:

  1. Isolate Power Supply: Ensure all upstream circuit breakers are locked and tagged out in accordance with standard industrial safety procedures before handling any conductor wiring.
  2. Inspect Component Seal: Verify that the perimeter rubber gasket is properly seated within its channel and free of dust or physical twisting.
  3. Prepare Surface Panel: Create the required rectangular installation cutout to the precise dimensions of 22mm x 30mm using standard machining tools.
  4. Mount Enclosure Body: Position the base enclosure against the mounting surface, securing it with appropriate fasteners through the integrated mounting points.
  5. Insert Switch Mechanism: Align the KCD4 rocker switch with the pre-machined panel opening and push firmly until the dual side retention clips snap securely into place.
  6. Secure Cable Glands: Thread the provided PG9 or PG11 compression glands into the enclosure entry ports, tightening them to the recommended torque specifications to establish an environmental seal.

SAFETY NOTICE: Always verify that the total circuit load does not exceed the maximum rating of 30A 250VAC to prevent thermal breakdown or component failure.

WIRING GUIDE

Follow this detailed wiring sequence to connect standard single-phase power lines through the 4PIN screw terminal interface:

  1. Strip Insulation Layers: Strip the outer jacket of the line-in and line-out cables back by 25mm, then strip the individual conductors by 7mm to expose clean copper strands.
  2. Route Through Glands: Pass the prepared cable ends through the loosened PG9/PG11 cable glands into the internal chamber of the enclosure.
  3. Connect Source Supply Line: Insert the incoming hot and neutral conductors into the primary input screw terminals (Pins 1 and 2) of the KCD4 switch, tightening the M3 screws securely.
  4. Connect Load Outbound Line: Connect the outbound hot and neutral load leads to the corresponding output screw terminals (Pins 3 and 4) on the opposite side of the switch block.
  5. Bridge Indicator LED: For illuminated configurations, verify that the internal LED jumper connects across the switched load terminals to provide active power status indication.
  6. Final Tightening Sequence: Tighten the outer compression nuts of the cable glands to clamp down on the cable jacket, checking that the wires are secure and the box is sealed.
FILN 4PIN Screw Terminal Rocker Switch and Junction Box Wiring Sequence

INDUSTRY KNOWLEDGE CENTER

Understanding the distinction between electrical enclosure protection levels is critical for safety and operational longevity. An IP65 rating signifies complete protection against dust ingress and resistance to low-pressure water jets from any direction. This level of protection makes the assembly suitable for industrial washdown environments and marine deck setups subject to splashing water and heavy rain.

When designing power distribution for high-current circuits, selecting the proper contact material is essential to prevent thermal failures. Standard consumer-grade switches often use thin copper plating that can degrade or pit under continuous high-amperage switching. FILN utilizes heavy silver cadmium oxide (AgCdO12) contacts, which offer high conductivity and resistance to electrical arc erosion under a full 30 Ampere load.

A common error during field installation is over-tightening the cable gland compression nuts, which can pinch or deform the internal rubber seals and create pathways for moisture ingress. Systems integrators should tighten the glands until the rubber ring compresses uniformly around the cable jacket, providing positive strain relief without altering the cable geometry. Routine maintenance should include checking screw terminal torque levels to ensure connections remain secure during thermal cycling.

BUYER DECISION GUIDE

When selecting a waterproof junction box assembly for volume OEM manufacturing or specific project retrofits, buyers should evaluate several design criteria:

First, verify total circuit load requirements. While standard applications may only need 15A or 20A capacity, specifying a 30A rated KCD4 core switch provides additional safety margin and protection against transient inrush currents from inductive loads like motors or large power supplies. Second, match the cable entry diameter with the correct gland size; use the PG9 gland for smaller control cables (4-8mm) and the PG11 gland for heavier power lines (5-10mm).

Material selection should also align with the installation environment. For general manufacturing and marine deck applications, the standard impact-resistant ABS enclosure provides adequate durability. For installations exposed to harsh chemicals, fuels, or prolonged UV light, specify polycarbonate or PA66 nylon bases to prevent housing degradation. Lastly, choose the appropriate visual indicator configuration—ranging from unilluminated black to bright 220V neon LED modules—to ensure clear operation in the intended environment.

WHY ENGINEERS CHOOSE FILN

Electrical design engineers and B2B procurement managers partner with FILN because of our factory-direct manufacturing model and comprehensive engineering support. We eliminate standard distributor markups and minimum order quantity (MOQ) restrictions, enabling rapid prototyping and cost-effective scaling from low-volume trials to high-volume production runs. This direct oversight helps ensure consistent component quality and streamlined delivery schedules.

Our engineering team provides full custom configuration support, including specialized wire harness integration, custom laser engraving, and alternative terminal configurations. With production facilities certified to ISO9001 and products carrying UL, CE, TUV, and RoHS approvals, FILN components are ready for integration into equipment destined for international markets. We handle all manufacturing steps in-house to maintain strict quality control and provide reliable technical support throughout your product’s lifecycle.

FILN Integrated Manufacturing Operations and Engineering Lab

FACTORY DIRECT SUPPLY CAPACITY

Yueqing Yulin Electronic Co., Ltd., operating under the global brand name FILN, was established in 2006 as an integrated designer and manufacturer of specialized electrical components. From our 10,000 square meter facility equipped with 20 advanced production lines, we supply components to industrial clients in over 100 countries. Our catalog includes high-quality indicator lights, pushbutton switches, toggle controls, and custom waterproof enclosure assemblies.

FILN operates an independent testing laboratory and strictly follows ISO9001 quality management guidelines to ensure consistent electrical and mechanical performance. Our product certifications include UL, CE, VDE, RoHS, SGS, TUV, and CB, facilitating compliance approval for global OEM exports. Our technical sales team acts as a direct engineering contact to assist with custom design requirements and complex application challenges.

For volume pricing requests, customized lead wire integrations, or specific product documentation, contact our international sales desk directly. We provide comprehensive engineering submittals and rapid-ship production sampling to support your project timelines.

Corporate Contact Channels:
• Official Technical Portal: www.filn.com
• Engineering Support Email: inquiry@cnylin.com.cn

FILN Automated Industrial Switch Assembly Lines

FREQUENTLY ASKED QUESTIONS

Q1: What is the primary current rating of the integrated KCD4 rocker switch?

A1: The built-in switch is designed for heavy-duty industrial applications, rated for up to 30A at 250VAC or 18(12)A at 125VAC.

Q2: Does this junction box assembly have an official ingress protection rating?

A2: Yes, the full assembly carries an IP65 protection rating, verifying it is dust-tight and resistant to water spray from any direction.

Q3: What are the standard dimension cutouts required to mount the rocker switch component?

A3: The switch uses the standard rectangular footprint of 22mm x 30mm (0.866 inches by 1.181 inches).

Q4: What terminal choices are available on the back of the KCD4 switch?

A4: This model features heavy-duty 4PIN screw terminals that provide secure wire termination without the need for manual soldering.

Q5: Can I order this waterproof junction box with different LED indicator colors?

A5: Yes, the switch is available with Red, Green, Yellow, Blue, and White (RGYBW) LED modules, or as an unilluminated model.

Q6: What input voltage selections are available for the illuminated switch model?

A6: FILN offers internal LED configurations supporting lower-voltage 5-24V DC circuits up to standard 110V-220V AC power lines.

Q7: What type of wiring configuration is supported by the enclosure access ports?

A7: The box uses a single-in, single-out wiring configuration, supporting direct inline power control.

Q8: What cable gland sizes are supplied with the enclosure ports?

A8: Depending on your cable specification requirements, the unit can be supplied with threaded PG9 or PG11 compression glands.

Q9: Are the internal switching contacts robust enough for high inductive motor loads?

A9: Yes, the switch features premium silver cadmium oxide (AgCdO12) contacts designed to resist pitting and arc erosion from inductive loads.

Q10: What plastic material is used to mold the primary enclosure body?

A10: The housing uses high-impact ABS for the outer shell, combined with an isolated PA66 nylon base terminal structure.

Q11: What is the maximum safe operating temperature range for this product?

A11: The entire assembly is certified under the 40T125 thermal classification, operating safely across temperature boundaries from -40°C up to +125°C.

Q12: Does FILN enforce a minimum order quantity (MOQ) for custom lead configurations?

A12: No, FILN maintains a zero minimum order quantity policy to support direct engineering prototypes and low-volume production builds.

Q13: Which global testing certifications does this junction box family carry?

A13: The component line is certified compliant under UL, CE, TUV, VDE, CB, RoHS, and SGS international safety frameworks.

Q14: What faceplate options can be specified for the KCD4 switch module?

A14: Buyers can choose from Aluminum, Transparent, Black Painted, Stainless Steel, or unilluminated standard faceplate designs.

Q15: How does the white-frame option compare to the standard frameless series?

A15: The white-frame version provides an integrated exoskeleton for added rigidity and improved cover sealing in harsh environments, while the frameless model offers a more compact footprint for tight panel spaces.

Q16: Can the KCD4 switch be supplied with three-position toggle logic?

A16: Yes, we manufacture the switch in standard 2-position ON-OFF and ON-ON configurations, as well as 3-position ON-OFF-ON paths.

Q17: Is this junction box safe for long-term deployment in marine yacht electronics?

A17: Yes, the combination of an IP65 housing, H62 brass internals, and salt-fog resistant materials makes it suitable for marine environments.

Q18: What is the tested mechanical life expectancy of the toggle switch actuator mechanism?

A18: The switch is rated to complete a minimum of 20,000 mechanical open-close cycles under zero-load conditions.

Q19: Where is the official corporate headquarters of the manufacturer FILN located?

A19: FILN components are produced by Yueqing Yulin Electronic Co., Ltd., located in Wenzhou within the Zhejiang province of China.

Q20: Can the factory supply custom pre-wired wire harness leads attached to the switch?

A20: Yes, FILN provides full ODM integration, including custom length wire leads, crimped terminal plugs, and specialized connection arrays.

Plastic Junction Box with Waterproof 30A Black Painted Rocker Switch KCD4 Enclosure | FILN

SUMMARY

The FILN Plastic Junction Box integrates a heavy-duty, high-current 30A KCD4 rectangular rocker switch featuring a premium black painted surface and robust 4-pin screw terminal architecture. This industrial-grade electrical enclosure system delivers reliable ON-OFF control across operational voltages ranging from low-voltage 5-24V up to high-voltage 110-220V systems, with vibrant RGYBW LED illumination maximizing visibility in low-light environments. Engineered for demanding marine, yacht, and automation system deployments, the assembly utilizes a snap-in 22x30mm mounting configuration within a durable plastic housing. Certified under UL, CE, RoHS, and TUV standards, this solution provides optimal IP65-rated environmental sealing against moisture, dust, and mechanical stress, serving as an essential component for worldwide OEMs and control panel builders.

KEY TAKEAWAYS

  • High-capacity electrical switching integrated directly into a heavy-duty, protective Plastic Junction Box housing for optimal industrial power distribution.
  • Equipped with a premium 30A KCD4 rectangular rocker switch featuring a high-durability black painted face plate to resist impact and corrosion.
  • Versatile voltage compatibility supporting operational ranges from low-voltage 5-24V up to high-voltage 110-220V systems.
  • Standardized industrial mounting configuration utilizing a 22x30mm cutout layout for drop-in panel and enclosure compatibility.
  • Ergonomic, high-visibility RGYBW LED illumination color options for precise circuit status indication in dark operational spaces.
  • Robust 4-pin screw terminal architecture guarantees a highly secure, vibration-resistant mechanical and electrical connection under heavy loads.
  • Comprehensive international certifications including UL, CE, RoHS, and TUV ensure strict adherence to safety and environmental standards.
  • Full factory customization capabilities provided directly by FILN, eliminating intermediate supply layers and lowering total procurement costs.

WHAT IS A PLASTIC JUNCTION BOX WITH ROCKER SWITCH?

A Plastic Junction Box represents a dedicated industrial enclosure designed to protect critical wiring connections, house terminal terminations, and integrate manual control components like specialized rocker switches. The primary function of this assembly is to shield electrical wiring from mechanical stress, ambient environmental hazards, moisture penetration, and accidental contact by personnel. Mechanically, the structure consists of a rugged plastic base block combined with a secure cover plate that features an engineered cutout designed specifically to accommodate high-amperage switching devices.

The integrated manual control interface utilizes a versatile KCD4 industrial switch platform that provides reliable ON-OFF mechanism operation. FILN engineering ensures that users can select from an array of specialized switch options tailored to explicit application environments, including structural variants such as the Aluminum Rocker Switch, Transparent Rocker Switch, Black Painted Rocker Switch, Stainless Steel Rocker Switch, and the sleek No Light Rocker Switch configuration. By integrating these specific components directly into an environmental housing, control engineers achieve an uncompromised user interface that handles high-current routing while sustaining high ingress protection levels.

FILN Waterproof Plastic Junction Box with Various Rocker Switch Types

Explore Our Complete Product Catalog

Discover our full selection of heavy-duty, professionally configured industrial enclosures and control interfaces engineered for international compliance.

View All Waterproof Junction Box Products

PRODUCT OVERVIEW AND OPERATING PRINCIPLE

The FILN heavy-duty Plastic Junction Box is engineered to serve as an independent, localized power distribution and control hub for challenging applications like marine yacht panels and automated assembly floors. Operating on an optimized mechanical snap-in principle, the internal rectangular KCD4 switch locks into a precisely milled 22x30mm opening using integrated structural side tabs that secure the switch mechanism against displacement during repetitive actuation. Electrically, the internal mechanism utilizes a solid silver alloy contact assembly engineered to bridge or isolate power across two separate lines simultaneously under heavy inductive loads.

The final visual and operational configuration presents an illuminated KCD4 rocker switch integrated onto a sleek black plastic enclosure, maximizing contrast and functional utility. Under low-light conditions, the integrated LED lighting cuts through dark ambient backdrops to provide rapid status identification for operators. Alternatively, selecting a non-illuminated classic black rocker switch configuration offers an ultra-adaptable, professional profile that blends into custom dashboard builds. When paired with our high-grade environmental sealing boots, this setup acts as a barrier that prevents external moisture vectors and ambient dust micro-particles from entering the box core.

QUICK SPECIFICATIONS

Technical Parameter Block Industrial Specification Value
Enclosure System Classification Plastic Junction Box Series
Waterproof Cable Gland Spec PG9 Heavy-Duty Compression Fitting
Internal Wiring Topology Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out) connection
Switch Structural Dimension Standard 22mm x 30mm Cutout (Rectangular Form Factor)
Switch Actuation Function 2-Position Maintained ON-OFF Control
LED Illumination Colors Available Non-Illuminated / Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W)
Electrical Interface Connection 4-PIN Robust Screw Terminals

PERFORMANCE PARAMETERS

Performance Metric Technical Data Values
Switch Function ON-OFF
Rated Operating Voltage 30A 250VAC / 18(12)A 125VAC (Compatible with 5-24V, 110-220V systems)
Rated Operational Current Maximum 30 Amperes
Initial Contact Resistance ≤ 50 Milliohms (mΩ)
Insulation Resistance ≥ 100 Megohms at 500VDC (MΩ)
Dielectric Isolation Strength 1500VAC / 5mA for 60 Seconds
Electrical Endurance Life ≥ 10,000 Complete Cycles under full thermal load
Ambient Working Temperature 40T125 (-40°C to +125°C Operational Limits)
Environmental Ingress Rating IP65 Certified Sealing Integrity
Global Industry Certifications UL, CE, RoHS, REACH, TUV, CB Approval Codes
FILN Industrial Product Quality Certifications

COMPONENT MATERIALS SPECIFICATION

Component Accessories Name Material Composition Engineering Justification
Transparent sheet Polycarbonate (PC) Delivers high optical clarity paired with high impact resistance.
Light guiding part Polycarbonate (PC) Ensures uniform LED illumination distribution across the lens face.
Holder Acrylonitrile Butadiene Styrene (ABS) Provides high rigidity and structural strength during integration.
Waterproof cover Industrial Rubber Compounds Maintains excellent flexible environmental sealing against moisture ingress.
Up base Acrylonitrile Butadiene Styrene (ABS) Shields internal terminal paths from external physical forces.
Bottom base Polyamide 66 (PA66) Offers superior heat deflection characteristics and electrical isolation.
Middle base Acrylonitrile Butadiene Styrene (ABS) Stabilizes mechanical pivoting components over long lifetimes.
Pin / spring board H62 Brass Alloy Delivers exceptional current density capacities and minimal heating.
Contact interfaces Silver Cadmium Oxide (AgCdO12) Resists micro-welding and electrical arcing under heavy loads.
Spring 72# High-Carbon Steel Wire Retains excellent elastic memory through continuous cycles.
Iron case 08F Low-Carbon Cold-Rolled Steel Provides high mechanical anchoring and durability for the frame.
Washer elements Elastomeric Rubber Maintains tight compression limits to seal against water.
Light module assembly Solid-State Semiconductor LED Provides low-power, vibration-immune, long-life status indication.

GENERAL CHARACTERISTICS

This technical document establishes the baseline quality criteria and general application operational limits for the FILN KCD4 series heavy-duty rocker switch line integrated inside protective electrical enclosure modules. The scope encompasses standard operations across thermal variations, precise atmospheric testing rules, and environmental humidity variables.

Environmental Metric Name Standard Operational Limit
Equipment Application Scope Industrial General Use Range for KCD4 Rocker Switch Systems
Operating & Storage Thermal Limits -40°C to +125°C (Sustained Full Range Performance)
Relative Air Humidity Band 45% to 85% RH Range (Non-Condensing Ambient States)
Standard Testing Temperatures Controlled Laboratory Ambient of 5°C to 35°C
Reference Atmospheric Pressure 86 to 106 Kpa (Equivalent to 860 to 1060 mbar)

ELECTRICAL AND MECHANICAL CHARACTERISTICS

1. Electrical Performance Verification

Parameter Block Testing Condition Matrix Pass Threshold Limit
Contact Resistance Measured at a baseline frequency of 1 kHz under low-current test conditions. ≤ 50 Milliohms (mΩ)
Insulation Resistance Apply 500 VDC continuously for 60 ± 5 seconds across insulated terminals and exposed non-carrier metals. ≥ 100 Megohms (MΩ)
Dielectric Strength Inject 1500 VAC (5 mA) for 60s between open poles; inject 3000 VAC (5 mA) for 60s between terminal paths and outer chassis frame. Zero breakdown; zero insulation flashover anomalies.

2. Mechanical Durability and Structural Metrics

Parameter Block Testing Condition Matrix Pass Threshold Limit
Operating Force Position switch perpendicular to actuation vectors; linearly increase force on button tip until physical conduction triggers. Conforms completely to original OEM procurement specifications.
Terminal Strength Exert an inward static load profile of 80 Newtons against the terminal tip structure for 60 seconds. Zero mechanical structural fracturing; component functions normally.
Solderability Data Submerge contact interface tips completely inside molten tin mixtures kept at 235 ± 5°C for 3 ± 0.5 seconds. Greater than 90% uniform wet tin coverage across active test zones.
Welding Heat Resistance Submerge terminals inside 260 ± 5°C liquid tin for 3 ± 1s, OR execute hand-soldering iron tracking at 350 ± 5°C for 3 ± 1s. No core plastic deformation; mechanical features remain compliant.

3. Endurance Lifecycle Ranges

Lifecycle Group Testing Condition Matrix Post-Test Requirements
Mechanical Lifetime 20,000 cycles completed at an activation frequency of 60 cycles/min under open no-load terminal conditions. Must sustain ≥ 75% of original baseline dielectric tracking insulation.
Electrical Lifetime 10,000 continuous cycles at 15 cycles/min tracking under fully rated electrical inductive load parameters. Must retain ≥ 75% of initial isolation breakdown voltages.

4. Environmental Resistance Profiles

Environmental integrity is validated via standard multi-day thermal and atmospheric humidity exposures: High Temperature profiling requires keeping modules at 125 ± 2°C for 72 continuous hours; Humidity-Heat soaking requires storage at 40 ± 2°C paired with relative humidity levels between 91% and 95% for 96 continuous hours; Low Temperature soaking isolates modules at -40 ± 2°C for 12 hours. Thermal Cycling requires executing 5 uninterrupted cycles according to specified high-low transition limits, with all configurations followed by a 1-hour ambient equalization rest period prior to technical evaluation.

Post-environmental inspection requires zero physical damage to structural casings, a normal tactile feel during actuation, an increased contact resistance ceiling ≤ 200 Milliohms, an insulation resistance floor ≥ 2 Megohms, and overall dielectric isolation properties remaining within original baseline values.

PRODUCT SERIES ARCHITECTURE COMPARISON

The FILN professional KCD4 rocker switch product family leverages deep architectural optimization to deliver targeted solutions for varying field environments. Project managers can choose between the structural White-Framed Enhanced Variant and the space-optimized Classic Standard Variant depending on structural rigidity, environment, and panel aesthetics.

Structural Engineering Aspect White-Framed Enhanced Variant (Heavy Industrial) Classic Standard Variant (Space Optimized)
Mechanical Frame Rigidity Internal white support cage provides an exoskeleton that resists mechanical stress in tight cutouts. Frameless edge design utilizes the parent panel walls directly for mechanical positioning.
Waterproof Gasket Retaining Extended structural border locks the rubber boot edges to prevent peeling or distortion. Relies on direct panel compression seals, optimized for uniform flat-surface installations.
Cutout Defect Masking Wide bezel layout completely hides irregularities, burrs, or small measurement variances. Ultra-clean flush edge profile requires precision CNC laser cutout tolerances.
Space Efficiency Index Requires extra clearance along the perimeter to fit the wide design. Enables high-density placement on highly populated multi-switch control arrays.
Target Deployment Fields Export machinery, clinical environments, high-vibration marine panels. High-volume commercial assemblies, internal wiring enclosures.
FILN Premium Waterproof Framed vs Standard Rocker Switch Comparison

TECHNICAL ANALYSIS OF 2-POSITION SWITCH CONFIGURATIONS

Industrial automation requirements depend heavily on specific circuit actuation states. The KCD4 switch platform supports multiple configuration options, allowing buyers to select the precise electrical mechanism for their circuit logic.

Circuit Scheme Code Mechanical Contact Mechanism Type Operational Field Application Logic
ON-OFF (Maintained) Locks into the selected state upon actuation; requires physical force to return to the original position. Serves as the master system power switch for automation systems and power distribution setups.
(ON)-OFF (Momentary) Internal spring return auto-resets contact to OFF state as soon as the user releases the actuator. Used for localized system testing, manual circuit priming, or motor starter triggers.

APPLICATIONS BY INDUSTRY

The FILN plastic enclosure system with an integrated high-amperage rocker switch delivers critical environmental protection across diverse industries. In industrial automation sectors, these pre-assembled modules act as independent field-level isolation boxes to protect high-load relays and safety mechanisms from floor contaminants. In marine and yacht installations, the robust black painted face plate combined with a continuous rubber boot offers long-term resistance to salt-fog corrosion and water splash on open vessel decks.

In renewable energy frameworks, such as solar power distribution grids and automated agricultural machinery, these modules serve as reliable outdoor disconnect points that protect internal wiring from extreme thermal cycling and UV radiation. Commercial facilities and medical laboratories deploy these modules to establish clear, easily cleaned, and reliable equipment activation panels that satisfy strict code compliance guidelines.

FILN Industrial Plastic Junction Box Multi-Industry Field Applications

WATERPROOF MECHANISM COMPOSITION AND INTEGRATION

The structural integrity of this assembly relies on combining an impact-resistant Plastic Junction Box enclosure body with a high-current, waterproof KCD4 rocker switch component. The perimeter of the rectangular switch is wrapped in an engineered elastomeric sealing boot that prevents moisture from getting past the mounting cutout borders. Integrating these components ensures that internal wire terminations remain completely dry and isolated from external conditions.

Inside the enclosure, wiring connections to the rocker switch are designed to simplify field deployment while maximizing mechanical hold. The 4-pin screw terminal layout allows technicians to form reliable, gas-tight mechanical wire terminations without relying on specialized crimping tools or field soldering. This layout is ideal for harsh environments prone to thermal expansion and ongoing physical vibrations.

INSTALLATION GUIDE

  1. Verify Panel Cutout Metrics: Ensure the top cover plate cutout measures exactly 22mm x 30mm to receive the KCD4 rocker switch frame.
  2. Execute Snap-In Mounting: Position the KCD4 rocker switch from the upper face of the box, pushing downward until the dual structural side tabs snap securely over the plate border.
  3. Prepare External Cable Ingress Paths: Install the PG9 compression cable gland into the pre-drilled side wall port, verifying that the rubber compression ring is correctly aligned.
  4. Route Power Cabling: Feed the multi-core industrial power cable through the PG9 gland body into the junction box interior cavity.
  5. Anchor Base Casing Structures: Secure the underlying junction box base plate onto the structural surface using corrosion-resistant industrial mounting fasteners.

*Safety Note: Disconnect all upstream power supplies prior to handling raw conductors. Verify compliance with regional low-voltage electrical safety codes before finishing assembly.

WIRING GUIDE

Wiring the integrated Plastic Junction Box setup utilizes a clear single-in, single-out wiring configuration (L-in, L-out) to manage power routing safely. The 4-pin screw terminal layout features two independent line-in poles alongside two dedicated load-out termination points. Stripped conductor ends are inserted directly under the heavy-duty terminal clamping plates, where tightening the screw connections locks the wire in place without damage.

For illuminated configurations running on either 5-24V low-voltage lines or 110-220V grid feeds, the internal LED module is pre-wired to illuminate when the switch is set to the ON position. Using the illuminated switch ensures the control face remains easy to navigate in dark industrial environments. Non-illuminated black rocker switch variants offer a subtle, versatile aesthetic that blends seamlessly into generic control panels while protecting internal components from ambient moisture and dust.

FILN KCD4 4-Pin Screw Terminal Rocker Switch Enclosure Wiring Steps Diagram

INDUSTRY KNOWLEDGE CENTER

Selecting heavy-duty electrical components requires understanding core engineering standards like contact material composition and environmental ingress ratings. For high-current 30A switching demands, regular copper contacts face significant risk of contact degradation and micro-welding due to inductive arcing. FILN engineering addresses this by utilizing premium Silver Cadmium Oxide (AgCdO12) contact interfaces, which provide excellent thermal dispersion and stable contact resistance metrics throughout the device’s operational life.

A frequent oversight during field integration is failing to match cable diameters with the sealing range of the cable gland. If a gland is paired with a cable that is too thin, the seal will fail to compress adequately, compromising the box’s IP65 protection rating. Maintenance protocols should include checking the tightness of terminal screws during annual shut-downs to prevent any loosening caused by continuous machinery vibrations.

BUYER DECISION GUIDE

When sourcing an integrated Plastic Junction Box assembly, procurement officers must match structural material attributes with field environment demands. For installations exposed to harsh chemical cleaners or prolonged outdoor UV radiation, combining an ABS enclosure base with a black painted face plate switch offers the best balance of structural strength and chemical resistance. Buyers must verify that electrical voltage requirements (such as 5-24V control lines or 110-220V main lines) match the internal LED indicator specifications to ensure proper brightness and service life.

FILN offers complete configuration flexibility across the entire KCD4 product line, allowing engineering teams to order custom cable entries and pre-cut terminal blocks tailored to their project’s wiring layout. This direct-from-factory customization shortens assembly timelines for equipment manufacturers, control panel builders, and automation system integrators across global markets.

WHY ENGINEERS CHOOSE FILN

Design engineers and procurement experts worldwide partner with FILN because of our engineering expertise, flexible production, and reliable supply chain execution. Operating as a direct manufacturer with no minimum order quantity (No MOQ) requirements, FILN enables development teams to source prototypes and scale up to high-volume production runs seamlessly without financial friction.

Our in-house testing facilities provide immediate certification data and full engineering assistance, ensuring smooth approvals for global equipment deployments. By keeping full control over tooling development and component manufacturing, FILN consistently delivers industry-leading lead times alongside reliable quality assurance across our entire electrical product line.

FILN Industrial Manufacturing Departments and Precision Engineering Facilities

FACTORY DIRECT SUPPLY CAPABILITIES

Yueqing Yulin Electronic Co., Ltd., under the premium brand name FILN, located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its high-performance products are exported to over 100 countries. FILN operates a modern 10,000 m² facility running more than 20 advanced automated production lines alongside an independent, fully equipped quality testing lab. Driven by scientific workflows and the ISO9001 quality system, FILN ensures excellent product consistency and dependable electrical performance. Our certified products carry global marks including UL, CE, RoHS, REACH, TUV, and CB, and are widely used across kitchen appliances, energy storage systems, EV charging setups, automotive control panels, marine systems, and security applications.

FILN manufacturing capabilities cover an extensive selection of compact electrical control components, including indicator lights, pushbutton switches, rocker switches, and toggle switch assemblies, along with custom wire harness integration. Our technical engineering division specializes in solving complex client layout challenges by designing tailored structural solutions. For procurement requests, custom quotes, or technical questions, clients can reach our engineering team directly via our primary corporate website or email communications.

Corporate Platform Link: www.filn.com
Direct Engineering Contact Email: inquiry@cnylin.com.cn

FILN Automated Manufacturing Lines and Testing Lab

FREQUENTLY ASKED QUESTIONS

Q1: What is the primary focus keyword and application of this product module?

A1: The primary focus is the Plastic Junction Box configured with an integrated 30A rocker switch to deliver isolated, protected power control in demanding automation and marine layout environments.

Q2: What is the electrical current rating capacity of the built-in KCD4 rocker switch?

A2: The built-in rectangular KCD4 switch is engineered to handle heavy electrical loads up to a maximum rating of 30 Amperes at 250VAC.

Q3: Which operating voltage configurations does this plastic junction box support?

A3: This configuration supports diverse voltage requirements, working reliably across low-voltage 5-24V control lines as well as standard 110-220V power circuits.

Q4: What are the primary lens colors available for the LED status indicators?

A4: Systems can be equipped with high-visibility RGYBW solid-state LED modules, providing choice between Red, Green, Yellow, Blue, and White status tracking.

Q5: What are the exact dimensions required for mounting the KCD4 switch frame?

A5: The integrated rectangular KCD4 switch matches industry-standard panel cutouts measuring exactly 22mm x 30mm.

Q6: How does the switch mount securely into the plastic junction box plate cutout?

A6: It uses an efficient snap-in installation design. The switch body is pushed through the top face cutout until flexible integrated side tabs spring open, locking it securely against the panel wall.

Q7: What type of wiring terminations are provided on the back of the 30A rocker switch?

A7: The switch features a robust 4-pin screw terminal layout that allows for high-torque mechanical wire clamping without needing field crimping or soldering tools.

Q8: What environmental ingress rating does this integrated enclosure provide?

A8: The completed plastic junction box assembly delivers an IP65 protection rating, sealing internal connections against low-pressure water streams and fine dust ingress.

Q9: What material options are available for the rocker switch face plate customization?

A9: FILN offers several specialized configurations, including Aluminum, Transparent, Black Painted, Stainless Steel, and non-illuminated classic switch options.

Q10: What are the engineering advantages of using a black non-illuminated rocker switch?

A10: Non-illuminated black configurations provide a clean, versatile aesthetic that coordinates easily with generic industrial control panels while ensuring dependable mechanical operation.

Q11: Why is an illuminated rocker switch recommended for dark or low-light work environments?

A11: The integrated LED lights provide high visibility, helping operators quickly locate controls and verify circuit status in dim or unlit industrial areas.

Q12: What type of compression cable gland fitting is supplied with the plastic junction box?

A12: The enclosure body comes pre-fitted with a heavy-duty PG9 compression cable gland that creates a secure, moisture-resistant seal around incoming wiring.

Q13: Which international safety and quality certifications does this product carry?

A13: The assembly is fully certified under major global standards, carrying official compliance marks from UL, CE, RoHS, and TUV testing laboratories.

Q14: Does FILN require a minimum order quantity (MOQ) for custom technical orders?

A14: No, FILN operates with a strict No MOQ policy, giving engineering teams the flexibility to order individual prototypes or scale directly to high-volume production.

Q15: What contact material is utilized internally to manage the 30A current loads?

A15: The switch mechanism features premium Silver Cadmium Oxide (AgCdO12) contacts, chosen for their excellent resistance to arc erosion and micro-welding under heavy inductive loads.

Q16: Can the plastic junction box handle continuous exposure to outdoor marine environments?

A16: Yes, the combination of a corrosion-resistant black painted switch face, an elastomeric rubber boot, and a sealed ABS enclosure base ensures long-term durability against salt-fog and water spray.

Q17: What temperature limits define the safe operation of this switch housing system?

A17: The components are rated for stable operation across an ambient industrial temperature range from -40 degrees Celsius up to +125 degrees Celsius.

Q18: What is the mechanical lifetime rating of the KCD4 rocker switch series?

A18: Laboratory testing confirms the switch mechanisms achieve a mechanical lifespan of at least 20,000 complete actuation cycles under open no-load conditions.

Q19: How can an engineer request a custom modification or specific wire harness layout from FILN?

A19: Engineering teams can submit drawings and technical requirements directly to our technical support team via email at inquiry@cnylin.com.cn for tailored OEM solutions.

Q20: Where can I review the complete line of pre-assembled waterproof junction boxes?

A20: Our full selection of industrial enclosure products and integrated control interfaces is available on our dedicated catalog page at https://www.cnfiln.com/collections/waterproof-junction-box.

Junction Box Electric with Waterproof Stainless Steel Rocker Switch 30A High Current CE UL Certified | FILN

AI SUMMARY

The FILN Junction Box Electric integrates a heavy-duty, high-current 30A KCD4 rectangular rocker switch featuring a premium stainless steel face plate and robust 4-pin screw terminal architecture. This industrial-grade electrical enclosure system delivers reliable ON-OFF control across operational voltages ranging from 5-24V up to 110-220V, with vibrant RGYBW LED illumination maximizing visibility in low-light environments. Engineered for demanding marine, yacht, and automation system deployments, the assembly utilizes a snap-in 22x30mm mounting configuration within a durable plastic housing. Certified under UL, CE, RoHS, and TUV standards, this solution provides optimal IP65-rated environmental sealing against moisture, dust, and mechanical stress, serving as an essential component for worldwide OEMs and control panel builders.

Shopify 购买按钮页面

Key Takeaways

  • High-Current Capacity: Equipped with a robust 30A 250VAC KCD4 rocker switch to safely manage substantial industrial electrical loads without performance degradation.
  • Premium Material Architecture: Utilizes high-grade stainless steel face components and corrosion-resistant brass H62 internal hardware for harsh chemical and marine exposures.
  • Waterproof Engineering: Combines an IP65 enclosure with tailored rubber sealing boots to block ingress of water, dust, and particulate contaminants.
  • Universal Cutout Profile: Features an industry-standard 22x30mm rectangular panel cutout size enabling seamless integration into pre-existing machinery templates.
  • Flexible Illumination Matrix: Available with Red, Green, Yellow, Blue, and White LEDs supporting control voltages from low-voltage 5-24V up to mainstream 110-220V lines.
  • Robust Mechanical Terminals: Engineered with heavy-duty 4-pin screw terminals to guarantee vibration-resistant electrical contact in heavy machinery.
  • Snap-In Deployment: Employs integrated side retention clips that accelerate field mounting without needing supplementary mechanical fasteners.
  • Global Enterprise Compliance: Fully certified under international standards including UL, CE, RoHS, REACH, TUV, and CB to simplify regional regulatory approvals.

What is a Junction Box Electric?

A junction box electric is a specialized industrial electrical enclosure designed to contain, protect, and manage electrical wiring connections safely. Its fundamental function is to isolate raw terminal blocks and branch wiring from atmospheric hazards, mechanical stresses, and inadvertent human contact, reducing electrical fire risks and system downtime.

The internal structure combines a protective plastic or alloy casing with dedicated cable glands and integrated control mechanisms like the high-current KCD4 rocker switch. In heavy automation and marine applications, this combination functions as a localized power isolation hub, allowing operators to quickly control equipment while preserving the sealed integrity of the system wiring infrastructure.

FILN provides multiple rocker switch configurations to complement these junction box assemblies. Users can select from an array of performance-tailored designs, including the rugged Aluminum Rocker Switch, Transparent Rocker Switch, Black Painted Rocker Switch, Stainless Steel Rocker Switch, and the sleek No Light Rocker Switch to perfectly align with specific operational aesthetic and functional requirements.

FILN Waterproof Junction Box with Rocker Switch Selection Types

Product Overview

The FILN Junction Box Electric with an integrated KCD4 switch serves as an advanced control point for industrial and marine power distribution. Mechanically, the unit features a high-impact ABS and PA66 thermoplastic shell designed to resist localized physical strikes, UV degradation, and chemical cleaning agents commonly found in production facilities.

Electrically, the unit features a 30A rated rectangular rocker switch configured for two-position ON-OFF operation. The switch utilizes low-resistance AgCdO12 silver contacts backed by dual-pin terminal arrays to manage inductive and resistive electrical current surges up to 250VAC, preventing internal arc tracking and securing structural longevity across thousands of operational cycles.

This pre-assembled solution streamlines engineering procurement by consolidating the enclosure, sealing gaskets, cable entry systems, and high-power toggle switches into a single factory-tested part number. It is ideally suited for automated assembly lines, off-grid alternative energy arrays, food processing centers, and outdoor utility networks requiring stable control interfaces.

Quick Specifications

Technical Parameter Specification Details
Enclosure Wiring Configuration Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out) connection
Cable Gland Model PG9 High-density compression gland
Switch Mounting Dimensions 22mm x 30mm (0.87″ x 1.18″) Rectangular cutout panel footprint
Switch Mechanism Profile Square head rectangular look KCD4 series actuator
Circuit Logic Function 2-Position Maintained ON-OFF
LED Color Choices No Light / Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W)
Terminal Interface 4-PIN heavy-duty screw terminal feet

Performance Parameters

Performance Criterion Rated Value / Standard Metric
Electrical Ratings 30A 250VAC / 18(12)A 125VAC High-load rating
Initial Contact Resistance ≤ 50 mΩ measured under small current conditions
Insulation Resistance ≥ 100 mΩ evaluated at 500VDC across open paths
Dielectric Strength 1500VAC at 5mA for 60 seconds duration
Electrical Endurance Life ≥ 10,000 full make-and-break actuation cycles under load
Ambient Operating Range 40T125 thermal tolerance profile
Ingress Protection Rating IP65 Dust-tight and moisture jet mitigation verified
Regulatory Compliance UL, CE, VDE, RoHS, SGS, TUV, CB Certified manufacturing
FILN Global Product Certifications Cover Sheet for Industrial Rocker Switches

Component Materials

Accessory Name Material Engineering Purpose & Performance Advantage
Transparent Sheet Polycarbonate (PC) High impact resilience and clear light transmission for visual signaling.
Light Guiding Part Polycarbonate (PC) Optimizes internal light dispersal across the lens cap surface.
Holder Acrylonitrile Butadiene Styrene (ABS) Provides dimensionally stable internal structural positioning.
Waterproof Cover Rubber Elastomer Creates an external seal to prevent water droplets from entering the actuator joint.
Up Base Acrylonitrile Butadiene Styrene (ABS) Tough, abrasion-resistant upper outer shield protecting components.
Bottom Base Polyamide 66 (PA66) High melting threshold, safeguarding electrical contacts under continuous load.
Middle Base Acrylonitrile Butadiene Styrene (ABS) Isolates primary mechanical rocker assemblies from internal wire loops.
Pin / Spring Board H62 Brass Alloy Delivers electrical conductivity while minimizing heating at peak amperage.
Contact Point Silver Cadmium Oxide (AgCdO12) Superior arc-welding resistance and stable conductivity across full cycles.
Spring 72# Spring Steel Wire Maintains a snapping force profile over long-term usage.
Iron Case 08F Carbon Low-Alloy Steel Structural bracing jacket that counters torque stress during mounting.
Washer Seal Vulcanized Rubber Forms an airtight interface between the assembly and external box wall.
Illumination Core LED Die Component Set Energy-efficient signal display available in multiple operating voltages.

General Characteristics

The technical criteria detailed in this table define the comprehensive operational boundaries and general use standards for the KCD4 series rocker switches integrated within our global junction box electric catalog.

Environmental Parameter Standard Testing & Working Matrix Value
Component Specific Designation KCD4 Heavy-Duty Rectangular Rocker Switch Unit
Operating Temperature Envelope -40°C to +125°C continuous thermal exposure limit
Storage Temperature Range -40°C to +125°C ambient warehouse conditions
Operational Relative Humidity Limit 45% to 85% RH non-condensing state
Standard Ambient Test Temperature 5°C to 35°C calibrated lab baseline
Atmospheric Pressure Window 86 kPa to 106 kPa (860 mbar to 1060 mbar) barometric baseline

Electrical and Mechanical Characteristics

1. Electrical Performance Criteria

Evaluation Parameter Rigorous Laboratory Test Criteria Required Specification Value
Contact Resistance Evaluated at an oscillating 1 kHz frequency beneath miniature current levels. ≤ 50 mΩ maximum initial barrier.
Insulation Resistance Applied continuous potential of 500 VDC for a duration of 60±5 seconds across all unlinked pins. ≥ 100 MΩ minimum structural limit.
Dielectric Strength 1500 VAC (5mA cut-off) for 60s pin-to-pin; 3000 VAC (5mA cut-off) for 60s pin-to-housing. Zero structural puncture, breakdown, or flashover traces.

2. Mechanical Endurance Specifications

Evaluation Parameter Rigorous Laboratory Test Criteria Required Specification Value
Operating Activation Force Oriented perpendicular to standard path; force applied until state change occurs. Conforms precisely with buyer customized thresholds.
Terminal Structural Strength Applied an inward horizontal static strain load of 80 Newtons directly to terminal tip for 60s. No structural fracturing or loose pins; normal mechanism movement.
Solderability Performance Immerse component pins into a molten solder bath held at 235±5°C for 3±0.5 seconds. Greater than 90% uniform coverage of immersed pin surfaces.
Welding Heat Resistance Tin bath dip at 260±5°C for 3±1s, or manual iron contact at 350±5°C for 3±1s without force. No physical base warping; mechanical and electrical traits remain intact.

3. Long-Term Durability Benchmarks

Evaluation Parameter Rigorous Laboratory Test Criteria Required Specification Value
Mechanical Operational Life 20,000 cycles executed at a constant frequency of 60 cycles per minute under zero current. Must maintain a minimum of 75% of original dielectric strength voltage post-test.
Electrical Full-Load Life 10,000 cycles completed at 15 cycles per minute while bearing full rated electrical loads. Must retain a minimum of 75% of original dielectric strength voltage post-test.

4. Environmental Resistance Profiles

Environmental stress screening includes high-temperature aging (125±2°C for 72 hours), humidity exposure (40±2°C and 91%–95% RH for 96 hours), low-temperature soak (-40±2°C for 12 hours), and 5 full thermal shock cycles. Post-test criteria require zero cosmetic or structural degradation, contact resistance under 200 mΩ, and insulation resistance over 2 MΩ.

Product Comparison

FILN specializes in professional rocker switch engineering, where subtle design adjustments optimize specific operational workflows. We provide both the Premium Reinforced (White Border Frame) series and the Classic Standard (Borderless) series to address requirements ranging from high-stress industrial environments to everyday applications.

Structural Feature Premium Reinforced Series (With White Frame) Classic Standard Series (Borderless)
Structural Rigidity Integrated high-strength sub-frame handles high mechanical stress from tight cutouts without assembly deformation. Compact design with minimal structural footprint, optimized for uniform and low-impact installations.
Sealing Efficiency Extended border profile retains elastomeric boots securely, preventing perimeter edge roll-back under heavy washing. Standard direct sealing profile suited for typical indoor dry conditions.
Installation Tolerances Wide perimeter flange conceals panel cutout irregularities, rough edges, or minor dimensional tool variations. Requires high precision panel cutouts; provides a clean, flush aesthetic when properly aligned.
Optimal Applications High-spec medical diagnostic gear, ocean vessels, heavy machinery control stations, and export-grade platforms. High-density instrument clusters, cost-optimized high-volume runs, and typical indoor commercial systems.
FILN Premium Reinforced vs Classic Standard Border Rocker Switch Detail

Applications by Industry

The combination of an IP65 junction box electric housing and a high-capacity 30A KCD4 switch meets performance demands across a wide variety of industrial settings. In Industrial Automation and Control Panel Building, these units serve as standalone field termination links that isolate local operations from the central controller.

In Marine and RV Equipment Manufacturing, the corrosion-resistant stainless steel switch face prevents salt-fog pitting, while the integrated LED ensures clear status visualization in dark engine compartments. Similarly, Solar Power Networks and Agricultural Infrastructure deploy these enclosures to safeguard critical connections from wind-driven rain, pesticide dust, and extreme temperature fluctuations.

FILN Waterproof Junction Box Practical Industrial Deployment Environments

Rocker Switch Terminal Wiring and Dual-Position Functions

The integrated control junction box contains two core functional elements: the high-impact protective enclosure body and the heavy-duty KCD4 rocker switch component. System wiring requires routing supply leads through the compression cable glands directly to the internal 4-pin screw terminal block assembly.

The 4-pin screw design simplifies wiring by eliminating the need for specialized crimping tools, ensuring a gas-tight mechanical connection that prevents lead pull-out under intense machinery vibration. The two separate pins manage power lines, while the remaining terminals support the integrated LED indicator circuit. This layout allows for flexible configurations, supporting either continuous illumination or illumination synchronized with active load states.

Switch Function Model Internal Circuit Configuration B2B Application Logic Case
ON – OFF Maintained Locks into position upon actuation; breaks or makes dual poles simultaneously. Standard primary power control for industrial equipment and pump loops.
ON – ON Double Throw Commutates continuous line feed across two isolated circuit lines. Dual-speed fan networks or alternative supply selection setups.
MOMENTARY ON – OFF Springs back automatically to unpowered OFF position upon release. Inching control systems, calibration procedures, or horn signals.

Explore our full range of professional electrical enclosures:

View All Waterproof Junction Box Products

Installation Guide

Follow these structured engineering protocols to correctly mount the KCD4 snap-in rocker switch into the waterproof industrial junction box panel assembly:

  1. Verify Panel Cutout Matrix: Ensure the enclosure panel face has a clean, deburred rectangular opening measuring exactly 22mm x 30mm.
  2. Inspect Component Gaskets: Verify that the perimeter elastomeric sealing washer is correctly positioned flat against the switch bezel base.
  3. Align the Rocker Orientation: Align the switch housing so the ON-OFF status indicators match the intended physical layout of your internal wiring grid.
  4. Execute Snap-In Insertion: Insert the rocker assembly straight into the panel cutout from the front face until the integrated dual side retention clips expand completely against the inner wall.
  5. Confirm Mechanical Interlock: Gently pull outward on the switch frame to verify it is securely locked in position without any axial play.

Wiring Guide

To wire the 4-pin screw terminal layout, follow these steps to secure power lines and configure the status LED indicator circuit safely:

  • Power Isolation: Disconnect all upstream electrical power feeds before handling internal component wiring terminals.
  • Gland Entry Set: Pass your line cables through the PG9 or PG11 strain relief glands and strip the outer insulation jacket back by 8mm.
  • Pin Termination Connection: Insert the raw copper wire ends into the open 4-pin screw channels, then torque the clamping screws to ensure a solid mechanical connection.
  • LED Indicator Bridging: Connect the dedicated LED supply terminals to either the load pins for active state tracking or directly to the incoming supply line for continuous illumination.
  • Enclosure Fastening: Mount the upper panel plate back onto the lower box body and uniformly tighten the perimeter casing screws to secure the IP65 seal.
FILN Rocker Switch 4-Pin Screw Terminal Wiring Guide and Assembly Steps Diagram

Industry Knowledge Center

Integrating mechanical control components within a localized junction box electric architecture requires managing internal electrical resistance. Overloading terminal structures or using low-grade contact configurations can lead to thermal arc degradation, oxidation, and sudden terminal failure.

Our engineering research demonstrates that utilizing an AgCdO12 silver composition at the main contact interface significantly reduces internal operating temperatures at high current levels up to 30A. Additionally, matching the appropriate pilot lamp operating voltage prevents premature component failures, ensuring stable performance in remote industrial deployments.

Preventative maintenance protocols require checking external cable gland compression seals every twelve months in high-vibration environments. Ensuring the perimeter screws on the box casing remain torqued to specification preserves the long-term effectiveness of the internal moisture barriers.

Buyer Decision Guide

Procurement specialists should assess structural material criteria relative to their specific environmental challenges. For applications requiring regular high-pressure washdowns or exposure to chemical compounds, choosing an ABS enclosure paired with a stainless steel rocker switch provides the necessary chemical and corrosion resistance.

Additionally, ensure the integrated LED voltage profile is matched to your system’s sub-circuit framework. Using a low-voltage 12V DC signal indicator on an un-dropped 220V AC line will instantly damage the internal signaling elements, emphasizing the importance of selecting the proper factory configuration during early system layout.

Why Engineers Choose FILN

Global electrical designers and system integrators source from FILN due to our specialized focus on high-current switching configurations and flexible manufacturing processes. By providing complete factory-direct oversight, we eliminate third-party logistics markup while ensuring rigorous quality control over all components.

FILN supports agile product design by maintaining zero MOQ restrictions on standard products, allowing procurement managers to buy components for small production validation phases easily. Our engineering team assists B2B clients with prompt technical integration, custom lead configurations, and regulatory compliance processing.

FILN Manufacturing Infrastructure and Specialized Research Testing Facility Overview

Factory Direct Supply

Yueqing Yulin Electronic Co., Ltd., under the established FILN brand, has specialized in the development and production of premium electrical switch components since 2006. Operating out of a modern 10,000 m² production facility in Wenzhou, Zhejiang, the company runs more than twenty automated production lines along with an independent testing laboratory.

Our comprehensive product line includes indicator lights, pushbutton switches, toggle controllers, and custom wire harness assemblies distributed to industrial clients across more than one hundred countries. Managed under strict ISO9001 quality system criteria, FILN ensures consistent manufacturing standards for every product batch shipped worldwide.

For detailed pricing matrices, custom layout consultations, or sample shipments, contact our industrial engineering support desk via our primary web portal at www.filn.com or email our global procurement team directly at inquiry@cnylin.com.cn for immediate support within 24 hours.

FILN Industrial Electronic Components Automated Manufacturing Workshop Floor

Frequently Asked Questions

Q1: What is the primary electrical current rating limit of the FILN junction box electric switch?

A1: The integrated KCD4 rectangular rocker switch is engineered to safely sustain heavy loads up to 30A 250VAC or 18(12)A 125VAC continuously.

Q2: What specific panel cutout dimensions are required to mount the rocker switch assembly?

A2: The switch uses an industry-standard rectangular mounting layout measuring exactly 22mm x 30mm (0.87 in x 1.18 in).

Q3: Does this junction box electric assembly carry valid safety certifications for European markets?

A3: Yes, the assembly is fully certified with CE, TUV, VDE, and CB markings, complying with all European safety directives.

Q4: Can the integrated LED element operate across both DC low-voltage and AC high-voltage grids?

A4: Yes, FILN provides custom internal resistor configurations supporting low-voltage (5-24V) or high-voltage (110-220V) operations.

Q5: What are the primary advantages of the 4-pin screw terminal layout on this unit?

A5: The 4-pin screw terminals allow for secure wire connections using standard tools, ensuring vibration-resistant contact without requiring specialized crimping sleeves.

Q6: What ingress protection rating does this junction box electric assembly provide?

A6: The complete unit is rated to IP65 standards, providing dust-tight protection and resistance against low-pressure water streams.

Q7: Is the rocker switch available with alternative face finishes like aluminum or stainless steel?

A7: Yes, FILN provides multiple face plate designs, including Stainless Steel, Aluminum, Black Painted, Transparent, and No Light styles.

Q8: How does the snap-in mounting mechanism function on this enclosure face?

A8: The switch is pushed into the 22x30mm opening from the front until the built-in side retention clips expand to secure it against the inner panel wall.

Q9: What internal alloy materials are used to handle the 30A current load?

A9: The internal contacts use an AgCdO12 silver compound, and the primary current pathways are constructed from high-grade H62 brass.

Q10: What plastic compounds are used to construct the primary switch base housing?

A10: The lower base structure is molded from Polyamide 66 (PA66), providing excellent electrical isolation and heat resistance under heavy loads.

Q11: Can this industrial enclosure be configured for a line-in and line-out connection?

A11: Yes, the internal layout supports either single-in single-out wiring or parallel line-in / line-out configurations.

Q12: Which cable gland profiles are supplied with the stock electrical box?

A12: The standard enclosure comes equipped with either high-density PG9 or PG11 compression glands to match your cable diameters.

Q13: What is the certified mechanical service life of the integrated KCD4 switch core?

A13: Laboratory testing verifies that the internal spring assemblies maintain proper snap action across a minimum of 20,000 mechanical cycles.

Q14: Does FILN require a minimum order quantity (MOQ) for custom LED configuration runs?

A14: No, FILN maintains zero MOQ limits on standard catalog configurations to support prototype builds and initial testing phases.

Q15: What structural advantages does the premium white frame option provide?

A15: The white sub-frame variant provides extra structural support, helping the switch handle mechanical stress from tight cutouts while keeping the sealing boot secure.

Q16: How does the non-illuminated black rocker option perform compared to illuminated variants?

A16: The non-illuminated option provides a clean, understated look that fits well into standard control panels while offering the same internal electrical rating and life cycle.

Q17: What are the maximum storage and operating temperature limits for this assembly?

A17: The complete assembly is rated for a broad operating temperature range from -40°C up to +125°C.

Q18: Where is the primary production facility for FILN brand electrical products located?

A18: All components are manufactured by Yueqing Yulin Electronic Co., Ltd. at their 10,000 square meter factory in Wenzhou, Zhejiang, China.

Q19: Does the clear rubber boots kit limit actuation feel during field operation?

A19: No, the flexible rubber compound protects against water ingress while maintaining standard tactile switching feedback.

Q20: How do I order a custom version with specific wire harness lengths attached?

A20: You can send your wiring diagrams and length requirements directly to our engineering support team at inquiry@cnylin.com.cn.
