Switch Push Button ON OFF Drawing:

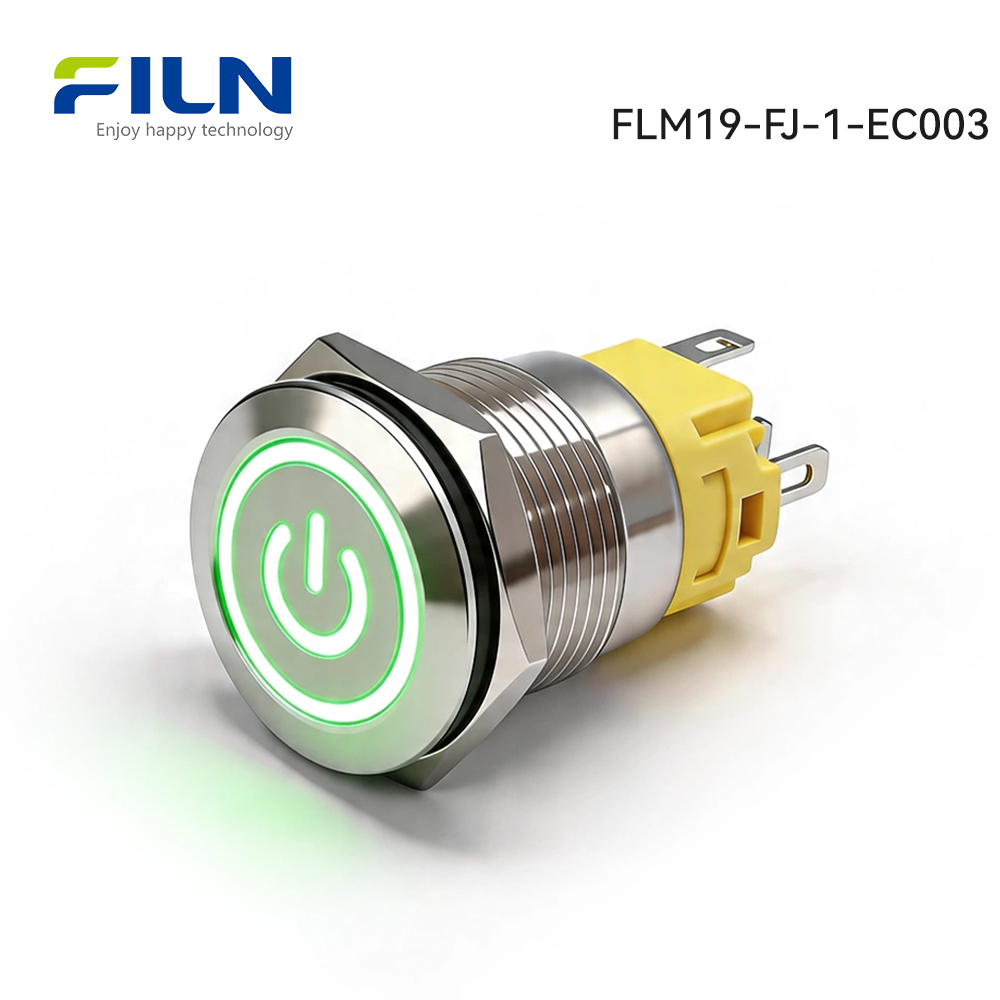

Three Categories of ON OFF Switch: Switch Push Button ON OFF 19MM 5PIN Metal
- Name:push on off switch
- Model:FLM19-11FJZ
- Head Type:Flat Head
- Mounting Size:19mm
- Switching Functions:Momentary
- Rated Voltage:5A
- Voltage Options:2V, 3V, 6V, 12V, 24V, 120V, 220V, 380V
- Indicator Light:Yes
- Color:Red, Blue, Green, Yellow, White
- Material:Copper, Stainless steel, Zinc alloy
- Download Certification:CE, CCC, ROSH,IP67, UL
- Waterproof grade:IP54
- Wire specification:AGW22
- Email: inquiry@cnylin.com.cn
- Download PDF: 19MM 120V 5 Pin Power Yellow Push Button Switch
push on off switch-Basic Parameters of Button Switch:
| Production Series | FLM19-10FJZ | Light Guide Button | PC Plastic |
| Button Shape | Round | Sctuator | 304 Stainless Steel |
| Button LED color | Red blue green yellow white | Housing sleeve | H59 nickel plated brass/304Stainless steel |
| Mechanical Life | The 500 thousand time | Button pin | H62 copper alloy |
| Rlectrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP67 IK09 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V（DC） 250V（AC） | Housing | PA66+GF20% nylon |
| Rated Current | 1A（DC）0.5A（AC） | Light Source | LED |
| Rated Power | 36W（DC）125W（AC） | Resistor | Metal film |
| Operating temperature | -25℃~+85℃ | Contact | AgCdO12 |
How to wire a push on off switch?
For 1NO1NC, we have the following four wiring methods.
When in the standing state, the lamp of the switch push button on off is off, indicating that the equipment is not running. To start the equipment, simply push the push button switch, and the lamp will light up, indicating that the equipment is now running.
| Button State | Device | LED Lights |
| Normal | OFF | OFF |
| Press | ON | ON |
2. In the standing state, the lamp of the push button switch is light on, and equipment start to running. Push the push button switch, the lamp goes off, and equipment stop running.
| Button State | Device | LED Lights |
| Normal | ON | ON |
| Press | OFF | OFF |
3. In the standing state, the equipment is not working. Push the push button switch, equipment start to work, and the light is on.
| Button State | Device | LED Lights |
| Normal | OFF | ON |
| Press | ON | ON |
4. In the standing state, the equipment start to work. Push the push button switch, equipment stop running, and the light is on.
| Button State | Device | LED Lights |
| Normal | ON | ON |
| Press | OFF | ON |
Customization Advantages of push on off switch:
The FILN Switch Push Button On Off is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.
Why Customization is Important for Push Button Switches?
Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN push button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.
- Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.
- Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.
- Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.
Customizable Button Symbols
One of the most prominent features that can be customized in a FILN push button switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.
- User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.
- Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.
- Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.
Customizable Voltage Options
Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.
- Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.
- Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.
- Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.
Customizable Button Connectors
The FILN 12v push button switch also offers customizable button connectors, making it easier for customers to use the switch in their unique setups.
- Ease of Installation: Custom connectors can make the installation process simpler and quicker, saving both time and money.
- System Compatibility: Different systems may require different types of connectors. Customization ensures that the push button switch can be integrated seamlessly.
- Durability: The type of connector can also affect the durability of the switch, especially in harsh conditions.
FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN Switch Push Button On Off can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.
Related products
Table of Contents
What is an ON OFF Switch?
A “switch” is an electrical device that can be used to control the flow of current to a device or circuit. It is a very common component in everyday life.
It can be subdivided into push button switches, boat switches or toggle switches, but they are all based on the same principle.
It allows you to turn a device or circuit on or off by physically moving the switch between two positions.
When the switch is in the “on” position, the circuit is closed and power can flow through it to power the device.
When the switch is in the “off” position, the circuit is open and power is prevented from flowing, effectively shutting down the device.
FILN 3 ON OFF Switch Types
Here’s a table comparing the advantages and disadvantages of push button switches, rocker switches, and toggle switches:
| Switch Type | Advantages | Disadvantages |
|---|---|---|
| Push Button | – Compact and space-saving design | – Can be accidentally pressed |
| – Provides tactile feedback when pressed | – Limited number of available positions | |
| – Offers momentary or latching operation | – May require more force to press |
| Switch Type | Advantages | Disadvantages |
|---|---|---|
| Rocker Switch | – Easy to operate with a simple up/down motion | – Limited design options |
| – Offers larger surface area for actuation | – May not provide tactile feedback | |
| – Can accommodate multiple switch positions | – May require more space than push buttons |
| Switch Type | Advantages | Disadvantages |
|---|---|---|
| Toggle Switch | – Provides clear indication of switch position | – Requires more space than push buttons and rockers |
| – Easy to operate with a flip up/down motion | – Limited design options | |
| – Offers tactile feedback when toggling | – May not be suitable for small devices | |
| – Can handle high current and voltage levels | – May be prone to accidental toggling |
What is a Switch Push Button ON OFF?
Switch push button on off is a common electronic switch, also known as “single-pole switch” or “single-pole button switch”. It is usually used to control the on-off operation of circuits, such as turning on or off household appliances like lights, fans, etc.
Switch push button on off usually has a button, and pressing the button can open or close the circuit. The working principle of the switch is that when the button is pressed, the internal contacts will close, allowing current to flow through the circuit, thereby turning on the appliance. When the button is pressed again, the contacts will open, the current will stop flowing, and the appliance will turn off.
Switch push button on off is usually designed based on mechanical principles, but it can also be an electronic switch, for example, using solid-state switch technology.
What is a Rocker Switch?
A rocker switch is an electrical switch that features a large push-button surface that can be easily moved back and forth or up and down to control the flow of electric current. The appearance of a rocker switch when installed is usually round or rectangular in shape and can be easily operated by simply pressing or toggling it.
Rocker switches are commonly used in a variety of applications, including household appliances, electronic equipment, automotive systems and industrial machinery. They are known for their simplicity, versatility and user-friendly design. The switch lever can be easily operated with one finger, making it convenient for users of all ages and abilities.
A 1/0 symbol is usually printed on the surface of the button, mainly to distinguish whether the switch is on or off.
FILN specializes in developing and producing waterproof boat switches, which effectively solve the problem of water exposure. IP68 can also work properly in deep water.
What is a Toggle Switch?
A toggle switch is also an electrical switch that consists of a lever or handle that can be flipped or toggled between two or more positions to control the flow of current.
The lever usually moves vertically or horizontally and remains in the position it is set to until it is manually switched to a different position.
Toggle switches are used in a wide variety of applications, from household appliances and electronic equipment to industrial equipment and automotive systems. They are known for their durability, simplicity and ease of use. The physical action of the flip lever provides a tactile feedback that allows the user to easily identify the position of the switch without the need for visual confirmation.
Depending on the specific design, toggle switches can have different configurations and functions. Some toggle switches have two positions, often referred to as “on” and “off,” while other switches may have three positions, including an “intermediate” or “momentary” position. The number of electrical contacts within a switch determines the range of functions it can perform. So a toggle switch is also the closest type of pushbutton switch to an on off switch because of the simplicity and clarity of on being in operation and off being de-activated.
FILN has developed and produced a two-color toggle switch, please contact us now!
What Are Switch Push Button On Off Used For?
As previously discussed, push-button switches are commonly utilized in automotive and marine applications. However, their usage is not limited to these sectors. These switches are versatile and find applications across various industries.
Industries Using Push Button Switches
Automation Equipment Industry
In the automation equipment sector, push-button switches are typically employed for controlling various types of machinery and automated processes. Their reliability and ability to handle certain levels of current and voltage make them highly suitable for applications requiring precision control and durability.
Kitchen Appliances Industry
In the realm of kitchen equipment, these switches are commonly seen in ovens, toasters, and even in commercial kitchen setups. Their reliability and ease of use make them appropriate for applications where user interaction and safety are of paramount importance.
Automotive Parts Industry
In the automotive parts sector, push-button switches are frequently used across a range of components. These may include but are not limited to, controlling headlights, windshield wipers, and other auxiliary systems in cars and other vehicles.
Energy Storage Industry
In the energy storage sector, particularly in contexts involving battery technology or renewable energy storage, these switches play a crucial role. They are generally used in the control circuits of battery management systems or interfaces of energy storage devices.
Home Appliances Industry
Last but certainly not least, push-button switches are commonly used in various household appliances, like washing machines, vacuum cleaners, and electric fans. Their utility in these devices lies in their reliability and user-friendly design, making them the go-to choice for many manufacturers.
By considering these different industrial applications, it is clear that push-button switches are not just limited to automotive or marine use, but have a much wider range of applications that impact various aspects of daily life.
How Much Does a Push On/Off Switch Cost in the USA?
If you’re in the market for a push on/off switch in the USA, you’re probably wondering about the cost. In this article, we’ll explore the price range of push on/off switches from various suppliers and provide you with valuable insights to help you make an informed decision. So, let’s get started!
Understanding the Price Range
The price of a push on/off switch can vary depending on factors such as the type, size, and features. To give you a comprehensive understanding of the market, let’s take a closer look at the price range offered by different suppliers.
Flow Chart: Searching for the Best Price
To help you navigate the process of finding the price range of push on/off switches in the USA, we’ve created a flow chart:
This flow chart outlines the steps you can take to search for the best price, including visiting popular suppliers such as Made-in-China, Home Depot, Digi-Key, TE Connectivity, and All Electronics.
This bar chart provides an overview of the price range, allowing you to compare prices and make an informed decision.
Detailed Price List
Now, let’s dive into the specific price ranges offered by various suppliers for push on/off switches. Please note that these prices are approximate and may vary. Checking with the specific supplier or retailer for the most accurate and up-to-date pricing information is always recommended.
| Supplier | Price Range |
|---|---|
| Made-in-China | $0.01 – $100 |
| Home Depot | $10 – $400 |
| Digi-Key | Visit website |
| TE Connectivity | Visit website |
| All Electronics | $1 – $5 |
As you can see from the table above, the price of push on/off switches can range from as low as $0.01 to as high as $400, depending on the supplier. This wide range of prices allows you to find a switch that fits your budget and requirements.
Factors Affecting the Price
Several factors can influence the price of a push on/off switch. Here are a few key factors to consider:
- Type and Size: Different types and sizes of switches may have varying price points.
- Features: Switches with additional features, such as illuminated buttons or waterproof capabilities, may be priced higher.
- Brand: Well-known brands often command higher prices due to their reputation and quality.
- Quantity: Buying in bulk may result in discounted prices, making it more cost-effective for larger projects.
Conclusion
In conclusion, the price of a push on/off switch in the USA can vary significantly based on factors such as the supplier, type, size, and features. By considering multiple suppliers and comparing prices, you can find a switch that meets your needs and budget.
Remember to check with the specific supplier or retailer for the most accurate and up-to-date pricing information. We hope this article has provided valuable insights into the price range of push on/off switches in the USA.
If you have any further questions or need additional information, please feel free to reach out. Happy shopping!
How do push button switches work?-Switch Push Button On Off: Introduction and Features
Switch push button on off is an electronic switch that is commonly used to control the on/off function of circuits for various applications. This switch is available in different sizes ranging from 12MM to 40MM, which can be converted into inches as shown in the table below:
| Size (MM) | Size (Inches) |
|---|---|
| 12 | 0.47 |
| 16 | 0.63 |
| 19 | 0.75 |
| 22 | 0.87 |
| 25 | 0.98 |
| 28 | 1.10 |
| 30 | 1.18 |
| 40 | 1.57 |
Switch push button on off features two types of functions: self-locking and self-resetting.
Self-locking means that the switch will remain in the position it was set to until manually changed. This means that once the button is pushed, it will stay in that position until it is pushed again to change the state of the switch.
Self-resetting, on the other hand, means that the switch will automatically return to its original position once the pressure on the button is released. This means that the switch will only be active for as long as the button is being pressed, and it will return to its original state once the button is released.
The switch push button on off has four wiring terminals: two for the power supply and two for the load. The wiring diagram is usually printed on the switch, making it easy to install.
The switch push button on off is built to last, thanks to the high-quality materials used in its construction. The switch is typically made from materials such as stainless steel, brass, or aluminum alloy, which are known for their strength and resistance to corrosion.
These materials ensure that the switch is durable and can withstand wear and tear, making it a reliable choice for controlling circuits in various industries.
The LED colors of the switch push button on off are available in red, green, yellow, blue, and white.
The voltage of the LED can be customized according to customer requirements.
The LED helps to indicate the status of the switch, making it easy to use and control.
In summary, the switch push button on off is a versatile and easy-to-use electronic switch that can be used in a wide range of applications. With its various features and options, it is a popular choice for controlling circuits in different industries.
