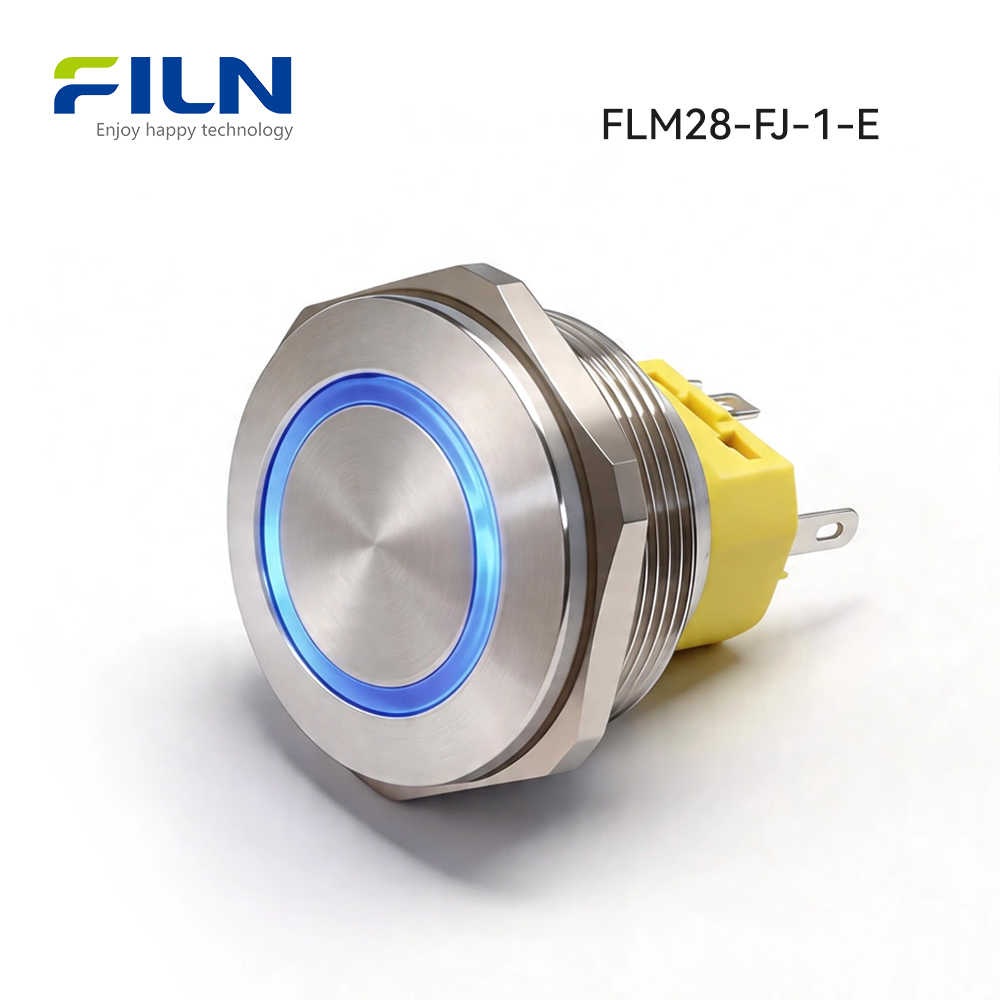

28MM LED Ring Button Metal Push Button Power Switch

Product Drawings:

An LED ring button is a pushbutton device equipped with a ring of LED lights.

It has the appearance of a pushbutton switch consisting of a ring of LEDs surrounding the button.

Pushbuttons are typically used to trigger an action or perform a specific function, while LED rings are used to provide visual indication or status feedback, and can also help you to beautify your installation.

Product Parameters:

FILN Pushbutton Switch Customization

Our cutting-edge product combines the functionality of a metal button switch with an eye-catching circular LED light arrangement. Whether you need an on/off button, control button, or menu navigation button, our LED ring button is the perfect solution for your electronic devices and applications.

Designed to provide intuitive user interaction, the LED ring button utilizes a touch-sensitive interface. With a simple touch or press, users can effortlessly trigger specific actions, thanks to the responsive functionality of our button switch.

What sets our LED ring button apart is its vibrant visual feedback system. The LED ring features a wide range of colors, adjustable brightness levels, and captivating blinking patterns. This allows for clear and dynamic communication of device status, connectivity information, and different operational modes. Users can easily interpret and respond to these visual cues, enhancing their overall experience.

Crafted with precision and durability in mind, our 28mm LED ring button boasts a sturdy metal construction. It is built to withstand the demands of various environments and applications, ensuring reliable performance and longevity.

At FILN, we understand the importance of seamless integration into different products and industries. That’s why our LED ring buttons find applications in consumer electronics, computer equipment, smart homes, and industrial controls. Whatever your specific needs, our LED ring button provides a versatile and user-friendly solution.

Upgrade your user interface with FILN’s 28mm LED Ring Button and revolutionize the way users interact with your products. Experience the perfect blend of functionality, aesthetics, and durability. Choose FILN for your LED ring button needs and stay ahead of the curve in the world of electronic devices and applications.

The sleeve housing material of this 28 mm push button power switch is mainly stainless steel. The stainless steel housing has high corrosion resistance and chemical stability. It is suitable for use in harsh environments without rapid rust.

The sleeve material is also nickel-plated brass and black zinc-aluminum alloy, but these two are not commonly used materials for our large-size push button power switches. If customers want these two materials, we need to customize them. Delivery time It will take a little longer. Among them, the brass nickel-plated shell looks a little yellow and looks brighter, and the price is relatively high; the black zinc-aluminum alloy looks very beautiful in appearance, suitable for use in electrical appliances that require black buttons.

There are four main types of conventional push button power switch functions in the market, which are 1NO, 2NO, 1NO1NC, and 2NO2NC. The switch functions of this 28 mm push button power switch are 1NO1NC and 2NO2NC.

Push Button Switch Wiring Method:

For 1NO1NC, we have the following 4 wiring methods:

1.In the static state, the light of push button power switch is off and the device does not work. When the button switch is pressed, the light of push button power switch lights up and the device starts to run.

2.In the static state, the light of the push button power switch is on and the device is running. When the button switch is pressed, the light of the push button power switch goes out and the device stops operating.

Introducing FILN’s 28mm LED Ring Button, a versatile and high-quality metal button switch with an integrated LED light ring. Our product offers flexible connection options based on your specific requirements. Choose between 2NO2NC (two groups of 1NO1NC) for controlling multiple devices or follow the provided connection diagram for seamless integration.

Our push button power switch comes with two essential functions: self-locking and self-resetting. The self-locking feature ensures that the button remains pressed until pressed again, while the self-resetting function automatically returns the button to its original position upon release. You can select the desired function based on your unique needs.

The LED lights in our push button power switch are available in monochromatic colors such as red, yellow, blue, green, and white. Additionally, we offer two-color options like red and green or red and yellow, as well as three-color combinations including red, green, and blue. Our monochrome LEDs deliver superior quality and eliminate the need to distinguish between positive and negative poles. Customers have the freedom to connect the two lamp pins as per their preference.

With an IP65 waterproof rating, our push button power switch ensures reliable performance even in challenging environments. If you require a higher waterproof rating like IP67, we recommend exploring FILN’s button with a cord. This variant features a direct wiring mechanism with black waterproof glue coating for enhanced protection, elevating the waterproof level to IP67 for outdoor applications.

To expand our market presence, especially in foreign trade, FILN has diligently worked to obtain various certifications. Our push button power switch series now holds UL, RoHS, and CE certifications, establishing a reputable position in the button market.

Experience the reliability and functionality of FILN’s 28mm LED Ring Button. With its premium metal construction, integrated LED light ring, and customizable features, it is an ideal choice for various applications. Choose FILN and stay ahead with our innovative solutions.

Related products:

Frequently asked questions about the 28MM LED Ring Button:

1. Can this push button power switch be made in two-color and three-color? FILN offers two-color and three-color LED ring buttons. The two-color options include red, green, red and yellow, while the three-color options include red, green, blue, red, yellow, and blue lights. These buttons have a voltage range of 3-220V. Two-color and three-color functions can be customized as either common cathode or common anode, depending on your requirements. Additionally, larger-sized push button power switches can incorporate two or three lamp beads inside the button to create two-color or three-color effects. In such cases, there is no distinction between common cathode and common anode, and the light wires can be connected arbitrarily within the voltage range of 3-220V.
2. What is the current rating of this push button power switch? The current rating of this 28mm push button power switch is 5A, as are the 19mm-40mm buttons. However, we also offer the option to customize a 10A button upon request. Please feel free to contact us if you are interested in this customization.
3. Does this push button power switch come with after-sales service? FILN has a comprehensive after-sales service system in place. This push button power switch comes with a 5-year warranty period. Should any issues arise during this warranty period, customers can contact us at any time. We are committed to promptly addressing any product quality problems or concerns encountered during use.
4. Can this push button power switch have a high head? Yes, this push button power switch is available in different head styles, including flat-head, high flat head, and ball head. Flat-head and high flat head options are more commonly used. If you require illuminated buttons, we offer variants such as flat-head ring lights, high head ring lights, flat-head ring lights with power symbols, and high head ring lights with power symbols.
5. Can the wire be soldered to the tail of this push button power switch? Certainly! If you provide us with your specific connection requirements, we can solder the wire accordingly. Please share the wire gauge and length needed for the soldering process. To ensure quality, we conduct two inspections: one after button installation and another after wire soldering. This guarantees that the button leaves the factory in excellent condition. By taking care of the wire soldering process, we help reduce your time and labor costs while enabling you to achieve higher profits. Additionally, we offer a wire harness connector option that simplifies installation. Different pins correspond to wires of different colors, with a standard wire gauge of 0.5mm² and default wire length of 20cm. Customization of wire gauge and length is also available based on your requirements.

If you have any further questions, ideas, or interest in our 28mm LED ring button, please don’t hesitate to contact us. We strive to respond to all emails within 12 hours.
