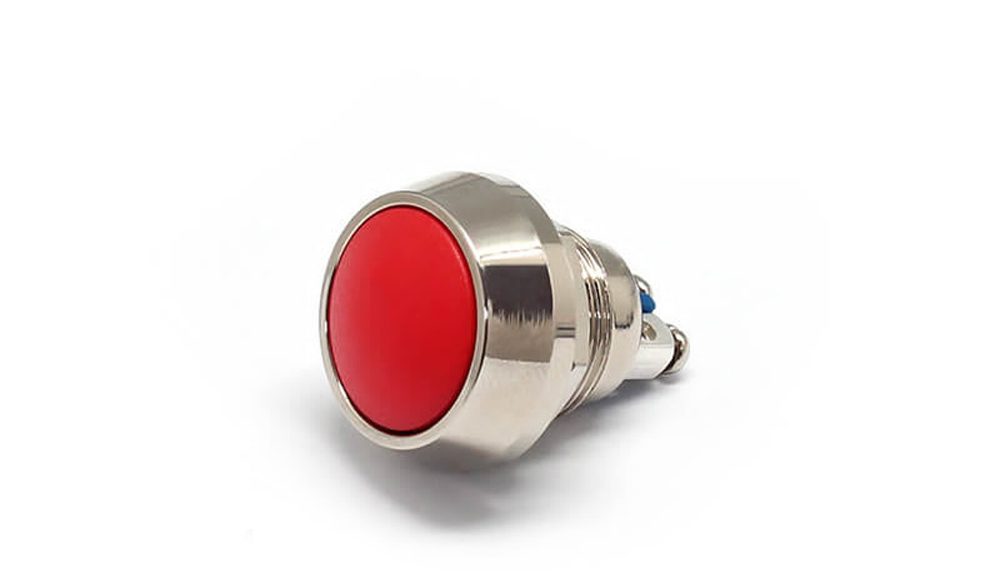

FILN Red Push Button Switch 2 Screw Terminals Momentary

1. Red Push Button Switch Principle-introduction



The red push button switch is abbreviated as a button. It is usually used to switch on and off the control circuit. It is a kind of low-voltage electrical appliance that issues instructions in the electric drive. It is a kind of master electrical appliance that is widely used. In the electrical automatic control circuit, it is used Manually to send out control signals to control contactors, relays, electromagnetic starters, etc. Its characteristic is that it is installed in the machine and instrument in the process of work. Most of the time, it is in the initial free state position, and only when there is a requirement, it switches to the second state (position) under the action of external force. Once the external force is removed, Due to the action of the spring, the switch returns to the initial position.

The red push button switch can complete basic controls such as start, stop, forward and reverse rotation, speed change and interlock. Usually, every red push button switch has two pairs of electric shocks. Each pair of electric shocks consists of a normally open contact and a normally closed contact. When the button is pressed, the two pairs of contacts act at the same time, the normally closed contact is disconnected, and the normally open contact is closed.

2. The function of the Red Push Button Switch

A button is a control switch that is operated by a certain part of the human body (usually a finger or palm) and has a spring energy storage reset. It is the most commonly used master electrical appliance. The allowable current through the contact of the button is small, generally not more than 5A. Therefore, under normal circumstances, it does not directly control the on and off of the main circuit (high current circuit) but sends command signals in the control circuit (small current circuit) to control electrical appliances such as contactors and relays, and then they control the main circuit. On-off, function conversion, or electrical interlocking.

After long-term product research and development, Yulin Electronics has launched a series of red push button switches. Yulin Electronics currently has metal button switches with a mounting size of 8 mm-40 mm. The best-selling ones are 12 mm, 16 mm, 19 mm, and 22 mm.
The red push button switch has four main characteristics:

The first feature is an explosion-proof function, explosion-proof grade IK68.

The second feature is the anti-violent disassembly function, which is durable and suitable for electronic equipment in outdoor public places.

The third feature is that it has the functions of dustproof, waterproof and oilproof, and the waterproof grade is IP65.

The fourth feature is its beautiful appearance, with the texture of metal, which increases the grade of the red push button switch.

This product in the link is a red push button switch with a 12mm installation size, which can be made of stainless steel, brass, zinc-aluminum alloy (black-plated), gold-plated and other materials. The available current is 2 amperes and the switching voltage is 250V. This red push button switch is a no-light style, with two screw feet at the tail, which can also be used as a pin connection. In order to indicate the function of each red push button switch and avoid misoperation, the buttons can be made into different colors to show the difference, as shown in the figure. Its colors are red, yellow, blue, green, white, black and other colors. For example, red means stop button, green means start button, etc.



Q&A about Red Push Button Switch



Q: Can this red push button switch have a self-locking function?

A: This red push button switch cannot be used as a self-locking function for the time being, but can only be used as a self-resetting function. If the self-locking function is needed, we will recommend other styles of button switches.



Q: Can this red push button switch be soldered?

A: Yes, the screw feet can be connected by soldering wires. Just inform us of the wire specifications, materials, wire length and other information.



Q: How to package the red push button switch?

A: Use a foam box, 50 per box, sealed with heat shrinkable film to prevent it from falling out.



Q: Is there any certification for this red push button switch?

A: We have CE, ROHS and other related certifications.



Q: Can the company LOGO or related information be printed on the shell of this red push button switch?

A: No problem, the shell part can be printed with a short LOGO and the corresponding color voltage and so on.



Q: The red push button switch in the picture is in the shape of a ball head. Is it possible to have other head types?

A: Yes, you can also do flat head.



The model of this red push button switch is FLM12-BS-1. FL refers to Feiling Company, M refers to the metal material, 12 refers to the button installation size, B refers to the ball head (head shape), and S refers to the screw foot connection method. -1 refers to the style type.

The red push button switch launched by FILN Electronics has a competitive price in the same industry and has the most complete styles. FILN Electronics has received wide praise at home and abroad for its product quality assurance. To this end, we will continue to develop new red push button switch switches to create a better image and brand power for the company. And we are a production company, the production workshop has five production lines, there is no minimum order quantity requirement, if you need our products, are interested in our products, want samples, etc., please contact us directly. The email is as follows: Inquiry@cnylin.com.cn Samples can be provided in one day. For example, if 1000 pieces are available, the delivery time is about 5 days.



More related popular proudts: LED plastic indicator light with wire

Production Series FLYM12-BS-1 Light guide Button PC plastic
Button Shape round  Actuator 304 Stainless steel
Button LED Color Red orange green blue Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V DC Housing PA66+GF20% nylon
Rated Current 2A Light Source LED
Rated Power 36W Resistor Metal film
Operating Temperature -20℃~+55℃ Contact AgCdO12

4PIN 12MM Red 110V Momentary Push Button Switch

110V Momentary Push Button Switch Introduction



This 110v momentary push button switch is 12mm. From the picture, you find that it is a bit different from ordinary metal buttons. The light-emitting buttons of this metal button have different colors, corresponding to the color of the light, and the brightness will be higher than that of ordinary ones. The button of the lamp is more beautiful and the effect is better. The button material is PC. The metal shell material is stainless steel, we can also make other materials. 110v momentary push button switch can only be made without lock, if you want to have a lock, this one cannot be made, we can only recommend other styles to you.

The voltage of the 110v momentary push button switch light can be 3V, 6V, 12V, 24 , 110V, 220V, if you want 380V, we can also do it. 110V momentary push button switch color can be red, green, yellow, blue, white, if you want black, it must be without light. Compared with all plastic buttons, the metal 110V momentary push button switch has the following advantages.

1. The conduction angle consistency of the metal 110v momentary push button switch can be very good; there is also no flashover phenomenon when it is turned on, users can rest assured.

2. The metal 110v momentary push button switch is for environmental protection, as well as during transportation.

3. The metal 110v momentary push button switch will not cause environmental pollution during use, which is a very good point.

At present, the global technology applications are increasing day by day. As companies and public departments try to control costs and provide customers with a better experience, the trend of technology application is increasing in many public places indoors and outdoors.

This approach brings many benefits, but it also creates a series of challenges. Among them is the Human Machine Interface (HMI), which usually consists of a series of push switches. Generally speaking, we will take good care of the equipment we own, but these public equipment is likely to be abused maliciously or unintentionally.
For this reason, designers can now use the extremely rugged 110v momentary push button switch to develop various man-machine interfaces for public technology, so that it can stand the test of time.

Fundamentally speaking, in order to achieve system applications, the system requires users to input information to determine the operations they wish to achieve, or to provide information to the system. Since speech recognition technology is still in the early stages of development, the use of various types of switches is still the preferred method for human-machine interface development.

When technical equipment is deployed in an uncontrolled area and operated by non-equipment owners, it is likely to be abused. Individual users sometimes choose to maliciously damage the equipment for many reasons. Even legal users of the equipment may not care about the equipment. They will carelessly press the 110v momentary push button switch vigorously, thus shortening the service life of the equipment, especially the technical equipment with man-machine interface. Obviously, for example, a sophisticated membrane switch matrix is ​​often unable to be used for a long time under the above circumstances.

Due to the increase in the deployment of such equipment, the demand for high-strength human-machine interfaces has also increased. Except for family life, everything we do in daily life is almost inseparable from various 110v momentary push button switch operating systems.

For example: when you go to a place by car, you will see that there is usually a 110v momentary push button switch on the petrol pump at the gas station. If it is a modern electric vehicle (EV), you will find that the charging station also has several 110v momentary push button switches for inputting commands and starting/stopping the charging process. In the service station to inflate the tires, wash or clean our car, we need to use a 110v momentary push button switch based man-machine interface device.

Even if you don’t drive, but travel by train, we will see more and more types of 110v momentary push button switch; for example, 110v momentary push is used when opening a car door, going to the bathroom or using an intercom device button switch. When buying a ticket, the ticket vending machine may also be equipped with a durable human-machine interface.

After arriving at the destination, we may need some cash. At this time, you will find that the ATM also has a high-strength keyboard to effectively prevent damage. The building we are going to may also have an access control or intercom system. After entering the building, there are also buttons in the elevator room to select the floor.

High-strength man-machine interface dedicated switch

The high-strength man-machine interface special switch (which can withstand the destructive operation of rough users or malicious saboteurs) is different from standard switches in terms of manufacturing materials and methods.

Vandal-resistant 10v momentary push button switch usually adopts a metal structure, the most used is stainless steel, but nickel-plated (Ni) brass is also very common, and sometimes anodized aluminum is also used. After these 110v momentary push button switches are properly sealed, they can prevent moisture intrusion caused by weather, or water intrusion into the system caused by accidentally (or maliciously) splashing water on the HMI panel. The protection level of the human-machine interface is usually up to IP67, that is, the switch can be completely protected from dust and can be immersed in water at a depth of 3 feet for 30 minutes.

Similar to the IP rating scale for ingress protection, the IK rating scale defines the level of impact protection. Most anti-vandal 110v momentary push button switches have a protection level of IK10 (currently the highest impact protection level), and the maximum energy level that can withstand impact is up to 20 joules.

Many anti-vandal switches are equipped with icons on the buttons to indicate their functions; in many cases, LED lights are used to provide operating feedback under weak light conditions.

As one of the world’s leading switch technology suppliers, Yulin Electronics (FILN) provides a series of vandal-proof switches that can meet various application requirements.

The PBM series of Yulin Electronics’ 110v momentary push button switch is a tamper-proof sealed push switch that can provide standard LED lighting in a body with a diameter of 8mm/12mm/16mm/19mm/22mm/25mm/30mm. This series of switches are made of stainless steel and use scratch-resistant starters to achieve appearance protection. The rated service life of the switch is 500,000 switching operations, and it is suitable for use under environmental conditions of -20C~+55C. The switch uses single-pole double-throw and double-pole double-throw, with normally open or normally closed contacts, with instant or locking action function.

The stainless steel actuator can adopt flat, dome or long structure, and the corresponding specifications can be designed according to the application. The required starting force of the switch is 2.5N (SP) or 3.5N (DP) ─ requires a clear pressing action to operate, and can bring positive tactile feedback to the user.

The switch meets the requirements of IP67 sealing protection and can withstand IK10 mechanical shock. Its threaded structure can be easily assembled through the front panel, and at the same time, it can easily connect with the printed circuit board by using the cross-line function.

If you have any needs for 110v momentary push button switch, please email us sales2@filn.com.cn, if you have any questions or ideas about 110v momentary push button switch, you can also contact our engineer louis Lin, his email is inquiry@cnylin.com.cn.

Hot Product : metal 12vdc indicator light

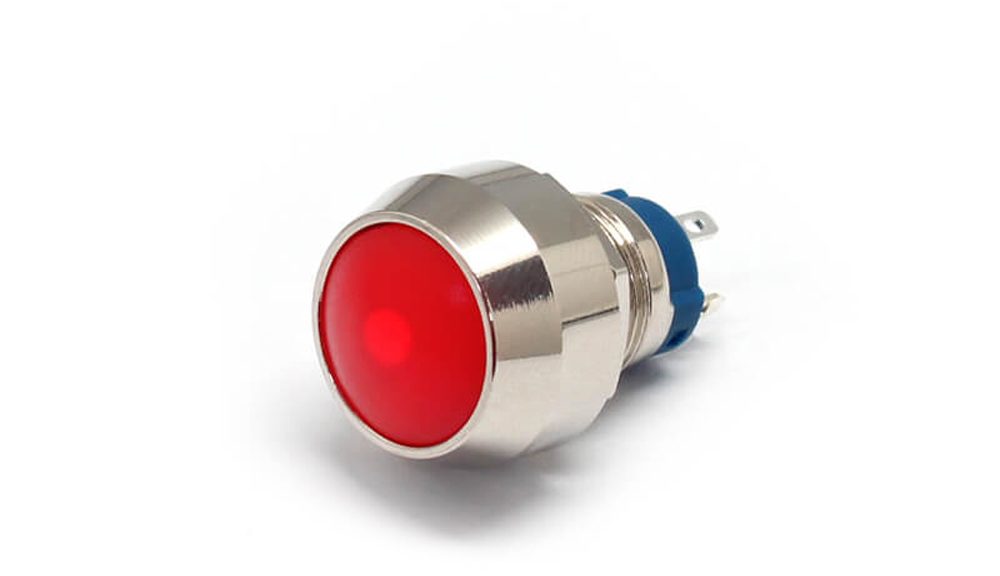

Production Series FLYM12-BJ-1-E Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red orange green blue Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V DC Housing PA66+GF20% nylon
Rated Current 2A Light Source LED
Rated Power 36W Resistor Metal film
Operating Temperature -20℃~+55℃ Contact AgCdO12

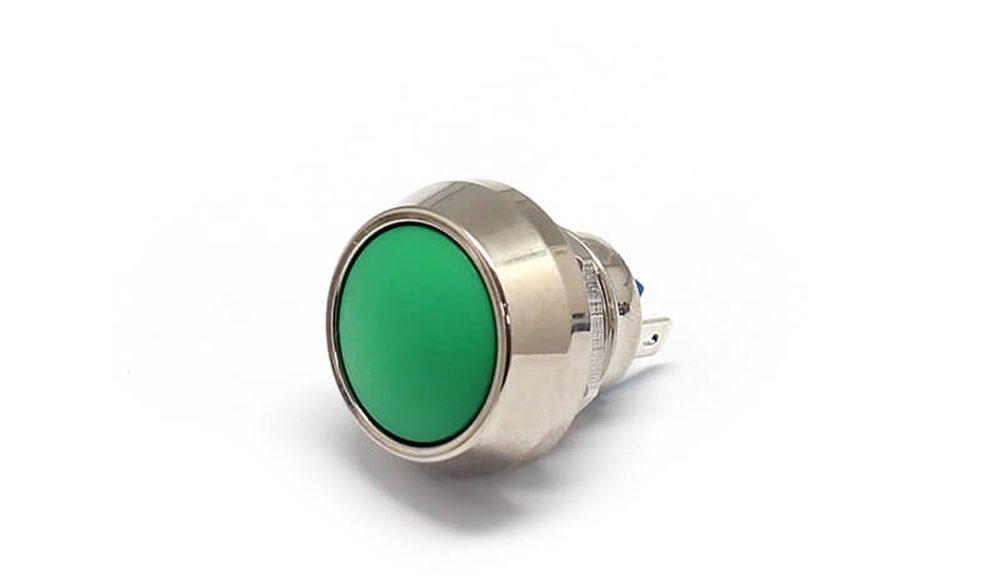

FILN 12MM Momentary Metal round Push Button Switch

Product drawings

Momentary-Vandal-Resistant-Metal-Dome-Push-Button-Switches

Round push button switch parameters

Production Series FLYM12-BJ-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V DC Housing PA66+GF20% nylon
Rated Current 2A Light Source
Rated Power 36W Resistor Metal film
Operating Temperature -20℃~+55℃ Contact AgCdO12

What is the Round push button switch?

Round push button switch is a switch with a circular appearance that controls the current on and off. Round push button switches are designed to replace parts in your business’s existing electrical equipment.

These items are widely used and convenient. They are compatible with appliances like mixers, dishwashers, and toasters.

In addition to common red and green on and off switches, we offer parts in colors like Red, Blue, Green, Yellow and White.

Round push button switch

Parameters of Round push button switch

  • The installation hole diameter of FLYM12-BJ-1 is 12MM, and the installation method is threaded solidification style.
  • The color of Metal round push button switch can be produced in 6 colors including red, green, yellow, blue, white and black. Various colors can be customized according to customer needs.
  • FLYM12-BJ-1 is a reset button without light. This item is a single group, so it has only two legs. When you press the button, the button switch is energized, and when your hand leaves the button, the button switch is powered off.
Advantages of button switch
  • The metal has three materials, each with the following different functions.

The stainless steel has corrosion resistance and can be used in places with harsh environments, such as the seaside, kitchen equipment, outdoors, and so on.

Brass is electroplated and has cost less. It is usually used in test equipment and automation equipment.

The advantage of zinc alloy is that the metal surface can be electroplated in various colors, such as red, green, black and so on. After electroplating, the appearance of the entire button is colored that can be more personalized.

Use scenarios of button switches
  • FLYM12-BJ-1 has no light, so the voltage is both AC and DC. It can be used on 2V, 3V, 12V, 24V, 110V, 120V, 220V, 380V. The current is 3A. It can be used on machinery with power below 500W.
  • FILN ROUND PUSH BUTTON SWITCH has a mechanical life of 100,000 times, and its waterproof rating is IP65.

How does the round push button switch work?

A momentary round push button switch works by installing the switch on the mechanical equipment. Connect the wires and press the button, the switch will be powering on. When the hand leaves the button, the button switch automatically resets. The switch stops working when the power is cut off.

How to wire the momentary round push button switch?

The wiring method is very simple. You need to detect the positive level of the machine equipment. Connect the positive electrode to one foot on the button, and then connect it from the other foot. As the below picture:

Wiring example:
Normally open wiring method
Press the button to power on the load and release to power off.

Button wiring method

Where to buy FILN round push button switch?

As you need samples for testing, FILN company will provide samples for free.

Technical-team

If you need to customize your round push button switch or directly request button connection, you can write an email to our button technical engineer at inquiry@cnylin.com.cn. We will give you a satisfactory solution.

filn sales-team

If you need a large amount of products, you can directly write an email at sales2@filn.com.cn to our international trade sales staff. They will give you very good prices and excellent service.

Online-e-commerce

If you just need a small amount of round push button switch, you can place an order directly on www.cnfiln.com. FILN will ship the product in a single day.

Applications

push button switch application

FILN’s products have passed UL, CE, ROSH, ISO90001 quality management system certification. We have a professional testing laboratory to ensure the quality of the buttons.

The professional R&D technical team can customize various styles of button switches according to your needs.

If you have any questions about the round push button switch, please contact us immediately. We will give you a satisfactory answer within 24 hours.

Recommended product: push button switch with light

Quickly place an order online

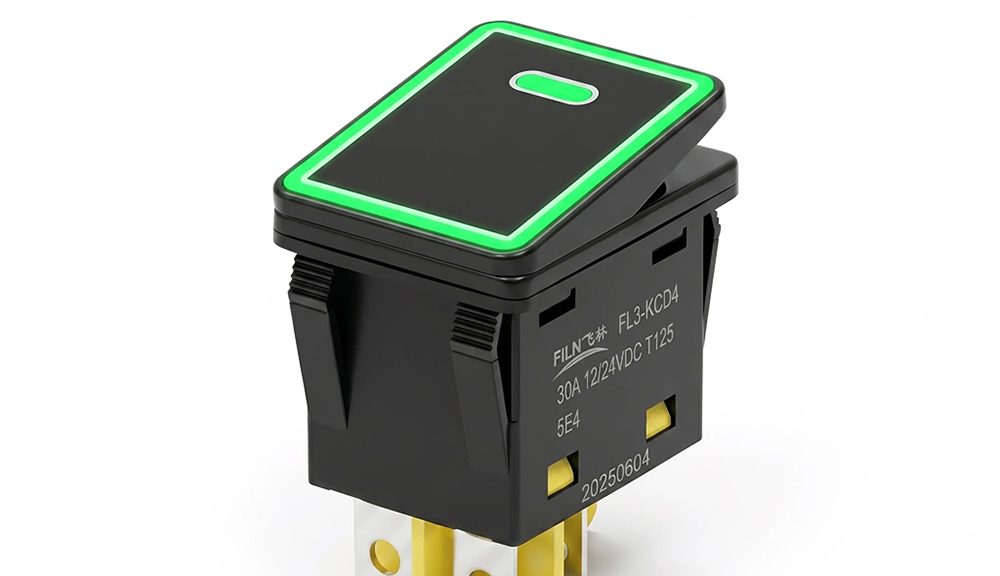

Rocker Light Switch 30A 250V Waterproof IP67 Black Silver

Product drawings

Rocker Light Switch 30A 250V Waterproof IP67 Black Silver

What are the characteristics of 4 pin rocker switch?

The features of the 4 pin rocker switch are that the waterproof rating is IP67, the switching current can reach 30A, and the terminal material is copper feet. This model is a ship switch newly developed by our Yulin Company.

What is 4 pin rocker switch?

The 4 pin rocker switch is to install the rocker switch on the rocker switch panel and connect the wire. When the hand presses the O of the rocker switch, the rocker switch is energized. When the hand leaves the rocker switch, the rocker switch automatically resets and the rocker switch is Power off.

What is the product introduction of FILN 30A 250V 4 Pin Rocker Switch Waterproof IP67?

30A 4 pin rocker switch

1.The mounting hole size of FILN 30A 250V 4 Pin Rocker Switch Waterproof IP67 is 22*30mm, and the thickness of the rocker switch panel needs to be between 0.8-4mm, so that the waterproof rocker switch can be clamped tightly to achieve a better waterproof effect.

2.The voltage of FILN 4 pin rocker switch is 3V, 6V, 12V, 24V, 48V, 110V, 220V, 380V, etc. It can be customized by changing the resistance, among which 12V, 24v, 220v are customized Maximum voltage.

3.The Waterproof 4 pin rocker switch can be made in five colors, red, yellow, blue, green and white. The internal LED is a non-polar LED, regardless of the positive and negative poles. It can also be done without lights.

4.It can be seen from the picture that the buttons of the Waterproof 4 pin rocker switch can be made of black, gold and silver panels.

5.The function of IP67 4 pin rocker switch is mainly ON-OFF four-pin two-speed, ON-OFF-ON three-speed six-pin, (ON)-OFF-(ON) double reset three-speed six-pin, (ON)-OFF Single reset four-pin two-speed, ON-ON six-pin two-speed, etc., depending on your needs. This is now the most common practice is the ON-OFF four-pin two-speed.

6.The connection method of the 250V 4 Pin Rocker Switch is pin, and the size of the plug spring is 6.3mm*0.8mm. In addition, we also have a direct-wire model of the ship type switch, the bottom of which is painted with vinyl, and the waterproof level can reach IP68. There is also a newly developed screw-pin connection method.

7.The 250V 4 Pin Rocker Switch has passed the US UL, CE ROSH and other certifications. These international certifications prove that the functions of the 250V 4 Pin Rocker Switch comply with international standards and ensure quality. It can also be sold and used in the US and European markets. .

KCD3 2 prong rocker switch

How to wire 30A 4 pin rocker switch?

The wiring method of 30A 4 pin rocker switch is as follows:

1.Two switch pins are connected to the power supply, and the other two lamp pins are connected to the device. When the switch is pressed, the light is on and the device starts; the switch is off, and the switch light is dark, and the device is turned off.

2.Two lamp pins are connected to the power supply, and the other two switch pins are connected to the device, which can keep the switch light always on. Press the switch to start the device; turn off the switch to turn off the device.

Rocker Light Switch 30A 250V Waterproof IP67 Black SilverRocker Light Switch 30A 250V Waterproof IP67 Black Silver

What are the advantages of the 4 pin rocker switch produced by FILN?

1.We are a manufacturer and have sufficient material inventory, so the delivery time is very fast. Regular orders will also be stocked in the warehouse, and the delivery time of 1,000 conventional ship switches can be completed in about 3 days.

2.The relevant certificates, specifications and other materials are very complete and can be provided quickly.

3.There is no minimum order quantity requirement. The panel part of the Waterproof 4 pin rocker switch can be customized with LOGO, and the content of your company can be printed.

4.The development speed is fast. FILN has a professional team of engineers for R&D and design of rocker switches, as well as a team of engineers specializing in the production of rocker switch abrasives. The design and mold development of the Waterproof 4 pin rocker switch are basically completed within 30-40 days.

5.Have warranty service and after-sales service.

Ip67 4 pin rocker switch

Where is the 250V 4 Pin Rocker Switch used?

250V 4 Pin Rocker Switch is mostly used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion TVs, coffee pots, power strips, massage machines, etc., mainly in household appliances and kitchen equipment.

How to buy 250V 4 Pin Rocker Switch?

You can buy our products directly online such as Alibaba, or buy this 250V 4 Pin Rocker Switch through offline email communication. The weight of this model is about 0.02 kg. According to the number of customers, the express or sea air transportation is determined. Way. The quantity of a box is 800, and the weight of a box is 19 kg. If you need samples to test, we can provide samples for free.

The 250V 4 Pin Rocker Switch launched by Yulin Electronics has a price advantage in the same industry and has the most complete styles. Yulin Electronics has been praised by many at home and abroad for its product quality assurance. To this end, we will continue to develop new 250V 4 Pin Rocker Switch switches to create a better image and brand power for the company. If you need our products, are interested in our products, want samples, etc., please contact us directly. The email is as follows: Inquiry@cnylin.com.cn

Production series FL3-KCD4-0401-21L Light guide button Copper alloy
button shape rectangle actuator PC
button led color Red, blue, green, yellow and white washer rubber
Mechanical life The 300 thousand time Button pin H62 Copper alloy
electrical life The 100 thousand time protecting mask rubber
protection level IP65 IK09 nut
Rated voltage 12V DC housing PA66+GF20% nylon
rated current 30A Light source LED
rated power Resistor
Operating temperature -25℃~+85℃ contact AgCdO12
FILN onlin store
LED 4 prong rocker switch
Yellow 4 prong rocker switch

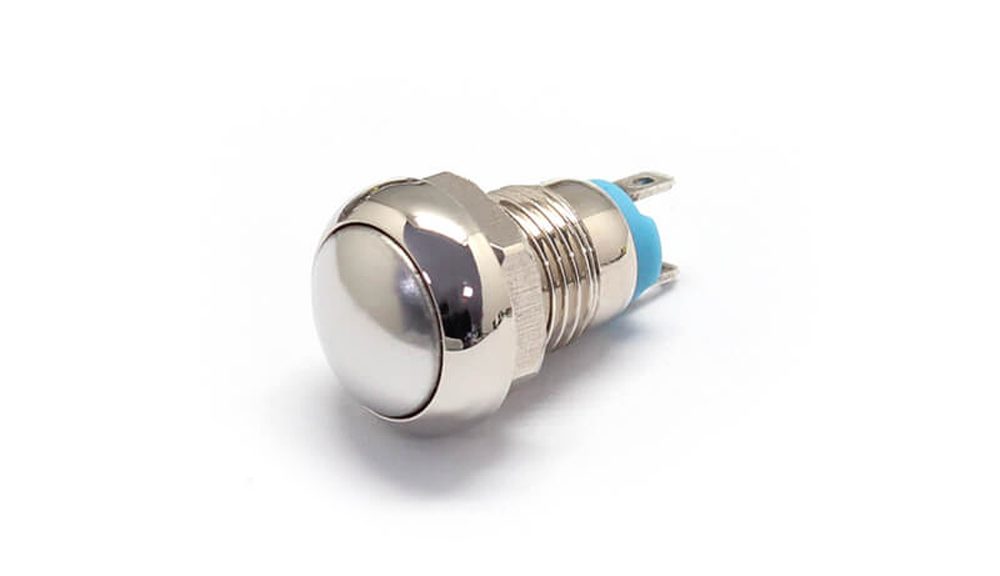

10MM Momentary Mini Push Button Switch

10MM mini push button switch description



1.  The 10MM metal push button switch has two functions: closed and non-locked. No lock: Press the button to power on, release the button to return to the original state-power off (press the button, it will automatically return).

2.  10MM mini push button switch is a round metal button switch without light.

3.  The 10MM mini push button switch is a type without light.

4.  The metal push button switch has 2 pins.

5.  The current of the 10MM mini push button switch is usually 12V 2A.

6.  Product model: FLM10-10EJ

7.  10MM mini push button switch technical life: 300 000 each time.

8.  10MM mini push button switch accessories: waterproof ring and nut.

9.  10 mm metal push button switch contact type: silver contact.



10MM mini push button switch FAQ



Q: What is the shell material of the metal button switch?

A: The 10MM metal push button switch is made of nickel-plated brass.



Q: Why is there only one material for the shell of 10MM mini push button switch?

A: The metal button switch uses brass nickel-plated material. The metal button switch uses brass because of its low material cost and can be plated with the outside atmosphere.



Q: What is the minimum order quantity for 10MM mini push button switch?

A: The minimum order quantity for 10MM mini push button switch is 1 piece.



Q: What is the daily output of 10MM metal push button switches?

A: The daily output of a 10MM metal push button switch is 10,000 pieces.



Q: What is the warranty period of the 10MM mini push button switch?

A: The shelf life of the button is five years.



Q: What is the packaging quantity of the 10MM metal button switch?

A: A set of 2000 pieces of 10MM metal button switches.



Q: How long does it take to deliver the 10 mm mini push button switch to the United States?

A: The mini push button switch usually takes 3 days, and it also takes 3-4 days to ship to Europe. Basically, it is shipped by international express such as TNT, DHL, UPS, Fedex.



Q: What is the waterproof rating of the 10MM mini push button switch?

A: The waterproof grade of the 10MM metal push button switch is IP65.



Q: Can 10MM metal button switches be customized?

A: Yes, it can be customized, or you can connect the wiring harness directly for the customer.



Q: How can you get free button samples?

A: You can follow our company’s Facebook or send an inquiry to our company’s Alibaba.



Q: How to pay?

A: Our company usually has paypal, T/T, Western Union and other payment methods. If you want to pay through Alibaba Credit Insurance, you can also.



10mm mini push button switch application scenarios



Generally, 10mm mini push button switch is used in automobile modification, medical equipment, engineering equipment, access control switch, CNC mold, computer modification, commercial kitchen, electronic and electrical equipment, etc.



Why choose us?



Because FILN is a direct sale from the factory, we will directly transfer the profits to you. FILN can customize products for you, solve your pain points, and save you time and money. If you have the latest requirements or customized metal button switches, please contact our company. You can buy directly at FILN AliExpress store, or by email inquiry@cnylin.com.cn, we will reply you within 24 hours.



Hot Product : metal LED indicator light

Production Series FLM10-10EJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Cutton LED Color Red, blue, green, yellow and white Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V DC Housing PA66+GF20% nylon
Rated Current 1A Light Source LED
Rated Power 36W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM 12V Green LED Metal Push Button Switch Panel

What I want to share today is the push button switch panel, the specific specifications are as follows:



1. The opening size of 16 mm, the size of 16 mm is the most demanded on the market.

2. Stainless steel material, corrosion resistance, oxidation resistance, lead-free, no rust, no oil, easy to clean, easy to maintain, no matter where you use it, please rest assured that the appearance of this product is very good The preservation of its own good performance.

3. 10A high current self-locking push button switch panel, which meets many market demands.

4. The push button switch panel is designed and produced by direct leads, which greatly facilitates the installation of customers, and does not require additional special wiring, which is very simple and convenient, and it can also be connected to matching terminals.

5. The color of the push button switch panel can be not only a single color (red, yellow, blue, green, white), but also two colors (red and blue, red and green).

6. Push button switch panel can have two functions, with and without lock.

Because FILN company has more than 10 professional button R&D engineers, who specialize in customizing various types of button switches with different functions, and provide OEM services. Therefore, we undertake the service of customized button products all year round. If you are a distributor, we can give you stable products, reasonable prices, and provide after-sales one-stop service, which is your best choice. If you are a manufacturer, we can provide OEM, ODM services, specializing in custom production of your exclusive sales products, and engraving your trademark. Similarly, it is the manufacturer’s first choice.

A French manufacturer of motorcycles learned on the Google website that our company accepts customized services and found our sales staff through Alibaba inquiry, asked if we could accept customized services, and sent their specific customized requirements to our company salesperson. Their request is: Can we connect the tail of our push button switch panel to a waterproof wire and put a laser-engraved stainless steel plate on the head of the button, and then use a heat shrink tube to connect the threaded part Partially sealed with the interface.

Through our understanding of customers, we understand the two needs of customers:
The customer wants us to do a complete set of products for him, including wiring, including the installation of the push button switch panel tail and the final hemming work. You know that labor costs in Europe are very high, basically 20 Euros an hour, which is one of the reasons why customer costs are very high.

The top part of the push button switch panel that the customer wants is to have three colors (red, green and yellow). The customer said that he has strict requirements on the color, and the upper part of the push button switch pane is not treated. The inside is white waterproof. The circle will cause the light on the metal button to diverge, resulting in uneven light and unsightly.
In order to solve this problem of the customer, we gave the customer a customized solution, and did not need to open the mold, so we told the customer to make the sample quickly, the customer felt that there was no need to open the mold, and we quickly responded to the customer’s trust. I believe that FILN will soon discuss to make samples first. The customer has its domestic factory in Nanjing, and we need to do it before sending it to the other party to install the remaining equipment connected to it. The next day we prepared samples and sent them to customers for confirmation. Customers were very happy with our prompt response. We sent it to its domestic factory and arrived in the customer’s hands a week later. For this reason, the guest specially wrote a 1,000-word heart-warming thank you article to our FILN team, and we are also pleased to accept it. Random guests placed 5,000 trial orders to our FILN company. We have greatly saved the cost for our guests and improved it. Time efficiency, saving time and effort for guests.

The button wiring of this push button switch panel is also very convenient, (in order to make the wiring more convenient, we use a non-polar LED, so that there is no need to divide the positive and negative levels in the DC, you can connect casually) It is two power lines and two light lines. Many customers will ask this question, how to wire a push button switch? How to test the push button switch?

In order to make you more clear about the wiring and testing methods, we have drawn a simple wiring diagram, please see below



16MM 12V Green LED Metal Push Button Switch Panel



The following is the question and answer of this push button switch panel



Q: What is the shelf life of this push button switch panel?

A: The shelf life of this button is 5 years. If you want better quality, FILN can customize it for you, and the service life can be 800,000 times. If you encounter any problems during the warranty period, you can write an email to contact FILN technical after-sales group inquiry@cnylin.com.cn, we will contact you immediately within 12 hours to solve any of your product quality problems and solutions.



Q: What is the current of the push button switch panel?

A: The current of this button is relatively small and belongs to low current. It is used below 1.5A ampere. If it is higher than 1.5A, its service life will be very short, and it may burn out after about 1000 times.



Q: How to buy this push button switch panel?

A: If you are in the United States, you are using it for your own personal use, and the quantity is relatively small, then it is not cost-effective. Because this button is customized, it has not been sold on Amazon in the United States, but you can go to FILN Go to the AliExpress website to buy, you can choose 10-15 days express delivery to the United States, the freight is very cheap, about 2-3 US dollars.If you are in a factory and use this button switch a lot, you can write an email to contact the sales staff of FILN company sales2@filn.com.cn, the FILN button switch sales team has 10 years of sales experience and service to foreign trade, we Will get back to you within 24 hours.



Q: Can FILN company customize the buttons we need that are not available in the market?

A: Yes, we have explained in detail above that our R&D team is very strong and can help our customers specify the corresponding plan. Please contact our sales staff: sales2@filn.com.cn



Q: Does this button have a lock function?

A: This push button switch pane currently only has the PUSH ON function. If you need this push button switch pane with a lock button, we can produce and develop it, and it will take 1 month.



Q: How about the price of push button switch pane?

A: This question is a very interesting question, you can only contact us for this question, but we promise to give you unexpected surprises, please contact us immediately inquiry@cnylin.com.cn.



When you need help in applying the push button switch panel, or when you need a push button switch panel customized to suit your application requirements, FILN will provide you with support. Our staff engineers and supplier relations professionals will work with you to identify needs, find solutions, provide test samples and support you in the certification process. FILN company can help you to fully understand and better evaluate your application requirements through customized push button switch panel support. Our engineers and well-trained sales staff will help you find a technical solution that suits your needs faster. Our engineers will provide insights into the technology, the final application, and the solution to meet your application needs. FILN provides engineering ideas, application research and support, custom engineering construction and product specifications. We also welcome in-depth discussions and professional application consultation with our experts to provide you with tailor-made products quickly, cost-effectively and efficiently.

Come on, please contact us! inquiry@cnylin.com.cn/sales2@filn.com.cn

Hot Product : screw feet metal indicator light

Production Series FLM16-10FEWM Light Guide Button PC plastic
Button Shape Round Actuator 304 Stainless steel
Button LED Color Red blue orange green white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 5A(DC)5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Push Button 12 Volt Switches UL Card Buckle Style Good price

FILN Push Button 12 volt Switches Product Introduction



FILN push button 12 volt switches are available with normally open/normally closed functions. They are exquisite and beautiful. They are designed in accordance with the characteristics of domestic and foreign users. All parts reach IP67 waterproof, oil-proof and dust-proof.

IP is the international code used to determine the protection level. The ip level is composed of two numbers. The first number indicates dustproofness; the second number indicates waterproofs. The larger the number, the better the protection level.

Dust level

0, no protection, no special protection

1, Avoid the intrusion of objects larger than 50mm. Avoid the human body accidentally touching the internal parts of the lamp. Avoid the intrusion of objects larger than 50mm in diameter

2 , Avoid the intrusion of objects larger than 12mm. Avoid touching the internal parts of the lamp with your fingers

3, Avoid all intrusion of objects larger than 2.5mm. Avoid intrusion of objects, wires or objects with a diameter larger than 2.5mm

4 , Avoid the intrusion of objects larger than 1.0mm Avoid the intrusion of mosquitoes, insects or objects with a diameter larger than 1.0

5 , Dust-proof It is impossible to completely avoid the intrusion of dust, but the amount of intrusive dust will not affect the normal operation of the electrical.

6 , Dust-proof, completely avoid dust intrusion

waterproof level

Number Protection Degree Definition

0 No protection No special protection

1 Avoid the intrusion of dripping water

2 Avoid dripping when the lamp is skewed by 15 degrees. When the lamp is skewed by 15 degrees, it can still avoid dripping

3 Avoid the intrusion of erupted water. Avoid rain or water that erupted straight into the direction with an angle less than 50 degrees

4 Avoid splashing water intrusion from all directions

5 Avoid the intrusion of water from big waves. Avoid the intrusion of water from big waves or water jets

6 Avoid large waves of water intrusion. The normal operation of the lamps can still be ensured when the lamps intrude into the water under the condition of a watchful time or water pressure

7 Avoid the intrusion of water intrusion The lamp can be submerged indefinitely in the water under certain water pressure, and the normal operation of the lamp can be guaranteed

8 Avoid the effects of flooding

This button was ordered by a customer in Malaysia. He had a button that he had used all the time, but with the progress of the times and the development of technology, his old button has not kept up with the times, so he hopes to design A new, durable and economical new button is produced. Based on this requirement, Yu Lin designed this push button 12 volt switches for him.

This button generally has two functions: self-locking and self-resetting. It supports two shapes of the high head and flat head. The switch can be with or without light. The metal button switch with cable type has 5 colors: red, yellow, green, blue and white. The metal button switch with cable can be 3V , 5V , 6V , 12V , 24V , 110V, 220V, 380V, etc. The current can be 12V 2A or 250V 1A. The end of the metal button switch adopts a glue-filled structure, and the bottom can reach IP68 waterproof rating.

The custom-designed push button 12 volt switches switch has a 12mm diameter mounting hole, a white flat head, a black shell, and the shell is made of plastic material, which can greatly reduce production costs, and the plastic has better heat resistance. The push-button 12 volt switches adopt a snap-on design. The snap-on design is very easy to install, just click it in. This design first greatly reduces production costs, and secondly, it saves the installation process, simplifies the installation process, and saves installation time. The button cord is generally about 20cm long. According to customer requirements, a plastic terminal is added to the end of the cord. This is also designed for easy installation and easy use. As a result, the cost of these push button 12 volt switches has been greatly reduced, meeting the economic and practical requirements of customers, and is widely promoted and used to seize the market. The product supports IP67 protection specifications (according to EN60529 specifications), CE international specifications and ROHS environmental protection specifications.

Another feature of this product is the small touch metal key switch in the industry, which avoids the problem that some customers cannot install it due to lack of space. At the same time, these push button 12 volt switches can be used in various products and fields such as industry, medical field, catering industry, hardware tools, lifting equipment and so on.

In fact, many products can use button switches. First, we must understand which aspects should be selected when purchasing button switches, and which aspects should be paid attention to in order to choose good button switches. So let’s now take a look at the places to pay attention to when choosing buttons.

The first is the model, the second is the power supply voltage, and then the operating voltage and operating temperature. This is the view of the indicator light. Then we look at the aspects that the button should pay attention to. First, it is the model, the rated working current, the rated insulation voltage, the working temperature and the material.



– Q: What is the minimum order quantity for the linear 12MM metal push button switch?

– A: MOQ, since we are a factory, there is only one.



– Q: What is the daily output of 12MM metal push button switches?

– A: The 12mm metal push button switch can produce 1,000 pieces per day.



– Q: What is the guarantee period of the 12MM push button switch?

– A: 5 years.

– Q: How many 12mm button switches per box?

– A: One box: 2000pcs.



– Q: How long does it take to get from your factory to the United States?

– A: It usually takes 5 days to get to the United States, and 5 to 4=7 days to go to Europe. We usually send the goods by TNT, DHL, FedEx or another express.



– Q: Can you customize the 12mm push button switch?

– A: It can be customized according to customer needs.



– Q: Does the 12mm metal button switch have a patent?

– A: The 12mm metal button switch is independently researched and developed by FILN, and has national new-use patents and American UL certification.



– Q: Where do I use 12mm metal buttons with wires?

– A: Because of its waterproof performance, it is usually used in damp places and products.



Hot Product : 5V flameproof indicator light

Production Series FLPQ12-10FWM Light guide Button
Button Shape round Actuator ABS plastic
Button LED Color Black、white Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing ABS plastic
Rated Current 1A(DC)0.5A(AC) Light Source
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

FILN 12MM Blue Momentary 220V Push Button Switch

Product drawings

FLM12-10HWEZ

220V push button switch parameters

Production Series FLM12-10HWEZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color red,blue,green,yellow,white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

What is the 220V push button switch?

The product through 220 V voltage to control circuit connect or disconnect, we also produce the switches with voltage of 12V, 24V.

The end of the product is with a cord, high head, and the waterproof rating is IP67.

The description of the Filn 12mm blue momentary 220V push button switch.

  • The mounting hole size of the product is 12mm, if you want better waterproof rating when the product is installed on the panel, you need to open the hole size of 12.2mm on the panel, then put the push button switch inside the panel hole, put the waterproof ring on the back of the panel, tighten the copper cap which size is 12mm, by doing this, the product is waterproof.



  • The material of the product is divided into 304 stainless steel, H59 brass, and zinc alloy.
push button switch material
  • The end of the product is with PVC AWG22 cord, the bottom is sealed with epoxy resin, which has the function of waterproof.
  • The waterproof ring accessory of the product is silicone, the screw cap is H59 brass and the base is PA66+GF20% nylon.
  • The light of the product is LED and the service life is 50,000 hours, the switch’s mechanical life is 100,000.
  • The rated voltage of the product is 250V 1A, it can be used on a machine, which power is below 250W.
  • The product has a variety of colors, such as red, green, yellow, blue, white. We can also customize other colors’ light if you need.
  • The cord length of the product is generally 20cm, if you need longer cord, we can produce. Besides, we can also connect various terminals.
  • he product with cord has a waterproof rating of IP68, it can be used completely in the water. Moreover, the product had passed the certifications of UL, CE, ROHS. We can supply you this certifications for your reference if you need.

How to connect the wire with the 12mm momentary 220V push button switch?

This product is very simple in wiring. Generally, the product has 4 lines.

2 black lines are for switch lines, 2 other color lines are for light lines, according to your function, you can connect the wire as the following way.

push button switch wiring

The wiring way of the product with 4 lines is the same as the product wireless, it has two wiring ways.

You can save this image and test it.

Firstly, the battery is used as a power supply and connect the LED line with the switch line, then use a wire to connect them to one end of the device. Another switch line is connected to the power and another light line and device’s other lines together connect with the other end of the power.

By this way, the LED will light up when you press the blue push button switch. When release the push button, LED will not be light up.

The device turns on or off when you press the push button. It’s easy to use, of course if you still don’t know much about this, you can also visit our Facebook or YouTube website, then you will find our wiring video, or contact us directly.

We can guide on how to use the product online.

How does the 12mm 220V push button switch work?

The product only has the function of reset, install the switch on the mechanical equipment and then connect the wire, when the power is on, press the push button, the machine starts to operate.

When the hand leaves the push button, it is automatically reset, the machine is power off and stop working.

push-button-switch

How to purchase the 220V push button switch?

Online-e-commerce

According to your purchase quantity, we have an online procurement platform, we can also accept customization, or you can email us directly.

Your purchase quantity is small and has no special requirements, we suggest you place order at www.cnfiln.com directly, it is our official online order platform. We accept paypal, credit card and other payment methods.

Technical-team

You can also contact us directly to place an order, we can provide contract, invoice and packing list. We will have some discounts if your purchase quantity is large.

If you need to customize the product or you have some ideas, we are happy to improve and design new product with you, which is very interesting for us.

We also have some products that are improved or developed with customers’ suggestions.

certificate

The product of Filn had passed the certifications of UL, CE, ROSH, ISO90001, and has a professional push button switch test laboratory, which can ensure the quality of the push button.

Filn has 11 years of experience in push button switch production, and a professional R& D technology team, which can customize a variety of push button switch according to customer’s demand.

If you have any questions about the product, please contact us immediately, we will give you a satisfactory answer within 24 hours.

Quickly place an order online

New 12MM Red Custom 12V Push Button Switches

Push button switch product drawings

FLP12-10FWM (1)

12V push button switch parameters

Production Series FLPQ12-10FWM Light Guide Button
Button Shape round Actuator ABS plastic
Button LED Color Black、white Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing ABS plastic
Rated Current 1A(DC)0.5A(AC) Light Source
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

What is the 12V push button switch?

The product’s voltage is 12V, connect the machine and equipment. Press the button on the machine, the light will be on and the machine will start.

If the voltage is less than 12V, press the push button, the light will not be on, the machine will not start.

When the voltage is greater than 12V, the LED of the push button switch will be burned directly and the machine will not start.

Button switch control equipment

The description of the new 12mm red custom 12V push button switch.

Button customization



  1. The mounting aperture of the product is 12mm, in order to install the product, you only need to open the hole size about 12.2mm in the equipment panel.
  2. The head of the product can be customized with a variety of symbols and patterns, which can be produced into black and silver. When the push button switch is powered on, the customized symbol will glow, which is very beautiful.
  3. The voltage of the product is not only 12V, it can be customized with other voltages, such as 2V, 3V, 6V, 24V, 110V, 120V, 220V, 380V, etc..
  4. The product can achieve a variety of colors, such as red, green, yellow, blue, white, orange, etc. Which can be customized with two-color and three-color products according to customer’s demand.
  5. The current of the product is 10A and the power is below 250W, the service life is 100,000 times.
  6. The product adopts a direct lead wire design, so it is very convenient for wiring. The wire adopts Teflon material which high temperature resistance is 220V, which can be customized to connect different terminals according to customer’s demand.
  7. The plastic material of the product is nylon PA66, which high temperature resistance is up to 120 degrees. The push button switch can be used between minus 40 degrees and 80 degrees.
  8. The waterproof rating of the product is IP40, It can be customized with waterproof 12V push button switch according to customer’s demand, which waterproof rating is IP65.

How does the 4 pin 12V push button switch work?

The product has two functions of self-locked and self-reset.

  1. The self-locked 12V push button switch means that the voltage is 12V, press the push button switch, it does not return automatically. You need to press the button again to return it to the original position.
  2. The self-reset product means that the voltage is 12V, press the push button, the machine starts work when it is powered on. When the handle is released, the button will automatically return to the original position, the machine does not work.

How to connect the wire with the 12v push button switch with LED?

The product is installed on the control panel and connected with 12V voltage. When press the 12V push button switch, the equipment will start and the light is on. Press the switch again, the equipment will be turned off directly.

The positive pole wire of the device is connected with the switch load pin, the other load pin is connected with the LED light wire of the product and the device’s positive pole. The device’s negative pole and the negative pole of the product’s LED pin. Please refer to the picture description.

push button switch wiring

How to make the 12V push button switch?

The 12V push button switch consists of 16 accessories.

1. The head is automatic assembly by automatic equipment, mass production using automation that can reduce costs and improve efficiency.

2. Put the button’s head on the base of the wire, installing the LED, place it on the fixture to press down on the head and base.

3. Put the installed product on the test bench for power and LED test.

4. Put the tested product with lamp in the box, and pack 100 pieces in a box.

Waterproof button inside

How to install 12v push button switch?

The product has two installation mode, thread style and buckle style.

The thread style product adopts screw fixation mode. Put the push button switch on the panel, then put a waterproof ring under the panel, and screw the copper nut to tighten it.

The buckle style product’s installation is very convenient. The product’s appearance design with two ears at both sides, which can fix 0.5mm to 3mm panel. Simple place the button in the hole of the 12.2mm mounting panel, which design can reduces the installer’s time.

New 12MM Red Custom 12V Push Button Switches

How to purchase the 12V push button switch?

A free sample

If you are a factory and the purchase volume is large, no matter you want to a favorable price or you need to customize push button switch.

You can email to us, we will provide samples free of charge for your test, our email address is inquiry@cnylin.com.cn

Your purchase quantity is small and the time is urgent, you can place order at www.cnfiln.com, we will arrange the delivery at the same day.

The LED supplier

The push button switch of Filn had passed the certifications of UL, CE, ROSH, ISO90001, which can ensure the product’s quality. Filn not only produce push button switch, but also indicators, rocker switches, microswitches, smart touch switches etc.

If you have any questions about the push button switch, please contact us immediately, we will give you a satisfactory reply, our email address is inquiry@cnylin.com.cn

Waterproof Mini LED Illuminated Push Button Switch with Wire

LED Illuminated Push Button Switch Introduction



Filn is an innovative industry and trade company integrating R&D, production and sales. The company was founded in 1998 and has a history of 21 years. Now the company has three factories and a trading company.

FILN produces indicator lights, button switches, rocker switches, guitar switches, touch system switches, waterproof micro switches and other products.

FILN is the most complete button manufacturing company in the world, and it is also the only mainland manufacturer in China with a small indicator light and UL certificate for buttons.

FILN is the founder of the metal wire buckle category and the creator of the waterproof high-current ship switch.

We are a company with experience and continuous innovation and research and development.

FILN, specializing in the production of wireless push button switch industry, according to different sizes, different shapes, different functions, color volts, specifications, our types of button switches account for the largest variety in the country.

During the period, in order to better serve the customers of global indicator lights, we applied for the quality certification of wireless push button switch such as ROHS, CE, VDE, UL, ISO9000. The customers who bought our wireless push button switch so far are mainly distributed in Europe, America, North America, Asia, South Africa, Southeast Asia and other regions.

12MM led illuminated push button switch with leads.

1. 12MM led illuminated push button switch has two functions: lock or no lock.

2. 12MM led illuminated push button switch has two shapes: high head and flat head.

3. 12MM led illuminated push button switch can be with or without light, according to the shape of the head, it can be divided into high head ring light, flat head ring light, high head point light, flat head point light, high head no light, flat head no light Lamp; and if the button head is laser-engraved with the symbol, it can also be processed and customized. The conventional symbol is with a power symbol, so it can also be used as a flat-head ring plus power symbol, flat-head power symbol, high-head power symbol light, and high-head ring plus power Symbol lights, as well as our 12MM, led illuminated push button switch can be equipped with corresponding matching sockets.

4. 12MM led illuminated push button switch has 5 colors: red, yellow, green, blue, white.

5.12MM led illuminated push button switch can do 3V,
5V, 6V, 12V, 24V, 110V, 220V, 380V, etc.

6. The current can be 12V 2A or 250V 1A

7. The end of the 12MM led illuminated push button switch adopts a glue-filled structure, and the bottom can reach waterproof IP68.

8. 12MM led illuminated push button switch is directly wired, which is very convenient and saves cost.

Frequently Asked Questions



– What is the shell material of the 12MM led illuminated push button switch?

– The 12MM led illuminated push button switch is available in stainless steel, brass and aluminum.



– Why are there three materials for 12MM led illuminated push button switch?

– The stainless steel material contains nickel, which is not easy to rust or corrode. If the product is used in the seaside and corrosive places, they will choose stainless steel. The metal button is made of brass, the material cost is low, it can be electroplated, and the surface is beautiful. If aluminum material is used, it can be electroplated in black, gold, red or other colors.



– What is the minimum order quantity for 12MM led illuminated push button switch?

– We don’t have a minimum order quantity. If you want to say a minimum order quantity: only 1 piece, because we are a factory, we can place orders and deliver goods quickly.



– What is the daily output of 12MM led illuminated push button switch?

– 12MM led illuminated push button switch is produced every day.



– What is the warranty period of 12MM led illuminated push button switch?

– The shelf life of 12MM led illuminated push button switch is 5 years.



– How many 12MM led illuminated push button switches are there in each box?

– One carton: 2000 units.



– How long does it take from our factory to the U.S.?

– A: Usually 3 days to the United States and 3 to 4 days to Europe. We usually send goods by TNT, DHL, FedEx or other express delivery.



– What is the waterproof rating of the 12MM led illuminated push button switch?

– The waterproof grade of 12MM led illuminated push button switch is IP65.



– Can 12MM led illuminated push button switch be customized?

– It can be customized according to customer needs. Customers only need to provide us with the drawings they designed to give specific plans and ideas. Feilin’s engineers will give reasonable suggestions based on the drawings. If a new mold is needed, the corresponding cost of the mold will be calculated. And the time it takes. In the aspect of customization, Feiling Company has rich experience and efficient production. If you have any requirements, please send us an email, inquiry@cnylin.com.cn.



– Is there a patent for 12MM led illuminated push button switch?

– 12MM led illuminated push button switch is the original research and development of FILN company, with national new-use patent and American UL certification.



– Where is 12MM led illuminated push button switch usually used?

– Because of its waterproof performance, it is usually used in humid places and outdoor equipment.



The following is a little knowledge about this wireless push button switch express delivery

1. Global transportation. (Except for certain countries and APO/FPO)

2. After payment verification, the order will be processed in time.

3. We only ship to the confirmed order address, and your order address needs to match your delivery address.

4. The picture shown is for reference only.

5. The service transportation time is provided by the carrier, excluding weekends and holidays. The transportation time is different, especially during the holidays.

6. If you still have not received the goods within 30 days of payment, please contact us in time, we will track the goods and reply to you as soon as possible, our goal is to satisfy customers.

7. Due to differences in inventory status and time, we will choose to ship with our first available warehouse and express delivery.

If you have any needs for customized LED indicators, please email us sales2@filn.com.cn, if you have any problems with push button switches, please email our technical department inquiry@cnylin.com.cn.



Hot product: washing machien indicator light

Production Series FLM12-10FWEZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color red,blue,green,yellow,white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

10mm IP68 12v 1w LED High-Flux Indicator Light

The FL1A-19FW-2 High-Flux Indicator Light is introduced as follows

  1. 10mm 220V indicator light metal shell adopts numerical control technology processing, to ensure the appearance of the atmosphere beautiful, high precision
  2. 220V indicator light with wire LED adopts a non-polar LED, which can be used by customers without any positive or negative level. The service life of LED is 50,000 hours
  3. Vending machine indicator IP65, installation aperture is 8MM 5/16 inches
  4. Socket head indicator voltage can do 3V6V 12V 24V110V 220V 380V and so on
  5. 220V red metal indicator light can be red, yellow, green, blue and white in 5 colors
  6. Vending machine indicator light voltage can do 3V6V 12V 24V110V 220V 380V and so on
  7. 10mm metal red indicator light can be red, yellow, green, blue and white in 5 colors

Indicator lights are very versatile and are usually used in The coffee machine,The water heater ,Water dispenser,Baked Fried furnace,Meat grinder ,automation ,Test equipment, Disinfection cabinet,The dishwasher,Barbecues, Cleaning machine,Food machinery,The freezer,A blender,blender,The fault,Modified car,Shoe machine,Refrigeration equipment,Insulated rice stand,Cooking stove,Waterproof air case,Induction cooker,Lampblack purifier,Cooking noodles barrels,Vending machines,Charging pile,The solar energy,Power box ,The subway,The dashboard, wine,Audio equipment ,Distribution box,Sound effector,The cinema,Medical equipment,Car panel,player,Audio equipment,Distribution box,Medical equipment ,Power amplifier player,Education, school lab,The generator,Electric welding machine,Cable tray,inverter,Voltage regulator,Access control device,Automobile and motorcycle accessories, Industrial air purifier,FILN indicator light through the United States UL certification, Germany VDE certification, European Union CE certification, ISO90001 quality management system certification and so on, the quality is stable, the style is complete, can be customized according to the customer’s needs of different styles of indicator light.

If you need anything, please contact us at inquiry@cnylin.com.cn

Production series FL1A-19FW-2
Panel Mount Diameter 10mm
button led color Red, blue, green, yellow and white
Contact Way With wire
Product Design Flat head
Shell Material aluminum
Rated voltage 3V 6V 12V 24V 110V 220V
Base Material PA66 nylon
Terminal Material brass
Operating temperature -25℃~+85℃
