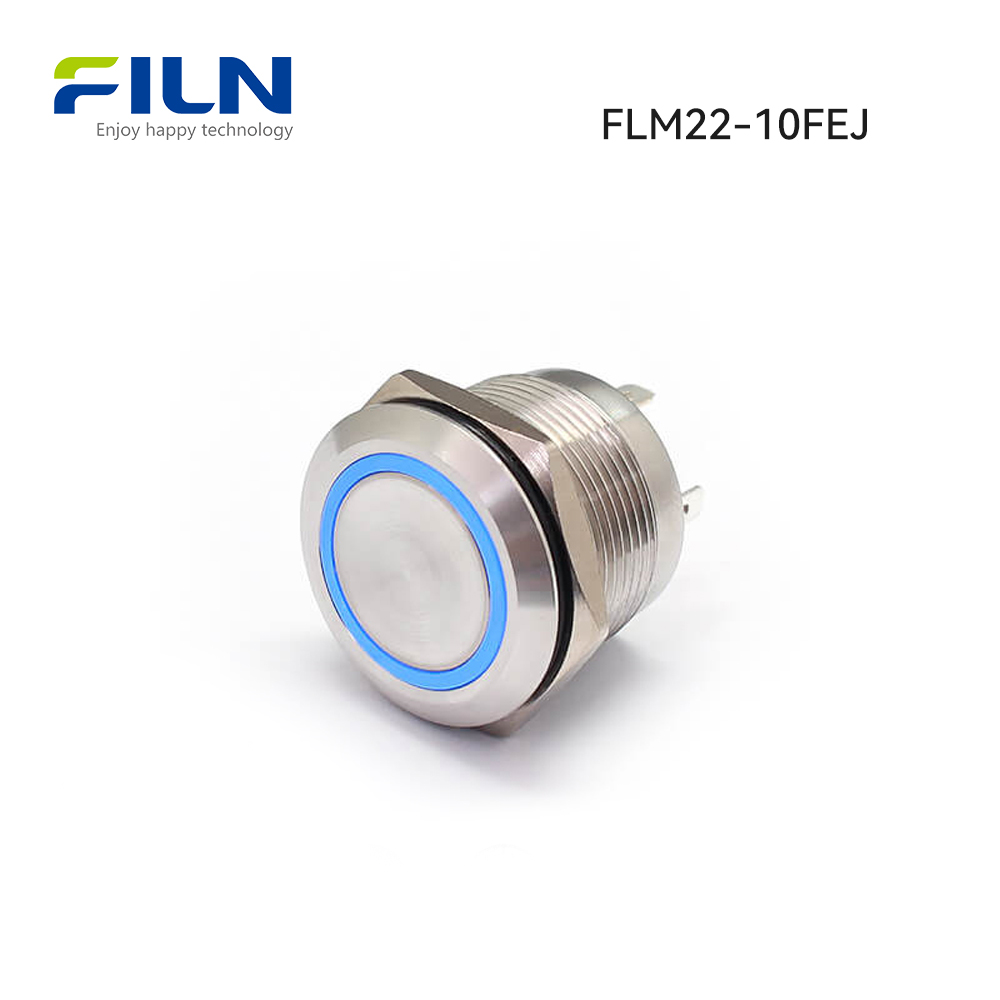

22MM 220 VAC Switch Button 4pin 10A Blue Push Button Switch

Product Drawings:

The blue push button switch can refer to the button switch button is blue, this kind of button is usually plastic mostly; there is also a kind of button switch is glowing blue, this kind is built-in LED light beads, blue light can be lit in different ways according to the wiring.

In addition, FILN pushbutton manufacturers support double color pushbutton switches and tricolor pushbutton switches. We can meet your needs.

Product Parameters:

Push Button Switch Wiring Method:

We use the indicator light as a device to test with the push button switch.

• Firstly, we use battery as the power and connect the “+” wire to the switch pin. Connect the”-” wire to the LED pin, then use a wire to connect”+” and another switch pin to one wire. In this way, you will find that the LED lights is on while release the push button, it does not light up.
• Finally, we can connect a device. Connect the device wire to the “-” pin and “+” pin, then you can control the light through the blue push button switch.
• Press the button, the device will light up. You can also test through the battery. And according to the wiring diagram, it’s easy to know how to use it. If you have any questions, please feel free to contact us.

Related products:

The Features of the 220 vac Switch are as Follows:

Voltage rating: The 220 vac switch is rated at 220 volts, which is suitable for standard voltages commonly found in home and commercial power supply networks.

Power carrying capacity: 220 vac switch is usually designed for smaller appliances and equipment. Its power carrying capacity is suitable for general household power needs such as lighting fixtures, small appliances, etc.

Frequency compatibility: 220 vac switch is suitable for the standard alternating current frequency of 50 hertz (Hz), which is the standard frequency of the power system in most countries and regions.

Installation: FILN 220 vac switch is round and made of metal, suitable for mounting on the panel of the equipment with clear threads, and can be fixed using nuts. Page this is the size of 22MM, FILN recommends that you first decide the size of the button switch according to the size of the opening in your panel.

Please note that specific 220 vac switch features may vary depending on manufacturer, product type and special design. You are advised to refer to the relevant product specifications and instructions when purchasing and using the switch. FILN supports online technical guidance on how to wire the pushbutton switch, switch upgrades, etc.

Introducing the Blue Push Button Switch with 220VAC:

Experience the versatility and style of our Blue Push Button Switch, designed to meet your electrical needs. Here are the key features of this exceptional 220VAC switch:

Thread Mounting Style: With a convenient 22mm mounting hole size, this switch can be easily installed in various applications.

Wide Voltage Range: Our switch is available in multiple voltages, including 2V, 5V, 12V, 24V, 110V, 120V, 220V, and 380V, allowing you to choose the one that suits your specific requirements.

Premium Metal Shell: Crafted from high-quality materials, you can select either a robust zinc alloy or a corrosion-resistant stainless steel shell. Stainless steel is perfect for harsh environments like coastal areas and outdoor use, while zinc alloy can be electroplated in vibrant colors, adding a personalized touch.

Vibrant Color Options: Express your individuality with a variety of color choices, including red, green, yellow, blue, and white. We even offer non-polarity two-color types for added customization.

High Current and Durability: This switch can handle a maximum current of 5A at 250V, ensuring reliable performance. With a mechanical life of 100,000 cycles, it guarantees long-lasting operation.

Reset Function: The short type version of the switch is designed with a reset function, providing convenience and ease of use.

Flame Retardant Nylon Material: The bottom of the switch features a flame retardant nylon material (PA66+GF20%), offering environmental protection and high-temperature resistance.

Easy Installation: The switch is equipped with four pins: two for switches and two for lamp pins. The lamp pin, identified with a “+” and “-“, serves as the counterpoint pin.

No Polarity Restrictions: Our switch allows for easy connection as it does not distinguish between positive and negative poles. Whether you connect the positive and negative poles interchangeably, the switch will still illuminate.

Upgrade your electrical setup with our remarkable Blue Push Button Switch, combining functionality, style, and durability. Choose the voltage that suits your needs and enjoy the convenience of a versatile switch designed for optimal performance.

How Does the 22mm Blue Push Button Switch Work?

The product only has reset function, and install the switch on the mechanical equipment, then connect the wire.

Press the button after the power is on, the machine starts, release your hand, the push button switch automatically reset and the machine stops working while the power is off.

The video on the right will show you how to wire the button switch and the use of the blue push button switch.

Get a Sample of FILN 220 vac Switch

If you need to customize the product or you have any other special requirements, such as welding wire, how to use the product, and want to buy in bulk, you can send an email to Louis who is our button technical engineer.

He will give you a satisfactory solution, and his email is inquiry@cnylin.com.cn.

You can directly write to our international trade sales staff when your purchase quantity is large.

They have more than 10 years of overseas sales experience, who will give you a good price and quality service, their email address is sales2@filn.com.cn.

If your purchase quantity is small, you can place order directly at www.cnfiln.com, we will arrange the delivery at the same day.

Filn will provide the samples free of charge for your test.

The blue push button switch of Filn had passed the certifications of UL, CE, ROSH, ISO90001. It also has a professional push button switch test laboratory, which can ensure the quality of push button.

Filn has 11 years of experience in button production, and a professional R&D team can customize various styles of push button switches according to your needs.

In addition to push button switches, Filn also produce indicator light, rocker switches and other products, which can be found at www.indicator.com.

If you have any questions about blue push button switch, please contact us immediately and we will give you a satisfactory reply within 24 hours.
