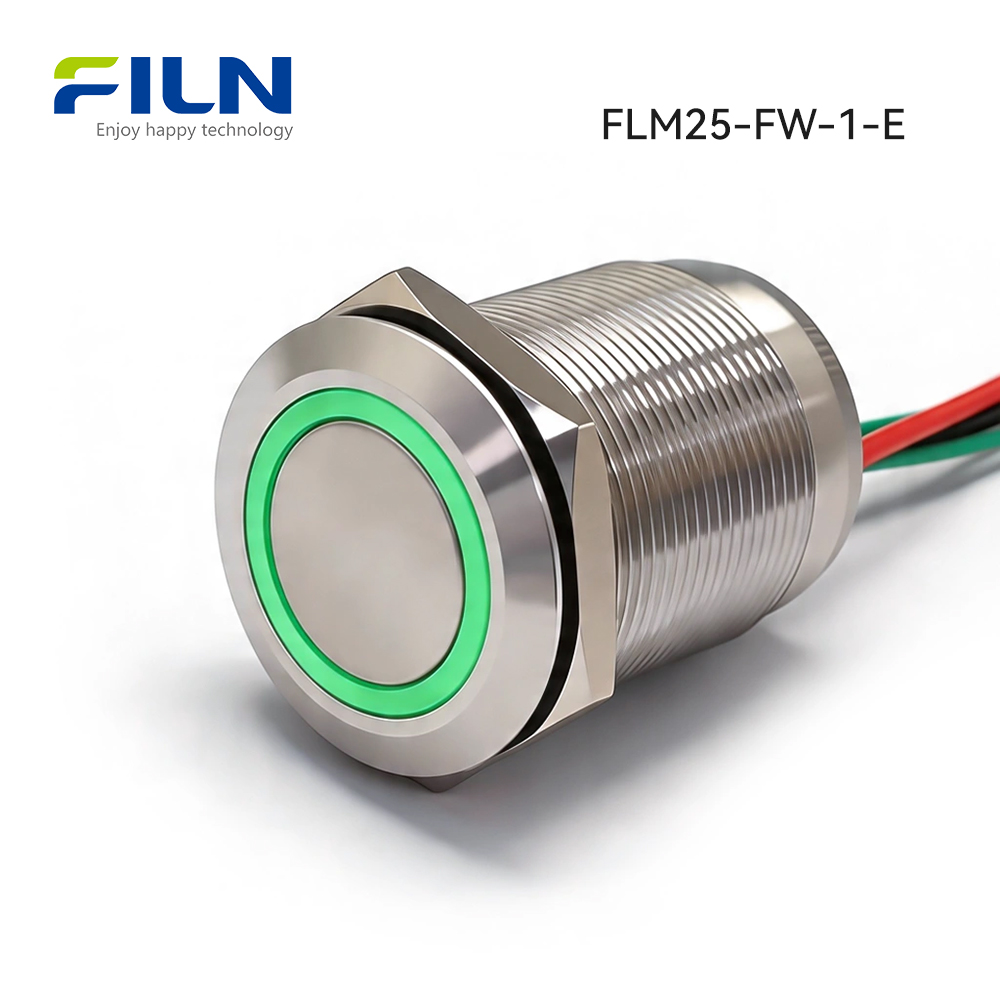

25MM 10A 24V Waterproof Metal Push Button Switch

  • Name:metal push button switch
  • Model:FLM25-FW-1
  • Head Type: Flat Head
  • Mounting Size: 25mm
  • Switching Functions: Momentary
  • Contact Configuration: 1NO
  • Rated Voltage: 10A
  • Voltage Options:2V, 3V, 6V, 12V, 24V, 110V, 120V, 220V, 380V
  • Indicator Light: Yes
  • Color: Red, Blue, Green, Yellow, White,Orange
  • Material: ABS plastic,Copper, Stainless Steel, Zinc alloy
  • Download Certification:CECCC, ROSH, IP67, UL
  • Waterproof grade: IP67
  • Wire specification: AGW18
  • Email: inquiry@cnylin.com.cn
  • Download PDF: 25MM 10A 24V Illuminated Metal Push Button Switch

Product drawings


metal push button switch-Product Parameters:

Production Series FLM25-FW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

How to wire a metal push button switch with led?

metal push button switch Circuit Configurations

In electrical circuits, how you wire a metal push button switch can affect not only the operation of the switch itself but also connected devices. Here, we explain two different circuit configurations for a metal push button switch, focusing on LED indicators and device operation.

metal push button switch draw Graph One: LED Off When Idle, Device Off

In the first setup, the LED light on the push-button switch is off under normal conditions, and the connected device does not operate unless the button is pressed.

Wiring Diagram

  1. Power positive (12V) connects to Button Switch Wire 1
  2. Button Switch Wire 2 connects to LED positive
  3. LED negative connects to Device positive
  4. Device negative connects to Power negative

Explanation

  1. Under normal conditions, i.e., when the button is not pressed, the circuit remains open. This means no power flows through the LED or the device.
  2. Once the button is pressed, the circuit closes, causing the LED to light up and the device to operate.
  3. It appears that the device and LED are wired in series in this configuration.

Considerations

  1. This configuration ensures that the device only operates when explicitly turned on.
  2. The LED serves as an indicator that the device is operational.
  3. You must press the button to initiate any activity, which can be an additional safety feature.
25MM 10A 24V Waterproof Metal Push Button Switch

metal push button switch draw Graph two : LED On When Idle, Device Off

In the second setup, the LED light on the metal push button switch is on under normal conditions, but the connected device does not operate unless the button is pressed.

Wiring Diagram

  1. Power positive (12V) connects to both Button Switch Wire 1 and LED positive
  2. Button Switch Wire 2 connects to Device positive
  3. Power negative connects to both LED negative and Device negative .

  4. Explanation

  5. In this configuration, the LED remains on as it is directly connected to the power supply.
  6. However, the device remains off under normal conditions as it is only connected via Button Switch Wire 2.
  7. The device and the LED appear to be wired in parallel in this setup.

Considerations

  1. This configuration allows for constant illumination of the LED, serving as a ready indicator.
  2. Pressing the button completes the circuit for the device, making it operational while the LED stays on.
  3. This setup could consume more energy as the LED is always on.
Arduino millis

Both circuit setups are viable options depending on your needs, but they offer different advantages and disadvantages. Knowing how the metal push button switch operates in each setup helps you choose the right configuration for your application.

Customization Advantages of FILN metal push button switch

The FILN metal push button switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

Why Customization is Important for metal push button switch ?



Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN metal push button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.



  1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.



  1. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.



  1. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.
normally open momentary switch

Customizable Button Symbols



One of the most prominent features that can be customized in a FILN metal push button switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.



User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.

Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.

Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Voltage Options



Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.



  1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.



  1. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.



  1. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN metal push button switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

Understanding Metal Push Button Switch: A Comprehensive Guide

Section 0

The world of metal push button switches is diverse and essential in various applications, from clothing to industrial machinery. This comprehensive guide explores the different types of metal push button switches, how they work, factors to consider when choosing them, installation and maintenance, popular brands, differentiation between genuine and fake switches, and troubleshooting. Whether you’re a seasoned engineer, a DIY enthusiast, or someone looking for a unique button for a fashion project, this article will provide valuable insights and answers to all your queries related to metal push button switches. Dive in to explore this fascinating world and equip yourself with the knowledge to make informed decisions.

What Are the Different Types of Metal Push Button Switches?

Metal Push Button Switch for Clothing

In the field of fashion and clothing, metal push buttons are commonly used to add both functionality and style. These buttons can be found in various garments, such as jackets, jeans, and bags. Here’s a detailed view:

1.Style Variations: They are available in different styles, finishes, and designs to match different types of clothing. 2.Durability: Made from various metals, these buttons are robust and can last a long time. 3.Ease of Use: They provide a firm closure and are easy to fasten and unfasten.

Stainless Steel Push Button

Subsection 1 Stainless steel push buttons are popular in many applications, such as elevators, machinery control panels, and more. A comprehensive look at them includes:

1.Corrosion Resistance: Their corrosion resistance makes them suitable for harsh environments. 2.Aesthetic Appeal: Stainless steel’s sleek appearance is aesthetically pleasing. 3.Versatility: They can be used in various applications, ranging from industrial equipment to household appliances. Explore more on stainless steel push button switch.

Rjs Switch

The Rjs switch, a unique type of push button, has specific applications in various industries. Key points include:

1.Specialized Use: Often used in specialized machinery and equipment. 2.Quality: Known for their quality and reliability. 3.Availability: Available in different configurations and sizes to suit various needs. Subsection 2

12mm Push Button Switch

The 12mm push button switch is a common size found in various applications. Here’s an overview:

1.Compact Design: Its small size makes it suitable for tight spaces. 2.Variety: Available in momentary or latching forms. 3.Applications: Used in electronics, machinery, and more. Check out the variety of 12mm push button switches.

19mm Push Button Switch

The 19mm push button switch is another standard size, with key aspects:

Subsection 3 1.Versatility: Suitable for many applications, including industrial controls. 2.Options: Available in illuminated or non-illuminated forms. Section 1 3.Design Choices: Various designs and materials are available, including a 19mm red LED marine push button switch.

Low Profile Push Button Switch

Low profile push button switches are designed for sleek and modern applications:

1.Aesthetic Appeal: Their slim design makes them visually appealing. 2.Space-Saving: Ideal for applications where space is limited. 3.Functionality: Offer the same functionality as regular switches but in a more compact form. Explore more about flat head metal push buttons.

Subsection 4

How Do Metal Push Button Switches Work?

Basic Operation

Metal push button switches work by creating or interrupting an electrical connection when pressed. Key aspects of their operation include:

1.Momentary Action: The connection is made only as long as the button is pressed. For detailed information on momentary push buttons, visit this page. 2.Latching Action: The connection remains even after releasing the button. 3.Mechanical Structure: Contains contacts that come together to complete the circuit.

Application in Different Fields

1.Industrial Uses: In machines, control panels, and various types of equipment. Subsection 5 2.Consumer Electronics: In gadgets, remotes, and household appliances. 3.Transportation: In vehicles, ships, and trains for control mechanisms.

Components and Materials

1.Contacts: These are usually made of metal and are responsible for the electrical connection. 2.Housing: The outer part that can be made of metal, plastic, or a combination. 3.Actuator: The part that is pressed, often made of metal or plastic.

What Factors to Consider When Choosing a Metal Push Button Switch?

Size Considerations

Subsection 6 1.Diameter: Such as 12mm, 16mm, or 19mm, depending on the application. 2.Profile: Whether a low profile or standard profile is needed.

Material Type

1.Metal Type: Such as stainless steel, brass, or aluminum. Section 2 2.Corrosion Resistance: Consider the environment where it will be used. 3.Appearance: Some metals offer a more aesthetic finish.

Functional Requirements

1.Momentary or Latching: Depending on the required operation. Subsection 7 2.Illumination: Whether illumination is needed, like a 12mm illuminated push button. 3.Current Rating: The amount of current the switch must handle.

Compliance and Standards

1.Safety Standards: Ensure the switch complies with relevant safety standards. 2.Environmental Compliance: Consider factors like water and dust resistance. 3.Industry-Specific Requirements: Such as marine or automotive standards.



25MM 10A 24V Waterproof Metal Push Button Switch25MM 10A 24V Waterproof Metal Push Button Switch25MM 10A 24V Waterproof Metal Push Button Switch

How to Install and Maintain a Metal Push Button Switch?

Installation Process

Subsection 8 1.Understanding Specifications: Ensure the switch matches the application requirements. 2.Mounting: Properly mount the switch in the desired location. 3.Wiring: Connect the wires as per the switch’s diagram.

Maintenance Considerations

1.Regular Inspection: Look for wear and tear or any malfunction. 2.Cleaning: Clean the switch with proper materials to avoid corrosion. 3.Replacement: Replace the switch if it shows signs of failure. Visit here for waterproof options.

Subsection 9

1.Schneider Electric: Known for quality and innovation. 2.Siemens: Offers a wide range of push button switches. 3.Indicator Light: Specializes in various types of metal push buttons. Check out Indicator Light’s catalog.

Buying Options

1.Online Retailers: Sites like Amazon, eBay, or specialized online stores. 2.Local Distributors: Check with local electrical supply stores. 3.Direct from Manufacturers: Such as Indicator Light, where detailed specifications and custom options are available. Section 3

Considerations While Buying

Subsection 10

1.Quality: Look for reputable brands and quality materials. 2.Price: Compare prices across various platforms to find the best deal. 3.Compatibility: Ensure the switch meets the specific requirements of the application.

How to Differentiate Between a Genuine and Fake Metal Push Button Switch?

Physical Examination

1.Weight: Genuine switches usually have a substantial feel, indicating quality materials. 2.Finish: Look for a smooth finish without any blemishes or imperfections. 3.Brand Markings: Genuine products often have clear brand markings.

Subsection 11

Performance Check

1.Operation: Genuine switches operate smoothly without any sticking

or rough feel. 2.Electrical Performance: Test the switch for proper electrical functioning.

Documentation and Packaging

1.Certificates: Check for necessary certificates or compliance markings. 2.Packaging: Genuine products often come in branded and high-quality packaging. 3.Warranty: Look for warranty information and support from the seller.

Subsection 12

How to Troubleshoot a Metal Push Button Switch?

Common Problems

1.Sticking Button: If the button sticks, it might be due to dirt or mechanical failure. 2.Intermittent Connection: This might be due to worn contacts or loose wiring.

Troubleshooting Steps

1.Visual Inspection: Look for any visible damage or loose connections. 2.Cleaning: Clean the switch if dirt or debris is causing the problem. 3.Testing with a Multimeter: Use a multimeter to test the electrical connections. 4.Replacement: If the switch is faulty, consider replacing it with a new one. Find suitable replacements here.

Conclusion

The comprehensive guide above covers various aspects of metal push button switches, including types, functioning, choosing factors, installation, maintenance, buying options, differentiation between genuine and fake, and troubleshooting. Understanding these facets helps users, engineers, and enthusiasts make informed decisions about selecting, using, and maintaining these essential components in various applications. Utilizing internal links to Indicator Light’s specialized pages provides additional details and product options to explore. Whether it’s a stylish metal push button for clothing or a complex industrial application, this guide serves as a valuable resource. This article also touches upon aspects of metal push button clothing. This article also touches upon aspects of momentary push button switch. This article also touches upon aspects of 12mm illuminated push button.

How Much Does a Metal Push Button Switch Cost?

When it comes to purchasing a metal push button switch, one of the most important factors to consider is the price. The cost of these switches can vary depending on various factors such as the supplier, brand, features, and functionality. In this article, we will explore the average price ranges for metal push button switches from different suppliers and provide some insights to help you make an informed decision.

Price Ranges from Different Suppliers

Made-in-China: $0.01 – $100

Made-in-China offers a wide range of metal push button switches with prices starting as low as $0.01 and going up to $100. The price variation is due to the different parameters and features offered by the switches. This vast variety caters to diverse functionalities, making it a popular choice for those looking for specific requirements.

Home Depot: $5 – $50

Home Depot is another supplier that provides metal push button switches at affordable prices. The price range for switches at Home Depot starts from $5 and goes up to $50. The cost may vary based on the model and features of the switch. Home Depot caters to a more general audience, offering commonly used switches at reasonable prices.

Amazon: $5 – $20

If you prefer the convenience of online shopping, Amazon is a great option to consider. They offer metal push button switches with prices ranging from $5 to $20. Similar to Home Depot, the price variation depends on the model and features of the switch. Amazon is known for its wide selection of products, making it easy to find a switch that suits your needs and budget.

Mouser Electronics: Varies

Mouser Electronics is a specialized supplier that offers a wide range of electronic components, including metal push button switches. The price range for switches at Mouser Electronics varies significantly, as it depends on the specific model and features. It is recommended to consult with the supplier directly for the most up-to-date pricing information.



Price Comparison Table

To summarize the price ranges and provide a quick reference, here’s a table comparing the minimum and maximum prices from different suppliers:

Supplier Minimum Price Maximum Price Remarks
Made-in-China $0.01 $100 Depends on parameters and features
Home Depot $5 $50 Depends on model and features
Amazon $5 $20 Depends on model and features
Mouser Electronics Varies Varies Depends on model and features

Points to Consider

  • The wide range in prices for Made-in-China indicates a vast variety of switches with diverse functionalities. This supplier is suitable for those with specific requirements.
  • Both Home Depot and Amazon cater to a more general audience, offering commonly used switches at affordable prices.
  • Mouser Electronics is more specialized, providing a wide range of electronic components. Due to the variable nature of their products, a direct price range isn’t provided.

Conclusion

When searching for a metal push button switch, it’s crucial to consider the purpose, specific features required, and budget. Different suppliers cater to diverse needs, and understanding these aspects will help you make an informed decision. Always cross-check with suppliers for updated prices and consider reading reviews before making a purchase.

Remember, the cost of a metal push button switch is just one aspect to consider. Quality, reliability, and compatibility with your application should also be taken into account. Happy switch hunting!

Note: The prices mentioned in this article are approximate and may vary. Please consult the supplier or retailer for exact pricing information.

The description of the 25MM 10A 24V metal push button switch

The mounting aperture of the 25MM 10A 24V illuminated metal push button switch is 25MM.

The panel opening size is between 25.2MM and 25.5MM, then put the product into the mounting hole, cover the waterproof ring, and tighten it with 25MM copper nut.

The material of the product’s metal part is divided into three materials.

  • Stainless steel product adopt 304 or 316L material, which contains nickel material, so it has corrosion resistance function and it is suitable for outdoor and seaside use.
  • Brass product has the advantage of beautiful appearance after electroplating treatment, usually used in test equipment and automation equipment.
  • Zinc alloy product has the advantage that it can be electroplate a variety of different colors, such as red, green, black, and so on. The appearance of the whole button is with color after electroplating.
push button switch material



  • The plastic material of the product is PC and PA66, which can withstand temperature of 160 degrees and it is usually used in an environment between minus 40 degrees to 80 degrees.



  • The product has the reset function, it is a normally open function, its contact point is a silver point which size is 3.5mm. Its current can reach 10A. It is a direct lead design and the bottom is epoxy resin filling glue, which can achieve the function of fully waterproof. The wire adopts AWG18 high temperature Teflon wire.
push Button switch function
25MM 10A 24V Waterproof Metal Push Button Switch
  • The product has a waterproof ring designed inside. Its waterproof rating is IP68, which can be used outdoors or directly in water.
  • The mechanical life of the product is 500,000 times and the service life is 100,000 times.
  • The product can achieve a variety of colors, such as red, green, yellow, blue, white, orange, etc.
  • The product has a variety of voltage, such as 2V, 12V, 24V, 110V, 120V, 220V, 380V and so on.
  • The wire end of the product can be connected to various terminals according to customer’s requirements, such as 2.54 terminal and so on.

How does the metal push button switch work?

  1. The product has the function of self-locking and self-replicating. Self-locking product means when you press a button, it does not return automatically. You need to press the button again to return the button to its original position.
  2. Automatic product means press the button down, when the handle is released, the button will automatically return to the original position.

How to wire illuminated metal push button switch?

Install the product on the control panel, press the metal button switch, the device will start and the light on the button will turn on. Press the switch again, the device will turn off directly.

Connect the device’s positive wire with the load pin of the switch, and connect the other load pin with the LED light wire of the switch and the device’s positive pole.

Connect the negative pole of the device and the LED lamp pin’s negative pole of the button can achieve this function, please refer to below picture.

push button switch wiring

What is the smallest size of the metal push button switch?

Filn is a factory specializing in the production of buttons, there is no MOQ, you can purchase from 1 piece. We can provide samples free of charge for your test.

How to purchase the metal push button switch?

Indicator light factory

If you are a factory in need of a large volume of button switches, or you need to customize the product, you can email us at inquiry@cnylin.com.cn.

Indicator store

If you need a small quantity, you can place the order directly at www.cnfiln.com, we will arrange the delivery on the same day.

How to ensure the quality of the metal push button switch?

Indicator light certification

The waterproof push button switch of Filn had passed the certifications of UL, CE, ROSH, ISO90001. Besides, Filn has a professional push button switch testing laboratory to ensure the quality of the button.

Moreover, Filn has 11 years of experience in button production and a professional R&D team.

In addition to the 25MM metal push button switch, we also produce other different styles of push button switches, indicator lights, rocker switches and so on.

If you have any questions about metal push button switch, please contact us immediately and we will give you a satisfactory reply within 24 hours.

Quickly place an order online

Inquiry Now
