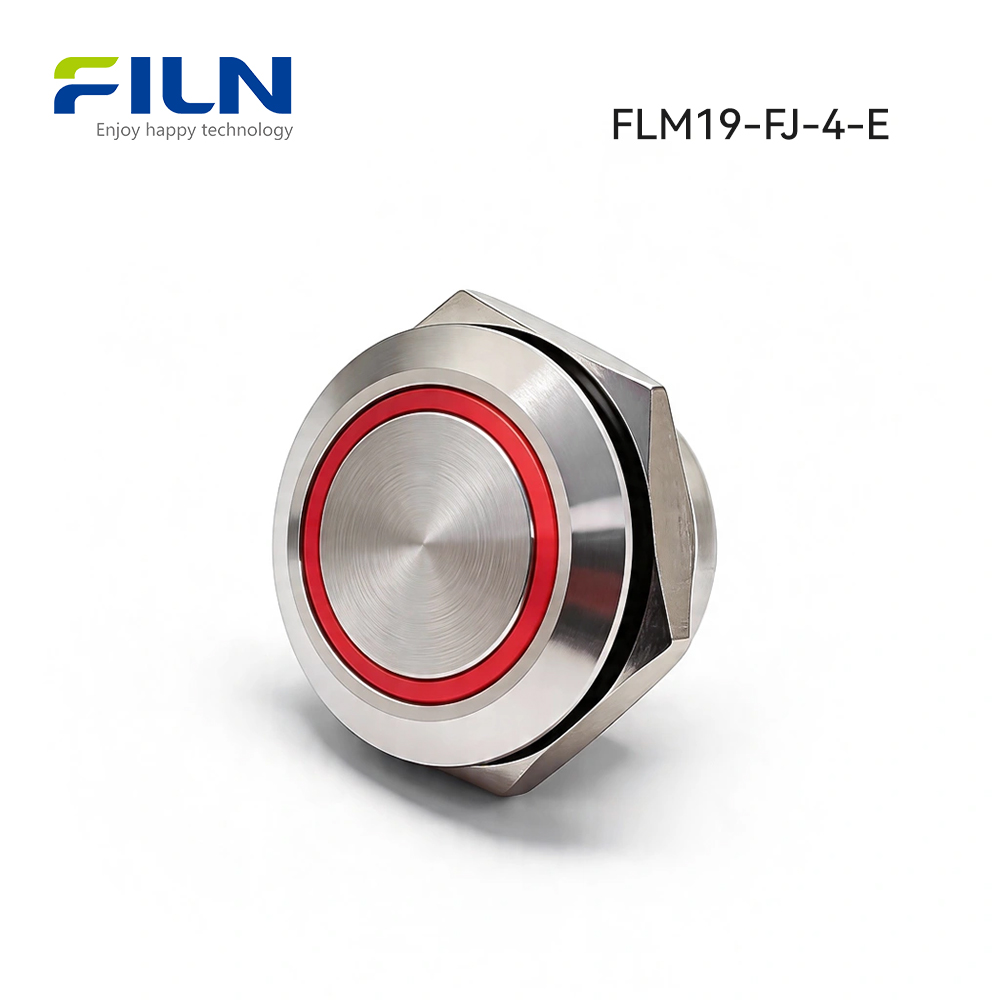

Flat Head Short Type Metal Switch 19MM LED Color
- Name:push button electrical switch
- Model:FLM19-10FEJM
- Head Type:Flat Head
- Mounting Size:19mm
- Switching Functions:Momentary
- Contact Configuration:1NO
- Rated Voltage:0.1A ( DC )
- Voltage Options:12V ( DC )
- Indicator Light:Yes
- Color:R/G/B/Y/W
- Material:Copper, Stainless Steel
- Download Certification:CE, CCC, ROSH, IP67, UL
- Waterproof grade:IP67
- Email: inquiry@cnylin.com.cn
- Download PDF: 19MM Water Proof Computer Metal Contact Push Power Buttons 12V
Product Parameters:
Production Series | FLM19-10FEJM | Light Guide Button | PC plastic |
Button Shape | round | Actuator | 304 Stainless steel |
Button LED Color | Red | Housing Sleeve | H59 nickel plated brass/304Stainless steel |
Mechanical Life | The 500 thousand time | Button Pin | H62 copper alloy |
Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
Protection Level | IP67 IK09 | Nut | H59 nickel plated brass |
Rated Voltage | 12V(DC) | Housing | PA66+GF20% nylon |
Rated Current | 0.1A(DC) | Light Source | LED |
Rated Power | 1.2W(DC) | Resistor | Metal film |
Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
How to wire a push button electrical switch with led?
Install the product on the control panel, press down the product’s push button switch. The device starts and the push button’s red light is on.
When releasing the push button switch, the device directly turns off. Connect the positive wire of the device to the load pin of the switch, the other load pin and push button switch’s LED light line connect to the positive pole of the device.
when the negative pole of the device is connected to the negative pole of the push button’s LED light pin, please refer to the following picture.
Customization Advantages of FILN push button electrical switch
The FILN push button electrical switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.
Why Customization is Important for push button electrical switch?
Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN push button electrical switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.
- Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.
- Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.
- Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.
Customizable Button Symbols
One of the most prominent features that can be customized in a FILN push button electrical switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.
- User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.
- Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.
- Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.
Customizable Voltage Options
Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.
- Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.
- Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.
- Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.
Customizable Button Connectors
The push button electrical switch also offers customizable button connectors, making it easier for customers to use the switch in their unique setups.
- Ease of Installation: Custom connectors can make the installation process simpler and quicker, saving both time and money.
- System Compatibility: Different systems may require different types of connectors. Customization ensures that the push button switch can be integrated seamlessly.
- Durability: The type of connector can also affect the durability of the switch, especially in harsh conditions.
FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN push button electrical switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.
Related products:
Table of Contents
Get to Know Metal Switch
Obviously, metal switches are a common type of switching device in life. As small as only 2mm SMD pushbutton switch, as large as 40MM pushbutton switch. What size to use depends largely on the size of the device.
Metal is undoubtedly one of the strongest materials used in pushbuttons, and metal is usually available in stainless steel or yellow equivalent. Metal pushbuttons have a more premium and good looking appearance and are suitable for use as switches or function buttons on most device panels.
A Comprehensive Guide to Push Button Electrical Switches
What is a Push Button Electrical Switch?
A push button electrical switch, also known as a push-button light switch, is a type of switch that enables the user to control a circuit by pressing or releasing a button. Here, we’ll delve into different aspects of the push button electrical switch.
Definition and Types
A push button electrical switch is used to control an electrical circuit by opening or closing the circuit. There are various types available, such as:
- Push Button On/Off Switch 12V: Designed for low-voltage applications. More information can be found here.
- Push Button On/Off Switch with LED: Incorporates an LED to signal the switch’s status. Check out how to wire this type here.
- Single Push Button Light Switch: Suitable for controlling a single device.
- Double Push Button Light Switch: Allows control over two devices simultaneously.
How Does It Work?
Understanding how a push button electrical switch operates is crucial. This type of switch can be either momentary or maintained:
- Momentary Push Button Switch: This switch returns to its default position after being released. Learn about wiring a momentary switch here.
- Maintained Push Button Switch: Remains in its position after being released, maintaining the circuit connection.
Applications and Uses
Push button electrical switches are found in various devices and applications, from household appliances to industrial machinery. Some common uses include:
- Push Button Switch On/Off: Used to control power in various devices.
- Momentary Push Button Switch: Often found in vehicle ignition systems and can be explored more here.
- Push Button Switches for Machines: Utilized in machines to control operations, and you can view different types here.
How to Choose the Right Push Button Electrical Switch?
Selecting the right push button electrical switch involves considering several factors, including voltage, functionality, aesthetics, and more.
Consider the Voltage Requirements
Different applications may require different voltages, such as push button on/off switch 12v or push button on/off switch 120v. It’s essential to match the switch’s voltage with the application. For more information on 12v switches, visit here.
Select the Right Type
From single push button light switches to double push button light switches, the choice depends on the requirement of the control:
- Single Push Button Light Switch: Suitable for controlling a single light or device.
- Double Push Button Light Switch: Allows control over two separate devices or lights simultaneously. You can browse various types of push button switches here.
Decide Between Momentary or Maintained
Consider whether the application requires a momentary push button switch or a maintained one. The momentary switch is often used for temporary commands, while maintained switches are for continuous functions.
Think About Aesthetics
For applications like interior design, considering the aesthetics of the switch, such as material and color, is vital. You may find beautiful options like 16mm push button metal switches here.
How to Install a Push Button Electrical Switch?
Installation of a push button electrical switch involves understanding wiring and safety precautions. Here’s a step-by-step guide:
Identify the Type of Switch
First, identify whether it’s a momentary push button switch or a maintained one. This will determine the wiring process. Learn about different wiring techniques here.
Gather Necessary Tools
You’ll need wire strippers, a screwdriver, and appropriate wires. Safety gloves and eye protection are recommended.
Turn Off the Power
Ensure that the power to the circuit is turned off before proceeding.
Connect the Wires
Follow the manufacturer’s instructions or a reliable guide like this one to connect the wires appropriately.
Test the Switch
After securing the connections and mounting the switch, turn on the power and test the switch to ensure proper functioning.
Consider Waterproof Options
For outdoor or damp environments, consider using a waterproof push button switch. More on waterproof options can be found here.
What are the Common Issues with Push Button Electrical Switches?
Even the best push button electrical switch can encounter problems. Here are common issues and potential solutions.
Switch Not Responding
If the switch is not responding, it might be due to faulty wiring or a damaged switch. Check the wiring according to the guidelines here and replace the switch if necessary.
LED Not Functioning in a Push Button On/Off Switch with LED
If the LED isn’t working in a push button on/off switch with LED, the problem might be with the LED itself or the connections. Consult a guide on how to wire a push button switch with LED, like this one, for troubleshooting.
Intermittent Operation
Intermittent operation could be due to loose connections or a worn-out switch. Tightening the connections or replacing the switch might solve the issue.
How to Buy a Push Button Electrical Switch?
When looking to buy a push button electrical switch, consider the following factors to make an informed purchase.
Determine the Application
Understanding the application will guide your selection. Whether it’s a push button on/off switch 12v for low-voltage applications or a double push button light switch for controlling multiple devices, knowing the application is crucial.
Consider Quality and Brand
Quality and brand reputation matter. Look for well-known manufacturers and ensure that the switch complies with relevant standards.
Check for Special Features
Special features like waterproofing or LED indicators add functionality. Explore waterproof options here.
Compare Prices
Compare prices from various vendors to ensure that you are getting a fair deal.
Consider Accessories
Consider purchasing accessories like covers or mounts, available here, to enhance the functionality or appearance of the switch.
Conclusion
The push button electrical switch plays a vital role in various applications, from household devices to industrial machinery. Understanding different types, such as momentary push button switches or push button on/off switch with LED, helps in choosing and installing the right switch. With awareness of common issues and proper purchasing guidance, these switches can offer reliable and efficient functionality in various settings. Whether you need a push button switch on/off or information
How Much Does a Push Button Electrical Switch Cost?
When it comes to purchasing a push button electrical switch, one of the first questions that comes to mind is, “How much does it cost?” The price of a push button electrical switch can vary depending on various factors such as the type, brand, and features. In this article, we will explore the price range of push button electrical switches from different suppliers and provide you with some valuable insights.
We can start our search by exploring different suppliers such as Made-in-China, Home Depot, Mouser Electronics, and TE Connectivity. Each supplier may offer a different price range for push button electrical switches.
Average Price Range of Push Button Switches
To give you a better understanding of the average price range of push button switches, let’s take a look at this:
pie title Average Price Range of Push Button Switches
“Made-in-China”: 50
“Home Depot”: 205
“Mouser Electronics”: 100
“TE Connectivity”: 100
We can see that the average price range of push button switches varies among different suppliers. Made-in-China offers a price range of $0.01 to $100, Home Depot ranges from $10 to $400, while Mouser Electronics and TE Connectivity have varying prices depending on the model and features.
Price Range of Push Button Electrical Switches
To provide you with more specific information, here’s a table listing the approximate price range of various types of push button electrical switches:
SupplierPrice RangeMade-in-China$0.01 to $100Home Depot$10 to $400Mouser ElectronicsVaries by modelTE ConnectivityVaries by model
As you can see, Made-in-China offers a wide range of push button switches with prices ranging from $0.01 to $100. Home Depot provides a variety of push button light switches with an average price range of $10 to $400. On the other hand, Mouser Electronics and TE Connectivity offer push button switches with prices that vary depending on the specific model and features.
It’s important to note that these prices are approximate and may vary depending on the supplier, retailer, and location. To get the most accurate and up-to-date pricing information, it is always recommended to check with the specific supplier or retailer.
In conclusion, the cost of a push button electrical switch can vary significantly depending on factors such as the supplier, brand, and features. By following the flow chart and exploring different suppliers, you can find the best price range that suits your needs. Remember to consider the specific model and features of the switch when comparing prices. Happy shopping!
