Product Drawing

Product Parameters:

normally closed push button with led draw Graph One: LED Off When Idle, Device Off

In the first setup, the LED light on the push-button switch is off under normal conditions, and the connected device does not operate unless the button is pressed.

Wiring Diagram

1. Power positive (12V) connects to Button Switch Wire 1
2. Button Switch Wire 2 connects to LED positive
3. LED negative connects to Device positive
4. Device negative connects to Power negative

Explanation

1. Under normal conditions, i.e., when the button is not pressed, the circuit remains open. This means no power flows through the LED or the device.
2. Once the button is pressed, the circuit closes, causing the LED to light up and the device to operate.
3. It appears that the device and LED are wired in series in this configuration.

Considerations

1. This configuration ensures that the device only operates when explicitly turned on.
2. The LED serves as an indicator that the device is operational.
3. You must press the button to initiate any activity, which can be an additional safety feature.

normally closed push button with led draw Graph One: LED Off When Idle, Device Off

In the first setup, the LED light on the push-button switch is off under normal conditions, and the connected device does not operate unless the button is pressed.

Wiring Diagram

1. Power positive (12V) connects to Button Switch Wire 1
2. Button Switch Wire 2 connects to LED positive
3. LED negative connects to Device positive
4. Device negative connects to Power negative

Explanation

1. Under normal conditions, i.e., when the button is not pressed, the circuit remains open. This means no power flows through the LED or the device.
2. Once the button is pressed, the circuit closes, causing the LED to light up and the device to operate.
3. It appears that the device and LED are wired in series in this configuration.

Considerations

1. This configuration ensures that the device only operates when explicitly turned on.
2. The LED serves as an indicator that the device is operational.
3. You must press the button to initiate any activity, which can be an additional safety feature.

Customization Advantages of FILN normally closed push button

The FILN normally closed push button is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

Why Customization is Important for normally closed push button ?

Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN normally closed push button, customization has a significant impact in terms of functionality, aesthetics, and adaptability.

1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.

2. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.

3. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.

Customizable Button Symbols

One of the most prominent features that can be customized in a FILN normally closed push button is the button symbol. Customers can opt for various light symbols depending on their specific needs.

1. User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.

2. Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.

3. Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Voltage Options

Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.

1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.

2. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.

3. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN normally closed push button can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

What is Garage Door Push Button Switch?

A garage door push button switch is an operating switch used to control the operation of a garage door.

This type of push button switch is usually mounted on the garage wall for the driver to easily open or close the garage door.

A garage door push button switch is usually a simple button that, when pressed, sends a signal to the garage door actuator so that the garage door can be activated.

Understanding the Normally Closed Push Button: A Comprehensive Guide

Exploring the world of normally closed push button switches and their various applications, this comprehensive guide delves into different types, designs, and uses. From understanding the basic structure of push button switches with terminal pins to specialized designs like waterproof or illuminated switches, this article offers essential insights into selecting the right switch for your specific needs. Whether you’re looking for a 19mm momentary push button lamp switch, an emergency stop push button, or an LED push button switch, the following sections will help you understand the features, installation processes, and criteria for choosing the perfect solution for your projects. It’s a must-read for professionals, enthusiasts, and anyone interested in the fascinating world of normally closed push button switches.

What Is a Normally Closed Push Button, and How Does It Work?

A Normally Closed Push Button (NC push button) is a type of switch that maintains a closed circuit until it is activated. Once pressed, the button opens the circuit, interrupting the current flow. When released, the circuit returns to a closed state.

The Basic Structure

The NC push button consists of contacts, springs, housing, and an actuator. When not pressed, the contacts are connected, allowing electricity to flow. Pressing the button separates the contacts, stopping the current. For an extensive range of options, check the indicatorlight website.

Difference Between Normally Closed and Normally Open

Unlike a Normally Open Push Button (NO push button), the NC push button starts in a closed position. The NO push button maintains an open circuit until pressed. This link offers more details on normally open push buttons.

Applications of Normally Closed Push Buttons

From industrial machinery to household gadgets, NC push buttons are widely used for controlling electrical devices. Emergency stop buttons, alarm systems, and doorbell switches are common examples.

How to Wire a Normally Closed Push Button?

Wiring a NC push button can be done with a few simple steps. The understanding of basic electrical wiring and safety measures is essential.

Materials Required

You will need a 12-volt momentary push button switch, wires, soldering iron, and other basic tools. A wide range of switches can be found here.

Wiring Process

1. Connect the Wires: Attach the wires to the push button’s terminals, following the manufacturer’s instructions.
2. Solder the Connections: For a secure connection, solder the wires to the terminals.
3. Connect to the Power Source: Hook up the wires to the power source.
4. Test the Connection: Press the button to ensure that it’s working correctly.

Safety Precautions

Working with electrical components demands careful attention to safety. Always disconnect power when working, wear protective gear, and follow guidelines to avoid mishaps.

What Are the Differences Between a Momentary Push Button Switch and a Latching Push Button Switch?

Understanding the difference between a momentary push button switch and a latching push button switch is essential for selecting the right component for various applications.

Momentary Push Button Switch

A momentary push button switch, like a normally closed momentary switch or a normally open momentary switch, returns to its original state once released. They’re often used in control panels and devices that require a temporary activation. More information can be found at this link.

Latching Push Button Switch

A latching push button switch remains in its new state after being activated, even when released. Latching switches are common in devices that require a continuous operation like lighting systems. Check out this link for various latching push button options.

What Are the Main Features of a 12V Momentary Switch Normally Closed?

A 12V momentary switch normally closed is a specific type of NC push button operating at 12 volts. These switches are popular in automotive applications and come with unique features.

Key Features

1. Voltage Rating: Specifically designed to handle 12V, suitable for automotive uses.
2. Current Capacity: These switches can handle various current capacities depending on the design.
3. Durability: Built to endure continuous use and harsh conditions.
4. Design Variations: Available in different shapes, sizes, and designs to fit various applications. Visit this page for different design options.

Applications in Vehicles

12V momentary switches are commonly used in vehicles for starting engines, controlling lights, and other functions.

Considerations When Selecting

When choosing a 12V momentary switch, consider factors like current capacity, design, mounting options, and price.

How to Choose a NO/NC Momentary Push Button Switch?

Selecting the right NO/NC momentary push button switch requires consideration of various factors. These switches can function as both normally open and normally closed.

Determine the Requirement

Understand if you need a normally open or normally closed switch, or a combination of both. For more about NO/NC momentary push button switches, visit this link.

Consider the Application

Identify the specific use, whether industrial, automotive, or home application.

Look for Quality and Compliance

Choose switches that comply with relevant standards and offer durability.

Consider Aesthetics and Design

Find switches that suit the appearance and design requirements of your device.

What is a Push to Break Switch, and Where Is It Used?

A Push to Break Switch, also known as a normally closed push button, opens the circuit when pressed and closes it when released.

Functionality

The functionality of a push to break switch is synonymous with that of a normally closed push button. It ensures that the current flows until the button is pushed.

Common Applications

1. Safety Systems: Often used in emergency stops where cutting off power is needed.
2. Door Switches: Used in refrigerators and cabinets to turn off lights when closed.
3. Control Panels: Integrated into industrial controls for specific functions.

Types and Variations

Push to break switches are available in various designs, shapes, and sizes, catering to different applications.

What Are the Characteristics of a Mini Push Button Switch On/Off?

A mini push button switch on/off is a compact switch designed for applications where space is limited.

Size and Design

Mini push button switches come in small sizes, making them suitable for tight spaces. Various options can be explored here.

Applications

These switches are commonly found in handheld devices, remote controls, and small appliances.

Functionality

They function as typical push buttons but in a more compact form factor.

Durability

Despite their small size, mini push button switches are designed to be durable and reliable.

What Makes a Push Button Switch Waterproof?

A waterproof push button switch is specifically designed to resist water intrusion. These switches are essential in wet environments.

Design Features

1. Sealing Gaskets: Employing gaskets and seals to prevent water entry.
2. Material Selection: Using corrosion-resistant materials like stainless steel.
3. IP Rating: International Protection (IP) ratings indicate the level of waterproofing.

Applications

Waterproof switches are commonly used in outdoor settings, marine applications, and bathrooms. You can browse waterproof push button switch options here.

Considerations When Choosing

Evaluate the level of water exposure and choose a switch with an appropriate IP rating to match the requirements.

What Is the Purpose of a Push Switch with Terminal Pins?

A push switch with terminal pins is designed for easy connection to circuit boards or wiring harnesses.

Key

Features

1. Ease of Connection: Terminal pins allow for quick soldering or plug-in connections.
2. Compact Design: Suitable for devices where space is limited.
3. Variety of Options: Available in different configurations to suit various needs.

Common Uses

These switches are typically found in electronic devices, appliances, and control panels. More information on push switches with terminal pins is available at this link.

How to Install a Button Switch Harness?

A button switch harness is a pre-assembled unit with switches and wiring, designed for easy installation.

Steps to Install

1. Prepare the Installation Site: Ensure that the area is clean and accessible.
2. Connect the Harness: Plug the harness into the appropriate connections or solder if required.
3. Secure the Switch: Mount the switch in the desired location using screws or adhesive.
4. Test the Installation: Check the functionality to ensure proper installation.

Applications and Benefits

Button switch harnesses are used in automotive controls, industrial machines, and other devices, offering ease of installation and reliability. Check out different harness options here.

How to Choose an Emergency Stop Push Button?

Emergency Stop Push Buttons (E-Stops) are crucial safety devices used to quickly halt machinery and processes.

Key Considerations

1. Compliance: Ensure that the E-Stop meets relevant safety standards.
2. Ease of Access: Place the E-Stop where it can be easily reached during emergencies.
3. Visibility: Select a button with clear markings and a prominent appearance.

Types of E-Stops

E-Stops come in various designs, including pull-to-release, twist-to-release, and key-operated types. More information on emergency stop push buttons is available here.

Applications

E-Stops are essential in industrial environments, manufacturing facilities, and places where rapid shutdown is necessary for safety.

What Is a 19mm Momentary Push Button Lamp Switch?

A 19mm momentary push button lamp switch is a specific type of momentary switch designed with a 19mm diameter, often equipped with a lamp for visual indication.

Key Characteristics

1. Size: The 19mm diameter makes it suitable for various panel mounts.
2. Illumination: Comes with a lamp for visual feedback, indicating the switch’s state.
3. Functionality: Operates as a momentary switch, returning to its original position after being released.

Applications

This switch is often used in control panels, machinery, and devices requiring visual status indication. Check out various 19mm momentary push button lamp switch options here.

Selection Criteria

Consider factors like voltage rating, lamp color, mounting style, and material when selecting a 19mm momentary push button lamp switch.

What Are the Categories and Options for LED Push Button Switches?

LED push button switches combine the functionality of a push button with the visual feedback of an LED.

Types of LED Push Button Switches

1. Momentary LED Push Buttons: Suitable for temporary activation with visual indication.
2. Latching LED Push Buttons: Stay activated even after release, with continuous illumination.
3. Customizable LED Push Buttons: Available in different colors, sizes, and shapes.

Applications

These switches are commonly used in control panels, appliances, and automotive controls, where visual feedback is beneficial.

Selection Considerations

When selecting an LED push button switch, consider factors like voltage rating, LED color, size, and mounting options. Explore various LED push button switch options here.

Conclusion

The exploration of the normally closed push button and related topics reveals a diverse and complex world of switches and their applications. From the basic structure to specialized designs like waterproof or illuminated switches, these components are vital in modern technology. By understanding the different types, features, and applications, you can select the right switch for your specific needs.

Normally Closed Push Button Prices in the USA

When it comes to finding the price of normally closed push button switches in the USA, there are several suppliers to consider. Below is a detailed breakdown of the approximate price range from various suppliers:

Supplier: Langir

Langir offers a variety of normally closed push button switches. However, specific pricing information is not available on their website.

Supplier: Made-in-China

The price for each normally closed push button switch on Made-in-China can range from $0.01 to $100, depending on the specific parameters and features.

Supplier: Home Depot

Home Depot offers a variety of push button light switches, including normally closed options. The average price for these switches ranges from $10 to $400, depending on the specific model and features.

Note: These prices are approximate and may vary depending on the supplier, retailer, and location. It’s always recommended to check with the specific supplier or retailer for the most accurate and up-to-date pricing information on normally closed push button switches.

In the market for normally closed push button switches, it’s essential to consider the price range offered by different suppliers. Here is a comparison of the approximate price range from Langir, Made-in-China, and Home Depot:

As seen in the table above, Langir does not provide specific pricing information on their website. However, Made-in-China offers a wide range of normally closed push button switches with prices varying from as low as $0.01 to as high as $100, depending on the specific parameters and features.

If you prefer to shop from a local retailer, Home Depot is a reliable option. They offer a variety of push button light switches, including normally closed options. The average price for these switches at Home Depot ranges from $10 to $400, depending on the specific model and features.

It’s important to note that the prices mentioned are approximate and can vary depending on the supplier, retailer, and location. To get the most accurate and up-to-date pricing information, it is recommended to check with the specific supplier or retailer.

In conclusion, the price of normally closed push button switches can vary significantly depending on the supplier and the specific features and parameters of the switch. Whether you choose to explore options from Langir, Made-in-China, or Home Depot, it’s always wise to compare prices and consider your specific requirements before making a purchase.

You can view this pie chart in a new tab.

Working Principle of Garage Door Push Button Switch:

The garage door push button switch works when the user closes the circuit by pressing a button on the wall, which triggers the garage door to operate.

When you press the button, the current passes through the switch, causing the motor to drive the garage door to start working and the door will open or close.

Of course, there are other types of garage door switches besides push-button switches as garage controllers, such as remote controls, digital keypads, and sensors.

These different types of switches are mainly designed to provide the user with the most convenient feeling to use.

Take the remote control as an example, when you come home, you can control the garage door to open by just pressing the remote control. But it will encounter special circumstances remote control failure, so the button switch is indispensable, it can most securely solve the garage door open and close.

Features of Different Types of Garage Door Ppeners

Here’s a table outlining the advantages and disadvantages of different types of garage door switches:

Note: These advantages and disadvantages are obvious and will vary depending on the specific model and manufacturer of the switch. FILN is the manufacturer of pushbutton switches and can customize any button you want.

About this Garage Door Pushbutton Switch

FILN is an experienced company with continuous innovation and R&D.

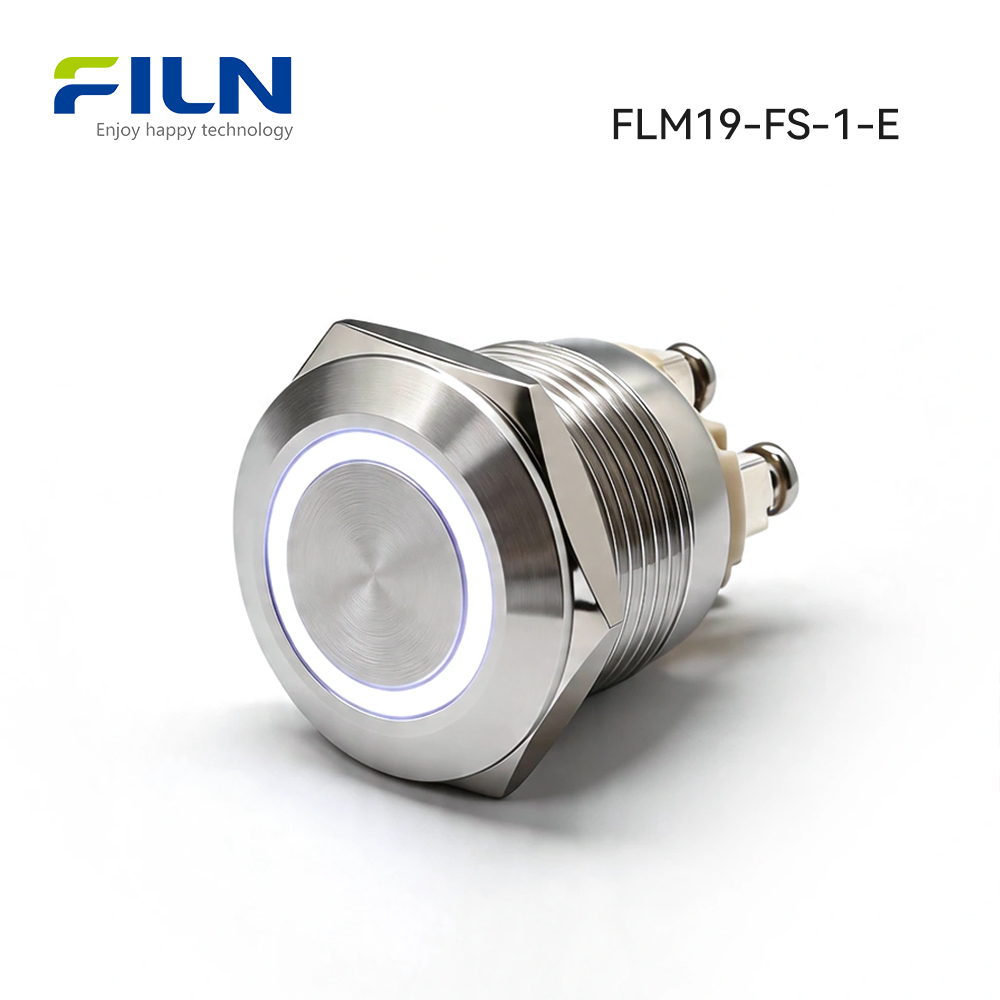

1. Overall summary: This 19MM garage door push button switch, i.e. nut diameter 19mm, with ring light, head shape is flat, but we also have a high head type if requested. Switch function, a normally open a normally closed, no internal resistance, is the need for external resistance.

2, waterproof level: this waterproof level of IP65, with a certain degree of waterproof ability. Because it is applied outside the garage, FILN supports the production of waterproof grade IP67 button. If you want to know more details, contact us immediately.

3. Current and voltage: garage door push button switch can draw up to 5A. FILN designed the old push button light switch to generate not only 12V DC voltage, but also 38V, 110V, 220V, 380V AC voltage. Any voltage can be generated as long as you need.

4. Certificate: Our old push button light switches have UL, CCC, CE certificates. Although the cost of doing UL certification in China is very high, some customers will consider old push button light switches when developing new products. The certificates have strict requirements. In order to meet the needs of these customers, FILN many buttons have obtained UL certification and also obtained a patent for the new use of the button.

5. Connection method: The connection method of this switch on the page is screw foot, but if you need something else, we also support the production of pin type and garage door push button switch with wire.

6. Material: The material of the enclosure is stainless steel. there are many types of FILN push button switch materials, such as nickel-plated brass, stainless steel and zinc-aluminum alloy. The garage door push button switch made of zinc-aluminum alloy can be oxidized into different colors, such as red, green, yellow, blue and black. The appearance looks very high-end and beautiful.

Push Button Switch F&Q

• Q: What is the maximum current of a garage door push button switch?
  • A: The maximum current of a garage door push button switch can reach 8A, and a metal button can handle up to 10A for short durations.
• Q: What is the quality guarantee for a garage door push button switch?
  • A: The warranty period for a garage door push button switch is 2 years. Contact us for any issues within this period.
• Q: Can a garage door push button switch be customized?
  • A: Yes, customization is available, including adding custom designs or logos.
• Q: Can a garage door push button switch only be connected using wires?
  • A: No, it offers three connection options: wire, pin, and screw.
• Q: What is the connection method for a garage door push button switch?
  • A: It requires connecting the power and light wires, and the desired lighting behavior can be achieved through proper wiring.
• Q: Does FILN have a minimum order quantity?
  • A: FILN doesn’t have a minimum order quantity and accepts small batch orders. Samples are available for testing.
• Q: Why choose FILN?
  • A: FILN has over 10 years of experience, offers a wide range of models, provides customization services, and has a strong warranty and support system.
