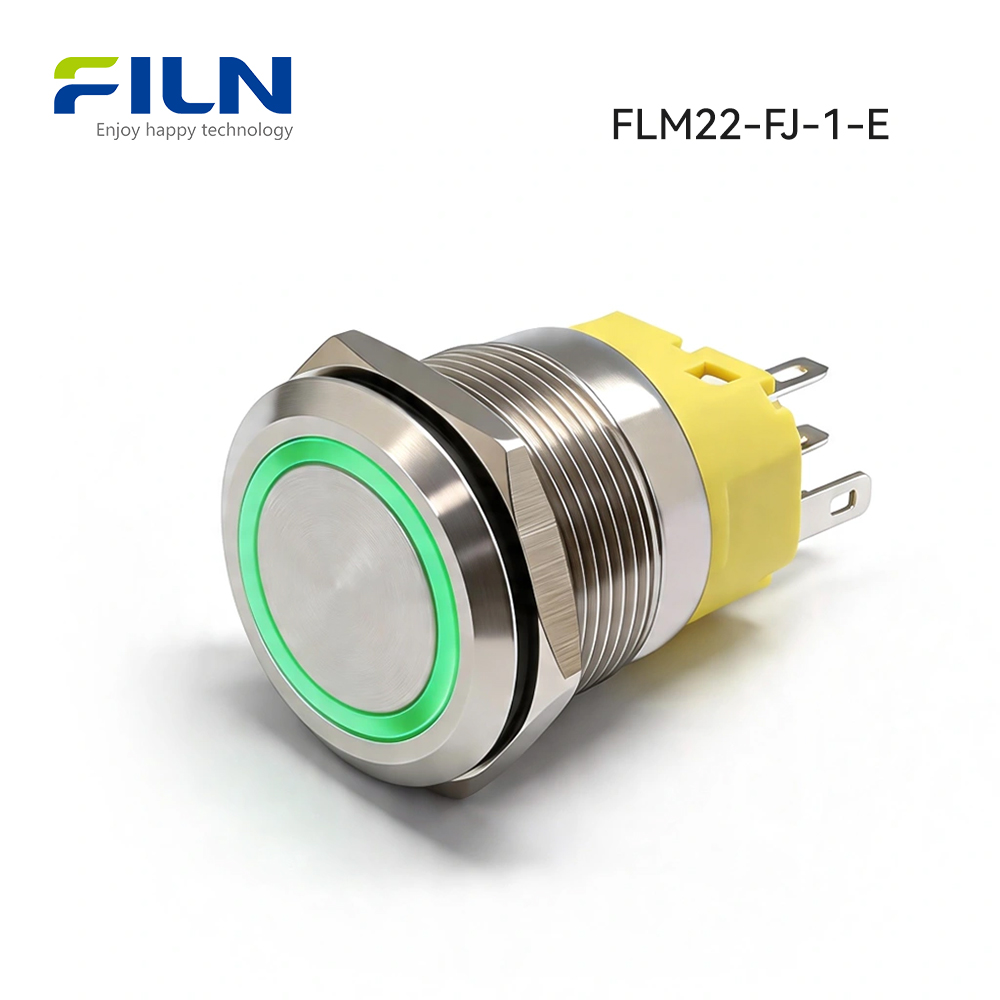

LED Push Button Switches: Simplify Control and Illuminate Your Experience
- Keyword:Led Push Botton
- Mode: FLM22-11FJ-E
- Head Type:Flat Head
- Switching Functions:Momentary/Latching
- Voltage: 5A 250V
- Current: 1A(DC) 0.5A(AC)
- Color: Red, Blue, Green, Yellow, White
- Material: Copper, Stainless steel, Zinc alloy
- Certification: UL,CE, CCC, CB,RoSH
- Waterproof grade: IP65
- Email: email@example.com
- Download PDF: 22MM 12V LED Push Button Switch With Ring Light
In the realm of modern technology, LED push button switches have become indispensable components in various electronic devices and systems.
These innovative switches not only provide bright indicator lights but also offer convenient operation and versatile applications.
Whether you are searching for LED push button switches for personal projects or commercial needs, we, at FILN, provide a valuable resource to explore, offering an innovative and convenient experience with LED push button switches.
|Production Series||FLM22-10FJZ||Light Guide Button||PC plastic|
|Button Shape||round||Actuator||304 Stainless steel|
|Button LED Color||Red blue green yellow white||Housing Sleeve||H59 nickel plated brass/304Stainless steel|
|Mechanical Life||The 500 thousand time||Button Pin||H62 copper alloy|
|Electrical Life||The 100 thousand time||Rubber Ring||SIL silica gel|
|Protection Level||IP67 IK09||Nut||H59 nickel plated brass|
|Rated Voltage||36V（DC） 250V（AC）||Housing||PA66+GF20% nylon|
|Rated Current||1A（DC）0.5A（AC）||Light Source||LED|
|Rated Power||36W（DC）125W（AC）||Resistor||Metal film|
