FILN Mini 12MM 2 PIN Momentary Push Button Machine Switch

Product drawings

Push Button Machine Switch Dimensions

Push button machine switch parameters

Production Series FLM12-10HJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color red,blue,green,yellow,white Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

The description of the push button machine switch:

The mounting hole size of the product is 12mm, except the size, we also have other mounting hole size, such as 8mm, 10mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm. We have a full range of sizes.

The head shape of the momentary push button machine switch is high flat head. People in western countries have big fingers, since the product is a 12mm flat head push button, their fingers can not press the button hole. The product’s head shape also has flat head, ring type, single point and other styles.

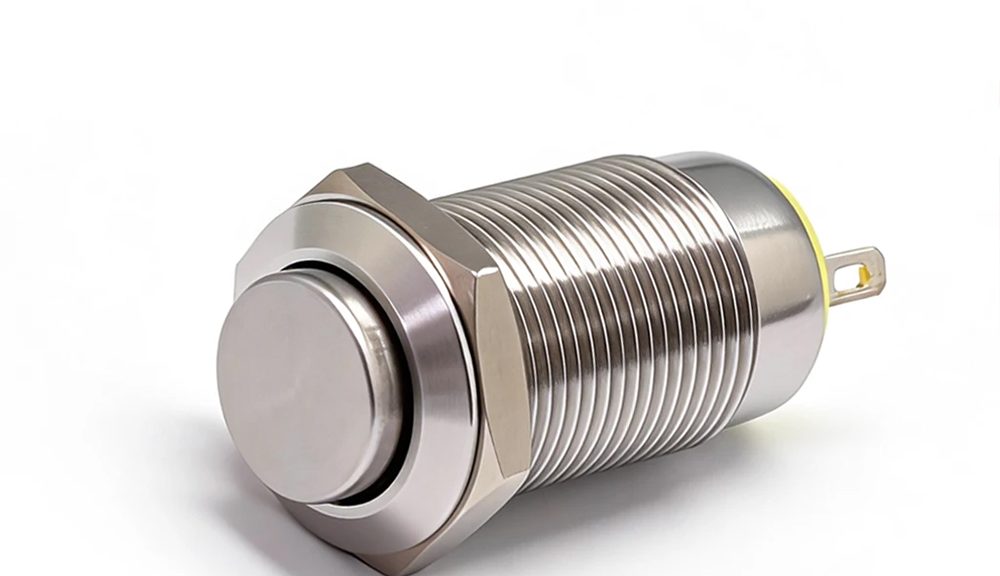

Push Button Machine Switch type

The material of the product is divided into three types of brass, stainless steel, zinc alloy. The cost of the brass is relatively low, the stainless steel is corrosion-resistant, the appearance of the zinc alloy can be electroplated in a variety of different colors.

The product’s material in the picture we usually used is brass. We are also working on 22mm plastic materials that can reduce the corresponding costs with constant quality.

The plastic material of the product is PC and nylon PA66, which temperature resistance is 160 degrees, its usage environment is usually between minus 40 degrees and 55 degrees.

Use scenarios of button switches

The product can achieve five colors of red, yellow, blue, green, white, currently we can only do monochrome, 4 pins, 1NO function, it also can achieve the function of self-lock and self-reset.

The wiring way is 2 pins welding way, there are also screw pins and direct leads.

Push Button Machine Switch wiring method



The current of the 12mm push button machine switch is 1A/ 250V AC.

Continue reading FILN Mini 12MM 2 PIN Momentary Push Button Machine Switch

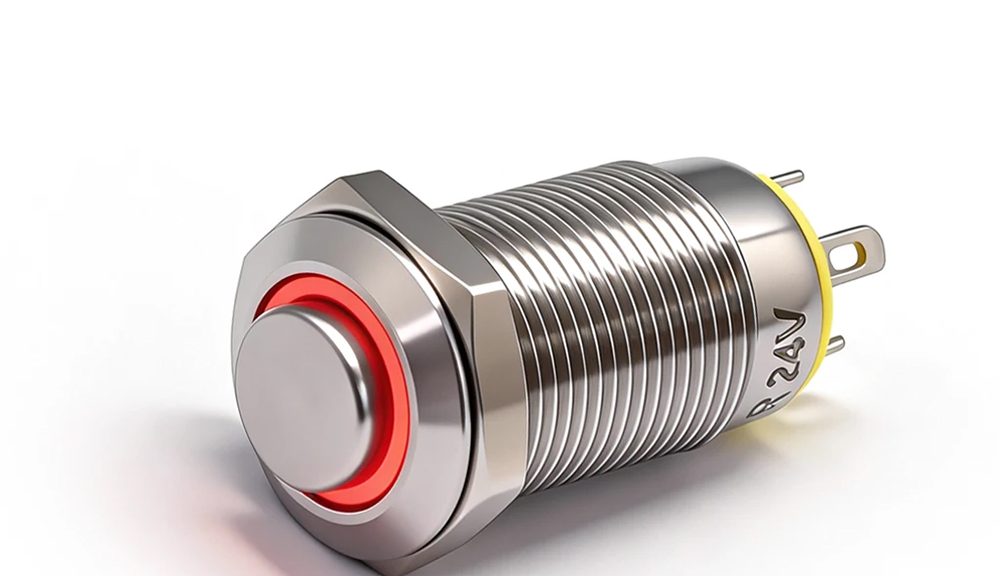

12MM 4Pins 12V Illuminated Latching Small Push Button Switch

Product drawings

12MM 4Pins 12V Illuminated Latching Small Push Button Switch

Small push button switch parameters

Production Series FLM12-10HEJZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color red,blue,green,yellow,white Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

The description of the 12mm 4 pins 12V illuminated latching small push button switch

  • The mounting hole diameter is 12mm, you can open the hole of size 12.2mm on the push button panel.
  • The shell material of the 4 pins small push button switch is 304 stainless steel or H59 brass or zinc alloy.
  1. The stainless steel material push button has the function of corrosion resistance and can be used in corrosion places, such as the seaside or kitchen equipment.
  2. The appearance of the copper push button switch is atmosphere. It is explosion-proof and its cost is also relatively low, which is suitable for use indoors.
  3. The zinc alloy push button switch can be electroplated to a variety of different colors, such as black and red, which is very beautiful.
Use scenarios of button switches
  • The end of the 12V small push button switch is a 2.8mm terminal, you can buy a 2.8 mother terminal to connect or wire directly to the pin of the button.
  • The parts of the product are waterproof rings, screw caps, the material of the waterproof rings is SIL silica gel material, the material of the screw cap is H59 brass.
  • The base material of the product is PA66+GF20% nylon, which temperature resistance is very high, it can be welded casually.
  • The light of the product is LED, which can achieve a variety of colors, such as red, green, yellow, blue, white, orange, etc.
  • The dynamic contact is a silver contact, it provides a longer service life.
  • The rating current of the product is 250V 1A, it can be used on products, which power is below 250W.
  • The resistance of the push button switch is a metal carbon film, the product can achieve a variety of voltages, such as 3V, 5V, 12V, 24V, 110V, 220V, etc.
  • The product had passed the certifications of UL, CE, RoSH, etc. We can send them to you for your reference if you need them.
Advantages of small push button switch

What is the small push button switch?

The high head reset metal push button is a more common metal button on the market, which size is 12mm and with 4 pins but no lamp.

The product is a relatively small push button switch that can control the electrical circulation break.

small push button switch

How does the 12mm 12V small push button switch work?

The product has two working ways, one is the momentary push button switch, the other one is latching small push button switch.

  1. The momentary push button switch means the push button switch is mounted on the button panel, after the electricity is connected, when press the small push button switch, the machine device is off.
  2. The latching small push button switch means that the push button switch is mounted on the machine device, after the electricity is connected, when press the push button switch, the machine device is off.

How to wire the small push button switch?

The product is with 4 pins and one normal open, we have 2 wiring ways, as shown in the picture below.

The product has 2 wiring ways, which is with 4 pins and 1 NO . You can save this image and test it.

The wiring way is very simple, first of all we need to know that the product has 4 pins, 2 are switch pins, the other 2 are light pins, the light pins are regardless of positive pole or negative pole, the wiring way is as follows.

push button switch wiring

Wiring way 1

The switch near the lamp line is connected to a line, then connect to the device again.

The other line of the device is connected to the light line and power line, the power’s other line is connected to the switch’s other pin.

When press down the push button, the device starts to work and the light of the product will light up, when release the hand , the light and device are both disconnected.

Wiring way 2

The switch pin and light pin are connected to one pole of the power, the other pole of the power is connected to the other LED pin and device.

The light of the product will be on always. When you press down the switch, the device starts to work.

What is the 12mm small push button switch used for?

Reset switch, it is usually used to prevent unexpected operations.

Stop the machine, there are usually emergency stop buttons on industrial machines, sometimes it is installed on the wall.

Arcade game, on game devices that young people like to play.

The control of the spa and massage bathtub, our spa pneumatic button is an excellent choice, they are used to open and close the foam.

Washroom, you can see our small push button switch is used in a public toilet on a wall or on a smart toilet.

Shower system, Gym, sports club, or school, the small push button switch is installed into the shower system to turn the water on and off.

Light’s on and off, our small push button switch is used for electric light switches.

push button switch application

Where can buy the blue push button switch?

Technical-team

If you need to customize a small push button switch or you have any other special requirements, such as welding wire, want to know how to use, want to purchase them in bulk, etc., you can send an email to our push button technical engineer Louis, he will give you a satisfactory solution, his email address is inquiry @cnylin.com.cn.

filn sales-team

If your purchase quantity is large, you can email our international trade sales staff directly. They have 10 years of experience overseas and will give you a great price and excellent service. The email address is sales2@filn.com.cn.

Free button samples

If you need a small amount of small push button switch, you can place an order directly at www.cnfiln.com. Filn will arrange the delivery on the same day.

Filn will provide the samples free of charge for your test.

The small push button switch of Filn had passed the certifications of UL, CE, ROSH, ISO90001, it also has an professional push button switch testing laboratory, which can ensure the product’s quality.

Filn has 11 years of experience in push button production, and also has a professional R&D technology team, which can customize a variety of push button switches according to your requirement.

If you have any questions about the small push button switch, please contact us immediately, we will give you a satisfactory reply within 24 hours.

Except the push button switch, Filn also produces the indicator light, rocker switch, touch screen, temperature detect switch, etc., if you have any demand about the product, please contact us.

filn production company

12MM Green LED On-Off 120V Push Button Switch

12MM Green LED 120v Push Button Switch Product Introduction



It is a great honor to introduce our company again. Our name is Yueqing Filn Electronics Co., Ltd., and our company is an innovative industrial and trade company integrating R&D, production, and sales. The company was established in 1998 and has a history of 21 years. Now the company has three factories and a trading company.Our company mainly produces indicator lights, metal button switches, rocker switches, guitar switches, touch system switches, waterproof micro switches, and other products.Our company is one of the most complete indicator light manufacturing companies in the world and the only mainland manufacturer in China with UL metal button certification.Our company is the founder of wire and metal buttons, and the creator of waterproof high-current rocker switches.

12mm 120v push button switch waterproof metal push button switch, also known as control button (button for short), is a low-voltage electrical appliance that can be reset manually or automatically. Buttons are usually used in circuits to issue start or stop commands to control the on and off of coil currents such as electromagnetic starters, contactors, and relays.

120v push button switch is an electrical appliance used to connect and disconnect small current circuits, which are pressed to function and released to reset. It is usually used in control circuits with AC and DC voltages lower than 36V and currents lower than 2A. It usually does not directly manipulate the main circuit and can also be used in interconnecting circuits.

The button generally consists of a button cap, a return spring, a bridge-type moving contact, a static contact, a pillar connecting rod, and a shell. The opening and closing state of the contact when the button is not acted on by external force (IE static), divided into stop button (IE moving off button), start button (IE moving on the button), and compound button (IE moving on, moving off contact combination is One button). When the button is subjected to external force, the opening and closing state of the contacts changes: the normally open contact in the static state is closed, and the normally closed contact in the static state is disconnected.

1.  The design of this 120v push button switch uses real 304 stainless steel, not ordinary copper plating (the appearance of copper plating looks the same, but it is not. Over time, the surface plating layer is worn out, and the copper will appear. No matter how long stainless steel is used, it will never Light into the new)

12MM Green LED On-Off 120V Push Button Switch

2. This 120v push button switch can also be made of other materials, such as zinc-aluminum alloy, and the shell is black. Other colors can also be made, electroplating red, yellow, green, etc., as shown in the figure.

12MM Green LED On-Off 120V Push Button Switch

3. This 120v push button switch uses enlarged and thickened all-silver contacts, with quick feedback, reliable contact, and longer service life, as shown in the figure.

12MM Green LED On-Off 120V Push Button Switch

4. This 120v push button switch has a very different quality base, made of high-quality PA66 material, fire-retardant, safe and reliable, as shown in the figure.



12MM Green LED On-Off 120V Push Button Switch

5. This 120v push button switch application scenario
Used in car modification, medical equipment, engineering equipment, access control switches, CNC molds, automobiles, computer modification, commercial kitchens, electronic and electrical equipment, etc. Some application scene pictures are shown below:



12MM Green LED On-Off 120V Push Button Switch

12MM Green LED On-Off 120V Push Button Switch

6. This 120v push button switch wiring method Switch description, C letter corresponds to the insert, called the common terminal,The NO letter corresponds to the insert, which is called the normally open end

Wiring example 1: Press the bulb to light up, the button light is always on:

as shown in thefigure:

12MM Green LED On-Off 120V Push Button Switch

Wiring example 2: Press the light bulb to light up, and press the button lightly to light up:

as shown in thefigure:

12MM Green LED On-Off 120V Push Button Switch

7. Many customers will ask this question, how to the momentary push button switch normally open?

The button method of this self-resetting 120v push button switch is a screw-fastening method. The button is first installed on the panel, then the waterproof ring is placed, and then the metal nut is screwed on. It is not only very strong, but also waterproof. Of course, the button itself is IP65 waterproof.

The following is the question and answer of this 120v push button switch



– What is the shelf life of this 120v push button switch?

The shelf life of this 12 mm metal button is 5 years. If you want better quality, FILN can customize it for you, and it can last 700,000 times. If you encounter any problems during the warranty period, you can write an email to contact FILN technical after-sales group inquiry@cnylin.com.cn, we will contact you immediately within 12 hours to solve any of your product quality problems and solutions.

– What is the current of the 120v push button switch?

The current of this 12 mm metal button is relatively small, which is a low current. It is used below 2A. If it is higher than 3A, its service life will be very short, and it may burn out after about 1000 times.

– How to buy this 120v push button switch?

You can send an inquiry to our company through Alibaba or leave a message to us online from Alibaba. We also have a dedicated sales representative to give you professional response.
If you are in a factory and use this button switch extensively, you can write an email to contact the sales staff of FILN company sales2@filn.com.cn. The FILN button switch sales team has 10 years of sales experience and service to foreign trade. We, Will, get back to you within 24 hours.

– Can FILN company customizes the buttons we need that are not available in the market?

FILN company has more than 10 professional button R&D engineers who specialize in customizing various types of button switches with different functions. As long as you need it, FILN company can provide various customized services. Moreover, it only takes 30 days for a new button from your idea to R&D and design, the development of abrasive tools to the completion of finished samples. FILN company can also provide OEM services, can be marked with your trademark, and so on. As long as you pay for the button switch and research and development costs, FILn will only provide you with exclusive use and sales, which can greatly enhance your competitiveness and profit.

– What are the functions of this 12 mm 120v push button switch?

Our company can produce 12 mm of metal buttons with self-locking and non-locking functions.
About the difference between 12 mm button switch, reset, and self-locking:
The reset button means to press to power on, and it will automatically rebound and power off after releasing it.
The self-locking button means to lock it after pressing it down, keep the power on, press it again to rebound, and power off!

– How about the price of this 120v push button switch?

This question is a very interesting question, you can only contact us for this question, but we promise to give you unexpected surprises, please contact us immediately at inquiry@cnylin.com.cn.

– What colors can this 120v push button switch light be made of?

Our company can produce red, blue, white, yellow, green lights.

– What certificates does this 120v push button switch have?

Our company currently has CE, ROHS and other certificates, and some buttons have UL certificates.

– What is the voltage of this 120v push button switch lamp?

This 12 mm metal button has a power symbol, our company can do 3v, 6v, 12v, 24v, 36v, 110v, 220v, etc.

– How to package this 12 mm 120v push button switch?

Regarding this 12 mm metal button with a power symbol, our company usually has a box of 50.

Precautions for using this 120v push button switch:



1.  Check the button frequently to remove the dirt on it. Due to the small distance between the contacts of the button, after years of use or poor seals, the inflow of dust or oil emulsions, etc., will reduce the insulation and even cause a short circuit accident. In this case, insulation and cleaning must be done, and corresponding sealing measures must be taken.

2.  When the button is used in a high-temperature environment, it is easy to deform the plastic and cause the button to loosen and cause a short circuit between the terminal screws. According to the situation, a fastening ring can be added to tighten it during installation, or an insulating plastic tube can be added to the wiring screw to prevent loosening.

3.  The button with indicator light will generate heat due to the bulb, and the plastic lampshade will be deformed for a long time, which will cause difficulty in replacing the bulb. Therefore, it is not suitable to be used in places where the power-on time is long; if you want to use it, you can appropriately reduce the bulb voltage to extend its life.

4.  If poor contact is found, the reason should be found out: if the contact surface is damaged, it can be repaired with a fine file; if the contact surface has dirt or soot, it is advisable to wipe it with a clean cotton cloth dipped in a solvent; if it is a contact spring If it fails, it should be replaced; if the contact is severely burned, the product should be replaced.

Popular product : panel indicator light

Production Series FLM12-10FJZ Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, blue, green, Orange and white Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM 12V Small Red Illuminated Latching Push Button Switch

Push button switch drawings

FLM12-10FJZ

Latching push button switch parameters

Production Series FLM12-10FJZ Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, blue, green, Orange and white Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Ccontact AgCdO12

The description of the 12mm 12V small red illuminated latching push button switch

  • The mounting hole size of the product is 12mm, you just need to open a mounting hole of 12.2mm on the push button switch panel. Put the product into the panel, place a 12mm waterproof ring on the side of the panel, tighten the metal screw cap will make the panel waterproof.
  • The metal section of the product has three materials, which has different functions. Here are three explanations of three materials.

1. The metal material of the product with stainless steel is 304 or 316 stainless steel, its advantage is that it has corrosion resistance and can be used outdoor for long time, usually used in the seaside or where the environment is harsh, such as the places with sulfuric acid or chemical reaction.

2. The metal material of the product with brass is H62 brass, After precision machining of CNC machine tools, and plating technology, the appearance is beautiful, and the cost is relatively low. It is used for indoor or automation machines.

3. The product with zinc alloy using zinc alloy has the function that the metal appearance can be plated in a variety of colors, such as black and red, if you want the plating will not be fade, you can use the space plating technology.

push button switch material
  • The head of the product can be customized a variety of symbols and letters. When the product is electrified and the push button is self-locked, the LED inside the push button will illuminate, and the symbol will shine, which is very beautiful.
  • The product has a variety of voltages, such as 2V, 3V, 6V,12V, 24V, 110V, 120V, 220V, etc.
  • The current of the product is 1A 250V, which can be used on the mechanical equipment, which power is below 250W.
  • The waterproof rating of the product is IP65, and the mechanical life is 100,000 times.
  • The product has a variety of colors, such as red, green, yellow, blue, white etc. We can also customize other colors if you need.
  • The product has one normally open function, the bottom has 4 pins, 2 pins are light pins and 2 pins are switch pins.
latchingt push button switch

What is a latching push button switch?

When the machine is power on, the push button switch on the machine connects the wire, press it, the device starts to work.

When the hand leaves the push button switch, the machine still work normally.

Press the push button switch again, it automatically cuts off the power and the push button switch is reset, the machine stops working.

How to connect the wire with the 12v latching push button switch?

Install the product on the control panel, under the circumstance of 12V voltage, press the push button switch, the light is on and the device starts to operate.

Press the switch again, the device is directly off. Connect the positive pole wire with the switch’s load pin, the other load pin and push button switch’s LED light wire together connect the positive pole of the device.

Connect the negative pole of the device with the negative pole of the push button’s LED light pin.

12MM 12V Small Red Illuminated Latching Push Button Switch
certificate

The product of Filn had passed the certifications of UL, CE, ROSH, ISO90001, which ensure the product’s quality, meanwhile, the warranty of Filn’s push button switch is 5 years, Filn will replace the problem products free of charge during the warranty period.

Where to buy the latching push button switch?

There is no MOQ of Filn’s product, we will provide samples free of charge for your test, you can purchase 10 pieces, 50 pieces, or 100 pieces. The quantity per box is 50 pieces, and the weight is within 1 kg, DHL Express will be a better choice.

If your purchase quantity is less, you can place an order at www.cnfiln.com, we will arrange the delivery on the same day. Our email address is inquiry@cnylin.com.cn.

Online-e-commerce

Your purchase volume is large, you cam email to us directly, and we will give you a appropriate price.

If you want to purchase the latching push button switch, please email us, we will give you a perfect design scheme within 24 hours.

Technical-team
Quickly place an order online

12MM 2 Pin Momentary Waterproof Push Button Electrical Switch

Product drawings

push-button

Push button electrical switch parameters

Production Series FLM12-10FJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

The description of the 12mm 2 pin momentary waterproof push button electrical switch.

The product is small volume, cheap price and waterproof, following is the detailed introduction.

  • The mounting hole is 12mm, and its installation mode is screw thread.
  • The waterproof rating is IP65.
  • The rated current is 2A, 36V.
  • The material is divided into three types of nickel-plated brass, stainless steel, and aluminum alloy.

Aluminum alloy materials can oxidize various colors, such as red, green, yellow, blue, black, etc. The appearance of the product is very beautiful and atmospheric.

Use scenarios of button switches
  • The product is divided into two types of high-head and flat-head.
  • The product has two functions of self-reset 1NO and self-lock 1NO.
  • The metal section of the product is divided into there materials, as follows.
  1. Stainless steel push button electrical switch adopts 304 stainless steel material, which contains nickel material. So it has the function of corrosion-resistance. It can be used outdoor and seaside.
  2. The product with copper plated nickel has the advantage that the appearance is beautiful after plating treatment. It is usually used on testing and automated devices, and the price is more affordable than the other two materials.
  3. The product with zinc alloy has the advantage that the metal appearance can be plated into a variety of colors, such as red, green, blue, black, etc. The whole push button appearance is with color after plating, which is very beautiful.
push button switch material
  • The base plastic material of the product is PC and PA66, which temperature resistance is 160 degrees. Its usage temperature is between minus40 degrees and 80 degrees.
  • The product has a normally open reset function. Its contact point is a silver point of 2.5mm, and its current can reach to 2A. It is designed with plug-in, and the bottom is with epoxy resin glue, waterproof rating can reach to IP65.
  • The interior design of the product has a waterproof ring, which waterproof rating is IP65 and can be used indoors.
  • The mechanical life of the product is 500,000 times and the service life is 100,000 times.

How does the push button electrical switch work?

  1. The product has two functions of self-lock and self-reset.
  2. The self-lock product means that press down the push button, it do not return automatically, need you press it again, the push button will return to the original position.
  3. The self-reset product means that press down the push button, release your hand, it can automatically goes back to the original position.

How to connect the wire with the push button electrical switch?

The wiring method of the product is very simple. Connect the switch’s positive pole to one pin of the push button, then connect them from the other pin.

As following picture shows:

Normally open wiring method

Press down the push button,the power is on and with load, release the push button, the power is off, as shown in the below picture.

Normally open wiring method

Where does the push button electrical switch used?

The product is generally used in car modification, medical equipment, engineering instruments, access control switches, CNC molds, computer modification, commercial kitchens, electronic and electrical equipment, etc. The application scene pictures are as follows.

push button switch application

Where to buy the push button electrical switch?

Technical-team

If you’re interested in our product or have special requirements, please contact us via our email of inquiry@cnylin.com.cn. Our professional salesman will contact you and give you the best price and service.

Online-e-commerce

Your quantity is small, you can place an order at www.cnfiln.com, we will arrange the delivery on the same day.

Our payment way contains Paypal, T/T, west united, etc.

If you are an Alibaba buyer, you can also arrange the payment through the Alibaba order link drafted by our company.

How to ensure the quality of the product?

The waterproof push button switch of Filn had passed the certifications of UL, CE, RoSH, ISO90001. It also has a professional push button switch test laboratory, which can ensure the quality of the product.

Filn has 11 years of experience in push button producing and has a professional R&D team.

Button switch production workshop

In addition to the 12mm push button electrical switch, Filn also produce other style push button switch, including indicator light, rocker switch, touch screen, etc.

If you have any questions about the product, please contact us immediately, we will give you a satisfactory reply within 24 hours.

8MM 12V 4 Pin Momentary Mini LED Push Button Switch

Product drawings

FLM8-10EJ
  • The mounting hole size of the product is 8mm, except the size of the product, we also have 10mm, 12mm, 16mm 19mm, 22mm, 25mm, 28mm, 30mm, 40mm etc., the size is complete.

Mini LED push button switch parameters

Production Series FLM8-10EJ Light guide button PC plastic
Button Shape round actuator 304 Stainless steel
Button LED Color Red, blue, green, yellow and white Housing sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button pin H62 Copper alloy
Electrical Life The 100 thousand time rubber ring SIL silica gel
Protection Level IP65 IK09 nut H59 nickel plated brass
Rated Voltage 36V DC housing PA66+GF20% nylon
Rated Current 1A Light source LED
Rated Power 36W Resistor Metal film
Operating Temperature -25℃~+85℃ contact AgCdO12

The following is the description of the mini LED push button switch.

  • The head shape of the 8mm mini LED push button switch is high flat head, which is suitable for high flat head buttons due to the small size of 8mm.
  • The product has three materials, such as brass, stainless steel, zinc alloy. Brass product’s cost is relatively low, and stainless steel is corrosion-resistant, while the appearance of the zinc alloy can be plated in a variety of different colors.We are also working on 22mm plastic material, which can reduce the corresponding costs with constant quality. The plastic material of the mini LED push button switch is PC and PA66, which high-temperature resistance is 160 degrees.It is usually used between minus 40 degrees and 80 degrees. This one shown on the picture is usually made of brass material.
push button switch material
  • The product can achieve five colors, such as red, yellow, blue, green, white. At present, we can only produce the product that is monochrome, 4 pins, 1NO function. The current of the mini LED push button switch is 1A/ 250V AC.
  • The product has a variety of voltages, such as 3V, 6V, 12V, 24V, 110V, 220V, etc., we can produce other voltages like 48V. The mechanical life of the mini LED push button switch is 50,000 times. The product had passed the certifications of CE, ROSH, etc..
Multiple button voltages

What is the mini LED push button switch?

The mini LED push button switch is a switch that uses push button to push the drive mechanism, which make the movable contact and the static contact press or disconnect and realize the circuit’s switching.

How does the mini 12V led push button switch work?

The mini LED push button switch is a manually controlled master ordering appliance. It is mainly used to issue operation commands, turn on or off the control circuit, and control the operation of mechanical and electrical equipment.

The operation principle of the push button is pretty simple.

For normally open contacts, the circuit is disconnected before the button is pressed, when the push button is pressed, the normally open contact is connected and the circuit is switched on.

For normally closed contacts, the contact is closed before the push button is pressed, when the push button is pressed, the contact is disconnected and the circuit is disconnected.

A button can also have multiple pairs of simultaneous contacts due to the control circuit operation.

How to connect the wire with the mini led push button switch?

The most conventional wiring requirements are: the light of the switch locked is on, the device starts.

The light of the switch reset is off, the device is closed.

The wiring mode is as follows: the first step is that the positive pole of the power source is connected to the switch’s load pin, the other load pin is connected to the LED pin (+) and the positive pole of the device.

The second step is that the negative pole of the power source is connected to the LED pin (-) . As the following picture shows.

Button switch wiring

Another requirement is that the switch locks, the device starts. Switch reset, the device is closed and the lamp is on.

The wiring mode is as follows: the first step is that the positive pole of the power is connected to the switch’s load pin and LED light pin (+), the other load pin is connected to the device’s positive pole.

The second step is that the power’s negative pole is connected to the device’s negative pole and LED light pin(-).

Where to buy the mini LED push button switch?

You can purchase our products directly through Alibaba online, or through email communications to purchase this mini LED push button switch. Per product weight is about 0.05 kg.

According to customer’s quantity to decide the delivery way. One box package quantity is 50 pieces and one carton is 1000 pieces.

This mini LED push button switch is special and has no MOQ requirement. We can provide samples free of charge for your test.

Free button samples

Click to view our online store

If you are interested in our product and need it, or you need the samples, please contact us directly. Our email address is inquiry@cnylin.com.cn.

Quickly place an order online

NEW Thread Indicator Light 8MM Red and Green Double Color

Is there a two-color plastic indicator light?

FILN developed a dual-color indicator light with 8mm mounting holes in March 2020.

Is the two-color indicator waterproof?

Two-color indicator, waterproof rating IP67

What are the mounting holes for the two-color indicator light?

8mm mounting hole

Where is the two-color indicator light used?

The two-color indicator is very useful, usually used in household appliances, and now also used in 5G network boxes.

What is the voltage of the two-color indicator light?

The voltage can be 3v 6v12v24v110V 220V and so on.

What is the warranty period for the two-color indicator?

The warranty period of the indicator lamp is 5 years.

Can the two-color indicator light be directly made of wires?

Indicator light can be made directly with wire, very convenient

What is the installation mode of the bi-color indicator light?

The installation of indicator light has two ways of screw thread and direct insert .

Does the bi-color indicator light stand high temperature?

The indicator light is made up of nylon PA66 material, which can withstand temperature up to 160 degrees.

Product Item FL1P-8WN-T
Panel Mount Diameter 8 mm
Contact Way solder pin
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment, etc

16mm 12V Custom Car Symbol Indicator Light

What are indicator lights on a car?

Car indicator light means the lights with kinds of symbols, like single arrow, double flash, high beam, low beam and fog symbols etc, around 100+ kinds.



Can indicator light accept the customized symbol ?

FILN Company can make various of symbols as your request.



What the voltage of car indicator light?

It’s usually at 12V, if you want other special voltage, we also can do it.



Is there any small size indicator light?

Yes, we have 6mm, 8mm, 10mm, 12mm, 14mm,16mm, 19mm and 22mm etc.



Is there any indicator light with wire?

Yes, FILN company can product them with wire directly.



How about it with pins?

Yes, FILN Company also can product the indicator light with pin type, it has 2.8, 4.8, and 6.3mm terminal types.



What the material for the surface of car indicator light?

It has two materials, they are brass and zinc aluminum alloy.



Can it allowed to buy 1pcs for the car indicator light customized symbols?

It is no MOQ, it can be bought from 1pcs.



Does it have waterproof function?

Yes, the waterproof degree can reach IP67.



How many days for production of customized car indicator light?

It has enough stock, we can ship them within one day.



How long is the warranty period?

Five year.



Is the customized car indicator light easy to sell?

Yes, it is very popular in the market, especially in Amazon, E-bay and Ali express etc Electronic business platform.



How to buy them?

You can contact us by email : inquiry@cnylin.com.cn.

Also can buy them directly on our Ali express website: https://www.aliexpress.com/snapshot/0.html?spm=5261.order_list.orderTable.33.448c3e5fhxnwmF&orderId=3003397122036756&productId=32978920802

Product Item FL1M-16FJ-2
Panel Mount Diameter 16mm
Contact Way solder pin
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc

14mm 6.3Pins Silver Black Bicycle Metal Indicator Light

What are indicator lights on a car?

Car indicator light means the lights with kinds of symbols, like single arrow, double flash, high beam, low beam and fog symbols etc, around 100+ kinds.



Can indicator light accept the customized symbol?

FILN Company can make various of symbols as your request.



What the voltage of car indicator light?

It’s usually at 12V, if you want other special voltage, we also can do it.

Is there any small size indicator light?

Yes, we have 6mm, 8mm, 10mm, 12mm, 14mm,16mm, 19mm and 22mm etc.



Is there any indicator light with wire?

Yes, FILN company can product them with wire directly.



How about it with pins?

Yes, FILN Company also can product the indicator light with pin type, it has 2.8, 4.8, and 6.3mm terminal types.



What the material for the surface of car indicator light?

It has two materials, they are brass and zinc aluminum alloy.



Can it allowed to buy 1pcs for the car indicator light customized symbols?

It is no MOQ, it can be bought from 1pcs.



Does it have waterproof function?

Yes, the waterproof degree can reach IP67.



How many days for production of customized car indicator light?

It has enough stock, we can ship them within one day.



How long is the warranty period?

Five year.



Is the customized car indicator light easy to sell?

Yes, it is very popular in the market, especially in Amazon, E-bay and Ali express etc Electronic business platform.



How to buy them?

You can contact us by email: inquiry@cnylin.com.cn.

Also can buy them directly on our Ali express website: https://www.aliexpress.com/snapshot/0.html?spm=5261.order_list.orderTable.33.448c3e5fhxnwmF&orderId=3003397122036756&productId=32978920802

Product Item FL1M-14FJ-2
Panel Mount Diameter 14mm
Contact Way solder pin
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc

12mm Waterproof IP67 Metal Indicator Light

What are indicator lights on a car?



Car indicator light means the lights with kinds of symbols, like single arrow, double flash, high beam, low beam and fog symbols etc, around 100+ kinds.



Can indicator light accept the customized symbol ?

FILN Company can make various of symbols as your request.



What the voltage of car indicator light ?

It’s usually at 12V, if you want other special voltage, we also can do it.



Is there any small size indicator light ?

Yes, we have 6mm, 8mm, 10mm, 12mm, 14mm,16mm, 19mm and 22mm etc.



Is there any indicator light with wire ?

Yes, FILN company can product them with wire directly.



How about it with pins ?

Yes, FILN Company also can product the indicator light with pin type, it has 2.8, 4.8, and 6.3mm terminal types.



What the material for the surface of car indicator light ?

It has two materials, they are brass and zinc aluminum alloy.



Can it allowed to buy 1pcs for the car indicator light customized symbols ?

It is no MOQ, it can be bought from 1pcs.



Does it have waterproof function ?

Yes, the waterproof degree can reach IP67.



How many days for production of customized car indicator light ?

It has enough stock, we can ship them within one day.



How long is the warranty period ?

Five year.



Is the customized car indicator light easy to sell?

Yes, it is very popular in the market, especially in Amazon, E-bay and Ali express etc Electronic business platform.



How to buy them?

You can contact us by email : inquiry@cnylin.com.cn.

Also can buy them directly on our Ali express website: https://www.aliexpress.com/snapshot/0.html?spm=5261.order_list.orderTable.33.448c3e5fhxnwmF&orderId=3003397122036756&productId=32978920802

Product Item FL1M-12FJ-2
Panel Mount Diameter 12mm
Contact Way solder pin
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc

10mm 12V IP67 Custom Dash Indicator Lights

10mm FL1M-10FW-C Custom Dash Indicator Lights Introduction



Cars have more functions and electronic devices than ever before. With the passage of time, the engine management system has become more and more advanced, and manufacturers now provide enough warning lights in the speedometer console to let the car owner know about possible problems in the car. Today, let’s talk about custom dash indicator lights used in the automotive industry.



This is a custom dash indicator lights with an installation aperture of 10mm. As can be seen from the picture, its shell can be silver (copper alloy material) or black (zinc-aluminum alloy material). According to customers’ needs and Choose the color of custom dash indicator lights as you like.



This custom dash indicator lights is pin, we provide the corresponding nut washer and silicone ring, it is very convenient to install. Of course, we also have a style with a wire. If the customer needs to install the part far away from the wiring, you can use the style with a wire, which is more convenient, and there is no need to solder the wires on the pins.



This custom dash indicator lights has two biggest advantages. One advantage is waterproof. We put glue on the tail of the custom dash indicator lights so that its waterproof level can reach IP67. This is the level tested by professional organizations. Obtained the corresponding waterproof grade certificate, so as to meet the waterproof needs of cars, karts, motorcycles, etc. when used outdoors. Another advantage is that there are many symbol styles. Below is our regular symbol table. Compared with other counterparts, our symbols are complete. You can place an order according to the symbol number, which is very convenient. Moreover, we also provide customized services. If you want symbols or text outside the symbol table, you can send us the picture, and we can make the symbol you want based on your picture.



In addition, the LED of custom dash indicator lights is infinite, regardless of positive and negative poles. It is suitable for AC and DC lines, as well as various voltage ranges, with high brightness and long service life. The usual voltages for custom dash indicator lights are AC/DC 3V, 6V, 12V, 24V, 110V, 220V, 380V, and the voltage range is 3-380V. The LED colors of custom dash indicator lights are red, yellow, blue, green, white, bi-color and tri-color. Rated current of custom dash indicator lights: 20mA, rated power of custom dash indicator lights: 0.2W.



If you are interested, please feel free to contact us, we will reply your inquiry@cnylin.com.cn as soon as we receive your inquiry.



Popular Category: metal push button

Product Item FL1M-10FJ-2
Panel Mount Diameter 10mm
Contact Way solder pin
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc

8MM 12V Custom Car Symbol Indicator Light

What are indicator lights on a car?



Car indicator light means the lights with kinds of symbols, like single arrow, double flash, high beam, low beam and fog symbols etc, around 100+ kinds.



Can indicator light accept the customized symbol ?

FILN Company can make various of symbols as your request.



What the voltage of car indicator light ?

It’s usually at 12V, if you want other special voltage, we also can do it.



Is there any small size indicator light ?

Yes, we have 6mm, 8mm, 10mm, 12mm, 14mm,16mm, 19mm and 22mm etc.



Is there any indicator light with wire ?

Yes, FILN company can product them with wire directly.



How about it with pins ?

Yes, FILN Company also can product the indicator light with pin type, it has 2.8, 4.8, and 6.3mm terminal types.



What the material for the surface of car indicator light ?

It has two materials, they are brass and zinc aluminum alloy.



Can it allowed to buy 1pcs for the car indicator light customized symbols ?

It is no MOQ, it can be bought from 1pcs.



Does it have waterproof function ?

Yes, the waterproof degree can reach IP67.



How many days for production of customized car indicator light ?

It has enough stock, we can ship them within one day.



How long is the warranty period ?

Five year.



Is the customized car indicator light easy to sell?

Yes, it is very popular in the market, especially in Amazon, E-bay and Ali express etc Electronic business platform.



How to buy them?

You can contact us by email : inquiry@cnylin.com.cn.

Also can buy them directly on our Ali express website: https://www.aliexpress.com/snapshot/0.html?spm=5261.order_list.orderTable.33.448c3e5fhxnwmF&orderId=3003397122036756&productId=32978920802

Product Item FL1M-8FJ-2
Panel Mount Diameter 8mm
Contact Way solder pin
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc

Marine Rocker Switch With Wire 20A 220V Waterproof IP68

Marine Rocker Switch With Wire Product Introduction



Yueqing FILN Electronics Co., Ltd. is a professional manufacturer specializing in the production of button switches, indicator lights and signal lights. Its products are widely used in machinery, electric power, automation and other industries, and are the first choice for domestic high-end users.

It has advanced and complete production equipment, testing equipment and testing equipment, and has established a unique quality assurance system in strict accordance with the requirements of the IS09001 quality assurance system to ensure that the production process of the products and the various quality tasks of the enterprise are completely under quality control.

Marine Rocker Switch is also called rocker switch and wave switch. Its structure is the same as that of the toggle switch, except that the knob is replaced with a boat shape.

Marine Rocker Switch is usually used as a power switch for electronic equipment. Its contacts are divided into single pole single throw and double pole double throw, and some switches also have indicator lights.

There are some pad printing on its surface. It is very convenient to distinguish the position and state of the rocker work.

The role of the Marine Rocker Switch is the same as that of all other switches. Its role is to cut off and connect the current. On the main circuit, it plays an important role in the AC grid input and DC output processes (including inverter, rectification and filtering).

The role of Marine Rocker Switch in the entire control circuit is, on the one hand, the data provided for the test circuit. After the protection circuit is identified, the control circuit is provided to provide various protection measures for the entire machine.

On the other hand, the sample from the output is compared with the set circuit standard, and then the inverter is controlled to change its frequency or pulse width to achieve stable output. Marine Rocker Switch has a protective effect on current control.

According to size classification, Marine Rocker Switch can be divided into KCD1 series rocker switch, KCD2 series rocker switch, KCD3 series rocker switch, KCD4 series rocker switch, KCD5 series rocker switch.

The Marine Rocker Switch in the picture is a KCD4 direct with line series, our model is KCD4-0125-21_220BR. 0125 refers to the appearance of a large shell, a waterproof case with a frame, and a transparent cover.

21 refers to the ON-OFF function. If you want the ON-OFF-ON function, it is 23. 220 is the voltage of 220V, and B refers to the lamp beads, which uses dual-core LEDs. This lamp beads do not need to distinguish between positive and negative poles. Very convenient to use.

The last R refers to the color, red. The current can reach 20A.

What is a waterproof Marine Rocker Switch? It is designed based on an ordinary ship-type switch with a waterproof function, so it can prevent water from entering the Marine Rocker Switch when it is used outdoors and on water.

FILN company started product and design KCD4 waterproof switch series in 2016. It is very popular worldwide, especially in the UAS market.

Marine Rocker Switch Q&A

Q: How many functions does Marine Rocker Switch have?

A: Seven kinds of ON-OFF, ON-OFF-ON, ON-ON, ON-(ON), (ON)-OFF-(ON), ON-(OFF), ON-OFF-(ON) can be done in features.



Q: How many colors are available for Marine Rocker Switch?

A: Five colors are available, red, yellow, blue, green and white. Can also be made without lights.



Q: In addition to the direct connection method of the Marine Rocker Switch, is there any other connection method?

A: It can also be used for screw pin connection, and it can also be used as a ship-type switch with a direct cable. The final version can be equipped with a terminal and the cable length is arbitrary.



Q: What are the installation dimensions of the marine rocker switch with wire?

A: There are three sizes to choose from, such as 28*22, 30*22, 31*22mm.



Q: What is the available voltage range of marine rocker switch with wire?

A: This switch can be used for 3V, 6V, 12V, 24V, 48V, 110V, 120V, 220V, 380V and other voltages.



Q: What related certifications has our company made for marine rocker switch with wire?

A: There are CE, ROHS and other related certifications, and some other products of our company also have related UL certificates.



Q: How many kinds of pad printing content can be on the Marine Rocker Switch panel?

A: Marine rocker switch with wire has different printing methods: I/O, II/O/I, which means ON-OFF, ON-OFF-ON, or ON-ON function.



Marine rocker switch with wire is used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion televisions, coffee pots, power strips, massage machines, etc., mainly for household appliances.

The life test method of marine rocker switch with wire

Mainly test the number of openings and closing until it is damaged. If you do not need to manually use a small motor to drive the eccentric opening and closing switch, use a counter to record the number of times. This switch requires safety certification. If the product is sold in China, CQC is used. If it is sold abroad, it depends on the specific country where it is sold, such as the United States UL, Canada CUL, and European countries that have VDE, ENEC, TUV and other safety certifications.

Some information about soldering: The immersion temperature of the terminal soldering part is 260±5 °C in the melting tin furnace for 3±1 seconds. In manual soldering iron soldering, the soldering temperature is 350±5℃, and the soldering time is 3±1 seconds. Do not apply pressure to the terminals during welding.

There are some technical requirements:
1. The body is not significantly deformed;
2. The mechanical performance and electrical performance tests are qualified.

Information about some operating forces: The marine rocker switch with wire is placed perpendicular to the operating direction, and force is applied to one side of the button to measure the maximum force required to open the switch.

Some information about solder ability: Insert the terminal into a molten tin bath at a temperature of 235±5 °C and a time of 3±0.5 seconds. There are technical requirements: 90% of the immersed part is covered by tin.

Some information about withstanding voltage: It only takes 10 seconds to work between the pins under DC500V; it only takes 10 seconds to work between the pins and the case under DC500V. There are technical requirements: no faults or flashovers.

For this marine rocker switch with wire, if you have any other questions, please contact our email directly: inquiry@cnylin.com.cn .

Hot product:  LED push button switch

Product Item KCD4-201W-5N
Panel Mount Diameter 22*30mm
Contact Way With wire
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 15A,20A,30A

6 Pins 120V 15A Red LED Momentary On Off On Rocker Switch

Product drawings

LED-on-off-on-rocker-switch

What are the features of the 6pin on Off on Rocker Switch?

6pin on off on rocker switch has the function of on off on and with 3 gears, also has built-in light. In some DPDT circuits, it can be replaced with a 6 pins on off on rocker switch, it can save the cost, and is more convenient for use. Meanwhile, the LED light is normally on, also can be controlled by the switch circuit. The LED light will bright up when the product’s one side is pressed down.

6 pin 120v 15A RED LED momentary on off on rocker switch The open size of the product’s panel is 30*22mm. It has 3 gears of on off on, and the size of the connecting pin is 6.3*0.8mm, the pin’s material is nickel plating, which has better corrosion resistance, oxidation resistance.

6-pins-on-off-on-rocker-switch

2.6 pin 120v 15A RED LED momentary on off on rocker switch The cover of the product adopts high-temperature resistant PC material, the high-transparent light PC material not only ensures that the lights are more beautiful, but also more durable. The cover can achieve the colors of red, green, yellow, blue, white, black. Regularly, the pad printing on the cover is I O II, means the function of on off on, we can accept custom other pad printing.

3.6 pin 120v 15A RED LED momentary on off on rocker switch,We can produce the product with light or without light, the LED light has the colors of red, green, yellow, blue, white. Meanwhile, the LED can achieve a variety of voltages, such as 3V, 5V, 6V, 12V, 24V, 48V, 110V, 220V, 250V, 380V.

4.6 pin 120v 15A RED LED momentary on off on rocker switch.The current of the product is 15A 250VAC, the inner contact’s diameter is 3.5mm, and the thickness is 0.2mm. The drawboard and connection pin both adopt nickel-plated material.

5.6 pin 120v 15A RED LED momentary on off on rocker switch,The base of the product adopts PA66 enhanced material, the maximum temperature resistance can reach 260 degrees. It is also a flame-retardant material, and it is more safe in use.

6.6 pin 120v 15A RED LED momentary on off on rocker switch into the hole of 30*22mm in the mounting panel, this installation is simple and fast, the panel’s thickness is between 2-5 mm.

What is a on off on rocker switch ?

The 6 pin 120V 15A red LED momentary on off on rocker switch is often integrated in the control panel of the device. For example, in the united states, the input voltage of the device is 120V, when the switch is on the gear of I or II, the device will start to work and the light is on.

on-off-on-rocker-switch

How to wire a on off on rocker switch ?

Please see the wiring diagram below, this wiring method is the most conventional wiring method for 15A on off on rocker switch. When switch is on the position “O”, the device is not powered on, and the light is not on. When the switch is on the position “I” or “II”, device starts to work, and the light is on.

Momentary on off on rocker switc

What are the advantages of FILN’s 15A on Off on Rocker Switch?

1.There is no MOQ, you can purchase 15A on off on rocker switch from one piece.

2.The 15A on off on rocker switch had passed the certifications of CE, ROSH, it can be sold in the European region.

3.The product can achieve a variety of voltages according to customer’s requirement, such as 12V 15A on off on rocker switch, 230V 15A on off on rocker switch, etc.

4.Filn’s sales staffs have 15 years of overseas sales rocker switch experience, and master the foreign trade processes of various countries, they can provide the online services 7*24 hours.

5.Filn has a professional production team, 15A on off on rocker switch is fully automated production. We can deliver 10,000 pieces product to customers within 5 working days.

6.We can provide the overall complement scheme.

7.The quality guarantee period of 15A on off on rocker switch of Filn is 5 years, Filn will replace the problem product free of charge during the warranty period.

120V on off on rocker switch

How to buy a 6 pin on off on rocker switch ?

6 pin  15a on off on rocker switch ,50 pieces products are packed in one box, and 1000 pieces are packed in one carton. The weight of 50 pieces is 1.5KG. If you purchase 15A on off on rocker switch in a small quantity, you can place an order at www.cnfiln.com, we have sufficient inventory of the conventional products and can arrange the delivery as soon as receiving orders.

If you need to customize the product or need the supporting wiring harness, you can list your requirements, such as connect the wire in advance, or pre-install customized quick connection terminals, or need special voltage, you can email us, our email address is inquiry@cnylin.com.cn.

Filn has 20 years of experience in 6 pins 15A on off on rocker switch producing. It also has a professional rocker switch R&D team, they can provide the customized scheme for you within 24 hours. Filn’s sales staffs also have over 10 years of overseas sales experience, they can communicate and solve the international trade problems. If you have any questions about the rocker switch, please contact us, our email address is inquiry@cnylin.com.cn.

Product Item KCD-0101-23
Panel Mount Diameter 22*30mm
Contact Way With wire
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 15A
FILN onlin store
LED 4 prong rocker switch
Yellow 4 prong rocker switch

FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

What are the features of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch?

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is characterized by three-speed on-off-on, and built-in LED lights, so that a FILN LED Large can be used directly in some dual-channel dual-control (DPDT) circuits Current ON-OFF-ON 20 amp Rocker Switch is replaced, which saves cost and is more convenient. At the same time, his LED light can always be on, or it can be controlled by a switch circuit. The LED light only lights up when it is pressed down, and it is also a high-current design.

FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch?

1.The opening of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is 30x22mm, and the structure of the third gear is on off on. The size of the connecting feet is 6.3×0.8mm nickel-plated feet, which has better corrosion resistance. Sex, anti-oxidant.

2.The cover of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch adopts high temperature resistant PC material. The high light transmittance PC material is not tight to ensure that the light is brighter and more beautiful, and the high temperature resistant material is more durable. The color of the lid is red, green, yellow, blue, white and black. The conventional pad printing on the lid is I O II, which means on off on, and other pad printing can be customized as needed.

FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

3.FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch can be made with light or without light. The colors of the LED lights are red, green, yellow, blue and white. At the same time, we can produce 3V 5V 6V 12V 24V 48V 110V. 220V 250V, three-phase 380V can also be produced.

4.The current of the FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is 30A 250VAC, the contacts inside are 4.0mm diameter, 0.2mm thick silver points, the spring board, and the connecting pins are all made of brass Nickel-plated material.

5.The base of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is reinforced with PA66, the highest temperature can reach 260 degrees, and it is also a flame-retardant material, which is safer in use.

6.The FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is directly snapped into the hole of the 30x22mm mounting panel, so the installation is simple and fast, and the thickness of the panel is generally required to be 2-5mm.

KCD3 2 prong rocker switch

How to wire a FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch?

See the wiring diagram below. This wiring method is the most conventional wiring method for the FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch. Its function is that when the switch is in the O position, the device is not powered and the light is off. When the large current rocker switch is pressed to I or II, the device starts to work and the light is also on.

FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

20 Where is the amp rocker switch used?

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is usually integrated in the control panel of the device. For example, in the United States, if the input voltage of the device is 120V, when the 20amp 3 way rocker switch is pressed to the energized position When I or II, the device will start to work, and the light will be on at the same time.

What are the advantages of the 20 amp rocker switch produced by FILN?

1.There is no MOQ, you can buy 1 or more 20 amp rocker switch.

2.The 20 amp rocker switch has UL CE ROSH certification and can be sold in the United States and Europe.

3.Quickly customize various voltages, such as 12V 20 amp rocker switch, etc.

4.Communication is barrier-free. FILN has 15 years of experience in overseas sales of ship switches, and understands foreign trade processes in various countries for 7*24 hours of online service.

5.Fast delivery filn company has a professional production team, 20 amp rocker switch realizes fully automated production, 10,000 orders can be delivered to customers within 5 working days.

6.Can provide overall supporting solutions.

7.The 20 amp rocker switch produced by FILN is guaranteed for 5 years. If there is any quality problem during the period, FILN will replace it for free.

Ip67 4 pin rocker switch

How to buy a 20 amp rocker switch?

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is a pack of 50 pieces, one piece of 1000 pieces, and the weight of 50 pieces is 1.5KG. If you need a small amount of 15a on off on rocker switch, you can directly visit www.cnfiln .com orders, we have stock, we can arrange delivery immediately upon receipt of the order.

If you have customized requirements, or peripheral matching wiring harnesses, you can write your requirements, such as pre-connected wires, or pre-installed customized quick-connect terminals, or special voltages, you can email us inquiry@cnylin.com.cn

FILN company has 20 years of experience in the production of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch, as well as a professional rocker switch R&D team, which can customize a rocker switch solution for you within 24 hours. Filn also has more than 10 years. With overseas sales experience, you can communicate and solve international trade problems in time. If you have any questions about ship switches, please contact us immediately at inquiry@cnylin.com.cn

Product Item KCD4-0301-23
Panel Mount Diameter 22*30mm
Contact Way With wire
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 20A,30A
FILN onlin store
LED 4 prong rocker switch
Yellow 4 prong rocker switch

KCD4 16A 250V Automotive Custom Rocker Switches Panel

Product drawings

Custom-rocker-switch-panel-2

The features of the custom rocker switches.

The product with current of 16A or 30A can accept custom rocker switches, which install hole size is 22*30mm and it design with large current. Besides, the product had passed the certifications of UL, and can achieve different colors.

The description of the KCD4 automotive custom rocker switches.

1.The mounting hole size of the 4 pins 250V custom rocker switches is 22*30mm. The maximum size is 24.8*32mm and has waterproof function. The panel thickness should be below 0.8mm, you just need to let the KCD4 custom rocker switches clutch on the panel.

2.The current of the 250V custom rocker switches is 16A, it can be used on the mechanical equipment with the power below 4000W. If you want to the 30A rocker switches, we can customize it. Just need to change the contact silver point from 2.5mm to 3.5mm silver point, then change the pin material from copper to purple copper. Through this way, we can increase the current of the rocker switch. Filn can customize any realizable product according to your needs.

3.We can product the custom rocker switches with light, it can achieve a variety of voltages, such as 3V, 12V, 24V, 36V, 110V, 220V, 380V. If you need more large voltage, we can customize it according to your need.

KCD4 16A 250V Automotive Custom Rocker Switches Panel

4.The illuminant body of the KCD4 custom rocker switches is LED, so it can achieve five colors of red, yellow, yellow, blue, white, etc., and it is without lamp.

5.The service life of the 16A custom rocker switches is 100000 times with the power of 4000W, if it is higher than 4000W, the service life will become shorter. While it is below 4000W, the service life will become longer.

6.Filn waterproof custom rocker switches had passed the certifications of UL, CE, ROSH, etc. These international certifications indicate that Filn’s product meet the international standard. They ensure the KCD4 rocker switch’s quality and can be used in the America and European markets.

7.The head of the 250V custom rocker switches adopts nylon PC material, the lamp base and rocker switch’s base both adopt nylon PA66 material, which is flame-retardant and high-temperature resistant. When the rocker switch is welded with a wire lamp pin, it won’t cause the rocker switch’s base to melt. The metal pin of the rocker switch adopts copper H62 material.

8.The custom automotive rocker switch can achieve the functions of ON OFF, ON OFF ON, and ON ON. We can also product reset ON OFF product. The product with function of ON ON has 6 pins, and the lighted with the function of ON OFF has 4 pins, and ON OFF ON has 6 pins.

9.The custom rocker switches has double-pole and double-throw, it can control more devices.

What is the custom rocker switch?

The custom rocker switches is a more common rocker switch, it has wide applications, such as kitchen equipment, water dispenser, treadmill, computer speaker, battery box, battery car, motorcycle, ion TV set, coffee pot, row plug, massage machine and other industrial equipment or home appliances. It is mainly used to control circuit or equipment’s on and off. Car buckle design is easy to install, and it is easy to remove and connect the wiring.

16A custom rocker switch

How to wire?

as shown in the wiring diagram and wiring video

How to custom the custom rocker switches?

If you need to customize the product, please list your information of color, voltage, current, quantity, and other requirements. You can email our engineer Louis, his email address is inquiry@cnylin.com.cn. He will design the proper solution for you, If you want to know more about us or you want to purchase our product, please contact our sales representative, the email address is sales2@filn.com.cn.

The advantages of Filn custom  automotive rocker switch.

1.The 250V 16A rocker switch of Filn has no MOQ, you can purchase one piece or several pieces as samples,.

2.Filn provide custom service, they can weld the wire on the rocker switch directly. You just need to connect the wire after you buy it back.

3.The custom rocker switches panel of Filn had passed the certifications of UL, CE, ROSH, etc., all the 16A rocker switch are produced according to the ISO90001 quality management system standards. This ensure the product’s quality and consistency.

4.Filn has a professional team of engineers to design rocker switch, and also has a team of engineers specializing in producing rocker switch mould. They can complete the 16A custom rocker switch’s design and mould development between 30 to 40 days.

5.Filn’s sales staff are all sales engineers who can solve and respond to any customer’s questions about the rocker switch at the fastest time.

16A custom rocker switch
Product Item KCD4-0101-21
Panel Mount Diameter 22*30mm
Contact Way With wire
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 15A
FILN onlin store
LED 4 prong rocker switch
Yellow 4 prong rocker switch

4 Pins 30A 250V Illuminated Red Rocker Switch

Product drawings

Illuminated-red-rocker-switch

What are the advantages of FILN RED ROCKER Switch?

The advantage of the red rocker switch of Filn is large current, it can up to 30A and it is high-temperature resistant.

The detailed description of the 4 pins 30A 250V illuminated red rocker switch.
1.The mounting diameter of the red illuminated rocker switch is 30*22mm, you just need to open the hole of 30*22 on the rocker switch panel and card it. The thickness of the rocker switch panel is between 0.8-4mm.

2.The 30A red rocker switch has six colors, red, green, yellow, blue, white and orange can be used to produce rocker switch with light, while the black 250V red rocker switch is without lamp.

3.The 4 pins 30A 250V illuminated red rocker switch is not waterproof, the waterproof rating is IP50, the red illuminated rocker switch can be used on the indoor machine or other equipment.

4.The maximum current of the 4 pins red rocker switch can reach 30A 250V, you can install the 30A red rocker switch on the mechanical equipment with the power below 5000W.
5.The lamp of 30A red rocker switch can achieve a variety of voltages, such as 3V, 6V, 12V, 24V, 110V, 120V, 220V, 250V, 380V, etc. 110V, 120V rocker switch is popular in US market while 220V, 250V rocker switch is popular in China market.
6.The KCD4 momentary rocker switch is twin channel, it has the function of reset ON OFF, as well as self-lock ON OFF.
7.The plastic base of the 250V red rocker switch adopts nylon double material, its high-temperature resistance is 260 degrees, ensuring that the rocker switch does not melt when the contact touches the heating plastic  at a high current.

Red illuminated rocker switch
250V-red-rocker-switch
Illuminated red rocker switch

8.The 120 V momentary rocker switch had passed the certifications of UL, CE, ROSH, ensuring that the product’s quality can meet the international standard, it can be used and sold in the US and the EU.

30A-red-rocker-switch

How to wire a illuminated rocker switch ?

This product has four pins, the center two for the lamp pin, the side two for the side pin, its wiring mode has two kinds, one is the switch two lamp pin connected to the power supply, two side pin connected to the equipment, this way can keep the switch light guide key steady on. Used in poorly lit environments. The second connection mode is: the two side pins are connected to the power supply, and the two lamp pins are connected to the equipment. This connection method is that the light guide button is not always on. Only when the power is on, press the switch light guide button will be bright, and when the switch is closed, the pipe key will also become dark.

4-pins-red-rocker-switch

Where does the red rocker switch used?

The red rocker switch is generally used in the water dispenser, treadmill, computer audio, battery car, motorcycle, massage machine, toy car and other home appliances and office equipment and kitchen equipment.

The advantages of the Filn red rocker switch

1.Products on the market is 16A 250V, but we can produce large current product, for example, 30A red rocker switch.

2.The product can achieve a variety of colors, such as red, yellow, blue, green, white, black, etc.

3.The red rocker switch of Filn had passed the certifications of UL, CE, ROSH, etc. All the products are produced according to the ISO90001 quality management system standards, which can ensure the product’s quality and consistency.

4.Our product adopts PA66 material, which is high-temperature resistance, flame retardant, insulation materials, not easy to burn after meeting the fire, ensuring the safety of the work. The shell is strong and durable, heat resistant, impact resistance and is not easy to cause deformation.

5.The service life of the 4 pins red rocker switch is 100,000 times.

6.The rocker switch has completed specifications, except the illuminated red rocker switch, Filn also produces round rocker switch, mini rocker switch, waterproof rocker switch, etc.

7.We a factory, all rocker switch’s quality guarantee period is 5 years.

8.We have a professional rocker switch R&D team and design new products quickly.

9.There is no MOQ, you can purchase the 30A red rocker switch in small quantities.

250V red rocker switch

How can i buy the 4 pins red rocker switch ?

50 pieces of the 4 pins red rocker switch are packed in one box, 1000 pieces are packed in one carton, the weight of 50 pieces products is 1.0KG, the freight cost to US via DHL is $30. If you’re interested in the red rocker switch, you can list the information of specification, voltage, model of the rocker switch and email us. You can place an order at www.cnfiln.com. We will arrange the delivery of the rocker switch within 24 hours.

If you have the courier account, we will send you the sample of red illuminated rocker switch free of charge.

Filn has 20 years of experience in rocker switch producing, and also has a professional rocker switch R&D team, they can provide the customized scheme within 24 hours. Filn has more than 10 years of overseas sales experience, they can communicate and solve the international trade problem. If you have any questions about the rocker switch, please contact us, our email address is inquiry@cnylin.com.cn.





Product Item KCD4-0301-21
Panel Mount Diameter 22*30mm
Contact Way With wire
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 20A,30A
FILN onlin store
LED 4 prong rocker switch
Yellow 4 prong rocker switch

Filn KCD4 On Off 15A 12 Volt 2 Way Rocker Switch

What is a 15A 12 volt 2 way rocker switch?

1.The mounting bore diameter of the 2 way rocker switch is 30*22mm, and the installation mode is a buckle. Open a installation hole of 30*22mm on the 15A rocker switch, press the 2 way rocker switch into the mounting hole by your hand. The ears on both sides will jam the panel and the 2 way rocker switch is fixed, it is very easy to use. Please note that the thickness of the panel should be between 0.8 to 2mm.

2.The 2 way rocker switch is not waterproof. If you need the waterproof style, you can choose the 2 way rocker switch with waterproof cap, and the waterproof rating is IP67. Seal is formed through the waterproof cap, and the waterproof cap adopts silicone material it is waterproof and oil prevention, and can be used on the kitchen equipment.

3.The current of the on off 2 way rocker switch is 15A, we can also provide the product with the current of 20A and 30A.

Filn KCD4 On Off 15A 12 Volt 2 Way Rocker Switch

15A 2 way rocker switch

4.The on off 2 way rocker switch has a variety of voltages and its range is 3V to 220V, the common voltages are 3V, 6V, 12V, 24V, 110V, 120V, 220V, 250V.

5.The KCD2 way rocker switch has five colors of red, green, yellow, blue, white.

6.The service life of the Filn 2 way rocker switch is 100,000 times with the power of 1000W. If it is higher than 1000W, its service life will become shorter, if it is below than 500W, its service life will become longer.

7.The Filn 2 way rocker switch has passed the certifications of UL, CE, ROSH, etc. These international certifications proved that the various functions of the FIln 2 way rocker switch meet the international standard, ensuring the quality of 15A 12 volt 2 way rocker switch. It can be used and sold in the US and Europe market.

8.The press key of the KCD4 2 way rocker switch adopts nylon PC material, lamp base and rocker switch base both adopt nylon PA66 material, it is flame-retardant and high-temperature resistant. When the rocker switch is welded with a wire lamp pin, it won’t cause the rocker switch’s base to melt. The metal pin of the rocker switch adopts copper H62 material.

9.The 2 way rocker switch has three functions of on off, on on and reset on off.

5.KC4D 2 way rocker switch

How to connect a KCD4 on off 15A 12 volt 2 way rocker switch?

First, the two side pins of the on off rocker switch are connected to the positive and negative poles, and the two lamp pins are connected to the device. Press the LED rocker switch, the switch key will bright up and the device starts. Press the switch again, the rocker switch’s LED will light off, and the device is closed. Under this wiring way, the switch lamp is not often bright.

FILN 2 way rocker switch2 way rocker switch

How to buy a 12 volt 2 way rocker switch ?

You can purchase our product directly online at www.cnfiln.com, or you can purchase the 2 way rocker switch through offline email communication, there is no MOQ. 50 pieces of products are packed in one box, and 1000 pieces are packed in one carton, the weight of 50 pieces is 1.5kg.

What are the advantages of the 15A 12 volt 2 way rocker switch?

1.There is no MOQ of the 2 way rocker switch, we can provide the samples free of charge for your test.

2.Filn can provide customized service, welding the wire directly on the rocker switch, then connect the wire.

3.The Filn 2 way rocker switch has passed the international certifications of UL, CE, ROSH, ensuring the product’s quality and consistency.

4.Filn has a professional team of engineers to R&D and design the rocker switch, also has a team of engineers specializing in producing rocker switch mould. They can complete the design and mould development of the new 2 way rocker switch within 30 to 40 days.

5.Filn’s sales staff are all engineers who can solve and respond to any customer questions about the rocker switch at the fastest time.

6.If you need our product or you are interested in our product, or need our samples, etc, please contact us directly. Our email address is inquiry@cnylin.com.cn.

Product Item KCD4-0101-22
Panel Mount Diameter 22*30mm
Contact Way With wire
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 15A
2 way rocker switch
