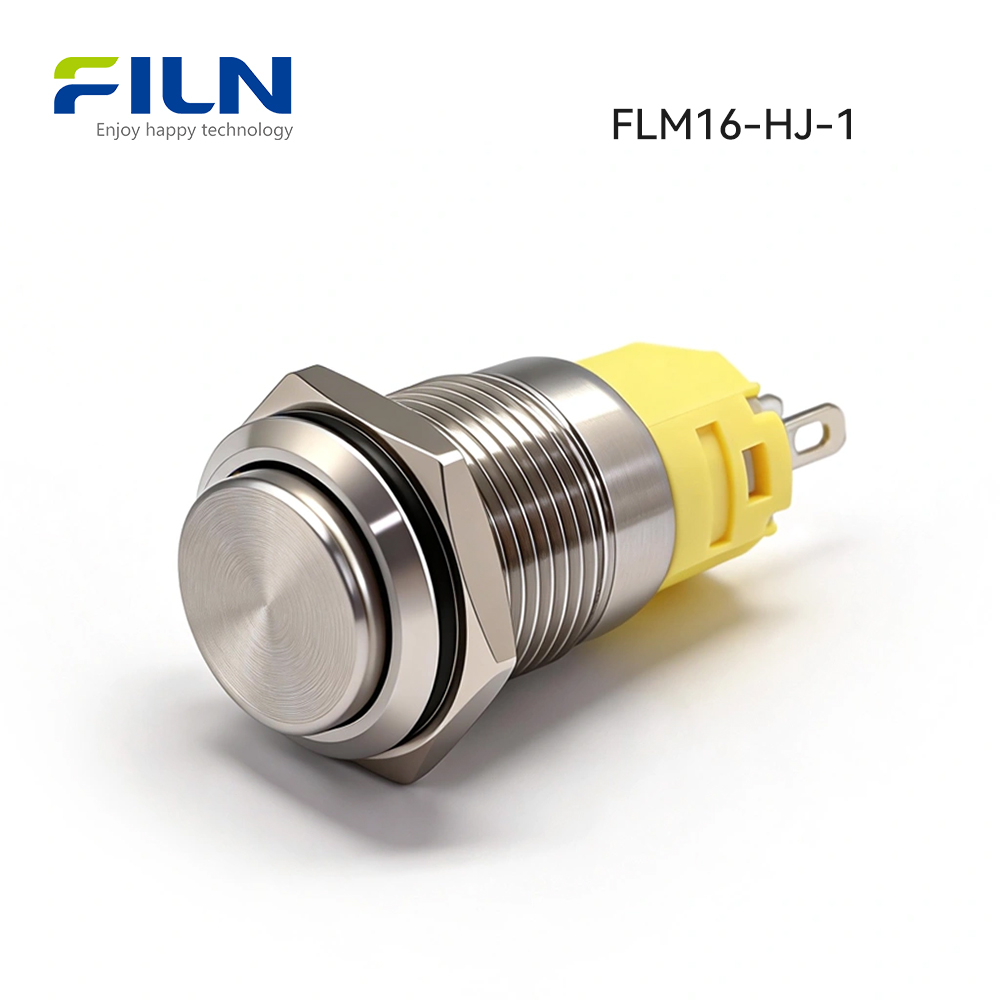

NO NC Push Button16MM Metal Tactile Switch Flat Style Push Button Momentary 3Pin

Product Drawings:

16MM Metal Button Introduction 1.Button mounting hole size is 16mm 2.The waterproof level of the button is ip67 3.The current of the button is 5a 250V. 4.The button connection method is soldering pins. 5.Button materials include brass, stainless steel and zinc alloy. Zinc alloy materials can oxidize various colors, some red, green, yellow, blue and black. The outlook is very atmospheric and pretty. 6.The head of the button has round head, high head and flat head. 7.The button has only one With lock function. 8.The voltage of the push button can be 2V 3V 5V 6V 12V 24V 110V 120V 220V 380V and so on. 9.16MM button can be made in two-color and three-color. 10.The surface of the button can be any symbol. Question and Answer Q:What certification does the 16mm button have? A:The button has ul ccc ce certification etc. Q:Where is the 16mm button used? A:16mm is used in automatic machines, electrical products, toy products, etc. Q:Is the 16mm button sold well? A:Due to the high cost performance, the buttons are sold very much, and they are also very good on Amazon and eBay. Q:What is the maximum current of 16mm button? A:16mm button maximum current can do 10a. Q:What is the shelf life of the 16mm button switch? A:The shelf life of the button is 2 years. Q:Can the button be customized? A:filn can customize various buttons according to customer's needs. Q:How much is the temperature resistance of the button A:Button temperature resistance 100 degrees

Product Parameters:

Production Series FLM16-11HJ Light Guide Button
Button Shape round Actuator 304 Stainless Steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250V(AC) Housing PA66+GF20% nylon
Rated Current 5A(DC)5A(AC) Light Source
Rated Power 180W(DC)1250W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

Push Button Switch Wiring Method:

A 3-pin 1NO1NC switch refers to a switch with three pins and two available switch positions: Normally Open (NO) and Normally Closed (NC). Here’s how the wiring is typically done for a 3-pin 1NO1NC switch:

Pin 1: Common (COM) terminal, which is the central pin of the switch.
Pin 2: Normally Open (NO) terminal, which is connected to the COM terminal when the switch is in the open position.
Pin 3: Normally Closed (NC) terminal, which is connected to the COM terminal when the switch is in the closed position.
To wire the switch, you would typically connect the corresponding terminals to the desired circuitry:

It’s important to consult the switch’s datasheet or product documentation for specific wiring instructions as different switches may have slight variations in pin layout or terminal labeling.



Both circuit setups are viable options depending on your needs, but they offer different advantages and disadvantages. Knowing how the no nc push button switch operates in each setup helps you choose the right configuration for your application.

NO NC Push Button16MM Metal Tactile Switch Flat Style Push Button Momentary 3Pin
Arduino millis

FILN Pushbutton Switch Customization

The FILN no nc push button Switch  is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

 Why Customization is Important for Push Button Switches?



Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN  no nc push button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.



  1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.



  1. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.



  1. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.
NO NC Push Button16MM Metal Tactile Switch Flat Style Push Button Momentary 3Pin

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN Switch Push Button On Off can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products

The flat push button momentary switch, also known as a tactile switch, is a switch type commonly used in industrial equipment, household appliances and various types of control panels.

The operating mode of the Flat Style Push Button Momentary Switch is designed to provide a momentary electrical connection when the button is pressed, the line is energized and the device operates normally, and when you release the button and it is released, it returns to its original state of rotation, the line is disconnected and the device no longer operates.

2.How to Choose the no nc push button Switch?



When it comes to selecting a push button switch, several key factors need to be considered.

First, you’ll need to identify the type of switch you require: normally open, normally closed, or momentary. A normally open switch means that the circuit is open by default, and only closes when you press the button. In contrast, a normally closed switch works in the opposite way—the circuit is closed by default and opens when you press the button. A momentary switch closes the circuit when pressed and opens it when released.

Secondly, consider the installation method and size of the switch. Some switches require screw mounting, while others can be directly inserted into circuit boards. Ensure that the size of the switch you choose fits your application.

Next, consider the current and voltage specifications. Even though these switches are designed for a 12V power supply, different switches may have varying current capacities.

From a material and manufacturing quality perspective, high-quality no nc push button switches are usually made from durable materials like stainless steel or high-grade plastics to ensure long-term reliability.

Finally, consider any additional features of the switch, such as the presence of LED indicators, waterproof capabilities, and so on. These extra features may affect the price of the switch but could also provide added convenience for your application.

NO NC Push Button16MM Metal Tactile Switch Flat Style Push Button Momentary 3Pin

What are the applications of NO/NC Momentary Push Button Switches in various industries?

Applications

From industrial automation to emergency stop buttons, NO NC Push Buttons are versatile. The three main areas where they are applied include:

1.Industrial Machinery: For controlling start/stop functions.

NO NC Push Button16MM Metal Tactile Switch Flat Style Push Button Momentary 3Pin

2.Safety Systems: Utilized in emergency stop systems.

NO NC Push Button16MM Metal Tactile Switch Flat Style Push Button Momentary 3Pin

3.Household Appliances: Used in devices like washing machines and ovens.

NO NC Push Button16MM Metal Tactile Switch Flat Style Push Button Momentary 3Pin

Advantages

Some benefits of using NO NC Push Buttons include:

  • Flexibility in control functions.
  • Enhanced safety features.
  • Durability and reliability.

Disadvantages

However, these switches might have some downsides:

  • Complexity in wiring, especially for those unfamiliar with the technology.
  • Potential higher cost compared to simple switches.

Introduction to NO/NC Momentary Push Button Switches

NO/NC Momentary Push Button Switches have contacts that revert to their default state when the button is released. These switches are typically used where temporary actions are required.

Industrial Applications

In the industrial sector, NO/NC Momentary Push Button Switches are commonly used for:

  • Control Systems: To initiate or halt specific processes.
  • Emergency Stops: To provide immediate shut-off in emergencies.
  • Testing Equipment: For precise control in testing scenarios.

Automotive Applications

In the automotive industry, these switches are used for:

  • Ignition Systems: Momentary push button switches like Normally Closed Momentary Switch can be found in ignition systems.
  • Control Panels: For operating various functions like lights and wipers.

Consumer Electronics

In consumer electronics, momentary push button switches are found in:

  • Remote Controls: For buttons like power, volume, and channel change.
  • Computer Keyboards: Many keys on a keyboard are momentary switches.
  • Gaming Controllers: For responsive control in gaming devices.

How Much Does a  Push Button Switch price Cost?



When it comes to purchasing NO (Normally Open) NC (Normally Closed) push button switches in the USA, it’s important to consider the price range. The cost of these switches can vary depending on factors such as the type, size, and features. In this article, we will explore the approximate price range of various types of NO NC push button switches from different suppliers.

Table

Let’s take a closer look at the price range of NO NC push button switches from different suppliers:

Supplier Min Price ($) Max Price ($)
Made-in-China 0.01 100
Digi-Key 5 50
TE Connectivity 10 70

Now, let’s delve into more details about the prices and suppliers of NO NC push button switches in the USA.

Made-in-China

Made-in-China offers a wide range of push button switches with prices ranging from $0.01 to $100. The specific parameters and features of the switch will determine the exact price. It’s important to consider the quality and reliability when purchasing from this supplier.

Digi-Key

Digi-Key is an electronic components distributor that provides a variety of NO NC push button switches. The prices can vary depending on the specific switch model and features. For more detailed and accurate pricing information, it is recommended to visit the Digi-Key website.

TE Connectivity

TE Connectivity is another supplier that offers a variety of NO NC push button switches with different specifications and features. The prices can vary depending on the specific model and features of the switch. It is advisable to explore their website for more information on pricing.

Please note that the prices mentioned above are approximate and may vary depending on the supplier, retailer, and location. To get the most accurate and up-to-date pricing information, it is always recommended to check with the specific supplier or retailer.

In conclusion, the price of NO NC push button switches in the USA can vary significantly depending on the supplier, type, size, and features. By considering the flow chart, bar chart, and table provided in this article, you can gain a better understanding of the price range and make informed decisions when purchasing these switches.

What is a 16mm Metal Tactile Switch?

The 16mm metal tactile switch can be understood literally, in a simple and clear combination of keywords, which indicates the size of the switch (16mm), the material (metal) and the name of the product.

FILN is a push button switch manufacturer, 16MM is the most common type of button size, in addition to other types of sizes that FILN offers.

Flat Style Push Button Momentary Switch VS 16mm Metal Tactile Switch

Here’s a comparison table between a flat style push button momentary switch and a 16mm metal tactile switch:

Flat Style Push Button Momentary Switch 16mm Metal Tactile Switch
Button Style Flat Tactile
Actuation Type Push Button Tactile Feedback
Design Low-profile Regular Housing
Size Various sizes available 16mm diameter
Mounting PCB mount or panel mount PCB mount or panel mount
Material Plastic or other materials Metal housing
Electrical Ratings Voltage and current capacity Voltage and current capacity
Durability Built for repeated use Built for repeated use
Tactile Feedback May or may not have tactile feedback Provides tactile feedback
Applications Consumer electronics, control panels, etc. Industrial equipment, machinery, etc.

Please note that the table provides a general comparison and there may be variations and specific features based on the manufacturer and model of the FILN supports custom switches.

About FILN 16mm Metal Tactile Switch

FILN is a switch manufacturer integrating industry and trade, with more than 20 years of push button switch production experience and 13 years of rich international trade experience.

We specialize in producing waterproof indicator lights, waterproof flat type push button momentary switches, waterproof boat switches and other waterproof series. Among them, this 16mm metal tactile switch is also one of the best-selling ones.

FILN 16mm metal tactile switch size from small to large, there are 12mm mounting hole, 16mm mounting hole, 19mm mounting hole, 22mm mounting hole, 25mm mounting hole, 28mm mounting hole, 30mm mounting hole, 40mm mounting hole, which greatly meets the different needs of different customers in different scenarios.

LED indicator light manufacturer

Material of Push Button Switch

The sleeve housing material of this 16mm flat push-button momentary switch is divided into 304 stainless steel, nickel-plated brass and black aluminum alloy.

Among them, the stainless steel enclosure is highly corrosion resistant and relatively stable in chemicals, suitable for use in relatively harsh environments and will not rust quickly. Nickel-plated brass housing is lighter, yellowish in color, and less corrosion resistant than stainless steel.

Black zinc aluminum alloy is suitable for customers to use on black products, but the latter two materials are not commonly used for our large flat type push button momentary switches above 22mm.

If customers require these two materials, we will need to customize and submit them with a slightly longer lead time.

What are the Functions of the Pushbutton Switch?

This flat pushbutton momentary switch has two functions: self-locking and self-resetting.

The self-locking flat pushbutton momentary switch means that the button does not return automatically after it is pressed. You need to press the button again to return to the original position.

Self-resetting flat pushbutton momentary switch means that after pressing the button, the button will be pressed down. When the handle is released, the button will automatically return to its original position. Customers can choose self-locking or self-restoring function according to their needs.

The LEDs of this flat button momentary switch are single-color red, yellow, blue, green and white, two-color red, green, red and yellow, and three-color red, green and blue. Single-color use better quality LEDs, no need to distinguish between positive and negative poles. Customers can connect two light pins at will.

This flat pushbutton momentary switch has a waterproof rating of IP65. If you want a higher waterproof rating, such as IP67, I would recommend FILN’s pushbutton with wire. The flat pushbutton momentary switch with wire is wired directly to the bottom of the switch, and the part that connects the wire to the sleeve is coated with black waterproof glue. This raises the waterproof rating of the flat pushbutton momentary switch from ip65 to ip65. IP67 can be used outdoors.

16mm Metal Tactile Switch With Light

Page this metal button switch is 16MM, no light high head style, this design is to highlight the button, you can more quickly find this button on the panel and operate, for the function is self-locking or self-negative, it is possible to customize the switch according to your needs.

FILN can provide you with the same button switch with lights, there will be a circle of light source around the round button metal keys, LED light beads conventional five colors, red, green, yellow, blue and white. There are also two-color and three-color available.

black push button switch

Frequently Asked Questions about Flat Style Push Button Momentary Switch:

Q1: What is the current rating of this switch? A1: The current rating of this switch is 3A, except for the 19mm-40mm buttons, which have a current rating of 5A. Customized 10A buttons are also available upon request.

Q2: Do you provide after-sales service for this switch? A2: Yes, we have a 5-year warranty period for this push button switch. If you encounter any problems within this period, please contact us, and we will promptly address any quality or usage-related issues.

Q3: Can the tail of the switch be soldered? A3: Yes, we can solder the wire according to your specific requirements. Simply provide us with the wire gauge and length, and we will ensure proper soldering. Additionally, we offer a wire harness connector option with colored wires for easy installation.

For further inquiries or if you have any other questions or ideas, please feel free to contact us. We guarantee a response within 12 hours of receiving your email.
