Product Drawing

Product Parameters:

mini push button switch on off draw Graph One: LED Off When Idle, Device Off

In the first setup, the LED light on the push-button switch is off under normal conditions, and the connected device does not operate unless the button is pressed.

Wiring Diagram

1. Power positive (12V) connects to Button Switch Wire 1
2. Button Switch Wire 2 connects to LED positive
3. LED negative connects to Device positive
4. Device negative connects to Power negative

Explanation

1. Under normal conditions, i.e., when the button is not pressed, the circuit remains open. This means no power flows through the LED or the device.
2. Once the button is pressed, the circuit closes, causing the LED to light up and the device to operate.
3. It appears that the device and LED are wired in series in this configuration.

Considerations

1. This configuration ensures that the device only operates when explicitly turned on.
2. The LED serves as an indicator that the device is operational.
3. You must press the button to initiate any activity, which can be an additional safety feature.

mini push button switch on off draw Graph two : LED On When Idle, Device off

In the second setup, the LED light on the mini push button switch on off is on under normal conditions, but the connected device does not operate unless the button is pressed.

Wiring Diagram

1. Power positive (12V) connects to both Button Switch Wire 1 and LED positive
2. Button Switch Wire 2 connects to Device positive
3. Power negative connects to both LED negative and Device negative .

4. Explanation

5. In this configuration, the LED remains on as it is directly connected to the power supply.
6. However, the device remains off under normal conditions as it is only connected via Button Switch Wire 2.
7. The device and the LED appear to be wired in parallel in this setup.

Considerations

1. This configuration allows for constant illumination of the LED, serving as a ready indicator.
2. Pressing the button completes the circuit for the device, making it operational while the LED stays on.
3. This setup could consume more energy as the LED is always on.

Both circuit setups are viable options depending on your needs, but they offer different advantages and disadvantages. Knowing how the mini push button switch on off operates in each setup helps you choose the right configuration for your application.

Customization Advantages of FILN mini push button switch on off

The FILN mini push button switch on off is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

Why Customization is Important for mini push button switch on off ?

Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN mini push button switch on off, customization has a significant impact in terms of functionality, aesthetics, and adaptability.

1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.

2. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.

3. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.

Customizable Button Symbols

One of the most prominent features that can be customized in a FILN mini push button switch on off switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.

User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.

Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.

Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Voltage Options

Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.

1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.

2. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.

3. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN mini push button switch on off can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

Comprehensive Guide to Mini Push Button Switch ON/Off

mini push button switch on off, innovative. The mini push button switch ON/Off is an integral part of modern electronic devices, offering diverse functionality and applications. From simple 2-pin designs to waterproof and tactile versions, these switches cater to a wide range of needs. This comprehensive guide explores the main types of mini push button switches, their uses, how to understand diagrams, connect various pin designs, differentiate momentary switches, and ensure proper safety measures. Whether you’re a hobbyist exploring a new project or a professional looking for detailed insights, this article about mini push button switches ON/Off will provide you with the information you need to make informed decisions. Dive in to discover more about these fascinating and versatile components.

Introduction to Mini Push Button Switch ON/Off

The mini push button switch ON/OFF is a compact yet highly effective switch that plays a critical role in various electronic applications. Often used in handheld devices, these switches are known for their simple design and reliable operation. They can come in various forms, such as a 2-pin h button switch, micro waterproof designs, and 4-pin connections. The primary focus of this article is to answer the most asked questions about mini ON/OFF switches. This guide will explore aspects like their diagram, connection methods, waterproofing, momentary features, and tactile versions, all of which are available at indicatorlight.com. Additionally, h button switch 2 pin plays a significant role in this context. Additionally, mini push button switch 4-pin connection plays a significant role in this context.

Q1: What Are the Main Types of Mini Push Button Switches and Their Applications?

Mini Push Button Switch 2 Pin

A 2-pin mini push button switch is a simple design that consists of two connections. They are often used in applications like toys, consumer electronics, and control panels. Their straightforward connection makes them ideal for basic ON/OFF operations.

Mini Momentary Push Button Switch

Momentary switches are designed to make a connection only when the button is pressed. These are typically used in doorbell systems, reset buttons on electronics, and other applications where a temporary connection is needed. They are available in various forms, including IP65 momentary mini push-button switch.

Micro Push Button Switch Waterproof

These switches are sealed against water and dust, making them suitable for outdoor or harsh environments. Applications include outdoor control panels, marine equipment, and industrial machinery.

Mini Push Button Switch 4-Pin Connection

The 4-pin connection allows more complex functionality, such as dual-LED illumination. These are used in automotive controls, industrial machinery, and other applications where enhanced features are required.

Q2: How to Understand and Use a Mini Push Button Switch Diagram?

Understanding the Diagram

The mini push button switch diagram depicts how the switch operates internally. It shows the connections, contact points, and often includes details like the normally open (NO) and normally closed (NC) positions. Understanding this diagram is essential for correct wiring.

Wiring a 2-Pin Mini Switch

For a basic 2-pin mini switch, the wiring is simple. Connect one pin to the power source and the other to the device being controlled. You can find more detailed instructions on indicatorlight.com.

Wiring a 4-Pin Mini Switch

A 4-pin mini switch offers more flexibility. Typically, two pins control the LED(s), and the other two are for the switching function. Correct wiring based on the provided diagram is crucial to achieving the desired functionality.

Troubleshooting

If the switch is not functioning as expected, referring to the diagram can help identify wiring mistakes or internal defects.

Q3: What Makes a Micro Push Button Switch Waterproof, and Where Is It Used?

Design of a Waterproof Switch

A micro push button switch waterproof design involves sealing the internal components with materials like rubber or silicone. The casing is also made of materials that resist water infiltration.

Applications

Waterproof switches are used in environments exposed to moisture, like marine controls, outdoor machinery, and bathroom appliances.

Choosing the Right Waterproof Switch

Consider factors like the IP rating (e.g., IP65), materials, and size when selecting a waterproof switch. The 12mm metal miniature push button switch is a popular waterproof option.

Maintenance and Care

Proper installation and regular inspection are vital to maintaining the waterproof integrity of the switch.

Q4: How to Differentiate Between a Mini ON/Off Switch and a Mini Momentary Push Button Switch?

Mini ON/Off Switch

The mini ON/Off switch maintains its position after being pressed. It stays either ON or OFF until manually changed again. These switches are used in applications where a constant state is required, such as light switches or power controls.

Mini Momentary Push Button Switch

Contrastingly, a mini momentary push button switch returns to its original position once released. These are used in applications where temporary activation is needed, like a car ignition button. You can find various momentary switches at indicatorlight.com.

Physical Appearance

Often, the physical design of the switch itself can hint at its functionality. Momentary switches might have a different color or shape to distinguish them from regular ON/OFF switches.

Checking the Specifications

Always refer to the product specifications or consult with the supplier to ensure that you choose the correct type of switch for your needs.

Q5: What Are the Common Sizes, Shapes, and Materials for a Mini ON/Off Switch?

Common Sizes

Mini ON/Off switches come in various sizes, ranging from small 12mm diameter buttons to larger designs. The choice of size depends on the application and space constraints.

Shapes

The shapes can vary from round, square, rectangular, or custom designs. Shape selection often depends on aesthetics and ergonomic considerations.

Materials

Materials used include plastic, metal, rubber, or a combination of these. Factors like durability, appearance, and cost play a role in material selection. For more options, explore indicatorlight.com’s push button switch category.

Q6: How to Connect a Micro Push Button Switch 4 Pin?

Understanding the Pins

A micro push button switch 4 pin design usually consists of two pins for controlling the LED and two for the switch functionality. Understanding which pins correspond to which function is essential.

Connection Process

1. Identify the pins using the provided diagram or labeling.
2. Connect the LED pins to the respective positive and negative terminals of the LED circuit.
3. Connect the switching pins to the controlled device and power source.


   Testing

   After connecting, it is advisable to test the switch to ensure that it functions correctly. Proper understanding and connection can be learned from the mini push button switch page.

   Q7: How to Identify and Choose a Tactile Push Button Switch?

   What is a Tactile Push Button Switch?

   A tactile push button switch provides a “click” feedback when pressed. This gives the user physical confirmation of activation.

   Identifying Tactile Switches

   You can identify tactile switches by pressing them and feeling for the distinct click. Specifications and product descriptions also usually mention the tactile feature.

   Choosing the Right Tactile Switch

   Consider factors like the required force for activation, size, shape, and material when choosing a tactile switch. For a variety of tactile switches, visit indicatorlight’s small push button switch page.

   Applications

   Tactile switches are commonly used in applications where user feedback is essential, such as keyboards, remote controls, and interfaces on various devices.

   Q8: How Can I Incorporate a Mini Push Button Switch in a 12V System?

   Compatibility

   Ensure that the mini push button switch is rated for 12V operation. This information is typically found in the specifications or product description.

   Wiring

   Wiring a mini push button switch in a 12V system is straightforward. Connect one pin to the 12V power source and the other to the device being controlled.

   Selection

   Choose a switch based on factors like current rating, size, waterproofing, or momentary functionality. For 12V specific switches, you can explore options at indicatorlight.com.

   Safety Considerations

   Always follow safety guidelines, such as disconnecting the power source when working on the wiring, to prevent accidents.

   Q9: What Are the Safety Measures to Consider When Working with a Mini Push Button Switch?

   Understand Specifications

   Always choose a switch that matches the voltage and current specifications of your application to avoid overheating or failure.

   Installation Safety

   Ensure the power is off during installation to prevent electrical shocks. Use proper tools and follow the manufacturer’s guidelines.

   Waterproofing Considerations

   If the switch is to be used in a wet or damp environment, consider a waterproof design like double push button switch 12V red/green.

   Regular Inspection

   Regularly inspect the switch for signs of wear, damage, or malfunction. Promptly replace any faulty switches.

   Compliance with Standards

   Ensure that the switch complies with relevant safety standards and certifications for your region and application.

   Q10: How to Troubleshoot Common Issues with Mini Push Button Switch ON/Off?

   No Response When Pressed

4. Check the wiring connections.
5. Inspect for any physical damage to the switch.
6. Test with a multimeter to check for internal faults.
7. Replace the switch if necessary.


   Intermittent Functioning

8. Check for loose connections or soldering issues.
9. Examine for dirt or debris inside the switch.
10. Test the switch under different conditions to identify the problem.


    Switch Stuck in One Position

11. Inspect for physical obstructions.
12. Test for internal mechanical failure.
13. Replace if the switch is not returning to its normal position.


    Consulting Professionals

    If troubleshooting does not resolve the issue, it may be wise to consult with a professional or refer to resources like indicatorlight.com’s push button electrical switch page for further assistance.

    Conclusion

    Mini push button switches ON/Off are versatile and essential components in various applications. Their different types, such as 2-pin, momentary, waterproof, and tactile designs, offer solutions for diverse needs. Understanding their diagrams, connections, sizes, shapes, materials, and safety measures ensures effective use and troubleshooting. This comprehensive guide, with links to indicatorlight.com, serves as a valuable resource for anyone working with these switches, whether a hobbyist or a professional.

    Button switch to buy links

Mini Push Button Switch Prices in the USA

Mini Push Button Switches are essential components in various electronic devices. Their prices can vary based on the supplier and specific features. Here’s a detailed breakdown of their prices in the USA:

Detailed Price List

Adafruit: $0.95

Adafruit offers a mini on-off push-button switch for $0.95. This affordable option is suitable for various electronic projects.

Amazon: $2 – $10

Amazon provides a range of mini push button switches with prices fluctuating between $2 to $10 or more, contingent on the model and features. They offer a wide selection, allowing customers to choose the switch that best fits their needs and budget.

Grainger: Specific pricing not available

Grainger has an assortment of miniature push button switches, but their website doesn’t specify the prices. It is recommended to contact Grainger directly for pricing information.

Home Depot: Specific pricing not available

While Home Depot does have push button light switches, the exact pricing for mini push button switches remains undisclosed on their website. For accurate pricing information, it is advisable to reach out to Home Depot directly.

Please note that these prices are approximate and may vary depending on the supplier, retailer, and location. It is always recommended to check with the specific supplier or retailer for the most accurate and up-to-date pricing information on mini push button switches with an on-off function.

Remember, when searching for mini push button switches, consider factors such as quality, durability, and compatibility with your electronic devices.

What is Mini Push Button Switch ON OFF?

The mini on off push button switch refers to a small push button switch with on-off function, compared with the ordinary push button switch, the size of mini is more compact, the metal button is usually 8-12MM.

The “on-off” aspect of the switch indicates that it is used to control the circuit’s state, toggling between an “on” position when the button is pressed and an “off” position when the button is released. These switches are commonly used in various electronic devices and applications, such as consumer electronics, toys, small appliances, automotive components, and more.

The term “mini” refers to its small size, which makes it suitable for use in compact and space-constrained designs. These switches are available in different configurations, with single or multiple poles and throws, and they come in a variety of shapes and colors to suit different application needs.

Mini Push Button Switch ON OFF – Overview and Applications

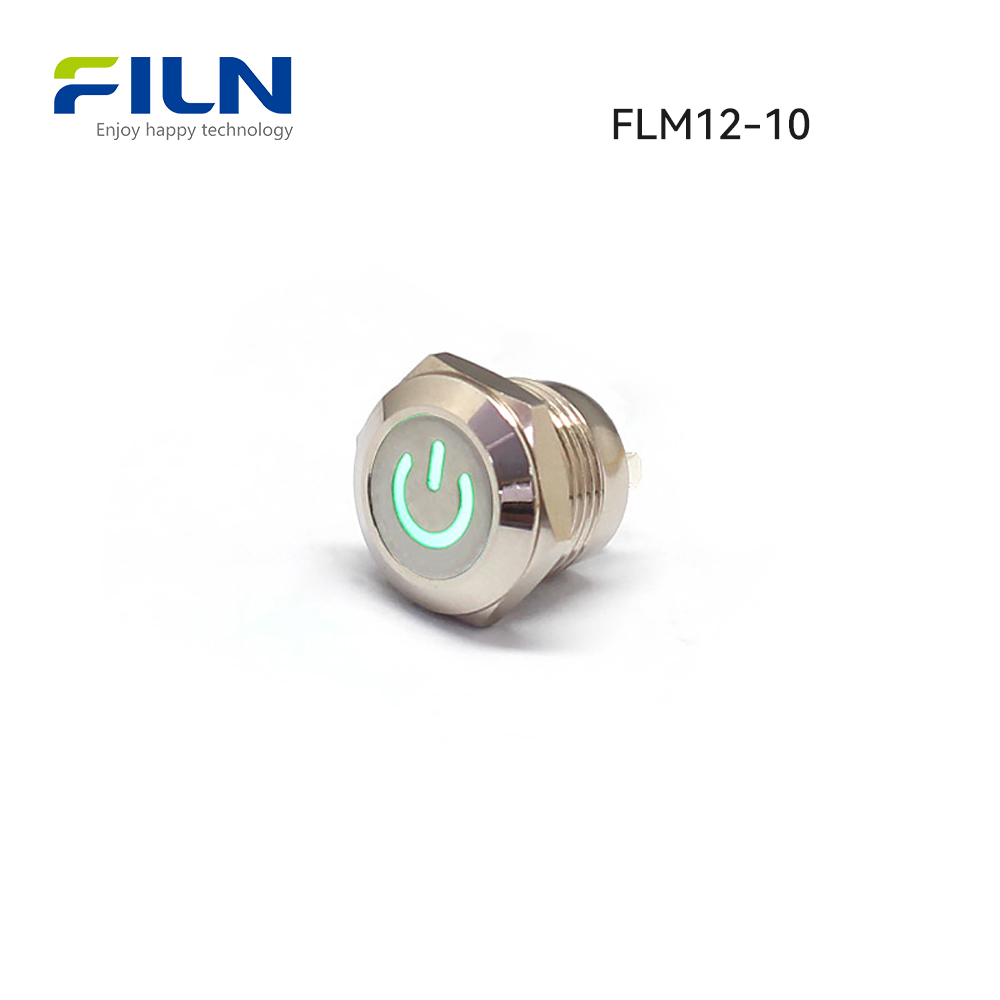

Introduction: The Mini Push Button Switch ON OFF is a compact and flat-head button with a power symbol, measuring just 12mm in size. It serves as a control switch for various electrical circuits and is commonly used in a wide range of applications, including medical equipment, automated production lines, and communication devices.

Features:

1. Size: The Mini Push Button Switch ON OFF is only 12mm in diameter, making it ideal for space-constrained designs.
2. Symbol Customization: The power symbol is the standard symbol on the switch, but custom symbols can be provided for larger quantities.
3. Lockless Design: Due to its small size, this switch does not have a lock function. For switches with a lock function, alternative models can be recommended.
4. 4-Pin Design: Pin 2 connects to the lamp, while pin 2 is used for the switch function, enabling multiple functions through different connections.

Function and Applications:

1. Control Circuit Switch: The Mini Push Button Switch ON OFF is primarily used to control circuits, allowing manual control signals to be sent to contactors, relays, and electromagnetic starters in electrical automatic control systems.
2. Two Pairs of Contacts: Each switch has two pairs of contacts – normally open (NO) and normally closed (NC). Pressing the button simultaneously disconnects the normally closed contact and closes the normally open contact.
3. Basic Controls: This switch can perform essential functions like start, stop, forward and reverse rotation, speed change, and interlock operations.
4. Color-Coded Button Caps: To avoid misoperation, different colors (red, green, black, yellow, blue, white) are used on button caps to represent specific functions (e.g., red for stop, green for start).

Conclusion: The Mini Push Button Switch ON OFF is a versatile and essential component used in numerous electronic devices and control systems. Its compact size, simple operation, and color-coded design make it easy to use and ideal for various applications that require manual control of electrical circuits.

Structure and Operation of Mini Push Button Switch ON OFF

The Mini Push Button Switch ON OFF is composed of several essential components, each playing a crucial role in its operation. Understanding its structure is essential to grasp how it functions as a control switch for various electrical circuits.

Components of Mini Push Button Switch ON OFF:

1. Button Cap: The button cap is the visible part of the switch that users press to activate it.
2. Return Spring: The return spring ensures that the button returns to its initial position after being pressed.
3. Bridge-Type Moving Contact: This moving contact is designed in a bridge shape and is responsible for making and breaking connections when the button is pressed and released.
4. Static Contact: The static contact remains stationary and forms an electrical connection with the moving contact when the button is pressed.
5. Strut Link: The strut link is responsible for transmitting the force from the button cap to the moving contact.
6. Shell: The shell houses all the internal components of the Mini Push Button Switch ON OFF.

Types of Mini Push Button Switch ON OFF:

1. Start Mini Push Button Switch ON OFF (Normally Open Button): In its static state, this type of switch keeps the circuit open. When the button cap is pressed, the contact is disconnected, and it automatically closes when the button is released.
2. Stop Mini Push Button Switch ON OFF (Normally Closed Button): In its static state, this switch keeps the circuit closed. When the button cap is pressed, the contacts separate, and they automatically reconnect when the button is released.
3. Composite Mini Push Button Switch ON OFF (Non-Communicable Disease Contact Combination Button): This type of switch has a combination of contacts, allowing for more complex circuit control. When the button cap is pressed, the bridge-type moving contact first opens the normally closed contact, and then the normally open contact.

Operation of Mini Push Button Switch ON OFF:

• When the button cap is pressed, the bridge-type moving contact moves downwards, causing the contacts to open or close based on the type of switch (start, stop, or composite).
• Upon releasing the button cap, the return spring resets the switch, causing the contacts to return to their original position.

Working Principle of Mini Push Button Switch ON OFF

The Mini Push Button Switch ON OFF operates based on a simple yet effective working principle. It involves the use of an electromagnet that enables the switch to control the circuit’s connection and disconnection.

Working Principle:

1. Electromagnet Activation: The Mini Push Button Switch ON OFF contains an electromagnet. When the button cap is pressed, an external force is applied, activating the switch.
2. Energizing the Electromagnet: As the button is pressed, the switch’s internal mechanism energizes the electromagnet, causing it to generate a magnetic field around it.
3. Magnetic Attraction: The magnetic field generated by the electromagnet attracts or repels specific components inside the switch, depending on its design and type (start, stop, or composite).
4. Circuit Connection/Disconnection: The magnetic attraction inside the switch causes the relevant components to move, making or breaking the connection between the static and moving contacts. This results in either closing or opening the circuit.
5. Remote Control Function: By utilizing the magnetic field generated by the energized electromagnet, the Mini Push Button Switch ON OFF can remotely control the circuit’s state. When the circuit is closed, the connected equipment or system functions as intended, and when the circuit is open, it stops the flow of electricity, thus turning off the connected equipment.

Applications of Mini Push Button Switch ON OFF

Mini Push Button Switch ON OFF is a versatile component that finds applications in various industries and scenarios. Below are some examples of its usage:

1. Calculator Buttons: Hand-held calculators often incorporate small Mini Push Button Switches ON OFF for user convenience.
2. Reset Switches: These switches are typically small and designed to prevent accidental operations, commonly found in electronic devices.
3. Emergency Stop Buttons: Industrial machines feature emergency stop buttons, which are usually located on the machine or the surrounding area for quick access in critical situations.
4. Arcade Games: Bright and colorful Mini Push Button Switches ON OFF are commonly used in arcade games to attract players and encourage interaction.
5. Spa and Jacuzzi Control: Mini Push Button Switches ON OFF are utilized in spa and jacuzzi controls to enable users to open and close the foam, enhancing the overall experience.
6. Toilet Flush: Public toilets often employ Mini Push Button Switches ON OFF for flushing, providing a hygienic and user-friendly solution.
7. Shower Systems: Gyms, sports clubs, and schools incorporate Mini Push Button Switches ON OFF in shower systems to manage water flow efficiently.
8. Light Switches: Mini Push Button Switches ON OFF are also employed in traditional light switches, offering a practical solution for controlling illumination.

For metal Mini Push Button Switch ON OFF inquiries, you can contact us directly or reach out to our engineer, Louis Lin, via email at inquiry@cnylin.com.cn. We are committed to providing high-quality solutions tailored to your needs.
