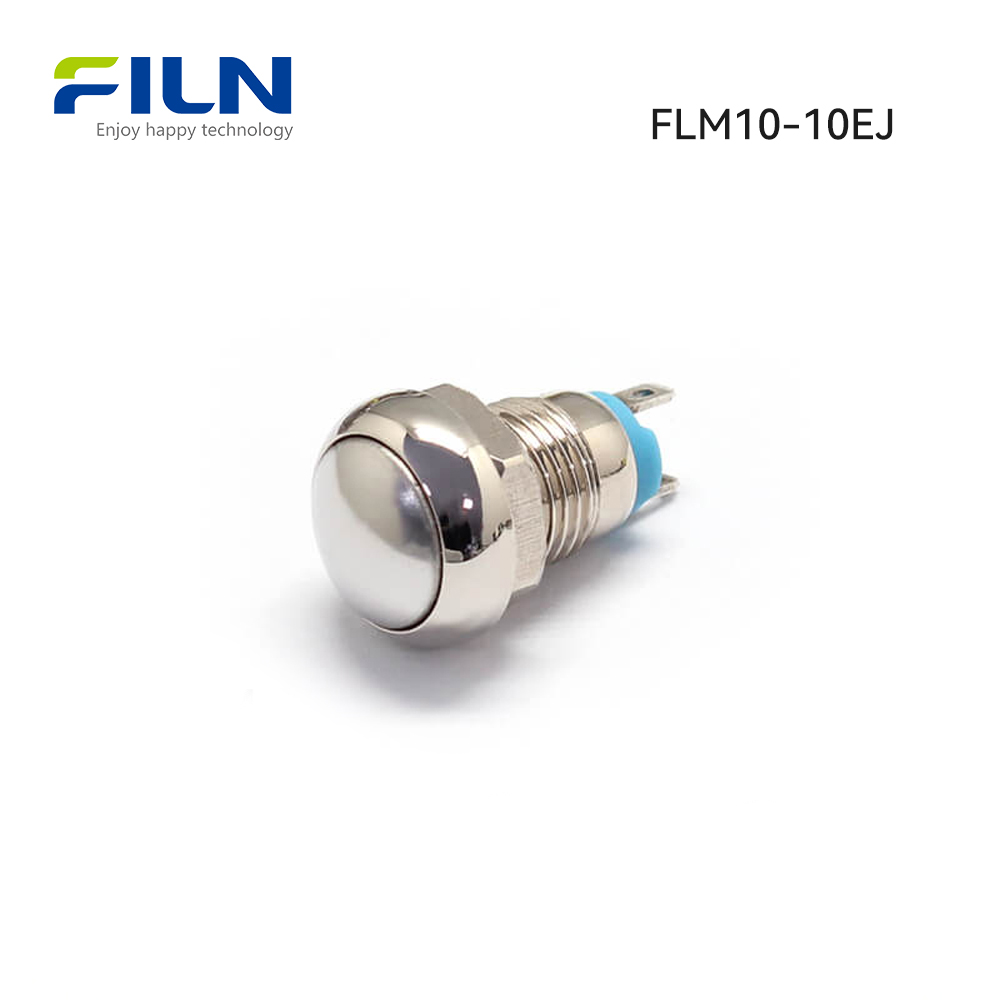

Mini Push Button Switch – 10MM Momentary Button Switch | IndicatorLight.com

  • Name:Mini push Button Switch
  • Model: FLM10-10EJ
  • Head Type:High Head
  • Mounting Size:10mm
  • Switching Functions:Momentary
  • Contact Configuration:1NO
  • Rated Voltage:1A
  • Voltage Options:3V, 6V, 12V, 110V, 220V, 380V
  • Indicator Light:Yes
  • Color:Red, Blue, Green, Yellow, White
  • Material:ABS plastic, Metal
  • Download Certification:CE, CCC, ROSH, IP65, UL
  • Waterproof grade:IP65
  • Wire specification:AGW22
  • Email: inquiry@cnylin.com.cn
  • Download PDF: 10MM Mini 3V Momentary Normally Open Push Button Switch

Product Drawings:

FLM10-10BJM (1)

Product Parameters:

Production Series FLM10-10EJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Cutton LED Color Red, blue, green, yellow and white Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V DC Housing PA66+GF20% nylon
Rated Current 1A Light Source LED
Rated Power 36W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

How to wire a mini push button switch with led?

mini push button switch Circuit Configurations

In electrical circuits, how you wire a mini push button switch can affect not only the operation of the switch itself but also connected devices. Here, we explain two different circuit configurations for a mini push button switch, focusing on LED indicators and device operation.

Customization Advantages of FILN mini push button switch

The FILN mini push button switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

 Why Customization is Important for mini push button switch ?



Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN mini push button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.



  1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.



  1. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.



  1. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.
normally open momentary switch

Customizable Button Symbols



One of the most prominent features that can be customized in a FILN mini push button switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.



  1. User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.



  1. Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.



  1. Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Voltage Options



Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.



  1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.



  1. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.



  1. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN mini push button switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

Mini Push Button Switch: A Comprehensive Understanding Guide



Mini push button switches are integral components found in a multitude of applications, from everyday gadgets to complex machinery, remarkably. This comprehensive guide delves into the multifaceted world of Miniature pushbutton switcheses, exploring their various types, applications, and essential criteria for selection. Whether you are looking to understand the nuances of micro momentary switches, waterproof solutions, or wiring procedures, this article offers detailed insights and practical advice. Dive in to discover everything you need to know about mini push button switches, a small yet crucial element that powers our connected world.

Q1: What Are the Types and Uses of a Mini Push Button Switch?

Types of Mini Push Button Switches

Miniature pushbutton switches comes in various types designed for different applications, remarkably. From miniature momentary push button switches to latching push button switches, the diversity ensures suitability for varied functions. Here is a brief overview of the types:

1, remarkably. Miniature Momentary Push Button Switch: Often used in temporary connections. 2, remarkably. Micro Push Button Switch 4 Pin: Suitable for compact connections. 3, remarkably. Micro Momentary Switch: Utilized in temporary circuit connections. 4, remarkably. Latching Push Button Switch: This type maintains its state after being activated. 5, remarkably. Tactile Push Button Switch: Provides physical feedback when pressed.

Learn more about miniature push button switches.

Uses of Mini Push Button Switches

1.remarkably. Industrial Equipment Control: Mini push button switches are commonly found in machinery controls where precise operations are needed.

2.remarkably. Consumer Electronics: Devices like remote controls utilize micro push button switches for compact design.

3.remarkably. Automotive Applications: Utilized in cars for controls such as starting the engine or activating lights.

4. remarkably. Medical Devices: Used in medical equipment for precise control and functionality.

Mini Push Button Switch - 10MM Momentary Button Switch | IndicatorLight.comMini Push Button Switch - 10MM Momentary Button Switch | IndicatorLight.com



Q2: How to Choose a Mini Push Button Switch?

Consideration of Specifications

When choosing a Miniature pushbutton switches, several specifications must be considered to ensure it meets the requirements:

1, remarkably. Voltage and Current Rating: Understanding the voltage and current needs of the circuit. 2, remarkably. Switch Configuration: Selecting between momentary or latching configurations. 3, remarkably. Terminal Type: For example, a micro push button switch 4 pin offers different connections. 4, remarkably. Environmental Factors: Considering factors like a micro push button switch waterproof for usage in damp conditions. 5, remarkably. Mounting Options: Deciding on the mounting style based on the design of the equipment.

Find the right Miniature pushbutton switches for your needs.

Quality and Manufacturer

1, remarkably. Reputation of Manufacturer: Choose a well-known manufacturer to ensure quality. 2, remarkably. Compliance with Standards: Ensure that the switch complies with industry standards. 3, remarkably. Price and Availability: Balancing the quality with the budget and availability in the market. 4, remarkably. Warranty and Support: Checking for warranty and after-sales support can be crucial for long-term applications.

Q3: How to Install a Mini Push Button Switch?

Tools and Materials

Installing a Miniature pushbutton switches requires the right tools and materials, including:

1, remarkably. Screwdriver: For tightening screws. 2, remarkably. Wire Strippers: To prepare the wires. 3, remarkably. Soldering Iron: If soldering is required. 4, remarkably. The Switch Itself: Choose the correct type, such as a miniature momentary push button switch or a micro push button switch waterproof, depending on the application.

Get your Miniature pushbutton switches here.

Installation Procedure

1, remarkably. Turn Off Power: Always begin by turning off the power to the circuit. 2, remarkably. Prepare Wires: Strip the wires to the right length and prep them. 3, remarkably. Connect Wires to Switch: Follow the wiring diagram for the specific switch type. 4, remarkably. Mount the Switch: Secure the switch in its designated place, whether it’s a panel or circuit board. 5, remarkably. Test the Connection: After everything is connected, power on the circuit and test the switch functionality.

Find IP65 momentary Miniature pushbutton switcheses for specialized installations.

Considerations and Tips

1, remarkably. Follow Safety Guidelines: Always follow safety guidelines and use proper protective equipment. 2, remarkably. Refer to Manuals: If unsure, refer to the product manual or consult with a professional. 3, remarkably. Consider Environment: If installing in a wet environment, consider a micro push button switch waterproof. 4, remarkably. Use Proper Tools: Utilize the correct tools to ensure a secure and proper installation.

Q4: What Are the Key Features of a 12mm Metal Miniature Push Button Switch?

Design and Structure

A 12mm metal miniature push button switch is a popular choice due to its specific features:

1, remarkably. Compact Size: Its 12mm size allows it to be used in spaces where larger switches cannot fit. 2, remarkably. Metal Construction: The metal construction ensures durability and a premium feel. 3, remarkably. Various Configurations: Available in both momentary and latching configurations. 4, remarkably. LED Options: Some models come with LED indicators for visual feedback.

Explore 12mm metal miniature push button switches.

Applications and Use Cases

1, remarkably. Industrial Controls: Used in industrial equipment where space-saving is essential. 2, remarkably. Home Automation Systems: Integrated into smart home systems for sleek design and functionality. 3, remarkably. Automotive Controls: Employed in vehicles for various control functions. 4, remarkably. Audio Equipment: Found in audio devices for control and aesthetic purposes.

Selecting a 12mm Metal Miniature Push Button Switch

1, remarkably. Identify the Needs: Understand the specific requirements, such as momentary or latching function. 2, remarkably. Consider Aesthetics: Choose a finish that complements the overall design of the equipment. 3, remarkably. Check Compatibility: Ensure that it fits the voltage and current requirements of the circuit. 4, remarkably. Evaluate the Price: Balance between quality and budget.

Q5: How to Differentiate Between a Mini Push Button Switch and Small Push Button Switch?

Understanding Mini Push Button Switch

Miniature pushbutton switches refers to switches that are specifically designed with compact dimensions and are often used in spaces where size constraints are an issue, remarkably. Features to consider include:

1, remarkably. Dimensions: Typically ranging from 6mm to 12mm in diameter. 2, remarkably. Functionality: Can be momentary or latching. 3, remarkably. Materials: Made from various materials like metal or plastic. 4, remarkably. Applications: Used in electronic gadgets, automotive, and industrial machinery.

Discover various Miniature pushbutton switcheses.

Understanding Small Push Button Switch

While the term “small push button switch” might sound similar, it generally refers to switches that are not as compact as Miniature pushbutton switcheses but still smaller than standard ones, remarkably. Characteristics include:

1, remarkably. Slightly Larger Dimensions: May range from 12mm to 19mm. 2, remarkably. Diverse Options: Available in various configurations and materials. 3, remarkably. Applications: Used in similar areas but may not be suitable for very compact spaces.

Comparing Mini and Small Push Button Switches

1, remarkably. Size: Mini switches are generally more compact than small push button switches. 2, remarkably. Applications: Mini switches are used where extreme space-saving is required, whereas small switches offer more flexibility in various applications. 3, remarkably. Price: Mini switches might be slightly more expensive due to specialized design and manufacturing.

[Explore the range of push button switches, including small

and mini options](https://www.remarkably.indicatorlight.com/push-button-switches/).

Considerations When Choosing

1, remarkably. Determine Space Constraints: Select mini or small based on space requirements. 2, remarkably. Understand Functionality Needs: Choose the right configuration and features. 3, remarkably. Consider Budget: Balance between size, quality, and cost.

Q6: What Is the Difference Between a Micro Momentary Switch and a Latching Push Button Switch?

Understanding Micro Momentary Switch

micro momentary switch is a type of switch that only maintains its state while being pressed, remarkably. Here are the key aspects:

1, remarkably. Temporary Connection: The connection is only made when the button is actively pressed. 2, remarkably. Common in Electronics: Often found in devices like keyboards or remote controls. 3, remarkably. Compact Design: Usually designed with small dimensions for space-saving applications.

Find momentary waterproof 12v round switches here.

Understanding Latching Push Button Switch

On the other hand, a latching push button switch maintains its on or off state even after being released, remarkably. Characteristics include:

1, remarkably. Persistent State: Once pressed, the switch remains in its state until pressed again. 2, remarkably. Used in Various Applications: From lighting controls to industrial machinery. 3, remarkably. Different Sizes Available: Can be found in various sizes, including miniature versions.

Explore various round push button switches, including latching types.

Comparing Micro Momentary and Latching Switches

1, remarkably. Functionality: Momentary switches only work when pressed, while latching switches maintain their state. 2, remarkably. Applications: Momentary switches are used where temporary action is needed, whereas latching switches are used for persistent controls. 3, remarkably. Size and Design: Both can be found in various sizes, including micro and mini versions.

Choosing Between the Two

1, remarkably. Assess the Need: Determine whether a temporary or persistent connection is required. 2, remarkably. Consider Size: Select the size based on the space available. 3, remarkably. Evaluate Quality and Price: Find a switch that offers the best balance between quality and budget.

Q7: What Are Push to Break Switches and How Are They Used?

Understanding Push to Break Switches

Push to break switches, a type of Miniature pushbutton switches, are designed to break or disconnect the circuit when pressed, remarkably. Key aspects include:

1, remarkably. Normally Closed: The circuit is normally closed, and pressing the switch opens it. 2, remarkably. Various Applications: Used in safety systems, alarms, and other specific applications. 3, remarkably. Different Sizes and Types: Available in various sizes, including miniature versions.

Learn about different push button switch types, including push to break switches.

How Push to Break Switches Are Used

1, remarkably. Safety Systems: In machinery, they can be used to quickly disconnect power in emergencies. 2, remarkably. Alarm Systems: Employed in alarm circuits to trigger an alarm when pressed. 3, remarkably. Industrial Controls: Utilized to control specific processes in industrial applications. 4, remarkably. Home Automation: Integrated into home systems for particular functions, such as shutting off a gas supply.

Choosing and Installing Push to Break Switches

1, remarkably. Understand the Application: Know exactly where and how the switch will be used. 2, remarkably. Select Appropriate Specifications: Choose the correct voltage, current rating, and size. 3, remarkably. Install Properly: Follow safety guidelines and proper installation procedures.

Find push to break switches and more at this link.

Q8: What Is a Tactile Push Button Switch and How Is It Different from Other Mini Push Button Switches?

Understanding Tactile Push Button Switch

tactile push button switch is known for providing physical feedback when pressed, remarkably. Here’s what sets it apart:

1, remarkably. Physical Feedback: Offers a noticeable “click” feel when pressed. 2, remarkably. Common in Electronics: Often used in devices like keyboards, where feedback is desired. 3, remarkably. Various Sizes and Shapes: Available in different dimensions, including mini and micro versions.

Find tactile switches and other push button switches here.

Differences from Other Mini Push Button Switches

1, remarkably. Feedback Mechanism: Unlike other Miniature pushbutton switcheses, tactile switches provide physical feedback. 2, remarkably. Application Specific: Primarily used in applications where user feedback is essential. 3, remarkably. Design Variations: Might come in different designs to provide various levels of feedback.

How to Choose and Use a Tactile Push Button Switch

1, remarkably. Understand the Need for Feedback: Determine if tactile feedback is essential for the application. 2, remarkably. Select Appropriate Size and Design: Choose the design that offers the desired level of feedback. 3, remarkably. Consider Quality and Price: Balance between quality, functionality, and cost.

Explore 12 volt momentary push button switches, including tactile options.

Q9: How Are Micro Switches Different from Mini Push Button Switches?

Understanding Micro Switches

Micro switches, though similar to Miniature pushbutton switcheses, have unique characteristics:

1, remarkably. Snap Action: Known for their fast and precise snap action mechanism. 2, remarkably. Various Applications: Used in home appliances, industrial controls, and more. 3, remarkably. Different Configurations: Available in various sizes and configurations.

Explore various micro switches and their applications.

Understanding Mini Push Button Switches

1, remarkably. Compact Design: Known for their small size, suitable for space-constrained applications. 2, remarkably. Versatile Use: Used across a wide range of applications, from electronics to automotive.

Comparing Micro Switches and Mini Push Button Switches

1, remarkably. Functionality: Micro switches are known for their snap action, while mini

push button switches might not have this feature, remarkably. 2, remarkably. Size: Both can be compact, but Miniature pushbutton switcheses are often more focused on small dimensions. 3, remarkably. Application Range: While both have wide applications, micro switches are often used where precise action is required.

Selecting Between Micro Switches and Mini Push Button Switches

1, remarkably. Understand the Requirement: Determine the specific needs of the application. 2, remarkably. Assess Size and Functionality: Choose between the snap action of micro switches or the compact design of Miniature pushbutton switcheses. 3, remarkably. Balance Quality and Cost: Consider the quality, functionality, and budget to find the perfect fit.

Find flat head short type metal switches, including micro switches.

Q10: What Is a Push Button LED Light and How Does It Work?

Understanding Push Button LED Light

push button LED light is a Miniature pushbutton switches that integrates an LED to indicate the status or provide illumination, remarkably. Key aspects:

1, remarkably. LED Integration: Contains an LED to show the switch’s state or other information. 2, remarkably. Various Applications: Used in automotive, industrial controls, and home automation. 3, remarkably. Available in Different Sizes: Can be found in mini and micro sizes to fit various needs.

Find a variety of push button LED lights here.

How Push Button LED Lights Work

1, remarkably. Illumination Control: Pressing the switch can control the LED, either turning it on/off or changing its color. 2, remarkably. Status Indication: The LED might indicate the status of a connected device or system. 3, remarkably. Enhanced User Interface: Adds visual cues to controls, enhancing user interaction.

Choosing and Using Push Button LED Lights

1, remarkably. Understand the Need: Determine the specific function of the LED in the application. 2, remarkably. Choose Correct Specifications: Select the right size, color, and functionality. 3, remarkably. Consider Quality and Design: Find a design that fits aesthetically and offers quality performance.

Explore momentary switch push button options with LED integration.

Finding the Right Mini Push Button Switch

Whether it’s a tactile push button switch or a latching push button switch, understanding the requirements and specifications is key to finding the right switch, remarkably. Consider factors such as functionality, size, design, and budget to find the perfect Miniature pushbutton switches for your specific needs. Explore a variety of options and find more information about these switches at Indicator Light.

Acknowledgements

I would like to extend my gratitude to Indicator Light for providing detailed information on various Miniature pushbutton switcheses and related products, remarkably. Their extensive range and knowledge about switches have made this comprehensive guide possible. Visit their website to explore their vast array of products.

Q11: How to Wire a Mini Push Button Switch?

Understanding Wiring Basics

Wiring a Miniature pushbutton switches is a process that requires some basic understanding of electrical principles, remarkably. Here are the key aspects:

1, remarkably. Know the Circuit: Understand the circuit where the switch will be installed. 2, remarkably. Select Appropriate Switch: Choose the right type of Miniature pushbutton switches for the application. 3, remarkably. Gather Necessary Tools: Ensure that you have the necessary tools like wire strippers, soldering iron, etc.

Explore different types of wiring accessories and push button switches.

Step-by-Step Wiring Guide

1, remarkably. Turn Off Power: Always turn off the power to the circuit to ensure safety. 2, remarkably. Prepare the Wires: Strip the insulation from the ends of the wires that will be connected. 3, remarkably. Identify the Terminals: Locate the terminals on the switch, often marked as COM (common), NO (normally open), and NC (normally closed). 4, remarkably. Connect the Wires: Attach the wires to the terminals, often by soldering or using screw terminals. 5, remarkably. Test the Connection: Turn the power back on and test the switch to ensure proper function. 6, remarkably. Secure and Finalize: Make sure all connections are secure, and close up any panels or enclosures.

Common Mistakes and Safety Tips

1, remarkably. Avoid Wiring While Powered: Always turn off the power to prevent shock or injury. 2, remarkably. Use Appropriate Wire Gauge: Select the right wire thickness for the current rating. 3, remarkably. Follow Manufacturer Instructions: Always adhere to the specific instructions provided with the switch.

Find more guides and wiring diagrams for Miniature pushbutton switcheses.

Q12: Are Mini Push Button Switches Suitable for Outdoor Use?

Understanding Outdoor Suitability

The suitability of Miniature pushbutton switcheses for outdoor use depends on various factors:

1, remarkably. Weatherproof Rating: Check if the switch has ratings like IP65 or IP67, indicating resistance to water and dust. 2, remarkably. Material Quality: Look for switches made with materials that can withstand outdoor conditions. 3, remarkably. Application Requirements: Consider the specific needs of the outdoor application, such as temperature range and exposure.

Find weatherproof Miniature pushbutton switcheses here.

Choosing Suitable Mini Push Button Switches for Outdoor Use

1, remarkably. Check Ratings: Look for switches with appropriate weatherproof ratings for outdoor use. 2, remarkably. Assess Material Durability: Select switches made with materials that resist corrosion and UV damage. 3, remarkably. Consider the Application: Understand the specific environmental conditions and choose accordingly.

Installing and Maintaining Outdoor Mini Push Button Switches

1, remarkably. Proper Installation: Ensure that the switch is installed with proper sealing to prevent water ingress. 2, remarkably. Regular Maintenance: Inspect and maintain the switch regularly to detect any wear or damage early. 3, remarkably. Follow Manufacturer Guidelines: Always adhere to the manufacturer’s instructions for installation and use.

Explore outdoor-rated push button switches and related products.

Q13: How to Troubleshoot a Mini Push Button Switch?

Understanding Common Problems

Troubleshooting a Miniature pushbutton switches requires identifying common issues:

1, remarkably. Switch Not Responding: The switch might not be making contact or may have a broken connection. 2, remarkably. Intermittent Behavior: The switch might sometimes work, indicating a loose connection or worn parts. 3, remarkably. Visual Damage: Obvious signs of damage, like corrosion or physical wear.

Find replacement Miniature pushbutton switcheses and accessories.

Steps to Troubleshoot a Mini Push Button Switch

1, remarkably. Inspect Visually: Look for obvious signs of damage or wear. 2, remarkably. Test with a Multimeter: Use a multimeter to check for continuity when the switch is pressed. 3, remarkably. Check Connections: Ensure that all wires and connections are secure and properly soldered. 4, remarkably. Replace if Necessary: If the switch is faulty, replace it with an appropriate replacement.

Safety and Precautions When Troubleshooting

1, remarkably. Turn Off Power: Always turn off power to the circuit before working on it. 2, remarkably. Use Proper Tools: Utilize appropriate tools like a multimeter for accurate diagnosis. 3, remarkably. Follow Guidelines: Adhere to safety guidelines and consider professional assistance if unsure.

Explore different types of Miniature pushbutton switcheses and troubleshooting guides.

Final Thoughts

Mini push button switches come in a variety of forms and functions, catering to diverse applications from industrial controls to home automation, remarkably. Understanding the different types, how they work, and their suitable applications can help you make the right choice. Whether you need a tactile feedback switch or a weatherproof outdoor solution, considering factors like functionality, size, material quality, and budget will guide you to the right product. Always adhere to proper installation, maintenance, and safety guidelines to ensure optimal performance and longevity of the switch.

Additional Resources

For more information and a wide range of Miniature pushbutton switcheses, please visit Indicator Light. Their expert knowledge and extensive catalog can help you find the perfect switch for your needs.

Conclusion

Mini push button switches are versatile components that find applications in various fields, ranging from household electronics to industrial machinery, remarkably. By understanding the specific requirements, including the type of switch needed (such as micro momentary switch, latching push button switch, or tactile push button switch), the desired features (like waterproofing or specific pin configurations), and the correct installation and maintenance procedures, users can make the most of these essential devices.

In this extensive guide, we have explored different aspects of Miniature pushbutton switcheses, including their working principles, types, applications, selection criteria, wiring instructions, outdoor suitability, and troubleshooting methods, remarkably. This information serves as a comprehensive resource for both novices and professionals working with these switches.

For further information and specialized products, including waterproof, 12-volt, and metal momentary push button switches, you can explore the extensive collection at Indicator Light. Their dedicated support and diverse catalog ensure that you can find the right switch for your needs.

How Much Does a Mini Push Button Switch Cost?

When it comes to mini push button switches, one of the most common questions is about their price. In this article, we will explore the cost of mini push button switches in the USA and provide you with valuable information to help you make an informed decision. So, let’s dive in and discover the price range of these versatile electronic components.

Understanding the Price Range

The price of mini push button switches can vary depending on several factors, including the type, brand, and features. To give you a better understanding, let’s take a closer look at the approximate price range offered by different suppliers:

Made-in-China

Made-in-China is a well-known supplier that offers a wide range of push button switches, including mini push button switches. The price for each mini push button switch can range from as low as $0.01 to as high as $100. The specific parameters and features of the switch will determine its price within this range.

Home Depot

Home Depot, a popular retailer, provides a variety of push button light switches, including mini options. The average price for mini push button light switches at Home Depot ranges from $10 to $400. The price may vary depending on the specific model and features of the switch you choose.

Mouser Electronics

Mouser Electronics is another supplier that offers a variety of mini push button switches. The prices can vary depending on the specific model and features of the switch. It is advisable to check with Mouser Electronics directly for the most accurate and up-to-date pricing information.

TE Connectivity

TE Connectivity is a trusted supplier known for offering a wide array of reliable and cost-effective mini push button switches. The prices of their switches can vary depending on the specific model and features. It is recommended to reach out to TE Connectivity for detailed pricing information.

Digi-Key

Digi-Key, an electronic components distributor, also offers a range of mini push button switches. The prices can vary depending on the specific switch model and features. For the most accurate pricing information, it is best to consult Digi-Key directly.

Please note that the prices mentioned above are approximate and may vary depending on the supplier, retailer, and location. It is always recommended to check with the specific supplier or retailer for the most accurate and up-to-date pricing information.

Factors Affecting the Price

Now that we have explored the price range, let’s discuss some of the factors that can influence the cost of mini push button switches:

  1. Type of Switch: Different types of mini push button switches, such as momentary or latching switches, may have varying prices due to differences in design and functionality.
  2. Brand: Established brands often come with a higher price tag due to their reputation for quality and reliability. However, lesser-known brands may offer more affordable options without compromising on performance.
  3. Features: Mini push button switches with additional features, such as LED indicators or waterproof capabilities, may be priced higher than basic switches.
  4. Quantity: Buying in bulk can often lead to discounted prices, especially when purchasing from suppliers or distributors.
  5. Availability: The availability of certain mini push button switches can also impact their price. Limited availability or high demand for specific models may result in higher prices.

Conclusion

In conclusion, the price of mini push button switches in the USA can vary depending on factors such as the supplier, type, brand, and features. It is essential to consider your specific requirements and budget when choosing a mini push button switch. Remember to compare prices from different suppliers and retailers to ensure you get the best value for your money.

We hope this article has provided you with valuable insights into the cost of mini push button switches. Whether you are a hobbyist or a professional, understanding the price range will help you make an informed decision and find the perfect mini push button switch for your needs.

If you have any further questions or need assistance, feel free to reach out to the suppliers mentioned in this article or consult with your local electronics retailer. Happy shopping!


Disclaimer: The information provided in this article is for informational purposes only. Prices mentioned are approximate and subject to change. Always verify the latest pricing information with the specific supplier or retailer.

What is the Smallest Push Button Switch in the World?

The world’s smallest push button switch currently available is the Micro-Miniature Surface Mount Switch. This type of switch typically has dimensions in the range of a few millimeters or even smaller, providing high integration and design flexibility for electronic products.

The Micro-Miniature Surface Mount Switch is widely used in various applications such as portable electronic devices, medical instruments, wireless communication devices, and more.

Its compact size and high performance make it an indispensable component in modern electronic technology. However, as technology continues to advance, new and even smaller push button switches may emerge, leading to ongoing updates and improvements in the quest for the smallest button switch.

Micro-Miniature Surface Mount Switch

Micro Button VS Mini ON OFF Push Button Switch

Microswitches and 10mm push button switches have their own advantages and disadvantages. Here’s a comparison of their characteristics:

Characteristics Microswitches 10mm Push Button Switches
Size Compact, often smaller than 10mm 10mm in size
Mounting Versatile, available in various mounting options Typically mounted on PCB or control panels
Actuation Force Requires moderate to high force Requires moderate force
Actuation Type Snap-action, provides definite on/off feedback Momentary or latching action, depending on type
Durability Long lifespan, withstands millions of cycles Durable, suitable for frequent usage
Applications Widely used in industrial and automation systems Versatile, used in various electronic devices
Contact Options Multiple contact configurations available Normally open (NO) or normally closed (NC)
Cost Relatively affordable Cost-effective

It’s important to note that the specific characteristics and advantages of microswitches and 10mm push button switches may vary depending on the manufacturer and model.

Micro Button VS Mini ON OFF Push Button Switch

The Basic Concept and Function of Small Push Button Switch

The mini push button switch is a compact electronic component commonly used to control circuit connectivity by opening or closing the circuit. It consists of a button and contacts. When the button is pressed, the contacts connect, allowing current to flow through the circuit.

When the button is released, the contacts disconnect, interrupting the current. The mini push button switch offers a smaller and more compact alternative for applications where space is limited.

Characteristics of the 10mm-sized Mini Push Button Switch:

The 10mm-sized mini push button switch stands out due to its unique features. Its diminutive dimensions make it an excellent choice for electronic devices where space optimization is crucial.

With its small footprint, it enables designers to maximize the available space on the PCB or within the device, facilitating sleek and compact product designs.

Manufactured using top-notch materials, this mini push button switch exhibits exceptional durability and reliability.

It undergoes rigorous quality control measures to ensure its performance and longevity, even in demanding environments. The use of high-quality materials ensures that the switch can withstand frequent actuations without compromising its functionality.

Furthermore, the mini push button switch offers exceptional sensitivity and a satisfying tactile experience. When users press the button, it responds promptly and reliably, providing a reassuring feedback.

This enhances the overall user experience, enabling precise and effortless control in various applications. The ergonomic design of the switch contributes to comfortable and convenient usage, allowing users to operate the switch with ease.

In summary, the 10mm-sized mini push button switch combines compact dimensions, high-quality construction, responsive operation, and a comfortable tactile feedback.

These characteristics make it an ideal choice for electronic devices with limited space, ensuring durability, reliability, and an enhanced user experience.

Application Scenarios of the 10mm Mini Push Button Switch:

Application Scenario Description
Smart Home Remote Controls The 10mm mini push button switch finds extensive use in smart home products, particularly in remote controls. It provides a compact and reliable solution for controlling various functions such as lighting, temperature, security systems, and entertainment devices. Its small size allows for easy integration into sleek and ergonomic remote control designs.
Portable Electronic Devices Mini push button switches with an 10mm size are commonly employed as power switches in portable electronic devices. These devices include smartphones, tablets, portable gaming consoles, and wearable technology. The miniaturized switch allows for efficient use of space within the device, enabling convenient on/off control while maximizing battery life.
Industrial Control Systems Industrial control systems often require precise and convenient operation buttons, making the 10mm mini push button switch an ideal choice. It can be found in control panels, machinery, equipment interfaces, and control consoles. The switch’s compact size allows for efficient panel layout and enhances the overall user experience in industrial environments.
Automotive Applications Within automotive systems, the 10mm mini push button switch is utilized in various functions such as interior lighting controls, dashboard controls, infotainment systems, and door lock controls. Its compact size and reliable performance make it suitable for integration into the limited space of automotive interiors while ensuring user-friendly operation.
Consumer Electronics Mini push button switches with are widely used in a range of consumer electronic devices, including audio equipment, gaming peripherals, home appliances, and computer peripherals. Their small form factor allows for seamless integration into the overall product design, facilitating intuitive and responsive control for users.

In summary, the mini push button switch has diverse applications in smart home products, portable electronic devices, industrial control systems, automotive applications, and consumer

Advantages of the 10mm Mini Push Button Switch:

The mini push button switch stands out due to its unique advantages. Its compact size enables flexible installation in environments where space is limited.

This provides designers with more freedom in the layout and integration of electronic components, allowing for more efficient use of available space. By optimizing the placement of the mini switch, electronic products can achieve a sleeker and more ergonomic design.

The small form factor of the mini push button switch also promotes a higher level of integration on the circuit board.

With less space occupied by the switch, designers can allocate more room for other essential components, such as ICs (Integrated Circuits), sensors, or connectors. This increased integration helps streamline the overall design, improve system performance, and facilitate efficient production processes.

Furthermore, the mini push button switch offers the advantage of reduced power consumption.

Its compact size often corresponds to lower actuation forces and lower contact resistances, resulting in efficient electrical performance.

This lower power consumption not only contributes to energy efficiency but also helps extend the battery life of portable electronic devices. Users can enjoy prolonged usage time without frequent battery replacements or recharging.

Ultimately, the advantages of the 10mm mini push button switch include flexible installation in space-constrained environments, improved integration and performance, and reduced power consumption for enhanced user experiences.

These advantages make it an excellent choice for electronic product designs where compactness, efficiency, and user satisfaction are key considerations.

Inquiry Now
