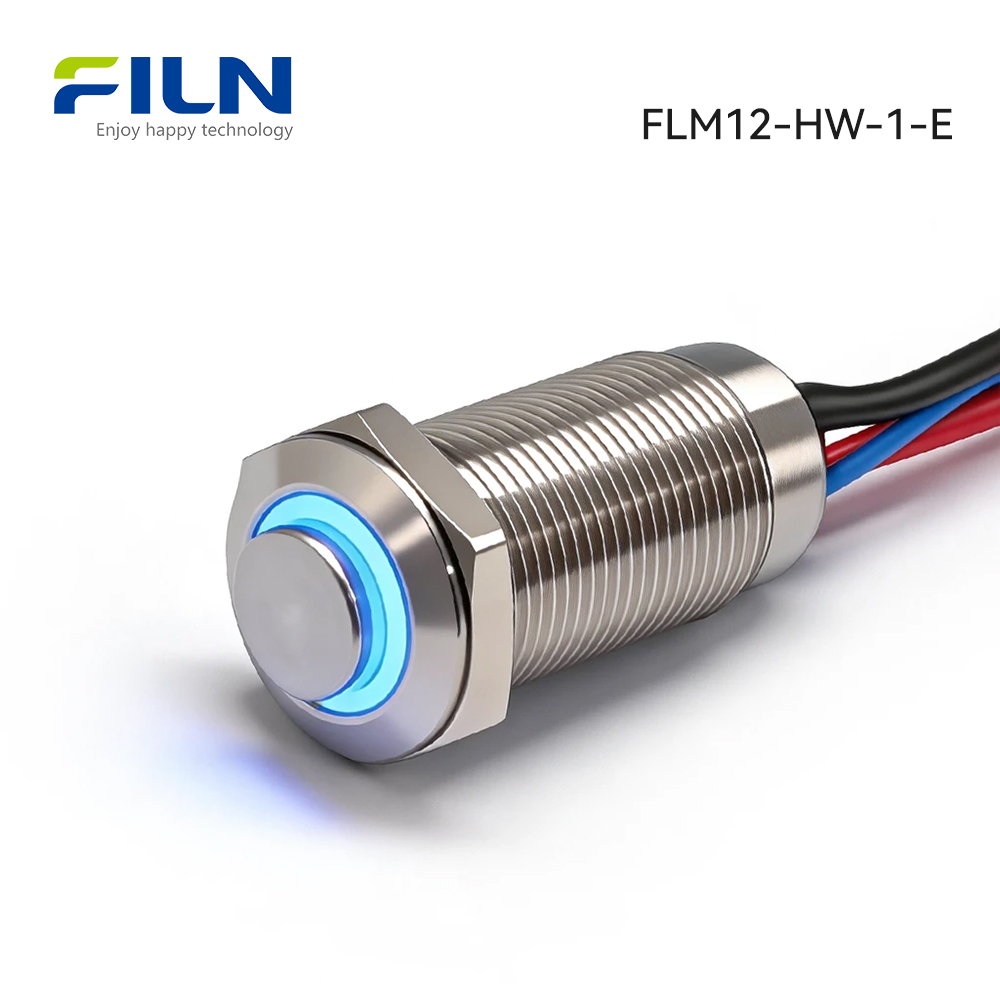

FILN 12MM Blue Momentary Push Button Switch 240V

  • Name:Push Button Switch 240v
  • Mode: FLM12-HW-1-EX000-N10Z4
  • Head Type:Flat Head
  • Voltage: 3V, 6V, 12V, 110V, 220V, 380V
  • Keyword: 220V Push Button Switch
  • Current: 1A
  • Color: red, green, yellow, blue and white
  • Material: Copper, Stainless steel,
  • Download Certification: CE CCC CB ROSH UL
  • Waterproof grade: IP65
  • Wire specification: AGW22
  • Email:
  • Download PDF: FILN 12MM Blue Momentary 220V Push Button Switch

Product drawings


Product Parameters:

Production Series FLM12-10HWEZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color red,blue,green,yellow,white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Push Button Switch Wiring Method:

This product is very simple in wiring. Generally, the product has 4 lines.

2 black lines are for switch lines, 2 other color lines are for light lines, according to your function, you can connect the wire as the following way.

push button switch wiring

The wiring way of the product with 4 lines is the same as the product wireless, it has two wiring ways.

You can save this image and test it.

Related products:

The product through 220 V voltage to control circuit connect or disconnect, we also produce the switches with voltage of 12V, 24V.

The end of the product is with a cord, high head, and the waterproof rating is IP67.

The description of the Filn 12mm blue momentary 220V push button switch.

  • The mounting hole size of the product is 12mm, if you want better waterproof rating when the product is installed on the panel, you need to open the hole size of 12.2mm on the panel, then put the push button switch inside the panel hole, put the waterproof ring on the back of the panel, tighten the copper cap which size is 12mm, by doing this, the product is waterproof.


  • The material of the product is divided into 304 stainless steel, H59 brass, and zinc alloy.
push button switch material
  • The end of the product is with PVC AWG22 cord, the bottom is sealed with epoxy resin, which has the function of waterproof.
  • The waterproof ring accessory of the product is silicone, the screw cap is H59 brass and the base is PA66+GF20% nylon.
  • The light of the product is LED and the service life is 50,000 hours, the switch’s mechanical life is 100,000.
  • The rated voltage of the product is 250V 1A, it can be used on a machine, which power is below 250W.
  • The product has a variety of colors, such as red, green, yellow, blue, white. We can also customize other colors’ light if you need.
  • The cord length of the product is generally 20cm, if you need longer cord, we can produce. Besides, we can also connect various terminals.
  • he product with cord has a waterproof rating of IP68, it can be used completely in the water. Moreover, the product had passed the certifications of UL, CE, ROHS. We can supply you this certifications for your reference if you need.

Firstly, the battery is used as a power supply and connect the LED line with the switch line, then use a wire to connect them to one end of the device. Another switch line is connected to the power and another light line and device’s other lines together connect with the other end of the power.

By this way, the LED will light up when you press the blue push button switch. When release the push button, LED will not be light up.

The device turns on or off when you press the push button. It’s easy to use, of course if you still don’t know much about this, you can also visit our Facebook or YouTube website, then you will find our wiring video, or contact us directly.

We can guide on how to use the product online.

How does the 12mm 220V push button switch work?

The product only has the function of reset, install the switch on the mechanical equipment and then connect the wire, when the power is on, press the push button, the machine starts to operate.

When the hand leaves the push button, it is automatically reset, the machine is power off and stop working.


How to purchase the 220V push button switch?


According to your purchase quantity, we have an online procurement platform, we can also accept customization, or you can email us directly.

Your purchase quantity is small and has no special requirements, we suggest you place order at directly, it is our official online order platform. We accept paypal, credit card and other payment methods.


You can also contact us directly to place an order, we can provide contract, invoice and packing list. We will have some discounts if your purchase quantity is large.

If you need to customize the product or you have some ideas, we are happy to improve and design new product with you, which is very interesting for us.

We also have some products that are improved or developed with customers’ suggestions.


The product of Filn had passed the certifications of UL, CE, ROSH, ISO90001, and has a professional push button switch test laboratory, which can ensure the quality of the push button.

Filn has 11 years of experience in push button switch production, and a professional R& D technology team, which can customize a variety of push button switch according to customer’s demand.

If you have any questions about the product, please contact us immediately, we will give you a satisfactory answer within 24 hours.

Quickly place an order online

Push Button Switch 240v: Comprehensive Guide and Insights

Push button switches 240v are versatile components used in various settings, from home lighting to industrial applications. This article provides a comprehensive guide to understanding the different types of 240v push button switches, how to choose the right one for your needs, wiring instructions, and common troubleshooting solutions. Whether you are looking for energy-efficient options, smart features, or solutions to common problems, this guide will assist you in making an informed decision tailored to your specific requirements. Dive into the details to enhance your space’s functionality and aesthetics with the perfect push button light switch 240v.

What are the Different Types of Push Button Switch 240v?

Push Button Switch 240v is a versatile type of switch widely used in various applications. Let’s explore the different types:

Standard Push Button Switch 240v

These are the most common switches used for general purposes like controlling machinery or lighting. They are often available with different current ratings like 20 amp push button switch or 30 amp push button switch.

Waterproof Push Button Switch 240v

These switches are designed to be water-resistant, making them suitable for outdoor or harsh environments. Learn more about waterproof push button switches at this link.

Momentary Push Button Switch 240v

These switches are only active as long as they are pressed. They are ideal for applications where temporary control is needed, such as a doorbell or a machine’s start-stop functionality.

Latch Metal Push Button Switch with LED 240v

These switches include an LED indicator and are often used in electronic devices to give visual feedback to the user. Discover more about latch metal push buttons with LED at this link.

Mini Push Button Switch On-Off 240v

Miniature switches are small-sized switches used in compact devices. They provide on-off control for various applications. Explore more about these mini switches here.

Emergency Stop Push Button 240v

An essential component in many safety systems, these switches are designed to halt machinery immediately in an emergency. Learn about emergency stop push buttons here.

Big Push Button Switch 240v

These are larger switches used in industrial applications where robust and easily accessible controls are required. Get more information on big push button switches here.

Lighted Push Button Switch 240v

These switches come with a built-in light, often used to indicate the status of a machine or process. You can find more details about lighted push button switches at this link.

How Does a Push Button Switch 240v Work?

Understanding how a push button switch 240v operates helps in selecting the right switch for a particular application. Here’s how it generally works:

Basic Operation

A push button switch 240v is a simple on-off switch that controls the flow of electricity. When pressed, the switch closes the circuit, allowing current to flow. When released, it opens the circuit, stopping the current.

Momentary vs Latching

Momentary push button switches remain in their on or off state only while pressed. Latching switches, on the other hand, remain in the selected position until pressed again.

NC and NO Configuration

NO (Normally Open) configuration means the switch is usually open and closes when pressed. NC (Normally Closed) means the switch is generally closed and opens when pressed. NC NO Flat Momentary Push Button Switch is a combination of both types.

Internal Mechanism

Inside the switch, there’s a spring mechanism that allows it to return to its original position. This mechanism varies among different types like push button light switch or 250VAC 6A push button switch.

Integration with Other Components

Push button switches can be combined with other elements such as LEDs or safety features to create a more complex control system.

Applications in Different Industries

These switches are found in numerous industries, including manufacturing, electronics, automotive, and more. For a comprehensive catalog of push button switches, visit this link.

What are the Specifications and Features of a 240 VAC Pushbutton Switches?

240 VAC Pushbutton Switches are versatile components used in various applications. Here’s what you need to know about their specifications and features:

Voltage Rating

The voltage rating indicates the maximum voltage the switch can handle. For these switches, it’s usually in the range of 220V-240V.

Current Rating

These switches are available in different current ratings, such as 20 amp push button switch or 30 amp push button switch, to match the needs of different applications.


The material of the switch determines its durability and resistance to environmental factors. Common materials include plastic, metal, and rubber.

Mounting Style

Different mounting options are available, like panel mount, PCB mount, etc. Choose the one that fits your application.

Switch Action

The switch action defines how the switch operates, like momentary, maintained, or alternating. Each type has its specific use.


Terminals are the connection points where the wires are attached. They can vary in type and size.

Environmental Ratings

Environmental ratings define the switch’s resistance to factors like water, dust, and temperature. Consider these when selecting a switch for specific environments.

Additional Features

Some switches come with additional features like illumination, safety covers, or specific shapes like head mushroom push button switch. Learn about these specialty switches here.

What are the Advantages of Using a Push Button Switch White 220V-240V:250VAC 6A?

The advantages of using a Push Button Switch White 220V-240V:250VAC 6A are numerous:


These switches can be used in a wide variety of applications, from household to industrial.

Ease of Use

The simple push-button operation makes them user-friendly and easy to operate.


Made with robust materials, these switches are built to last, even in demanding conditions.


These switches are generally affordable, making them a popular choice for many applications.

Availability in Different Ratings

The availability of different current ratings like 20 amp push button switch or 30 amp push button switch allows for customization according to needs.

Integration with Other Features

These switches can be integrated with LEDs, safety features, and other components to create a comprehensive control system.

Aesthetic Options

Push Button Switch White and other color options are available for aesthetic considerations in design.

Customization Options

Many manufacturers offer customization options to match the specific needs of a project.

Compliance with Standards

These switches are often designed to comply with various international standards, ensuring quality and safety.

Eco-Friendly Options

Some manufacturers offer eco-friendly options that adhere to environmental standards.

How to Choose the Right Push Button Switch 240v for Your Application?

Choosing the right push button switch 240v requires understanding the needs of the application and the specifications of the switch. Here’s how to select the right one:

Understand the Application Needs

Identify the voltage, current, and other requirements of the application. Whether you need a 20 amp push button switch, 30 amp push button switch, or a push button light switch, knowing the application’s needs is vital.

Consider the Environment

Choose waterproof or dust-resistant switches if they’ll be used in

harsh environments. Check the environmental ratings.

Check the Specifications

Review the specifications like voltage rating, current rating, material, and switch action to ensure compatibility with the application.

Choose the Right Type

Select the type that fits your application, such as momentary, latching, or a specific variant like head mushroom push button switch. Explore different types at this link.

Consider Additional Features

Look for additional features like illumination or safety covers if needed for the application.

Review Compliance and Standards

Make sure the switch complies with relevant international standards to ensure safety and quality.

Consider Customization Options

If you have specific needs, look for manufacturers that offer customization options.

Consult a Professional

If you’re uncertain, consult a professional or the manufacturer’s support to get the best recommendation for your application.

Consider the Cost

Balance the cost with the features and specifications needed for your application.

Check Availability and Support

Ensure the selected switch is readily available and that the manufacturer provides necessary support and warranty.

How to Install and Maintain a Push Button Switch On-Off 240v?

Installing and maintaining a push button switch on-off 240v is a straightforward process. Here’s a guide:

Read the Manual

Start by reading the manufacturer’s manual for specific instructions and warnings related to the particular switch you are using.

Prepare the Tools

Gather the necessary tools like screwdrivers, wire strippers, etc., depending on the installation method.

Turn Off Power

Before installation, ensure that the power to the circuit is turned off to avoid any electrical shock or accidents.

Connect the Wires

Follow the wiring diagram provided in the manual. Connect the wires to the terminals of the switch. In some cases, soldering may be required.

Mount the Switch

Secure the switch to the desired location using screws or other mounting methods as per the design of the switch.

Test the Installation

Turn on the power and test the switch to ensure proper functioning.

Regular Inspection

Regularly inspect the switch for any signs of wear or damage. Ensure that it’s kept clean and free from dust or other contaminants.

Follow Maintenance Guidelines

Follow the maintenance guidelines provided by the manufacturer to ensure the switch’s longevity and proper functioning.

Consider Professional Installation

If the installation is complex or you are unsure, consider hiring a professional electrician to handle the installation.

Be Mindful of Safety

Always prioritize safety by following proper guidelines and using appropriate safety equipment.

Replacement Considerations

If the switch is damaged or malfunctioning, replace it following the same installation steps, or consult the manufacturer’s support.

What are the Common Problems and Solutions with Push Button Machine Switch 240v?

Push button machine switch 240v is widely used in machinery control. Here’s a look at common problems and solutions:

Switch Not Responding

If the switch is not responding, it might be due to a faulty connection or internal damage. Inspect the wiring and connections or replace the switch if needed.

Intermittent Functioning

This could be caused by loose connections or wear inside the switch. Tighten the connections and consider replacing the switch if the problem persists.

Water or Dust Ingress

If used in harsh environments, water or dust might enter the switch, causing malfunction. Consider using a waterproof or dust-resistant switch like the ones available here.

LED Not Working in Illuminated Switch

If the LED is not working in an illuminated switch, it might be due to a broken LED or incorrect wiring. Check the wiring or replace the LED or switch as required.

Switch Stuck in Position

If the switch is stuck in one position, it may be due to internal wear or damage. Replacing the switch is usually the best solution.


Overheating could be a sign of overloading or incorrect wiring. Check the wiring and ensure that the switch is suitable for the application’s current and voltage requirements.

Noise During Operation

Unusual noise during operation could indicate wear or internal damage. Consider replacing the switch.

Switches Out of Compliance

If the switches are not meeting the required standards or specifications, it might lead to operational issues. Always select switches that comply with international standards.

Difficulty in Mounting or Integration

If you face issues in mounting or integrating the switch, consult the manufacturer’s manual or support for guidance.

Customization Issues

If you need a specific customization that’s not available, consider contacting manufacturers who offer customization options.

Aesthetic Concerns

If the switch’s appearance doesn’t match the design, consider switches with different aesthetic options, like Push Button Switch White or other color variants.

The world of push button electrical switch 240v is continually evolving. Let’s explore some emerging trends and innovations:

Smart Push Button Switches

Integration with smart technology allows for remote control and monitoring via smartphones or other devices.

Eco-Friendly Materials

The use of eco-friendly and recyclable materials reflects a growing trend towards environmental responsibility in manufacturing.

Customizable Designs

Manufacturers are offering more customization options, allowing clients to create switches that match specific requirements.

Enhanced Safety Features

New safety features like lockable covers and advanced emergency stop mechanisms are enhancing user safety.

Integration with IoT and Automation

Push button switches are being integrated with IoT and automation systems, enabling more sophisticated control in various applications.

Touchless and Gesture Control

Innovative touchless and gesture control technologies are being incorporated into push button switches for more hygienic and intuitive operation.

Inclusion of Biometrics

Some switches are now incorporating biometric features for added security and personalized control.

Adaptation for Specialized Industries

Switches are being designed specifically for unique industries like healthcare, aerospace, etc., meeting the stringent requirements of these fields.

Use of Advanced Materials

The use of advanced materials like graphene and specialized alloys is enhancing the durability and performance of the switches.

Global Compliance and Standardization

Manufacturers are increasingly adhering to global standards and compliance, ensuring uniform quality and safety across different regions.

These trends indicate a dynamic and innovative future for push button

switches, continually adapting to meet the changing needs and expectations of users and industries.

What are the Different Types of 240 VAC Pushbutton Switches?

Different types of 240 VAC pushbutton switches are available to meet various application requirements. Here’s an overview:

Momentary Push Button Switches

These switches only maintain contact while being pressed. They are commonly used for temporary actions like starting a machine.

Latching Push Button Switches

Latching switches maintain their position even after being released, making them suitable for applications requiring maintained contact.

Illuminated Push Button Switches

Illuminated switches have built-in lights to indicate the switch’s status or add visual appeal. Explore lighted push button switches here.

Waterproof Push Button Switches

These switches are designed to resist water and moisture, ideal for outdoor or wet environments.

Emergency Stop Push Button Switches

Also known as E-stop switches, they provide a quick way to stop machinery in emergencies. Check out different options here.

Industrial Grade Push Button Switches

These are designed for heavy-duty industrial applications, offering robust construction and reliability.

Miniature Push Button Switches

Miniature switches are used in applications with space constraints. Find various miniature options here.

Specialized Switches

These include switches specifically designed for unique applications like medical devices, aerospace, or other specialized fields.

The choice of the type should be based on the specific application’s requirements, considering factors like functionality, environment, and aesthetics.

What are the Factors to Consider While Selecting a 30 Amp Push Button Switch 240v?

When selecting a 30 amp push button switch 240v, consider the following factors to ensure suitability for your application:

Check the Current Rating

The switch must be rated for at least 30 amps to handle the required current without overheating or failure.

Consider the Voltage Rating

Ensure that the switch is rated for 240v to match the voltage in your application. Inappropriate voltage rating can lead to malfunction or damage.

Evaluate the Application Environment

Consider the environmental conditions such as temperature, humidity, and potential exposure to water or dust.

Choose the Right Action

Select between momentary or latching action based on the desired functionality.

Consider Additional Features

Look for features like illumination, waterproofing, or specific design elements that may be necessary for your application.

Ensure Compliance with Standards

Ensure that the switch complies with relevant safety and quality standards for reliable performance.

Consider the Mounting Method

Select a switch with the appropriate mounting method for your application, whether panel mounting, surface mounting, etc.

Review the Manufacturer’s Reputation

Choose a reputable manufacturer that provides quality products and support. You can explore various options here.

Balance Cost and Quality

Consider the balance between cost and quality, selecting a switch that meets your requirements without exceeding the budget.

By carefully considering these factors, you can select a 30 amp push button switch 240v that fits your application perfectly.

What is the Difference Between 20 Amp Push Button Switch 240v and 30 Amp Push Button Switch 240v?

Understanding the difference between a 20 amp push button switch 240v and a 30 amp push button switch 240v is vital for selecting the right switch for your application. Here’s a comparison:

Current Rating

  • 20 Amp: Suitable for applications requiring up to 20 amps of current.
  • 30 Amp: Can handle up to 30 amps, suitable for higher current applications.

Physical Size

  • 20 Amp: Typically smaller and lighter, suitable for applications with space constraints.
  • 30 Amp: May be larger to handle the higher current, requiring more space.

Application Suitability

  • 20 Amp: Ideal for lighter loads like smaller machinery, lighting, etc.
  • 30 Amp: Suitable for heavier loads like large motors, heating elements, etc.


  • 20 Amp: Generally more affordable due to lower current rating.
  • 30 Amp: May be more expensive due to the higher current capacity.

Availability of Additional Features

  • 20 Amp: May have a wider variety of aesthetic options due to its common usage in residential and light commercial applications.
  • 30 Amp: May focus more on robustness and functionality, targeting industrial or heavy-duty applications.

Safety Considerations

  • 20 Amp: Adequate for circuits that require up to 20 amps.
  • 30 Amp: Essential for circuits requiring 30 amps, as using a 20 amp switch in a 30 amp circuit could lead to overheating and failure.

It’s essential to select the switch based on the specific current requirements of your application, considering not only the current rating but also factors like size, price, and intended use.

How Can I Differentiate Between NC NO Flat Momentary Push Button Switch 240v?

Differentiating between NC (Normally Closed) and NO (Normally Open) flat momentary push button switch 240v is crucial for proper application. Here’s how to differentiate:

Understanding NC and NO

  • NC (Normally Closed): The circuit is closed when the button is not pressed, allowing current to flow. Pressing the button opens the circuit.
  • NO (Normally Open): The circuit is open when the button is not pressed, stopping the current flow. Pressing the button closes the circuit, allowing current to flow.

Check the Labeling

Most switches are labeled with “NC” or “NO” to indicate their type. Check the labeling on the switch body or packaging.

Consult the Specifications

Refer to the product specifications or datasheet to determine whether the switch is NC or NO.

Visual Inspection

Some switches may have visual indicators like color coding to differentiate between NC and NO.

Functional Testing

You can also test the switch with a multimeter. An NC switch will show continuity when not pressed, while an NO switch will show continuity when pressed.

Consult the Manufacturer’s Support

If in doubt, consult the manufacturer’s support or a professional electrician to ensure proper identification.

Understanding the difference between NC and NO is essential for correct application, as they provide opposite functions and can affect the operation of the controlled device.

How to Select the Best Push Button Light Switch 240v?

Selecting the best push button light switch 240v requires considering various factors to find the perfect match for your application. Here’s a guide:

Determine the Type of Light Control

Choose between dimmable, non-dimmable, smart control, or other specific control types based on your needs.

Consider Aesthetic Preferences

Select the design, color, and finish that match your décor. You can find different aesthetic options here.

Check Compatibility with Bulbs

Ensure that the switch is compatible with the type of bulbs you are using, such as LED, incandescent, etc.

Review the Current and Voltage Ratings

Make sure the switch can handle the current and voltage requirements of your

lighting system.

Evaluate the Installation Method

Choose a switch that fits the installation method in your space, whether in-wall, surface-mounted, or other.

Consider Smart Features

If desired, look for smart features like remote control, scheduling, or integration with smart home systems.

Ensure Safety and Quality Standards Compliance

Choose a switch that meets safety and quality standards like UL, CE, or other relevant certifications.

Balance Cost and Quality

Select a quality switch that fits your budget, considering both upfront costs and potential energy savings for energy-efficient options.

Consult Reviews and Recommendations

Reading reviews and seeking recommendations can provide insights into the real-world performance and reliability of various options.

By taking these factors into account, you can select the best push button light switch 240v that meets your requirements and enhances your space’s functionality and aesthetics.

How to Wire a 240v Push Button Switch?

Wiring a 240v push button switch requires careful consideration of safety and proper procedures. Here’s a step-by-step guide, but always consult a professional electrician or the manufacturer’s instructions for specific guidance.

Gather the Necessary Tools and Materials

You will need wire strippers, a screwdriver, electrical tape, wire connectors, and appropriate wiring.

Turn Off the Power

Always turn off the power at the breaker to ensure safety before working on electrical connections.

Identify the Wires

Typically, a 240v push button switch will have a live wire (usually red or black), a neutral wire (usually white), and a ground wire (usually green or bare). Follow the specific wiring diagram provided with the switch.

Prepare the Wires

Strip the insulation from the wire ends, exposing about 1/2 inch of the conductors.

Connect the Live Wire

Connect the live wire to the terminal marked “L” or according to the switch’s wiring diagram.

Connect the Load Wire

Connect the wire leading to the controlled device to the terminal marked for the load.

Connect the Neutral and Ground Wires if Required

Some switches may require connections to the neutral and ground wires. Follow the specific instructions provided.

Secure the Connections

Use wire connectors and electrical tape to securely insulate and protect the connections.

Mount the Switch

Place the switch in its mounting location and secure it with the provided screws or mounting hardware.

Restore Power and Test

Turn the power back on and test the switch to ensure proper operation.

Always follow the specific wiring instructions provided with the switch and consider consulting a professional electrician to ensure safety and compliance with local codes and regulations.

What are the Common Problems and Solutions of Push Button Switches 240v?

Push button switches 240v can encounter problems that may affect their performance. Here’s an overview of common problems and solutions:

Switch Does Not Respond or Operate Correctly

  • Problem: The switch does not respond or operates erratically.
  • Solution: Check for loose or damaged wiring, replace any faulty components, and ensure proper installation.


  • Problem: The switch becomes hot to the touch or shows signs of overheating.
  • Solution: Ensure the switch’s current and voltage ratings match the application, and check for loose connections or other issues that may cause overheating.

Intermittent Operation

  • Problem: The switch operates inconsistently or fails intermittently.
  • Solution: Inspect for wear, damage, or contamination within the switch and consider replacement if needed.

Illumination Problems (for Illuminated Switches)

  • Problem: The switch’s illumination does not work or is inconsistent.
  • Solution: Check the bulb or LED, wiring, and connections for issues, and replace any faulty components.

Water or Moisture Damage (for Outdoor or Wet Locations)

  • Problem: Water or moisture causes malfunction or damage.
  • Solution: Use waterproof or moisture-resistant switches, and ensure proper sealing and installation.

Mechanical Failure or Wear

  • Problem: Mechanical parts become worn, stuck, or broken.
  • Solution: Inspect for physical damage and replace the switch if necessary, considering a more robust option if wear is an ongoing issue.

Noise or Arcing

  • Problem: The switch makes unusual noises or shows signs of arcing.
  • Solution: Ensure proper wiring and connections, check for wear or damage, and replace if necessary.

Regular inspection, maintenance, and prompt attention to any issues can help prevent or resolve common problems, ensuring the reliable and safe operation of push button switches 240v.


Push button switches 240v play a vital role in various applications, from lighting control to industrial machinery. Understanding the different types, proper selection, wiring, and troubleshooting can ensure optimal performance and safety. By considering factors like current rating, voltage, aesthetics, environmental conditions, and additional features, you can find the perfect switch for your specific needs. Regular maintenance and awareness of common problems can also contribute to the longevity and reliability of these essential devices. Whether you need a simple light control or a specialized industrial switch, the information provided in this article can guide you in making an informed decision.

Inquiry Now
