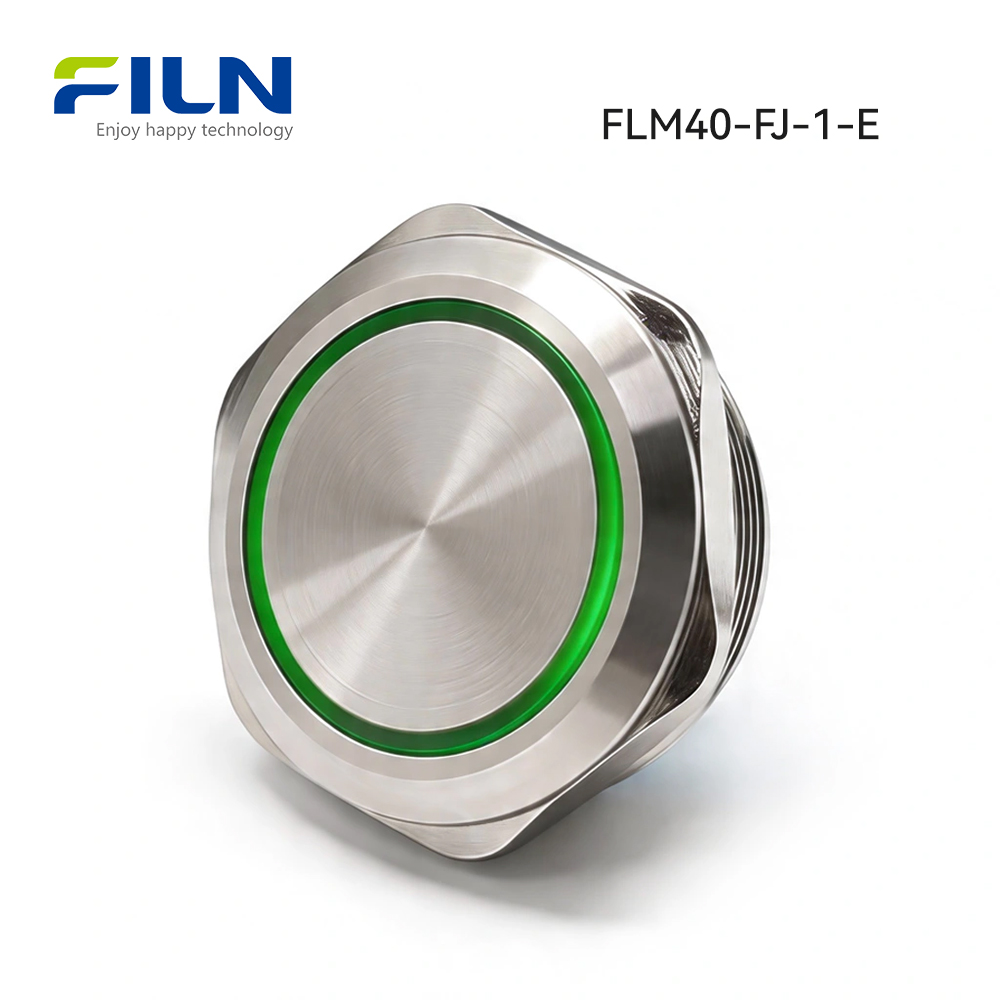

Big Push Button Switch Metal/Plastic For Customized Production

big push button switch

Product Drawings:

A big push button switch, also known as a large push button switch, usually refers to a larger sized push button switch device. Depending on the material, they can be categorized into metal big push button switches and plastic big push button switches.

FILN provides various sizes of push button switches, the smallest button is 8MM, which is suitable for small equipment, usually the equipment is usually selected 16MM or 19MM, large plastic buttons can be used in arcade machines, the largest button size is 98MM, this type of button is also known as the arcade button.

Product Parameters:

Production Series FLM40-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Push Button Switch Wiring Method:

Big Push Button Switch Metal/Plastic For Customized Production

1. The switch is locked, the light is on and the device starts. The switch reset, the light is off and the device is closed.

Big Push Button Switch Metal/Plastic For Customized Production

2. The switch is locked, the light is off and the device starts. The switch is reset, the light is on and the device is off.

Big Push Button Switch Metal/Plastic For Customized Production

3. The switch is locked, the device starts. The switch is reset, the device is closed and the light is on.

Related products:

FILN has included a table outlining the differences between metal pushbutton switches and plastic pushbutton switches:

Feature Metal Button Switch Plastic Button Switch
Material Typically metal Typically plastic
Appearance Sleek and metallic Lightweight and plastic-like
Durability High durability Moderate durability
Resistance to Wear Resistant to scratches and wear Prone to scratches and wear
Operating Force Generally requires more force to press Requires less force to press
Aesthetics Often considered more aesthetically appealing Wide range of styles and colors available
Heat Resistance Excellent heat resistance Moderate heat resistance
Corrosion Resistance Highly resistant to corrosion May be susceptible to corrosion
Cost Generally more expensive Relatively affordable
Applications Industrial equipment, heavy-duty applications Consumer electronics, appliances, general purpose

Note: These characteristics in the table are comparisons of conventional pushbutton switches; specific product designs and parameters may vary depending on the manufacturer.

40mm12V Large Pushbutton Switch Introduction

The biggest advantage is that the product size is big, especially on relatively large device. A small size push button switch is not easy to operate, so a large button is needed. Here is the detailed introduction.

The mounting hole size of the product is 40mm, and the head diameter is 45mm, the diameter of the key cross-section is 33.5mm. So the product greatly increases the area of the operating surface. It is even easier to use.

In addition to the size of 40mm, we can produce the product, which size is 12mm, 19mm, 22mm, 25mm, 28mm, 30mm.

The product’s sleeve shell material is 304 stainless steel, which has high corrosion resistance. It is suitable for using in harsh environment without rapid rust. The material for the sleeve also includes brass nickel-plated and black zinc aluminum alloy.

However, these two are not the materials commonly used for large size product. If customer want to this two types material, we need to customize and the delivery time will be long.

The shell of the brass nickel-plated product looks brighter, which is cost-effective. The black zinc aluminum alloy is suitable for appliances requiring black buttons.

push button switch material

The product’s functions are mainly divided into 4 types, such as 1NO, 2NO, 1NO1NC, 2NO2NC. The big push button switch’s functions are 1NO1NC and 2NO2NC.

The product has two functions of self-lock and self-reset. Self-lock means that press down the key, it do not return automatically. Need to press again to return.

Self-reset means that press down the key, release your hand, the key will return automatically.

 19mm Push Button Lamp Switch

The product can be produced with lights or without lights. Among which the LED lights with lights, monochrome color has red, yellow, blue, green, white.

Two-color has red and green, red and yellow etc. Three-color has red and green and blue, red and yellow and blue.

The function of two colors and three colors is divided into common cathode and anode. Common cathode means that the public light pin is connected to the device’s negative pole. Common anode means that the public light pin is connected to the power’s positive pole.

You can choose a common cathode and common anode according to your demand. In addition, You can also install two or three light beads inside the push button, which can form a two-color or three-color effect.

In this case, don’t need to distinguish between the common cathode and common anode, you can connect the light wire at your will.

The waterproof rating of the product is IP65, besides, our push button series had passed the certifications of UL, RoSH, CE.

How does the Big PushButton Switch Work?

The product is usually used to control circuits on or off, it is a low voltage appliance in power drag, and is a widely used master appliance. In an electrical automatic control circuit, send out the control signals manually to the control contractor, relay, electromagnetic starter, etc.

Its characteristic is that most of the machines and instruments installed in the work are in the initial free state position, only converted to the second state under the action of the external force. Once the external force is removed, the switch will return to the initial position.

Get Free Samples of Large Pushbutton Switches:



According to your purchase quantity and requirement, we have an offline single page, and also accept customize. You can email us directly.



Your quantity is not large and has no special requirement, we suggest you place order online at www.cnfiln.com, this is our official online ordering platform, which support the payment methods such as PayPal, credit card, etc.

Online-e-commerce

You can also contact us directly and place order, we can provide formal contract, invoice and packing list, etc. If your quantity is large, we will have some discount.

If you need to customization or have some ideas, we are happy to improve or design new products with you, which is very interesting for us.

We also have some products that are improved or developed through some suggestions and ideas from customers.

filn sales-team
certificate

The product of Filn had passed the certifications of UL, CE, ROSH, ISO90001. It also has a professional push button switch laboratory, which can ensure the quality of the product.

Filn has 11 years of experience in push button producing, it also has a professional R&D team and can customize various types of push button switch according to your requirement.

If you have any questions about the big push button switch, please contact us immediately, we will give you a satisfactory reply within 24 hours, our email address is sales2@filn.com.cn.

Everything You Need to Know About Big Push Buttons: A Comprehensive Guide

Big push buttons are an essential component in various industries, gaming consoles, emergency systems, and even artistic installations. This comprehensive guide explores everything you need to know about big push buttons, including their types, applications, installation methods, customization options, safety considerations, troubleshooting, evolution, and creative uses in DIY projects. Whether you’re an industry professional, a gaming enthusiast, or a curious hobbyist, this article will provide you with valuable insights and ideas to leverage these fascinating devices. Dive in to discover the endless possibilities and innovations that big push buttons offer, and find out how they’ve become more than just switches in the world of technology and design.

What Are Big Push Buttons and How Are They Used?

Big push buttons are large, prominent switches used to control machinery, emergency systems, arcade games, and various other applications. These buttons come in different sizes and configurations and can be found in both industrial and commercial settings.

Understanding the Design and Functionality

Big push buttons are designed for easy access and visibility, often used in emergency situations. They are robust, reliable, and can be customized to fit specific needs. The 40mm push button switch is a common example found in various systems.

Usage in Industrial Environments

In industrial settings, big push buttons, including emergency stop buttons, are used to control machinery and equipment. They provide a convenient and quick way to shut down a system in case of an emergency. Check out this link for more on emergency stop buttons.

Application in Arcade Games

Big push buttons are also popular in arcade games, where they provide tactile feedback and a fun experience for the players. They come in various colors and shapes, like the massive arcade button and round arcade button.

What Types of Big Push Buttons Are Available?

There are several types of big push buttons available in the market, each serving different purposes.

Big Dome Push Button Arduino

Big dome push button Arduino is a large button often used in DIY projects and electronic applications. It can be integrated with Arduino boards to create interactive devices. The big push button switch is one example of this type.

Sparkfun Big Dome Push Button

Sparkfun’s big dome push buttons are widely used in educational projects and hobbyist creations. They are known for their quality and ease of use, suitable for both beginners and experts.

Large Arcade Buttons

Large arcade buttons are used in gaming machines and provide a nostalgic feel. They are available in different sizes, such as the 60mm arcade button, and can be customized to fit any arcade machine.

Momentary Push Button Switch

The momentary push button switch is a type of button that only activates while being pressed. It’s commonly used in various applications, including automotive and industrial control systems. Check out momentary waterproof 12v round switches for more details.

How to Choose the Right Big Push Button?

Choosing the right big push button depends on various factors, including the application, design preferences, and budget.

Considering the Application

Understanding the specific application where the button will be used is crucial. For example, if you need a button for an emergency system, you might want to consider the emergency stop buttons.

Evaluating the Design

The design of the button, including its size, shape, and color, should align with the overall aesthetics of the system. For example, if you’re building an arcade machine, you might prefer colorful game machine buttons.

Assessing the Budget

Budget plays a vital role in choosing the right big push button. While there are premium options available, affordable yet quality buttons can also be found, such as 28mm push button switches.

How to Install Big Push Buttons?

Installation of big push buttons may vary depending on the type and application. However, some general guidelines can be followed.

Preparing the Surface

Before installing the button, ensure that the surface is clean and suitable for mounting. You may need specific tools and accessories depending on the type of button, such as custom automotive push button switches.

Connecting the Wires

Properly connecting the wires to the button ensures that it functions correctly. Depending on the type of button, such as the 25mm push button switch, the wiring can be simple or complex.

Testing the Button

After installation, testing the button is essential to ensure its functionality. This might include pressing the button multiple times or using testing equipment for more complex systems.

How to Maintain Big Push Buttons?

Maintaining big push buttons is essential for their longevity and proper functioning. Here are some guidelines.

Regular Cleaning

Keeping the buttons clean is vital, especially in industrial settings. Regular cleaning with appropriate solutions ensures that the buttons remain responsive and free from dust and grime.

Periodic Inspection

A periodic inspection of the buttons helps in detecting any wear or damage early on. This is particularly important for buttons used in safety-critical applications, such as emergency stop buttons.

Replacement of Worn Parts

If any parts of the button are worn or damaged, timely replacement is crucial. Sourcing genuine parts from trusted suppliers, like Indicator Light’s button arcade collection, is recommended.

When looking to purchase big push buttons, considering popular brands and reliable sources is essential.

Some well-known brands in the big push button industry include FILN, which offers products like FILN LED arcade buttons, and others that specialize in various types and designs.

Where to Buy

Big push buttons can be purchased from specialized suppliers, online marketplaces, and local stores. Websites like Indicator Light offer a wide range of options, including triangle arcade buttons and arcade button switches.

What Are Some Unique and Creative Uses of Big Push Buttons?

Big push buttons are not limited to industrial and commercial applications. They can be used creatively in various projects.

Art Installations

Artists often use big push buttons in interactive art installations, allowing viewers to engage with the artwork.

DIY Projects

For DIY enthusiasts, big push buttons offer endless possibilities. From home automation to creating fun toys for kids, the potential applications are vast.

Themed Events

Big push buttons can be used in themed events, such as game shows or parties. They add a fun and interactive element, enhancing the overall experience.

In conclusion, big push buttons are versatile and widely used

components in various fields. Understanding their types, applications, installation, and maintenance can help in making informed decisions. Whether it’s a huge red button for a specific project or a big red button clicker for gaming, the options are endless. Their unique and creative uses further add to their appeal, making them an essential part of modern technology and design.

How to Customize Big Push Buttons for Specific Needs?

Customizing big push buttons allows them to fit into specific applications and designs, enhancing functionality and aesthetics.

Selecting the Right Size

Choosing the right size for your big push button is crucial. Options range from 30mm push button switches to larger ones, depending on the requirement.

Choosing the Color

Colors add visual appeal and can be used to signify different functions. For example, red might be used for emergency stop buttons, while green could indicate a start button.

Adding Labels and Symbols

Labels and symbols provide clear instructions for the users. They can be customized to match the specific function of the button, such as emergency stop, play, or pause.

Incorporating LED Lights

Some big push buttons, like FILN LED arcade buttons, come with integrated LED lights. These lights add visual appeal and can also serve as indicators for the button’s status.

What Safety Considerations Should Be Taken into Account with Big Push Buttons?

Safety is paramount when dealing with big push buttons, especially in industrial applications.

Compliance with Standards

Ensure that the big push buttons comply with relevant safety standards and regulations. This includes certifications, quality assurance, and proper labeling.

Proper Installation

Improper installation of big push buttons can lead to malfunction or accidents. Following the manufacturer’s instructions and consulting professionals if needed is essential.

Regular Maintenance and Inspection

Regular maintenance and inspection help in identifying any potential issues early on. This includes checking for wear and tear, electrical issues, and other potential hazards.

How to Integrate Big Push Buttons with Modern Technology?

Integrating big push buttons with modern technology expands their functionality and allows for more sophisticated control.

Connection with Microcontrollers

Big push buttons can be connected to microcontrollers like Arduino for automation and control. This enables the creation of interactive devices and systems.

Integration with Software

Software integration allows big push buttons to interact with computer programs. This could be used in applications like custom control panels, gaming interfaces, or interactive displays.

Utilizing Wireless Technology

Incorporating wireless technology enables remote control and monitoring of big push buttons. This adds convenience and flexibility in various applications.

How Do Big Push Buttons Compare to Other Types of Buttons?

Big push buttons offer distinct advantages and characteristics compared to other types of buttons.

Visibility and Accessibility

Big push buttons are designed for easy visibility and accessibility. Their large size makes them suitable for applications where quick and clear access is required.

Durability

Due to their robust construction, big push buttons are often more durable than smaller buttons. They can withstand harsh environments, making them suitable for industrial use.

Versatility

The versatility of big push buttons is one of their key strengths. They can be customized and used in various applications, from industrial control systems to creative art installations.

Cost

While big push buttons might be more expensive than standard buttons, their unique features and customization options often justify the cost. Affordable options are also available, catering to different budget needs.

What Are the Environmental Considerations for Big Push Buttons?

Environmental considerations are becoming increasingly important in the selection and use of big push buttons.

Energy Efficiency

Opting for energy-efficient big push buttons helps in reducing energy consumption. Features like LED indicators can be both visually appealing and energy-saving.

Material and Manufacturing

Considering eco-friendly materials and manufacturing processes can reduce the environmental impact of big push buttons. Some manufacturers might offer sustainable options.

Recycling and Disposal

Proper recycling and disposal of big push buttons at the end of their lifecycle minimize waste and contribute to environmental conservation.

In the world of big push buttons, options are abundant, and understanding various aspects like types, installation, maintenance, customization, safety, technology integration, comparison with other buttons, and environmental considerations is essential. Whether it’s for industrial control, gaming, or creative projects, big push buttons offer functionality, aesthetics, and innovation. From the big red button website to specialized suppliers, resources are readily available to explore and choose the right big push buttons for any application.

How to Troubleshoot Common Issues with Big Push Buttons?

Big push buttons are generally reliable, but like all mechanical devices, they may face issues. Here’s how to troubleshoot some common problems.

Button Does Not Respond

If a big push button is not responding, check the wiring connections and ensure they are secure. Inspecting the contacts for any dirt or damage and cleaning or replacing them if necessary can also solve the issue.

Button Sticks When Pressed

A button that sticks when pressed might have a mechanical issue. Lubricating the moving parts or replacing worn components may fix the problem.

LED Indicator Not Working

If the big push button has an LED indicator that’s not working, it might be a problem with the LED itself or its connections. Testing the LED with a multimeter and replacing it if needed should resolve the issue.

Button Generates False Signals

A button that generates false signals might have a sensitivity issue. Adjusting the sensitivity settings, if available, or consulting the manufacturer’s guidelines can help in resolving the problem.

How Have Big Push Buttons Evolved Over Time?

The evolution of big push buttons reflects technological advancements and changing needs.

From Simple to Complex Designs

Big push buttons have evolved from simple mechanical switches to complex designs with integrated technology. Modern buttons may include features like LED indicators, customizable labels, and wireless connectivity.

Integration with Digital Technology

The integration of big push buttons with digital technology has expanded their applications. They can now be used to control software, interact with microcontrollers, and more.

Focus on Aesthetics

Modern big push buttons are not just functional but also aesthetically pleasing. The availability of various colors, shapes, and custom designs has added to their appeal.

Emphasis on Safety and Standards

Over time, the focus on safety and compliance with standards has increased. Modern big push buttons are designed with safety features and adhere to relevant regulations.

How to Experiment with Big Push Buttons in DIY Projects?

Big push buttons offer exciting opportunities for DIY enthusiasts. Here’s how to experiment with them.

Building Custom Control Panels

Big push buttons can be used to build custom control panels for home automation, gaming, or other interactive projects.

Creating Interactive Art

Artists and hobbyists can use big push buttons to create interactive art installations that engage audiences in unique ways.

Designing Themed Gadgets

Themed gadgets like a “big red button” that performs a specific task can be a fun project. It can be used for practical purposes or simply as a novelty item.

Teaching and Education

Big push buttons can be used in educational projects to teach concepts like circuits, programming, and design. They are engaging tools for both students and educators.

Conclusion

Big push buttons are versatile devices with applications ranging from industrial control systems to arcade games and DIY projects. Understanding their types, functionality, customization options, safety considerations, technological integration, and creative uses provides a comprehensive insight into these fascinating components.

Whether it’s troubleshooting common issues, exploring their evolution, or experimenting with them in DIY projects, big push buttons offer endless possibilities. Their combination of functionality, aesthetics, and innovation makes them an essential part of modern technology and design.

From the huge red button for specific projects to the big red button clicker for gaming, options are abundant. Resources like Indicator Light offer a wide range of big push buttons to explore and choose the right ones for any application, ensuring that the right choice is made to suit specific needs and preferences.

The comprehensive guide to big push buttons aims to be a valuable resource for professionals, hobbyists, and anyone interested in these unique devices. With proper understanding and creativity, big push buttons can be more than just switches; they can become integral parts of innovation and design.

Inquiry Now
