Key Takeaways
- Heavy-Duty Metallurgy: Built with premium copper alloy or black zinc-aluminum alloy to prevent physical cracking, oxidation, and structural deformation in high-stress industrial applications.
- Factory-Direct Customization: Sourced directly from the FILN production facility with support for tailored voltage configurations ranging from 3V to 220V AC/DC to match specific control circuit requirements.
- Pre-Wired 2PIN Configuration: Eliminates manual terminal soldering by providing standard 20cm individual line lengths (40cm total length) for rapid, plug-and-play assembly line integration.
- Ingress Protection Rating: Equipped with heavy-duty silicone O-rings and integrated wire potting to achieve certified IP67 dustproof and waterproof sealing for wet environments.
- Global Compliance Standards: Fully compliant and rigorously tested under CE, VDE, RoHS, CCC, and ISO9001 protocols to ensure international compliance for OEM machinery export.

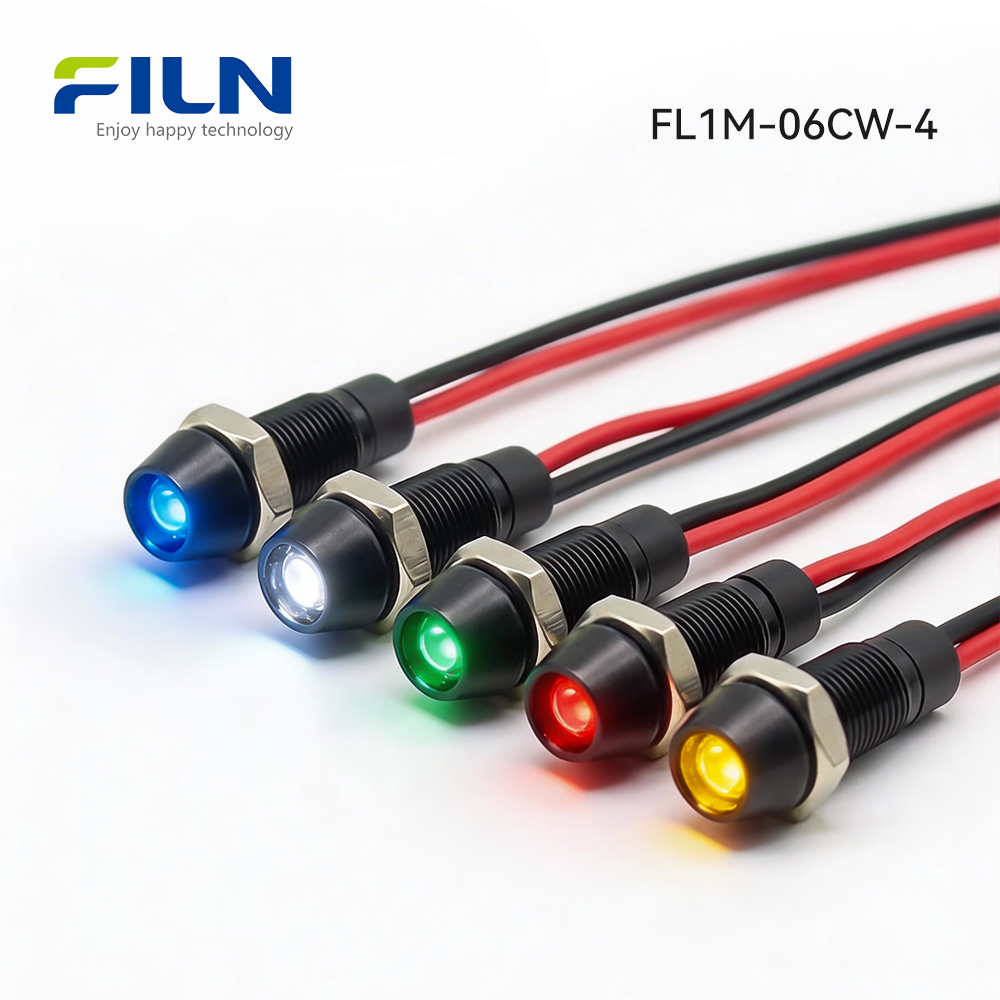

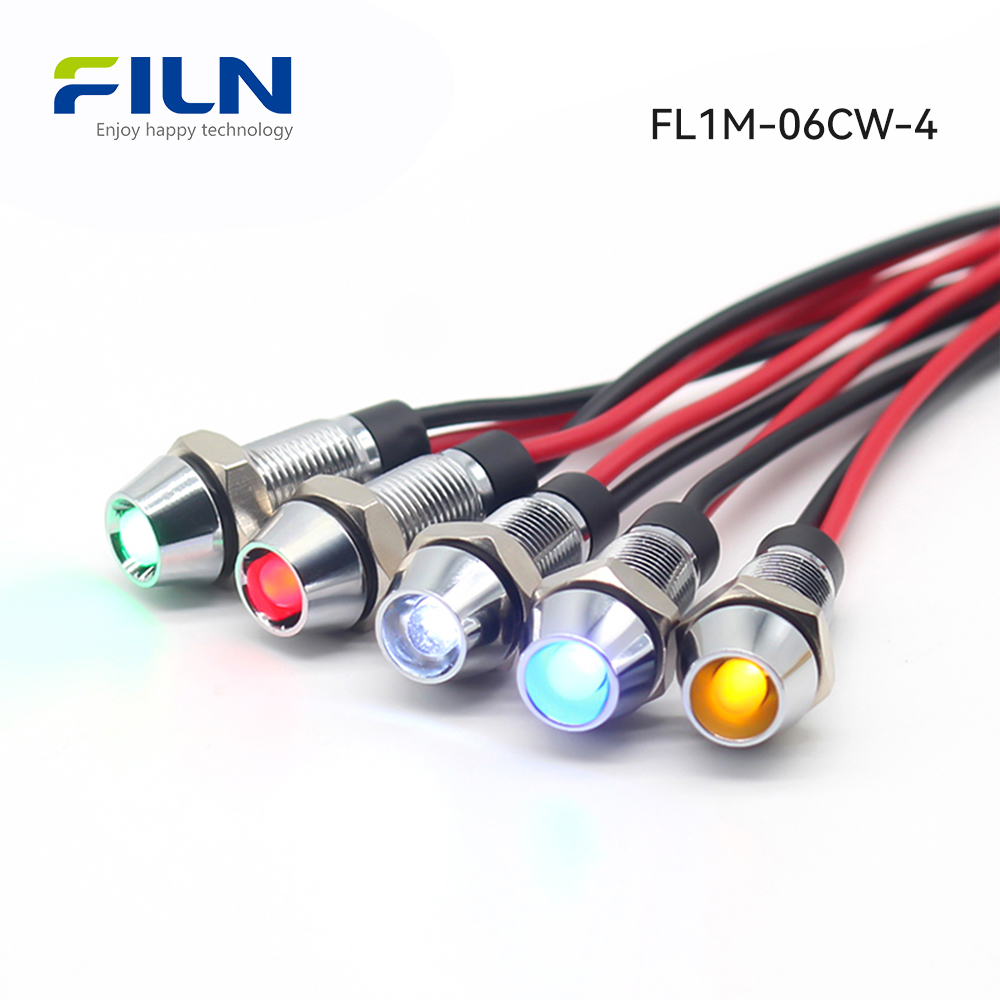

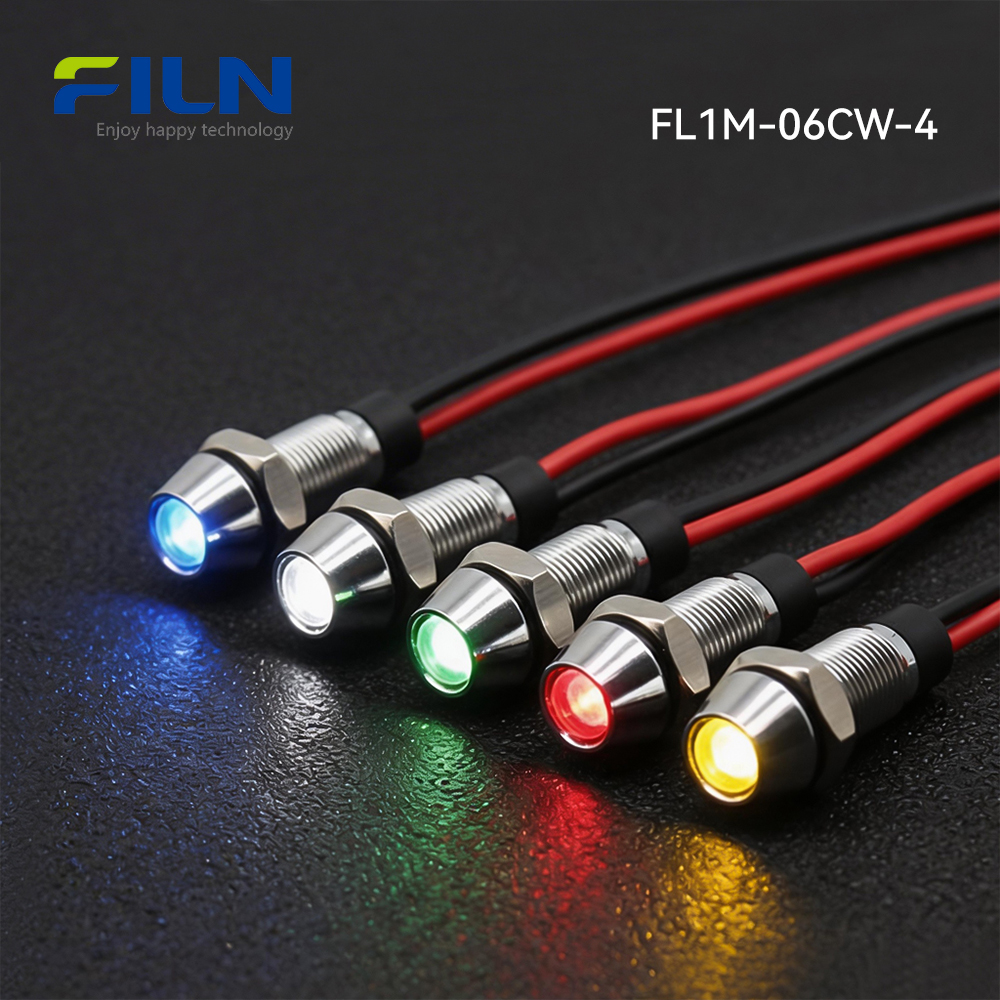

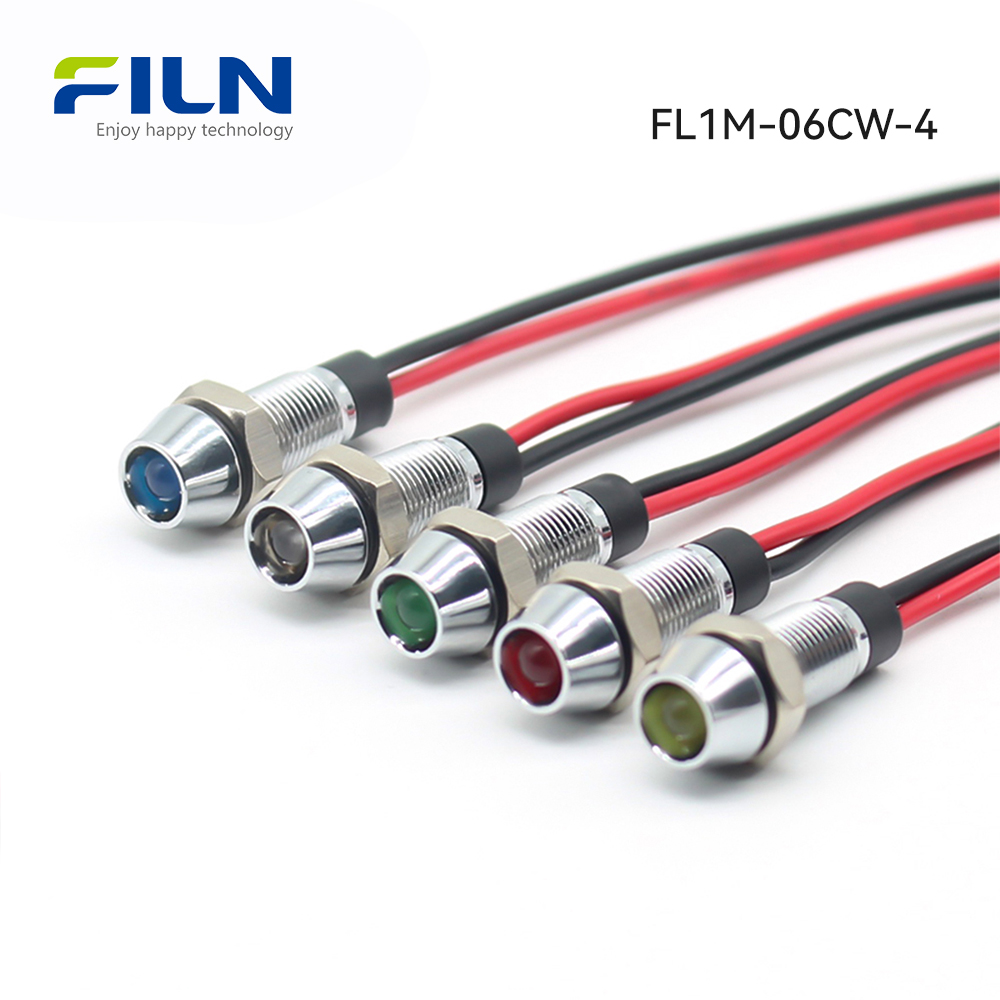

- Multi-Chromatic Flexibility: Available in red, green, yellow, blue, and white LED options utilizing high-luminance chips rated for an operational lifespan exceeding 50,000 hours.
- Compact Panel Layout: Designed for an ultra-precise 6mm mounting hole dimension, maximizing space utilization on dense electrical control panels and operator interfaces.
- Vibration Proof Engineering: The continuous single-nut thread mounting mechanism combined with solid wire leads avoids contact resistance failures common in pin-type indicator lamp alternatives.
What is an Industrial Indicator Lamp?
An industrial indicator lamp is a specialized optoelectronic component engineered to broadcast real-time status signals, system warnings, and operational feedback across automated electrical networks. Structurally composed of an internal solid-state LED chip, current-limiting carbon film resistor, heavy-duty metallic housing, and hermetically sealed wire leads, this hardware bridges human operator awareness with raw machine status. Unlike standard commercial lighting, an industrial indicator lamp must withstand prolonged electrical spikes, thermal fluctuations, and chemical exposure without suffering luminous decay or physical fracturing.
Modern manufacturing frameworks categorize these signaling units into metal indicator lamps and plastic indicator lamps to align with distinct environmental stresses. The mounting footprint ranges flexibly between 6mm and 30mm hole diameters to accommodate miniature remote control boxes as well as massive main distribution frameworks. Termination layouts are bifurcated into rigid pin terminals for printed circuit board mounting or direct wire lead terminations for traditional control cabinet point-to-point connections.
For ergonomic optimization, the metallic indicator lamp variants feature three distinct structural profiles: flat head, prominent convex head, or recessed concave head styling. These physical variations allow engineering teams to choose the exact visual dispersion angle and physical protection layer required for manual control interfaces, ensuring high visibility while preventing accidental impact strikes from heavy workshop machinery.
Product Overview

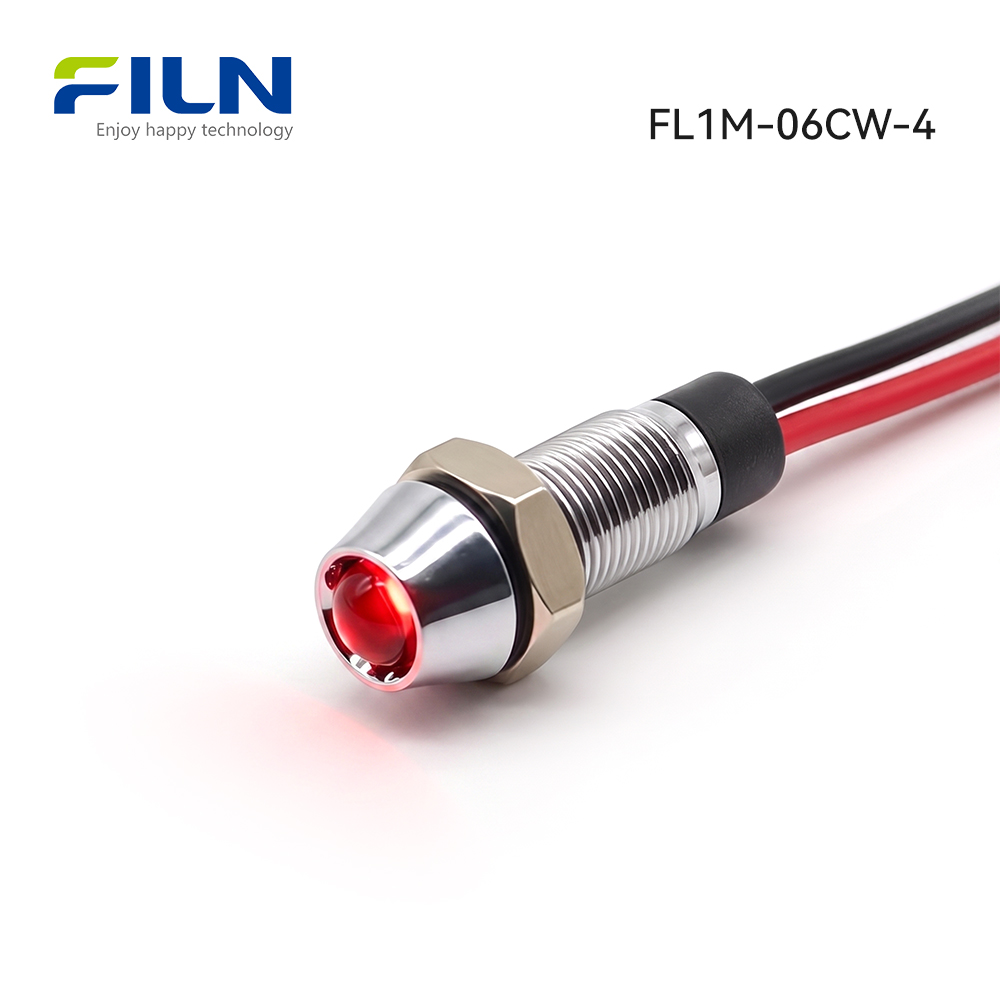

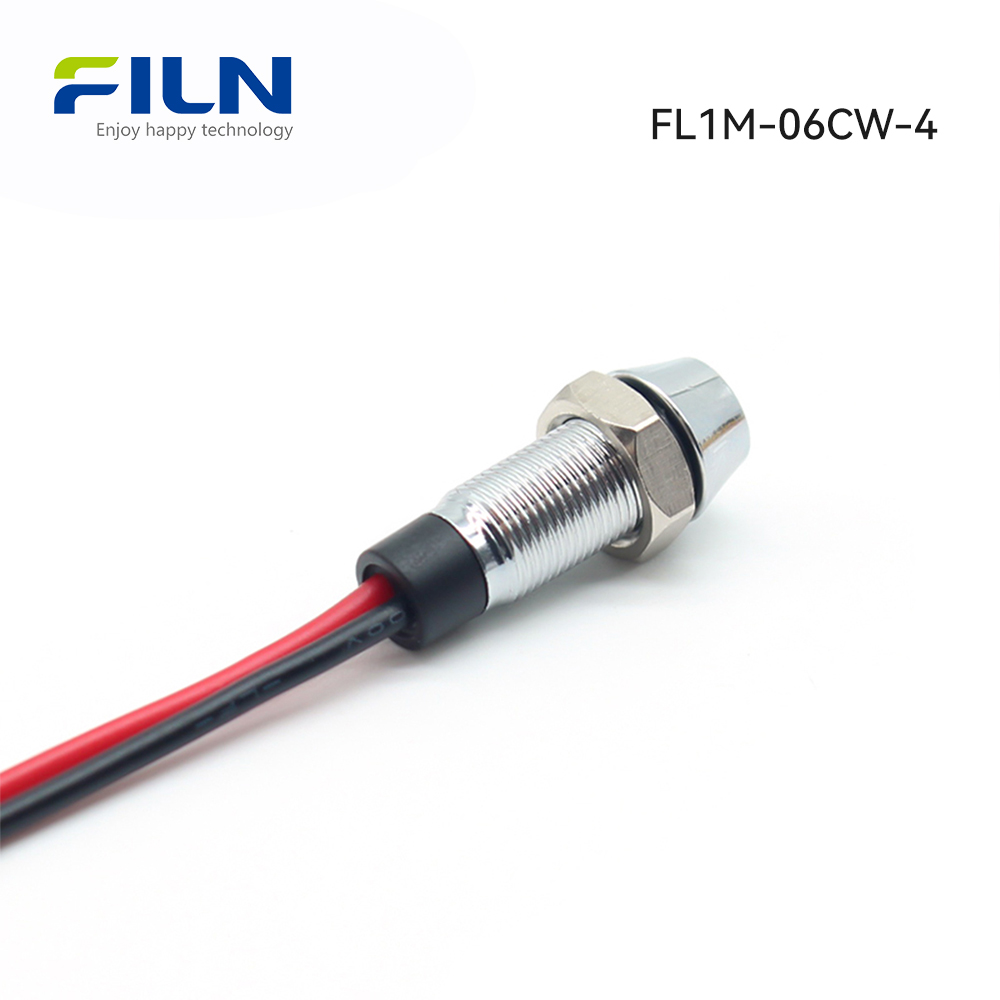

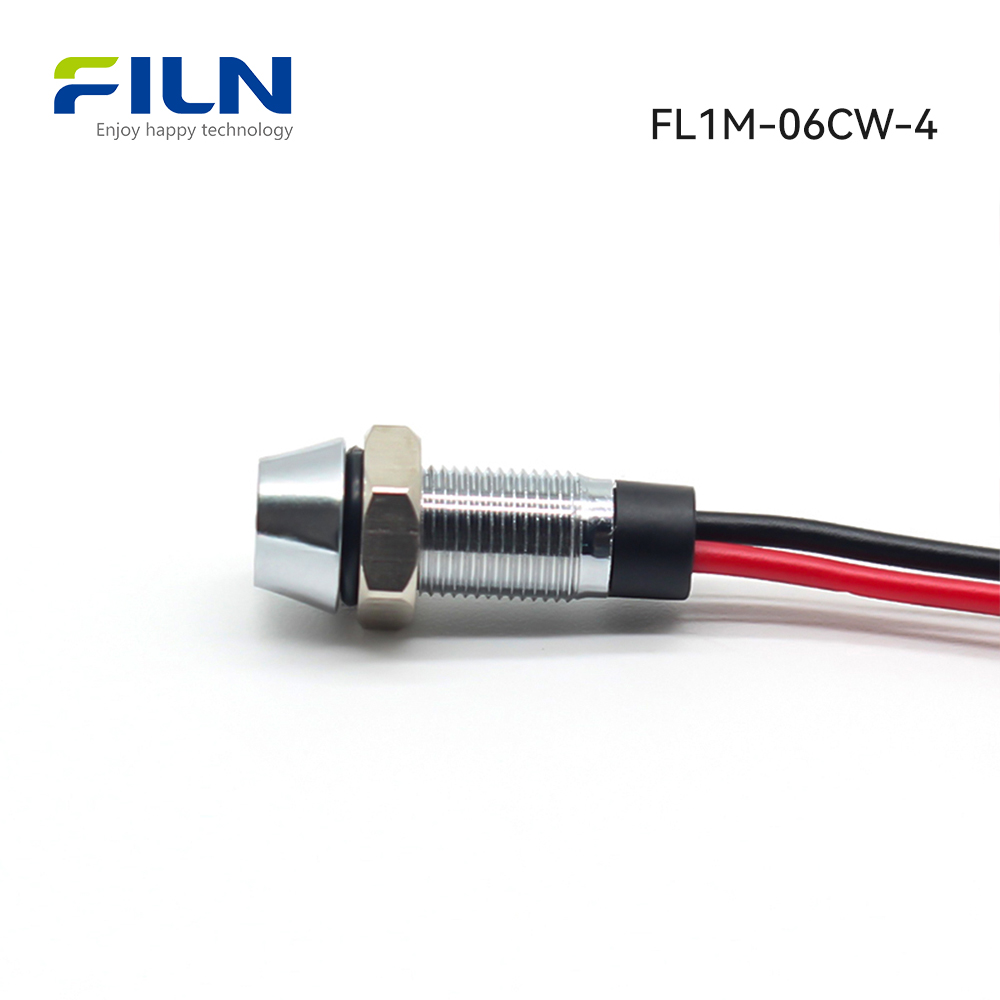

The FILN FL1M-06CW-4 indicator lamp is a highly engineered, small-footprint visual monitoring unit optimized for dense industrial electrical assemblies. Operating on a basic optoelectronic principle, the inner semiconductor junction converts electrical energy directly into narrow-spectrum visible light, regulated internally by a precision carbon film resistor that stabilizes current across varying supply ranges from 3V up to 220V AC/DC. The physical envelope utilizes a concave head design, which shelters the high-transmittance polycarbonate lens inside a protective metal bezel to prevent external shearing forces from damaging the optical surface.
Mechanically, the assembly relies on a robust single-nut thread engagement system that locks the component into a 6mm panel cut-out. A high-density silicone waterproof ring compresses beneath the flange to seal out liquids, achieving a verified IP67 rating that withstands industrial wash-downs and airborne contaminants. Electrical termination is achieved via dual pre-installed PVC insulated copper wires, creating an uninterrupted conductive path that eliminates common contact degradation and cold solder joints seen in standard pin-type control devices.
Designed primarily for power distribution cabinets, automated testing benches, and industrial processing machinery, this indicator lamp delivers superior mechanical strength, excellent thermal dissipation, and comprehensive regulatory compliance. Its manufacturing process adheres strictly to CE, VDE, RoHS, CCC, and ISO9001 quality metrics, ensuring global compatibility for premium original equipment manufacturers (OEMs) who export complex machine systems to highly regulated European and North American industrial hubs.
Quick Specifications
| Technical Parameter |
Specification Details |
| Product Description |
Metal indicator light with wires |
| Model Identifier |
FL1M-06CW-4 |
| Mounting Hole Diameter |
6.0 mm / 0.236 inches |
| Operational Voltage Range |
3V to 220V AC / DC (Custom configurations available upon request) |
| Available LED Colors |
Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W) |
| Waterproof & Dust Ingress Rating |
IP65 / IP67 certified seal |
| Termination / Wiring Type |
2PIN insulated direct wire lead type |
| Wire Specification |
Dual discrete wire leads, 20cm single wire length (40cm total linear length) |
| Head Geometric Profile |
Concave head / (Recessed low-profile design) |
| Surface Finish Quality |
Smooth, uniform surface finish, entirely free of burrs, oxidation defects, or structural fissures. |
| Assembly Structural Integrity |
Head optics and base assemblies are permanently locked; zero internal rotation, zero component detachment, zero skewing, or mechanical deformation under pressure. |
| Included Kit Hardware Accessories |

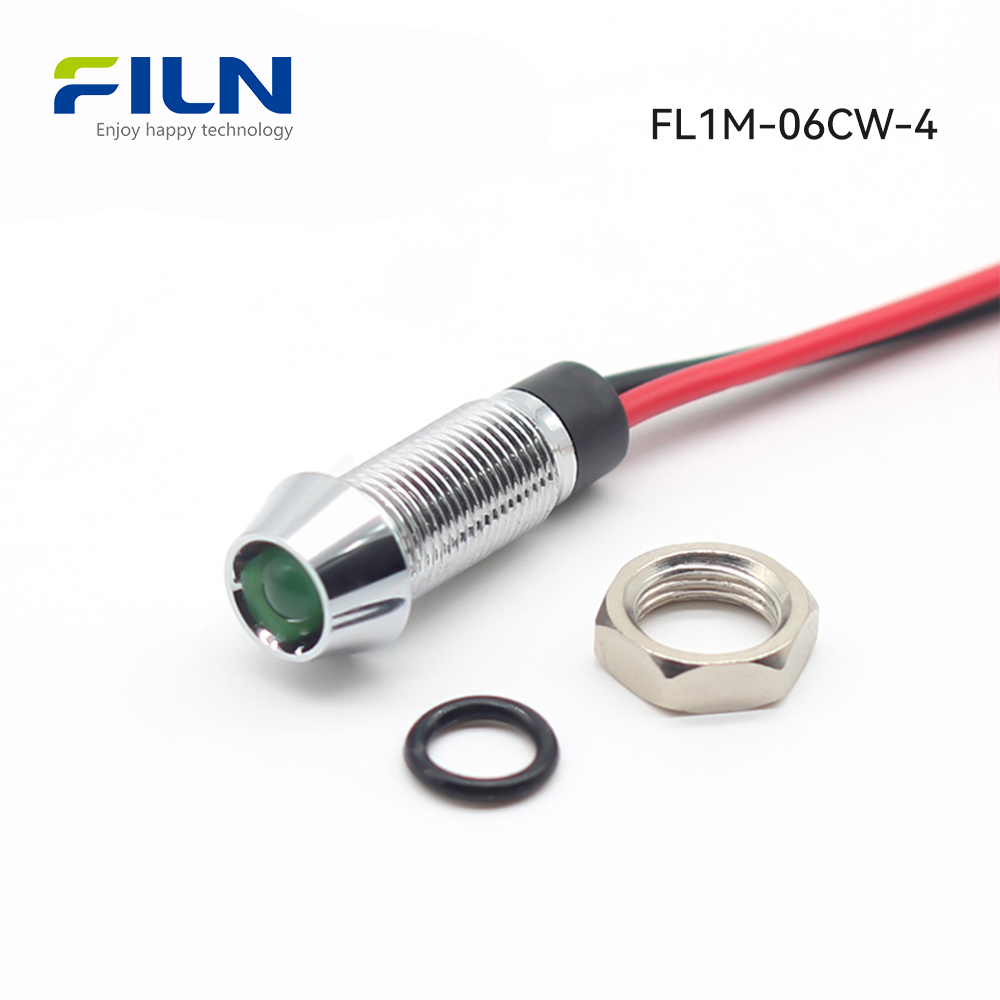

1x Indicator Lamp body, 1x Silicone Waterproof O-Ring, 1x Stainless Steel Flat Gasket, 1x M6 Hex Locking Nut |
Component Materials Analysis
| Accessory Name |
Material Selection |
Engineering Purpose and Mechanical Advantage |
| Outer Shell (Housing) |
Bright Copper Alloy / Black Zinc-Aluminum Alloy |
Delivers immense impact resistance and shielding. Copper provides classic wear protection, while the black anodized zinc-aluminum compound limits atmospheric corrosion. |
| Internal Lamp Holder |
Polyamide 66 (PA66 Nylon) |
Provides exceptional electrical dielectric properties, high mechanical stiffness, and thermal resistance up to high operating limits to insulate internal conductors. |
| Lampshade Optical Lens |
Polycarbonate (PC Optical Grade) |
Ensures optimal light transmissivity and wide-angle beam diffusion. Resistant to thermal cracking, yellowing under ultraviolet light, and workshop impacts. |
| Luminescent Light Source |
High-Brightness Solid-State LED |
Ensures instant luminous feedback with minimal heat generation, maintaining stable chromatic output across prolonged multi-year duty cycles. |
| Current Dropping Resistor |
Precision Carbon Film Resistor |
Regulates incoming forward current to prevent semiconductor over-stressing, protecting internal electronics from sudden control network voltage surges. |
| Wireway Leads |
Polyvinyl Chloride (PVC) Sheathed Copper |
Guarantees continuous electrical flexibility and robust current conduction, resisting chemical degreasers, mechanical bending stresses, and standard environmental aging. |
| Hexagonal Nut |
Heavy Duty Copper Alloy |
Ensures flawless mechanical thread engagement during panel tightening, preventing thread-stripping errors under extreme torque. |
| Waterproof O-Ring Seal |
High Elasticity Silicone (Silica Gel) |
Maintains structural elasticity down to extreme freezing temperatures and up to intense heat, ensuring a tight seal against moisture ingress. |
| Plum Blossom Lock Gasket |
Corrosion Resistant Stainless Steel |
Bites into the rear panel surface to counteract vibration forces, maintaining permanent physical torque and preventing structural loosening. |
Electro-Optical LED Specifications
1. Absolute Maximum Ratings (Semiconductor Safety Limits)
| Critical Boundary Parameter |
Maximum Safe Numerical Limit |
| Maximum Forward Peak Current (IFP) |
20 mA maximum continuous execution |
| Sustained Reverse Voltage (VR) |
5 V threshold ceiling |
| Total Power Dissipation Capacity (PD) |
60 mW limit |
| Operational Ambient Temperature (TOPR) |
-40°C to +80°C operational envelope |
| Storage Thermal Limits (TSTG) |
-40°C to +100°C storage range |
| Lead-Free Soldering Thermal Boundary (TSOL) |
Maximum 260°C sustained for a maximum duration of 3 seconds only |
2. Electro-Optical Characteristics (Measured at Ta = 25°C Ambient)
| Electro-Optical Property |
Testing Verification Condition |
Parametric Performance Windows |
| Forward Voltage Drop (VF) |
IF = 20mA |
2.8V (Minimum baseline value) to 3.2V (Maximum ceiling value) |
| Leakage Reverse Current (IR) |
VR = 5V |
5 μA maximum permissible leakage cap |
| Luminous Viewing Angle (2θ1/2) |
IF = 20mA |
60° typical viewing angular dispersion |
| Luminous Intensity (Brightness) |
IF = 20mA |
500 mcd (Minimum target) to 800 mcd (Maximum typical intensity) |
| Recommended Driving Current |
Steady-State Application |
20 mA standard baseline optimization |
| Dominant Peak Wavelength (λd) |
IF = 20mA (Green Spectrum example) |
520 nm to 525 nm wavelength band |
| Max Internal Junction Temperature (Tj) |
IF = 20mA continuous load |
125°C thermal junction threshold |
| Thermal Resistance Factor (RJP) |
IF = 20mA junction to pin |
8°C / W typical thermal dissipation resistance |
Standard Inspection Test Conditions
Except where explicitly stated otherwise by special technical customer agreements, all core electrical ratings, internal insulation values, and optical light outputs summarized in this catalog are evaluated strictly under the following standardized laboratory atmospheric baselines:
| Environmental Metric |
Mandatory Inspection Atmospheric Setting |
| Ambient Laboratory Temperature |
Controlled range between 5°C and 35°C |
| Relative Humidity Baseline |
Continuous range from 45% to 85% RH |
| Standard Ambient Air Pressure |
86 kPa to 106 kPa (Equivalent to 860 mbar to 1060 mbar barometric scale) |
Methodology Notes: All recorded values for total luminous intensity and dominant spectral wavelengths are calibrated precisely in accordance with the International Commission on Illumination (CIE) standard human eye spectral response curves. Standard tolerances for luminous intensity verification are held to ±15%, and forward voltage instrumentation measurements are bound to an accuracy of ±0.1V.
Industrial Applications and Use-Cases
The implementation of a heavy-duty metal indicator lamp is essential in harsh modern manufacturing environments where traditional plastic indicators fail due to cracking, yellowing, and thermal stress. Constructed from robust copper alloys or black anodized zinc, these solid-state indicators deliver unmatched impact resistance, chemical shielding, and an IP67 protection barrier. They are specifically engineered to provide visual data across critical automation environments, remote field assets, high-vibration systems, and sanitization facilities.
1. Industrial Automation & Heavy Machinery Manufacturing
Modern plant floors subject electrical controls to persistent mechanical vibrations, cutting fluid splatters, and accidental structural tool strikes. In high-speed CNC machining centers, automated milling cells, and complex assembly lines, these metal units are integrated into operator stations to display critical status signals. Green lights indicate normal operation, yellow alerts operators to standby or pre-fault conditions, and red provides high-visibility emergency shutdown or diagnostic failure signaling. By using pre-wired configurations instead of vulnerable pin connections, internal components resist loosening caused by persistent harmonic equipment vibration.
2. Outdoor Renewable Infrastructure & Commercial Power Distribution
Outdoor grid installations require reliable operation under direct sunlight exposure, intense rainfall, and freezing ambient temperatures. Commercial DC fast chargers and public EV charging infrastructure use low-profile concave indicator lamps to convey active charging status, completion notifications, or electrical fault alerts to users. Because these units are built with an IP67 rating and a heavy-duty metal chassis, they resist vandalism, moisture entry, and thermal degradation within outdoor distribution frameworks and solar combiner boxes.
3. Heavy Transport, Logistics Vehicles, and Marine Engineering
Heavy logistics vehicles and marine systems operate in environments defined by severe physical shocks and highly corrosive atmospheres. Excavators, mobile crane consoles, and harbor control stations require indicator lamps that resist salt fog corrosion and airborne debris. Stainless steel or treated copper alloy indicator shells combined with high-performance silicone sealing washers prevent moisture from penetrating behind control panels, ensuring stable operation under high-stress conditions.
4. Public Self-Service Infrastructure & Commercial Security Systems
Unsupervised public hardware systems require high physical durability to minimize maintenance overhead. Vending machines, automated ticketing kiosks, and outdoor access control systems use metal-bodied indicators to guide users through payment and authentication sequences. The metal shell provides excellent physical protection, making it very difficult for external impacts to compromise the internal circuit.
5. Advanced Medical Systems & Industrial Food Processing Hardware
Food production and medical processing facilities must maintain strict cleanliness standards, requiring frequent high-pressure wash-downs using chemical cleaners. IP67-rated metal indicators prevent internal components from being degraded by chemical exposure or moisture ingress. They are widely used in commercial autoclaves, packaging lines, and fluid control systems to track processing stages without risking chemical contamination or physical failures.
Chromatic Standards & Selection Criteria
Industrial automation standards require a clear, structured color convention for control panel indicators to ensure workplace safety and efficient operations. The selection of an indicator lamp color must match standard international industrial frameworks (such as IEC 60204-1 and NFPA 79), preventing operator confusion during critical system changes. FILN offers five standard monochromatic options, alongside advanced bi-color and tri-color configurations, allowing engineering teams to design clear, highly functional control interfaces.
- Red (Emergency / Fault State): Indicates immediate system faults, dangerous over-temperature limits, safety trips, or emergency stop conditions. Red requires immediate operator attention to mitigate equipment damage or safety hazards.
- Green (Normal / Safe Operation): Confirms that automated loops are operating within nominal parameters, structural circuits are powered safely, or a machine cycle is running correctly. It denotes a safe operational environment.
- Yellow / Amber (Abnormal State / Warning Condition): Flags non-critical parameter deviations, transitional thermal limits, or pre-fault states. It alerts operators that a system condition requires monitoring before it becomes a failure.
- Blue (Mandatory Action Status): Used for signals that require a specific operator intervention, such as manual calibration sequences, fluid resets, or configuration verifications.
- White (General System Power / Neutral Indicator): Provides neutral tracking of utility power availability, active main circuit connections, or general system execution without indicating an active fault or cycle.
In complex layouts with limited space, standard monochromatic indicator lights can be replaced by FILN dual-color or tri-color integrated indicators. These multi-chromatic systems allow a single 6mm panel location to cycle through different color states (such as flashing green for processing, solid green for completion, and red for a fault), simplifying panel designs and maximizing display density for space-constrained interfaces.
Step-by-Step Installation Guide
Proper physical installation is essential to maintain the IP67 ingress rating and ensure long-term operation of a panel-mounted indicator lamp. Follow these step-by-step engineering instructions to mount and secure the pre-wired FL1M-06CW-4 indicator lamp into a standard control enclosure panel interface.
- Panel Punch Preparation: Drill or punch a clean, circular 6.0mm (0.236 inch) hole through the layout faceplate. Deburr the edges completely to remove any sharp metal fragments that could damage the silicone sealing ring or compromise the ground connection.
- Sealing Washer Placement: Slide the provided high-elasticity silicone waterproof O-ring over the rear wire leads, positioning it flush against the upper flange of the metal indicator body.
- Panel Alignment: Feed the dual 2PIN wire leads through the front of the 6mm panel opening, gently pressing the indicator body down until the silicone washer sits flat against the outer panel surface.
- Rear Hardware Assembly: From the back of the panel, slide the stainless steel plum blossom lock washer over the wires, followed by the M6 brass hex nut.
- Torque Tightening: Hand-tighten the M6 hex nut along the threaded body. Use a small wrench to torque the nut to its final specification, ensuring the lock washer bites slightly into the rear panel surface to prevent loosening from equipment vibration. Do not over-torque, to avoid distorting the silicone seal.
- Circuit Connection: Route the pre-wired 20cm leads into the terminal block or control circuit, ensuring clean cable management and adequate strain relief.
MANDATORY ELECTRICAL SAFETY RECORD: Always isolate the main distribution breaker and verify that the power supply is off before executing any wiring or installation steps. Working on live circuits can cause electrical shock, equipment damage, or personal injury.
Electrical Wiring Methodology
Selecting and executing the correct electrical termination method is critical for maintaining stable current flow and avoiding field connection failures. Industrial control systems generally utilize either pin terminal indicators or pre-wired indicator lamp configurations, each presenting distinct mechanical and electrical trade-offs:
- Pin Terminal Disadvantages in High-Vibration Enclosures: Standard pin-style indicators require manual soldering or quick-connect spade receptacles at the rear of the device. In high-vibration applications like stamp presses, mining machinery, or heavy marine systems, these rigid mechanical spade connections can suffer from terminal creep, contact resistance buildup, or physical disconnection.
- Wired Lead Advantages for Quick Integration: Pre-wired configurations feature insulated conductors permanently potted into the indicator housing during manufacturing. This construction creates an airtight seal that protects internal connections from moisture, oxidation, and mechanical pull-out forces.
To terminate the dual 2PIN wire leads of the FL1M-06CW-4 indicator lamp safely, engineering teams typically implement one of three standard connection methods:
- Lever-Actuated Quick-Connect Terminals: Strip 9mm of outer PVC insulation from the lead tips, insert the bare copper strands into a lever-operated terminal block (e.g., WAGO terminal architecture), and snap the lever shut. This creates a secure, maintenance-free connection that resists vibration.
- Soldered In-Line Splicing: Splice the copper strands directly onto the field circuit wire, apply rosin-core electrical solder to form a solid metallic bond, and seal the joint with heat-shrinkable polyolefin tubing to prevent short circuits.
- Heavy-Duty Industrial Electrical Tape Wrap: Join the conductors using an approved twist splice or crimp sleeve, then wrap the joint securely with premium vinyl electrical tape, extending at least 2cm past the exposed metal to ensure reliable insulation.
Regardless of the chosen termination method, always confirm that the power supply is completely disconnected prior to touching bare wires to eliminate the risk of accidental short circuits or personal injury.
Industry Knowledge Center
Preventing Phantom Illumination in LED Systems
A common problem encountered by field maintenance teams is phantom illumination, where an LED indicator emits a faint, continuous glow even when the control circuit is switched off. This occurs because highly sensitive, low-current LED chips can be activated by residual stray voltages, which are typically caused by electromagnetic induction or capacitive coupling across long, tightly packed wire runs. To resolve phantom lighting, engineers can install a parallel shunt resistor or a small ceramic capacitor across the indicator terminals to bleed off induced voltages, ensuring the LED only illuminates when full control voltage is intentionally applied.
The Limitations of Plastic Indicators in Industrial Workspaces
Using standard plastic indicators in heavy industrial environments often leads to premature failures. Plastic housings can degrade and become brittle when exposed to continuous ambient UV radiation or harsh airborne chemical degreasers. Over time, physical impacts, thermal expansion cycles, or high-pressure spray downs can crack the plastic body, allowing water or moisture to penetrate behind the panel. Upgrading to a metal-housed indicator provides a rugged, long-term solution that eliminates body cracking and reduces equipment downtime.
Proactive Enclosure Maintenance Best Practices
To maintain system reliability, facility operators should include pilot indicators in their regular preventive maintenance routines. Technicians should inspect the outer silicone sealing rings for signs of dry rotting, check that the rear hex locking nuts remain correctly torqued, and verify that wire lead insulation is free of physical chafing. Periodically cleaning dust layer accumulations from the optical lens ensures optimal visual clarity and maintains clean signal broadcasting across the plant floor.
B2B Buyer Decision Guide
Procurement agents, industrial buyers, and OEM engineering managers must evaluate key technical factors when sourcing panel indicators to prevent field failures and minimize total cost of ownership. Use this structured decision-making guide to verify that your selected indicator lamp matches your specific mechanical and electrical environmental constraints:
- Voltage Configuration Verification: Ensure the internal dropping resistor matches your control loop’s voltage. Specifying the exact operational voltage (e.g., 12V DC, 24V DC, or 110V/220V AC) prevents premature over-current damage or insufficient luminous brightness.
- Housing Metallurgy Selection: Choose chrome-plated copper alloy for excellent wear resistance and general industrial use. For applications exposed to outdoor elements or harsh chemicals, choose an anodized black zinc-aluminum alloy or premium stainless steel housing to maximize corrosion protection.
- Termination Strategy Planning: Use pin terminals for compact, automated wave-soldered circuit boards. For complex industrial control cabinets and field machinery exposed to continuous vibration, specify pre-wired leads to simplify installation and eliminate loose terminal connections.
- Optical Profile Selection: Select a convex or flat head profile for wide, multi-directional viewing angles on overhead displays. For high-traffic or rough environments, specify a concave head design, which sets the lens back into a protective bezel to guard against physical impacts.
By aligning these mechanical and electrical parameters with your application requirements, procurement teams can source components that provide long-term reliability, simplify factory-floor assembly, and carry the necessary regulatory certifications for global market entry.
Why Global Engineers Choose FILN
FILN is a globally recognized manufacturer of industrial electrical components, specializing in high-durability signal indicators and custom switch solutions. For nearly two decades, engineering teams and commercial procurement departments worldwide have relied on FILN’s advanced production capabilities, strict quality controls, and specialized design services. By controlling the complete manufacturing process from raw materials to final electrical testing, FILN delivers reliable, certified components that perform consistently in demanding industrial applications.
| Factory-Direct Value |
Eliminates intermediary markups by dealing directly with the original production factory, optimizing cost structures for high-volume wholesale accounts and commercial OEMs. |
| Flexible Order Quantities |
Supports prototyping and small-batch testing by offering a No Minimum Order Quantity (No MOQ) policy on standard product lines. |
| Efficient Lead Times |
Utilizes highly automated production machinery and lean manufacturing workflows to accelerate delivery schedules and minimize supply chain delays. |
| Comprehensive OEM/ODM Support |
Provides full engineering support to modify wire lengths, change shell materials, add custom connectors, or develop specialized electrical footprints. |
| Global Logistics Reach |
Coordinates prompt, secure international freight deliveries to key manufacturing markets across North America, Europe, and the Asia-Pacific region. |
| Rigorous Quality Assurance |
Subjects every production lot to comprehensive automated testing for insulation resistance, dielectric breakdown, and luminous uniformity prior to packaging. |
Factory Direct Supply & Production Capability
Established in 2006, Yueqing Yulin Electronic Co., Ltd., operating under the global premium brand name FILN, is an innovative electrical component manufacturer based in Wenzhou, Zhejiang. The company operates a modern 10,000 square meter production facility equipped with more than 20 advanced automated manufacturing lines and an independent testing laboratory. Operating under strict ISO9001 quality management systems, FILN exports high-performance electrical components to over 100 countries, supplying reliable solutions for commercial kitchen appliances, power generation, electric vehicle charging systems, marine control panels, and automated security arrays.
FILN’s comprehensive product catalog includes an array of miniature indicator lights, heavy-duty metal pushbutton switches, industrial rocker switches, toggle switches, and fully customized wire harness assemblies. Our manufacturing processes utilize automated testing to guarantee compliance with international safety and environmental standards, maintaining full certifications including UL, CE, RoHS, REACH, TUV, CB, and VDE. Experienced product engineers communicate directly with procurement teams to resolve design challenges and deliver tailored, high-performance solutions.
Explore Full Product Ranges & Purchasing Portals
FILN provides a comprehensive selection of metal indicator components across multiple sizes, finishes, and technical layouts. Explore our complete product categories or purchase items directly through our verified digital procurement channels:
Recommended Cross-Reference System Components:
1. Standard 6mm Concave Wired Indicator Light (Model FL1M-06CW-1): View FL1M-06CW-1 Technical Specifications.
2. Medium 8mm Concave Wired Indicator Light (Model FL1M-08CW-1): View FL1M-08CW-1 Technical Specifications.
3. Heavy-Duty 8mm Pin Terminal Concave Metal Indicator (Model FL1M-08CJ-1): View FL1M-08CJ-1 Technical Specifications.
Frequently Asked Questions
How to prevent phantom illumination (faint glowing) in 12v LED indicators?
Phantom illumination is caused by stray voltages resulting from capacitive coupling or electromagnetic induction along parallel wire runs. Engineers can eliminate this faint glow by connecting a parallel shunt resistor or ceramic bypass capacitor across the indicator terminals to bleed off the leakage voltage.
Can this IP67 indicator light be washed down with caustic chemicals?
Yes, the FL1M-06CW-4 features an IP67-rated chrome-plated copper or anodized black alloy housing and high-grade silicone sealing rings. This configuration resists common industrial chemical sanitizers, degreasers, and high-pressure spray downs without suffering material degradation or internal water entry.
What is the exact mounting hole size needed for this metal indicator lamp?
This specific indicator requires an exact circular panel punch diameter of 6.0 mm (equivalent to 0.236 inches). The panel edge must be thoroughly deburred before installation to ensure the waterproof silicone O-ring seats properly and seals effectively.
Does FILN support custom wire lead lengths for bulk commercial wholesale orders?
Yes, as a specialized manufacturing plant, FILN provides comprehensive OEM customization. We can adjust the pre-wired length from the standard 20cm specification to any required dimension, add specialized multi-pin quick connectors, or modify wire insulation types to fit high-volume industrial requirements.
What are the available operating voltage configurations for the FL1M-06CW-4?
This indicator lamp line supports a highly adaptable operational range spanning from 3V up to 220V AC or DC. The factory installs a precision internal carbon film dropping resistor during assembly to match the component to the customer’s specific voltage requirements.
Why is a concave head style preferred over a prominent convex indicator lamp layout?
The recessed design of a concave head positions the optical lens behind a solid metal bezel. This configuration provides superior physical protection in rough environments, preventing external impacts from shearing or breaking the light-emitting surface.
What quality certifications does this industrial indicator lamp carry?
FILN products undergo comprehensive compliance testing and hold active certifications from CE, VDE, RoHS, CCC, and ISO9001. These approvals ensure international regulatory compliance for equipment builders exporting machinery globally.
What is the anticipated functional working life of the internal LED chip?
The solid-state illumination element is rated to deliver a functional life between 50,000 hours and 100,000 hours under standard duty cycles. This extended lifespan reduces field maintenance overhead compared to old filament bulbs.
Is there a Minimum Order Quantity (MOQ) for custom voltage configurations?
FILN maintains a flexible No MOQ policy for standard configurations and prototyping runs. This allows engineering teams to acquire precise quantities for testing and small-batch equipment builds before committing to high-volume commercial production.
How does a pre-wired termination configuration compare to pin-terminal variants under vibration?
Pre-wired indicators feature insulated copper leads that are permanently potted into the housing during manufacturing. This construction creates an airtight seal and prevents connections from working loose under the constant vibration typical of heavy machinery.
What housing material options can be selected for the FL1M-06CW-4?
Buyers can specify either a silver-finished, chrome-plated copper alloy body or a heavy-duty black anodized zinc-aluminum alloy shell, matching the aesthetic and environmental requirements of the control panel layout.
Can I request a comprehensive 3D STEP data file for mechanical clearance layout modeling?
Yes, our engineering department provides complete 3D component files, 2D blueprints, and detailed data sheets. Technical documentation can be requested by emailing our support desk directly at inquiry@cnylin.com.cn.
What specific components are included in each packaged indicator installation kit?
Each individual kit includes 1x pre-wired metal indicator lamp body, 1x high-elasticity silicone waterproof ring, 1x stainless steel plum blossom lock washer, and 1x heavy-duty M6 hex locking nut, providing all hardware required for stable panel mounting.
How does the internal current-limiting carbon film resistor affect device protection?
The precision carbon film resistor regulates incoming current to match the internal LED chip’s safety parameters, absorbing voltage spikes and preventing premature burnout from electrical surges in the control loop.
What are the operating temperature boundaries for this industrial indicator lamp?
The component is certified to operate reliably within an environmental temperature range of -40°C to +80°C, allowing deployment in freezing outdoor environments as well as hot industrial processing areas.
Are bi-color or tri-color configurations available within the 6mm metal indicator lineup?
Yes, FILN designs and manufactures advanced multi-chromatic indicators. This allows engineering teams to display multiple operating states from a single 6mm panel location, simplifying dense control console interfaces.
What insulation resistance threshold does the FL1M-06CW-4 maintain?
The indicator maintains a certified insulation resistance of ≥ 100MΩ, evaluated under a continuous 500V DC test between the active electrical conductors and the outer metal housing to verify dielectric integrity.
How do I request an official quotation for volume wholesale distribution?
Commercial procurement teams can request comprehensive tier-structured price sheets and lead-time estimates by contacting our enterprise sales team directly through our global email portal at inquiry@cnylin.com.cn.
What material is used for the optical diffusion lens of this indicator lamp?
The lens is molded from optical-grade Polycarbonate (PC), which ensures excellent light transmission, high impact resistance, and long-term stability against yellowing from UV exposure.
Where is the official manufacturing plant of FILN electrical components located?
All FILN products are engineered and manufactured at our modern 10,000 square meter facility located in Wenzhou, Zhejiang, China, operating under strict international ISO9001 quality management protocols.
