FILN Lighted Push Button Switch 12MM Round Momentary Switch 4PIN

Product Drawings:

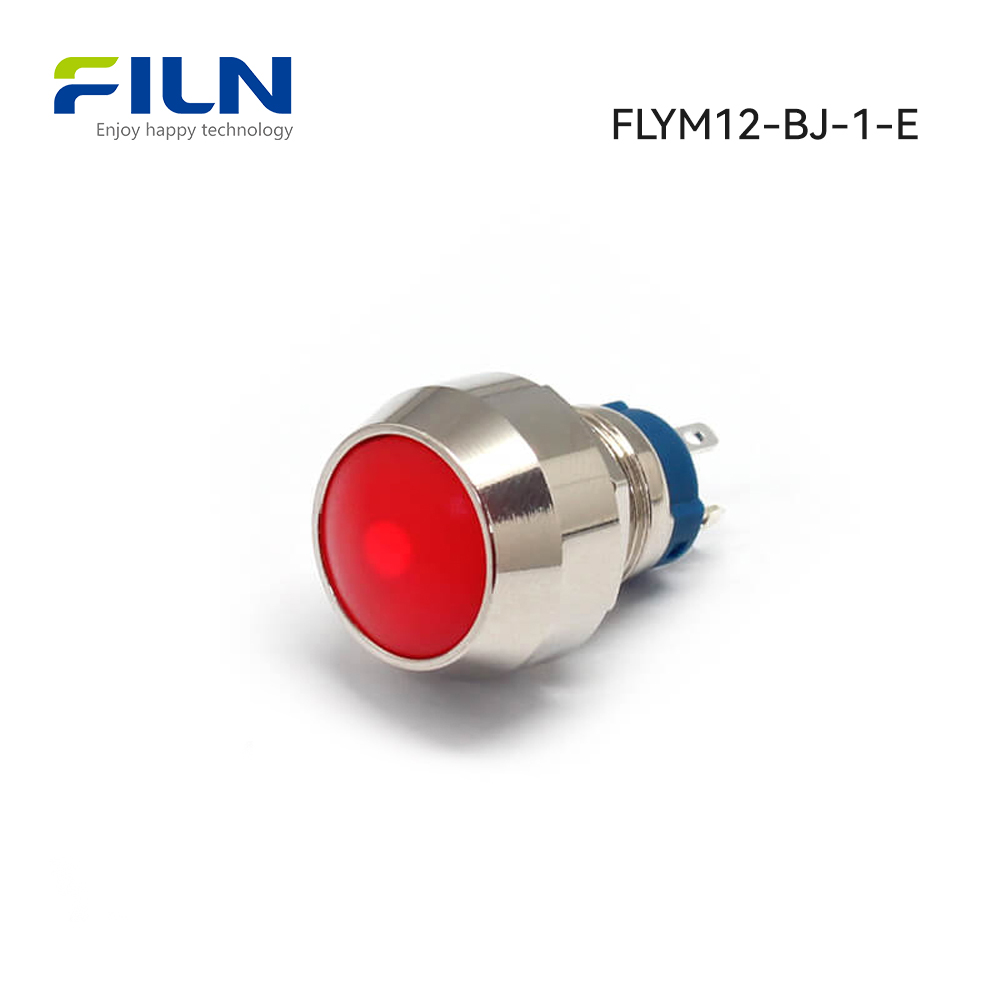

12MM 4PIN 12V 3A red momentary latching waterproof push button switch

Lighted pushbutton switches are also known as illuminated pushbutton switches.

Like the push button switch on some machines, we commonly see the metal flush push button switch style without light.
The use of metal is installed on the equipment, the display effect is more high-end, so that people know at a glance how the equipment is operated.
Lighted push button switch is to achieve the effect of light on the surface of the button, this kind of button switch with light compared to ordinary switches can be more attractive, and in the darker environment can immediately find the location of the switch.

Product Parameters:

Production Series FLYM12-BJ-1-E Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red orange green blue Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V DC Housing PA66+GF20% nylon
Rated Current 2A Light Source LED
Rated Power 36W Resistor Metal film
Operating Temperature -20℃~+55℃ Contact AgCdO12

Push Button Switch Wiring Method:

To connect the illuminated push button switch of 4-pin:

  1. Connect the positive pole of the power source to the load pin of the switch.
  2. Connect the other load pin to the LED lamp pin “+”.
  3. Connect the positive pole of the equipment to the LED lamp pin “+”.

Operating instructions:

  1. When the power is turned on, pressing the button will energize the switch.
  2. The LED inside the push button will light up when it is energized.
  3. Releasing the button will turn off the power.

Please refer to the provided diagram for visual reference.

lighted push button switch

FILN Pushbutton Switch Customization

Lighted Push Button Switch Non-Illuminated Push Button Switch
Illumination Has a built-in light source for illumination Does not have any built-in illumination
Visual Indication Provides visual feedback when activated No visual feedback when activated
Usage Useful in low-light or dark environments Suitable for well-lit environments
Wiring Requires additional wiring for the light No additional wiring needed
Design Options May have different color options for lights Limited to the switch button color
Power Consumption Consumes more power due to the illumination Consumes less power
Visibility in Daylight May be less visible in bright daylight Same visibility in all lighting conditions
Application Examples Emergency switches, control panels,automotive dashboards Industrial machinery, appliances,electronic devices

Please note that these are general features of common pushbutton switches and variations or additional features may be available for specific products.

FILN is a pushbutton switch manufacturer and supports custom switch services.

Page This momentary push button switch with light is 12mm.

Looking at the picture, you will see that it is a little different from the normal metal button. Its light-emitting part is a small dot, the surface of the button has different colors, corresponding to the color of the LED light, and the brightness will be higher than the regular button switch with light.
A closer look will reveal that buttons with lights are more beautiful and more effective.

It is worth mentioning that the material of the lighted push button switch keypad is PC. the metal housing material is stainless steel, and we can also do other materials. Unfortunately, it is a momentary push button switch and can only be made without lock. If you want a push button switch with lock, FILN is happy to recommend other more different lighted push button switch models to you.

The voltage of the momentary lighted push button switch can be 3V, 6V, 12V, 24, 110V, 220V, or if you want 380V, we can do that too.

The color of the momentary push button switch can be red, green, yellow, blue or white, if you want black, it is a button switch without light, it is not a lighted push button switch.

Advantages of Metal Lighted Push Button Switch

Compared with all plastic pushbuttons, the metal momentary pushbutton switch with light has the following advantages.

1. Metal momentary illuminated push button switch can have good consistency of conduction angle; there is also no flashing phenomenon when powering on, so users can rest assured.

2. The metal illuminated push button switch is made of environmentally friendly materials in the production process, also to protect the environment and reduce the use of poor quality plastics.

3. metal instant led push button switch is not easily damaged in the process of use, can withstand temperature, which is a very good point, will not be deformed at high temperatures like plastic.

Buy Illuminated Momentary Push Button Switch

FILN has 20 years of experience in R&D and production of all kinds of pushbutton switches that can light up.

We serve customers worldwide who have a need for pushbutton switches, whether you are a B-side factory or a distributor, or even a C-side individual customer with strong hands, we hope we can get the opportunity to cooperate with pushbutton switches.


FILN offers free samples of pushbutton switches for you to test. For specific specifications of pushbutton switches, please let us know in detail.

If you want to purchase many different types of lighted push button switch directly, you can place an order in our online store and we will ship it to you promptly.

Comprehensive Guide to Lighted Push Button Switch

Lighted push button switches are an essential component in various applications, providing both aesthetic appeal and functional control. From understanding the different types and their specific uses to wiring diagrams, maintenance, safety measures for outdoor use, and recent innovations, this comprehensive guide on lighted push button switches covers every aspect. Whether you’re looking to install a new illuminated push button switch or troubleshoot an existing one, this article offers insights and practical tips to help you make the right choices. Dive in to discover how these versatile switches can enhance efficiency, safety, and user experience in your respective field.


Lighted push button switches, also known as illuminated pushbutton switches, are used in a wide range of applications in various industries. This comprehensive guide will address the most asked questions about lighted push button switches, including their wiring, specifications, applications, and differences from other switches.

What are the Different Types of Lighted Push Button Switches?

Push Button LED Switch Wiring Diagram

Lighted push button switches often come in different types with various wiring configurations. The wiring diagram for a push button LED switch mainly involves connecting the LED terminals to a power source, while the switch terminals are wired to control a device. For detailed guidance on wiring these switches, you can refer to this link.

Illuminated Push Button Switch Wiring Diagram

Another type is the illuminated push button switch, where the wiring diagram might slightly differ from the LED version. This diagram involves connections for both the illumination and the switching functionality. You can find examples of illuminated push button switch wiring diagrams at this page.

Illuminated Push Button Schneider

Illuminated push button switches from Schneider Electric are known for their quality and various applications. These switches are widely used in industrial and commercial settings, offering both momentary and latching functions.

Electric Push Button Switch

Electric push button switches are commonly used for electrical control in machinery and equipment. These switches can be found in both momentary and latching types, with or without illumination.

Momentary Push Button Switch

Momentary push button switches return to their default position when released. This makes them suitable for applications that require a temporary connection. You can find more about momentary push button switches here.

Illuminated Momentary Push Button Switch

An illuminated momentary push button switch combines the features of momentary action with illumination. This provides visual feedback and is often used in control panels.

Push Button On/Off Switch 12V

12V push button on/off switches are widely used in automotive and low-voltage applications. They provide simple control with a 12V power supply.

Square Momentary Push Button Switch

Square momentary push button switches are another variation with a unique square design. They are often used for aesthetic or specific design requirements.

How to Install and Wire a Lighted Push Button Switch?

Wiring a lighted push button switch can seem complex, but with proper guidance, it becomes more straightforward. In this section, we’ll cover the steps and tips for installing and wiring these switches.

Tools and Materials Required

To wire a lighted push button switch, you’ll need the following tools and materials:

  • Wire strippers
  • Screwdriver
  • Soldering iron (if necessary)
  • Wires and connectors
  • Lighted push button switch

Step-by-Step Wiring Guide

  1. Identify the Terminals: Most lighted push button switches have separate terminals for the LED and the switch. Identify these before proceeding.
  2. Strip the Wires: Use wire strippers to remove the insulation from the wire ends.
  3. Connect the LED Terminals: Connect the LED terminals to the power source. For a 12V push button switch, connect it to a 12V power supply.
  4. Connect the Switch Terminals: Wire the switch terminals to the device you want to control.
  5. Secure the Connections: Use solder or connectors to secure the connections.
  6. Mount the Switch: Mount the switch in the desired location using screws or clips.
  7. Test the Switch: Power on the system and test the switch to ensure proper operation.

For more detailed instructions, check the specific product page.

What Are the Common Applications of Lighted Push Button Switches?

Lighted push button switches are widely used in various applications. Here are some common areas where these switches are implemented:

Industrial Control Panels

In industrial settings, illuminated push button switches are commonly found in control panels to provide visual feedback and control machinery.

Automotive Controls

In vehicles, lighted push button switches are used for controlling various accessories, such as lights, sound systems, and more. More details on automotive-specific switches can be found here.

Home Appliances

These switches are also found in home appliances like washing machines, microwaves, and other devices where visual feedback is beneficial.

Marine Applications

In marine environments, illuminated push button switches like the 19mm red LED marine push button switch provide visibility and control in challenging conditions.

Arcade Machines

In the gaming industry, lighted push button switches are used in arcade machines to enhance the gaming experience. Find more about these switches here.

Medical Devices

Medical devices utilize these switches to offer precise control and visual indicators for various functions.

How to Choose the Right Lighted Push Button Switch?

Consider the Voltage Rating

Ensure that the switch’s voltage rating matches the application. For example, a 12V push button switch would be suitable for automotive applications.

Determine the Type of Action

Choose between momentary and latching action based on the application’s needs. Momentary switches are suitable for temporary actions, while latching switches maintain their position.

Evaluate the Shape and Size

Consider the design aspects, such as shape and size, to match the aesthetics and space requirements.

Assess the Illumination

Evaluate the illumination options, including color and brightness, to suit the application’s visual feedback needs.

Check the Quality and Brand

Consider reputable brands and high-quality products to ensure durability and reliable performance. For example, Schneider’s illuminated push buttons are known for their quality.

Consider the Environment

Assess the environmental conditions such as temperature, humidity, and exposure to chemicals, and choose a switch with suitable material and ratings.

Consult an Expert

If unsure, consult an expert or refer to product specifications on websites like Indicator Light’s category page for detailed information.

What Are the Differences Between Lighted Push Button Switches and Non-Illuminated Push Button Switches?

Understanding the differences between lighted and non-illuminated push button switches can help in selecting the right switch for specific applications.

Visual Feedback

Lighted push button switches provide visual feedback, allowing users to quickly identify the switch’s status, while non-illuminated switches lack this feature.

Aesthetic Appeal

Illuminated switches often add an aesthetic appeal to the design, enhancing the look of the control panel or device.


Generally, lighted push button switches are more expensive than their non-illuminated counterparts due to the added complexity of the illumination feature.

Power Consumption

Illuminated switches consume additional power for the lighting element, whereas non-illuminated switches do not have this consumption.

Application Specific

Lighted switches are often preferred in

applications where visibility is essential, such as in dark environments or where quick identification is needed. Non-illuminated switches might be chosen for simpler applications where illumination is not necessary.


Lighted push button switches offer versatility, aesthetic appeal, and functionality across various applications. Understanding their types, wiring, applications, and how to choose the right one can help in implementing them effectively in different scenarios. Whether it’s an industrial control panel, a marine application, or a home appliance, these switches provide reliable control with visual feedback. By considering the factors discussed in this guide, users can make informed decisions in selecting and using lighted push button switches for their specific needs.

How to Troubleshoot a Lighted Push Button Switch?

Inspect the Wiring

If the lighted push button switch is not working as expected, inspect the wiring. Loose or damaged wires can cause malfunctioning. Refer to the wiring diagram for proper connections.

Check the Power Supply

Ensure that the power supply to the LED and the switch is within the required voltage range. A mismatch can cause the LED not to illuminate or the switch not to function.

Test the LED

If the LED is not lighting up, test it with a multimeter or connect it to another power source to check if it’s functioning.

Examine the Mechanical Parts

Sometimes, the mechanical parts inside the switch may get stuck or wear out. Inspect the switch’s mechanical components and replace if necessary.

Consult the Manufacturer’s Guidelines

If troubleshooting doesn’t resolve the issue, consult the manufacturer’s guidelines or contact their support. More details can often be found on the product page.

How to Maintain a Lighted Push Button Switch?

Regular Inspection

Regularly inspect the switch and its wiring for any signs of wear, damage, or loose connections. Promptly address any issues to prevent malfunction.

Clean as Needed

Depending on the environment, dust and dirt may accumulate on the switch. Clean it using a soft cloth and non-abrasive cleaners to maintain its appearance and function.

Monitor the LED

Keep an eye on the LED’s brightness and color. If changes are noticed, it may be a sign of wear or a power issue.

Follow Manufacturer’s Recommendations

Always follow the manufacturer’s recommendations for maintenance, including specific cleaning agents, inspection intervals, and replacement parts.

Keep Spare Parts

Having spare parts, such as additional switches or LEDs, can be helpful for quick replacements if an issue arises.

Are Lighted Push Button Switches Safe for Outdoor Use?

Check the IP Rating

When selecting a lighted push button switch for outdoor use, check the IP (Ingress Protection) rating. The IP rating indicates the level of protection against dust and water. An IP67 rated switch, for example, offers protection against dust and temporary water immersion.

Consider the Material

Choose a switch made of materials that can withstand outdoor conditions such as UV rays, rain, and temperature changes. Stainless steel and certain plastics are commonly used for outdoor applications.

Assess the Application

Consider the specific outdoor application and the environmental conditions it will be exposed to. Selecting a switch designed for outdoor use ensures durability and proper functioning.

Consult Product Specifications

Refer to product specifications or consult the manufacturer to ensure that the chosen switch is suitable for outdoor use. For outdoor-rated switches, you may explore the options here.

What Innovations Are Available in Lighted Push Button Switches?

Smart Connectivity

Some modern lighted push button switches offer smart connectivity, allowing control and monitoring through mobile apps or automation systems.

Customizable Illumination

Advancements in LED technology have allowed for customizable illumination, enabling users to change colors, brightness, and patterns as needed.

Energy Efficiency

Newer switches often incorporate energy-efficient LEDs, minimizing power consumption without compromising brightness.

Enhanced Durability

Innovative materials and designs have increased the durability and lifespan of lighted push button switches, even in challenging environments.

Integration with Other Systems

Integration with other systems, such as home automation or industrial control systems, allows for more seamless control and coordination with other devices.


Lighted push button switches play a vital role in various applications, providing both functional control and visual feedback. With proper selection, installation, maintenance, and understanding of their features, these switches can offer reliable and aesthetically pleasing solutions. Innovations continue to enhance their capabilities, making them an indispensable component in modern technology. By following the insights and guidelines in this comprehensive guide, individuals and professionals can effectively utilize lighted push button switches in their respective fields. Whether it’s a simple 12V on/off switch or a sophisticated illuminated momentary push button switch, the right choice and application can make a significant difference in efficiency and user experience. For more products and information, please visit Indicator Light.
