Push Button 12 Volt Switches UL Card Buckle Style Good price

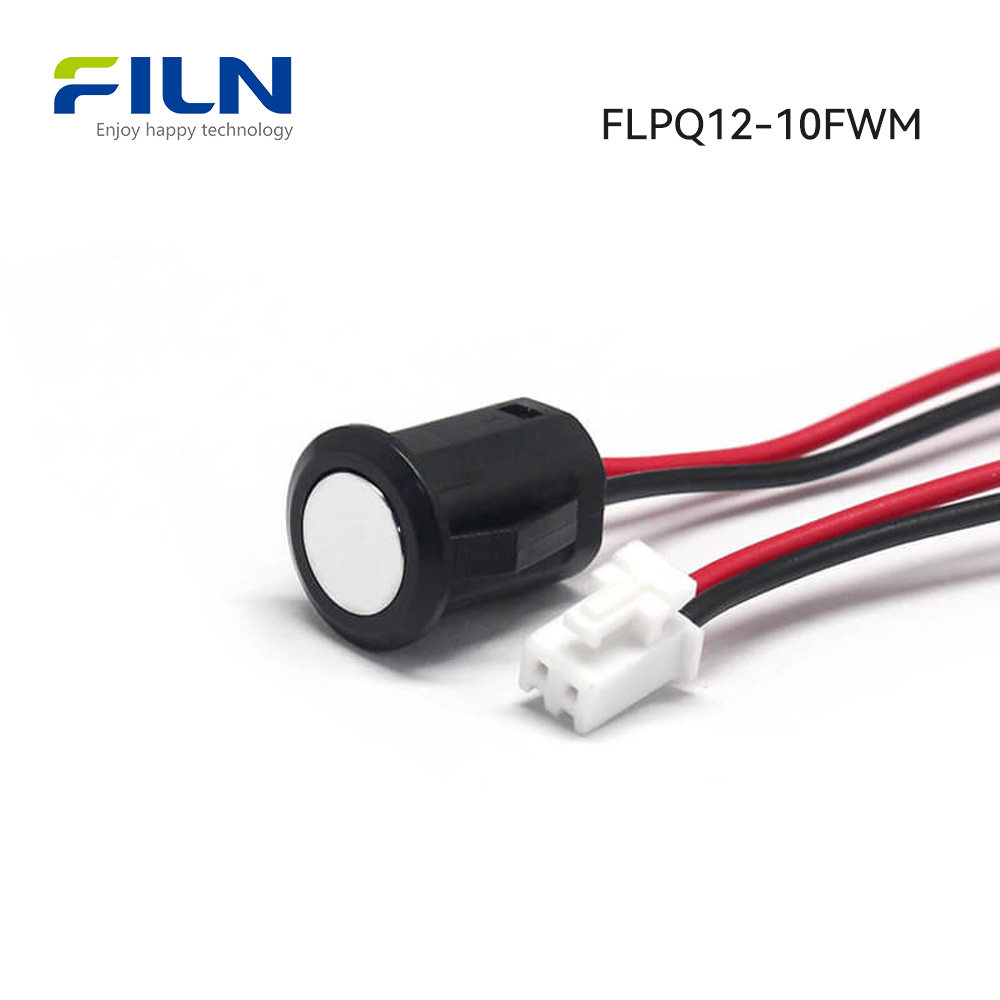

FLPQ12-10FWM (1)

Product Drawings:



FILN push button 12 volt switches are available with normally open/normally closed functions. They are exquisite and beautiful. They are designed in accordance with the characteristics of domestic and foreign users. All parts reach IP67 waterproof, oil-proof and dust-proof.

IP is the international code used to determine the protection level. The ip level is composed of two numbers. The first number indicates dustproofness; the second number indicates waterproofs. The larger the number, the better the protection level.

Dust level

0, no protection, no special protection

1, Avoid the intrusion of objects larger than 50mm. Avoid the human body accidentally touching the internal parts of the lamp. Avoid the intrusion of objects larger than 50mm in diameter

2 , Avoid the intrusion of objects larger than 12mm. Avoid touching the internal parts of the lamp with your fingers

3, Avoid all intrusion of objects larger than 2.5mm. Avoid intrusion of objects, wires or objects with a diameter larger than 2.5mm

Product Parameters:

Production Series FLPQ12-10FWM Light guide Button
Button Shape round Actuator ABS plastic
Button LED Color Black、white Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing ABS plastic
Rated Current 1A(DC)0.5A(AC) Light Source
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

Push Button Switch Wiring Method:

FLPQ12-10FWM (2)

Push Button 12 Volt Switches

4 , Avoid the intrusion of objects larger than 1.0mm Avoid the intrusion of mosquitoes, insects or objects with a diameter larger than 1.0

5 , Dust-proof It is impossible to completely avoid the intrusion of dust, but the amount of intrusive dust will not affect the normal operation of the electrical.

6 , Dust-proof, completely avoid dust intrusion

waterproof level

Number Protection Degree Definition

0 No protection No special protection

1 Avoid the intrusion of dripping water

2 Avoid dripping when the lamp is skewed by 15 degrees. When the lamp is skewed by 15 degrees, it can still avoid dripping

3 Avoid the intrusion of erupted water. Avoid rain or water that erupted straight into the direction with an angle less than 50 degrees

4 Avoid splashing water intrusion from all directions

5 Avoid the intrusion of water from big waves. Avoid the intrusion of water from big waves or water jets

6 Avoid large waves of water intrusion. The normal operation of the lamps can still be ensured when the lamps intrude into the water under the condition of a watchful time or water pressure

7 Avoid the intrusion of water intrusion The lamp can be submerged indefinitely in the water under certain water pressure, and the normal operation of the lamp can be guaranteed

8 Avoid the effects of flooding

This button was ordered by a customer in Malaysia. He had a button that he had used all the time, but with the progress of the times and the development of technology, his old button has not kept up with the times, so he hopes to design A new, durable and economical new button is produced. Based on this requirement, Yu Lin designed this push button 12 volt switches for him.

This button generally has two functions: self-locking and self-resetting. It supports two shapes of the high head and flat head. The switch can be with or without light. The metal button switch with cable type has 5 colors: red, yellow, green, blue and white. The metal button switch with cable can be 3V , 5V , 6V , 12V , 24V , 110V, 220V, 380V, etc. The current can be 12V 2A or 250V 1A. The end of the metal button switch adopts a glue-filled structure, and the bottom can reach IP68 waterproof rating.

The custom-designed push button 12 volt switches switch has a 12mm diameter mounting hole, a white flat head, a black shell, and the shell is made of plastic material, which can greatly reduce production costs, and the plastic has better heat resistance. The push-button 12 volt switches adopt a snap-on design. The snap-on design is very easy to install, just click it in. This design first greatly reduces production costs, and secondly, it saves the installation process, simplifies the installation process, and saves installation time. The button cord is generally about 20cm long. According to customer requirements, a plastic terminal is added to the end of the cord. This is also designed for easy installation and easy use. As a result, the cost of these push button 12 volt switches has been greatly reduced, meeting the economic and practical requirements of customers, and is widely promoted and used to seize the market. The product supports IP67 protection specifications (according to EN60529 specifications), CE international specifications and ROHS environmental protection specifications.

Another feature of this product is the small touch metal key switch in the industry, which avoids the problem that some customers cannot install it due to lack of space. At the same time, these push button 12 volt switches can be used in various products and fields such as industry, medical field, catering industry, hardware tools, lifting equipment and so on.

In fact, many products can use button switches. First, we must understand which aspects should be selected when purchasing button switches, and which aspects should be paid attention to in order to choose good button switches. So let’s now take a look at the places to pay attention to when choosing buttons.

The first is the model, the second is the power supply voltage, and then the operating voltage and operating temperature. This is the view of the indicator light. Then we look at the aspects that the button should pay attention to. First, it is the model, the rated working current, the rated insulation voltage, the working temperature and the material.



– Q: What is the minimum order quantity for the linear 12MM metal push button switch?

– A: MOQ, since we are a factory, there is only one.



– Q: What is the daily output of 12MM metal push button switches?

– A: The 12mm metal push button switch can produce 1,000 pieces per day.



– Q: What is the guarantee period of the 12MM push button switch?

– A: 5 years.

– Q: How many 12mm button switches per box?

– A: One box: 2000pcs.



– Q: How long does it take to get from your factory to the United States?

– A: It usually takes 5 days to get to the United States, and 5 to 4=7 days to go to Europe. We usually send the goods by TNT, DHL, FedEx or another express.



– Q: Can you customize the 12mm push button switch?

– A: It can be customized according to customer needs.



– Q: Does the 12mm metal button switch have a patent?

– A: The 12mm metal button switch is independently researched and developed by FILN, and has national new-use patents and American UL certification.



– Q: Where do I use 12mm metal buttons with wires?

– A: Because of its waterproof performance, it is usually used in damp places and products.
