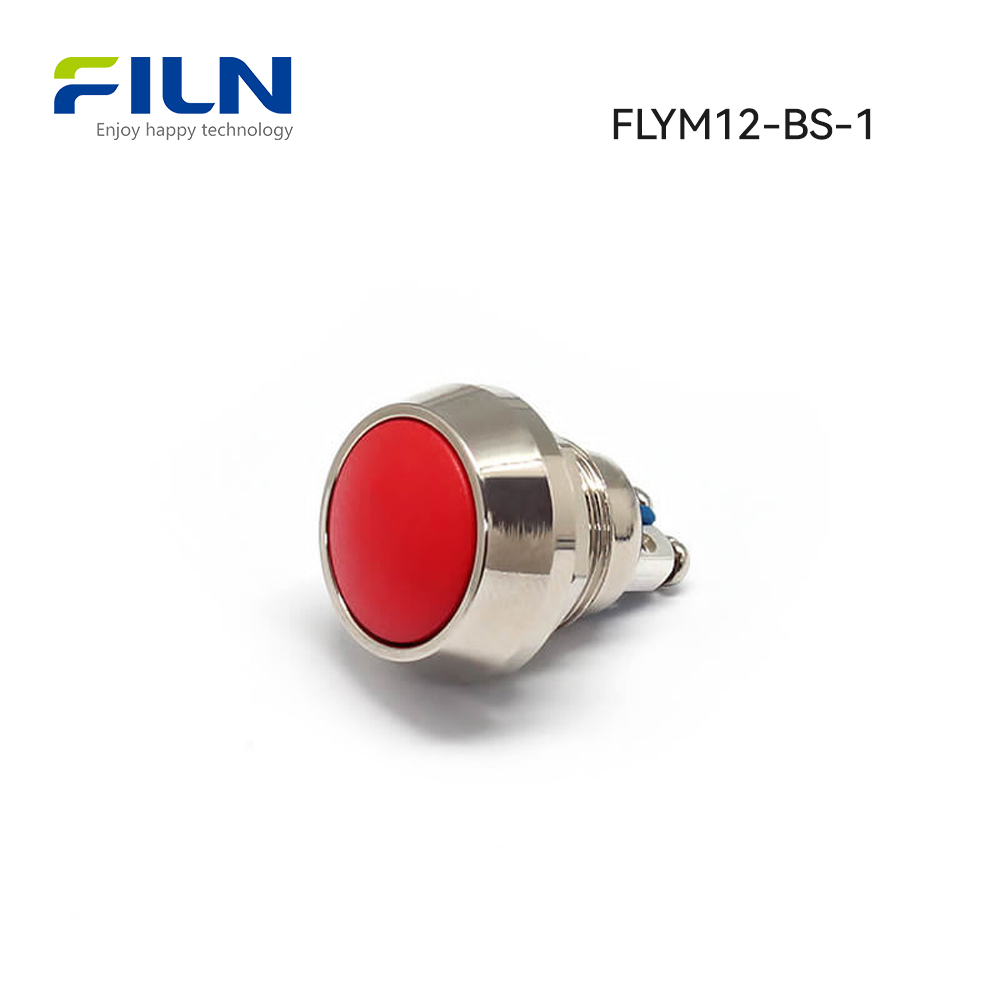

FILN Red Push Button Switch 2 Screw Terminals Momentary

Product Drawings:

We have all seen push button switches in our lives, but most of them are made of metal and have a silver or black surface.

The red push button switch is obviously the red button that is displayed after installation.

The most common is the emergency stop button, because it is used to stop the use of emergency, so the emergency stop button switch are eye-catching red button, so that the operator can respond more quickly.

Therefore, when the key portion of a push button switch is red, this type of switch can be referred to as a red push button.

Product Parameters:

Push Button Switch Wiring Method:

Related products:

Features of The Red Push Button

Here’s a comparison table highlighting the differences between a red push button and a regular push button switch:

Please note that these are general features and specific products may have variations or additional features.

FILN supports custom production of the red push button switch you need, please feel free to inquire.

Advantages of Red Push Button Switches:

There are several advantages to using red buttons in the push button switch type.

Acts as an emphatic warning: Red is an eye-catching color that is instantly visible and can effectively draw attention to itself, especially when there is an emergency. Red buttons can be used to indicate an emergency stop or other important function on the machine to warn the operator to take cautious action or to pay attention to a specific operation.

Quickly identifiable: The red button can be clearly distinguished from other common pushbutton switches in the equipment’s control panel, making it easier to identify and operate before the equipment is in operation. This prevents workers from misusing or confusing the buttons, improving efficiency and safety.

It is important to note that the choice of button color usually depends on the specific application scenario and design requirements you are working with.

For different uses and industries, there may be other different color requirements or design criteria.

Description of The 12MM Red Push Button:

This 12MM momentary push button switch is available in other colors besides red push button, including blue push button, green push button, yellow push button, black push button, white push button, etc. FILN can produce them all.

The sizes are also available in 16MM/19MM/22MM push button switches.

Page This red push button switch is 12MM, 12mm is approximately 0.472 inches when converted.

Due to the special nature of this one, it is not available in other sizes for the time being, but there will be other styles of red push buttons that we can recommend to you.

It is a momentary pushbutton switch, most of the time in the initial free state position, the circuit is broken, only when you press the red button, it will switch to the second state under the action of external force, the contacts contact, forming a complete circuit, the device operates normally.

Once the external force is removed, the switch returns to the initial position due to the action of the spring.

Red push-button switches perform basic controls such as start, stop, forward and reverse, variable speed, and interlock. Typically, each red pushbutton switch has two pairs of contacts.

Each pair of contacts consists of a normally open contact and a normally closed contact. When the button is pressed, the two pairs of contacts act simultaneously, with the normally closed contact breaking and the normally open contact closing.

How to Purchase FILN Red Push Button

Comprehensive Guide to Red Push Button: Features, Uses, Selection, and More

Red push button switches are integral components that we encounter in our daily lives, from elevators to emergency systems. In this comprehensive guide, we delve into the fascinating world of red push button switches, exploring their fundamental working principles, various applications, customization options, and purchasing considerations. Whether you’re an electronics enthusiast or a professional looking to understand the diverse roles and possibilities of red push button switches, this article offers insights and answers to the most asked questions. Read on to discover what makes red push button switches so versatile and essential in modern technology.

Step 2: Main Types and Uses of Red Push Button

Understanding the Red Push Button

The red push button, a common tool in various applications, is a multifaceted device that can serve numerous functions.

Different Types

There are multiple types of red push buttons including momentary car push button ignition switches and latching push buttons. The specific type chosen often depends on the function it’s intended to perform.

Main Uses

From industrial machinery to household appliances, red push buttons are widely used. The color itself often indicates an emergency or critical action, such as stopping a machine or activating an alarm.

Advantages of Red Over Other Colors

The choice of red for push buttons often denotes importance or urgency. Its visibility allows for quick identification in emergency situations.

Safety Considerations

Safety is paramount when dealing with red push buttons, particularly in industrial settings. Proper installation and maintenance are crucial to ensure that the button functions correctly.

Integration with Other Systems

Red push buttons can be integrated with other systems like lighting and alarms. This adds layers of functionality and safety to the overall system.

Selection Criteria

Choosing the right red push button requires understanding the application’s needs. This involves considering factors like size, material, functionality, and compatibility.

Accessibility and Availability

Red push buttons are widely accessible through different vendors and online platforms. Customizable options are also available for specific needs.

Relation to Green Push Button

Red push buttons often work in conjunction with green push buttons. While red generally signifies ‘stop’ or ’emergency,’ green is usually associated with ‘start’ or ‘go.’

DIY Options

For those looking to implement a red push button in a personal project, DIY options and tutorials are available to assist in the creation and integration of the button.

Environmental Impact

Consideration of the environmental impact of red push buttons is crucial. Selection of eco-friendly materials and adherence to recycling guidelines can make a difference.

Step 3: Differences Between Red Push Button Switches and Green Push Buttons

Comparing Red Push Button Switches with Green Push Buttons

Red push button switches and green push buttons have unique characteristics, though they are often used together.

Functionality

Red push buttons generally signify stopping or emergency actions, while green push buttons are usually associated with starting or positive actions. This difference in symbolism affects their functionality in various settings.

Aesthetic Appeal

The choice of red or green push buttons might also be influenced by aesthetic considerations, such as matching a brand’s color scheme or achieving visual balance within a device.

Standardization

In many industries, the use of red and green push buttons is standardized. Red is reserved for critical actions, while green is used for more routine functions.

Technological Differences

Though the color differs, the internal mechanisms of red and green push buttons might be the same. They can be manufactured with similar materials and technologies, such as LED ring buttons.

Application Areas

Red push buttons are often found in emergency systems, while green push buttons may be used in everyday appliances. The choice between red and green often depends on the specific needs of the application.

Customization Options

Both red and green push buttons can be customized to fit specific needs. Whether it’s the material, size, or specific symbols, manufacturers offer various options for customization.

Compliance with Regulations

It’s essential to understand and comply with the regulations related to the use of red and green push buttons, especially in industrial settings.

Consideration of Human Factors

Understanding human psychology is important when choosing between red and green push buttons. Red often induces a sense of urgency, while green may create a calming effect.

Environmental Considerations

Environmental concerns may also influence the choice between red and green push buttons. Selecting eco-friendly materials and responsible manufacturing practices is essential.

Costs and Availability

While the basic functionalities are similar, the cost and availability of red and green push buttons may vary depending on factors like brand, quality, and specific requirements.

Step 4: The Significance of the “Press the Red Button Game” and Other Red Button Memes

The Cultural Impact of the Red Button

Red push buttons have transcended their physical utility and have become cultural symbols and memes. Understanding these representations helps us recognize the psychological significance of red buttons in modern society.

Press the Red Button Game

The “press the red button game” is a popular online game where players are tempted to press a virtual red button. It often includes humorous consequences and represents the human curiosity and the lure of the forbidden.

Red Button Memes

Red button memes are widely shared on social media platforms. These memes usually depict a choice or dilemma, highlighting the tension between desire and consequence, similar to the “press the red button game.”

Big Red Button Symbolism

The big red button has become a symbol of ultimate power or catastrophic action in various media. Whether in movies, cartoons, or political discourse, it represents a decisive action that can have far-reaching consequences.

Psychological Impact

The fascination with the red button, whether in games or memes, taps into human psychology. It can symbolize temptation, fear, control, or even humor, reflecting diverse human emotions and decisions.

Educational Applications

Some educational programs utilize the concept of the red button to teach decision-making, critical thinking, and consequence management. It can be a creative way to engage students in learning.

Marketing and Advertising

The red button’s cultural significance is also leveraged in marketing and advertising. It can symbolize an invitation to take action, such as making a purchase or signing up for a service.

Influence on Product Design

The red button’s popularity in culture may influence product design. It can be used to emphasize specific functions in devices or software, such as push button power switches with power symbols.

Ethical Considerations

The use of red buttons in cultural symbols should be done with consideration of potential ethical implications, such as unintentionally promoting harmful behaviors or stereotypes.

Accessibility in Digital Media

The use of red buttons in digital media, such as games and websites, should also consider accessibility. Proper design can ensure that all users, including those with disabilities, can interact with these elements.

Impact on User Experience (UX)

The red button’s cultural significance can be harnessed to enhance user experience (UX) in digital interfaces. It can guide user behavior and make interactions more intuitive and engaging.

Step 5: How are Red Push Button Switches Used in Cars and Other Vehicles?

Utilizing Red Push Button Switches in Vehicles

Red push button switches have specific applications in vehicles, ranging from cars to boats, providing essential functions and enhancing the user experience.

Ignition Switches

Red push buttons are often used as ignition switches in cars, motorcycles, and boats. These switches, such as the momentary car push button ignition switch, provide a sleek and modern alternative to traditional keys.

Emergency Systems

In commercial vehicles like buses and trains, red push buttons may be used to activate emergency systems, like alarms and door releases, offering a quick response in critical situations.

Customization and Aesthetic Appeal

Red push buttons in vehicles can be customized to match the interior design or reflect a brand’s identity. The color red may be chosen for its visibility and aesthetic appeal.

Integration with Technology

Red push buttons in vehicles can be integrated with modern technology, such as touch-sensitive controls, LED lights, and other smart features, enhancing functionality.

Compliance with Regulations

When installing red push buttons in vehicles, compliance with regulations and standards is essential to ensure safety and legal adherence.

Consideration for Specialized Vehicles

In specialized vehicles like race cars, red push buttons might be used for specific functions, like cutting off fuel supply or activating fire suppression systems.

Maintenance and Durability

Red push buttons in vehicles must be durable and capable of withstanding harsh conditions. Proper maintenance and selection of quality materials, such as those found in latch metal push button switches with LED, are key.

Influence on Driving Experience

The placement and design of red push buttons in vehicles can influence the overall driving experience. Ergonomic design can enhance comfort and accessibility.

Environmental Impact

The manufacturing and disposal of red push buttons in vehicles should consider environmental sustainability. Choosing eco-friendly materials and practices can minimize negative impacts.

Costs and Availability

The cost of installing red push buttons in vehicles can vary based on features, quality, and brand. Understanding the requirements and budget is essential in making an informed decision.

Step 6: What are the Safety Measures and Guidelines for Using Red Push Button Switches?

Safety Considerations for Red Push Button Switches

Ensuring safety while using red push button switches is vital. Here are some guidelines and considerations that one must keep in mind.

Compliance with Standards

Red push button switches must comply with relevant national and international standards. This ensures that the switches are manufactured and tested according to established safety protocols, like those used in 16mm push button metal switches.

Proper Installation

Proper installation of red push button switches is crucial. Wiring and connections should be carried out by qualified technicians to minimize the risk of short circuits, shocks, or other hazards.

Usage in Appropriate Environments

Red push button switches should be used in environments for which they are designed. For example, marine or outdoor applications may require weather-resistant switches like 19mm red LED marine push button switches.

Regular Inspection and Maintenance

Regular inspection and maintenance of red push button switches are essential to detect and rectify any wear and tear or malfunction, ensuring continued safe operation.

Clear Labeling and Signage

Clear labeling of red push button switches, especially those used in emergency systems or critical functions, helps in quick identification and avoids misuse.

Incorporating Safety Features

Incorporating safety features such as locks, guards, or covers prevents unauthorized or accidental activation of red push button switches.

Accessibility Considerations

Red push button switches should be placed in accessible locations, especially if used for emergency purposes, to ensure they can be easily reached when needed.

Education and Training

Users and operators of machinery or systems with red push button switches should receive proper education and training. Understanding the function and operation of these switches contributes to safety.

Environmentally Responsible Disposal

End-of-life disposal of red push button switches should be done responsibly, following environmental regulations and recycling practices where possible.

Ethical Manufacturing Practices

Selecting red push button switches from manufacturers who follow ethical practices ensures quality and responsibility towards social and environmental obligations.

Step 7: What are the Different Types of Red Push Button Switches and Their Applications?

Variety and Applications of Red Push Button Switches

Red push button switches come in different types, each with unique features and applications. Here’s a comprehensive overview.

Momentary Push Button Switches

Momentary red push button switches are activated only while being pressed. They are commonly used in devices like doorbells and can be found in red small 2-pin momentary switches.

Latching Push Button Switches

Latching red push button switches maintain their position after being pressed. They are used in applications requiring a stable state, such as lighting controls. A good example is the latching R16-503AD push button switch.

LED Push Button Switches

Red push button switches with LED lights offer visual feedback and are popular in automotive and industrial control panels. You can find such switches at LED push button switch category.

Halo Push Button Switches

Halo red push button switches feature a glowing ring, providing a distinct appearance and functionality. They can be seen in applications like gaming consoles, and more details can be found at halo push button switch section.

Emergency Stop Push Button Switches

Red push button switches used for emergency stops are vital in industrial applications to halt machinery immediately. They must be designed for quick access and reliable performance.

Waterproof Push Button Switches

Waterproof red push button switches are designed for environments exposed to moisture or liquids. They are often used in outdoor equipment or marine applications.

Customizable Push Button Switches

Some red push button switches are customizable, allowing users to choose specific features, symbols, or lighting to fit particular needs.

Application in Medical Devices

Red push button switches in medical devices must adhere to strict standards and provide reliable performance, especially in life-saving equipment.

Usage in Home Appliances

From kitchen gadgets to security systems, red push button switches in home appliances add functionality and aesthetic appeal.

Integration in Smart Technology

With the rise of smart technology, red push button switches are now integrated into intelligent systems, enhancing user control and automation.

Step 8: How Do Red Push Button Switches Work in Industrial Automation?

Functioning of Red Push Button Switches in Industrial Automation

The use of red push button switches in industrial automation has transformed the way machines and systems operate. Here’s how they function in various industrial contexts.

Control of Machinery

Red push button switches are used to control machinery by sending signals to start, stop, or modify operations. This functionality can be seen in push button power switches with power symbols.

Integration with PLC Systems

In industrial automation, red push button switches can be integrated with Programmable Logic Controllers (PLCs) to create sophisticated control sequences, allowing flexibility and customization.

Emergency Stop Functions

Emergency stop red push button switches are a critical safety feature in industrial settings. These switches enable immediate halting of machinery in case of malfunction or danger.

Activation of Alarms and Notifications

Red push button switches can be configured to activate alarms or notifications, alerting operators to specific conditions or the need for intervention.

Use in Assembly Lines

In assembly lines, red push button switches can initiate or stop specific processes, aiding in the efficient manufacturing of products.

Role in Process Monitoring

Red push button switches are employed in monitoring processes within industries like chemical, pharmaceutical, or food processing, allowing for precise control and adherence to quality standards.

Functioning in Robotics

In the field of robotics, red push button switches can be used to control robotic arms or automated vehicles, enhancing precision and productivity.

Adaptation in Different Industries

Red push button switches are adapted across different industries, from automotive to healthcare, each requiring specific features, such as waterproofing or resistance to chemicals.

Energy Management

Red push button switches in industrial automation can also be part of energy management systems, ensuring optimal energy consumption and contributing to sustainability.

Future Trends and Innovations

With continuous innovation, red push button switches in industrial automation are expected to evolve, incorporating smart technology and connectivity to adapt to Industry 4.0 trends.

Step 9: What are the Main Characteristics of a Red Push Button Switch?

Essential Characteristics of a Red Push Button Switch

Understanding the characteristics of a red push button switch is crucial when selecting the right switch for a particular application. Below are some primary features and considerations.

Type of Action

Red push button switches may be momentary, latching, or multi-function. Each type serves a different purpose, as seen in momentary car push button ignition switches.

Material and Construction

The material and construction of a red push button switch affect its durability and performance. Choices range from plastic to metal, with specific types suited for different environments.

Electrical Specifications

Understanding the electrical specifications like voltage, current rating, and resistance is vital when choosing a red push button switch. This ensures compatibility with the application.

Environmental Resistance

Some red push button switches are designed to resist environmental factors such as moisture, temperature, or chemicals, as found in 28mm LED ring buttons.

Mounting Options

Mounting options for red push button switches include panel mount, surface mount, or PCB mount, offering flexibility in installation.

LED and Illumination Features

Illuminated red push button switches, like lighted push button switches, provide visual feedback or aesthetic appeal.

Compliance with Standards

Compliance with standards ensures the quality and safety of red push button switches, aligning with industry regulations and certifications.

Customizability

The ability to customize red push button switches, such as symbols or colors, allows for better alignment with specific applications or branding.

Ergonomic Design

Ergonomic design considerations ensure that red push button switches are comfortable and intuitive to use, enhancing user experience.

Cost Considerations

The cost of red push button switches varies based on features and quality. Balancing cost with requirements ensures an appropriate selection for the application.

Step 10: Can Red Push Button Switches be Customized?

Customization of Red Push Button Switches

The customization of red push button switches offers a flexible solution for various applications. Here’s an exploration of how these switches can be tailored to meet specific requirements.

Custom Labels and Symbols

Red push button switches can be customized with specific labels or symbols to indicate their function. This allows for better user understanding and alignment with specific applications.

Size and Shape Modifications

The size and shape of the red push button can be adjusted to fit particular spaces or aesthetics. For example, small 2-pin momentary switches are customized for compact applications.

Color and Illumination

Besides red, the button color can be changed, or illumination can be added to provide visual feedback or match branding. The LED ring switch is a prime example.

Material Customization

Depending on the environment and use, materials ranging from plastic to metal can be chosen for durability, appearance, or resistance to certain conditions.

Electrical Configuration

Customization of electrical specifications, such as voltage and current ratings, ensures compatibility with specific devices or systems.

Connection and Mounting Options

Red push button switches can be tailored with various connection and mounting options, such as surface or PCB mounting, depending on the installation needs.

Integration with Other Devices

Red push button switches can be integrated with other devices, such as sensors or screens, to create a comprehensive control interface.

Compliance with Industry Standards

Customizing red push button switches to comply with industry-specific standards and certifications ensures that they meet safety and quality requirements.

Incorporation of Smart Technology

Incorporation of smart technology allows red push button switches to connect to networks or systems, enabling remote control and monitoring.

Collaboration with Manufacturers

Working closely with manufacturers like Indicator Light enables the creation of red push button switches that are specifically designed for unique applications, enhancing functionality and user experience.

Step 11: Where Can Red Push Button Switches Be Bought?

Purchasing Red Push Button Switches

Buying red push button switches requires consideration of various factors. Here’s a guide on where and how to purchase them, reflecting on quality, price, and specific needs.

Online Retailers and Marketplaces

Online platforms offer a wide variety of red push button switches, including specific sites like Indicator Light’s push button switch category, where various options are available.

Manufacturers and Suppliers

Directly contacting manufacturers or suppliers can provide access to customized solutions, bulk pricing, and specialized support, such as the latch metal push button switch with LED.

Local Electronics Stores

Local electronics stores may carry red push button switches, offering the advantage of in-person inspection and immediate purchase.

Distributors and Wholesalers

Working with distributors or wholesalers can offer competitive pricing and access to specific brands or types of red push button switches, such as halo push button switches.

Industry-specific Vendors

Some vendors specialize in specific industries or applications, providing red push button switches that are tailored to meet particular standards or requirements.

Considering Quality and Certification

When purchasing, considering the quality and certification of red push button switches ensures that they meet safety and performance standards.

Comparing Prices and Offers

Comparison of prices and offers among various sellers helps in making an informed decision, balancing quality and cost.

Understanding Return and Warranty Policies

Understanding the return and warranty policies when buying red push button switches provides assurance and support in case of any issues.

Seeking Recommendations and Reviews

Seeking recommendations and reviews from industry peers or online communities can guide in selecting reputable sellers and quality products.

Consulting with Experts or Sales Representatives

Consultation with experts or sales representatives can assist in selecting the appropriate red push button switch, understanding technical specifications, and ensuring compatibility with applications.

By carefully considering these aspects, purchasing red push button switches becomes an informed process, ensuring that the selected switches meet the specific needs and standards of the application.

Conclusion

The red push button switch is a versatile and essential component used in various applications across industries. From its fundamental working principle to its extensive use in emergency systems, home appliances, and industrial machinery, the red push button is synonymous with control and functionality. With advancements in technology, these switches are now available in customized forms, smart integrations, and varied designs to suit specific requirements. Purchasing these switches also offers a range of options, whether online, directly from manufacturers, or through specialized vendors. The wide spectrum of red push button switches, including related concepts like green push buttons, press the red button games, and big red buttons, paints a picture of a humble yet powerful tool that continues to evolve. Whether you are a hobbyist, a professional engineer, or someone curious about electronics, the world of red push button switches opens up a realm of possibilities and innovations.

How Much Does a Red Push Button Cost in the USA?

When it comes to finding the perfect red push button, price is an important factor to consider. In this article, we will explore the price ranges offered by different suppliers in the USA. Whether you’re a DIY enthusiast or a professional electrician, knowing the cost of red push buttons can help you make an informed decision. Let’s dive in!

Suppliers and Price Ranges

1. Home Depot
   • Price Range: $10 – $400
   • Notes: Home Depot offers a wide selection of red push buttons, including brands like Lutron. Their prices can vary depending on the specific features and functionalities you’re looking for.
2. Made-in-China
   • Price Range: $0.01 – $100
   • Notes: If you’re looking for more affordable options, Made-in-China is worth considering. The price of red push buttons from China can range from as low as $0.01 to $100, depending on the parameters and features you require.
3. Mouser Electronics
   • Price Range: Varied Prices
   • Notes: Mouser Electronics is known for its extensive range of electronic components, including red push buttons. The prices offered by Mouser Electronics can vary based on the specific model and features of the switch you’re interested in.
4. Digi-Key
   • Price Range: Varied Prices
   • Notes: Digi-Key is a reputable electronic components distributor that offers a diverse selection of red push buttons. Similar to Mouser Electronics, the prices at Digi-Key can vary depending on the model and features you’re looking for.

Price Range Comparison

To visually represent the price ranges offered by Home Depot and Made-in-China, let’s take a look at the following pie chart

As seen in the chart, Home Depot offers red push buttons with a price range of $10 to $400, while Made-in-China provides more affordable options ranging from $0.01 to $100.

Summary Table

To summarize the information, here’s a table comparing the price ranges and additional notes for each supplier:

Conclusion

When searching for the price of red push buttons in the USA, it’s crucial to consider the various suppliers and their respective price ranges. Home Depot offers a wide range of options, including reputable brands like Lutron. If you’re looking for more affordable alternatives, Made-in-China provides a diverse selection with varying prices based on specific parameters. Mouser Electronics and Digi-Key are also reliable suppliers, offering a range of red push buttons with prices that vary depending on the model and features.

Please note that the prices mentioned in this article are approximate and may vary depending on the supplier, retailer, and location. It is always recommended to check with the specific supplier or retailer for the most accurate and up-to-date pricing information on red push buttons.

Now that you have a better understanding of the price ranges for red push buttons, you can make an informed decision based on your budget and requirements. Happy shopping!
