LED Pilot Light Indicator Metal Indicator Light 6MM

SUMMARY

The FILN FL1M-06SW-2 is an industrial-grade LED Pilot Light Indicator manufactured by Yueqing Yulin Electronic Co., Ltd. Designed for demanding global environments including the United States, Germany, and Canada, this heavy-duty 6mm panel-mount signal lamp features a robust convex head crafted from premium chrome-plated copper alloy or black zinc-aluminum alloy. Engineered for high-reliability applications, it operates across a highly customizable voltage range from 3V to 220V AC/DC, drawing less than 20mA. Equipped with integrated 20cm dual PVC wire leads (40cm total loop), a silicone waterproof O-ring, and a secure M6 nut assembly, it delivers guaranteed IP67-rated ingress protection. Global procurement professionals, OEM buyers, and automation integrators trust FILN indicators due to rigorous certifications (CE, VDE, RoHS, ISO9001, CCC), zero MOQ limits, and documented field success resolving premature plastic cracking and phantom illumination in heavy machinery control cabinets.

KEY TAKEAWAYS FOR INDUSTRIAL PROCUREMENT

• Factory-Direct Customization: FILN provides rapid turnaround on engineering modifications including custom lead lengths, custom resistance values, and voltage mapping from 3V to 220V AC/DC.
• Superior Material Integrity: Metallic housing options (silver chrome-plated copper alloy or black finished zinc-aluminum alloy) prevent environmental degradation, thermal cracking, and mechanical impact failures.
• Ingress Sealing: High-performance silicone O-rings combined with precise thread execution yield a reliable IP67 protection rating, sealing against high-pressure washdowns, oil ingress, and dust.
• Integrated Wiring Efficiency: Factory-soldered 2-pin pre-wired configurations simplify panel assembly operations, lowering field connection costs and optimizing space inside tight junction boxes.
• Advanced LED Optical Performance: Features ultra-bright solid-state illumination with wide viewing angles, optimal color rendering parameters (R/G/Y/B/W), and calibrated luminous outputs reaching 800mcd.
• Comprehensive Compliance Signaling: Fully certified under CE, VDE, RoHS, ISO9001, and CCC frameworks, facilitating accelerated regulatory compliance approvals for export-oriented OEM machinery.
• Vibration Dampening Design: Solid encapsulated circuitry protects internal carbon film resistors and chip bonds from continuous harmonic vibrations typical in mining and stamping systems.
• Optimized Layout Aesthetics: Compact 6mm mounting profile coupled with a prominent convex head provides excellent visibility from wide angles, improving workplace operator safety.

WHAT IS AN LED PILOT LIGHT INDICATOR?

An LED Pilot Light Indicator is a specialized, low-power panel-mounted signaling component engineered to communicate systemic statuses—such as operational readiness, faults, power availability, or sequence steps—to equipment operators. Structurally, the assembly consists of an internal solid-state light-emitting diode, an integrated voltage-limiting resistor, a durable metallic or polymeric body casing, and electrical termination points. Operating via electro-luminescence, these indicators turn electrical currents into visible light with very low heat emission, outperforming old filament lamps in efficiency, response time, and lifespan.

Modern industrial control layout designs require diverse component choices to fit distinct environment types. FILN manufactures two main classes: high-durability metal indicators and economical engineering plastic indicators. Mounting diameters span from ultra-compact 6mm up to heavy-duty 30mm configurations to suit varying panel densities. Electrical connection configurations are split between rigid pin terminals for printed circuit board or socket integration and flexible, pre-wired leads for direct wire harness consolidation. The external metallic lenses are further styled into flat, convex, or concave profiles, allowing control platform engineers to optimize tactile clearance and visibility fields.

COMPREHENSIVE PRODUCT OVERVIEW

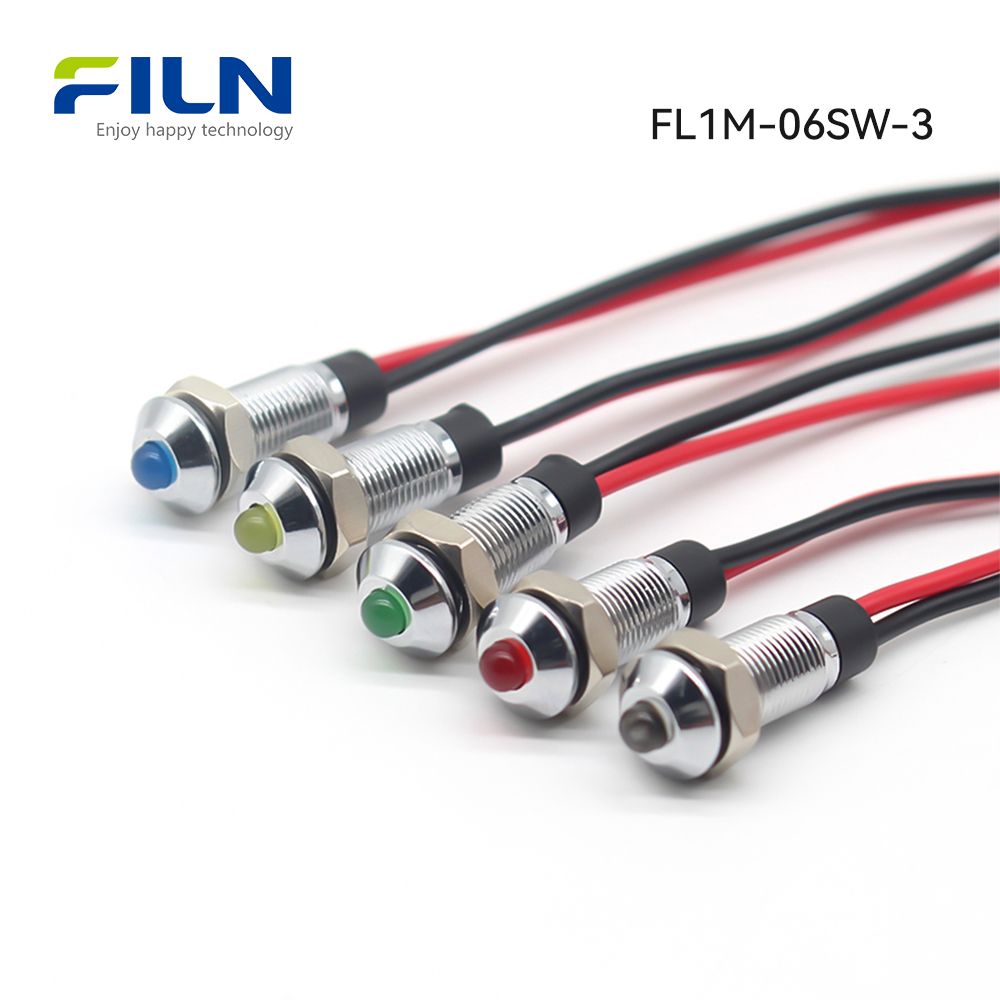

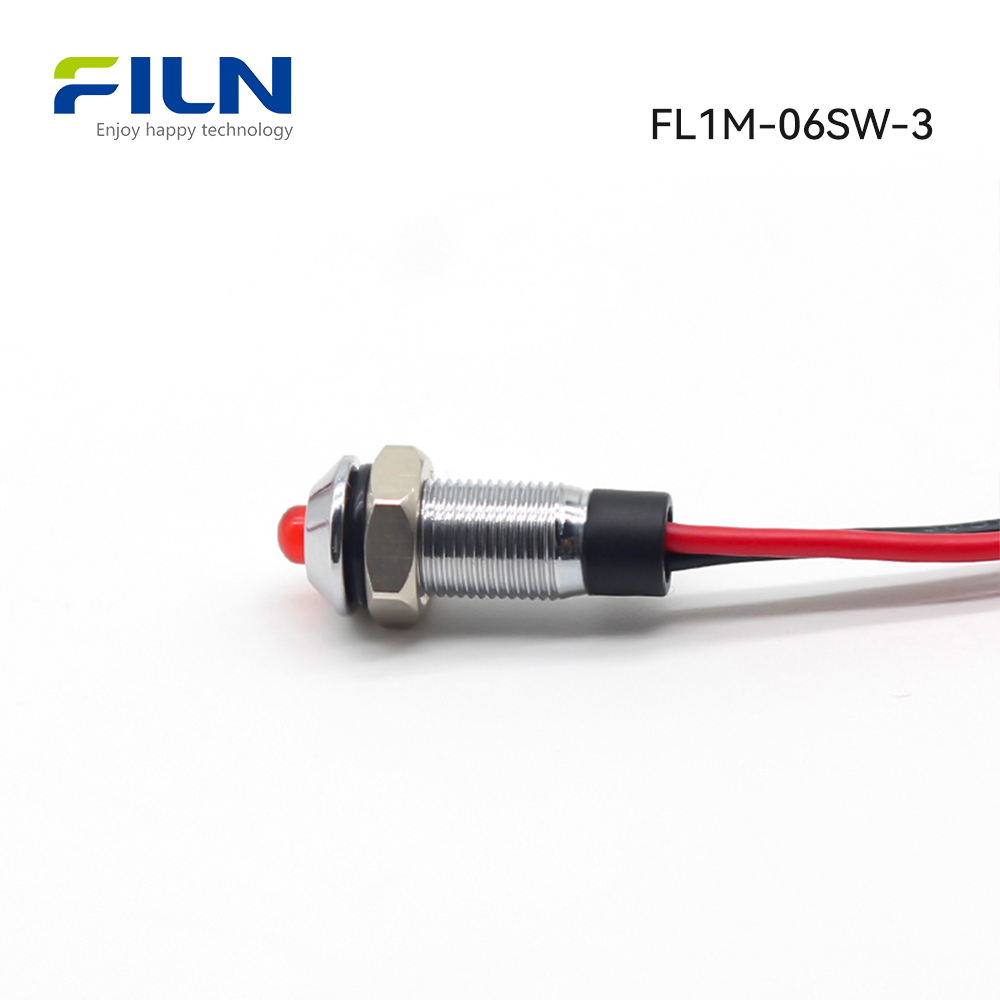

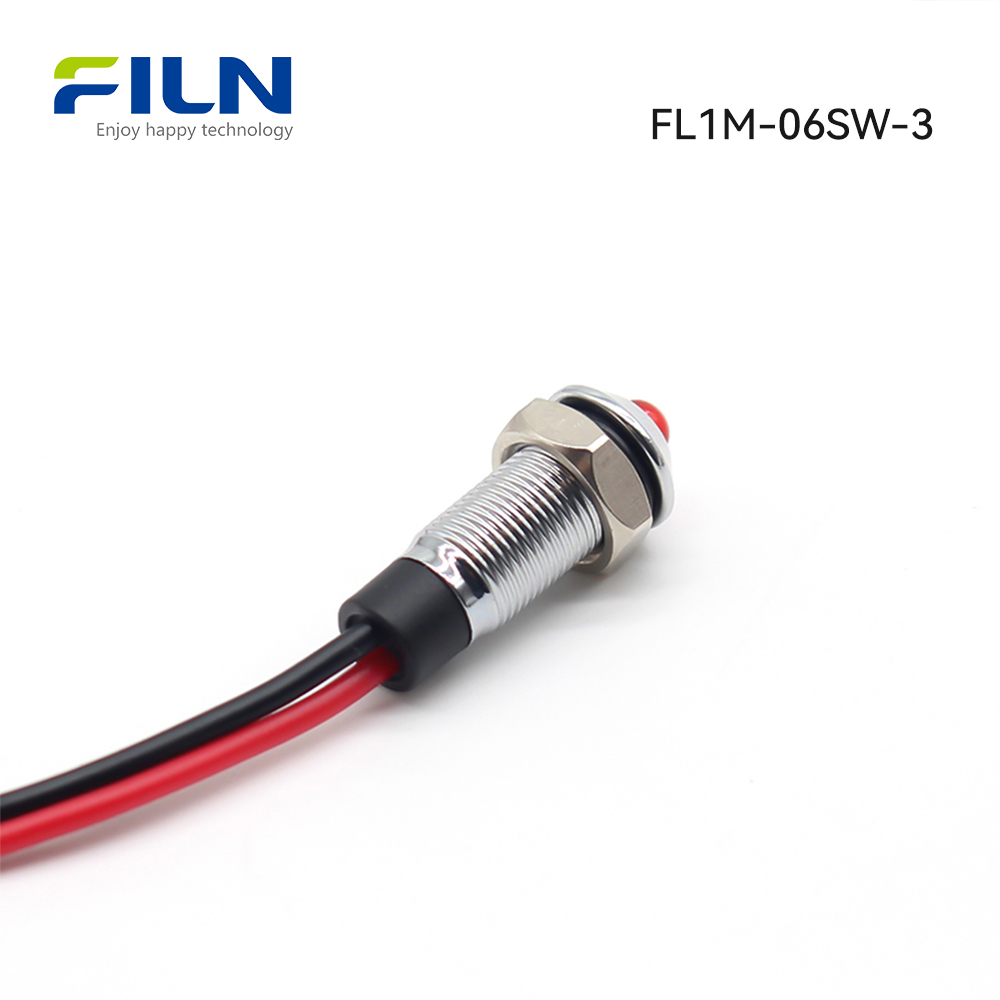

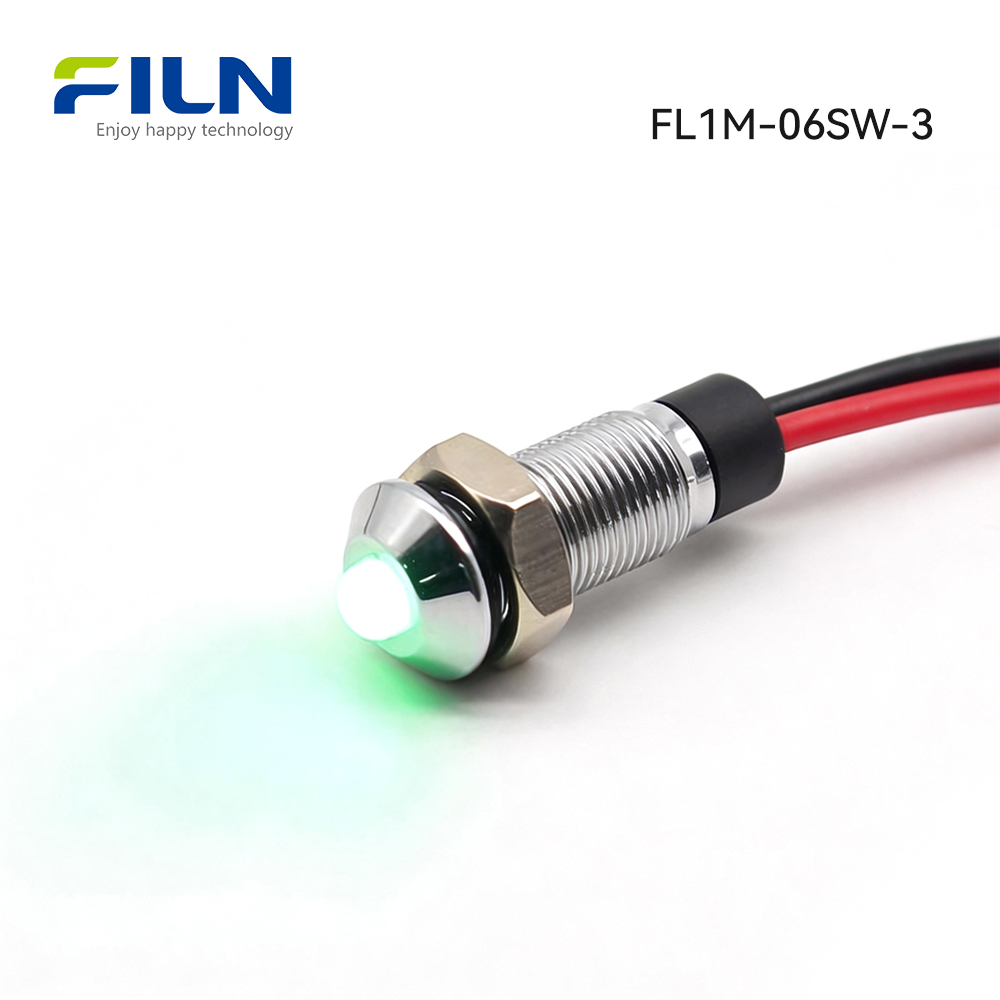

The FILN FL1M-06SW-2 stands out in industrial automation signaling, offering a high-reliability option for modern control panels. This 6mm pre-wired metal indicator uses a high-luminescence LED chip coupled with a high-stability carbon film resistor to maintain stable light output across voltage variants from 3V up to 220V AC or DC. The core machinery relies on an internal circuit that drops line voltage down to safe operating diode parameters. This prevents thermal overload while maintaining a uniform, clear signal status that operators can rely on.

Mechanically, its convex head assembly maximizes light dispersion across wider viewing fields, making it easier to check statuses from a distance. The solid-state design handles mechanical shock, structural vibrations, and sudden pressure changes that often cause conventional indicator light filaments to fail. Encased within a robust metal housing with a high-grade silicone sealing ring, it provides verified IP67 moisture and particulate protection. This makes it an ideal choice for power distribution equipment, laboratory research arrays, automated control cabinets, and high-precision machinery systems globally.

QUICK SPECIFICATIONS

PERFORMANCE PARAMETERS

COMPONENT MATERIALS MANIFEST

ENVIRONMENTAL PERFORMANCE SPECIFICATIONS

This technical testing framework outlines the performance limits for the FILN Industrial Metal LED Pilot Light Indicator series. It validates operational stability across severe industrial deployments globally.

LED OPTOELECTRONIC DETAILED SPECIFICATIONS

1. Absolute Maximum Ratings (Ta = 25°C)

2. Electro-Optical Characteristics (Ta = 25°C)

STANDARD ATOMOSPHERIC LAB TEST CONDITIONS

Unless specified in individual data sheets, all electrical and optoelectronic performance measurements are taken under the following standardized laboratory environmental parameters:

Engineering Quality Notes: Luminous intensity data and dominant spectral color wavelengths are fully calibrated and verified against the CIE international standard human eye spectral response curve. Allowed tolerances: luminous intensity measurements variance ±15%, forward driving voltage tracking error variance ±0.1V.

INDUSTRIAL APPLICATIONS BY HARSH SECTOR

Industrial equipment requires rugged signaling systems to maintain reliable uptime. Conventional engineering plastics often crack, yellow, and suffer mechanical wear when exposed to continuous UV rays, alkaline washdowns, or constant machinery vibrations. FILN heavy-duty metal indicators resolve these failures by using precision-machined copper alloy or black zinc-aluminum housings to shield internal solid-state components.

1. Industrial Automation & CNC Machine Manufacturing

Modern machining centers expose components to continuous harmonic vibrations, cutting oils, and flying metallic debris. The FILN 6mm convex metal indicator fits cleanly into dense control panel layouts. It uses pre-wired 2-pin connections to eliminate the loose terminals or broken connections common with traditional tab terminals on stamping machinery or heavy hydraulic control systems.

2. Outdoor Power Infrastructure & EV Charging Stations

Outdoor electrical cabinets, solar combiners, and commercial EV charging stations face constant weather changes and potential physical impacts. The IP67 sealing profile, supported by a high-elasticity silicone O-ring, prevents rain, snow, and fine dust from reaching internal electronics. This protection ensures reliable signaling across temperature ranges from arctic cold down to -40°C up to solar heating at +80°C.

3. Marine Automation & Harsh Transit Engineering

Salt fog and seawater exposure quickly corrode standard indicator housings, causing electrical ground faults. FILN’s chrome-plated brass or black-coated alloy housings resist oxidation and salt corrosion. Combined with stainless steel lock washers, they hold securely under the continuous vibrations found in commercial shipping engine rooms and heavy earthmoving equipment.

4. Public Vending, Fuel Dispensers & Anti-Vandal Subsystems

Unmonitored public kiosks, outdoor automated fuel dispensers, and security entry systems need strong physical protection. The solid-state LED design behind a thick metal casing resists impact damage and prevents mechanical tampering, making it an excellent choice for demanding public environments.

5. Medical Instrumentation & Food Processing Lines

Food packaging and clinical sterilization equipment undergo regular high-pressure chemical washdowns. The smooth, non-porous metal housing resists caustic sanitizers and grease buildup, preventing contamination and ensuring stable electrical insulation under demanding sanitization schedules.

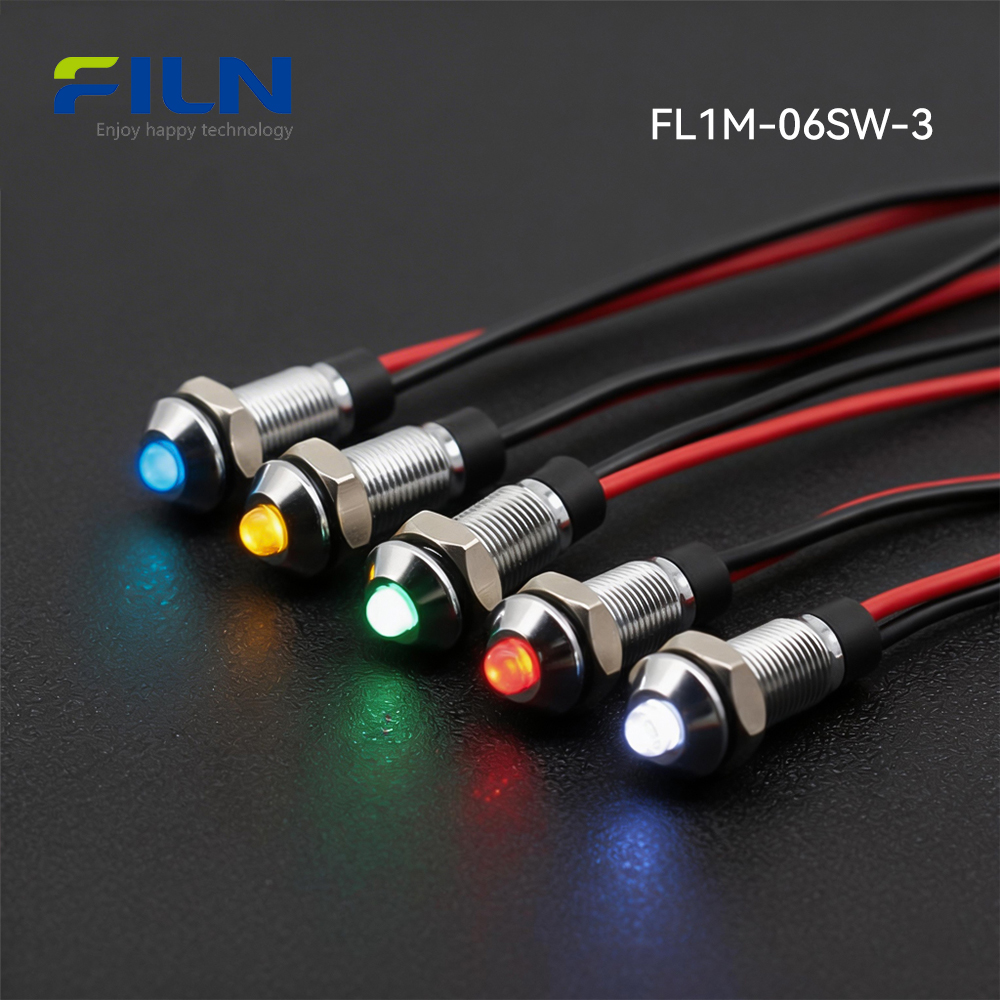

CHROMATIC SIGNALING LOGIC AND SPECIALIZED SELECTION

Industrial indicator color selections must follow international engineering standards (such as IEC 60073) to ensure clear, safe communication for operators. The standard color configurations represent specific operational states:

• Red (R): Indicates critical faults, emergency stops, danger zones, or immediate power shutdowns. It signals that immediate corrective action is needed.
• Green (G): Confirms safe operating conditions, completed cycles, nominal fluid flows, or system readiness. It indicates normal, safe operations.
• Yellow/Amber (Y): Signals warnings, standby modes, thermal limits, or unusual status conditions. It prompts operator monitoring to prevent potential system faults.
• Blue (B): Shows mandatory operator actions, such as input overrides, mechanical resets, or recipe changes. It indicates an action is required before restarting automation.
• White (W): Serves as a neutral indicator for general power status, live mains circuits, or basic tracking metrics where no fault or safety risk is present.

To support advanced control interfaces, FILN provides custom multi-color indicators, including dual-color and triple-color configurations within a single housing. These space-saving designs allow a single 6mm indicator to transition smoothly between states—such as shifting from Green for normal operation to Red for a fault condition—reducing panel space requirements while maintaining clear status signaling.

STEP-BY-STEP MECHANICAL INSTALLATION GUIDE

Follow this mechanical guide to ensure a correct IP67 seal and secure mounting on your control panel surface.

1. Verify Panel Cutout Dimensions: Standardize a clean circular panel cutout hole to exactly 6.0mm using a high-precision punch or machine bit. Ensure all micro-burrs and paint runs are smoothed flat around the cutout edge.
2. Position the Sealing Gasket: Fit the silicone waterproof ring onto the metal housing body, seating it cleanly against the underside of the convex head.
3. Insert the Assembly: Route the 2-pin pre-wired leads through the cutout from the front of the panel, pushing the threaded indicator body forward until the silicone gasket rests flat against the exterior panel surface.
4. Secure the Rear Hardware: Slide the stainless steel lock washer over the wire leads from behind the panel onto the threaded body, followed by the M6 hex nut.
5. Final Torque Adjustment: Hand-tighten the M6 nut, then apply a final torque calibration using a wrench to compress the front silicone gasket. Avoid over-tightening to protect the threads and sealing ring.

WIRING SCHEMATIC INTEGRATION GUIDE

Proper electrical termination is critical for ensuring stable current flow and avoiding intermittent signal drops over long-term operations. Pre-wired indicators and standard tab-terminal indicators suit different installation preferences:

Pre-wired indicators feature factory-soldered leads that provide a secure, vibration-resistant connection within an encapsulated housing. The 20cm dual-wire configuration simplifies routing in deep panels and connects easily to spring-cage terminal blocks, inline splice connectors, or soldered wire extensions sealed with heat-shrink tubing.

Electrical Safety Note: Always disconnect the primary power source before performing any electrical terminations or handling wiring harnesses to prevent the risk of electrical shock or component damage.

INDUSTRY KNOWLEDGE CENTER

A common problem in industrial automation wiring is “phantom illumination” or faint glowing in LED indicators when the control circuit is turned off. This happens because long, bundled parallel wire runs can generate stray electromagnetic capacitance, inducing a small leakage voltage. Because high-efficiency LEDs require very little power to light up, this residual voltage can cause them to glow faintly, which can confuse operators tracking system statuses.

To prevent phantom lighting, FILN designs its internal circuits with optimized leakage current thresholds. For applications with high induced voltages, engineers can use an integrated shunt resistor parallel to the LED core. This bleeds away low-level capacitive leakage below the threshold, ensuring the indicator remains completely dark until the primary control circuit applies full operating voltage.

B2B PROCUREMENT AND BUYER DECISION MATRIX

When specifying a panel-mount LED Pilot Light Indicator for global OEM projects, procurement professionals evaluate several core factors to ensure reliability and minimize design risk:

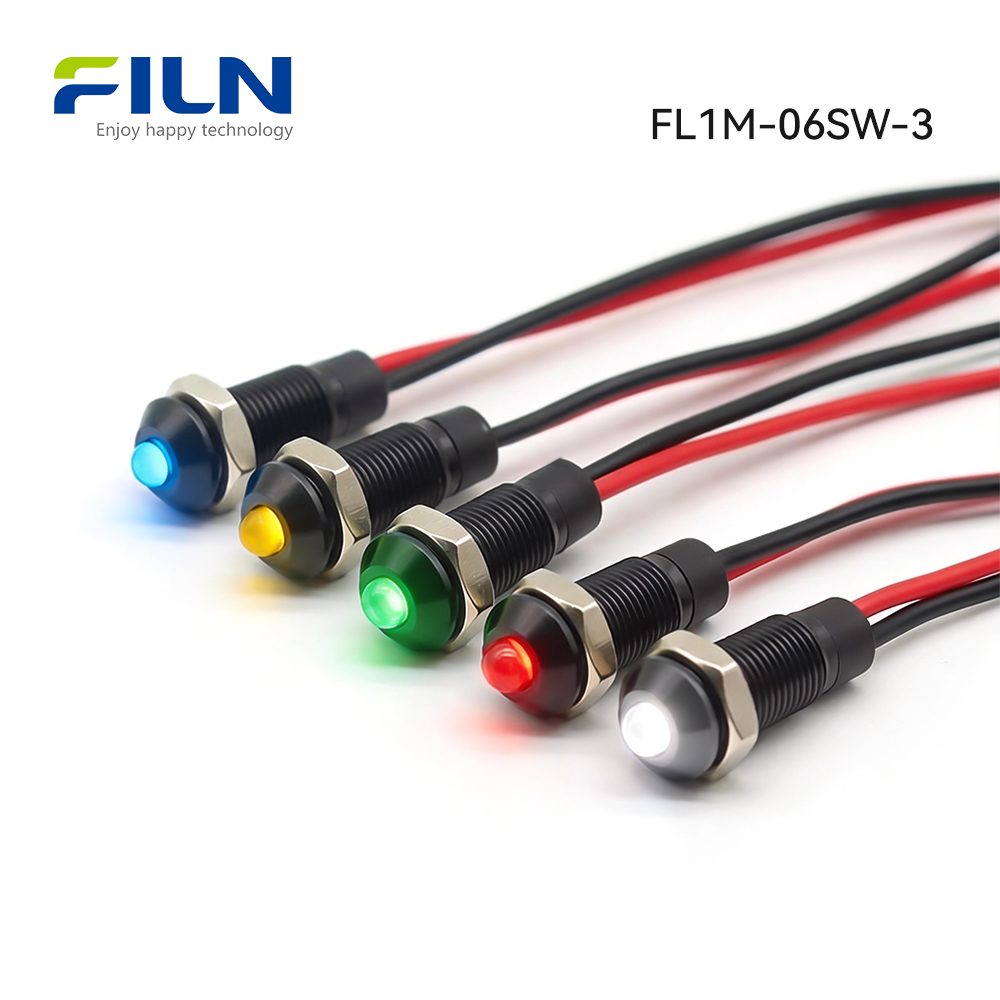

• Housing Selection: Choose chrome-plated copper alloy for general mechanical protection, or black zinc-aluminum alloy to reduce panel glare and improve contrast in high-ambient lighting.
• Voltage Mapping: Confirm line voltage requirements (e.g., 24VDC for PLC controls, 110V/220VAC for primary mains distribution) to match internal resistor parameters perfectly.
• Termination Type: Use pre-wired configurations for fast installation in high-vibration applications, or tab terminals for modular wire-harness connections.
• Regulatory Certifications: Ensure compliance markers (CE, VDE, RoHS, UL) match the import requirements of your target markets (such as the US, Germany, or Canada).

WHY ELECTRICAL ENGINEERS CHOOSE FILN

Global engineering groups and industrial distributors partner with FILN because of its focused manufacturing model, which removes typical supply chain bottlenecks. Operating as a direct factory rather than a trading broker, FILN eliminates minimum order quantities (Zero MOQ), allowing development engineers to purchase small quantities for prototyping before scaling to full production runs.

FILN’s internal engineering support helps streamline component selection. Whether modifying wire harnesses, creating custom resistor configurations for specific voltages, or providing 3D CAD modeling files for mechanical clearance checks, our team helps accelerate product design and regulatory approvals.

FACTORY SUPPLY CAPABILITIES

Established in 2006 in Wenzhou, Zhejiang, Yueqing Yulin Electronic Co., Ltd. (operating under the global FILN brand) has developed into a specialized manufacturer of industrial electromechanical switches and panel indication components. The company operates a modern 10,000 m² manufacturing plant equipped with over 20 automated production lines and an independent testing laboratory, ensuring precision and consistent build quality across high-volume production runs.

Our product range includes metal indicator lamps, heavy-duty pushbuttons, rocker switches, toggle controls, and specialized wire harness assemblies. Managed under the ISO9001 quality system, our products carry respected international certifications, including CE, VDE, RoHS, SGS, UL, TUV, and CCC, supporting export integration into markets across North America, Europe, and the Asia-Pacific region.
