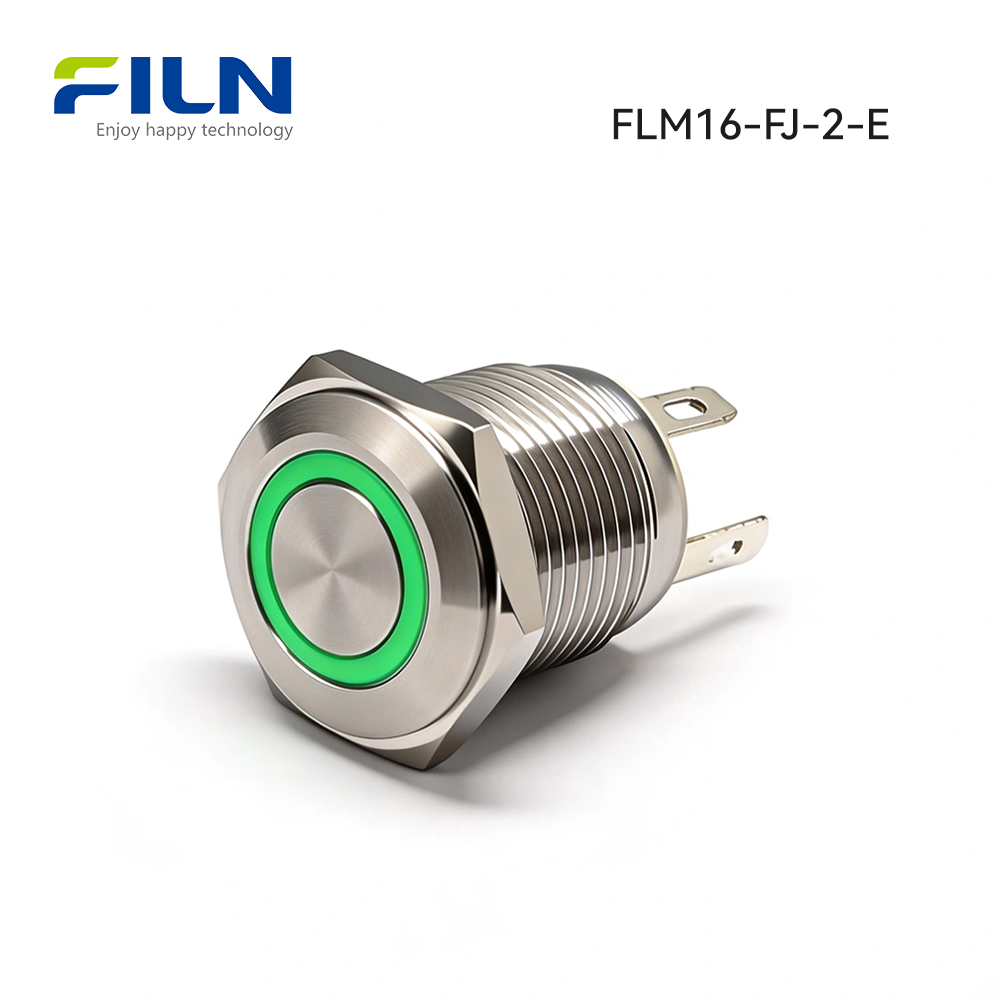

16MM 4PIN 12V 10A Waterproof Push Button Switch

Product Drawings:

push Button switch drawings

Table of Contents

Push button switch drawings

Product Parameters:

Production Series FLM16-10FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250V(AC) Housing PA66+GF20% nylon
Rated Current 3A(DC)3A(AC) Light Source LED
Rated Power 108W(DC)750W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Push Button Switch Wiring Method:

Push button function 1

Switch locked and the light is on, then the device is started. Switch reset and indicator is off, then the device is off.



Method of connection

  1. Connect the power source’s positive pole to the switch’s load pin, the other load pin is connected with the LED light pin (+) and the positive pole of the device.
  2. Connect the power source’s negative pole to the device’s negative pole and LED light pin(-).
push button switch wiring

Push button function 2

Switch locked and device started. The switch reset and the device is closed, then the light is on.



Wiring method

  1. Connect the power source’s positive pole to the switch’s load pin and the LED light pin (+), the other load pin is connected with the positive pole of the device.
  2. Connect the power source’s negative pole to the device’s negative pole and the LED light pin(-).

The mounting hole size of this waterproof push button switch is 16mm, so the range of the panel opening size is between 16.2mm and 16.5mm which is reasonable. Then thickened nuts are used for fixing.

The metal housing of the push button switch waterproof is available in three materials.

  1. The push button switch waterproof can be made of 304 or 316L stainless steel. Since stainless steel contains nickel material, it has corrosion resistance and is more suitable for use on outdoor and seaside equipment.
  2. The advantage of brass products is the beautiful appearance after plating, usually used in the appearance of more beautiful small electrical equipment, test equipment or automation equipment.
  3. The advantage of zinc alloy housing is that the metal surface can be plated in various colors, commonly red, green, black, etc. push button switch waterproof after plating, the whole appearance of the button is colored.
push Button switch material

Related products:

How to Test the Waterproof Push Button Switch?

The product has two test items of current test and waterproof test.

Filn has a professional push button AC/DC equipment, which can test the current, voltage, power and waterproof rating, etc. of the push button switch.

push button switch test

Waterproof Push Button Switch Price Guide in the USA

When it comes to purchasing waterproof push button switches in the USA, it’s crucial to consider the price range from various sources. To help you make an informed decision, we have compiled a comprehensive guide below.

Flow Chart of the Search Process

To begin your search for the perfect waterproof push button switch, it’s helpful to follow a systematic approach. The flow chart below outlines the steps you can take to find the right switch for your needs

Price Distribution

Understanding the average price of waterproof push button switches from different sources can give you a better idea of what to expect. The pie chart below illustrates the distribution of prices

Price Range Analysis

To provide a more detailed breakdown, let’s take a closer look at the price range of waterproof push button switches from various sources:

Amazon

  • Minimum Price: $5
  • Maximum Price: $20

Made-in-China

  • Minimum Price: $0.01
  • Maximum Price: $100

All Electronics

  • Minimum Price: $0.70
  • Maximum Price: $5

Please note that these prices are approximate and may vary depending on the supplier, retailer, and location. It is always recommended to check with the specific supplier or retailer for the most accurate and up-to-date pricing information.

Conclusion

In conclusion, the price of waterproof push button switches in the USA can vary significantly depending on the source. By comparing prices from different sources, such as Amazon, Made-in-China, and All Electronics, you can find the best deal that suits your budget and requirements.

Remember to consider factors like quality, durability, and customer reviews alongside the price when making your final decision. Happy shopping for your waterproof push button switch!

*Disclaimer: The information provided in this article is for informational purposes only. The prices mentioned are subject to change.

Waterproof button inside
  • The plastic material of the product is PC and PA66, which high-temperature resistance is 160 degrees. It is usually used in an environment of minus 40 degrees to minus 80 degrees.



  • The product has reset function, which is a normally open function, its contact point is a silver point which size is 3.5mm, and its current can reach 10A.



  • The product is designed with waterproof ring inside, and its waterproof rating is IP67, which can be used outdoors.



  • The mechanical life of the product is 500,000 times while the service life is 100,000 times.



  • The product has a variety of colors, such as red, green, yellow, blue, white, orange, etc.



  • The product can achieve various voltages, such as 2V, 12V, 24V, 110V, 120V, 220V, 380V, etc.



  • The wire pin size of the product is 2.8mm, you can purchase terminal directly to connect or use solder to wire.

What is a Waterproof Push Button Switch?

Waterproof pushbutton switch is a specially designed pushbutton switch that can be used in wet or watery environments and maintain good electrical performance Usually, the pushbutton is waterproof with IP65, IP67, and IP68 ratings.

The main difference between IP67 and IP65 is that the waterproof rating is different. According to IEC 60529 standard, 5 stands for protection against water spray immersion (protection against low pressure water spray for at least 3 minutes).

7 stands for protection against immersion in water (immersion in 1 meter deep water for 30 minutes). Therefore, IP67 is more waterproof than IP65.

With IP68, the test time is at least 1 hour of continuous immersion in water. The depth is usually 2 meters as specified by the manufacturer.

rocker switch IP67

What is the Order Quantity of the Product?

Filn is a professional manufacturer of push button switches.
There is no minimum order quantity, you can buy products from 1 piece and we can provide free samples for you to test.

Advantages of Waterproof Pushbutton Switch

Here’s a comparison table outlining the differences between Waterproof Push Button Switches and Regular Push Button Switches:

Waterproof Push Button Switch Regular Push Button Switch
Definition A specially designed switch that can be used in wet or water-prone environments, maintaining good electrical performance. A standard switch used in various applications, not specifically designed for waterproofing.
Design Equipped with waterproof sealing and materials to prevent water ingress. Typically lacks specific waterproofing features.
Function Momentary action, meaning the circuit is only connected while the button is pressed. Momentary or latching action, depending on the specific switch model.
Applications Suitable for use in environments exposed to moisture, water, or outdoor conditions. Commonly used in automotive, marine, and outdoor equipment. Widely used in various industries and applications where waterproofing is not a requirement.
Sealing Rating Offers a specific IP (Ingress Protection) rating to indicate the level of waterproofing. For example, IP67 indicates protection against water immersion up to 1 meter for 30 minutes. May not have a defined IP rating as they are not explicitly designed for waterproofing.
Durability Designed to withstand harsh environments, featuring robust construction and materials. Durability may vary depending on the specific switch model and its intended application.
Price Generally higher due to the additional waterproofing features and materials used. Typically more affordable compared to waterproof versions.
Availability Available from specialized suppliers or manufacturers that focus on waterproof switches. Widely available from various suppliers and retailers.

Please note that the information provided is a general comparison and may vary depending on specific models and manufacturers. to check the specifications and features of individual switches for accurate and up-to-date information.
FILN has developed and patented a fully waterproof pushbutton switch.

How to Purchase a Waterproof Push Button Switch?

Indicator light factory

If you are a factory whose demand quantity is large or need to customize the button switch, you can email us at inquiry@cnylin.com.cn.

Indicator store

If your purchase quantity is small, you can order directly on www.cnfiln.com  ,we will arrange the delivery at the same day.

Waterproof Push Button Switch: A Comprehensive Guide

Waterproof push button switches are versatile components that have found their place in a wide array of applications, ranging from automotive systems to innovative smart home technology. These durable and adaptable switches, including variants like waterproof latching push button switches and waterproof momentary on-off-on toggle switches, provide reliable performance under challenging conditions. This comprehensive guide explores their types, usage, customization options, troubleshooting techniques, safety considerations, and new trends. Whether you’re a professional engineer or an enthusiast looking to understand more about waterproof push button switches, this article offers valuable insights and guidance to help you harness their full potential.

What Are the Types of Waterproof Push Button Switches?

Waterproof push button switches come in a variety of forms, designed to meet various needs and applications. Below are some common types, including waterproof latching push button switches and waterproof momentary switch normally open.

Latching Push Button Switch:These switches maintain their state after being activated. This waterproof latching push button switch is perfect for applications where a continuous on/off action is required.

Momentary Push Button Switch:A momentary push button switch, often known as a waterproof momentary switch normally open, only stays in its changed state as long as it’s being pressed. More details can be found at this link.

Toggle Switch:Waterproof toggle switches are great for controlling various functions in an application. Check here for a 24V waterproof metal toggle switch.

How Can You Select the Correct Waterproof Push Button Switch?

Selecting the correct waterproof push button switch requires considering various factors like size, type, application, and more.

Identify the Type:Determine if you need a latching or momentary switch. For example, a 12mm momentary push button switch might be suitable for quick interactions.

Consider the Application:Understand the environment where the switch will be used. A waterproof switch might be necessary for outdoor or marine applications like 19mm red led marine push button switch.

Assess the Size:The size of the switch might be critical. For different sizes, consider the 16mm waterproof push button switch or the 30mm version.

What Are the Features of Waterproof Momentary On-Off-On Toggle Switch?

A waterproof momentary on-off-on toggle switch is a type of switch that has three positions and springs back to the center off position when released.

Versatility:This type of switch offers great flexibility in control, allowing you to quickly turn on and off different devices.

Durability:Being waterproof, these switches are robust and can withstand harsh conditions.

Availability in Different Sizes:These switches come in different sizes, like the 16mm version, allowing you to choose according to your needs.

What Are the Uses of Waterproof On/Off Switches?

Waterproof on/off switches are widely used in various applications.

Marine Applications:These switches are perfect for marine environments, where moisture and water exposure is common.

Industrial Usage:They are commonly used in industrial settings where water and dust might interfere with standard switches.

Outdoor Equipment:For outdoor equipment such as lawn mowers or power washers, waterproof on/off switches like this provide reliability.

How Can a Waterproof Button Cover Enhance the Performance?

Waterproof button covers add an extra layer of protection to switches, enhancing their performance in challenging environments.

Increased Durability:These covers protect the switch from dust, water, and other corrosive elements, extending its life.

Enhanced Safety:They prevent accidental pressing, adding a safety measure to the switch usage.

Easy to Install:Waterproof button covers are easy to install and can be added to existing switches, including the 16mm push button switches.

What Are the Advantages of a 12mm Momentary Push Button Switch?

12mm momentary push button switches are compact and offer specific advantages.

Space-saving:Their small size makes them ideal for applications with limited space, like these 12mm switches.

Wide Applications:12mm momentary push button switches are used in various devices, from home appliances to industrial machinery.

Cost-effective:These switches are generally affordable, making them a popular choice for many manufacturers.

How Does a Waterproof Switch Differ from Regular Switches?

Waterproof switches have specific features that set them apart from regular switches.

Water Resistance:Waterproof switches are designed to resist water intrusion, making them suitable for wet environments.

Durability:They are made with materials that resist corrosion and wear, enhancing their lifespan.

Specialized Applications:Waterproof switches are essential for specialized applications like marine or outdoor use, where regular switches may fail.

How to Install a Waterproof Momentary On-Off-On Toggle Switch?

Installing a waterproof momentary on-off-on toggle switch is a straightforward process that involves a few essential steps.

Select the Right Switch:Choose the appropriate switch for your needs, like the waterproof momentary push button switch.

Prepare the Installation Site:Ensure the installation site is clean and dry.

Connect the Wires:Follow the wiring diagram provided with the switch and make sure to connect the wires properly.

Secure the Switch:Mount the switch securely using screws or other fastening methods.

Test the Functionality:Finally, test the switch to ensure that it’s working correctly.

What to Look for When Buying a Waterproof Momentary Push Button Switch?

When buying a waterproof momentary push button switch, consider the following aspects:

Check the Ratings:Ensure that the switch has the appropriate ratings for water and dust resistance, like the IP65 momentary mini push button switch.

Consider the Material:The material of the switch should be corrosion-resistant and durable.

Evaluate the Price:Compare the prices of different switches to find one that fits your budget without compromising quality.

Where to Buy Quality Waterproof Push Button Switches?

Quality waterproof push button switches can be purchased from various sources.

Online Retailers:Many online platforms offer a wide range of waterproof switches, including specialized vendors like Indicator Light.

Local Electronics Stores:Local stores might have a selection of waterproof switches tailored to the needs of the community.

Direct from Manufacturers:Purchasing directly from manufacturers may offer more customization options and bulk discounts.

In conclusion, waterproof push button switches play a vital role in various applications. Understanding their

types, features, installation methods, and where to buy them is essential for choosing the right product. Whether you need a waterproof latching push button switch or a waterproof momentary on-off-on toggle switch, this guide provides comprehensive insights to make an informed decision.

What Are the Maintenance Tips for Waterproof Push Button Switches?

Maintaining waterproof push button switches is essential for their longevity and efficient performance. Here are some valuable maintenance tips:

Regular Cleaning:Ensure regular cleaning to remove any dust or debris, taking care not to use harsh chemicals that might affect the waterproof coating.

Inspection for Damage:Regularly inspect for any signs of wear or damage, especially in the seals that make the switch waterproof.

Proper Installation:Make sure the installation is done correctly to avoid any unnecessary strain on the switch, using proper tools and following the guidelines provided by the manufacturer.

Replace When Necessary:If the switch shows signs of failure or wear, replace it promptly with a compatible part, such as the 16mm 12v push button switch panel.

How to Choose Between Waterproof Momentary and Latching Push Button Switches?

The choice between waterproof momentary and latching push button switches depends on the specific needs of your application.

Momentary Switches for Short-term Activation:Waterproof momentary switches, like the normally closed momentary switch, are ideal for applications that require short-term activation, returning to their default position once released.

Latching Switches for Continuous Control:Waterproof latching switches remain in their active state even after release, suitable for functions that need continuous control.

Assess the Application Requirements:Understanding the exact requirements of the application helps in selecting the appropriate switch, whether momentary or latching.

Are There Any Standards or Certifications for Waterproof Push Button Switches?

Standards and certifications ensure the quality and performance of waterproof push button switches.

IP Ratings:IP ratings, like IP65 for momentary waterproof 12V round switches, indicate the level of protection against dust and water.

Industry Certifications:Different industries may have specific certifications that a switch must meet to ensure safety and compatibility with the application.

Manufacturer’s Standards:Reputable manufacturers will adhere to international standards and provide information on the certifications their products meet.

Can You Customize Waterproof Push Button Switches?

Customization of waterproof push button switches is often possible to suit specific needs.

Choose Specific Sizes and Shapes:You can select specific sizes and shapes, such as round push button switches available here.

Select Custom Functions:Functions like LED indicators, different color options, and unique symbols can be customized as well.

Work with Manufacturers:Working directly with manufacturers may offer more extensive customization options, allowing you to tailor the switch to your precise requirements.

What Are the Possible Challenges with Waterproof Push Button Switches?

Though incredibly beneficial, waterproof push button switches might present some challenges.

Installation Complexity:Improper installation might lead to failure in achieving complete waterproofing, so it’s essential to follow guidelines.

Compatibility Issues:Ensure that the switch is compatible with your application to avoid any functional issues.

Potential Cost:High-quality waterproof switches might come at a premium price. Evaluate your needs and budget accordingly.

How to Test the Waterproof Capability of Push Button Switches?

Testing the waterproof capability ensures that the switch will perform as expected in wet environments.

Review Manufacturer’s Specifications:Check the manufacturer’s specifications for the IP rating and other relevant details.

Conduct a Water Immersion Test:If applicable, conduct a water immersion test under controlled conditions to assess the switch’s resilience.

Consider Professional Testing Services:Professional testing services might offer specialized equipment and expertise in assessing the waterproof capability of the switch.

Waterproof push button switches play an integral role in many applications, offering reliability and performance in challenging environments. Understanding their types, functionalities, and maintenance requirements is key to utilizing them effectively. Whether you need a simple on/off switch or a complex momentary push button switch with specific customizations, this guide provides comprehensive insights into the world of waterproof push button switches.

What Are the Common Applications of Waterproof Push Button Switches?

Waterproof push button switches are utilized across various industries and applications due to their resilience against moisture and other environmental factors.

Marine Applications:In marine environments, waterproof push button switches like 19mm red LED marine push button switches are essential for controlling equipment without the risk of water damage.

Industrial Machinery:Waterproof switches are often used in industrial machinery where exposure to water, dust, or other contaminants is possible.

Outdoor Equipment:They are also common in outdoor equipment such as lawn mowers, power tools, or vehicle control panels where they may be exposed to rain or other weather elements.

What Are the Various Types of Waterproof Push Button Switches?

Different types of waterproof push button switches cater to various needs and functionalities.

Momentary Push Button Switches:These switches are activated only while being pressed and include options like 12mm momentary push button switches.

Latching Push Button Switches:Latching switches maintain their state after being activated, suitable for continuous functions.

Toggle Switches:Waterproof toggle switches, such as waterproof momentary on-off-on toggle switches, offer more complex control functionalities.

On/Off Switches:Simple waterproof on/off switches are commonly used for basic power control.

How to Install a Waterproof Push Button Switch?

Proper installation of a waterproof push button switch is crucial for its optimal performance.

Select the Right Switch:Choosing the right switch, such as a 24V waterproof metal push button switch, is the first step towards successful installation.

Follow the Manufacturer’s Guidelines:Always follow the manufacturer’s guidelines, including the provided waterproof button cover, for precise installation.

Ensure Proper Sealing:Ensuring that the switch is properly sealed is key to maintaining its waterproof property.

Test the Switch:Finally, test the switch to confirm its functionality and waterproof capability.

Where to Buy Waterproof Push Button Switches?

Finding the right source for purchasing waterproof push button switches can significantly impact the quality and price.

Online Retailers:Online retailers offer a wide variety of switches, including waterproof metal push button stop switches.

Directly from Manufacturers:Buying directly from manufacturers like indicatorlight might provide better customization options and bulk pricing.

Specialty Electronics Stores:Specialty electronics stores may provide expert guidance and a selection of high-quality waterproof switches, including the IP65 momentary mini push button switch.

Consider Quality and Warranty:Always consider the quality and warranty of the switch, regardless of where you purchase it.

Waterproof push button switches offer an essential solution for many applications that require robust protection against water and other environmental challenges. Understanding their types, functionality, installation methods, and where to buy them is crucial for selecting the right product. With this comprehensive guide, you’ll find the information needed to choose a waterproof momentary switch that is normally open, a waterproof toggle switch, or even a waterproof button cover to suit your specific needs. Whether it’s a 12mm momentary push button switch or a more complex waterproof on/off switch, this information serves as a valuable resource for both professionals and hobbyists alike.

How to Troubleshoot Waterproof Push Button Switches?

Even with high-quality waterproof push button switches, troubleshooting might be necessary to diagnose and fix potential issues.

Check the Wiring:Inspecting the wiring and connections is often the first step, as a loose connection can cause malfunctioning.

Test the Waterproof Seal:Check the integrity of the waterproof seal, as water ingress could lead to failure. Consider using a waterproof button cover if needed.

Evaluate the Mechanical Parts:Mechanical wear or misalignment might cause the switch to fail or behave erratically.

Consult Technical Support:If the problem persists, consulting the technical support provided by the manufacturer or referring to their website may offer specific guidance.

What Are the Environmental Considerations for Waterproof Push Button Switches?

Environmental considerations play a vital role in the selection and use of waterproof push button switches.

 Assess the Operating Environment:Understand the operating environment, including potential exposure to water, dust, and temperature extremes.

Consider Material Sustainability:Choose switches made of sustainable materials, or consider recycling options where applicable.

Comply with Environmental Regulations:Ensure that the switches comply with relevant environmental regulations, such as RoHS, which governs the use of hazardous substances in electrical equipment.

How Are Waterproof Push Button Switches Different from Regular Push Button Switches?

Waterproof push button switches have specific features that differentiate them from regular push button switches.

Enhanced Protection:Waterproof switches offer enhanced protection against moisture, making them suitable for applications like waterproof 30mm push button switches in marine or outdoor environments.

Special Sealing Techniques:These switches utilize special sealing techniques to prevent water ingress, often involving specific gaskets or O-rings.

Potential Cost Difference:Waterproof switches might be more expensive due to the additional materials and manufacturing processes involved.

Availability in Specific Sizes:Waterproof push button switches may be available in specific sizes such as 16mm waterproof push button switches, designed for particular applications.

How to Use Waterproof Push Button Switches in DIY Projects?

Waterproof push button switches are popular in DIY projects, offering reliable performance in various creative applications.

Select the Appropriate Type:Choose the right type of switch, whether it’s a waterproof momentary push button switch or a waterproof on/off switch, based on the project requirements.

Follow Safety Guidelines:Always follow safety guidelines when working with electrical components, even in DIY projects.

Consider Aesthetics:Waterproof switches come in various styles and colors, allowing for aesthetic customization in DIY projects.

Use Compatible Accessories:Ensure that all accessories, such as wiring and housings, are compatible with the switch to avoid any issues.

Waterproof push button switches, including waterproof momentary push button switches and waterproof latching push button switches, offer robust solutions for various applications, ranging from industrial machinery to creative DIY projects. This comprehensive guide covers essential aspects like types, installation, troubleshooting, environmental considerations, and more. Whether you’re looking for a simple waterproof momentary switch normally open or a complex waterproof toggle switch, you’ll find insightful information and practical tips to make an informed decision. Utilize this knowledge to explore options like a waterproof on/off switch or a 12mm momentary push button switch, enhancing your understanding of these versatile components.

What Are the Key Safety Considerations When Handling Waterproof Push Button Switches?

When dealing with waterproof push button switches, understanding and following safety guidelines is crucial.

Follow Manufacturer’s Guidelines:Always refer to the manufacturer’s instructions, such as those found on indicatorlight’s product page, for specific safety recommendations.

Use Appropriate Tools:Utilize tools designed for electrical work, ensuring that they are in good condition and suitable for the task.

Ensure Proper Earthing:Ensure proper earthing or grounding of the system to minimize the risk of electric shock.

Avoid Exposure to Moisture:Even with waterproof switches, avoid unnecessary exposure to moisture during installation and maintenance.

Regularly Inspect the Switches:Perform regular inspections and maintenance checks to ensure that the waterproofing and other safety features are intact.

How to Maintain Waterproof Push Button Switches for Optimal Performance?

Proper maintenance of waterproof push button switches can prolong their lifespan and ensure optimal performance.

Regular Cleaning:Keep the switches clean from dust and debris, using suitable cleaning agents that won’t compromise the waterproofing.

Inspect Seals and Gaskets:Regularly inspect the seals and gaskets to ensure that they remain intact, preventing any potential water ingress.

Follow a Maintenance Schedule:Adhere to a regular maintenance schedule as recommended by the manufacturer, such as indicatorlight, to avoid unexpected failures.

Replace Worn Parts:Replace any worn or damaged parts promptly to ensure that the switch continues to function correctly.

Utilize Appropriate Spare Parts:Always use appropriate spare parts, such as normally closed momentary switches, to maintain the integrity of the switch.

The waterproof push button switch industry is evolving, with new trends and technologies emerging.

Integration with Smart Technology:The integration of waterproof push button switches with smart technology allows for remote control and monitoring.

Enhanced Durability:Advancements in materials and manufacturing processes are leading to even more durable switches, including momentary waterproof 12V round switches.

Eco-friendly Solutions:Environmental considerations are driving the development of eco-friendly waterproof switches that minimize waste and energy consumption.

Customization Options:Increasing demand for customization is leading to more personalized switches, such as 16mm push button metal switches, to suit specific user needs.

Miniaturization:The trend of miniaturization is enabling the creation of smaller switches, like 16mm 12V push button switch panels, without compromising functionality.

Waterproof push button switches are vital components in various applications, offering durability and versatility. From understanding the types and functions of waterproof momentary push button switches to exploring the future trends in the industry, this guide offers valuable insights for professionals, hobbyists, and anyone interested in these essential devices. The comprehensive information on waterproof latching push button switches, waterproof momentary switches that are normally open, waterproof toggle switches, and more, will help you make informed decisions. Explore options like a waterproof on/off switch or a 12mm momentary push button switch, and tap into the exciting possibilities of waterproof switch technology. Whether you are working on an industrial project or a personal DIY endeavor, the waterproof push button switch is an essential tool you can rely on.

How to Select the Right Waterproof Push Button Switch for Specific Applications?

Selecting the right waterproof push button switch requires careful consideration of various factors related to the specific application.

Determine the Required Specifications:Identify the specifications required, such as voltage, current, and mounting type. Consider a 12mm momentary push button switch for smaller applications.

Evaluate the Environment:Assess the environmental conditions, including temperature, humidity, and potential exposure to water or chemicals.

Consider Usage Frequency:Understand the frequency of usage to select a switch with the appropriate lifespan and durability.

Consult Experts if Needed:Seek advice from industry experts or consult product pages like indicatorlight for guidance.

Test Before Implementation:Where possible, test the selected switch in the actual application environment to ensure suitability.

What Are Some Common Mistakes to Avoid When Installing Waterproof Push Button Switches?

Mistakes during installation can compromise the performance of waterproof push button switches. Here’s how to avoid them:

Avoid Incorrect Wiring:Ensure that the wiring is done according to the instructions, avoiding mistakes that could lead to malfunction.

Do Not Over-Tighten:Avoid over-tightening during installation, which might damage the seals or housing.

Use Proper Tools and Accessories:Utilize proper tools and accessories, such as a push button power switch with a power symbol, to ensure a correct fit.

Avoid Mixing Different Types:Avoid using different types of switches within the same system unless specifically intended.

Follow Manufacturer’s Instructions:Always follow the manufacturer’s guidelines to ensure correct installation and optimal performance.

What Makes Waterproof Push Button Switches Suitable for Marine Applications?

Waterproof push button switches are particularly suitable for marine applications, thanks to certain unique features.

High Resistance to Saltwater:Waterproof push button switches are often designed to resist saltwater, making them ideal for marine applications like 19mm red LED marine push button switches.

Designed for Extreme Conditions:These switches are built to withstand extreme weather conditions commonly encountered at sea.

Easy to Operate:The design ensures ease of operation, even in turbulent environments.

Compliance with Marine Standards:Ensure that the switches comply with relevant marine standards and regulations.

Availability in Various Sizes and Designs:Different sizes and designs allow for customization to fit specific marine applications.

From understanding the key features of waterproof push button switches to selecting the right one for specific applications, this guide provides insights into this versatile technology. Whether you’re looking for a waterproof latching push button switch, a waterproof momentary switch that’s normally open, or a waterproof toggle switch, the detailed information provided here will assist in making informed decisions. Explore options such as waterproof on/off switches or 12mm momentary push button switches, and discover how these essential components can be utilized across various applications, including industrial, marine, automotive, and more. By following the best practices and avoiding common mistakes, waterproof push button switches can offer reliable performance for many years to come. Whether you’re an experienced professional or a DIY enthusiast, this comprehensive guide serves as a valuable resource to navigate the exciting world of waterproof switch technology.

How Do Waterproof Push Button Switches Work in Automotive Applications?

Waterproof push button switches are widely used in automotive applications, offering enhanced performance and safety.

Durability in Harsh Conditions:These switches are designed to withstand harsh automotive environments, including exposure to dirt, moisture, and temperature fluctuations.

Versatile Usage:Waterproof push button switches find usage in various parts of a vehicle, such as ignition systems, wipers, and headlights.

Integration with Modern Technology:Modern vehicles integrate these switches with smart systems for better control and efficiency, such as 24V waterproof metal push button switches.

Compliance with Automotive Standards:Ensure that the chosen switches comply with automotive standards and regulations for safety and performance.

How to Troubleshoot Common Issues with Waterproof Push Button Switches?

Understanding how to troubleshoot common issues with waterproof push button switches can save time and effort.

Inspect for Physical Damage:Look for any visible signs of physical damage, such as cracks in the casing or wear on the contacts.

Check Electrical Connections:Inspect the wiring and connections for any loose or corroded parts that may affect performance.

Test Switch Operation:Utilize a multimeter or other testing tools to check the switch’s operation, such as the IP65 momentary mini push button switch.

Consult Manufacturer’s Guides:Refer to the manufacturer’s guides or product pages like indicatorlight for specific troubleshooting steps.

Consider Professional Assistance:If unable to diagnose the issue, consider seeking professional assistance to ensure proper resolution.

How Can One Customize Waterproof Push Button Switches for Unique Requirements?

Customizing waterproof push button switches allows for enhanced suitability for specific requirements.

Choose Appropriate Specifications:Select specifications such as size, voltage, and current based on the unique needs of the application.

Opt for Special Features:Consider special features like LED indicators, as seen in waterproof 30mm push button switches, to match particular needs.

Collaborate with Manufacturers:Work closely with manufacturers who offer customization options, providing detailed requirements for tailored solutions.

Test Customized Products:Always test the customized products in real-world scenarios to ensure they meet the unique requirements.

Waterproof push button switches have proven to be vital in various sectors, offering reliability and versatility. The guide covers essential aspects ranging from their use in automotive and marine applications to common troubleshooting techniques. With options such as waterproof latching push button switches, waterproof momentary switches that are normally open, and waterproof toggle switches, the possibilities are vast. Whether for professional industrial projects or personal hobbies, these switches offer adaptability and efficiency. By understanding their features and applications, one can fully leverage the benefits of waterproof switch technology.

What Are the Safety Considerations When Handling Waterproof Push Button Switches?

Safety should be a priority when dealing with waterproof push button switches, both during installation and use.

Follow Proper Installation Procedures:Ensure proper installation by adhering to guidelines, using appropriate tools, and not mixing different types of switches.

Regularly Inspect for Wear and Damage:Regular inspections can identify issues early, reducing risks. For instance, checking a waterproof metal push button stop switch for any signs of wear.

Consider Environmental Factors:Take into account the surrounding environment, such as temperature and moisture, to prevent damage or malfunction.

Utilize Safety Equipment:Use safety equipment and follow precautions as outlined by the manufacturer or regulatory bodies.

What Are Some Innovative Applications of Waterproof Push Button Switches?

Waterproof push button switches continue to find new and innovative applications across various sectors.

Integration with Smart Home Systems:The integration of waterproof push button switches with smart home systems allows for seamless control of outdoor devices.

Use in Medical Equipment:Their reliability makes them suitable for medical equipment, where consistent performance is critical.

Development in Recreational Products:Innovations such as momentary waterproof 12V round switches are finding uses in recreational products like boats and ATVs.

Growing Use in Renewable Energy Systems:Their adaptability and resilience make them suitable for renewable energy systems, particularly in outdoor setups.

Waterproof push button switches are more than just simple devices. From the initial selection process to unique customization and safety considerations, their multifaceted nature is evident. The applications are vast, ranging from traditional industrial use to modern innovative solutions, including waterproof latching push button switches, waterproof momentary on-off-on toggle switches, and more. Their ability to adapt and provide consistent performance has cemented their position as essential components across various fields. This comprehensive guide aims to provide insights, best practices, and valuable information to harness the full potential of waterproof push button switches effectively.

Conclusion:Waterproof push button switches have emerged as an integral component across numerous applications, reflecting their adaptability and resilience. From automotive, marine, and industrial usage to innovative smart home systems and renewable energy, their application is broad and multifaceted.

Their varied types, such as waterproof latching push button switches and waterproof momentary on-off-on toggle switches, allow for tailored solutions to specific needs. Customization options further enhance their suitability for unique requirements, adding to their appeal.

Emphasizing proper selection, installation, customization, troubleshooting, and safety considerations ensures optimal performance. Constant innovations, coupled with a focus on quality and safety, further drive their popularity across sectors.

The provided insights and guidance, enriched by links to specific products such as the 16mm waterproof push button switch and the waterproof button cover, offer a comprehensive perspective. Whether a seasoned professional or an enthusiastic hobbyist, understanding these various aspects enables a more informed and effective utilization of waterproof push button switches in various applications.

How to Ensure the Quality of the Product?

The waterproof push button switch of Filn had passed the certification of UL, CE, ROHS, ISO9001, and also has a professional testing laboratory, which can ensure the quality of the push button.

Filn has 11 years of experience in push button production, it also has a professional R&D team.

If you have any questions about the waterproof push button switch, please contact us immediately, we will give you a satisfactory response within 24 hours.

satisfactory response within 24 hours

Inquiry Now
