FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

What are the features of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch?

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is characterized by three-speed on-off-on, and built-in LED lights, so that a FILN LED Large can be used directly in some dual-channel dual-control (DPDT) circuits Current ON-OFF-ON 20 amp Rocker Switch is replaced, which saves cost and is more convenient. At the same time, his LED light can always be on, or it can be controlled by a switch circuit. The LED light only lights up when it is pressed down, and it is also a high-current design.

FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch?

1.The opening of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is 30x22mm, and the structure of the third gear is on off on. The size of the connecting feet is 6.3×0.8mm nickel-plated feet, which has better corrosion resistance. Sex, anti-oxidant.

2.The cover of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch adopts high temperature resistant PC material. The high light transmittance PC material is not tight to ensure that the light is brighter and more beautiful, and the high temperature resistant material is more durable. The color of the lid is red, green, yellow, blue, white and black. The conventional pad printing on the lid is I O II, which means on off on, and other pad printing can be customized as needed.

FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

3.FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch can be made with light or without light. The colors of the LED lights are red, green, yellow, blue and white. At the same time, we can produce 3V 5V 6V 12V 24V 48V 110V. 220V 250V, three-phase 380V can also be produced.

4.The current of the FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is 30A 250VAC, the contacts inside are 4.0mm diameter, 0.2mm thick silver points, the spring board, and the connecting pins are all made of brass Nickel-plated material.

5.The base of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is reinforced with PA66, the highest temperature can reach 260 degrees, and it is also a flame-retardant material, which is safer in use.

6.The FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is directly snapped into the hole of the 30x22mm mounting panel, so the installation is simple and fast, and the thickness of the panel is generally required to be 2-5mm.

KCD3 2 prong rocker switch

How to wire a FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch?

See the wiring diagram below. This wiring method is the most conventional wiring method for the FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch. Its function is that when the switch is in the O position, the device is not powered and the light is off. When the large current rocker switch is pressed to I or II, the device starts to work and the light is also on.

FILN LED Large Current ON-OFF-ON 20 Amp Rocker Switch

20 Where is the amp rocker switch used?

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is usually integrated in the control panel of the device. For example, in the United States, if the input voltage of the device is 120V, when the 20amp 3 way rocker switch is pressed to the energized position When I or II, the device will start to work, and the light will be on at the same time.

What are the advantages of the 20 amp rocker switch produced by FILN?

1.There is no MOQ, you can buy 1 or more 20 amp rocker switch.

2.The 20 amp rocker switch has UL CE ROSH certification and can be sold in the United States and Europe.

3.Quickly customize various voltages, such as 12V 20 amp rocker switch, etc.

4.Communication is barrier-free. FILN has 15 years of experience in overseas sales of ship switches, and understands foreign trade processes in various countries for 7*24 hours of online service.

5.Fast delivery filn company has a professional production team, 20 amp rocker switch realizes fully automated production, 10,000 orders can be delivered to customers within 5 working days.

6.Can provide overall supporting solutions.

7.The 20 amp rocker switch produced by FILN is guaranteed for 5 years. If there is any quality problem during the period, FILN will replace it for free.

Ip67 4 pin rocker switch

How to buy a 20 amp rocker switch?

FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch is a pack of 50 pieces, one piece of 1000 pieces, and the weight of 50 pieces is 1.5KG. If you need a small amount of 15a on off on rocker switch, you can directly visit www.cnfiln .com orders, we have stock, we can arrange delivery immediately upon receipt of the order.

If you have customized requirements, or peripheral matching wiring harnesses, you can write your requirements, such as pre-connected wires, or pre-installed customized quick-connect terminals, or special voltages, you can email us inquiry@cnylin.com.cn

FILN company has 20 years of experience in the production of FILN LED Large Current ON-OFF-ON 20 amp Rocker Switch, as well as a professional rocker switch R&D team, which can customize a rocker switch solution for you within 24 hours. Filn also has more than 10 years. With overseas sales experience, you can communicate and solve international trade problems in time. If you have any questions about ship switches, please contact us immediately at inquiry@cnylin.com.cn

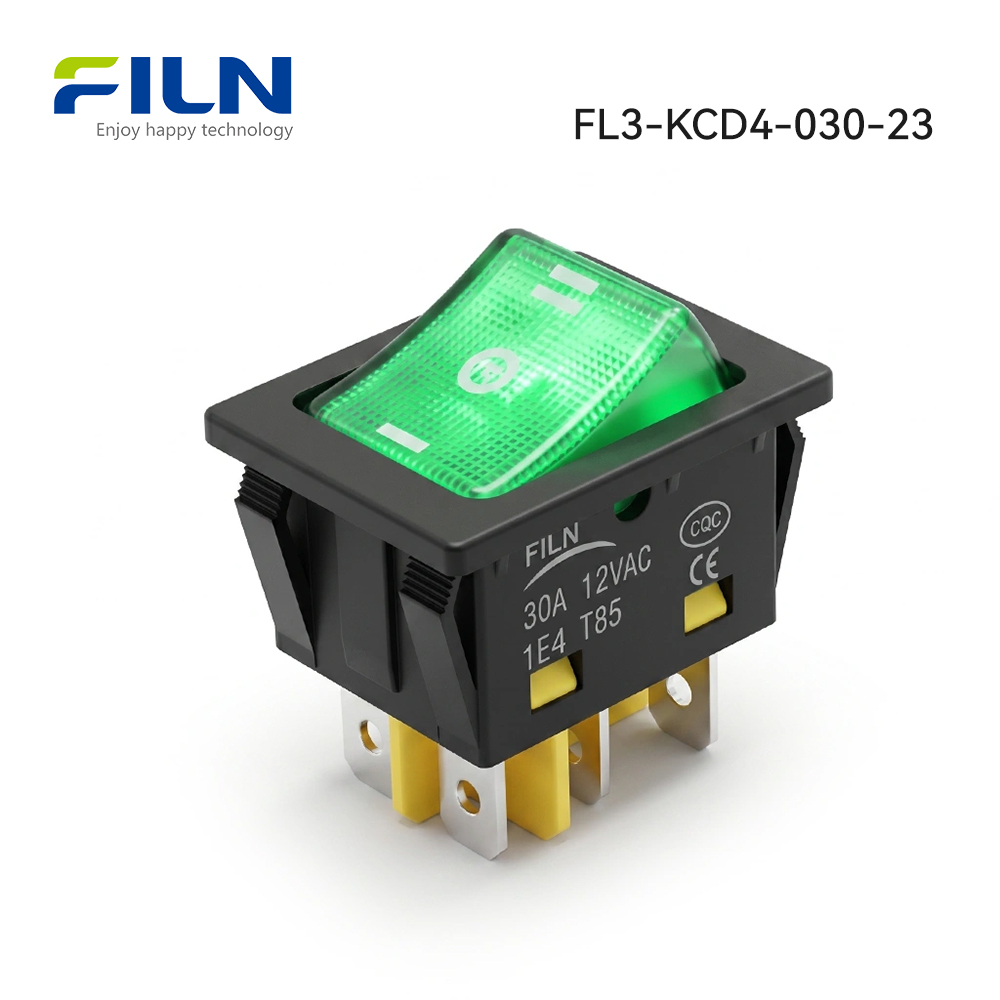

Product Item KCD4-0301-23
Panel Mount Diameter 22*30mm
Contact Way With wire
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 20A,30A
