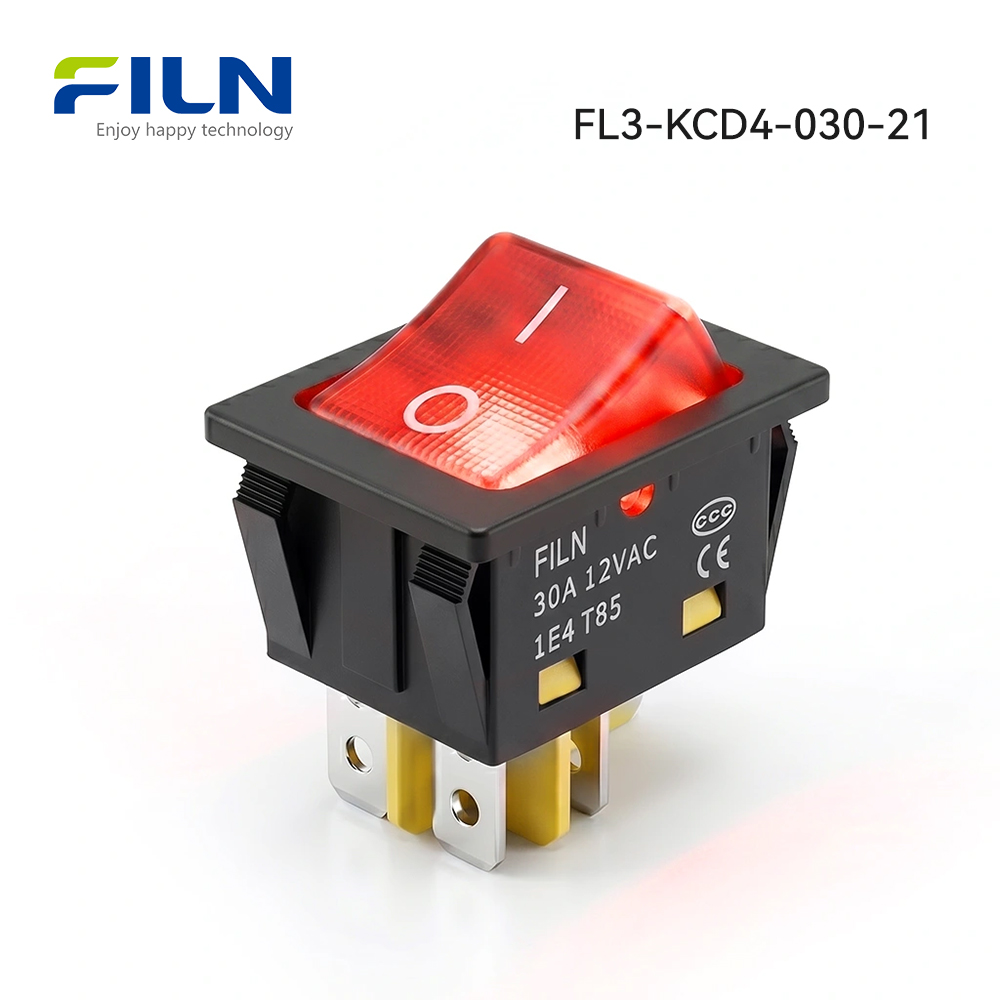

4 Pins 30A 250V Illuminated Red Rocker Switch

Product drawings

What are the advantages of FILN RED ROCKER Switch?

The advantage of the red rocker switch of Filn is large current, it can up to 30A and it is high-temperature resistant.

The detailed description of the 4 pins 30A 250V illuminated red rocker switch.
1.The mounting diameter of the red illuminated rocker switch is 30*22mm, you just need to open the hole of 30*22 on the rocker switch panel and card it. The thickness of the rocker switch panel is between 0.8-4mm.

2.The 30A red rocker switch has six colors, red, green, yellow, blue, white and orange can be used to produce rocker switch with light, while the black 250V red rocker switch is without lamp.

3.The 4 pins 30A 250V illuminated red rocker switch is not waterproof, the waterproof rating is IP50, the red illuminated rocker switch can be used on the indoor machine or other equipment.

4.The maximum current of the 4 pins red rocker switch can reach 30A 250V, you can install the 30A red rocker switch on the mechanical equipment with the power below 5000W.
5.The lamp of 30A red rocker switch can achieve a variety of voltages, such as 3V, 6V, 12V, 24V, 110V, 120V, 220V, 250V, 380V, etc. 110V, 120V rocker switch is popular in US market while 220V, 250V rocker switch is popular in China market.
6.The KCD4 momentary rocker switch is twin channel, it has the function of reset ON OFF, as well as self-lock ON OFF.
7.The plastic base of the 250V red rocker switch adopts nylon double material, its high-temperature resistance is 260 degrees, ensuring that the rocker switch does not melt when the contact touches the heating plastic  at a high current.

8.The 120 V momentary rocker switch had passed the certifications of UL, CE, ROSH, ensuring that the product’s quality can meet the international standard, it can be used and sold in the US and the EU.

How to wire a illuminated rocker switch ?

This product has four pins, the center two for the lamp pin, the side two for the side pin, its wiring mode has two kinds, one is the switch two lamp pin connected to the power supply, two side pin connected to the equipment, this way can keep the switch light guide key steady on. Used in poorly lit environments. The second connection mode is: the two side pins are connected to the power supply, and the two lamp pins are connected to the equipment. This connection method is that the light guide button is not always on. Only when the power is on, press the switch light guide button will be bright, and when the switch is closed, the pipe key will also become dark.

Where does the red rocker switch used?

The red rocker switch is generally used in the water dispenser, treadmill, computer audio, battery car, motorcycle, massage machine, toy car and other home appliances and office equipment and kitchen equipment.

The advantages of the Filn red rocker switch

1.Products on the market is 16A 250V, but we can produce large current product, for example, 30A red rocker switch.

2.The product can achieve a variety of colors, such as red, yellow, blue, green, white, black, etc.

3.The red rocker switch of Filn had passed the certifications of UL, CE, ROSH, etc. All the products are produced according to the ISO90001 quality management system standards, which can ensure the product’s quality and consistency.

4.Our product adopts PA66 material, which is high-temperature resistance, flame retardant, insulation materials, not easy to burn after meeting the fire, ensuring the safety of the work. The shell is strong and durable, heat resistant, impact resistance and is not easy to cause deformation.

5.The service life of the 4 pins red rocker switch is 100,000 times.

6.The rocker switch has completed specifications, except the illuminated red rocker switch, Filn also produces round rocker switch, mini rocker switch, waterproof rocker switch, etc.

7.We a factory, all rocker switch’s quality guarantee period is 5 years.

8.We have a professional rocker switch R&D team and design new products quickly.

9.There is no MOQ, you can purchase the 30A red rocker switch in small quantities.

How can i buy the 4 pins red rocker switch ?

50 pieces of the 4 pins red rocker switch are packed in one box, 1000 pieces are packed in one carton, the weight of 50 pieces products is 1.0KG, the freight cost to US via DHL is $30. If you’re interested in the red rocker switch, you can list the information of specification, voltage, model of the rocker switch and email us. You can place an order at www.cnfiln.com. We will arrange the delivery of the rocker switch within 24 hours.

If you have the courier account, we will send you the sample of red illuminated rocker switch free of charge.

Filn has 20 years of experience in rocker switch producing, and also has a professional rocker switch R&D team, they can provide the customized scheme within 24 hours. Filn has more than 10 years of overseas sales experience, they can communicate and solve the international trade problem. If you have any questions about the rocker switch, please contact us, our email address is inquiry@cnylin.com.cn.
