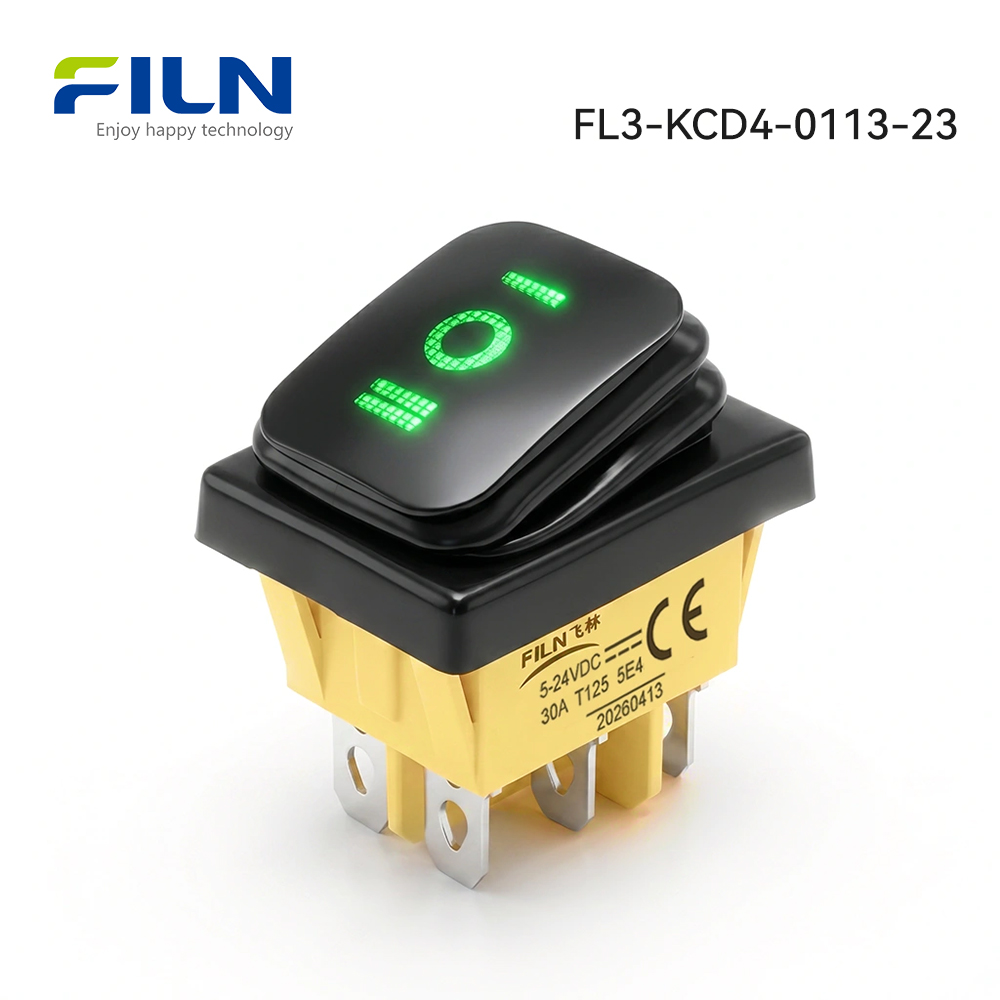

FILN 6Pin 30A On Off On Waterproof 3 Position Rocker switch
- Name:3 Position Rocker Switch
- Model: KCD4-0113-21
- Panel Mount Diameter:22*30mm
- Rated Voltage:15A, 20A, 30A
- Voltage Options:3V, 5V, 6V, 12V, 24V,13V, 110V, 120V, 220V, 240V, 250V, 380V
- Color:Red, White, Blue, Green, Yellow, Black
- Material:ABS plastic, Stainless Steel
- Download Certification:CE, CCC, ROSH,IP65, UL
- Waterproof grade:IP65
- Email: inquiry@cnylin.com.cn
- Download PDF: FILN 6Pin 30A on off on Waterproof 3 position rocker switch
Product Parameters:
Product Item | KCD4-0113-23 |
Panel Mount Diameter | 22*30mm |
Contact Way | solder pin |
Install Way | Buckle |
Lamp Type | LED |
Rated voltage | 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v |
Lamp Color | Red,white,blue,green,black,yellow |
Shell Material | brass plated nickel |
Base Material | PA66 nylon |
Terminal Material | brass |
Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
Current | 15A, 20A, 30A |
How to wire a 3 position rocker switch?
6 feet 3 gears with light conventional wiring diagram,KCD4 three-stage six-pin waterproof rocker switch wiring mode: 1: two pins are connected to the power supply, the other two pins (lamp pins) are connected to the device, the switch is pressed, the switch light is on, the device is started, the switch is off, the switch light is dark, and the device is closure. 2: Connect the two light pins to the power supply and the other two pins to the device to keep the switch light on. Press the switch to start the device, turn off the switch, and the device shuts down.
FILN 3 position rocker switch Customization
What are the advantages of the 3 position rocker switch produced by FILN?
The 3 position rocker switch produced by FILN has the following advantages
1.The delivery time of FILN ROCKER SWITCH is very fast, and the delivery time of the conventional 3 position marine rocker switch 1000 will be about 2 days.
2.There is no minimum order for KCD4 ROCKER SWITCH, you can purchase 1 rocker switch or more.
3.The switching time of customized ship is very fast, such as 120v 3 position rocker switch or 3 position 6 pin rocker switch, usually orders can be shipped in the second day.
4.Complete international certification of ship type switch, UL CE ROSH ISO90001 quality management system certification, etc.
5.There is a professional R&D team for designing ship-type switches, which can provide overall solutions
6.The communication is barrier-free. FILN has 20 years of overseas sales experience and professional sales technical engineers, who can solve any problems about ship switches in the first time.
3 Where are position rocker switches used?
This 3 position marine rocker switch is generally used as a small high-capacity power switch for water dispensers, treadmills, computer audio, battery cars, motorcycles, massage machines, toy cars and other home appliances and office equipment, as well as kitchen equipment.
If you are using high-power products, you should choose 30A copper feet, such as: electric welding machine, heater, electric baking pan, electric oven, electric oven and other products, choose 30A copper feet.
Related products:
Table of Contents
FILN 6Pin 30A on off on Waterproof 3 position rocker switch product introduction
l3 The installation size of the position rocker switch on off on is 22X30mm, you only need to open a 22x30mm hole on the rocker switch panel to insert it. The general thickness of the rocker switch panel is about 0.8 to 4mm, otherwise the waterproof rocker switch will The card is not tight, resulting in poor waterproof effect.
l3 There are 6 colors of position rocker switch on off on, among which red, green, yellow, blue and white can be used as a rocker switch with light. The black 30A rocker switch is without light.
30 rocker switch is waterproof, and the waterproof grade is IP65. You can use the waterproof rocker switch on medical equipment or kitchen equipment.
The maximum current of the 3 position 6 pin rocker switch can be produced to 30A 250v. You can directly install the 3 position 6 pin rocker switch on mechanical equipment with a power below 5000W.
The voltage of 3 position 6 pin rocker switch can be made into 3V, 6V, 12V, 24V, 110V, 120V, 220V, 250V, 380V, etc. In Europe, 110V, 120V 30A rocker swtich are usually used, and in China, 220V, 250V are usually used. UL rocker switch.
3 The biggest advantage of position rocker switch?
Regarding this 3 position rocker switch, the biggest advantage is that it can be made into a large current 30A, one-piece waterproof cover made of silicone waterproof material. Copper feet, high temperature resistant shell. There are CE, ROHS and other certifications.
You can also customize your company’s trademark symbol and print it on the shell, and the O/I logo can also customize the symbol you want.
The 250v 30A rocker switch has UL, CE, ROSH and other certifications to ensure that the quality of the rocker switch meets international standards. It can also be sold and used in the United States and the European Union.
l3 position 6 pin rocker switch is dual-channel, the function is ON OFF ON function, it can also produce automatic reset ON OFF (ON), (ON) OFF (ON) function.
lThe plastic base of the 12v 30A rocker switch is made of nylon double material, and the temperature resistance can reach 260 degrees, which ensures that the contact of the rocker switch will not melt when the contact of the rocker switch touches the heating plastic when the current is high, which ensures the safety of the product.
lThe button shell can be black-plated, silver-plated, stainless steel, etc.
How to buy this 3 position rocker switch?
If you are interested in 3 position rocker switch, you can send us an email according to your requirements, such as product pictures, lamp color, voltage, current, etc., or you can place an order directly at www.cnfiln.com and note your needs, We will contact you and confirm with you within 24 hours, and then send it to you after confirmation.
If you have a courier account, our company can also send you free samples.
