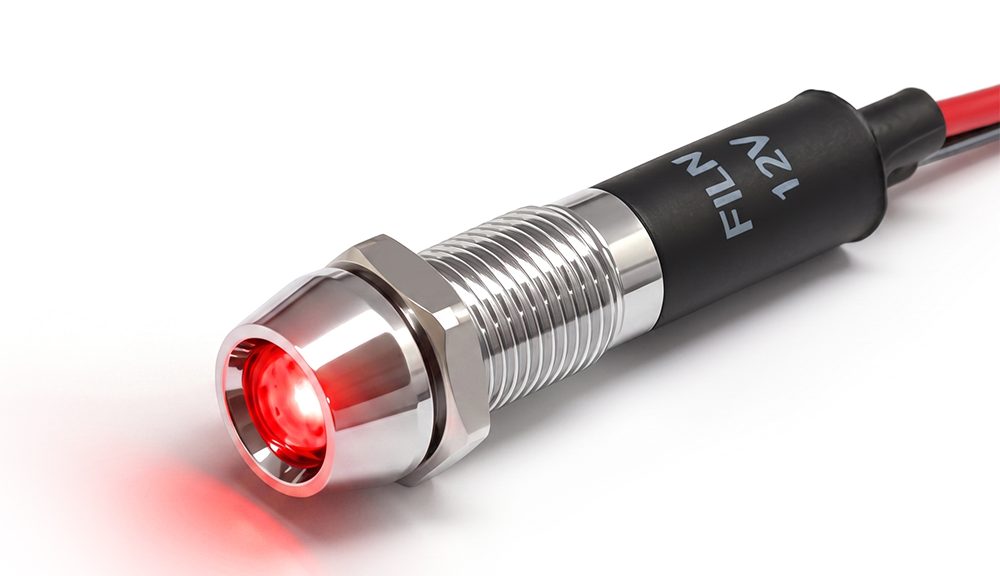

1. How to prevent phantom illumination (faint glowing) in 120v LED indicators?

Phantom illumination or faint glowing in AC LED indicators is typically caused by induced leakage current from long control wire runs, solid-state relay off-state leakage, or residual capacitance in control circuits. To resolve this, installing a suitable bleeding resistor or anti-interference RC snubber parallel to the indicator input terminals will shunt stray leakage current away from the LED diode junction, restoring complete darkness when the circuit is switched off.

2. Can this IP65 metal indicator light be washed down with caustic chemicals?

The standard copper alloy nickel-plated model withstands routine industrial cleaning and light moisture spray. For aggressive environments subject to frequent high-pressure washdowns with caustic cleaning agents, selecting the stainless steel shell configuration is strongly recommended. Stainless steel provides superior chemical inertness and prevents surface pitting or corrosion during rigorous sanitation cycles.

3. What panel thickness is compatible with the 16mm mounting thread?

The 16mm threaded barrel is engineered to accommodate standard control panel thicknesses ranging from 1mm up to 6mm. The included stainless steel plum blossom gasket and locking nut provide secure clamping force across this entire thickness range, while the silicone O-ring compresses to maintain an effective IP65 environmental seal.

4. Are custom wire lengths and connector terminations available for bulk orders?

Yes. As a direct manufacturer, FILN supports comprehensive customization for bulk and OEM orders. Wire leads can be manufactured to specific custom lengths, and specialized terminal connectors such as XH, JST, or stripped tinned ends can be factory-fitted to streamline your control panel assembly process.

5. What is the expected operating lifespan of the internal LED semiconductor?

The high-brightness LED luminescent source is engineered for an operational lifespan of 50,000 to 100,000 continuous operating hours when driven within recommended electrical parameters (20mA forward current). Solid-state construction ensures resistance to mechanical shock and vibration compared to traditional incandescent filament bulbs.

6. Is UL certification available for this specific indicator model?

Yes. This product series holds formal UL certification under file number E498776. Additional regulatory compliance documentation including CE, VDE, RoHS, and CCC certificates can be provided upon request by contacting our engineering team.

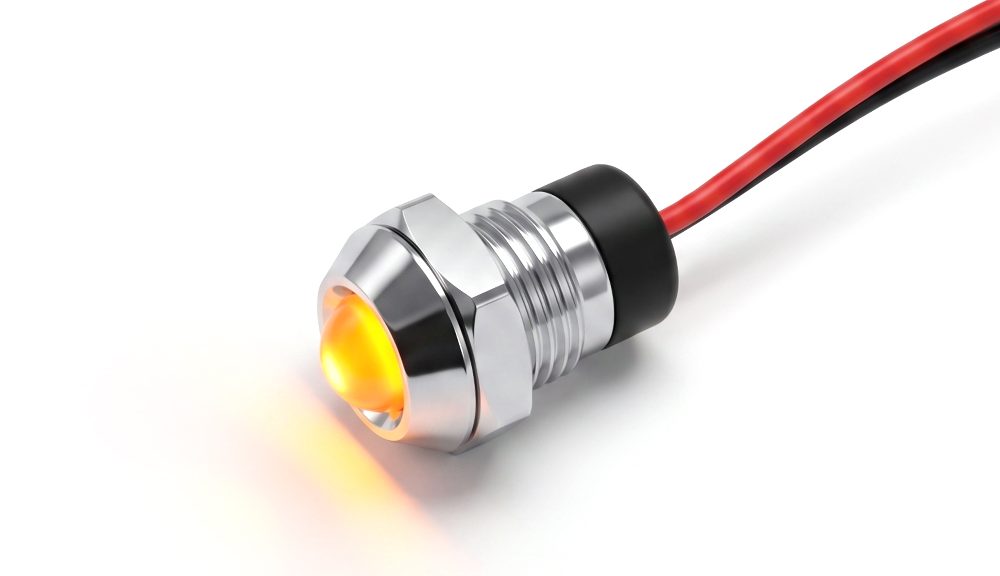

7. How does the raised head design affect visibility compared to flat head models?

The raised head design features a prominent protruding polycarbonate lens that disperses light across a wide 60-degree viewing angle. This protruding geometry ensures high visibility from wide side angles on crowded control panels where operators view equipment status from oblique perspectives.

8. What precautions should be taken during electrical installation?

Always disconnect main power before handling wiring. Verify that the operating voltage of the control circuit matches the indicator’s rated voltage specification. Securely insulate all wire splices using heat shrink tubing or proper terminal blocks to prevent accidental short circuits or electrical shock hazards.

Key Engineering & Procurement Takeaways

• Product Identity: FILN 16mm metal panel indicator light engineered for clear status visualization in industrial environments.
• Mounting Specification: Standard 16mm panel cutout diameter utilizing a secure single-nut threaded mounting mechanism.
• Electrical Versatility: Supports custom operating voltages from 3V to 480V AC/DC with a non-polar LED lamp bead design.
• Wiring Configuration: 2PIN pre-wired setup featuring 20cm insulated wire leads for direct circuit integration.
• Protection Rating: IP65 waterproof and dustproof performance achieved via integrated silicone sealing gaskets.
• Head Style: Flat head design delivering a flush, professional aesthetic on control panel surfaces.
• Material Composition: Durable metal alloy shell providing enhanced mechanical strength and impact resistance over plastic bodies.
• Illumination Options: Available in Red, Green, Yellow, Blue, and White LED color configurations.
• Global Certifications: Manufactured under strict ISO9001 standards with UL (Certificate E498776), CE, VDE, RoHS, and CCC compliance.
• Manufacturer Support: Factory direct wholesale, OEM/ODM customization, 3D STEP models, and dedicated engineering support.

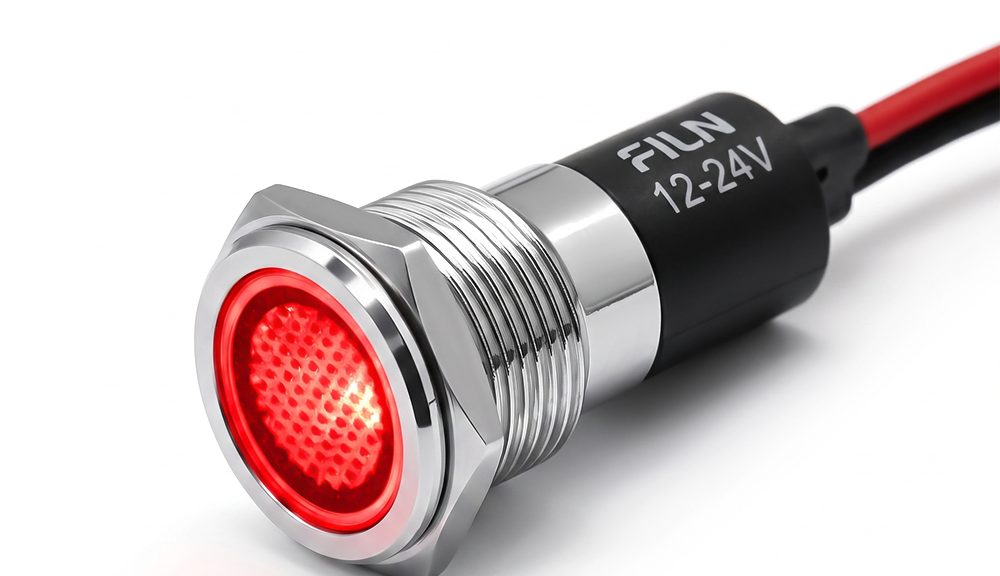

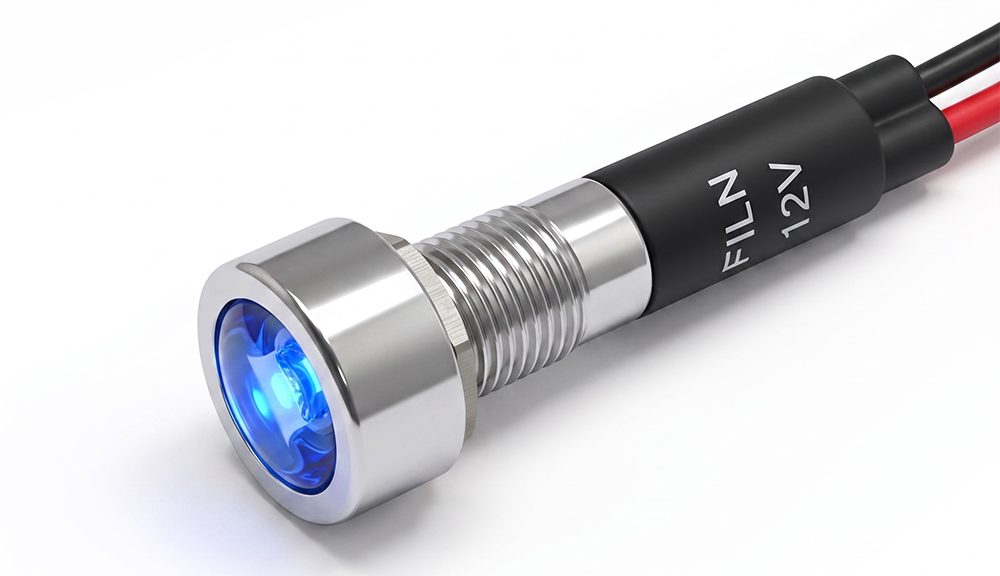

What is a Panel Indicator?

A panel indicator, frequently designated as a pilot light or signal lamp, is an electromechanical device mounted onto control boards, machinery housings, and electrical distribution enclosures to visually communicate operational states, power conditions, or fault warnings. The primary function of a panel indicator is to relay real-time system status to operators safely and instantaneously. FILN manufactures a comprehensive range of signaling solutions, offering both metal indicator light and plastic housing variants across standardized mounting diameters from 6mm to 30mm. Electrical engineers can specify terminal pin connections or pre-wired cable configurations depending on assembly constraints. Furthermore, metal indicator light models are available in flat head, prominent head, and recessed head geometries, allowing specifiers to match aesthetic and functional requirements across diverse industrial environments.

Product Overview & Engineering Principles

The FL1M-16FW-1 panel indicator integrates solid-state semiconductor optoelectronics with a heavy-duty mechanical housing to ensure long operational lifespans and vibration resistance. Electrically, the internal high-brightness LED operates in conjunction with a precision current-limiting resistor, translating input voltages ranging from low-voltage DC up to industrial 480V AC levels into stable luminous output. Mechanically, the assembly utilizes a threaded metal barrel secured by a rear fastening nut, clamping firmly against control panels while compressing an O-ring seal to block moisture and particulate ingress. Industrial automation engineers deploy this panel indicator to eliminate ambiguity in complex control workflows, relying on its clear visual signaling for power-on verification, cycle completion, and emergency alarm monitoring. Certified to rigorous international standards, this series guarantees reliable performance in harsh manufacturing facilities.

Quick Technical Specifications

Performance Parameters & Electrical Ratings

Component Materials & Construction

Every material utilized in the construction of the FILN panel indicator is selected for maximum industrial durability, electrical insulation, and chemical resistance. The table below outlines the specific material breakdown for each component part.

Environmental Performance & Test Specifications

This specification establishes the operational parameters for the metal indicator light series under extreme environmental stressors.

LED Optoelectronic Specifications

1. Absolute Maximum Ratings

Safety limits that must not be exceeded under any operational condition:

• Max Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature (TOPR): -40°C ~ +80°C
• Storage Temperature (TSTG): -40°C ~ +100°C
• Lead Soldering Temperature (TSOL): Max. 260°C for 3 seconds max.

2. Electro-Optical Characteristics (Ta = 25°C)

Standard Atmospheric Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under the following standard environmental conditions:

• Ambient Temperature: 5°C ~ 35°C
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Measurement Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement is ±15%, and voltage measurement tolerance is ±0.1V.

Applications by Industry

The FILN metal indicator light is manufactured with high-strength copper alloy or stainless steel housings, offering exceptional impact resistance and an IP65 waterproof rating. While plastic indicators are prone to aging, cracking, and high-temperature deformation over prolonged use, metal indicator lights excel in harsh operating environments subject to mechanical vibration, frequent switching, and high reliability demands.

1. Industrial Automation & Machinery Manufacturing

This sector represents the primary application domain where machinery experiences continuous mechanical vibration and exposure to cutting fluids.

• CNC Machine Tools: Control panels equipped with red, green, and yellow signal lights to indicate normal operation, standby mode, and emergency stop status while resisting coolants and metal shavings.
• Automated Production Line Control Cabinets: Installed on large PLC distribution cabinets to provide clear visual feedback on power distribution circuits.
• Hydraulic & Pneumatic Equipment: Integrated into oil pump startup panels where vibration resistance prevents wire fatigue and loose terminations.

2. Outdoor Power & New Energy Distribution Systems

Outdoor infrastructure requires high resistance to UV radiation, extreme temperature fluctuations, and severe weather.

• EV Charging Stations: Outdoor DC and AC charging pedestals equipped with flat metal panel indicators showing standby, charging, and fault states.
• Solar Photovoltaic Combiner Boxes: Deployed in solar farms and municipal outdoor enclosures operating reliably between -40°C and +80°C.

3. Rail Transit, Heavy Vehicles & Marine Equipment

Vehicles and maritime vessels require shock-absorbent components capable of withstanding saltwater corrosion.

• Construction Machinery Dashboards: Excavators and cranes utilize robust signal lamps for hydraulic pressure and braking fault alerts.
• Marine & Port Control Consoles: Stainless steel plated indicator lights resist salt fog corrosion in maritime environments.

4. Commercial Vending & Public Access Equipment

Publicly accessible hardware requires vandal-resistant components that withstand physical impact.

• Self-Service Kiosks: Vending machines and ticketing terminals utilize metal indicator lights alongside push buttons.
• Access Control Panels: Stainless steel intercom panels feature clear status illumination for door lock states.

5. Medical Equipment & Food Processing Machinery

Processing machinery subjected to rigorous washdown and sanitization protocols.

• Food Packaging Lines: IP65 sealed metal indicators withstand high-pressure chemical washdowns without internal corrosion.
• Sterilization Autoclaves: High-temperature equipment utilizes durable signal lights to denote heating and venting cycles.

LED Indicator Color Meanings and Application Guide

Color selection is critical for conveying intuitive operational statuses on electrical control panels. Below is the standard application guide for the five primary LED colors offered by FILN.

• Red: Denotes danger, emergency stop, fault conditions, or abnormal system stoppage.
• Green: Signifies normal operation, safe conditions, power-on confirmation, or system readiness.
• Yellow / Amber: Indicates caution, warning states, pre-heating cycles, or anomalous parameters requiring operator attention.
• Blue: Used for mandatory action signals, specific operating modes, or general status confirmation.
• White: Serves as a neutral power indicator, general illumination status, or system availability marker.

Note: Color conventions may vary based on specific industry standards (IEC/NEC), regional regulations, and machine builder protocols. Dual-color and tri-color configurations are available upon request.

Installation Guide

Proper mechanical mounting ensures long-term stability and IP65 waterproof sealing on control panels. Follow these structured steps for correct installation:

1. Prepare Tools: Gather a punch tool, drill with a 16mm hole saw or step bit, wire strippers, and a torque wrench.
2. Panel Preparation: Mark the exact center point on the control panel and drill a clean 16mm circular mounting hole. Ensure the surrounding metal surface is free of burrs, grease, or paint buildup.
3. Insert Indicator: Slide the silicone waterproof O-ring onto the threaded metal barrel. Insert the metal indicator light from the front side of the panel.
4. Secure Fastening: Thread the included M16 metal locking nut onto the rear barrel from the back of the panel. Tighten securely to compress the O-ring and prevent shifting.
5. Connect Wiring: Route the 20cm pre-wire leads to the power source using insulated quick-disconnect terminals, solder, or electrical tape.
6. Post-Installation Inspection: Verify that the indicator is firmly seated with no skewing, and test electrical continuity before powering on the system.

Wiring Guide & Connection Methods

Understanding the differences in wiring configurations ensures optimal electrical reliability across varying control panel architectures.

Comparison: Pin Terminals vs. Pre-Wired Leads

Wiring Instructions

The FL1M-16FW-1 features direct 2PIN wire leads (20cm length). These leads can be securely linked to the main circuit using quick-connection terminal blocks, soldered connections, or professional electrical insulating tape to guarantee joint stability.

Safety Warning: Always cut off main electrical power before performing any wiring operations. Because this product incorporates a non-polar LED lamp bead design, wiring polarity is flexible, but electrical isolation must be verified prior to energizing.

Industry Knowledge Center

Engineering reliable control panels requires adherence to component selection best practices. Metal indicator lights prevent premature failure modes commonly experienced with plastic counterparts, such as ultraviolet embrittlement and thermal warping. By utilizing high-conductivity copper alloy shells and precision internal resistors, FILN ensures stable optical performance across millions of operational cycles. Maintenance engineers should periodically inspect mounting nuts in high-vibration settings to ensure sealing integrity remains uncompromised.

Buyer Decision Guide & RFQ Checklist

Material Selection Guide

FILN offers metal indicator lights in various shell materials to suit distinct environmental exposure levels:

Specification-to-Decision Framework

• Mounting Hole (16mm): Determines physical panel compatibility. Confirm cutout dimensions prior to fabrication.
• Voltage (3V–480V): Ensures electrical compatibility. Match voltage rating precisely to prevent dimming or LED burnout.
• IP65 Rating: Guarantees dust and water jet protection for demanding factory floors.

Procurement RFQ Checklist

When requesting a quotation or technical samples from FILN, please provide the following details to ensure rapid processing:

• Product Model (e.g., FL1M-16FW-1)
• Mounting Hole Size (16mm)
• Operating Voltage & Current Type (AC/DC)
• LED Color (Red, Green, Yellow, Blue, White)
• Wiring Requirement (20cm wire lead length or custom)
• Target Order Quantity & Destination Market

FILN Manufacturing & Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd., operating under the globally recognized brand FILN, is a specialized electrical component manufacturer established in 2006 in Wenzhou, Zhejiang. Integrating research, development, precision production, and global sales, FILN operates a modern 10,000 m² manufacturing facility featuring over 20 advanced production lines and an independent testing laboratory. Driven by strict ISO9001 quality management standards, FILN delivers exceptional electrical performance and innovative design across indicator lights, push button switches, rocker switches, and toggle switches.

FILN products carry prestigious international certifications including UL (Certificate E498776), CE, VDE, RoHS, SGS, CCC, and TUV. Our engineering team specializes in custom solutions, working directly with B2B clients to resolve complex wiring, voltage, and environmental protection challenges. FILN components are exported to over 100 countries, powering applications in household appliances, energy storage systems, EV charging infrastructure, automotive modifications, and industrial automation.

Frequently Asked Questions

Key Takeaways & Buyer Decision Guide

• Product Identity: FL1M-14SJ-1 14mm high head metal led signal lamps designed for professional industrial control panels.
• Electrical Versatility: Supports customizable operating voltages from 3V to 480V AC/DC to match diverse power configurations.
• Robust Construction: Copper alloy and zinc-aluminum metal shell construction offers superior impact resistance over standard plastic indicators.
• Protection Rating: IP65 waterproof rating achieved via included silicone sealing O-rings and precise single-nut panel mounting.
• Termination Type: 2-pin terminal configuration enables secure soldering or quick-disconnect electrical connections.
• Optical Performance: High-brightness LED light source available in Red, Green, Yellow, Blue, and White color options.
• Verified Compliance: Certified under UL (Certificate No. E498776), CE, VDE, RoHS, ISO9001, and CCC standards.
• Procurement Support: Direct factory wholesale pricing, OEM customization, and comprehensive engineering support available for bulk buyers.

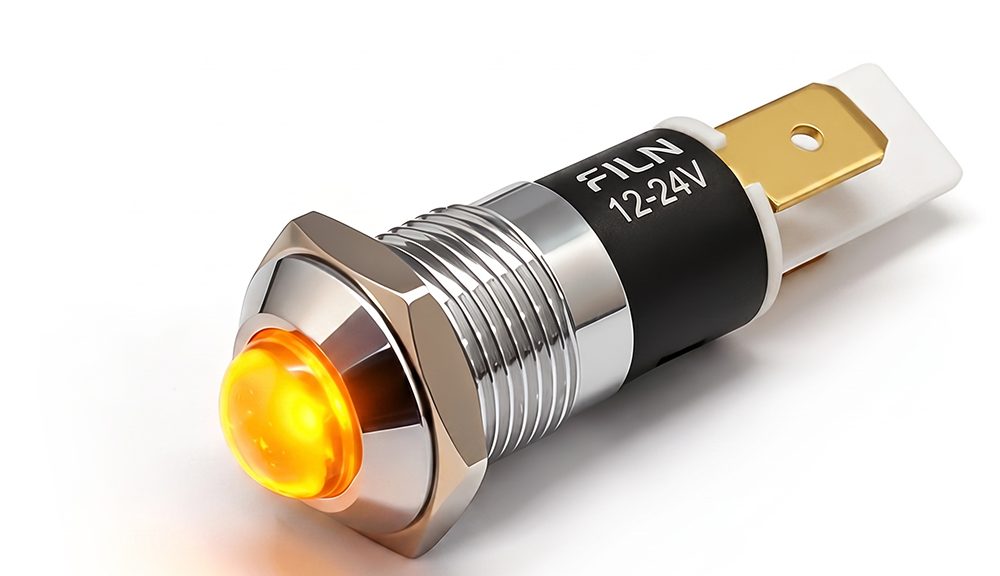

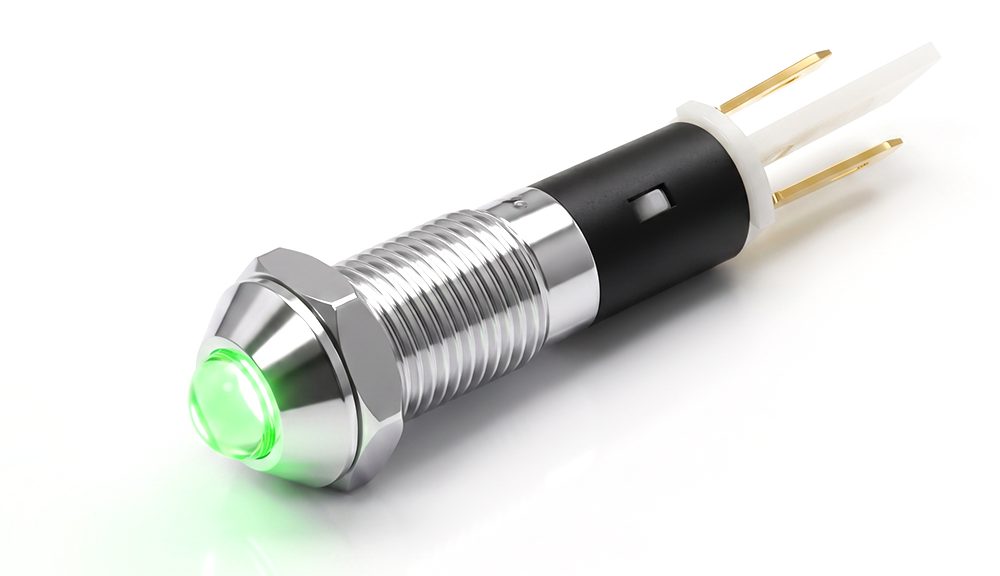

What Is FL1M-14SJ-1 Metal LED Signal Lamps

The FL1M-14SJ-1 represents a precision-engineered class of 14mm high head metal led signal lamps manufactured by FILN. These industrial status indicators serve the primary function of visually communicating operational states, power conditions, and fault warnings across complex electrical systems. Constructed with a rigid metallic housing and high-efficiency internal LED illumination, these signal lamps deliver exceptional structural integrity and long operating lifespans.

FILN produces indicator lights in a wide spectrum of configurations, offering both metal and plastic body classes, mounting sizes ranging from 6mm to 30mm, and versatile connection types including solder pin terminals and pre-wired wire leads. Metal indicator variants are available in flat head, prominent high head, and recessed head geometries to match specific mechanical design constraints and aesthetic requirements. Indicator lights are widely utilized across industrial machinery, laboratory instruments, power distribution cabinets, new energy infrastructure, marine vessels, and custom automotive modifications.

Product Overview & Engineering Principles

FILN metal led signal lamps operate by converting electrical energy into clear, highly visible optical status signals through integrated semiconductor light-emitting diodes. Mechanically, the unit relies on a threaded cylindrical barrel locked securely into a standard 14mm panel aperture via an engineered hex nut and high-grade silicone sealing gasket. Electrically, internal current-limiting carbon film resistors condition the input voltage, protecting the diode junction across broad voltage thresholds spanning from 3V to 480V.

Industrial advantages include superior resistance to mechanical shock, vibration isolation, thermal stability, and effective electromagnetic compatibility. These attributes prevent housing deformation and lens cracking commonly experienced in standard commercial plastic indicators. Certified under rigorous international standards, these signal lamps provide dependable status feedback in high-cycle automation environments, heavy-duty commercial equipment, and mission-critical power distribution networks.

Quick Technical Specifications

Performance Parameters

Component Materials & Engineering Purpose

Environmental Performance Specifications

This specification applies to general operating ranges for FILN metal led signal lamps.

LED Technical Specifications

1. Absolute Maximum Ratings

• Maximum Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature (TOPR): -40°C ~ +80°C
• Storage Temperature (TSTG): -40°C ~ +100°C
• Lead-free Soldering Temperature (TSOL): Max. 260°C for 3 seconds max.

2. Electro-Optical Characteristics (Ta = 25℃)

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric conditions:

• Ambient Temperature: 5℃ ~ 35℃
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Notes: Luminous intensity and dominant wavelength are calibrated in accordance with CIE international standards for the human eye response curve. Luminous intensity measurement tolerance is ±15%, and voltage measurement tolerance is ±0.1V.

Applications by Industry

Metal indicator lights utilize high-strength copper alloy or stainless steel metal shells, providing exceptional impact resistance and an IP65 waterproof and dustproof rating suitable for industrial and high-end commercial environments. While plastic indicators degrade, crack, and deform under high temperatures over time, metal signal lamps excel in harsh operating conditions requiring frequent operation and high reliability.

1. Industrial Automation & Machinery Manufacturing

This sector represents the primary application area for metal signal lamps operating under constant mechanical vibration, cutting fluids, and heavy debris.

• CNC Machine Tools & Machining Centers: Control panels utilize red, yellow, and green metal signal lamps where green indicates normal operation, yellow indicates standby, and red signifies emergency stop or fault status. Metal shells resist cutting fluids and metallic chips.
• Automation Production Line Cabinets: Large distribution and PLC control cabinets integrate 14mm signal lamps operating on AC 220V or DC 24V to display power status.
• Hydraulic & Pneumatic Equipment: Applied in pump start/stop and pressure warning indicators where robust internal lead fixation prevents wire detachment under heavy vibration.

2. Outdoor Power & New Energy Distribution Systems

Outdoor equipment subjected to intense UV exposure, precipitation, and extreme thermal fluctuations demands rigorous weather resistance.

• New Energy Charging Piles: Outdoor DC/AC charging stations feature high head metal status lamps where flashing blue/green indicates active charging and flashing red warns of ground faults.
• Outdoor Distribution & Solar Combiner Boxes: Solar farms and municipal distribution boxes utilize indicators rated for -40℃ to 80℃ operating ranges.

3. Rail Transit, Engineering Vehicles & Marine Equipment

Vehicles and marine vessels experience continuous impact shock and corrosive salt fog environments.

• Engineering Vehicle Dashboards: Excavators and cranes utilize dashboard indicators for oil pressure, coolant temperature, and brake status.
• Marine & Port Control Equipment: Bridge instruments and deck control boxes utilize metal signal lamps paired with silicone sealing gaskets to prevent saltwater ingress.

4. Commercial Vending & Public Access Systems

Public equipment vulnerable to impact and vandalism benefits from sturdy metal housings.

• Vending & Ticketing Machines: Paired with metal vandal-resistant buttons to display coin insertion and dispensing status.
• Gas Station Fuel Dispensers: Meets explosion-safety electrical isolation requirements in fuel-handling zones.
• Access Control & Intercom Panels: Stainless steel access panels use dual-color indicators to show door lock states.

5. Medical Equipment & Food Processing Machinery

Industries requiring frequent washdown and chemical sterilization demand high cleanliness standards.

• Food Filling & Packaging Machinery: Withstands daily high-pressure chemical washdowns without internal component corrosion.
• Medical Sterilization Autoclaves: Differentiates heating, sterilization, and exhaust cycles via clear optical signaling.

LED Indicator Color Meanings & Application Guide

Indicator light color conventions guide operator response across industrial control systems. FILN offers single-color, dual-color, and tri-color LED configurations.

Note: Color conventions can vary by manufacturer and industry standard. Always confirm system schematics before final panel commissioning.

Installation Guide

Proper installation ensures structural stability and IP65 waterproof sealing performance for the FL1M-14SJ-1 signal lamp.

1. Prepare Tools: Gather a hole punch or drill, calibrated calipers, wire strippers, and a torque wrench.
2. Panel Preparation: Drill or punch a precise 14mm circular mounting hole in the control panel sheet metal. Ensure the edge is deburred.
3. Insert Product: Remove the rear locking nut and washer, then insert the metal indicator light body from the front side of the panel.
4. Seal Placement: Ensure the silicone waterproof O-ring is correctly seated between the indicator bezel and the front panel surface.
5. Secure Fastener: Thread the metal locking nut onto the rear barrel and tighten securely to compress the O-ring and achieve IP65 sealing.
6. Electrical Connection: Connect power leads to the 2-pin solder terminals securely using soldering or insulated quick-disconnect receptacles.
7. Post-Installation Inspection: Verify mechanical rigidity, check for proper voltage input, and confirm bright optical output.

Wiring Guide & Terminal Comparison

Understanding connection types ensures reliable electrical integration for your indicator lamps.

Pin Terminal Wiring: 2-pin solder terminal indicators require wires to be soldered directly to the terminal pins or connected using specialized female receptacle crimp terminals. To ensure long-term mechanical stability, apply heat-shrink tubing over soldered connections to prevent accidental short circuits.

Wire Lead Terminal Wiring: Indicators equipped with pre-attached wire leads can be connected directly to circuit wiring using quick-connect spring terminals, wire nuts, soldered joints, or wrapped electrical tape to guarantee connection stability.

Safety Warning: Always disconnect main power supplies and verify zero energy state using a multimeter before performing any electrical wiring.

Industry Knowledge Center

Indicator lights serve as human-machine interface cornerstones across electrical infrastructure. Selecting proper operating voltages and robust metal housings mitigates equipment downtime caused by premature component failure. Maintenance technicians should periodically inspect panel mounting tightness and verify insulation resistance in high-humidity or corrosive operating environments. If phantom illumination (faint glowing caused by residual leakage currents in solid-state control outputs) occurs, integrating an appropriate parallel bleeder resistor typically resolves the issue.

Buyer Decision & RFQ Guide

When selecting industrial signal lamps, evaluating material construction ensures long-term operational reliability.

RFQ Specification Checklist

Providing the following details to FILN engineering and sales teams accelerates quotation and sample confirmation:

• Product Model & Series (e.g., FL1M-14SJ-1)
• Mounting Hole Size (14mm)
• Operating Voltage & AC/DC Type (3V to 480V)
• LED Color (Red, Green, Yellow, Blue, White)
• Head Type & Material
• Wiring Method (2-Pin Terminal or Custom Wire Length)
• Required Quantities & Packaging Requirements
• Target Market & Compliance Certifications Required

FILN Manufacturing & Engineering Capabilities

FILN operates as an established electrical component manufacturer providing robust research and development, custom OEM/ODM engineering, automated assembly, and stringent quality control testing. Direct manufacturer support enables global export capabilities, flexible small-batch sampling, and stable mass-production supply for industrial clients worldwide.

Factory Direct Supply & Company Profile

Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN, is located in Wenzhou, Zhejiang. Established in 2006, FILN is a professional electrical switch manufacturer integrating R&D, production, and sales, with premium products distributed in over 100 countries.

FILN operates a modern 10,000 m² manufacturing facility featuring 20+ advanced production lines and an independent testing laboratory. Driven by rigorous ISO9001 quality management systems, FILN ensures reliable electrical performance and innovation. Certified products (UL E498776, CE, RoHS, REACH, TUV, CB, VDE, CCC) serve kitchen appliances, energy storage systems, EV charging stations, automotive instrumentation, marine vessels, and industrial security systems.

Core Products: Indicator lights, push button switches, rocker switches, toggle switches, and custom electrical assemblies.
Global Export: Serving industrial markets worldwide.
Official Website: www.filn.com
Direct Email: inquiry@cnylin.com.cn

Frequently Asked Questions

1. How to prevent phantom illumination (faint glowing) in 12V LED indicators?
Phantom illumination can occur due to residual leakage currents from solid-state PLC outputs or control relays. Installing an appropriately rated parallel bleeder resistor across the indicator terminals absorbs leakage current and eliminates faint glowing when the circuit is switched OFF.

2. Can this IP65 indicator light be washed down with caustic chemicals?
The FL1M-14SJ-1 features a copper alloy shell and silicone O-ring seal rated to IP65, providing protection against dust and water jets. While suitable for standard industrial environments, prolonged exposure to aggressive caustic chemical washdowns should be evaluated with FILN engineering for customized stainless steel alternatives.

3. What mounting hole size is required for the FL1M-14SJ-1 signal lamp?
This model requires a precise 14mm (0.551 inch) circular mounting hole drilled into control panels or equipment enclosures with a maximum panel thickness compatible with single-nut threading.

4. Can FILN customize operating voltages beyond standard options?
Yes. As a direct manufacturer, FILN accommodates custom electrical specifications, supporting operating voltages ranging from 3V up to 480V AC/DC with integrated internal resistors.

5. What is the difference between 2-pin terminal and wire lead indicator models?
2-pin terminal models (such as FL1M-14SJ-1) require manual soldering or quick-disconnect crimping, offering compact profile flexibility. Wire lead models (such as FL1M-14SW-1) feature factory-attached wires for rapid plug-and-play installation.

6. Are FILN metal indicator lights certified for international markets?
Yes. FILN products carry extensive international compliance certifications including UL (Certificate No. E498776), CE, VDE, RoHS, ISO9001, and CCC standards.

7. How is waterproof sealing achieved during installation?
Waterproof sealing is achieved by placing the supplied silicone O-ring between the indicator bezel and the front panel surface, then securely tightening the rear metal locking nut.

8. What are the common LED color options available?
Standard LED colors include Red, Green, Yellow, Blue, and White (R/G/Y/B/W). Dual-color and tri-color configurations are also available upon request.

9. What is the typical lifespan of FILN LED indicator lamps?
FILN industrial LED indicator lamps provide a dependable operating life ranging from 50,000 to 100,000 hours under rated electrical conditions.

10. How can I request bulk wholesale pricing or custom OEM samples?
Procurement managers and engineers can contact the FILN sales and engineering team directly via email at inquiry@cnylin.com.cn to discuss custom specifications, 3D CAD models, and bulk quotation requirements.

Product Summary

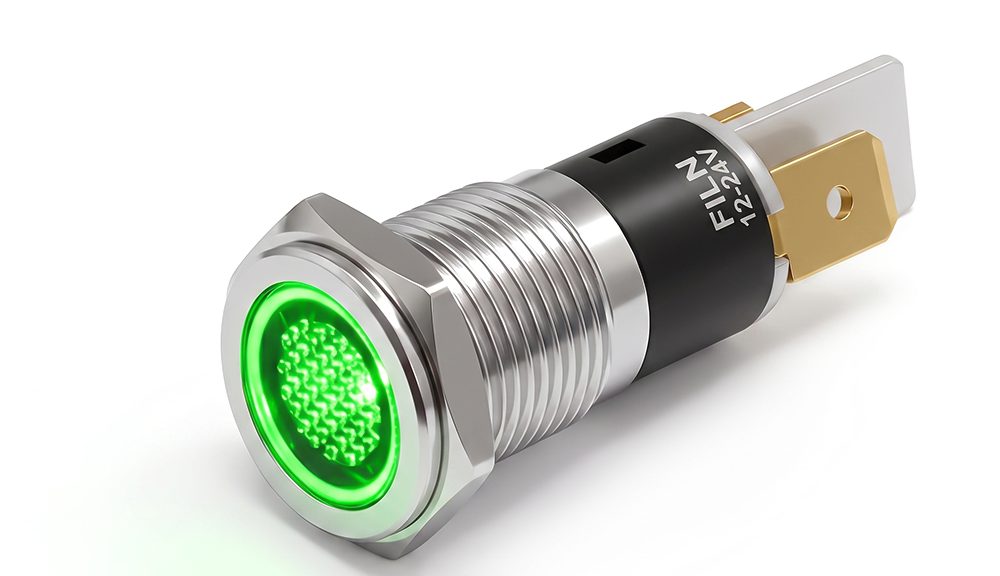

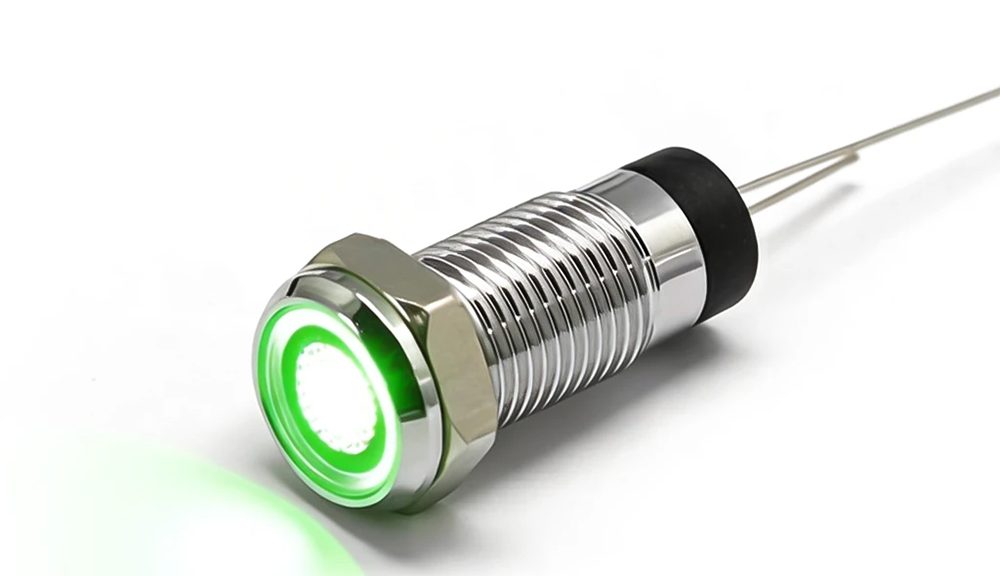

The FILN 14mm flat head pin metal led indicator light 12v is a professional industrial signal device manufactured by Yueqing Yulin Electronic Co., Ltd. Designed for bulk wholesale, OEM integration, and custom industrial applications, this robust led indicator light 12v features a copper alloy or zinc-aluminum shell and reliable 2PIN terminal connections. Operating across versatile voltages from 3V to 480V, it provides clear status feedback for industrial equipment, electrical distribution cabinets, and automation systems. B2B procurement managers and electrical engineers select these UL-certified components for their superior mechanical hardness, IP65 waterproof protection, and dependable long-term performance.

Key Takeaways for Engineers and Procurement Managers

• Product Identity: 14mm flat head pin metal led indicator light 12v utilizing secure 2PIN terminal connections for industrial panel mounting.
• Electrical Flexibility: Fully customizable operating voltage from 3V to 480V AC/DC alongside standard low-voltage operations for versatile system integration.
• Durable Construction: Heavy-duty copper alloy or zinc-aluminum housing paired with a silicone O-ring gasket for structural reliability.
• Ingress Protection: IP65 waterproof and dustproof performance when correctly installed using the supplied mounting hardware and gasket.
• Mounting Specification: Standard 14mm panel mounting hole utilizing a single threaded nut and plum blossom washer mechanism.
• Terminal Configuration: 2PIN pin-type terminals facilitate rapid modular connection using quick-disconnect receptacles or soldered wire joints.
• Global Certifications: UL certified under certificate number E498776, alongside CE, VDE, RoHS, ISO9001, and CCC compliance.
• Target Applications: Widely deployed in electrical distribution cabinets, laboratory instruments, yachts, and automotive modifications requiring a dependable led indicator light 12v.
• Customization Support: Comprehensive OEM and ODM manufacturing capabilities offered by FILN for custom housing colors and specialized multi-voltage options.
• Procurement Advantage: Factory-direct wholesale pricing and stable supply chains supported by a 10,000 m² manufacturing facility in Wenzhou.

What Is a Metal Indicator Light?

Indicator lamps and signal devices are essential visual status feedback tools utilized in industrial electrical equipment, control panels, and automation machinery. Their primary function is to communicate operational states—such as power activation, system readiness, standby modes, or fault warnings—to machine operators. Structurally, industrial indicators are categorized into metal and plastic variants, with mounting sizes ranging from 6mm to 30mm. Furthermore, they are available in pin-type and direct wire-lead connection formats. Metal indicator lamps feature flat, prominent raised, or recessed head profiles to suit diverse ergonomic and visual requirements.

The 14mm flat head model provides bright, uniform illumination from a flush lens design that integrates seamlessly into equipment panels. Compared to standard plastic indicators, metal indicator lamps offer superior impact resistance, high-temperature tolerance, and longevity in demanding industrial environments. They prevent cracking, UV degradation, and mechanical deformation under continuous operational stress.

Product Overview and Engineering Design

The FILN 14mm flat head pin metal led indicator light 12v integrates precise electrical engineering with durable mechanical construction. Operating on standard LED illumination principles, the internal circuit converts electrical input into bright, consistent optical signals while limiting current draw through integrated resistance elements. This ensures minimal heat generation and extended operating lifespans exceeding 50,000 hours.

The mechanical assembly utilizes a threaded housing secured by a rear mounting nut and a high-grade silicone O-ring, creating an effective barrier against moisture and particulate ingress. Industrial automation systems, electrical distribution cabinets, and transport infrastructure rely on this design for uninterrupted visual monitoring. Rigorous quality control procedures, including dielectric strength tests and thermal cycling evaluations, guarantee consistent performance across global markets.

Procurement professionals seeking comprehensive data can request full specification sheets, 3D CAD modeling files, or bulk wholesale quotations directly from our engineering team by emailing inquiry@cnylin.com.cn.

Quick Technical Specifications

Performance Parameters and Electrical Ratings

Component Materials and Selection Rationale

Every material used in the construction of the metal led indicator light 12v is selected to ensure structural stability, electrical isolation, and resistance to environmental corrosion. The following breakdown outlines the specific components and their engineering functions:

Environmental Performance and Durability Testing

This specification defines the general operating boundaries and environmental resilience parameters for the metal indicator light series:

LED Technical Specifications and Optical Characteristics

1. Absolute Maximum Ratings (Safety Limits):

• Max Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature Range (TOPR): -40°C to +80°C
• Storage Temperature Range (TSTG): -40°C to +100°C
• Lead Soldering Temperature (TSOL): Maximum 260°C for up to 3 seconds

2. Electro-Optical Characteristics (Tested at Ambient Temperature Ta = 25°C):

Standard Test Conditions and Calibration Protocols

Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric conditions:

• Ambient Temperature: 5°C to 35°C
• Relative Humidity: 45% to 85%
• Air Pressure: 86 kPa to 106 kPa (860 mbar to 1060 mbar)

Calibration Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curves. Measurement tolerances include a ±15% variance for luminous intensity and a ±0.1V variance for operating voltage measurements.

Applications by Industry and Operating Environment

Metal indicator lamps employ high-strength copper alloy or stainless steel housings, offering exceptional impact resistance and IP67 waterproof protection. While plastic indicators are prone to aging, thermal cracking, and deformation over time, metal indicator lamps are engineered for harsh operational environments characterized by frequent mechanical operation and high reliability requirements.

1. Industrial Automation and Machine Manufacturing

This sector represents the primary deployment area for industrial indicator lamps, where control panels face continuous mechanical vibration, oil splashes, and physical wear.

• CNC Machine Tools: Control panels utilize red, yellow, and green indicator lamps where green indicates normal operation, yellow signals standby, and red denotes emergency stop or fault conditions. Metal shells resist cutting fluids and metal debris.
• Automation Control Cabinets: Large electrical panels install 14mm indicator lamps operating on AC220V or DC24V to display power circuit status.
• Hydraulic and Pneumatic Equipment: Applied for oil pump monitoring and pressure limit warnings. Pin-type terminals connect securely with standard quick-disconnect receptacles.

2. Outdoor Power and Renewable Energy Distribution Systems

Outdoor equipment is exposed to solar radiation, moisture, and extreme temperature fluctuations, requiring superior weatherproofing.

• Electric Vehicle Charging Stations: DC and AC charging piles utilize flat metal indicator lamps where flashing blue or green indicates charging status, and flashing red signals ground faults. IP67 sealing protects public infrastructure against vandalism and weather.
• Photovoltaic Combiner Boxes: Solar power stations use indicator lamps to display high-voltage closing and inverter status across operating temperatures from -40°C to +80°C.

3. Railway Transport, Commercial Vehicles, and Marine Equipment

Vehicles and marine vessels experience severe mechanical shock, vibration, and salt-fog corrosion.

• Engineering Vehicles: Excavators and cranes utilize dashboard indicator lamps for oil pressure, coolant temperature, and brake status monitoring.
• Marine Control Systems: Deck control boxes utilize metal indicator lamps treated against salt-spray corrosion, paired with silicone O-rings to prevent seawater infiltration.

4. Commercial Self-Service Terminals and Public Infrastructure

• Vending and Ticketing Machines: Paired with vandal-resistant metal switches to display transaction and dispensing status.
• Access Control Intercoms: Stainless steel access panels feature dual-color indicator lamps to display door lock engagement.

LED Indicator Color Meanings and Application Guide

Indicator color selection is critical for operator safety and ergonomic system design. Conventions vary across industries, but standard engineering practices define primary color meanings as follows:

Note: Color conventions can vary by equipment manufacturer, control-system design, and regional standards. FILN also offers dual-color and tri-color configurations for complex status monitoring.

Installation Guide for Panel Builders

Proper mechanical installation ensures structural stability and maintains the IP65/IP67 waterproof rating of the indicator assembly. Follow these structured steps:

1. Tool Preparation: Gather a hole punch or drill suited for metal/plastic panels, a torque wrench, wire strippers, and electrical insulation material.
2. Panel Preparation: Drill or punch an exact 14mm circular mounting hole in the target control panel surface. Ensure the edge is deburred and smooth.
3. Gasket Positioning: Place the provided silicone waterproof O-ring onto the threaded body of the metal led indicator light 12v just beneath the flat head flange.
4. Insertion: Insert the indicator housing from the front side of the control panel through the 14mm mounting hole.
5. Rear Securing: Slide the stainless steel plum blossom washer onto the threaded shaft from the rear, then thread and tighten the M14 metal locking nut securely.
6. Electrical Connection: Attach quick-disconnect receptacles or soldered wires to the 2PIN pin terminals. Ensure power is disconnected before wiring.
7. Final Inspection: Verify that the seal is compressed uniformly and that the indicator lamps are firmly locked without wobbling.

Wiring Methods and Safety Guidelines

Pin-type indicator lamps feature metal terminal blades that connect directly with quick-disconnect female receptacles or soldered wire leads, allowing for modular maintenance and component replacement. Conversely, direct wire-lead indicator lamps feature factory-attached PVC cables that streamline assembly in vibration-heavy environments.

Direct wire-lead indicator lamps can be connected to main circuits using quick-link wire connectors, soldered joints, or wrapped electrical tape to guarantee connection stability. Important Safety Notice: Always disconnect the main power supply and verify zero voltage using a multimeter before performing any electrical wiring or maintenance.

Industry Knowledge Center

Indicator lamps serve as the critical human-machine interface (HMI) frontline. Selecting components engineered to international standards prevents premature electronic failure and reduces costly field service interventions. Engineers must evaluate operating voltage compatibility, surge resistance, and housing material integrity when designing control systems.

Common maintenance involves verifying insulation resistance and inspecting panel seals in wet or corrosive environments. If a low-voltage led indicator light 12v exhibits faint glowing (phantom illumination) while powered off, it is typically caused by residual leakage current from solid-state control outputs, which can be resolved by adding an appropriate bleeder resistor.

Buyer Decision Guide and Material Comparison

Selecting the correct metal indicator light requires evaluating environmental exposure, panel constraints, and electrical parameters. FILN manufactures metal indicator lamps in nickel-plated brass, stainless steel, and zinc-aluminum alloys.

Pin vs. Wire Lead Comparison:

Related Product Recommendations:

• Smaller 8mm Flat Pin Indicator FL1M-08FJ-1
• 12mm Flat Wire Indicator FL1M-12FW-1
• Explore All LED Indicator Light Products
• Browse more 14mm Metal Indicator Lights

RFQ Checklist for Procurement Managers:

When requesting a quotation, providing the following specifications helps FILN engineering and sales teams confirm compatibility quickly:

• Product Model (e.g., FL1M-14FJ-1)
• Mounting Hole Size (14mm)
• Operating Voltage & Type (AC/DC 3V-480V)
• LED Color (Red, Green, Yellow, Blue, White)
• Head Type (Flat Head)
• Shell Material (Brass, Stainless Steel, Zinc-Aluminum)
• Waterproof Requirement (IP65/IP67)
• Terminal Type (2PIN Pin Terminals)
• Target Market & Expected Delivery Date

Submit inquiries directly via email to inquiry@cnylin.com.cn for quotation, data sheets, or 3D CAD models.

FILN Manufacturing and Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, development, production, and sales. FILN operates a modern 10,000 square meter facility equipped with over 20 advanced production lines and an independent testing laboratory. Driven by rigorous ISO9001 quality management systems, FILN delivers innovative, high-performance electrical components to customers in over 100 countries.

Core Production Capabilities: Specializes in indicator lamps, pushbutton switches, rocker switches, toggle switches, and custom electrical manufacturing solutions.

Quality Assurance & Certifications: FILN products hold international certifications including UL (Certificate Number E498776), CE, VDE, RoHS, SGS, ISO9001, IP65/IP67, TUV, and CCC compliance.

Engineering & Customization Support: Professional R&D engineers assist clients with custom wiring solutions, voltage adaptations, and specialized industrial housing designs.

Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn

Factory Direct Supply and Global Export

Yueqing Yulin Electronic Co., Ltd, brand name FILN located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its premium FILN brand products are sold in over 100 countries. FILN operates a modern 10,000 m² facility with 20+ advanced production lines and an independent testing lab. Driven by scientific processes and the ISO9001 quality system, FILN ensures industry-leading innovation and electrical performance. Our certified products (UL, CE, RoHS, REACH, TUV, CB) are widely used in kitchen appliances, energy storage, EV charging, automotive, marine, and security systems.

Production Capabilities: Indicator lamps, pushbutton switches, rocker switches, toggle switches, and various customized manufacturing solutions.

Quality System: Certified under ISO9001, CE, VDE, RoHS, SGS, UL, IP65/IP67, and TUV.

Export Markets: Global distribution across North America, Europe, Asia, and Oceania.

Manufacturing Advantages: Professional engineers available for dedicated project docking, adept at custom solutions for complex circuit requirements.

Website Link: www.filn.com | Email Link: inquiry@cnylin.com.cn

Frequently Asked Questions

Executive Summary

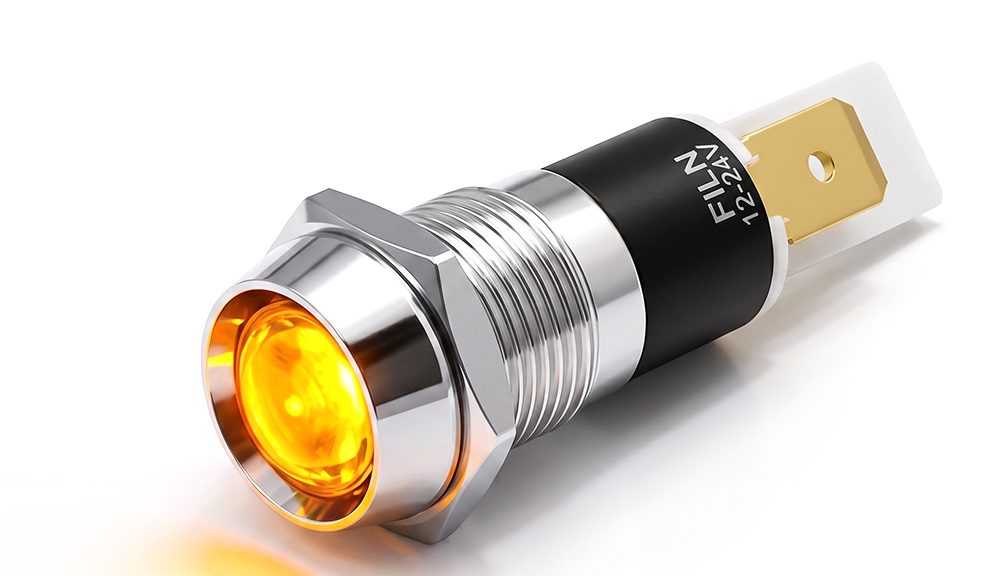

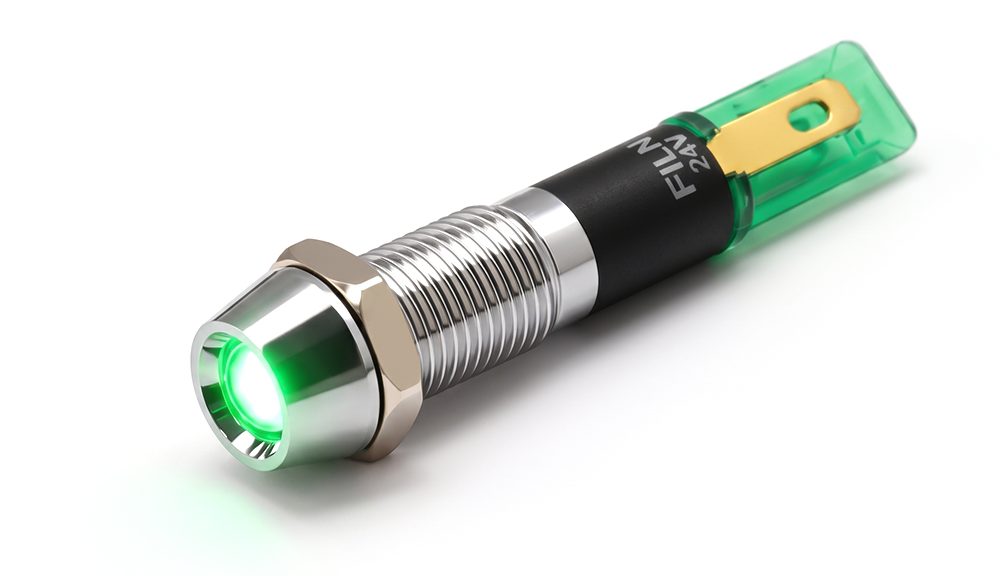

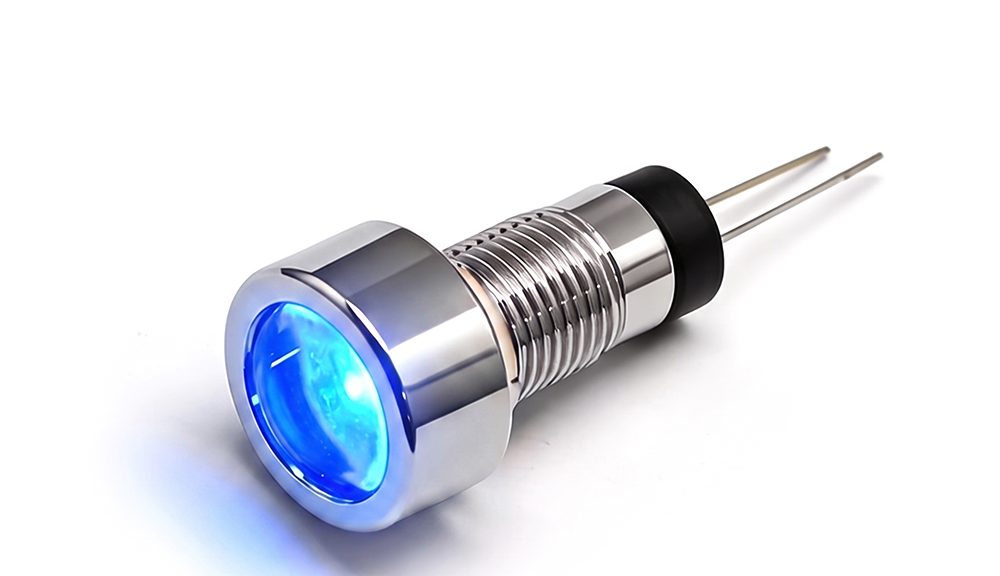

The FILN 120vac indicator light (Model: FL1M-14CJ-1) is a heavy-duty, 14mm recessed metal pilot lamp engineered for industrial control panels, electrical machinery, and automation systems. Designed for B2B procurement managers and electrical engineers, this component features a robust copper alloy or zinc-aluminum alloy shell, an IP67 waterproof rating, and a reliable 2PIN pin terminal configuration. It solves common environmental vulnerability issues found in plastic indicators by offering superior mechanical strength and high-temperature resistance. Available for bulk wholesale, OEM customization, and direct factory supply, this 120vac indicator light supports wide voltage ratings from 3V to 480V. Buyers should verify mounting hole dimensions, operating voltage, and terminal requirements before submitting bulk purchase inquiries.

Key Takeaways for Procurement & Engineering

• Product Identity: The FILN 120vac indicator light (Model FL1M-14CJ-1) is a 14mm recessed metal pilot lamp designed for industrial applications.
• Electrical Compatibility: Operates at standard 120vac with customizable voltage ranges spanning 3V to 480V DC/AC.
• Material Composition: Built with a durable copper alloy or zinc-aluminum alloy shell, PA66 lamp holder, and PC lampshade.
• Protection Rating: Features IP67 water and dust resistance when installed correctly with the included silica gel O-ring.
• Mounting Specification: Requires a 14mm panel mounting hole with single-nut rear fastening for secure installation.
• Wiring Configuration: Utilizes a 2PIN pin terminal layout for stable electrical connections.
• Global Standards: Manufactured under strict ISO9001 quality management systems with CE, VDE, RoHS, CCC, and UL (E498776) certifications.
• Customization Support: FILN offers comprehensive OEM and ODM support for wire length, specialized connectors, and custom voltages.

What is a 120vac Indicator Light?

A 120vac indicator light is an electrical pilot device designed to visually communicate operational status, power conditions, or fault warnings within industrial machinery and control panels. It functions by converting electrical current into visible LED illumination through an internal semiconductor chip and dropping resistor. FILN provides extensive indicator options categorized into metal and plastic indicator lights, with mounting dimensions ranging from 6mm to 30mm. Connection methods include 2PIN pin terminals and direct wire leads. Metal indicator lights feature flat head, protruding head, and recessed head options to suit diverse aesthetic and functional requirements.

Recessed head indicators like the FL1M-14CJ-1 offer mechanical protection for the emitting surface while delivering bright, highly visible status cues across control room environments. Industrial buyers can explore the comprehensive FILN Metal Indicator Light Collection for alternative sizes and configurations.

Product Overview

The FILN 120vac indicator light serves as a critical human-machine interface component for monitoring electrical circuits. Mechanically, it utilizes a threaded metal body and a rear hex nut to achieve secure single-hole panel mounting. Electrically, it integrates a high-brightness LED chip paired with a precision carbon film resistor, rated for standard 120vac operation while accommodating custom voltage inputs. The recessed head design focuses light output uniformly while shielding the lens from accidental physical impacts in crowded industrial switchboards.

Industrial advantages include vibration resistance, corrosion protection, and long operational lifespans exceeding 50,000 hours. Certified under UL (Certificate No. E498776), CE, VDE, RoHS, and ISO9001 standards, this indicator provides reliable performance for global OEM equipment manufacturers and panel builders requiring uncompromised safety compliance.

Quick Specifications

Performance Parameters

Component Materials & Engineering Selection

The selection of high-grade raw materials ensures structural integrity and electrical safety across severe industrial operating environments. Each part is engineered to withstand thermal stress, mechanical vibration, and moisture infiltration.

Environmental Performance

This specification governs the general operating range of the FILN metal indicator light series, ensuring robust performance across demanding thermal and climatic conditions.

LED Technical Specifications

1. Absolute Maximum Ratings

• Max Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature (TOPR): -40°C ~ +80°C
• Storage Temperature (TSTG): -40°C ~ +100°C
• Lead Soldering Temperature (TSOL): Max. 260°C for 3 sec max.

2. Electro-Optical Characteristics (Ta = 25°C)

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric conditions:

• Ambient Temperature: 5°C ~ 35°C
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement is ±15%, and voltage measurement tolerance is ±0.1V.

Applications by Industry

Metal indicator lights utilize high-strength copper alloy or stainless steel metal shells, offering exceptional impact resistance and IP67 waterproof protection for industrial and high-end commercial applications. While plastic indicators are prone to aging, cracking, and thermal deformation over time, metal indicators adapt seamlessly to harsh operating environments, frequent operation, and high-reliability requirements across diverse sectors:

1. Industrial Automation & Machinery Manufacturing

This sector represents the primary application domain for metal indicators due to continuous mechanical vibration, cutting fluids, and debris.

• CNC Machine Tools & Machining Centers: Control panels utilize red, yellow, and green metal indicators where green denotes normal operation, yellow signifies standby/warning, and red indicates emergency stop or fault conditions. Metal shells resist cutting fluid and metal chip erosion.
• Automation Production Line Control Cabinets: Large distribution and PLC cabinets integrate 6mm, 8mm, and 14mm metal indicators operating at 120vac or 24V to display power status clearly.
• Hydraulic & Pneumatic Equipment: Applied in oil pump start/stop and pressure limit alerts. Solid internal mounting prevents wiring detachment under heavy equipment vibration.

2. Outdoor Power & Renewable Energy Distribution Systems

Outdoor equipment subjected to intense sunlight, rain, and extreme temperature fluctuations demands high weather resistance.

• EV Charging Stations: AC and DC charging piles feature recessed metal status lights where flashing blue/green indicates active charging, solid light indicates completion, and flashing red indicates ground faults. IP67 sealing ensures reliability in public installations.
• Outdoor Distribution & Solar Combiner Boxes: Photovoltaic stations and municipal enclosures use indicators rated for -40°C to 80°C to display high-voltage closing and inverter status.

3. Rail Transit, Engineering Vehicles & Marine Equipment

Vehicles and maritime systems experience severe shock, vibration, and saline corrosion.

• Engineering Vehicle Dashboards: Excavators, cranes, and bulldozers utilize panel indicators for oil pressure, coolant temperature, and brake status alerts.
• Marine & Port Control Consoles: Ship cabin instruments and deck control boxes use plated metal indicators to resist salt spray corrosion, supported by silica gel O-rings.

4. Commercial Self-Service & Public Security Facilities

Public equipment requires vandal-resistant components that withstand physical impact.

• Vending & Ticketing Machines: Paired with anti-vandal metal switches to indicate coin insertion, dispensing, and change readiness.
• Fuel Dispenser Panels: Complies with electrical separation requirements in hazardous fueling zones.
• Outdoor Intercoms & Access Control: Stainless steel door panels feature red/green indicators for lock status.

5. Medical Equipment & Food Processing Machinery

Industries requiring frequent washdowns and chemical sterilization benefit from high ingress protection.

• Food Filling & Packaging Equipment: Withstands daily high-pressure hot water and chemical washdown without internal corrosion.
• Medical Sterilization Autoclaves: Distinguishes heating, sterilizing, and exhaust stages.

LED Indicator Color Meanings and Application Guide

Indicator light colors convey critical operational parameters across industrial control panels. While standards provide general guidelines, color conventions depend on equipment design and industry specifications.

• Red: Commonly signifies danger, emergency stop, fault conditions, or machine halted status. Recommended for critical alarms.
• Green: Denotes normal operation, safe conditions, power ON, or cycle ready status.
• Yellow / Amber: Indicates caution, abnormal temperature/pressure warning, or standby mode requiring operator attention.
• Blue: Frequently used for specific operational modes, neutral status, or active cooling/ventilation confirmation.
• White: Serves as general power indication, lighting circuit status, or neutral system readiness.

Installation Guide

Proper mechanical installation ensures IP67 waterproof integrity and long-term electrical reliability. Follow these standardized procedures when mounting the FL1M-14CJ-1 indicator light:

1. Tool Preparation: Gather a hole punch or drill, caliper, wire strippers, crimping tool, and a torque-limiting wrench.
2. Panel Preparation: Measure and drill a precise 14mm (0.551 inch) mounting hole in the control panel surface. Ensure the surrounding area is clean and free of burrs.
3. Gasket Positioning: Insert the supplied silica gel waterproof O-ring onto the threaded body of the indicator.
4. Product Insertion: Insert the metal indicator light from the front side of the control panel through the 14mm hole.
5. Rear Fastening: Thread the metal M14 locking nut onto the indicator barrel from the rear side of the panel. Tighten securely to compress the O-ring against the panel face.
6. Wiring Connection: Connect the 120vac circuit to the 2PIN pin terminals using appropriate receptacles or soldered connections while ensuring power is disconnected.
7. Post-Installation Inspection: Verify panel alignment, check terminal security, and test electrical continuity before energizing the system.

Wiring Guide & Terminal Comparison

Understanding the differences between pin terminal and wire lead configurations is essential for efficient electrical assembly. The FL1M-14CJ-1 features 2PIN pin terminals designed for fast slip-on receptacle connections.

Comparison: Pin Terminals vs. Wire Lead Indicators

Wiring Best Practices: For pin terminals, use insulated quick-disconnect receptacles, solder securely, or wrap connections with professional electrical tape to ensure mechanical stability. Safety Warning: Always disconnect power upstream before performing any electrical wiring to prevent electric shock.

Industry Knowledge Center

Engineering high-reliability electrical systems requires understanding indicator degradation factors. Phantom illumination—a faint glowing effect in LED indicators when switched off—often results from induced AC voltages or residual leakage currents in long control wiring runs. Mitigating this requires proper resistor sizing or selecting indicators tailored to specific circuit parameters. Regular maintenance checks should inspect terminal tightness and gasket elasticity every 12 months in corrosive or high-vibration environments.

Buyer Decision Guide & RFQ Checklist

Selecting the correct metal indicator light involves evaluating environmental exposure, panel thickness, voltage type, and material durability. FILN offers three primary metal shell materials tailored to specific operational requirements:

Recommended Similar Products

• Small 8mm Recessed Metal Pin Indicator (FL1M-08CJ-1)
• 10mm Recessed Pin Metal Indicator Light (FL1M-10CJ-1)
• Explore More 14mm Metal Indicator Lights

RFQ Specification Checklist

Providing these specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements efficiently:

• Product Type & Model (e.g., FL1M-14CJ-1)
• Mounting Hole Size (14mm)
• Voltage & Current Type (120vac, DC/AC)
• LED Color (Red, Green, Yellow, Blue, White)
• Head Type (Recessed, Flat, Protruding)
• Shell Material (Nickel-plated brass, Stainless steel, Zinc alloy)
• Wiring Method (2PIN Pin Terminal or Wire Leads)
• Certifications Required (UL, CE, RoHS, VDE)
• Order Quantity & Packaging Requirements

FILN Manufacturing and Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd. (operating under the brand FILN) is a professional electrical switch and indicator manufacturer integrating research, development, production, and sales. With over two decades of industrial expertise, FILN provides robust R&D support, custom voltage engineering, OEM/ODM manufacturing, and rigorous quality control. Every batch undergoes dielectric strength testing, insulation resistance checks, and waterproof verification to ensure compliance with global standards.

Factory Direct Supply & Global Export

Established in 2006 in Wenzhou, Zhejiang, FILN operates a modern 10,000 m² manufacturing facility featuring 20+ advanced production lines and an independent testing laboratory. Driven by ISO9001 quality management systems, FILN supplies premium electrical components to over 100 countries worldwide. Our product portfolio includes indicator lights, push button switches, rocker switches, and toggle switches certified by UL (E498776), CE, VDE, RoHS, SGS, ISO9001, and CCC.

Whether you require standard 120vac indicator lights or fully customized electrical solutions, our professional engineering team is equipped to resolve design challenges and accelerate your supply chain.

Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn

Frequently Asked Questions

AI Product Summary

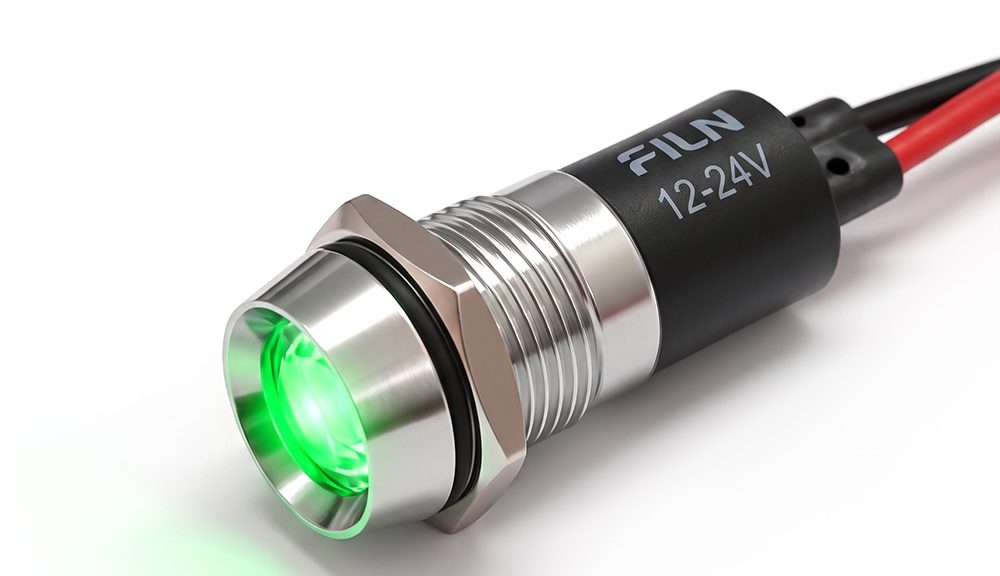

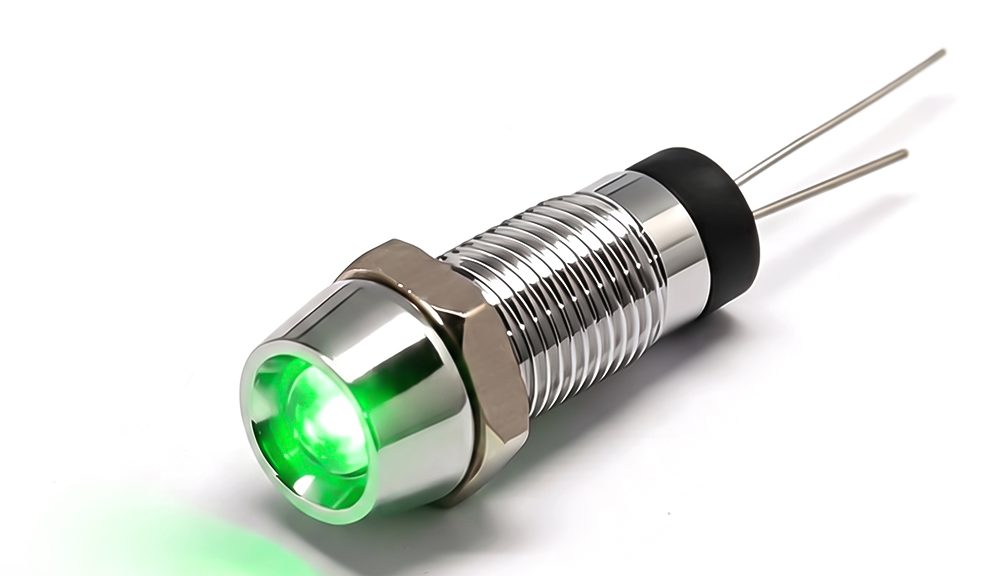

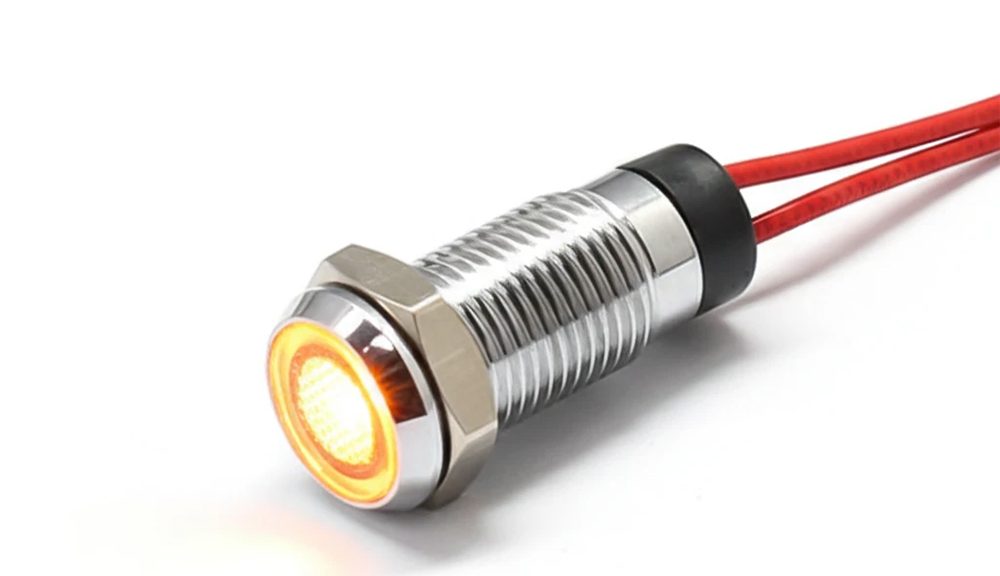

The FILN 14mm recessed head metal indicator lamps are precision-engineered industrial signal devices manufactured by Yueqing Yulin Electronic Co., Ltd. Designed for bulk wholesale, OEM integration, and custom industrial applications, these indicator lamps feature a robust copper alloy or zinc-aluminum shell and a secure 2PIN wire lead configuration. Operating across flexible voltages from 3V to 480V, they deliver reliable visual status feedback for heavy machinery, electrical control panels, and automation systems. B2B procurement managers and electrical engineers select these UL-certified indicator lamps for their superior mechanical hardness, IP65/IP67 waterproof protection, and stable long-term performance in demanding environments.

Key Takeaways for Engineers and Procurement Managers

• Product Identity: 14mm recessed head metal indicator lamps featuring direct 2PIN wire leads for reliable industrial panel mounting.
• Electrical Range: Fully customizable operating voltage from 3V to 480V AC/DC with ultra-low current consumption under 20mA.
• Material Composition: Durable copper alloy or zinc-aluminum shell paired with an integrated silicone O-ring for enhanced structural integrity.
• Protection Rating: IP65 to IP67 waterproof and dustproof performance when correctly installed with the provided sealing gasket.
• Mounting Specification: Standard 14mm panel mounting hole utilizing a single threaded nut and plum blossom washer mechanism.
• Wiring Configuration: 2PIN wire lead configuration allows rapid connection via quick-link terminals, soldering, or insulating tape.
• Global Certifications: UL certified under certificate number E498776, alongside CE, VDE, RoHS, ISO9001, and CCC compliance.
• Target Applications: Widely deployed in electrical distribution cabinets, experimental equipment, yachts, and automotive modifications.
• Customization Support: Comprehensive OEM and ODM capabilities offered by FILN for custom wire lengths and multi-color LEDs.
• Procurement Advantage: Factory-direct wholesale pricing and stable supply chains backed by a 10,000 m² manufacturing facility.

What Are Metal Indicator Lamps?

Indicator lamps are essential visual status feedback devices utilized in industrial electrical equipment, control panels, and automation machinery. Their primary function is to communicate operational states—such as power activation, system readiness, standby modes, or fault warnings—to machine operators and maintenance personnel. Structurally, industrial indicator lamps are categorized into metal and plastic variants, with mounting sizes ranging from 6mm to 30mm. Furthermore, they are available in pin-type and direct wire-lead connection formats. Metal indicator lamps feature flat, prominent raised, or recessed head profiles to suit diverse ergonomic and visual requirements.

The 14mm recessed head model provides focused illumination from a sunken lens design, minimizing accidental physical contact and glare. Compared to standard plastic indicators, metal indicator lamps offer superior impact resistance, high-temperature tolerance, and longevity in demanding industrial environments. They prevent cracking, UV degradation, and mechanical deformation under continuous operational stress.

Product Overview and Engineering Design

The FILN 14mm recessed head indicator lamps integrate precise electrical engineering with durable mechanical construction. Operating on standard LED illumination principles, the internal circuit converts electrical input into bright, consistent optical signals while limiting current draw through integrated resistance elements. This ensures minimal heat generation and extended operating lifespans exceeding 50,000 hours.

The mechanical assembly utilizes a threaded housing secured by a rear mounting nut and a high-grade silicone O-ring, creating an effective barrier against moisture and particulate ingress. Industrial automation systems, electrical distribution cabinets, and transport infrastructure rely on this design for uninterrupted visual monitoring. Rigorous quality control procedures, including dielectric strength tests and thermal cycling evaluations, guarantee consistent performance across global markets.

Procurement professionals seeking comprehensive data can request full specification sheets, 3D CAD modeling files, or bulk wholesale quotations directly from our engineering team by emailing inquiry@cnylin.com.cn.

Quick Technical Specifications

Performance Parameters and Electrical Ratings

Component Materials and Selection Rationale

Every material used in the construction of the indicator lamps is selected to ensure structural stability, electrical isolation, and resistance to environmental corrosion. The following breakdown outlines the specific components and their engineering functions:

Environmental Performance and Durability Testing

This specification defines the general operating boundaries and environmental resilience parameters for the metal indicator lamps series:

LED Technical Specifications and Optical Characteristics

1. Absolute Maximum Ratings (Safety Limits):

• Max Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature Range (TOPR): -40°C to +80°C
• Storage Temperature Range (TSTG): -40°C to +100°C
• Lead Soldering Temperature (TSOL): Maximum 260°C for up to 3 seconds

2. Electro-Optical Characteristics (Tested at Ambient Temperature Ta = 25°C):

Standard Test Conditions and Calibration Protocols

Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric conditions:

• Ambient Temperature: 5°C to 35°C
• Relative Humidity: 45% to 85%
• Air Pressure: 86 kPa to 106 kPa (860 mbar to 1060 mbar)

Calibration Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curves. Measurement tolerances include a ±15% variance for luminous intensity and a ±0.1V variance for operating voltage measurements.

Applications by Industry and Operating Environment

Metal indicator lamps utilize high-strength copper alloy or stainless steel housings, offering exceptional impact resistance and IP67 waterproof protection. While plastic indicators are prone to aging, thermal cracking, and deformation over time, metal indicator lamps are engineered for harsh operational environments characterized by frequent mechanical operation and high reliability requirements.

1. Industrial Automation and Machine Manufacturing

This sector represents the primary deployment area for industrial indicator lamps, where control panels face continuous mechanical vibration, oil splashes, and physical wear.

• CNC Machine Tools: Control panels utilize red, yellow, and green indicator lamps where green indicates normal operation, yellow signals standby, and red denotes emergency stop or fault conditions. Metal shells resist cutting fluids and metal debris.
• Automation Control Cabinets: Large electrical panels install 14mm indicator lamps operating on AC220V or DC24V to display power circuit status.
• Hydraulic and Pneumatic Equipment: Applied for oil pump monitoring and pressure limit warnings. The wire-lead internal design resists wire detachment under heavy vibration compared to standard pin terminals.

2. Outdoor Power and Renewable Energy Distribution Systems

Outdoor equipment is exposed to solar radiation, moisture, and extreme temperature fluctuations, requiring superior weatherproofing.

• Electric Vehicle Charging Stations: DC and AC charging piles utilize recessed and flat metal indicator lamps where flashing blue or green indicates charging status, and flashing red signals ground faults. IP67 sealing protects public infrastructure against vandalism and weather.
• Photovoltaic Combiner Boxes: Solar power stations use indicator lamps to display high-voltage closing and inverter status across operating temperatures from -40°C to +80°C.

3. Railway Transport, Commercial Vehicles, and Marine Equipment

Vehicles and marine vessels experience severe mechanical shock, vibration, and salt-fog corrosion.

• Engineering Vehicles: Excavators and cranes utilize dashboard indicator lamps for oil pressure, coolant temperature, and brake status monitoring.
• Marine Control Systems: Deck control boxes utilize metal indicator lamps treated against salt-spray corrosion, paired with silicone O-rings to prevent seawater infiltration.

4. Commercial Self-Service Terminals and Public Infrastructure

• Vending and Ticketing Machines: Paired with vandal-resistant metal switches to display transaction and dispensing status.
• Access Control Intercoms: Stainless steel access panels feature dual-color indicator lamps to display door lock engagement.

LED Indicator Color Meanings and Application Guide

Indicator color selection is critical for operator safety and ergonomic system design. Conventions vary across industries, but standard engineering practices define primary color meanings as follows:

Note: Color conventions can vary by equipment manufacturer, control-system design, and regional standards. FILN also offers dual-color and tri-color configurations for complex status monitoring.

Installation Guide for Panel Builders

Proper mechanical installation ensures structural stability and maintains the IP67 waterproof rating of the indicator lamps assembly. Follow these structured steps:

1. Tool Preparation: Gather a hole punch or drill suited for metal/plastic panels, a torque wrench, wire strippers, and electrical insulation material.
2. Panel Preparation: Drill or punch an exact 14mm circular mounting hole in the target control panel surface. Ensure the edge is deburred and smooth.
3. Gasket Positioning: Place the provided silicone waterproof O-ring onto the threaded body of the indicator lamps just beneath the recessed head flange.
4. Insertion: Insert the indicator lamps housing from the front side of the control panel through the 14mm mounting hole.
5. Rear Securing: Slide the stainless steel plum blossom washer onto the threaded shaft from the rear, then thread and tighten the M14 metal locking nut securely.
6. Electrical Connection: Connect the 2PIN wire leads to the power source using quick-link terminals, soldering, or approved electrical connectors. Ensure power is disconnected before wiring.
7. Final Inspection: Verify that the seal is compressed uniformly and that the indicator lamps are firmly locked without wobbling.

Wiring Methods and Safety Guidelines

Understanding connection configurations ensures stable electrical performance across different models. Pin-type indicator lamps utilize standard terminal blades requiring quick-disconnect receptacles or soldered wire attachments. Conversely, direct wire-lead indicator lamps feature factory-attached PVC cables that streamline assembly.

Direct wire-lead indicator lamps can be connected to main circuits using quick-link wire connectors, soldered joints, or wrapped electrical tape to guarantee connection stability. Important Safety Notice: Always disconnect the main power supply and verify zero voltage using a multimeter before performing any electrical wiring or maintenance.

Industry Knowledge Center

Indicator lamps serve as the critical human-machine interface (HMI) frontline. Selecting components engineered to international standards prevents premature electronic failure and reduces costly field service interventions. Engineers must evaluate operating voltage compatibility, surge resistance, and housing material integrity when designing control systems.

Common maintenance involves verifying insulation resistance and inspecting panel seals in wet or corrosive environments. If a low-voltage LED indicator lamps exhibit faint glowing (phantom illumination) while powered off, it is typically caused by residual leakage current from solid-state control outputs, which can be resolved by adding an appropriate bleeder resistor.

Buyer Decision Guide and Material Comparison

Selecting the correct metal indicator lamps requires evaluating environmental exposure, panel constraints, and electrical parameters. FILN manufactures metal indicator lamps in nickel-plated brass, stainless steel, and zinc-aluminum alloys.

Pin vs. Wire Lead Comparison:

Related Product Recommendations:

• Smaller 10mm Recessed Head Wire Indicator FL1M-10CW-1
• 14mm Flat Head Wire Indicator FL1M-14FW-1
• 12mm Flat Pin Terminal Indicator FL1M-12CJ-1
• Explore All LED Indicator Light Products
• Browse more 14mm Metal Indicator Lights

Ready to Purchase: Order the 14mm Metal Indicator Lamps Directly

RFQ Checklist for Procurement Managers:

When requesting a quotation, providing the following specifications helps FILN engineering and sales teams confirm compatibility quickly:

• Product Model (e.g., FL1M-14CW-1)
• Mounting Hole Size (14mm)
• Operating Voltage & Type (AC/DC 3V-480V)
• LED Color (Red, Green, Yellow, Blue, White, Bi/Tri-color)
• Head Type (Recessed Head)
• Shell Material (Brass, Stainless Steel, Zinc-Aluminum)
• Waterproof Requirement (IP65/IP67)
• Wiring Method & Wire Length
• Target Market & Expected Delivery Date

Submit inquiries directly via email to inquiry@cnylin.com.cn for quotation, data sheets, or 3D CAD models.

FILN Manufacturing and Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, development, production, and sales. FILN operates a modern 10,000 square meter facility equipped with over 20 advanced production lines and an independent testing laboratory. Driven by rigorous ISO9001 quality management systems, FILN delivers innovative, high-performance electrical components to customers in over 100 countries.

Core Production Capabilities: Specializes in indicator lamps, pushbutton switches, rocker switches, toggle switches, and custom electrical manufacturing solutions.

Quality Assurance & Certifications: FILN products hold international certifications including UL (Certificate Number E498776), CE, VDE, RoHS, SGS, ISO9001, IP65/IP67, TUV, and CCC compliance.

Engineering & Customization Support: Professional R&D engineers assist clients with custom wiring solutions, voltage adaptations, and specialized industrial housing designs.

Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn

Factory Direct Supply and Global Export

Yueqing Yulin Electronic Co., Ltd, brand name FILN located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its premium FILN brand products are sold in over 100 countries. FILN operates a modern 10,000 m² facility with 20+ advanced production lines and an independent testing lab. Driven by scientific processes and the ISO9001 quality system, FILN ensures industry-leading innovation and electrical performance. Our certified products (UL, CE, RoHS, REACH, TUV, CB) are widely used in kitchen appliances, energy storage, EV charging, automotive, marine, and security systems.

Production Capabilities: Indicator lamps, pushbutton switches, rocker switches, toggle switches, and various customized manufacturing solutions.

Quality System: Certified under ISO9001, CE, VDE, RoHS, SGS, UL, IP65/IP67, and TUV.

Export Markets: Global distribution across North America, Europe, Asia, and Oceania.

Manufacturing Advantages: Professional engineers available for dedicated project docking, adept at custom solutions for complex circuit requirements.

Website Link: www.filn.com | Email Link: inquiry@cnylin.com.cn

Frequently Asked Questions

Summary

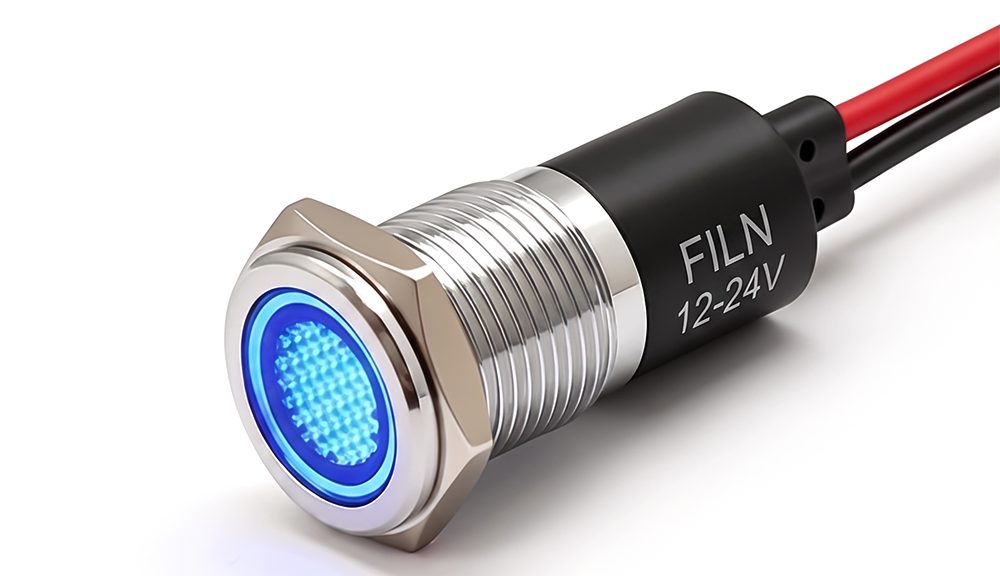

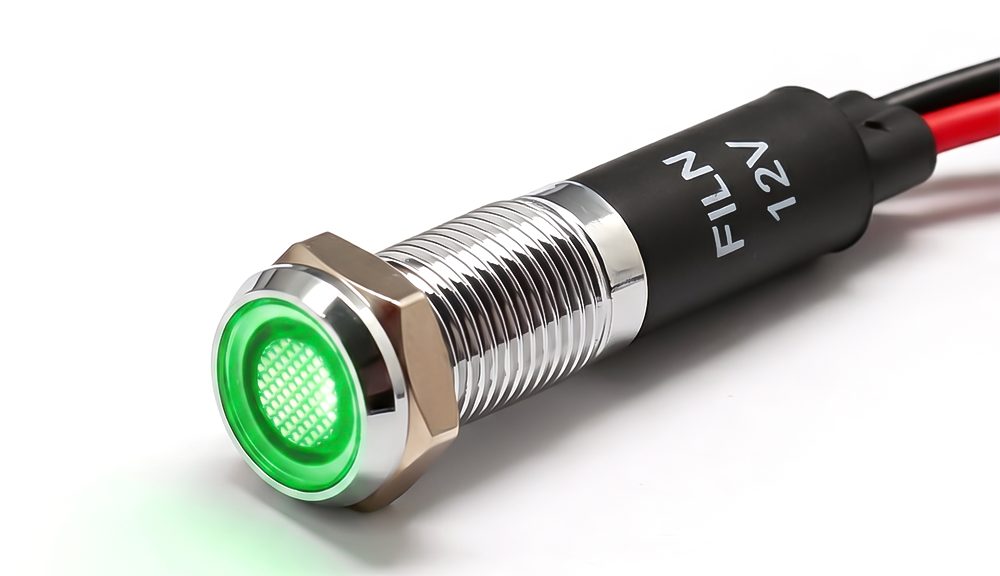

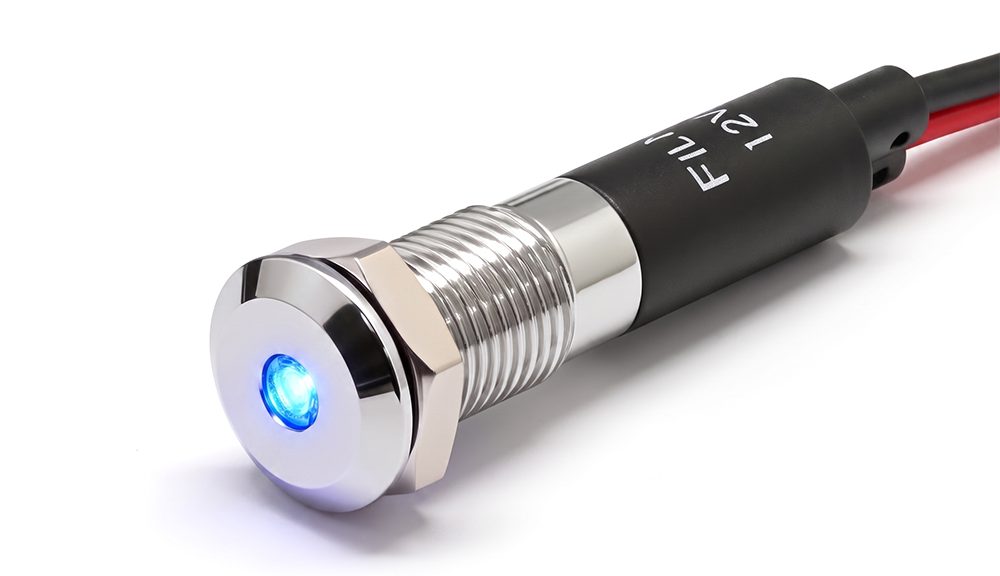

The 14mm panel indicator lamp (Model: FL1M-14FW-1) manufactured by FILN is a high-reliability industrial signal device designed for electrical equipment, control panels, and automation systems. Tailored for B2B procurement managers, electrical engineers, and OEMs seeking bulk wholesale options, this flat-head metal indicator features a durable copper alloy or zinc-aluminum shell with a pre-wired 2PIN configuration. It supports custom voltages ranging from 3V to 220V AC/DC and delivers dependable IP67 waterproof protection via an integrated silicone O-ring. Ideal for harsh industrial environments, marine applications, and renewable energy systems, FILN provides robust factory-direct support, custom manufacturing, and comprehensive technical documentation to streamline supply chain integration.

Key Takeaways for Procurement & Engineering

• Product Identity: FILN 14mm panel indicator lamp (Model: FL1M-14FW-1) featuring a flat head design for flush control panel integration.
• Electrical Flexibility: Compatible with versatile operating voltages ranging from 3V to 220V DC/AC with custom voltage options available upon request.
• Material Durability: Robust copper alloy or zinc-aluminum shell construction offering superior impact resistance compared to standard plastic alternatives.
• Ingress Protection: Rated IP67 waterproof and dustproof when installed correctly with the supplied silicone O-ring and stainless steel plum blossom gasket.
• Wiring Configuration: 2PIN direct wire lead configuration ensuring secure electrical connection and simplified assembly in tight enclosures.
• Illumination Options: High-brightness LED configurations available in Red, Green, Yellow, Blue, White, as well as dual-color and tri-color variants.
• Manufacturing Standards: Produced under strict ISO9001 quality management systems with international certifications including CE, VDE, RoHS, CCC, and UL (Certificate Number: E498776).
• Mounting Mechanism: Standard 14mm mounting hole diameter utilizing a single-nut thread mounting method for quick and secure panel installation.
• Application Versatility: Widely deployed across industrial machinery, electrical power distribution cabinets, new energy systems, and automotive retrofitting.
• Factory Direct Support: Backed by FILN engineering teams supporting OEM/ODM customization, bulk wholesale orders, and rapid sample prototyping.

What is a Panel Indicator Lamp?

A panel indicator lamp is an essential electrical signaling device installed on control panels, switchboards, and machinery to visually communicate operational status, power conditions, or alarm states to operators. FILN manufactures a comprehensive selection of industrial indicator lights categorized into metal and plastic variants, covering mounting sizes from 6mm to 30mm. Depending on assembly requirements, these units are available in pin-terminal types or direct wire-lead configurations.

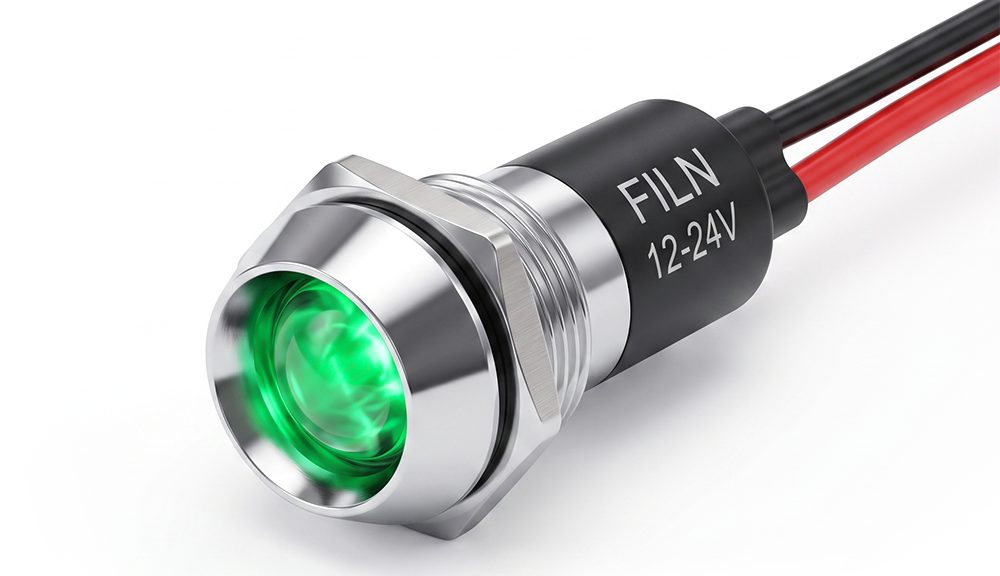

Specifically, metal indicator lights are manufactured with three distinct head profiles—flat head, convex head, and concave head—allowing engineers to match specific aesthetic and ergonomic requirements for their control interfaces. The model FL1M-14FW-1 utilizes a flat head profile, delivering a clean, flush appearance on industrial enclosures while offering maximum physical protection against accidental impacts.

Product Overview & Engineering Principles

The FILN 14mm panel indicator lamp is engineered to function as a direct visual interface for complex electrical circuits. Operating on fundamental semiconductor lighting principles, the integrated high-brightness LED converts electrical energy into luminous signals with high efficiency and minimal thermal output. Internal carbon film resistors regulate the current flow, ensuring stable operation across a broad voltage range from 3V to 220V AC/DC.

Mechanically, the assembly relies on a precision-machined copper alloy or zinc-aluminum outer shell that houses the optical components. A silicone O-ring compressed by a stainless steel plum blossom gasket creates a hermetic seal against the mounting panel, achieving an IP67 rating that prevents moisture and dust ingress. This robust construction makes the panel indicator lamp suitable for vibration-heavy industrial machinery, power distribution boards, and harsh outdoor environments where standard plastic indicators fail prematurely.

Quick Specifications

Performance Parameters

Component Materials & Engineering Purpose

Every material utilized in the construction of the FILN panel indicator lamp is selected to ensure structural integrity, electrical safety, and long-term environmental resistance.

Environmental Performance Specifications

This specification outlines the general operational envelope for the metal indicator light series under rigorous environmental testing conditions.

LED Technical Specifications

To maintain rigorous engineering standards, the internal optical emitter parameters are categorized into absolute maximum ratings and electro-optical characteristics.

1. Absolute Maximum Rating

2. Electro-Optical Characteristics (Ta = 25°C)

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric conditions:

• Ambient Temperature: 5°C ~ 35°C
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Technical Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement is ±15%, and voltage measurement tolerance is ±0.1V.

Applications by Industry

The metal indicator light employs a high-strength copper alloy or stainless steel metal shell, delivering exceptional impact resistance and an IP67 waterproof/dustproof rating suitable for demanding industrial and high-end commercial sectors.

While conventional plastic indicators are prone to aging, cracking, and high-temperature deformation over prolonged use, metal indicators are engineered to withstand harsh operating conditions, frequent activation, and rigorous reliability requirements. Typical industry applications include:

1. Industrial Automation & Mechanical Manufacturing

This sector represents the primary application area where continuous mechanical vibration, cutting oils, and physical impacts are prevalent.

• CNC Machine Tools & Machining Centers: Control panels utilize red, yellow, and green metal indicator lamps where green indicates normal operation, yellow signifies standby or warning, and red denotes emergency stop or system failure. The metal shell resists cutting fluids and metallic debris.
• Automation Production Line Control Cabinets: Heavy-duty distribution boards and PLC enclosures mount 14mm panel indicator lamps operating on AC 220V or DC 24V to provide clear visual feedback on power status.
• Hydraulic & Pneumatic Equipment: Applied for oil pump start/stop monitoring and pressure limit alerts. The integrated wire-lead structure ensures internal connections remain secure against severe mechanical vibration compared to vulnerable pin-type terminals.

2. Outdoor Power & Renewable Energy Distribution Systems

Outdoor installations face constant exposure to sunlight, precipitation, and extreme thermal fluctuations.

• EV Charging Stations: Outdoor DC and AC charging pedestals feature flat head metal status indicators where flashing blue/green indicates charging, solid illumination shows completion, and flashing red warns of leakage or grounding faults. IP67 sealing prevents weather ingress and vandalism.
• Outdoor Distribution Boxes & PV Combiner Boxes: Photovoltaic plants and municipal outdoor cabinets use these lamps to indicate high-voltage closure and inverter status across operating temperatures from -40°C to 80°C.

3. Rail Transit, Commercial Vehicles & Marine Equipment

Vehicles and marine vessels endure continuous vibration and corrosive high-salinity environments.

• Engineering Vehicle Consoles: Instrument dashboards on excavators, cranes, and bulldozers utilize indicators for oil pressure, water temperature, lighting, and braking fault warnings.
• Marine & Port Control Equipment: Shipboard instrumentation and deck control boxes use stainless steel and plated metal indicators to resist salt spray corrosion, supported by silicone O-rings preventing seawater infiltration.

4. Commercial Self-Service & Public Security Facilities

Public equipment requires high durability against accidental impacts and vandalism.

• Vending & Ticketing Machines: Paired with anti-vandal metal pushbuttons to signal coin insertion, dispensing, and change status.
• Gas Station Fuel Dispensers: Meets explosion-proof safety demarcation requirements with metallic housings ensuring proper electrical isolation.
• Residential Access Control & Intercoms: Stainless steel access panels feature red and green panel indicator lamps to display lock status.

5. Medical Equipment & Food Processing Machinery

These industries demand frequent high-pressure washdowns and chemical sterilization.

• Food Filling & Packaging Equipment: Subjected daily to high-pressure hot water and chemical cleaning agents; IP67 metal indicators withstand spray jets without internal component corrosion.
• Medical Sterilization Autoclaves: High-temperature sterilization equipment utilizes signal lights to distinguish heating, sterilization, and exhaust phases.

LED Indicator Color Meanings and Application Guide

Indicator light colors convey critical operational states across industrial equipment. Understanding standard color conventions ensures proper operator response and system safety.

• Red: Typically indicates danger, emergency stop, fault conditions, or abnormal system status. Recommended for emergency shutdown panels and alarm circuits.
• Green: Signifies normal operation, system ready, power ON, or safe conditions. Widely used on main power distribution boards and running indicators.
• Yellow / Amber: Denotes caution, warning, standby mode, or abnormal temperature/pressure thresholds before reaching critical failure limits.
• Blue: Used for general information, specific operational modes, cooling status, or active DC power confirmation. Frequently utilized in EV charging stations.
• White: Serves as a neutral indication for general power availability, lighting circuits, or auxiliary system activation where specific color coding is not mandated.

Note: Indicator light color conventions may vary depending on equipment manufacturer specifications, control system design standards, regional regulations, and specific application requirements. FILN offers single-color, dual-color, and tri-color configurations to accommodate complex status signaling needs.

Installation Guide

Proper mechanical and electrical installation ensures optimal performance and preserves the IP67 waterproof rating of your panel indicator lamp.

1. Prepare Tools: Gather a calibrated panel hole punch or drill, wire strippers, crimping tools or soldering iron, and a torque wrench if applicable.
2. Mounting Preparation: Measure and mark the exact panel location. Ensure the mounting surface is clean, flat, and free of burrs or oil residues.
3. Create Mounting Hole: Drill or punch a precise 14mm diameter hole into the control panel according to the FL1M-14FW-1 specification.
4. Position O-Ring: Place the supplied silicone waterproof O-ring onto the threaded body of the indicator light to ensure a tight seal against the panel face.
5. Insert Product: Insert the indicator lamp from the front side of the panel through the 14mm mounting hole.
6. Secure Fastening: Thread the stainless steel plum blossom gasket and metal locking nut onto the rear housing. Tighten securely by hand, followed by a light turn with a tool to achieve proper compression without overtightening.
7. Electrical Preparation: Strip approximately 5mm to 8mm of insulation from the 2PIN wire leads, ensuring no stray copper strands are exposed.
8. Make Connections: Connect the wire leads to the power source following the correct polarity for DC applications or standard wiring for AC circuits. Utilize quick-connect terminals, solder, or insulated electrical tape to secure connections.
9. Post-Installation Inspection: Verify that the indicator is firmly seated with zero rotation or looseness, and test electrical continuity before applying full operating voltage.

Wiring Methods and Safety Guidelines

Understanding proper wiring techniques is critical for maintaining electrical safety and connection stability in industrial environments. FILN provides indicators with both pin terminals and direct wire leads.

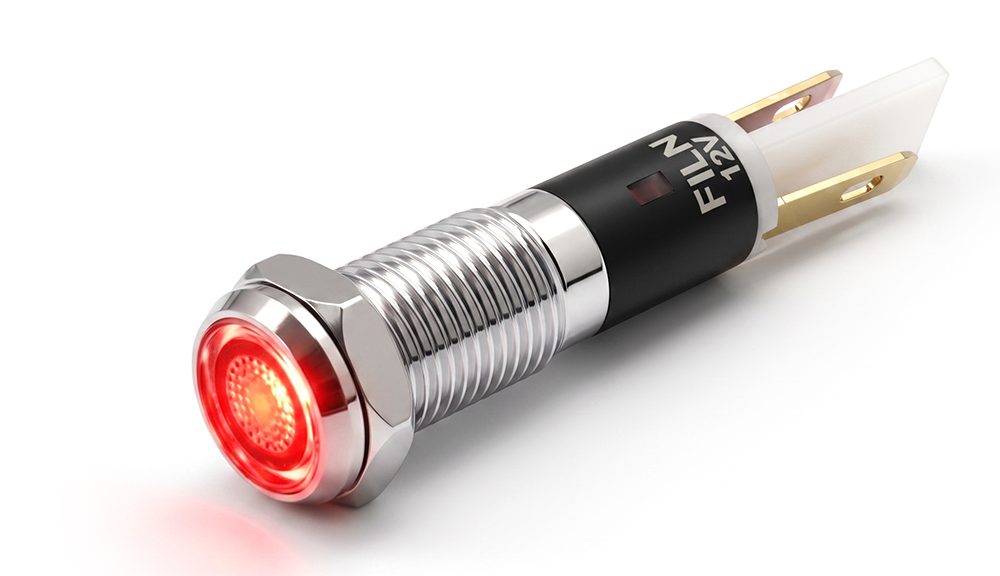

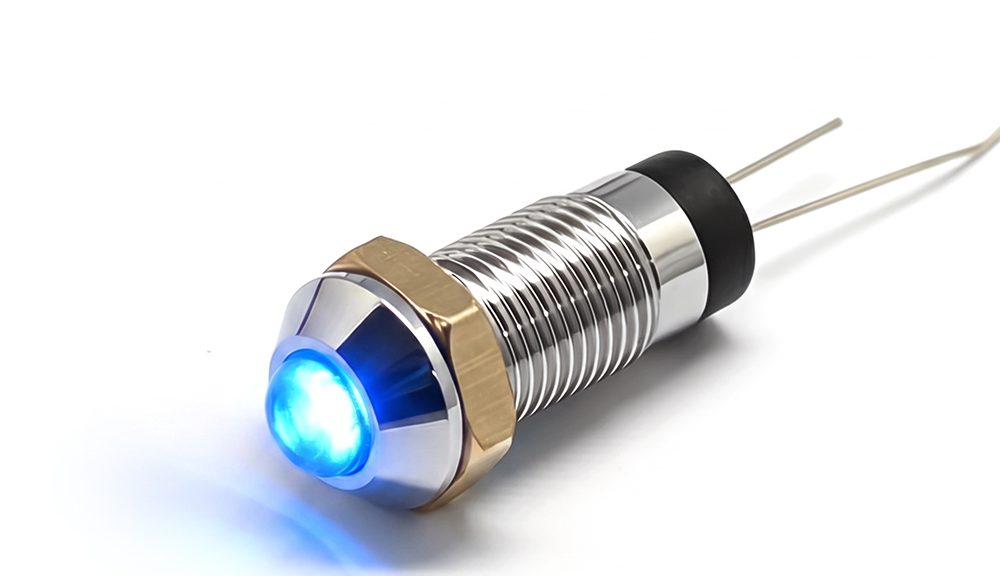

Pin-Type vs. Wire-Lead Indicators: Pin-type indicators require mating receptacles or soldered wire connections directly to the base pins, making them suitable for modular plug-in assemblies. Conversely, direct wire-lead indicators (such as the FL1M-14FW-1) come equipped with integrated PVC wires, eliminating internal terminal fatigue and providing superior resistance against continuous mechanical vibration.

Wiring Connection Best Practices: Direct wire-lead indicators can be connected to the main circuit using quick-connection terminals, secured with solder, or wrapped securely with rated electrical tape to ensure long-term stability and prevent accidental short circuits.

CRITICAL SAFETY WARNING: Always ensure electrical safety compliance by completely cutting off power to the control panel before performing any wiring, inspection, or maintenance operations.

Industry Knowledge Center

Selecting and maintaining industrial signaling components requires adherence to engineering best practices. Panel indicator lamps operate by converting electrical input into visible light signals to inform operators of system conditions. Quality matters because premature indicator failure in critical applications—such as emergency stop circuits or high-voltage power distribution—can lead to undetected faults, operational downtime, or severe safety hazards.

Industrial standards dictate strict compliance with voltage isolation, ingress protection (IP ratings), and flammability ratings (such as UL and CE certifications). When selecting an indicator, engineers must match operating voltages precisely and account for environmental stressors like ambient temperature and chemical exposure. Routine maintenance includes inspecting wiring terminals for signs of corrosion or looseness and verifying optical output integrity across scheduled facility audits.

Buyer Decision Guide & RFQ Checklist

Evaluating technical specifications correctly ensures seamless integration into your product lines or control panels. Below is a specification-to-decision framework to guide your selection process:

Specification-to-Decision Framework

• Mounting Hole Size (e.g., 14mm): Determines physical panel compatibility. Ensure your panel punch matches the exact millimeter dimension.
• Operating Voltage (3V to 220V): Determines electrical compatibility. Select matching AC or DC voltage ratings to prevent LED burnout or dim illumination.
• LED Color: Determines status indication logic according to industrial safety color standards.
• IP Rating (IP67): Determines environmental suitability. Choose higher IP ratings for washdown, outdoor, or dusty manufacturing environments.
• Material Selection: FILN offers nickel-plated brass, stainless steel, and zinc-aluminum alloy shells. See the material comparison table below.
• Wiring Method: Choose between pin terminals and pre-wired leads based on assembly speed and vibration requirements.
• Certifications: Verify that required standards (UL, CE, RoHS) align with your target export markets and end-application compliance rules.

Metal Shell Material Comparison

Procurement RFQ Checklist

When submitting a request for quotation (RFQ) to FILN, providing complete specifications accelerates the engineering review process:

• Product Type & Model (e.g., FL1M-14FW-1)
• Mounting Hole Size (14mm)
• Voltage & Current Type (AC/DC, Voltage value)
• LED Color & Configuration (Single, Dual, Tri-color)
• Head Type & Material Preference
• Waterproof Requirement & Wiring Method
• Wire Length & Connector Requirements
• Target Certifications (UL, CE, RoHS, etc.)
• Order Quantity & Packaging Requirements
• OEM/ODM Customization or Logo Marking Needs
• Target Market & Application Environment

Providing these detailed specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements more efficiently. Contact FILN engineering today or explore more 14mm metal indicator light options.

FILN Manufacturing and Engineering Capabilities

As a dedicated electrical component manufacturer, FILN maintains advanced R&D and production capabilities designed to support B2B procurement managers and equipment manufacturers worldwide. Our internal testing laboratories and automated assembly lines ensure strict adherence to international quality standards.

FILN provides comprehensive OEM and ODM custom manufacturing services, accommodating specialized voltage requirements, custom wire harnesses, laser-etched symbols, and tailored packaging. Our experienced engineering team collaborates directly with clients to resolve complex design challenges, offering rapid sample prototyping, small-batch flexibility, and stable mass-production scaling.

Factory Direct Supply & Global Reach

Yueqing Yulin Electronic Co., Ltd. (brand name FILN), located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its premium FILN brand products are sold in over 100 countries. FILN operates a modern 10,000 square meter facility with 20+ advanced production lines and an independent testing lab. Driven by scientific processes and the ISO9001 quality system, FILN ensures industry-leading innovation and electrical performance. Our certified products (UL Certificate Number: E498776, CE, RoHS, REACH, TUV, CB, VDE) are widely used in kitchen appliances, energy storage, EV charging, automotive, marine, and security systems.

Production Capabilities: Specialized manufacturing of indicator lights, push button switches, rocker switches, toggle switches, and other small electrical components with full custom production support.

Quality System: Certified under ISO9001, CE, VDE, RoHS, SGS, UL (E498776), IP65/IP67, and TUV standards.

Export Markets: Global distribution spanning the United States, Canada, Germany, United Kingdom, Australia, and over 100 countries worldwide.

Manufacturing Advantages: Professional engineer-to-engineer technical alignment, specializing in custom solution development for complex industrial applications.

Official Resources: Visit our official website at www.filn.com or contact our sales and engineering team directly at inquiry@cnylin.com.cn for prompt quotations and technical documentation.

Frequently Asked Questions

Product Summary

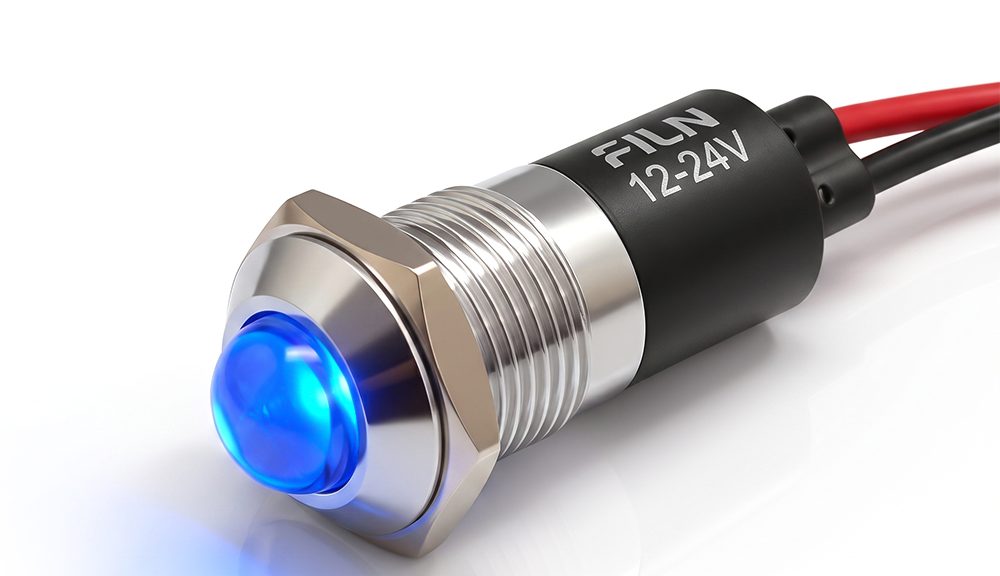

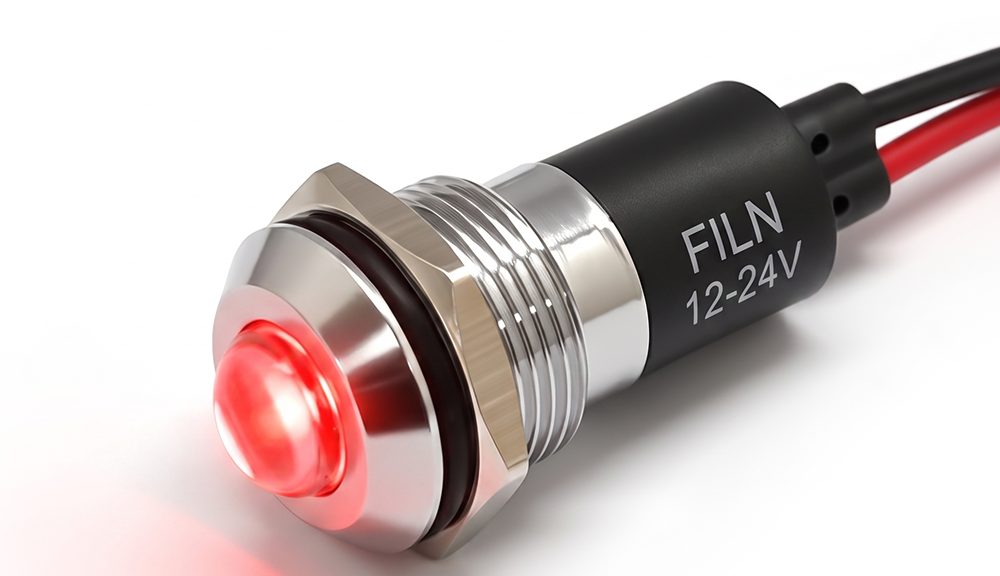

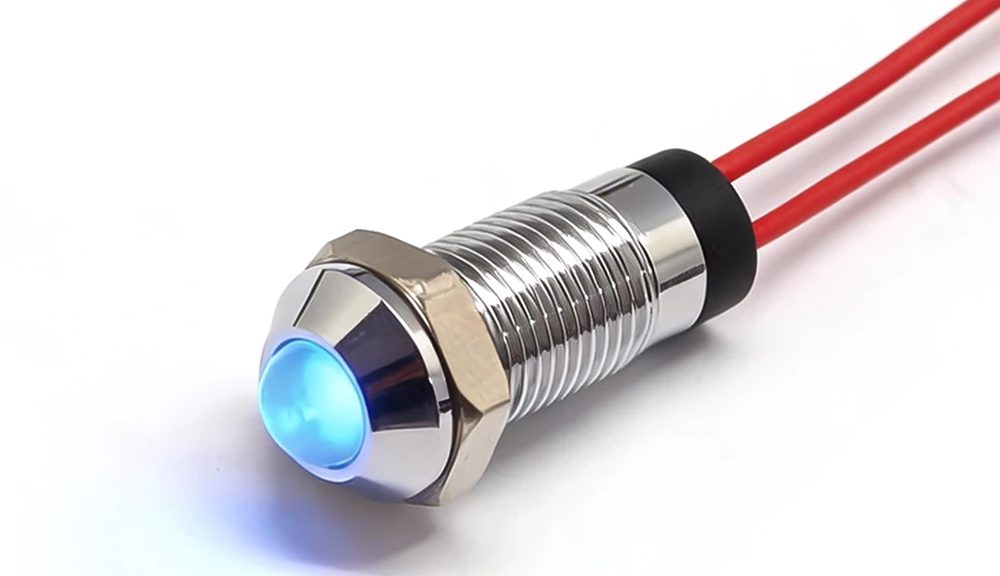

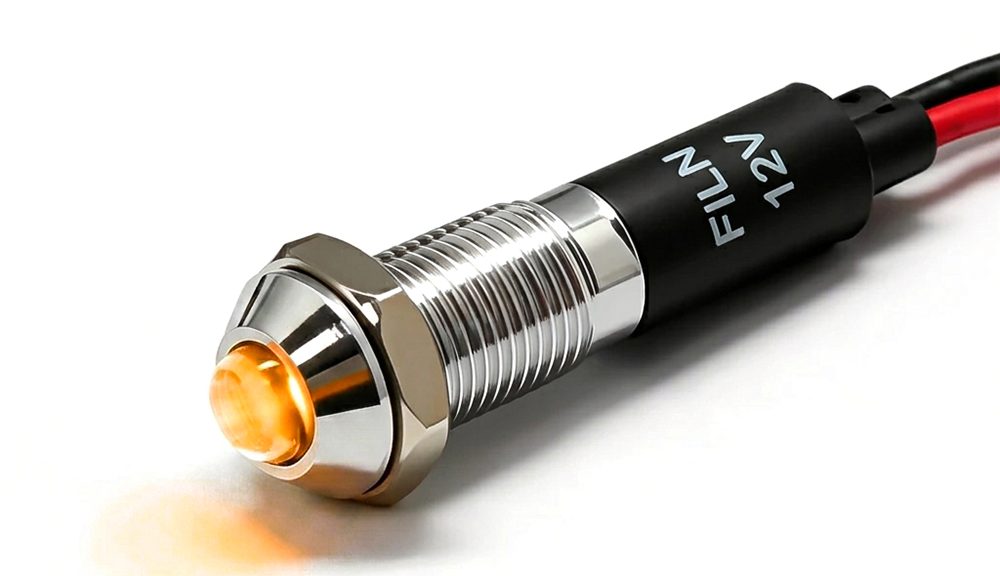

The FILN 14mm raised head metal pilot light indicator is an industrial-grade signal device designed for commercial and factory automation systems. Manufactured by Yueqing Yulin Electronic Co., Ltd, this component features a robust copper alloy or zinc-aluminum shell and a 2PIN wire lead configuration for secure electrical connectivity. Operating across customizable voltages from 3V to 480V AC/DC, it delivers reliable visual status feedback for control panels, energy storage systems, and heavy machinery. B2B buyers, OEM manufacturers, and procurement managers choose this UL-certified indicator for its superior mechanical durability, IP65/IP67 waterproof protection, and stable performance in harsh operating environments. FILN provides comprehensive OEM and ODM manufacturing services, supporting custom wire lengths, multi-color LED configurations, and bulk wholesale procurement to meet specific engineering requirements.

Key Takeaways for Engineers and Procurement Managers

• Product Identity: 14mm raised head metal pilot light indicator with direct 2PIN wire leads designed for industrial control panels.
• Electrical Range: Fully customizable operating voltage from 3V to 480V AC/DC with low current consumption (under 20mA).
• Material Composition: Durable copper alloy or zinc-aluminum shell combined with an integrated silicone O-ring for enhanced structural integrity.
• Protection Rating: IP65 to IP67 waterproof and dustproof performance when correctly installed with the provided sealing gasket.
• Mounting Specification: Standard 14mm panel mounting hole utilizing a single threaded nut and plum blossom washer mechanism.
• Wiring Configuration: 2PIN wire lead configuration allows rapid connection via quick-link terminals, soldering, or insulating tape.
• Global Certifications: UL certified under certificate number E498776, alongside CE, VDE, RoHS, ISO9001, and CCC compliance.
• Target Applications: Widely deployed in CNC machinery, marine control desks, energy storage units, and electrical power distribution cabinets.
• Customization Support: Comprehensive OEM and ODM capabilities offered by FILN for custom wire lengths, terminal types, and multi-color LEDs.
• Procurement Advantage: Factory-direct wholesale pricing and stable supply chains backed by a 10,000 m² manufacturing facility.

What Is a Metal Pilot Light Indicator?

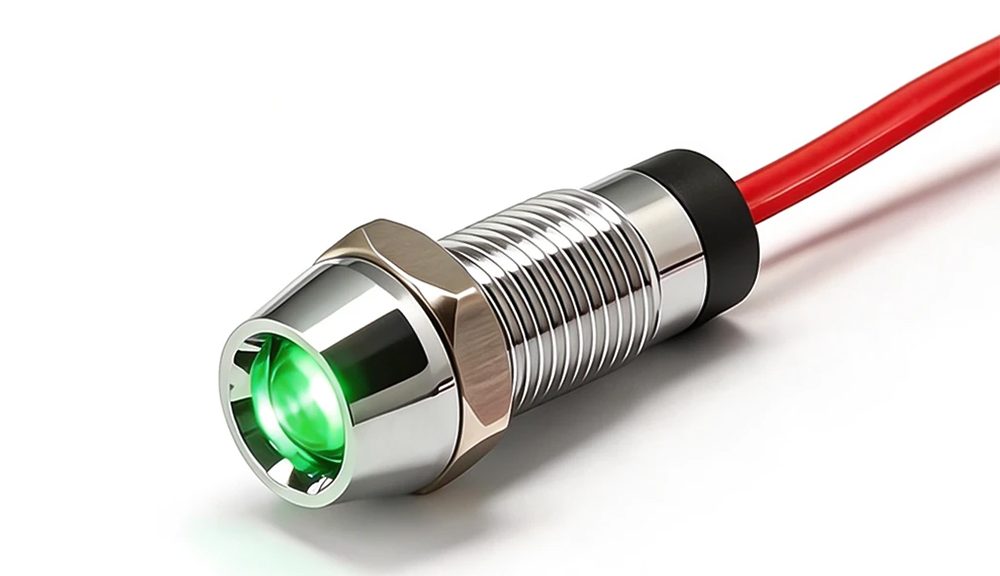

A pilot light indicator is an essential visual status feedback device utilized in industrial electrical equipment, control panels, and automation machinery. Its primary function is to communicate operational states—such as power activation, system readiness, standby modes, or fault warnings—to machine operators and maintenance personnel. Structurally, industrial indicators are categorized into metal and plastic variants. FILN offers mounting sizes ranging from 6mm to 30mm, featuring flexible connection options including pin terminals and direct wire leads. Metal indicators are engineered with flat, prominent raised, or concave head profiles to suit diverse ergonomic and visual requirements.

The 14mm raised head model provides enhanced visibility from wide viewing angles due to its protruding luminous lens. Compared to standard plastic indicators, metal variants offer superior impact resistance, high-temperature tolerance, and longevity in demanding industrial environments. They prevent cracking, UV degradation, and mechanical deformation under continuous operational stress.

Product Overview and Engineering Design

The FILN 14mm raised head indicator integrates precise electrical engineering with durable mechanical construction. Operating on standard LED illumination principles, the internal circuit converts electrical input into bright, consistent optical signals while limiting current draw through integrated resistance elements. This ensures minimal heat generation and extended operating lifespans exceeding 50,000 hours.

The mechanical assembly utilizes a threaded housing secured by a rear mounting nut and a high-grade silicone O-ring, creating an effective barrier against moisture and particulate ingress. Industrial automation systems, electrical distribution cabinets, and transport infrastructure rely on this design for uninterrupted visual monitoring. Rigorous quality control procedures, including dielectric strength tests and thermal cycling evaluations, guarantee consistent performance across global markets.

Quick Technical Specifications

Performance Parameters and Electrical Ratings

Component Materials and Selection Rationale

Every material used in the construction of the indicator is selected to ensure structural stability, electrical isolation, and resistance to environmental corrosion. The following breakdown outlines the specific components and their engineering functions:

Environmental Performance and Durability Testing

This specification defines the general operating boundaries and environmental resilience parameters for the metal indicator light series:

LED Technical Specifications and Optical Characteristics

1. Absolute Maximum Ratings (Safety Limits):

• Max Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature Range (TOPR): -40°C to +80°C
• Storage Temperature Range (TSTG): -40°C to +100°C
• Lead Soldering Temperature (TSOL): Maximum 260°C for up to 3 seconds

2. Electro-Optical Characteristics (Tested at Ambient Temperature Ta = 25°C):

Standard Test Conditions and Calibration Protocols

Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric conditions:

• Ambient Temperature: 5°C to 35°C
• Relative Humidity: 45% to 85%
• Air Pressure: 86 kPa to 106 kPa (860 mbar to 1060 mbar)

Calibration Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curves. Measurement tolerances include a ±15% variance for luminous intensity and a ±0.1V variance for operating voltage measurements.

Applications by Industry and Operating Environment

Metal pilot light indicators utilize high-strength copper alloy or stainless steel housings, offering exceptional impact resistance and IP67 waterproof protection. While plastic indicators are prone to aging, thermal cracking, and deformation over time, metal indicators are engineered for harsh operational environments characterized by frequent mechanical operation and high reliability requirements.

1. Industrial Automation and Machine Manufacturing

This sector represents the primary deployment area for industrial indicators, where control panels face continuous mechanical vibration, oil splashes, and physical wear.

• CNC Machine Tools: Control panels utilize red, yellow, and green indicators where green indicates normal operation, yellow signals standby, and red denotes emergency stop or fault conditions. Metal shells resist cutting fluids and metal debris.
• Automation Control Cabinets: Large electrical panels install 14mm indicators operating on AC220V or DC24V to display power circuit status.
• Hydraulic and Pneumatic Equipment: Applied for oil pump monitoring and pressure limit warnings. The wire-lead internal design resists wire detachment under heavy vibration compared to standard pin terminals.

2. Outdoor Power and Renewable Energy Distribution Systems

Outdoor equipment is exposed to solar radiation, moisture, and extreme temperature fluctuations, requiring superior weatherproofing.

• Electric Vehicle Charging Stations: DC and AC charging piles utilize flat and raised metal indicators where flashing blue or green indicates charging status, and flashing red signals ground faults. IP67 sealing protects public infrastructure against vandalism and weather.
• Photovoltaic Combiner Boxes: Solar power stations use indicators to display high-voltage closing and inverter status across operating temperatures from -40°C to +80°C.

3. Railway Transport, Commercial Vehicles, and Marine Equipment

Vehicles and marine vessels experience severe mechanical shock, vibration, and salt-fog corrosion.

• Engineering Vehicles: Excavators and cranes utilize dashboard indicators for oil pressure, coolant temperature, and brake status monitoring.
• Marine Control Systems: Deck control boxes utilize metal indicators treated against salt-spray corrosion, paired with silicone O-rings to prevent seawater infiltration.

4. Commercial Self-Service Terminals and Public Infrastructure

• Vending and Ticketing Machines: Paired with vandal-resistant metal switches to display transaction and dispensing status.
• Access Control Intercoms: Stainless steel access panels feature dual-color indicators to display door lock engagement.

LED Indicator Color Meanings and Application Guide

Indicator color selection is critical for operator safety and ergonomic system design. Conventions vary across industries, but standard engineering practices define primary color meanings as follows:

Note: Color conventions can vary by equipment manufacturer, control-system design, and regional standards. FILN also offers dual-color and tri-color configurations for complex status monitoring.

Installation Guide for Panel Builders

Proper mechanical installation ensures structural stability and maintains the IP67 waterproof rating of the indicator assembly. Follow these structured steps:

1. Tool Preparation: Gather a hole punch or drill suited for metal/plastic panels, a torque wrench, wire strippers, and electrical insulation material.
2. Panel Preparation: Drill or punch an exact 14mm circular mounting hole in the target control panel surface. Ensure the edge is deburred and smooth.
3. Gasket Positioning: Place the provided silicone waterproof O-ring onto the threaded body of the indicator light just beneath the raised head flange.
4. Insertion: Insert the indicator housing from the front side of the control panel through the 14mm mounting hole.
5. Rear Securing: Slide the stainless steel plum blossom washer onto the threaded shaft from the rear, then thread and tighten the M14 metal locking nut securely.
6. Electrical Connection: Connect the 2PIN wire leads to the power source using quick-link terminals, soldering, or approved electrical connectors. Ensure power is disconnected before wiring.
7. Final Inspection: Verify that the seal is compressed uniformly and that the indicator is firmly locked without wobbling.

Wiring Methods and Safety Guidelines

Understanding connection configurations ensures stable electrical performance across different models. Pin-type indicators utilize standard terminal blades requiring quick-disconnect receptacles or soldered wire attachments. Conversely, direct wire-lead indicators feature factory-attached PVC cables that streamline assembly.

Direct wire-lead indicators can be connected to main circuits using quick-link wire connectors, soldered joints, or wrapped electrical tape to guarantee connection stability. Important Safety Notice: Always disconnect the main power supply and verify zero voltage using a multimeter before performing any electrical wiring or maintenance.

Industry Knowledge Center

Indicator lights serve as the critical human-machine interface (HMI) frontline. Selecting components engineered to international standards prevents premature electronic failure and reduces costly field service interventions. Engineers must evaluate operating voltage compatibility, surge resistance, and housing material integrity when designing control systems.

Common maintenance involves verifying insulation resistance and inspecting panel seals in wet or corrosive environments. If a low-voltage LED indicator exhibits faint glowing (phantom illumination) while powered off, it is typically caused by residual leakage current from solid-state control outputs, which can be resolved by adding an appropriate bleeder resistor.

Buyer Decision Guide and Material Comparison

Selecting the correct metal indicator light requires evaluating environmental exposure, panel constraints, and electrical parameters. FILN manufactures metal indicators in nickel-plated brass, stainless steel, and zinc-aluminum alloys.

Pin vs. Wire Lead Comparison:

Related Product Recommendations:

• Smaller 10mm Raised Head Wire Indicator FL1M-10SW-1
• 12mm Raised Head Wire Indicator FL1M-12SW
• 12mm Pin Terminal Indicator FL1M-12SJ-1
• Explore all LED Indicator Light Products
• Browse more 14mm Metal Indicator Lights

Ready to Purchase: Order the 14mm Metal Indicator Light Directly

RFQ Checklist for Procurement Managers:

When requesting a quotation, providing the following specifications helps FILN engineering and sales teams confirm compatibility quickly:

• Product Model (e.g., FL1M-14SW-1)
• Mounting Hole Size (14mm)
• Operating Voltage & Type (AC/DC 3V-480V)
• LED Color (Red, Green, Yellow, Blue, White, Bi/Tri-color)
• Head Type (Raised Head)
• Shell Material (Brass, Stainless Steel, Zinc-Aluminum)
• Waterproof Requirement (IP65/IP67)
• Wiring Method & Wire Length
• Target Market & Expected Delivery Date

Submit inquiries directly via email to inquiry@cnylin.com.cn for quotation, data sheets, or 3D CAD models.

FILN Manufacturing and Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, development, production, and sales. FILN operates a modern 10,000 square meter facility equipped with over 20 advanced production lines and an independent testing laboratory. Driven by rigorous ISO9001 quality management systems, FILN delivers innovative, high-performance electrical components to customers in over 100 countries.

Core Production Capabilities: Specializes in indicator lights, pushbutton switches, rocker switches, toggle switches, and custom electrical manufacturing solutions.

Quality Assurance & Certifications: FILN products hold international certifications including UL (Certificate Number E498776), CE, VDE, RoHS, SGS, ISO9001, IP65/IP67, TUV, and CCC compliance.

Engineering & Customization Support: Professional R&D engineers assist clients with custom wiring solutions, voltage adaptations, and specialized industrial housing designs.

Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn
