WHAT IS AN INDUSTRIAL INDICATION LIGHT
An industrial indication light is a specialized panel-mounted visual signaling component engineered to provide real-time status feedback regarding equipment operation, circuit energized states, hazard conditions, and system faults. Powered by solid-state LED light sources enclosed within robust bodies, a high-quality indication light transforms electrical input into vivid visual cues that keep human operators informed and safe.
Industrial control panels utilize an indication light in various standard mounting diameters, with 12mm being one of the most versatile dimensions for modern compact control layouts. Compared to standard plastic indicators, a metallic indication light provides exceptional hardness, flame resistance, and physical protection against accidental impact or chemical exposure in harsh factory environments.
When designing control interfaces, engineers carefully select termination styles and head profiles. A flat head indication light presents a clean, modern surface profile that emits bright circular light without protruding excessively from the panel face. In critical fault or emergency stop signaling, deploying a red indicator light ensures instant recognition from significant distances, preventing costly operational downtime.

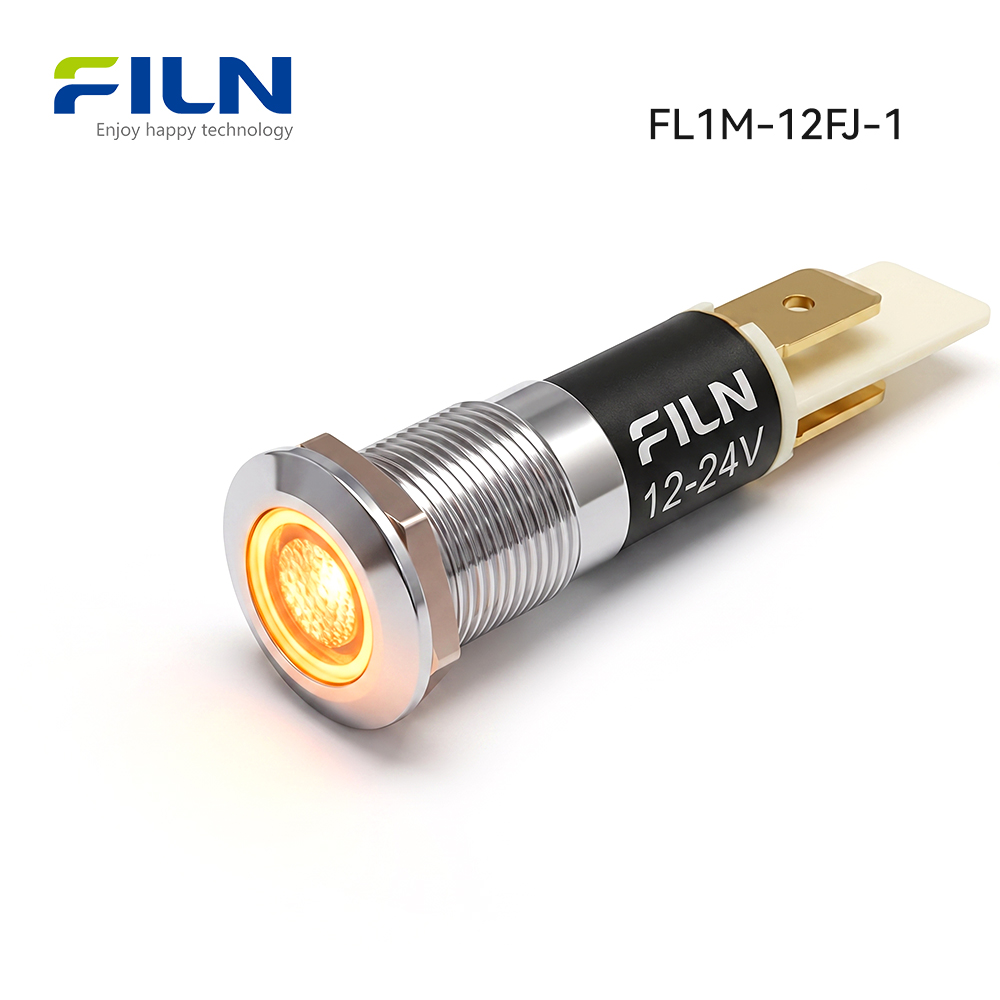

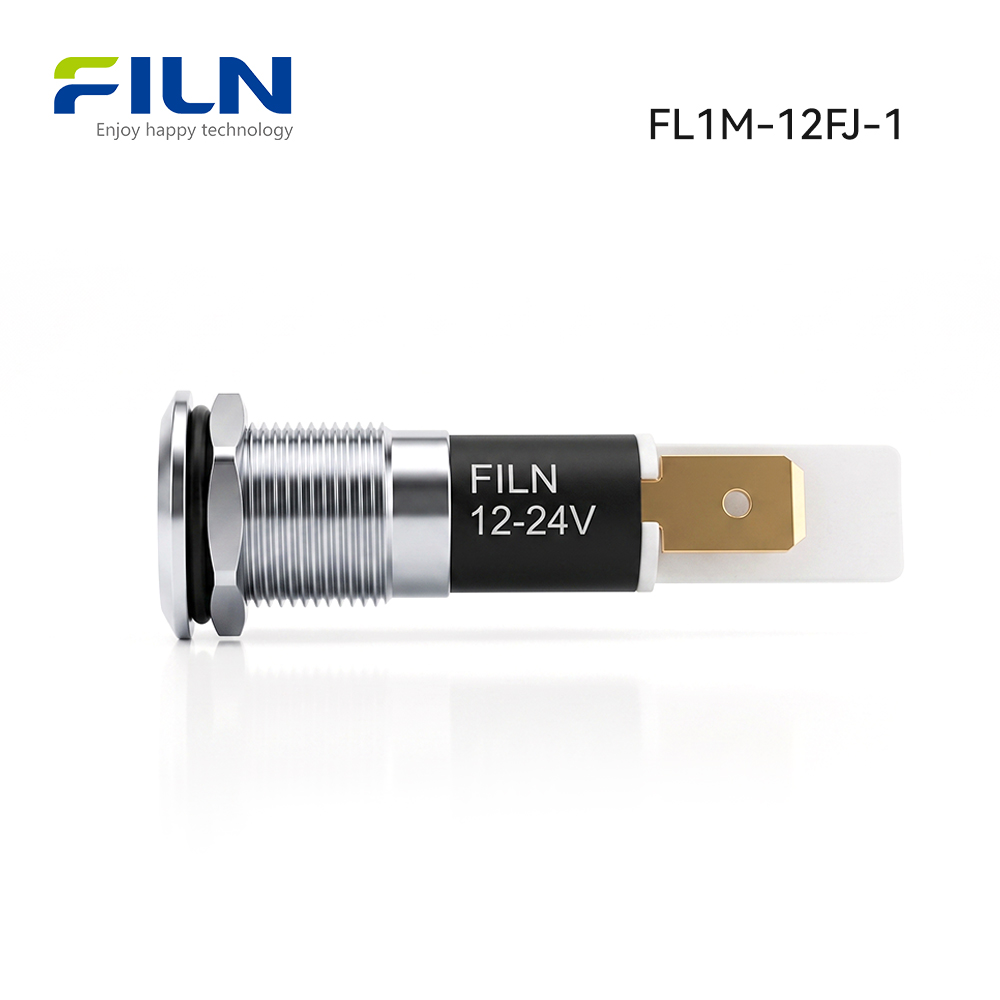

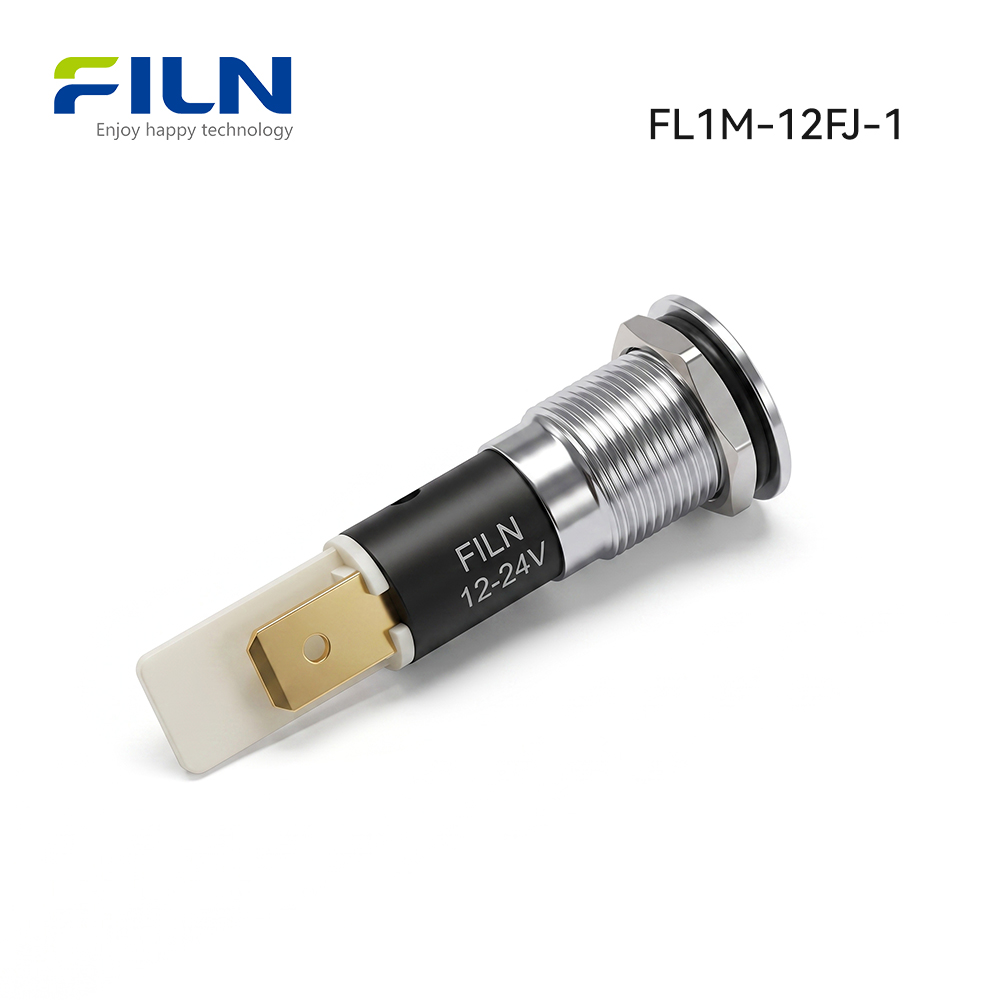

PRODUCT OVERVIEW: FL1M-12FJ-1 SIGNAL LAMP
The FL1M-12FJ-1 indication light is a premium 12mm panel-mount signal component engineered for precision monitoring applications. Built around a solid metallic body—available in nickel-plated brass or stainless steel finishes—this indication light offers mechanical durability and chemical resistance that far surpasses standard plastic lamps.
Designed with a flat head lens profile, this indication light emits uniform, intense circular illumination. Rear termination is managed via robust 2PIN solder pin terminals, providing a short back-of-panel profile that simplifies installation in space-restricted control boxes. Each indication light accommodates custom input voltages from 3V up to 220V AC/DC through integrated internal drop resistors.
Holding full international certifications including UL (Certificate Number: E498776), CE, VDE, RoHS, CCC, and ISO9001, this indication light provides reliable IP65 waterproof sealing when secured with its included silicone gasket, washer, and M12 locknut. B2B buyers can order directly from the manufacturer, select custom terminal lengths, or request 3D CAD modeling files.
QUICK TECHNICAL SPECIFICATIONS
| Specification Parameter |
Technical Specification Data |
| Product Description |
Flat head metal indication light with 2PIN solder pin terminals |
| Model Designation |
FL1M-12FJ-1 |
| Mounting Hole Cutout |
12 mm / 0.472 inches (Panel cutout) |
| Operating Voltage Options |
3V, 6V, 12V, 24V, 36V, 110V, 220V AC/DC (Customizable) |
| LED Illumination Colors |
Red (R), Green (G), Yellow (Y), Blue (B), White (W) |
| Waterproof Protection Rating |
IP65 Sealed with silicone gasket |
| Termination Style |
2PIN Solder Pin Terminals |
| Head Profile Design |
Flat head circular illumination lens |
| Surface Finish Standards |
Nickel-plated brass or stainless steel, corrosion-resistant finish |

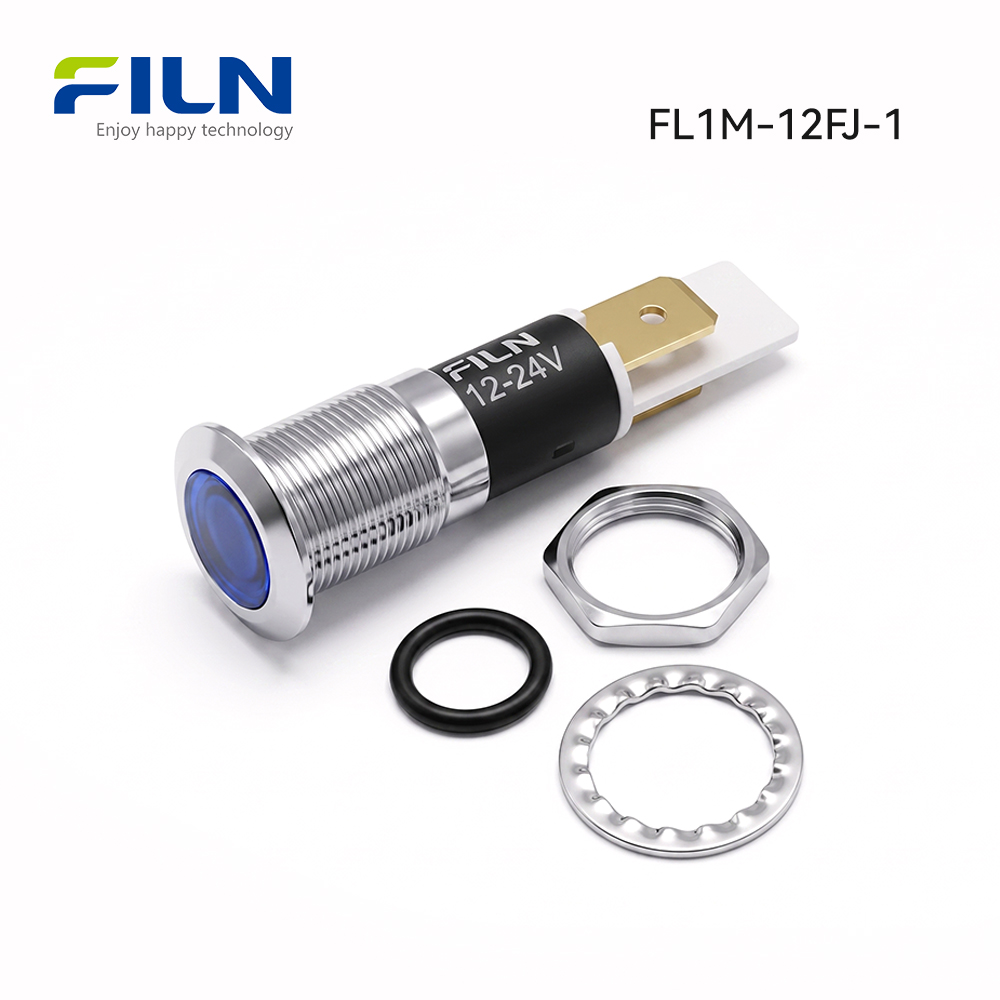

| Assembly Accessories Included |
1x Indication light, 1x Silicone waterproof seal, 1x Metal washer, 1x M12 Nut |
ELECTRICAL & MECHANICAL PERFORMANCE PARAMETERS
| Performance Rating Category |
Engineering Parameter Value |
| Rated Operating Voltage Range |
3V – 220V AC/DC (Custom potential ranges available from factory) |
| AC Frequency Range |
50 Hz / 60 Hz |
| Rated Operational Current |
≤ 20 mA at standard drive voltage |
| Rated Power Consumption |
Approx. 0.2 Watts per indication light unit |
| Insulation Resistance |
≥ 100 MΩ (Tested at 500V DC between pin terminal and metallic shell) |
| Dielectric Withstand Potential |
1500V to 1800V AC for 1 min (No breakdown or flashover) |
| Operating Lifespan Expectancy |
50,000 to 100,000 continuous operating hours |
| Waterproof Ingress Rating |
IP65 Water splash and dust ingress certified |
COMPONENT MATERIALS & ENGINEERING SELECTION
| Component Name |
Selected Material Grade |
Engineering Rationale & Advantages |
| Outer Housing Shell |
Nickel-Plated Brass / Stainless Steel |
Provides superior impact hardness, chemical protection, and long-term anti-corrosion defense. |
| Internal Base Core |
PA66 Flame-Retardant Nylon |
Delivers reliable electrical insulation and thermal resistance inside control panels. |
| Flat Lens Optical Diffuser |
Optical Polycarbonate (PC) |
Offers high impact toughness and uniform light scattering across the flat head surface. |
| LED Light Source |
High-Luminance Solid-State Die |
Provides vivid red indicator light or multi-color signaling with low heat output. |
| Internal Drop Resistor |
Precision Metal Film Resistor |
Regulates drive current for safe 3V–220V operation without external components. |
| 2PIN Solder Terminals |
Silver-Plated Copper Pins |
Ensures excellent electrical conductivity and fast solderability during panel wiring. |
| Rear Mounting Locknut |
Machined Hex Brass Alloy |
Maintains high clamping force to prevent loosening from equipment vibration. |
| Waterproof Sealing Ring |
Silicone Rubber (Silica Gel) |
Compresses tightly against the panel surface to create an IP65 waterproof seal. |
| Lock Washer Gasket |
Stainless Steel Spring Steel |
Prevents rotational movement and absorbs mechanical vibration behind the panel. |
ENVIRONMENTAL SPECIFICATIONS & TESTING STANDARDS
This engineering specification applies across the entire FILN flat head metal indication light family. Comprehensive factory laboratory testing verifies stable performance under extreme thermal shifts, vibration, and liquid exposure.
| Environmental Test Parameter |
Test Conditions & Engineering Pass Criteria |
| Operating & Storage Temperature |
-40°C to +80°C continuous ambient operating range |
| Operating Relative Humidity |
≤ 85% RH at +40°C non-condensing atmosphere |
| High Temperature Soak Test |
96 continuous hours at +80°C ± 2°C with zero housing distortion |
| Low Temperature Soak Test |
96 continuous hours at -40°C ± 2°C with zero shell embrittlement |
| Humidity Aging Resistance |
96 hours at +40°C ± 2°C with 90% to 95% relative humidity exposure |
| Thermal Shock Cycling Test |
5 cycles: Rapid transition between -40°C (30 min) and +85°C (30 min) |
LED OPTICAL & ELECTRO-TECHNICAL DATA
1. Absolute Maximum Ratings (Ta = 25°C)
| Electro-Optical Property |
Symbol |
Maximum Safe Limit |
| Max Forward DC Current |
IFP |
20 mA |
| Peak Reverse Protection Potential |
VR |
5 V |
| Power Dissipation Limit |
PD |
60 mW |
| Operating Ambient Range |
TOPR |
-40°C to +80°C |
| Storage Ambient Range |
TSTG |
-40°C to +100°C |
| Pin Terminal Soldering Heat Limit |
TSOL |
Max 260°C for 3 seconds |
2. Electro-Optical Characteristics (Ta = 25°C)
| Parameter Description |
Test Conditions |
Min Value |
Typ Value |
Max Value |
| Forward Voltage Drop (VF) |
IF = 20mA |
2.8 V |
3.0 V |
3.2 V |
| Reverse Leakage Current (IR) |
VR = 5V |
— |
— |
5 μA |
| Viewing Angle Dispersal (2θ½) |
IF = 20mA |
— |
120° |
— |
| Luminous Intensity Output (Iv) |
IF = 20mA |
500 mcd |
700 mcd |
850 mcd |
| Dominant Wavelength (Red LED) |
IF = 20mA |
620 nm |
625 nm |
630 nm |
| Junction Temperature Limit (Tj) |
IF = 20mA |
— |
— |
125°C |
| Thermal Resistance Parameter (RJP) |
IF = 20mA |
— |
8 °C/W |
— |
STANDARD TESTING ATMOSPHERIC CONDITIONS
Unless explicitly noted otherwise in custom engineering documentation, all electro-optical parameters for this indication light product line are measured under controlled laboratory environmental conditions:
| Environmental Test Variable |
Standard Atmospheric Range |
| Ambient Test Temperature |
5°C to 35°C |
| Relative Test Humidity |
45% to 85% RH |
| Atmospheric Barometric Pressure |
86 kPa to 106 kPa (860 mbar to 1060 mbar) |
Engineering Standard Note: Luminous intensity and dominant wavelength values for each red indicator light and colored model conform to CIE international human eye response standards. Allowed luminous intensity tolerance is ±15%, and drive potential tolerance is ±0.1V.
INDUSTRIAL APPLICATIONS & USE CASES
Deploying a flat head metal indication light with 2PIN solder pin terminals delivers mechanical durability and compact panel integration. Because metallic housings resist physical impact, thermal spikes, and chemical contact better than plastic signal lamps, this product series excels across diverse industries:
1. Electrical Cabinets & Power Distribution Systems
Power control panels require dependable status feedback within dense wiring layouts:
- Distribution Board Monitoring: Mounting a red indicator light on main breakers alerts maintenance personnel to active fault trips or energized busbars instantly.
- Laboratory Test Benches: Precision scientific gear uses custom voltage indication light units to signal active power or high-voltage test sequences.
- Industrial Machinery Panels: Compact 12mm indication light units fit tightly into operator control consoles without crowding nearby pushbuttons.
2. Renewable Energy & Outdoor Power Stations
Outdoor energy infrastructure demands IP65-sealed components that endure environmental swings:
- Solar Combiner Enclosures: A durable metal indication light signals string power generation across operating temperatures from -40°C to +80°C.
- EV Charging Stations: High-brightness red indicator light lamps indicate operational fault isolation or active charging status under direct sunlight.
3. Marine Consoles, Yachts & Custom Automotive Builds
Vessel dashboards and modified vehicles require corrosion-resistant, vibration-proof panel components:
- Yacht Instrument Panels: Nickel-plated or stainless steel indication light units sealed with silicone washers withstand salt spray and spray washdowns.
- Vehicle Dash Modifications: Flat head red indicator light components fit flush into off-road dash panels to signal auxiliary pumps, winches, or lockers.

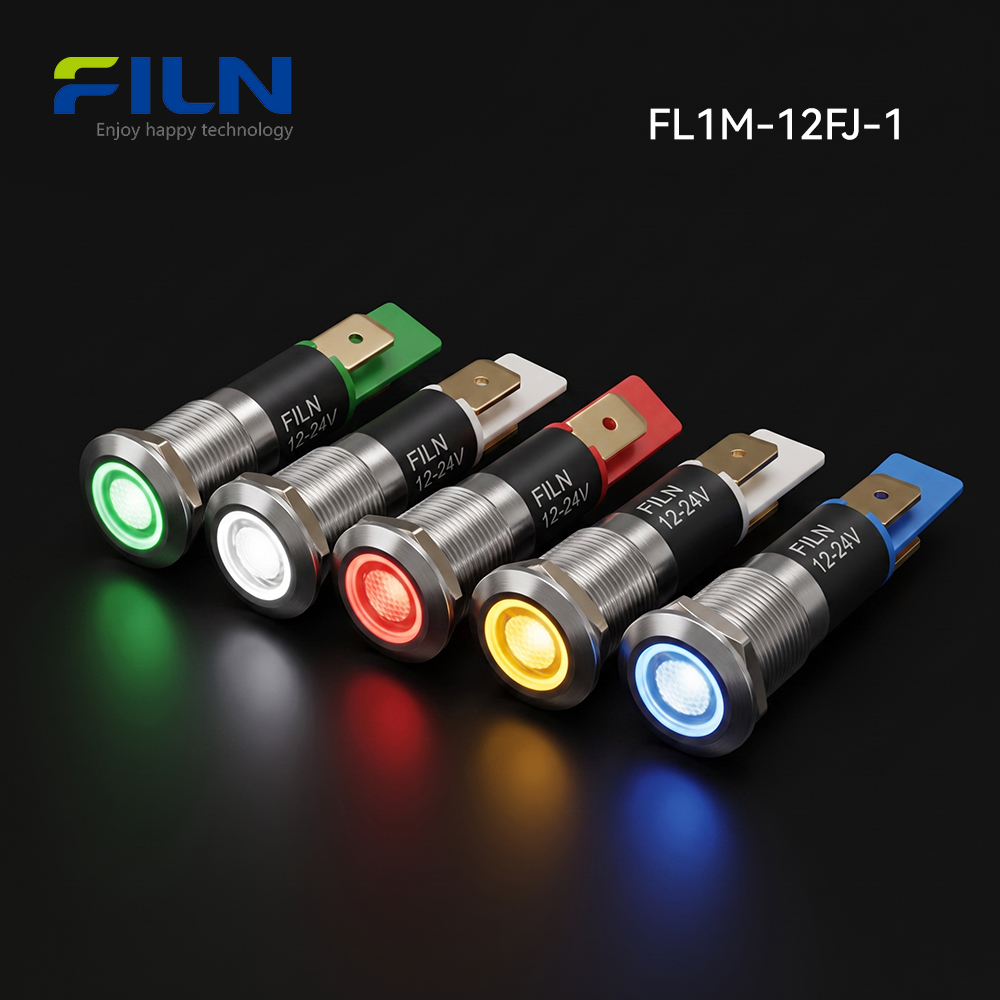

INDICATOR LIGHT COLOR CODES & FUNCTIONAL MEANINGS
Industrial control interfaces adhere to standardized color coding so operators can instantly interpret machine states. FILN manufactures indication light products in five core single colors:
| Color |
Standard Functional Meaning |
Typical Application Scenario |
Engineering Rationale |
| Red (R) |
Danger, Fault, Emergency Stop |
Critical overload fault, over-temperature alarm, emergency stop active |
A red indicator light provides maximum visual contrast to command immediate operator intervention. |
| Green (G) |
Normal Operation, System Ready |
Motor running smoothly, normal system pressure, safety interlocks closed |
Confirms safe operational parameters without active faults. |
| Yellow (Y) |
Caution, Standby, Monitoring |
Thermal limit approaching, scheduled maintenance alert |
Alerts operators to monitor conditions before a system fault develops. |
| Blue (B) |
Mandatory Action, Specific State |
Manual reset required, data communication link active |
Designated for specific operator actions outside standard safety warnings. |
| White (W) |
Main Power On, Neutral Status |
Main breaker energized, baseline power active |
Provides clear power-on indication without implying safety or alarm states. |
STEP-BY-STEP PANEL INSTALLATION GUIDE
Mounting the FL1M-12FJ-1 metal indication light onto control panels requires simple thread locking and proper seal seating:
- Panel Cutout Creation: Drill or punch a clean 12.0mm circular mounting hole through your enclosure panel. Remove burrs and clean the surface area.
- Waterproof Gasket Placement: Slide the included silicone rubber washer over the rear pin terminals until it rests flush against the front metal bezel shoulder.
- Front Insertion: Push the 2PIN solder pin terminals and threaded metal shank through the front of the panel cutout until the silicone seal firmly contacts the panel face.
- Rear Lock Fastening: From the backside of the panel, pass the metal lock washer over the solder pins, followed by the M12 brass locking nut.
- Torque Application: Thread the M12 nut onto the body and tighten with a wrench to 1.5–2.0 Nm torque to compress the silicone washer into an IP65 waterproof barrier.
- Pin Terminal Soldering: Solder power lead wires to the 2PIN solder terminals using a 260°C maximum iron tip, and insulate connections with heat-shrink tubing.
TERMINATION STYLE COMPARISON & SAFETY PROCEDURES
Selecting the ideal termination configuration for an indication light depends on enclosure depth, installation speed, and mechanical vibration requirements:
| Terminal Style |
Pros / Key Advantages |
Cons / Limitations |
Recommended Application Scope |
| Solder Pin Terminal (FL1M-12FJ-1) |
Shallow rear profile depth; enables direct PCB soldering or compact wire attachment. |
Requires hand soldering during assembly; exposed pins must be insulated. |
Shallow enclosures, compact instruments, custom PCB control interfaces. |
| Pre-Wired Lead (FL1M-12FW-1) |
Fast wiring via terminal blocks or lever connectors; excellent rear moisture sealing. |
Fixed factory wire length (custom cable lengths must be specified when ordering). |
High-vibration machinery, outdoor cabinets, wet process environments. |
| Quick-Connect Spade Tab |
Fast toolless plug-in connection; easy field replacement. |
Requires more rear space depth than solder pins; terminals can loosen under heavy vibration. |
Standard distribution panels, commercial appliances, automotive wiring harnesses. |
To inspect pre-wired lead versions, explore our 12MM Pre-Wired Flat Head Metal Red Indicator Light FL1M-12FW-1 Product Page.
Electrical Wiring Warning: Always isolate incoming power before soldering pin terminals. Ensure soldering iron temperatures do not exceed 260°C for longer than 3 seconds to protect the internal LED assembly, and apply heat-shrink insulation sleeves over all exposed pin joints.
INDUSTRY KNOWLEDGE BASE & TROUBLESHOOTING
Eliminating Ghosting / Phantom Illumination
Phantom illumination occurs when an indication light glows faintly even when switched off. This phenomenon stems from micro-amp leakage currents leaking through solid-state relays, PLCs, or capacitive coupling across long parallel wire runs. Because high-efficiency LED light dies require minimal energization current, stray leakage can cause faint glowing.
Engineering Solution: Connect a low-wattage bleed resistor or RC snubber network in parallel across the indication light solder pins to divert leakage currents safely away from the LED.
Common Technical Troubleshooting Steps
- Indication Light Fails to Light Up: Verify DC polarity on pin terminals (positive to anodized marking, negative to ground). Check supply voltage matches the internal resistor rating.
- LED Burnout Upon Initial Power-On: Occurs when high line voltage (e.g., 220V) is applied to a low-voltage indication light without an internal current-limiting resistor. Verify line voltage prior to energizing circuits.
- Moisture Penetration Behind Panel: Check that the silicone washer is centered on the front shoulder and that the rear M12 nut is torqued adequately.
B2B BUYER DECISION & SELECTION GUIDE
Industrial buyers evaluating an indication light for large-scale production equipment should prioritize these essential selection factors:
- Cutout Dimension Matching: Ensure hole sizes align with panel layouts (common standards: 6mm, 8mm, 10mm, 12mm, 16mm, 22mm).
- Internal Resistor Matching: Select built-in voltage ratings (3V–220V) to avoid adding external drop resistors.
- Ingress Rating Verification: Mandate IP65 or higher sealing for washdown, marine, or outdoor panels.
- International Safety Approvals: Verify UL, CE, and RoHS certifications to ensure export compliance.
Recommended Similar Indication Light Products
WHY OEM ENGINEERS & PROCUREMENT DIRECTORS CHOOSE FILN
Procurement directors and design engineers choose FILN for direct factory support and custom engineering flexibility:
| Factory Direct Advantage |
Direct factory sourcing eliminates middleman markups, ensuring competitive wholesale pricing for every indication light order. |
| Zero Minimum Order Quantity |
No MOQ limits allow design teams to order small prototyping lots before committing to full production runs. |
| Rapid Prototyping Delivery |
Sample indication light orders ship within 24–72 hours, while bulk orders finish production within 7 business days. |
| Full OEM / ODM Customization |
Custom pin terminal lengths, pre-soldered lead extensions, specialized drop resistors, and laser-etched symbols. |
| In-House Testing Laboratory |
Every lot of indication light components undergoes strict testing for insulation resistance, dielectric strength, and waterproof seals. |
FACTORY DIRECT MANUFACTURING & GLOBAL SUPPLY CAPACITY
Yueqing Yulin Electronic Co., Ltd., trading globally under the FILN brand, was founded in 2006 in Wenzhou, Zhejiang, as an electrical switch manufacturer integrating R&D, manufacturing, and direct sales. Today, FILN indication light models and control components are exported to over 100 countries worldwide. Operating a modern 10,000 m² factory with 20+ automated production lines and an independent testing lab, FILN operates under strict ISO9001 quality management systems.
FILN certified product lines (UL, CE, VDE, RoHS, REACH, TUV, CB) are widely specified across kitchen appliances, energy storage systems, EV charging networks, automotive modifications, marine consoles, and industrial machinery.
| Core Manufacturing Line |
Metal indication light units, pushbutton switches, rocker switches, toggle switches, custom wire harness assemblies. |
| Quality System & Approvals |
ISO9001, CE, VDE, RoHS, SGS, UL (Certificate Number: E498776), IP65, TUV certified. |
| Global Export Reach |
United States, Canada, Germany, United Kingdom, Australia, and over 100 countries worldwide. |
| Official Web Portal |
www.filn.com |
| Direct Engineering Contact Email |
inquiry@cnylin.com.cn |
FREQUENTLY ASKED QUESTIONS (FAQ)
1. What panel cutout diameter is required for model FL1M-12FJ-1?
Model FL1M-12FJ-1 requires a standard 12mm (0.472 inch) circular panel mounting hole.
2. How does a flat head indication light differ from a prominent convex head?
A flat head indication light sits closer to the panel surface for a flush look, whereas a convex head protrudes further to allow side-angle visibility.
3. What is the UL certificate number for FILN metal indication light products?
The FILN metal indication light series is certified under UL Certificate Number E498776.
4. Does this 220V indication light require an external drop resistor?
No. High-voltage indication light models contain built-in metal film drop resistors for direct connection across 110V or 220V AC lines.
5. Why choose a red indicator light for emergency signal functions?
A red indicator light provides high visual contrast, making it the universal choice for signaling fault alerts, over-temperature trips, and emergency stops.
6. How to eliminate phantom illumination in an LED indication light circuit?
Phantom glowing is caused by micro-amp leakage currents from PLCs or parallel wires. Connecting a bleed resistor across the terminals bypasses this stray current.
7. What soldering temperature limit protects 2PIN pin terminals?
When soldering power leads, keep soldering tip temperatures under 260°C and limit contact time to 3 seconds or less.
8. Can this IP65 indication light withstand outdoor rain and moisture exposure?
Yes. The metal body, optical polycarbonate lens, and silicone seal achieve an IP65 rating against rain, splash, and dust ingress.
9. What is the expected operating lifespan of this indication light?
The solid-state LED die is rated for 50,000 to 100,000 hours of continuous operation under rated electrical conditions.

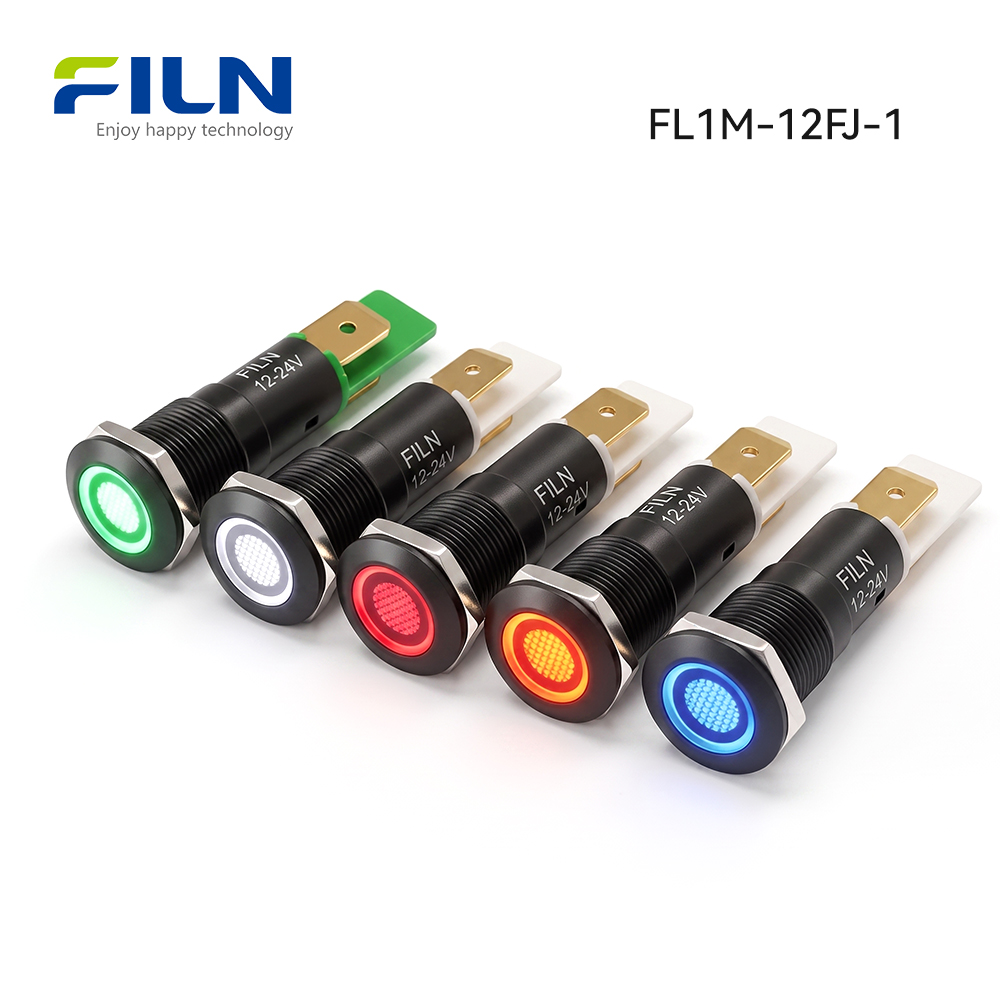

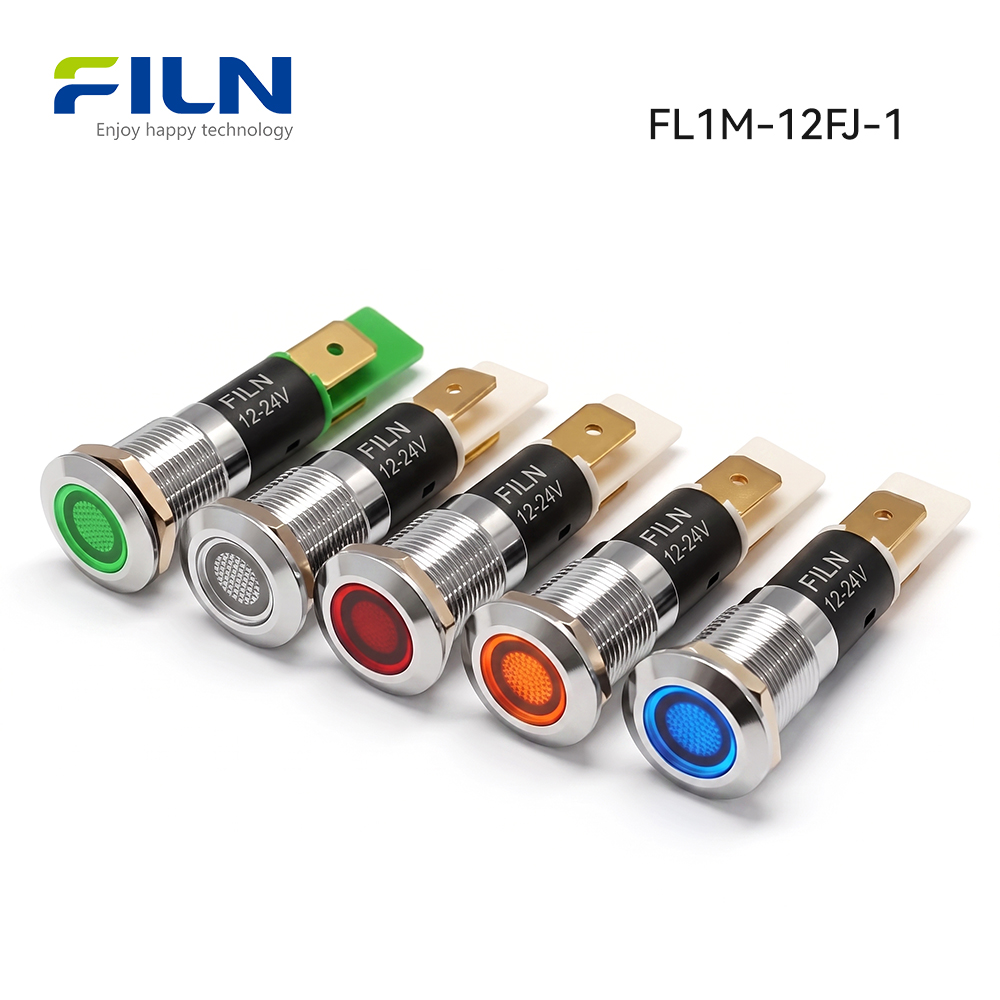

10. What illuminated colors can FILN supply for this model?
FILN manufactures this indication light in red, green, yellow, blue, and white LED colors.
11. What mounting components come included with each indication light?
Each unit includes 1x indication light, 1x silicone sealing washer, 1x metal washer, and 1x M12 hex locknut.
12. Is there a minimum order quantity (MOQ) for custom engineering samples?
No. FILN maintains a zero minimum order quantity policy (No MOQ) to support prototype development.
13. Can FILN pre-solder wire extensions onto pin terminal models?
Yes. As a direct manufacturer, FILN offers custom wire lead soldering, wire jacketing, and connector crimping prior to dispatch.
14. What operating temperature range is supported by this metal indication light?
This indication light operates reliably across ambient temperatures from -40°C to +80°C.
15. What torque level secures the rear M12 nut without damaging threads?
Apply 1.5 Nm to 2.0 Nm torque to compress the silicone gasket flat against the panel face.
16. Are 3D STEP models available for design engineers?
Yes. STEP models, 3D CAD files, and technical schematics are available upon request from our engineering team.
17. Why select a solder pin terminal model over a pre-wired lead model?
Solder pin terminals reduce rear depth clearance inside shallow enclosures and allow direct integration onto custom circuit boards.
18. What quality management system governs FILN indication light manufacturing?
FILN operates under ISO9001 certified quality control systems with lot traceability and automated testing.
19. Can DC indication light units operate on AC circuits?
Standard DC units require polarity-correct direct current. However, FILN produces universal AC/DC indication light units upon request.
20. How can industrial procurement buyers place bulk orders?
B2B buyers can request commercial quotes and direct factory supply by emailing inquiry@cnylin.com.cn.
