KEY TAKEAWAYS FOR INDUSTRIAL BUYERS
- Enhanced Visual Recognition: Prominent convex head profile projects 12 volt led indicator lights beyond the panel surface for superior 180-degree lateral visibility.
- Heavy-Duty Metallic Shell: Precision-machined copper alloy body provides structural hardness and chemical shielding far superior to fragile plastic housings.
- Streamlined Installation: Pre-wired 2PIN wire leads eliminate terminal soldering overhead, accelerating assembly time for bulk control box manufacturing.
- IP65/IP67 Ingress Protection: Fitted with high-grade silicone sealing gaskets that effectively prevent moisture, oil mist, and dust infiltration behind panels.
- Flexible Voltage Configurations: Standard 12 volt led indicator lights can be factory-customized with internal drop resistors to support 3V, 6V, 24V, 36V, 110V, and 220V AC/DC systems.
- Fully Certified Credentials: Compliance with UL (E498776), CE, VDE, RoHS, CCC, and ISO9001 simplifies compliance for export machinery.
- Vibration-Resistant Assembly: Single-nut rear locking mechanism with lock washer prevents physical displacement in high-vibration equipment.
- Factory Direct OEM Capabilities: Purchasing 12 volt led indicator lights direct from FILN guarantees custom cable lengths, terminal crimping, and rapid CAD drawing support.
WHAT ARE 12 VOLT LED INDICATOR LIGHTS
12 volt led indicator lights are specialized panel-mounted optical signaling components engineered to provide clear visual feedback regarding system power states, operational conditions, and fault alerts. Operating on low-voltage direct current or alternating current supplies, 12 volt led indicator lights utilize solid-state semiconductor LED chips enclosed within durable protective bodies to generate continuous, energy-efficient illumination visible across industrial workspaces.
When specifying signal lights for equipment operator panels, engineers can select between standard plastic indicators and heavy-duty metal indicators across cutout dimensions ranging from 6mm to 30mm. Plastic variants are suitable for light indoor enclosures, whereas metallic 12 volt led indicator lights deliver maximum physical impact resistance, flame retardancy, and chemical immunity in harsh industrial environments.
Wiring configurations include pin quick-connect terminals, solder tabs, and pre-wired wire lead constructions. Furthermore, metallic 12 volt led indicator lights offer three primary head geometries: flat head, prominent (convex) head, and concave head. The prominent head style extends outward from the panel face, maximizing light refraction for operator safety monitoring from acute side angles.

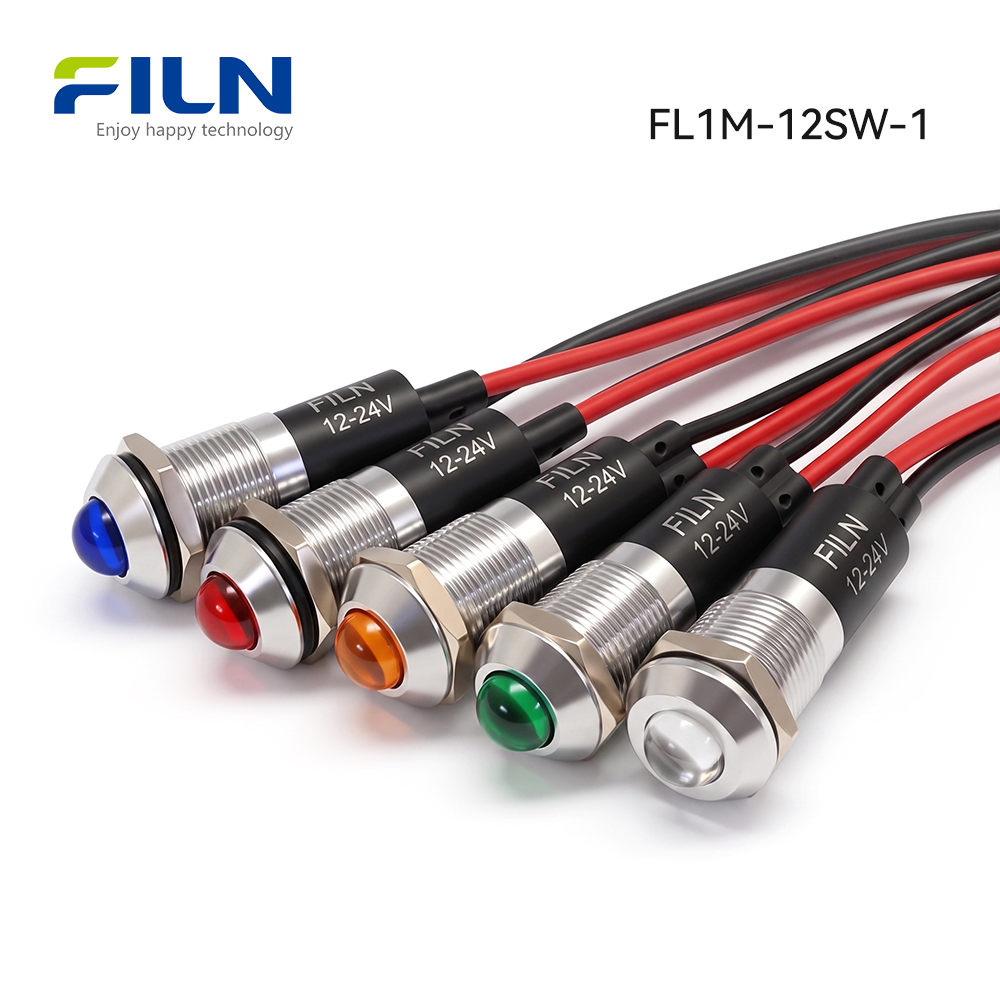

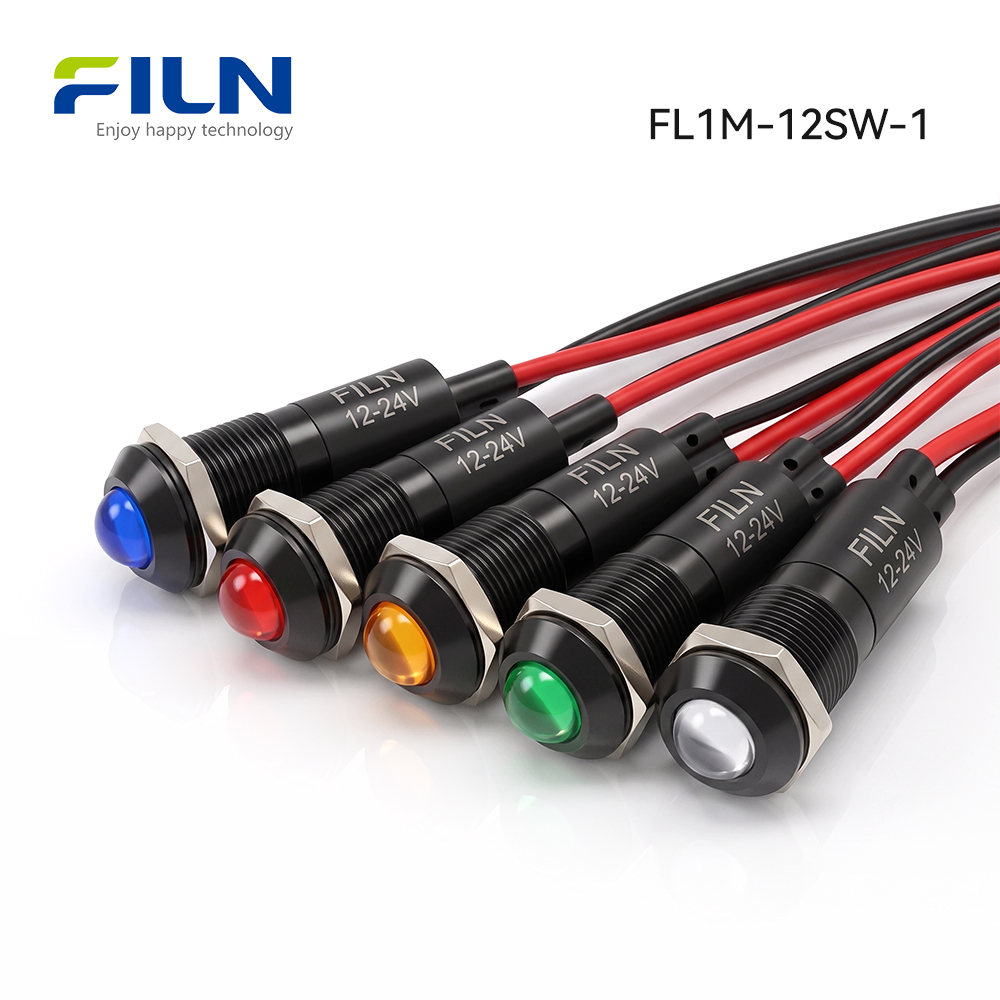

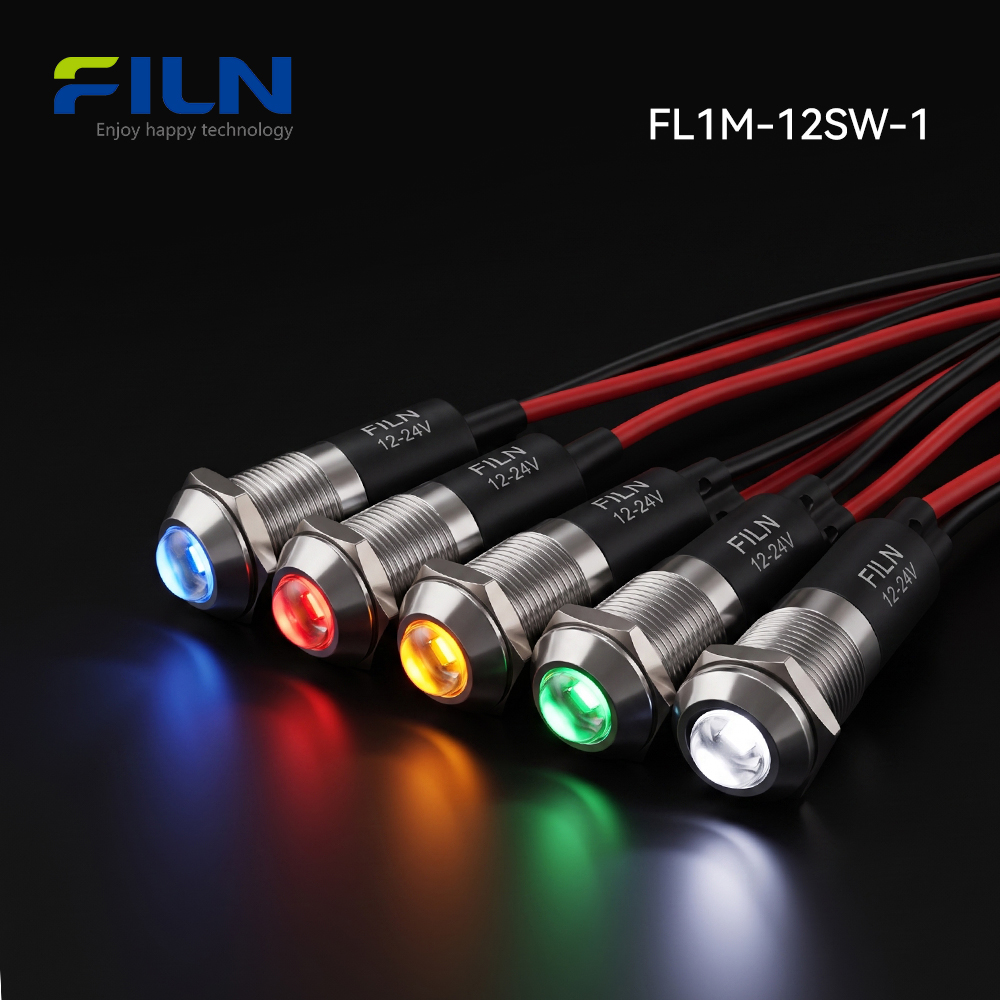

PRODUCT OVERVIEW: FL1M-12SW-1 SIGNAL LAMP

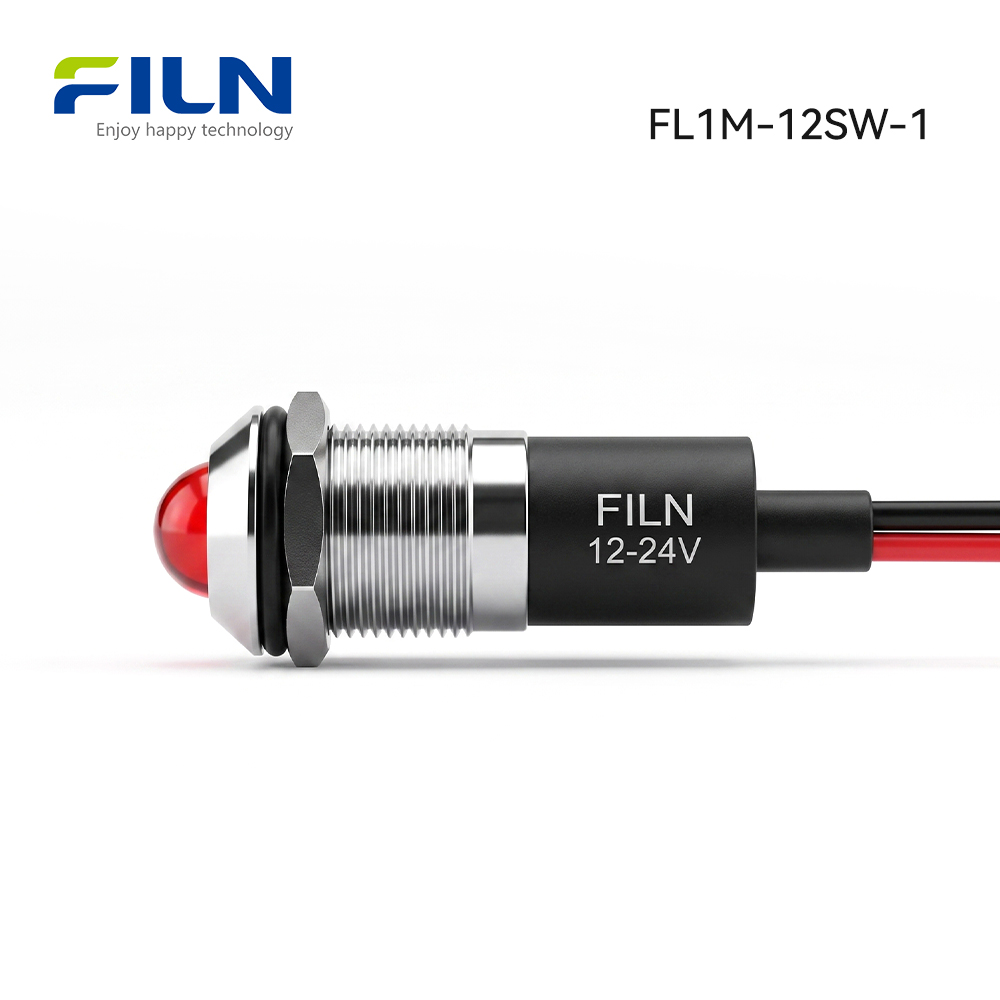

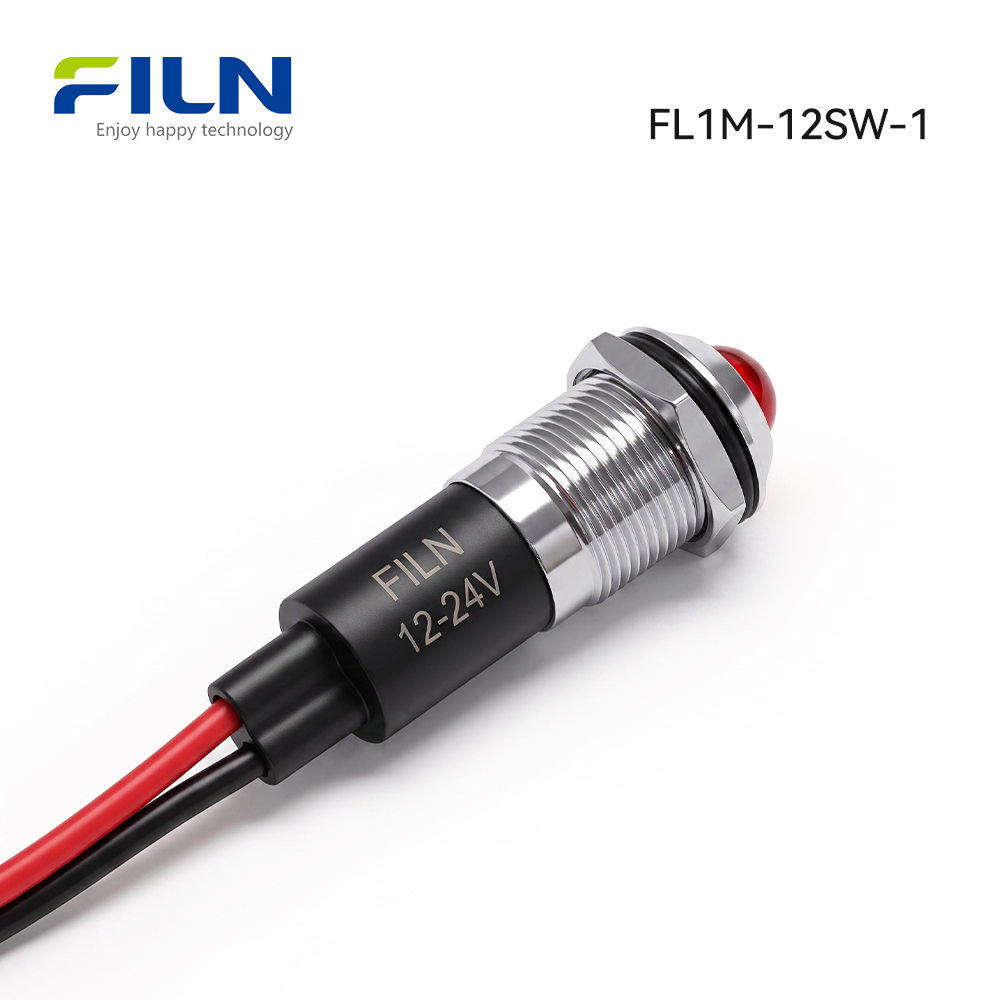

The FL1M-12SW-1 12 volt led indicator lights feature a 12mm thread diameter, ideal for space-constrained operator interfaces and dense distribution cabinets. Constructed with a precision-machined nickel-plated brass or black zinc alloy casing, these 12 volt led indicator lights possess elevated structural strength that withstands mechanical impacts and harsh cleaning chemicals far better than standard plastic lights.

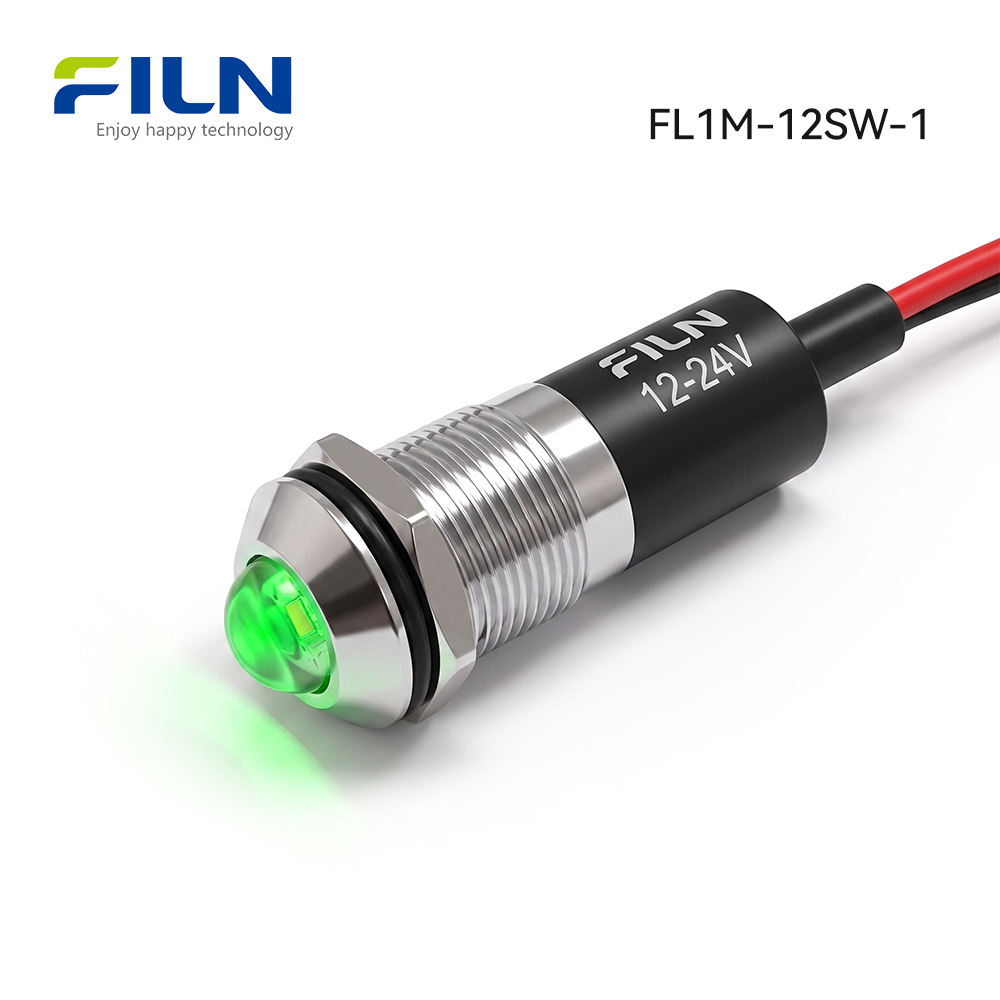

Electrically, each indicator housing encloses a high-brightness LED die connected to an internal current-limiting carbon resistor. When energized, the prominent optical polycarbonate lens emits brilliant circular light with enhanced lateral dispersal. Pre-wired with 2PIN flexible leads, these 12 volt led indicator lights simplify field wiring by allowing direct connections into terminal blocks or pressure connectors without manual pin soldering.
Certified under UL (Certificate E498776), CE, VDE, RoHS, CCC, and ISO9001, these 12 volt led indicator lights provide IP65/IP67 ingress protection. They are widely specified across industrial automation, power control cabinets, marine consoles, EV charging setups, and custom automotive builds. Procurement teams can purchase these units directly from the factory, request customized wire lengths, or download complete 3D CAD models.
QUICK TECHNICAL SPECIFICATIONS
| Specification Parameter |
Technical Specification Data |
| Product Description |
Metal 12 volt led indicator lights with pre-wired lead wires |
| Model Designation |
FL1M-12SW-1 |
| Mounting Hole Cutout |
12 mm / 0.472 inches (Panel cutout) |
| Operating Voltage Options |
3V, 6V, 12V, 24V, 36V, 110V, 220V AC/DC (Customizable) |
| LED Illumination Colors |
Red, Green, Yellow, Blue, White, Bi-color, Tri-color options |
| Waterproof Ingress Rating |
IP65 / IP67 Sealed |
| Termination Wiring Type |
2PIN Pre-wired lead cables (200mm standard) |
| Head Profile Design |
Prominent / Convex head design |
| Surface Finish Standards |
Smooth metallic plating, burr-free, non-oxidizing coating |

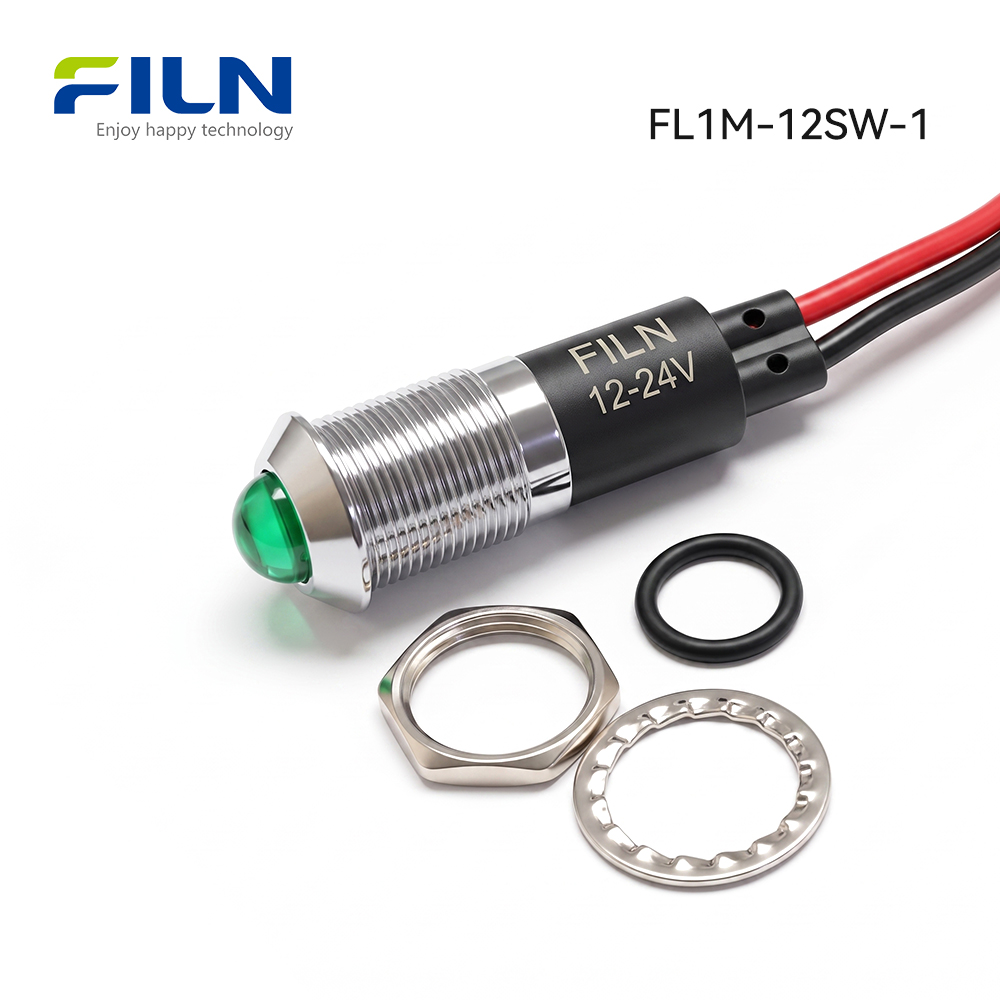

| Assembly Components Included |
1x Indicator light, 1x Silicone waterproof seal, 1x Washer, 1x M12 Nut |
ELECTRICAL & MECHANICAL PERFORMANCE PARAMETERS
| Performance Rating Category |
Engineering Parameter Value |
| Rated Operating Voltage Range |
3V – 240V DC/AC (Custom factory potential ranges available) |
| AC Frequency Range |
50 Hz / 60 Hz |
| Rated Operational Current |
≤ 20 mA at standard input current |
| Rated Operational Power |
Approx. 0.2 Watts per light unit |
| Insulation Resistance |
≥ 100 MΩ (Tested at 500V DC between conductor and metallic shell) |
| Dielectric Strength / Withstand Voltage |
1500V to 1800V AC for 1 min (No breakdown or flashover) |
| Working Operational Lifespan |
50,000 to 100,000 continuous operating hours |
| Waterproof & Protection Rating |
IP65 / IP67 Water and dust immersion certified |
COMPONENT MATERIALS & ENGINEERING SELECTION
| Component Name |
Selected Material Grade |
Engineering Rationale & Material Advantages |
| Outer Casing Shell |
Nickel-Plated Copper Alloy / Black Zinc Alloy |
Provides structural hardness, corrosion resistance, and physical protection for internal components. |
| Internal Lamp Base Holder |
PA66 Flame-Retardant Nylon |
Ensures high electrical insulation and thermal resistance inside control boxes. |
| Lampshade Diffuser Lens |
Optical Grade Polycarbonate (PC) |
Offers high impact strength and clear light refraction across wide viewing angles. |
| Luminescent Light Source |
High-Brightness LED Die |
Delivers strong luminous output with low energy consumption and minimal heat generation. |
| Internal Resistance Element |
Carbon Film Resistor Assembly |
Regulates drive current across designated voltage limits to protect the LED die. |
| Termination Lead Cables |
High-Flexibility PVC Insulated Wire |
Ensures dependable electrical conductivity and flexible routing inside enclosures. |
| Panel Mounting Hex Nut |
Machined Copper Alloy |
Maintains precise thread engagement to resist vibration loosening over time. |
| Sealing Waterproof O-Ring |
Silica Gel (Silicone Rubber) |
Compresses against panel surfaces to maintain an IP67 waterproof barrier. |
| Lock Washer Gasket |
Stainless Steel Plum Blossom Gasket |
Maintains spring tension against the panel to prevent rotational displacement. |
ENVIRONMENTAL SPECIFICATIONS & TESTING STANDARDS
This engineering test specification applies to the entire FILN metal series 12 volt led indicator lights. Accelerated environmental testing verifies component performance across temperature swings, humidity, and atmospheric exposure.
| Environmental Test Parameter |
Test Conditions & Engineering Pass Criteria |
| Operating & Storage Temperature |
-40°C to +80°C continuous ambient operating range |
| Operating Relative Humidity |
≤ 85% RH at +40°C non-condensing atmosphere |
| High Temperature Soak Test |
96 continuous hours at +80°C ± 2°C with zero physical degradation |
| Low Temperature Soak Test |
96 continuous hours at -40°C ± 2°C with zero casing embrittlement |
| Constant Temp & Humidity Test |
96 hours at +40°C ± 2°C with 90% to 95% relative humidity testing |
| Thermal Shock Cycling Test |
5 total cycles: Alternate between -40°C (30 min) and +85°C (30 min) |
LED OPTICAL & ELECTRO-TECHNICAL DATA
1. Absolute Maximum Ratings (Ta = 25°C)
| Electro-Optical Property |
Symbol |
Maximum Safe Limit |
| Max Forward DC Current |
IFP |
20 mA |
| Peak Reverse Protection Voltage |
VR |
5 V |
| Power Dissipation Threshold |
PD |
60 mW |
| Operating Ambient Temperature |
TOPR |
-40°C to +80°C |
| Storage Ambient Temperature |
TSTG |
-40°C to +100°C |
| Lead Soldering Temperature Limit |
TSOL |
Max. 260°C for 3 sec maximum |
2. Electro-Optical Characteristics (Ta = 25°C)
| Parameter Description |
Test Conditions |
Min Value |
Typ Value |
Max Value |
| Forward Voltage Drop (VF) |
IF = 20mA |
2.8 V |
3.0 V |
3.2 V |
| Reverse Current Leakage (IR) |
VR = 5V |
— |
— |
5 μA |
| Viewing Refraction Angle (2θ½) |
IF = 20mA |
— |
60° |
— |
| Luminous Intensity Output (Iv) |
IF = 20mA |
500 mcd |
650 mcd |
800 mcd |
| Dominant Wavelength Spectrum |
IF = 20mA |
520 nm |
523 nm |
525 nm |
| Semiconductor Junction Temp (Tj) |
IF = 20mA |
— |
— |
125°C |
| Thermal Resistance Parameter (RJP) |
IF = 20mA |
— |
8 °C/W |
— |
STANDARD TESTING ATMOSPHERIC CONDITIONS
Unless explicitly specified otherwise in custom engineering documentation, all electrical and optical parameters for these 12 volt led indicator lights are evaluated under standard laboratory environmental conditions:
| Environmental Test Variable |
Standard Atmospheric Range |
| Ambient Test Temperature |
5°C to 35°C |
| Relative Test Humidity |
45% to 85% RH |
| Atmospheric Barometric Pressure |
86 kPa to 106 kPa (860 mbar to 1060 mbar) |
Engineering Standard Note: Luminous intensity and dominant wavelength measurements for these 12 volt led indicator lights conform to CIE international human eye response curves. Allowed luminous intensity tolerance is ±15%, and voltage measurement tolerance is ±0.1V.
INDUSTRIAL APPLICATIONS & USE CASES
Metallic 12 volt led indicator lights constructed with copper alloy or stainless steel bodies provide robust physical resistance and an IP65/IP67 ingress rating. Unlike plastic indicators that crack or degrade under thermal stress and UV exposure, metallic 12 volt led indicator lights are purpose-built for harsh industrial environments:
1. Industrial Automation & Machinery Manufacturing
Primary adoption area for 12 volt led indicator lights across high-vibration shop floor environments:
- CNC Machining Centers: Prominent head 12 volt led indicator lights mounted on operator consoles provide 180-degree warning visibility for machine alarms, spindle activity, and automated stops.
- Power Distribution Enclosures: Compact 12mm 12 volt led indicator lights mounted on PLC panels indicate line power status and circuit health.
- Hydraulic & Pneumatic Systems: Pre-wired 12 volt led indicator lights eliminate pin separation caused by continuous mechanical vibration.
2. Renewable Energy & Outdoor Power Systems
Outdoor power installations require weather-proof components capable of handling broad temperature ranges:
- EV Charging Infrastructure: Prominent head 12 volt led indicator lights signal system readiness, active power delivery, or ground fault conditions.
- Solar Combiner Enclosures: Weatherproof 12 volt led indicator lights display high-voltage inverter states across temperatures ranging from -40°C to +80°C.
3. Marine Consoles, Vehicles & Heavy Machinery
Vessels and mobile equipment require vibration resistance and corrosion protection:
- Vehicle Dashboard Modifications: Prominent head 12 volt led indicator lights installed on custom off-road dash panels give clear visual alerts for oil pressure, auxiliary lights, and battery charge states.
- Yacht Marine Control Boards: Corrosion-resistant plated metal 12 volt led indicator lights withstand saltwater environments behind sealed silicone gaskets.
4. Public Access & Commercial Vending Equipment
Vandal-resistant construction protects public-facing equipment:
- Self-Service Kiosks: Metal 12 volt led indicator lights resist impact and tampering on public transaction machinery.
- Fuel Dispensing Panels: Sealed metal casings isolate internal electrical connections in fuel vapor environments.
5. Food Processing & Medical Equipment
Cleanroom and processing areas require chemical-resistant, IP67-sealed signal lamps:
- Food Packaging Lines: Waterproof 12 volt led indicator lights withstand daily high-pressure washdown cycles without seal breakdown.
- Laboratory Sterilizers: High-visibility prominent lenses cleanly display active heating, sterilization, and exhaust cycles.
INDICATOR LIGHT COLOR CODES & FUNCTIONAL MEANINGS
Standard industrial human-machine interfaces rely on consistent color coding to communicate status quickly to equipment operators. FILN manufactures 12 volt led indicator lights in five primary single colors, as well as bi-color and tri-color configurations:
| Color |
Standard Functional Meaning |
Typical Application Scenario |
Engineering Rationale |
| Red (R) |
Danger, Fault, Emergency Stop |
Critical fault, high temperature warning, system trip |
Demands immediate operator intervention; universally signals danger. |
| Green (G) |
Normal Operation, Ready, Safe |
Motor running, system healthy, circuit active |
Confirms normal operating parameters without active errors. |
| Yellow (Y) |
Caution, Standby, Monitoring |
Parameter threshold alert, maintenance due |
Alerts operators to monitor conditions before a fault occurs. |
| Blue (B) |
Mandatory Action, Specific State |
Manual reset needed, communication link online |
Designated for specific operator actions outside standard safety warnings. |
| White (W) |
General Power On, Neutral Status |
Main switch energized, baseline illumination |
Provides clear power-on indication without implying safety or alarm states. |
FILN bi-color and tri-color 12 volt led indicator lights incorporate multiple LED dies into a single 12mm metal housing, allowing dynamic multi-state status signaling within a single panel cutout.
STEP-BY-STEP PANEL INSTALLATION GUIDE
Follow these installation steps to ensure correct mechanical mounting and maintain an IP65/IP67 waterproof seal for your 12 volt led indicator lights:
- Panel Cutout Preparation: Punch or drill a clean 12.0mm circular mounting hole through the panel surface. Remove metal burrs and clean surface debris.
- Waterproof Seal Placement: Slide the silicone O-ring gasket over the rear lead wires of the 12 volt led indicator lights until it sits flush against the upper flange.
- Front Panel Insertion: Pass the wire leads and threaded shank through the front of the cutout until the silicone seal makes contact with the outer panel surface.
- Rear Lock Assembly: From behind the panel, slide the stainless steel lock washer over the wires, followed by the brass M12 locknut.
- Torque Fastening: Hand-thread the M12 nut onto the housing, then tighten using a wrench to 1.5–2.0 Nm torque to compress the silicone gasket uniformly.
- Electrical Lead Termination: Connect the 2PIN pre-wired leads into your 12V control circuit using terminal blocks, quick connectors, or soldered inline splices.
TERMINATION STYLE COMPARISON & SAFETY PROCEDURES
Selecting the appropriate termination design for 12 volt led indicator lights depends on panel space constraints, environmental vibration levels, and wiring preferences:
| Terminal Style |
Pros / Key Advantages |
Cons / Limitations |
Recommended Application Scope |
| Pre-Wired Lead (FL1M-12SW-1) |
Fast connection via lever terminals, wire nuts, or solder splices; superior internal moisture sealing inside the metal shell. |
Fixed factory cable length (custom lengths must be requested at time of order). |
High-vibration machinery, outdoor control boxes, wet processing plants. |
| Solder Pin Terminal (FL1M-12SJ-1) |
Shallow rear profile depth; supports direct wire soldering or custom plug-in PCB connections. |
Requires manual soldering during installation; exposed terminals require heat-shrink insulation. |
Compact control boxes, shallow enclosures, low-vibration instruments. |
To order pin terminal models, visit our 12MM Pin Terminal Flat Head Indicator Light FL1M-12SJ-1 Product Page.
Electrical Safety Warning: Disconnect all incoming power sources before making electrical wiring connections. When connecting pre-wired 12 volt led indicator lights, use lever connectors, crimp terminals, or soldered joints with heat-shrink tubing to ensure stable conductivity and prevent short circuits.
INDUSTRY KNOWLEDGE BASE & TROUBLESHOOTING
Preventing Phantom Illumination (Faint Glowing)
Phantom illumination occurs when 12 volt led indicator lights glow faintly even when switched off. This is caused by residual leakage currents passing through solid-state relays, capacitive coupling in long parallel wire runs, or PLC outputs. Because efficient 12 volt led indicator lights draw minimal current, even micro-amp leakage levels can generate faint luminescence.
Engineering Solution: Connect a low-wattage bleed resistor or RC snubber circuit in parallel across the indicator wire leads to divert low-level leakage current safely away from the LED assembly.
Common Troubleshooting Procedures
- Indicator Fails to Light Up: Confirm terminal polarity alignment on DC power lines (red wire positive, black wire negative). Ensure supply line potential matches the rated rating of your 12 volt led indicator lights.
- LED Burnout Upon Initial Power Up: Occurs when high line potential (e.g., 110V/220V) is applied to 12 volt led indicator lights without an internal drop resistor. Verify input potential before powering up circuits.
- Moisture Ingress Behind Panel: Check that the silicone O-ring is seated flush against the panel face and that the rear M12 nut is torqued correctly.
B2B BUYER DECISION & SELECTION GUIDE
When evaluating 12 volt led indicator lights for high-volume manufacturing or infrastructure projects, review these critical selection criteria:
- Panel Hole Size: Match cutout parameters. Popular sizes include 6mm, 8mm, 10mm, 12mm, 16mm, 22mm, and 30mm.
- System Voltage Match: Specify 12 volt led indicator lights or custom ratings (3V–220V) to avoid the need for external resistors.
- Ingress Protection Requirements: Select IP65 or IP67 ratings for washdown, outdoor, or wet processing environments.
- Regulatory Certifications: Confirm UL, CE, and RoHS approvals to simplify compliance for export equipment.
Recommended Similar Indicator Products
WHY OEM ENGINEERS & PROCUREMENT DIRECTORS CHOOSE FILN
Procurement directors and design engineers select FILN 12 volt led indicator lights for direct manufacturing accountability and flexible customization:
| Factory Direct Advantage |
Direct factory purchasing eliminates middleman markups, ensuring competitive wholesale pricing for high-volume 12 volt led indicator lights orders. |
| Zero Minimum Order Quantity |
No MOQ restrictions allow engineers to procure sample units for prototyping before committing to full production runs. |
| Rapid Prototyping Lead Times |
Sample 12 volt led indicator lights ship within 24–72 hours, while custom volume orders complete production within 7 business days. |
| Full OEM / ODM Customization |
Custom lead lengths, specialized wire jackets, pre-crimped terminal connectors, dual-voltage internal resistors, and custom laser etching. |
| In-House Testing Laboratory |
Every lot of 12 volt led indicator lights undergoes rigorous testing for insulation resistance, dielectric strength, waterproofing, and luminous decay. |
FACTORY DIRECT MANUFACTURING & GLOBAL SUPPLY CAPACITY
Yueqing Yulin Electronic Co., Ltd., trading globally under the FILN brand, was established in 2006 in Wenzhou, Zhejiang, as an electrical switch manufacturer integrating R&D, production, and sales. Today, FILN 12 volt led indicator lights and switch components are exported to over 100 countries. Operating a modern 10,000 m² facility with 20+ automated production lines and an independent testing laboratory, FILN operates strictly under ISO9001 quality standards.
FILN certified product lines (UL, CE, VDE, RoHS, REACH, TUV, CB) are widely specified across kitchen appliances, energy storage, EV charging networks, automotive modifications, marine systems, and industrial automation equipment.
| Core Manufacturing Capabilities |
12 volt led indicator lights, pushbutton switches, rocker switches, toggle switches, custom wire harness sub-assemblies. |
| Quality System & Approvals |
ISO9001, CE, VDE, RoHS, SGS, UL (E498776), IP65/IP67, TUV certified. |
| Global Export Reach |
United States, Canada, Germany, United Kingdom, Australia, and over 100 countries worldwide. |
| Official Web Portal |
www.filn.com |
| Direct Engineering Contact Email |
inquiry@cnylin.com.cn |
FREQUENTLY ASKED QUESTIONS (FAQ)
1. How to prevent phantom illumination (faint glowing) in 12v LED indicators?
Phantom illumination in 12 volt led indicator lights is caused by residual leakage currents passing through solid-state relays or capacitive wire coupling. Wiring a bleed resistor or snubber circuit in parallel across the indicator leads bypasses this residual voltage safely.
2. Can this IP67 indicator light be washed down with caustic chemicals?
Yes. The nickel-plated brass or black zinc alloy casing, polycarbonate lens, and silicone seal on these 12 volt led indicator lights withstand routine chemical washdowns in food processing and medical gear.
3. What is the official UL certificate number for these 12 volt led indicator lights?
The FILN metal indicator series is certified under UL Certificate Number E498776, confirming compliance with North American electrical standards.
4. What mounting hole dimension is required for model FL1M-12SW-1?
Model FL1M-12SW-1 12 volt led indicator lights require a standard 12mm (0.472 inch) circular panel cutout.
5. Do these 12 volt led indicator lights require an external resistor for high voltage?
No. High-voltage versions contain built-in carbon film current-limiting resistors, enabling direct connection across designated 110V or 220V AC lines.
6. What standard wire length is provided on pre-wired 12 volt led indicator lights?
Standard stock units feature 200mm (8 inches) pre-wired 2PIN flexible PVC leads. Custom wire lengths and terminal connectors can be requested directly from our factory.
7. How does a metal housing compare to a plastic housing for 12 volt led indicator lights?
Metallic bodies offer superior physical impact resistance, higher chemical tolerance, and immunity to UV yellowing or embrittlement compared to plastic alternatives.
8. Can FILN supply customized wire lead configurations and connector plugs?
Yes. As a factory-direct manufacturer, FILN provides custom lead lengths, specialized insulation wire, and pre-crimped terminal connectors.
9. What visual color options are available for these 12 volt led indicator lights?
FILN manufactures red, green, yellow, blue, and white single-color units, as well as bi-color and tri-color LED configurations.
10. What is the continuous operating lifespan of these 12 volt led indicator lights?
The embedded LED chip is rated for 50,000 to 100,000 hours of continuous operational lifespan under recommended thermal and voltage limits.
11. What optical lens shapes are available for 12mm metal indicators?
FILN supplies prominent (convex) head, flat head, and concave head metal housing options to match varying panel aesthetics and visibility requirements.
12. Is there a minimum order quantity (MOQ) for custom sample orders?
No. FILN maintains a zero minimum order quantity policy (No MOQ) for standard stock and custom sample evaluations to support engineering design work.
13. What sealing component ensures the IP67 waterproof rating during panel mounting?
A high-grade flexible silicone O-ring sits between the panel face and the metallic indicator flange, creating an airtight, waterproof seal when torqued down.
14. What is the rated operating temperature range for these 12 volt led indicator lights?
These 12 volt led indicator lights operate reliably across ambient environmental temperatures ranging from -40°C to +80°C.
15. What torque setting should be applied to the rear M12 hex nut?
We recommend applying 1.5 Nm to 2.0 Nm torque to secure the rear hex nut tightly against the panel without damaging internal threads or the silicone seal.
16. Are 3D CAD models available for engineering panel layout design?
Yes. STEP files, 3D CAD models, and dimensional engineering drawings are available upon request by contacting our engineering support team.
17. How do pre-wired 12 volt led indicator lights accelerate assembly speed?
Pre-wired leads eliminate the manual soldering step on control cabinet assembly lines, saving time and eliminating cold solder joint risks.
18. Which quality systems govern manufacturing of these 12 volt led indicator lights?
FILN facilities operate under ISO9001 certified quality systems, ensuring rigorous batch testing and full component traceability.
19. Can DC version 12 volt led indicator lights operate on AC power lines directly?
Standard DC units require polarity-correct direct current. However, FILN produces dual AC/DC universal models upon request.
20. How can industrial procurement buyers order wholesale 12 volt led indicator lights?
Procurement teams can request direct factory price quotes, commercial terms, and custom production runs by emailing inquiry@cnylin.com.cn.
