Key Engineering Takeaways
- Standardized 12mm Mounting Footprint: Designed for universal 12mm (0.47 inch) panel cut-outs, offering tight integration into industrial automation racks, vehicle dashboards, and power distribution cabinets.
- Recessed Head Mechanical Protection: The sunken lens geometry shields the illuminating element from lateral impacts, accidental physical contact, and abrasive environment exposure.
- UL Certified Compliance: Certified under UL file number E498776 along with CE, VDE, RoHS, and ISO9001 standards, ensuring full safety compliance for North American and European OEM equipment.
- IP67 Environmental Sealing: High-grade silicone O-ring construction prevents water jet penetration, oil splash degradation, and dust contamination in severe outdoor and washdown applications.
- Flexible Electrical Compatibility: Though optimized for standard 12V DC power networks, internal driver configurations support operating voltages from 3V up to 220V AC/DC.
- Solderable 2PIN Terminal Design: Solid brass pin terminals enable fast solder connection or mating push-on quick connectors, simplifying mass assembly lines for control panel builders.
- Multi-Color LED Engine: Equipped with high-luminescence LEDs available in standard Red, Green, Yellow, Blue, and White single-color emission or custom bi-color/tri-color configurations.
- Factory Direct Supply Chain: Manufactured directly by FILN in Wenzhou, China, providing global distributors and importers with rapid prototype delivery, custom lead options, and wholesale pricing terms.
What is an Indication Light 12V?
An indication light 12v is an electro-optical panel component engineered to visually transmit machine operational states, safety alarms, power conditions, and system faults to human operators. Functioning as a critical human-machine interface element, this indicator light converts electrical input signals into bright, targeted chromatic light across user dashboards and industrial switchboards.
Modern signal indicators offer broad structural configurations divided primarily into plastic housing and high-durability metal body series. Mounting hole diameters range from compact 6mm micro-indicators up to heavy-duty 30mm industrial pilot lights. Terminal options accommodate diverse field requirements, offering 2PIN solder/quick-connect tabs or factory-sealed wire lead assemblies.
Metal housing units are further distinguished by head geometries tailored to specific operating environments. Equipment designers can select flat head models for seamless flush control interfaces, prominent domed heads for 180-degree omnidirectional visibility, or recessed heads designed to prevent accidental impact damage and physical wear in high-traffic workspaces.

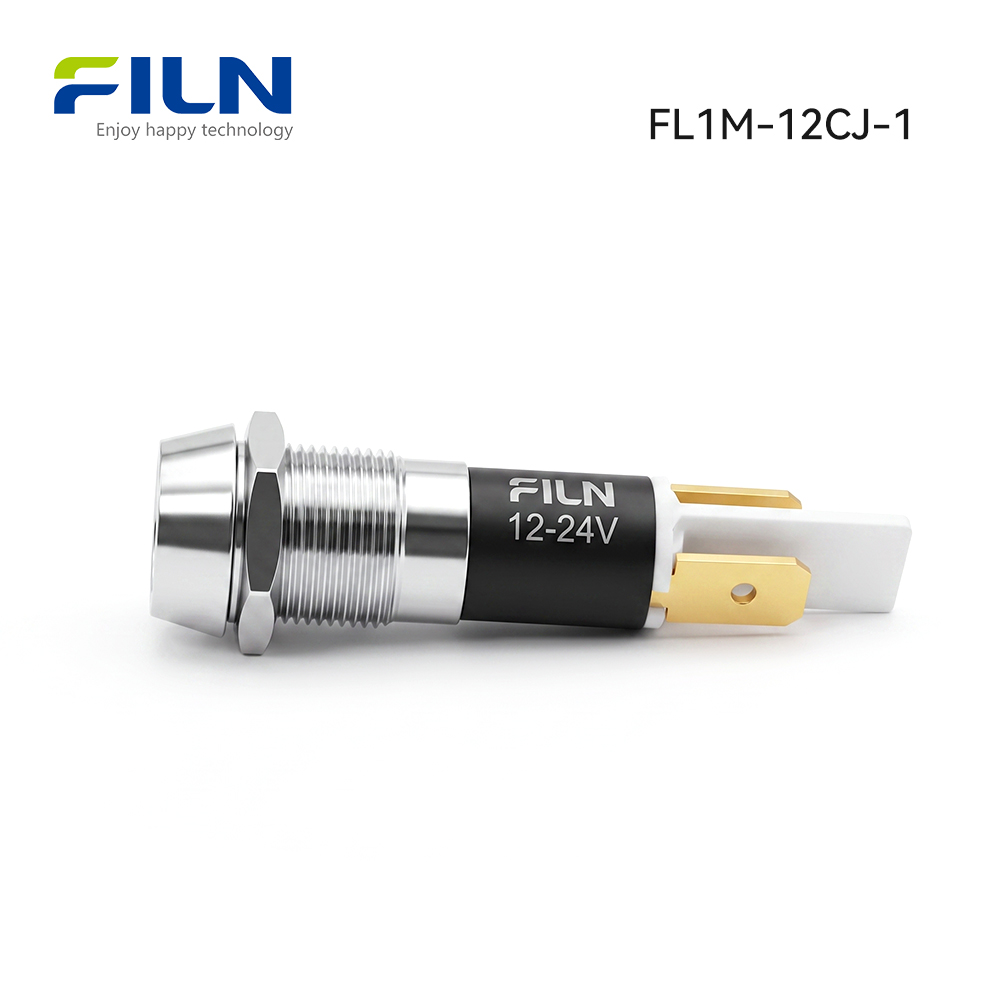

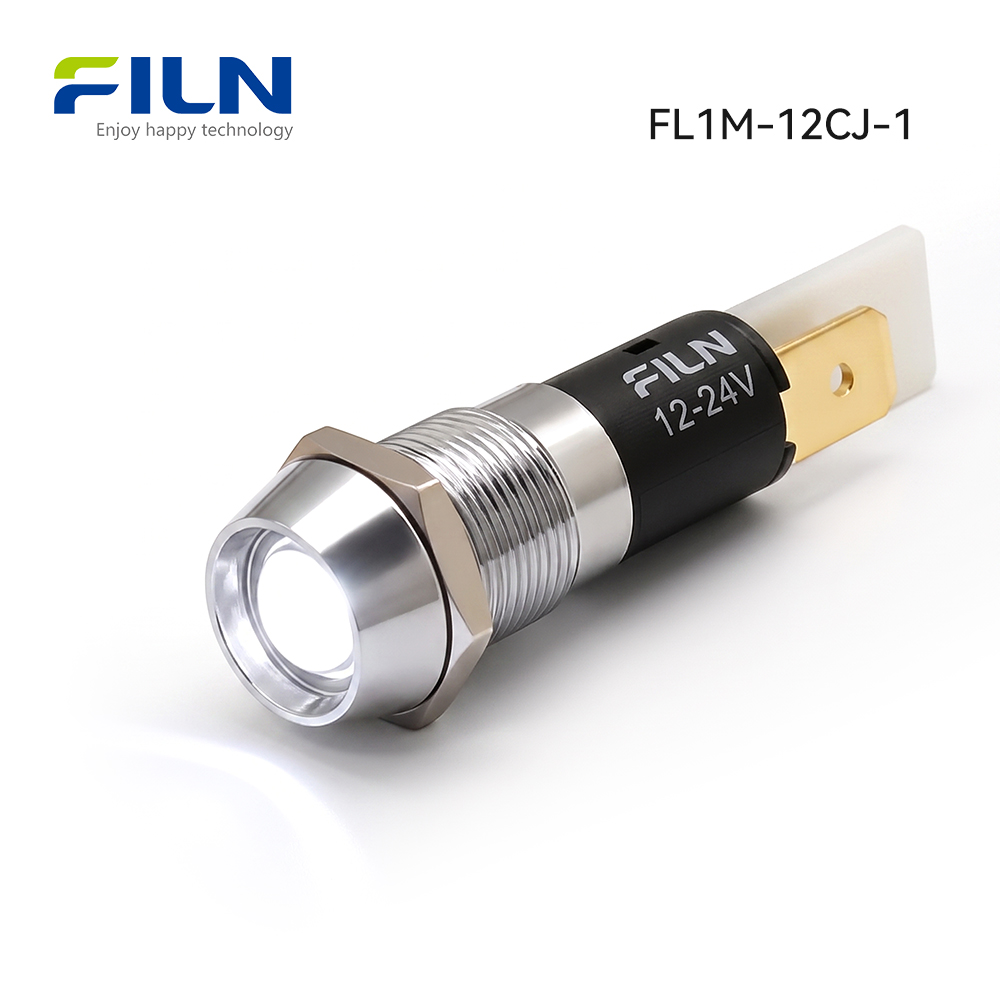

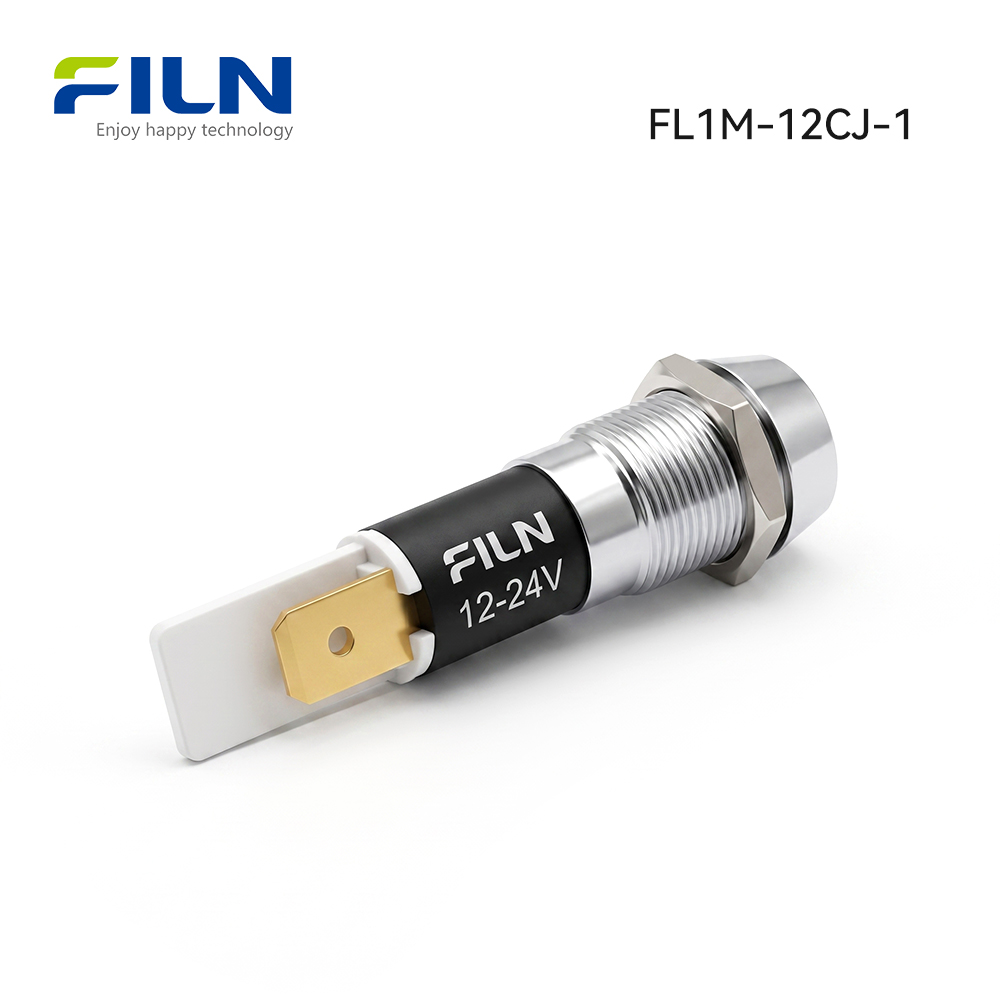

Product Overview: FL1M-12CJ-1 Recessed Signal Lamp
The FILN FL1M-12CJ-1 indication light 12v represents a precision-engineered optical signaling solution optimized for 12mm panel cutouts. Operating on a simple 2PIN terminal topology, this unit integrates a solid-state LED light source paired with a internal current-limiting carbon film resistor. When direct current or alternating current energizes the terminals, the internal LED emits stable illumination through a light-diffusing polycarbonate lens element.
Mechanically, the assembly utilizes a high-tensile brass alloy body with protective nickel plating, resisting environmental oxidation, mechanical shock, and chemical exposure. A precision-molded silicone rubber seal ring sits firmly between the panel outer face and the metallic bezel, effectively blocking dust ingress and liquid jets to maintain IP67 integrity under pressure.
This indication light 12v is widely deployed across industrial control enclosures, laboratory test benches, power generation units, marine dashboards, and automotive custom builds. Its international compliance portfolio—supported by UL certificate E498776 alongside CE, VDE, and RoHS accreditations—makes it an ideal choice for machinery exporters seeking frictionless global market approval.
Quick Technical Specifications
| Specification Parameter |
Detailed Engineering Value |
| Description |
Metal Indicator Light with Pin Terminal |
| Model Code |
FL1M-12CJ-1 |
| Mounting Hole Cut-out |
10mm / 12mm (0.47 inch) Standard Mounting Diameter |
| Operating Voltage Range |
12V DC / AC (Customizable from 3V to 220V) |

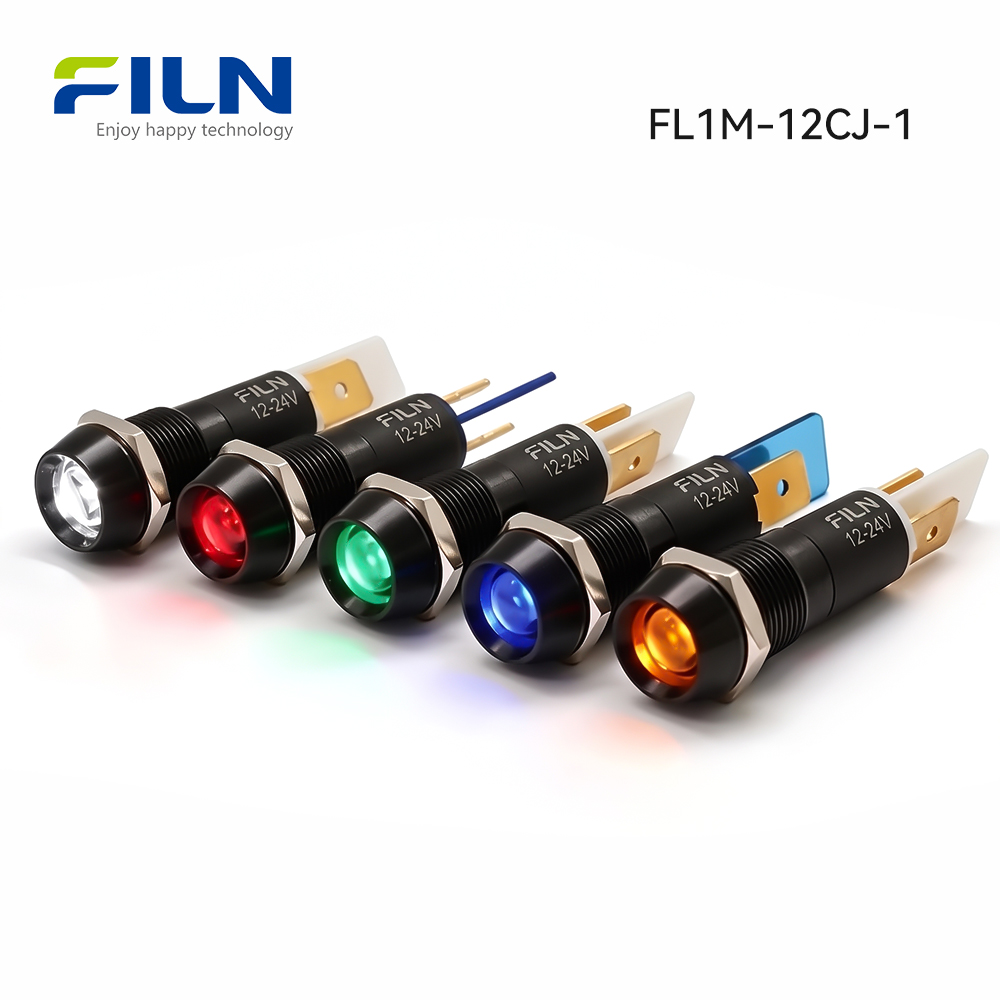

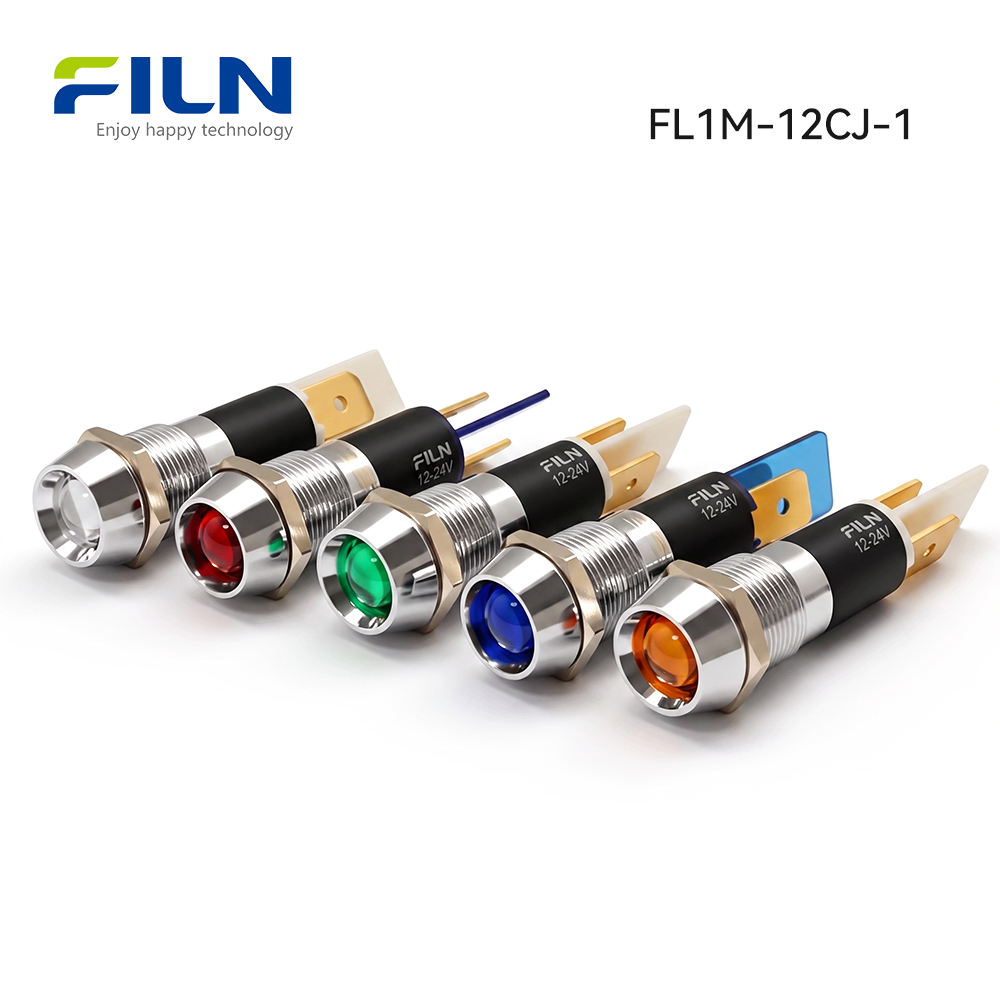

| LED Color Options |
Red, Green, Yellow, Blue, White (R/G/Y/B/W) |
| Waterproof Ingress Protection |
IP65 / IP67 Weatherproof Rating |
| Wiring Termination Type |
2PIN Solder Tab / Push-on Terminal |
| Head Profile |
Recessed Concave Head |
| Surface Finishing Quality |
Smooth surface, burr-free, zero oxidation, no physical micro-cracks. |
| Assembly Mechanical Integrity |
Head component firmly fixed to base; no rotation, displacement, tilt, or deformation. |

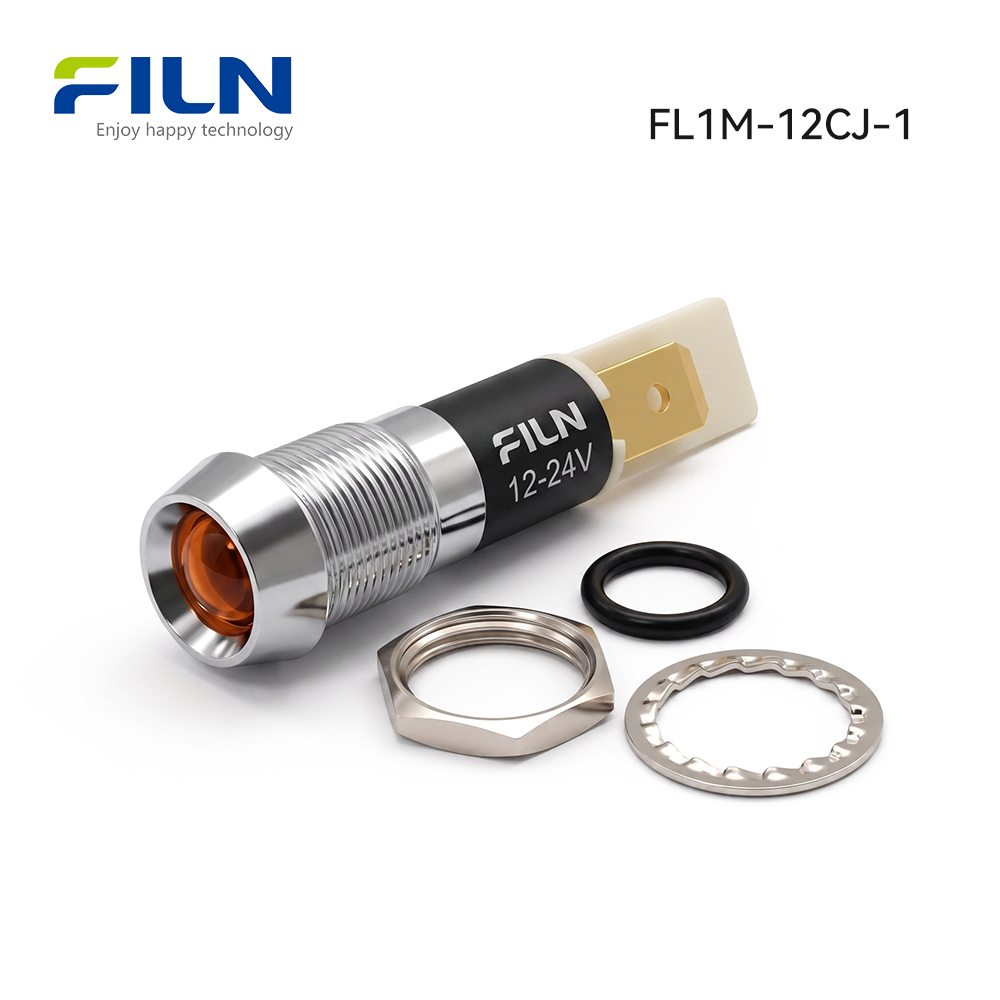

| Standard Accessories Kit |
1x Indicator Light, 1x Silicone O-ring, 1x Plum Gasket, 1x M12 Hex Nut |
Electrical & Mechanical Performance Ratings
| Performance Metric |
Testing Standard & Values |
| Rated Voltage |
3V–240V DC/AC (Standard 12V DC operational rating) |
| AC Power Frequency |
50Hz ~ 60Hz Sine Wave |
| Rated Current |
≤ 20mA Low Power Draw |
| Nominal Power Consumption |
Approximately 0.2W energy consumption |
| Insulation Resistance |
≥ 100MΩ tested at DC 500V between terminal wires and outer housing |
| Dielectric Strength |
1500V ~ 1800V AC breakdown resistance without flashover |
| Service Operating Life |
50,000 Hours ~ 100,000 Hours continuous operation |
| Protection Rating |
IP67 Water and Dustproof sealed construction |
Component Material Construction
The selection of primary materials determines structural resilience, electrical insulation stability, and long-term environmental endurance of an indication light 12v in industrial operations.
| Component Name |
Material Composition |
Engineering Rationale |
| Main Shell |
Copper Alloy (Nickel Plated) / Zinc-Aluminum Alloy (Black Plated) |
Provides high impact resistance, mechanical rigidity, and corrosion protection against chemical environments. |
| Lamp Holder Base |
PA66 Flame Retardant Nylon |
Ensures high thermal resistance, structural stability, and superior electrical isolation between current terminals. |
| Lampshade Lens |
High-Transparency Polycarbonate (PC) |
Delivers shatterproof physical strength paired with uniform optical dispersion for bright visual signaling. |
| Light Engine |
High-Luminance Solid State LED Chip |
Offers low power consumption, minimal thermal dissipation, and an extended operational life up to 100,000 hours. |
| Internal Resistor |
Precision Carbon Film Resistor |
Regulates forward driving current precisely to prevent LED burnout under ambient voltage fluctuations. |
| Wire Leads ( Optional) |
PVC Insulated Copper Wire |
Provides flexible routing capability with stable dielectric isolation across dynamic wiring harnesses. |
| Mounting Nut |
High-Grade Copper Alloy (Nickel Plated) |
Allows high tightening torque without thread stripping to maintain permanent panel retention. |
| Sealing O-Ring |
High-Elasticity Silica Gel Silicone |
Forms an airtight, watertight seal between the outer metal bezel and panel face, maintaining IP67 rating. |
| Locking Washer |
Stainless Steel (Plum Blossom Design) |
Prevents nut loosening under constant mechanical vibration in industrial machinery and vehicles. |
Environmental Reliability Test Standards
The environmental testing parameters below apply universally across the FILN metal indication light series, defining operating boundaries for extreme thermal and atmospheric environments.
| Environmental Test Category |
Standard Specification & Condition |
| General Application Scope |
General industrial control, equipment status panel, and vehicle electrical systems. |
| Part Name Classification |
FILN Metal Indicator Light Series |
| Operating & Storage Temperature Range |
-40℃ to +80℃ continuous ambient environment |
| Operating Relative Humidity |
≤ 85% RH measured at +40℃ ambient temperature |
| High Temperature Endurance Test |
Sustained exposure for 96 consecutive hours at +80±2℃ |
| Low Temperature Endurance Test |
Sustained exposure for 96 consecutive hours at -40±2℃ |
| Constant Temperature & Humidity Test |
96 hours at +40±2℃ under 90% to 95% RH humidity profile |
| Thermal Temperature Cycling Test |
Alternating between -40℃ (30 min) and +85℃ (30 min) across 5 complete test cycles |
LED Optoelectronic Technical Parameters
1. Absolute Maximum Ratings
| Absolute Parameter Limit |
Maximum Operational Value |
| Peak Forward Current (IFP) |
20 mA maximum continuous drive current |
| Reverse Voltage (VR) |
5 V reverse bias limit |
| Power Dissipation (PD) |
60 mW thermal power limit |
| Operating Temperature (TOPR) |
-40°C to +80°C continuous range |
| Storage Temperature (TSTG) |
-40°C to +100°C storage range |
| Lead Soldering Temperature (TSOL) |
Maximum 260°C sustained for 3 seconds maximum duration |
2. Electro-Optical Characteristics (Ta = 25°C Test Condition)
| Electro-Optical Characteristic |
Testing Condition |
Measured Parameter Range |
| Forward Voltage (VF) |
IF = 20mA |
2.8V (Minimum) ~ 3.2V (Maximum) |
| Reverse Leakage Current (IR) |
VR = 5V |
5μA Upper Limit Maximum |
| Viewing Angle (2θ½) |
IF = 20mA |
60° Standard Angular Spread |
| Luminous Intensity (IV) |
IF = 20mA |
500 mcd (Minimum) ~ 800 mcd (Maximum) |
| Recommended Driving Current (IF) |
Continuous Operation |
20 mA Nominal Target |
| Dominant Wavelength (λd – Green) |
IF = 20mA |
520 nm ~ 525 nm Spectral Output |
| Maximum Junction Temperature (Tj) |
IF = 20mA Operating |
125°C Maximum Limit |
| Thermal Resistance (RJP) |
IF = 20mA Junction-to-Pin |
8°C/W Typical Value |
Standard Laboratory Testing Baseline
Unless specified otherwise during custom OEM laboratory protocols, all electrical and optical parameters for every indication light 12v unit are measured under standard atmospheric baseline parameters.
| Environmental Baseline Factor |
Controlled Testing Requirement |
| Ambient Room Temperature |
5°C to 35°C controlled laboratory ambient |
| Relative Humidity Baseline |
45% to 85% RH non-condensing |
| Atmospheric Air Pressure |
86 kPa to 106 kPa (860 mbar to 1060 mbar) |
Standard Calibration Notes: Luminous intensity output and dominant spectral wavelength measurements are calibrated according to CIE standard human eye response curves. Measurement tolerances: Luminous Intensity ±15%; Voltage Measurement ±0.1V.
Industrial Applications & Use Cases
Constructed with high-strength copper alloy or stainless steel bodies, metal indication lights deliver superior impact resistance and IP67 sealed protection. While standard plastic indicator lights degrade over time—cracking, yellowing under UV, or melting under localized heat—metal indicator light assemblies withstand physical abuse, dynamic vibration, and corrosive atmospheres across five core industry sectors.
1. Industrial Automation & Machinery Manufacturing
Industrial workshops represent the highest volume application environment for indication light 12v components, where machinery experiences heavy vibration, oil coolant splash, and accidental tool contact.
- CNC Machining Centers: Installed on operator consoles using Red/Yellow/Green color codes to signal active machining, standby states, or emergency tool halts. Metallic bezels resist aggressive cutting fluids and flying chips.
- PLC Automated Cabinets: Compact 6mm to 12mm metal indication lights display system bus power and circuit breaker status across 24V DC and 220V AC networks.
- Hydraulic & Pneumatic Power Units: Monitors pump operation and over-pressure alarms. Integrated LED solder terminals resist disconnects under violent equipment shaking where plastic lights fail.
2. Outdoor Power & Renewable Energy Infrastructure
Outdoor infrastructure demands weather-tight components capable of handling thermal swings and direct solar radiation.
- EV Charging Stations: Recessed head metal indicator lights indicate standby, charging, and fault modes. IP67 sealing prevents rain intrusion while vandal-resistant metal bezels protect public infrastructure.
- Solar Combiner Boxes & Power Grids: Reports inverter status and high-voltage circuit closure across wide thermal operating windows from -40°C to +80°C.
3. Rail Transit, Heavy Equipment & Marine Engineering
Mobile machinery and maritime environments subject signal lamps to structural flex, heavy shock, and salt fog corrosion.
- Construction Equipment Dashboards: Deployed in excavators, cranes, and tractors to provide high-visibility warnings for oil pressure, coolant temperature, and brake status.
- Marine & Port Control Systems: Plated brass and stainless steel indicator lights withstand saltwater corrosion and sea spray when combined with silicone sealing gaskets.
4. Commercial Self-Service Terminals & Security Systems
Public access hardware requires tamper-resistant components that maintain appearance under constant public interaction.
- Vending Machines & Ticketing Kiosks: Paired alongside vandal-resistant pushbuttons to indicate coin acceptance, dispensing status, and system maintenance alerts.
- Fuel Dispenser Consoles: Metal indicator bodies support spark-proof electrical isolation in hazardous fuel environments.
- Outdoor Intercoms & Access Gates: Stainless steel bezel lights communicate door lock state (Red locked / Green unlocked) on outdoor access panels.
5. Medical Equipment & Food Processing Machinery
Sanitary processing lines mandate smooth, chemical-resistant component surfaces that endure daily washdown protocols.
- Food Bottling & Packaging Lines: Survives daily high-pressure chemical washdowns without moisture penetration or housing degradation.
- Medical Sterilization Equipment: Recessed LED lights indicate heating, sterilization, and cooling cycles under high temperature exposure.

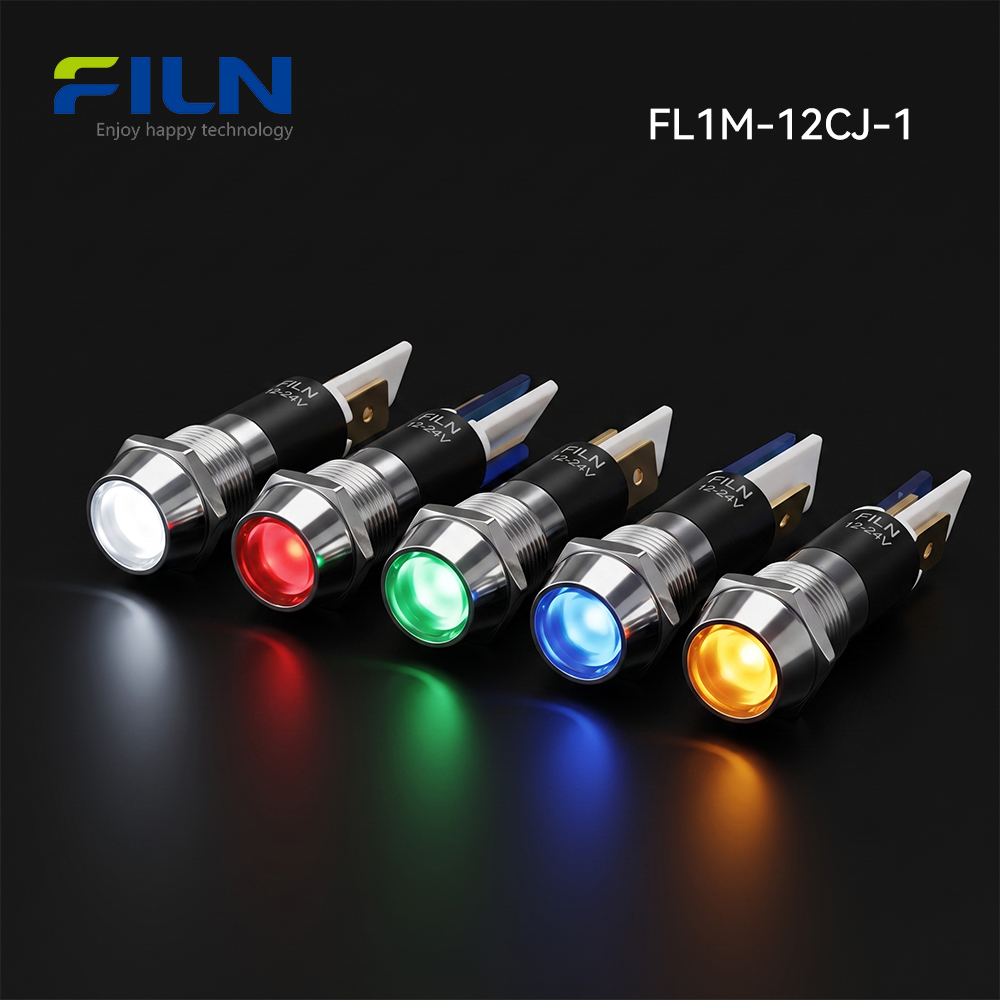

LED Color Conventions & Application Guidance
Selecting the correct lens color for an indication light 12v is critical for operator response times and industrial safety compliance under IEC/EN 60073 conventions. Standard industrial control panels utilize five primary monochromatic light colors along with specialized dual-color and tri-color LED drivers.
- Red (Emergency / Fault State): Indicates critical danger, automatic machine shutdowns, thermal overload trip conditions, or immediate safety hazards requiring immediate human operator intervention.
- Green (Normal / Safe Operation): Signals normal system parameters, successful circuit energization, safe access permission, or process completion.
- Yellow / Amber (Warning / Abnormal Condition): Signals thermal limits approaching threshold, power fluctuations, automated maintenance reminders, or non-critical system anomalies.
- Blue (Mandatory Action Required): Commands specific operator action, such as manual system reset, fluid replenishment, or input parameter calibration prior to restarting operation.
- White (Neutral Status / Monitoring): Serves as general system power presence confirmation, backlight source, or auxiliary monitoring signal without specific hazard urgency.
FILN Custom Bi-Color & Tri-Color Solutions: To maximize control panel real estate, FILN provides custom bi-color (e.g., Red/Green common cathode) and tri-color (Red/Green/Blue) indication light 12v configurations within a single 12mm metal housing. This allows control panel builders to toggle between “Standby” (Red) and “Running” (Green) states through a single panel cut-out.
Step-by-Step Installation Guide
Follow this standardized mechanical installation procedure to ensure an IP67 liquid-tight seal and reliable mechanical retention when mounting the FL1M-12CJ-1 indication light 12v onto control enclosures.
- Prepare Panel Cut-Out: Drill or punch a clean 12mm (0.47 inch) circular mounting hole into the metal or synthetic enclosure panel. De-burr all hole edges completely to prevent damage to the rubber sealing gasket.
- Position Waterproof O-Ring: Slide the provided flexible silicone rubber O-ring over the rear terminal body of the indication light 12v, seating it firmly against the front metallic bezel flange.
- Insert Assembly Into Panel: Push the terminal body through the front face of the 12mm panel opening until the silicone gasket makes complete 360-degree contact with the outer panel surface.
- Install Anti-Vibration Washer: From the rear interior side of the panel enclosure, slide the stainless steel plum blossom locking gasket over the threaded brass body.
- Secure Hexagonal Lock Nut: Thread the M12 brass locking nut onto the rear body. Tighten securely using a torque wrench (recommended tightening torque: 1.5 Nm to 2.0 Nm) to compress the front silicone O-ring into an airtight seal.
- Connect Terminal Wiring: Attach 12V DC power leads to the 2PIN solder tabs using standard heat-shrink insulated connectors or direct hand soldering techniques.
Wiring Guide & Connection Methodology
Safety Warning: Before performing electrical installation or maintenance on any indication light 12v assembly, isolate the main AC/DC supply power source to prevent electrical shock or short-circuit accidents.
For pin terminal models (FL1M-12CJ-1), wire leads can be joined directly to the brass solder tabs using standard 60/40 rosin-core solder and insulated with heat-shrink tubing. Alternatively, quick-disconnect push-on crimp terminals can be used for tool-less field service. For pre-wired lead versions, connection to control bus lines can be made via rapid spring lever connectors, solder sleeves, or industrial electrical tape wraps.
| Terminal Connection Type |
Key Advantages |
Limitations & Cons |
Optimal Application Scope |
| 2PIN Solder / Push Tab (FL1M-12CJ-1) |
Compact rear depth; allows custom length wire harnesses; cost-effective unit pricing. |
Requires hand soldering time or specialized crimp connectors on assembly line. |
High-volume automated panel manufacturing, compact PCB control boxes. |
| Pre-Wired Lead Wire (FL1M-12CW-1) |
Factory epoxy sealed; zero hand soldering required; maximum liquid IP67 integrity. |
Fixed lead lengths require custom ordering for non-standard lengths. |
High-moisture washdown areas, marine machinery, outdoor EV charging posts. |
| Screw Clamp Terminal Type |
Screwdriver field connection; rapid replacement without soldering iron. |
Larger overall housing diameter; screws can loosen under extreme dynamic vibration. |
Heavy electrical distribution cabinets, stationary building management panels. |
Industry Technical Knowledge Base
Resolving Phantom Illumination (Faint Glowing) in 12V LED Indicators
A common issue electrical engineers face when installing an indication light 12v in long cable run systems or PLC solid-state relay outputs is “phantom illumination”—where the LED glows weakly despite the control switch being turned off. This happens because high-efficiency LEDs require minimal threshold voltage (~1.8V to 2.2V) and ultra-low leakage current (less than 1mA) to emit light.
Phantom glow is typically caused by stray capacitive coupling in parallel wire trays or tiny semiconductor leakage currents passing through PLC output cards. To solve phantom illumination, place a bleed resistor (typically 1kΩ to 4.7kΩ 1/2W) or a bypass RC snubber network in parallel across the indicator light terminals. This diverts stray leakage currents around the LED element, holding the residual voltage below the forward threshold.
Maintenance & Preventive Care Guidelines
While FILN solid-state indication light 12v units operate maintenance-free for up to 100,000 continuous hours, routine industrial maintenance checks should include inspect terminal crimps or solder joints annually for corrosion or vibration fatigue, wipe polycarbonate lenses using isopropyl alcohol to remove oil film accumulation, and verify locknut torque on heavy machinery to maintain IP67 gasket compression.
B2B Buyer Selection Guide: Metal Material Comparison
Selecting the optimal outer metal body material for an indication light 12v depends on operating environment conditions, chemical exposure, aesthetic goals, and budgetary targets. FILN manufactures metal indication lights across three primary metallic shell materials:
| Housing Material Option |
Key Advantages |
Trade-offs & Weaknesses |
Recommended Application Environments |
| Nickel-Plated Brass Alloy (Standard) |
High mechanical strength, bright chrome aesthetic, excelente electrical grounding conductivity, cost-effective. |
Nickel layer may wear under long-term exposure to strong acids or caustic sodium hydroxide. |
General machinery control panels, indoor automation racks, automotive instrument panels. |
| Stainless Steel (304 / 316 Grade) |
Exceptional chemical resistance, withstands high salt mist corrosion, highly hygienic surface finish. |
Higher material raw cost; harder metal machining cycle increases unit price. |
Marine vessel decks, food bottling plants, medical sterilizers, outdoor seaside infrastructure. |
| Anodized Zinc-Aluminum Alloy (Black) |
Matte black aesthetic finish, lightweight housing, scratch-resistant surface treatment. |
Slightly lower impact threshold compared to solid forged stainless steel bodies. |
High-end consumer audio equipment, custom automotive interiors, defense equipment control panels. |
Recommended Similar Indicator Light Products:
Why Industrial Engineers & OEM Buyers Choose FILN
Global electrical engineers, automation integrators, and OEM purchasing managers partner with FILN for reliable signal indicator solutions backed by total manufacturing flexibility.
Factory Direct Operations: Eliminate intermediary trading markup by sourcing directly from our ISO9001 certified production facility.
Zero Minimum Order Quantity (No MOQ): We support engineering prototypes and small batch production runs with 1-piece ordering capability.
Fast Lead Times & Custom Wiring: Custom lead lengths, specific wire gauges, and connector terminations ship within 3 to 7 working days.
Full OEM/ODM Engineering Support: Dedicated electrical engineers assist with custom voltage resistor calculations, 3D STEP models, and custom bezel designs.
Factory Direct Supply & Global Manufacturing Standards
Yueqing Yulin Electronic Co., Ltd., operating under the global brand name FILN, was established in 2006 in Wenzhou, Zhejiang Province, China. As a specialized electrical switch and indication light manufacturer integrating research, development, and automated manufacturing, FILN products serve OEM customers across more than 100 countries worldwide.
FILN operates a modern 10,000 m² production facility equipped with over 20 advanced automated assembly lines and an independent optoelectronic testing laboratory. Driven by rigorous ISO9001 quality management protocols, FILN ensures consistent dielectric performance, water ingress protection, and long-term optical reliability across every production batch. Our complete product line—certified under UL (File E498776), CE, VDE, RoHS, REACH, TUV, and CB standards—is widely deployed in commercial kitchen appliances, renewable energy storage systems, EV charging pillars, automotive, marine, and security systems.
Manufacturing Capabilities: High-volume production of metal/plastic indicator lights, pushbutton switches, rocker switches, toggle switches, and fully customized electrical harness solutions tailored to OEM client drawings.
Frequently Asked Questions (FAQ)
Q1: What is the mounting hole size for the FL1M-12CJ-1 indication light 12v?
A: The FL1M-12CJ-1 requires a standard 12mm (0.47 inch) circular panel cut-out dimension.
Q2: Is this 12v indication light fully waterproof for outdoor washdown use?
A: Yes, when correctly mounted with the supplied silicone rubber O-ring, it achieves an IP67 ingress protection rating, making it completely dustproof and resistant to high-pressure water jets.
Q3: How to prevent phantom illumination (faint glowing) in 12v LED indicators?
A: Phantom illumination occurs when tiny stray leakage currents pass through PLC solid-state outputs or induced capacitive voltage from adjacent wires energizes the high-efficiency LED. Wiring a 1kΩ to 4.7kΩ bypass bleed resistor in parallel across the indicator light terminals diverts stray current and resolves this issue completely.
Q4: Can this IP67 indicator light be washed down with caustic chemicals?
A: Yes, the nickel-plated brass shell and polycarbonate lens resist standard factory washdown chemicals. For extreme acid or caustic sodium hydroxide environments, FILN recommends specifying 316-grade stainless steel body variants.
Q5: What certification standards apply to FILN metal indication light products?
A: FILN metal indicator lights carry official UL certification (UL File Number E498776), alongside CE, VDE, RoHS, ISO9001, CCC, and TUV accreditations.
Q6: Can the indication light 12v operate on AC power or DC power only?
A: The FL1M-12CJ-1 internal driver architecture supports both 12V DC and 12V AC (50/60Hz) electrical power supplies seamlessly.
Q7: What is the difference between flat head and recessed head metal indicator lights?
A: Flat head indicators sit flush for smooth switchboard aesthetics, whereas recessed head models feature a protective outer metal lip that guards the lens against physical collisions and accidental impacts.
Q8: What terminal options are available on FILN 12mm metal indicators?
A: FILN offers 2PIN solder/quick-connect tabs (FL1M-12CJ-1) and factory wire leads (FL1M-12CW-1).
Q9: What colors are available for the FL1M-12CJ-1 indication light 12v?
A: Standard monochromatic colors include Red, Green, Yellow, Blue, and White (R/G/Y/B/W). Custom bi-color and tri-color versions are available upon request.
Q10: Does FILN support custom wire length orders for OEM clients?
A: Yes, FILN provides complete OEM wire lead customization including wire gauge, specific wire lengths, heat shrink sleeving, and custom automotive or industrial connector assembly.
Q11: What is the continuous operational lifespan of the internal LED chip?
A: The high-luminance LED light engine is rated for 50,000 to 100,000 continuous operating hours under rated current conditions.
Q12: What is the minimum order quantity (MOQ) for direct factory purchases?
A: FILN maintains a zero minimum order quantity policy (No MOQ), allowing clients to order single evaluation samples or full wholesale production runs.
Q13: How does metal indicator housing compare to plastic indicator housing in vibration environments?
A: Metal bodies withstand severe continuous dynamic vibration without micro-fracturing or nut loosening, whereas plastic bodies often fail due to thread fatigue.
Q14: Are 3D CAD STEP files available for control cabinet layout design?
A: Yes, electrical engineers can request official 3D STEP files and 2D CAD dimensional drawings directly by emailing inquiry@cnylin.com.cn.
Q15: What is the dielectric voltage withstand rating for this indicator light?
A: The FL1M-12CJ-1 delivers a dielectric strength rating of 1500V to 1800V AC tested between current-carrying terminals and the outer metal shell without electrical flashover.
Q16: What operating temperature range can this signal lamp tolerate?
A: It is rated for continuous operating and storage temperatures ranging from -40°C to +80°C.
Q17: What torque should be applied when securing the M12 brass locknut?
A: The recommended mounting torque is 1.5 Nm to 2.0 Nm to establish proper silicone sealing compression without damaging panel threads.
Q18: Can FILN supply custom input voltages such as 36V or 48V DC?
A: Yes, FILN custom integrates current-limiting resistors during production to accommodate specialized operating voltages from 3V up to 220V.
Q19: How quickly can production orders be shipped globally?
A: Standard catalog orders ship within 24-48 hours, while custom wire harness production orders ship within 3 to 7 working days via DHL/FedEx global air express.
Q20: Why is the recessed head design safer for heavy industrial machinery?
A: The sunken lens profile prevents accidental activation or physical breakage caused by falling tools, passing carts, or operator elbows in cramped control rooms.
