Key Takeaways for Industrial Engineers
- Standardized 12mm Mounting: Precision engineered for 12mm (0.47 inch) panel cut-outs with a single-nut locking mechanism.
- High-Visibility Raised Dome Design: Prominently extruded head type provides wide-angle omnidirectional light output across 180 degrees.
- Pre-Wired 2PIN Assembly: Includes integrated 20cm single wires (40cm total loop) for rapid terminal box wiring without manual soldering.
- IP67 Environmental Protection: Sealed with a silicone O-ring to prevent water ingress, oil contamination, and dust ingress in severe conditions.
- Universal Voltage Adaptability: Custom internal driver configurations support voltages from 3V to 240V AC/DC systems.
- Durable Metallic Construction: Nickel-plated brass shell resists mechanical impact, vibration, and thermal deformation better than plastic alternatives.
- Extended Operational Lifetime: Solid-state LED element delivers between 50,000 and 100,000 hours of continuous operational service.
- Global Compliance Certifications: Fully certified under CE, VDE, RoHS, ISO9001, and CCC standards for seamless international export.
- Factory Direct Supply Chain: Manufactured directly by FILN with custom wire lengths, colors, and laser etching available without MOQ limitations.
What is a Panel Indicator Light?
A panel indicator light is a specialized electrical visual signal device mounted onto the operator interfaces of control cabinets, machinery, and electrical power distribution systems. Its primary function is to communicate operational status, fault warnings, system readiness, or power presence to system operators in real time. Structurally, a modern panel indicator light comprises an optical light emitting element, a internal current-limiting resistor, a rugged protective body, a light-diffusing lens, and fixed electrical connection interfaces.
Industrial equipment specifiers can choose between two main structural categories: metal panel indicator lights and plastic panel indicator lights. Mounting hole diameters typically span from 6mm to 30mm to align with varying enclosure spaces. Modern panel indicator light assemblies offer flexible connection choices, including pin-type terminals for PCB or socket wiring and pre-wired wire lead types for rapid direct connection.
To satisfy distinct visibility and aesthetic requirements, metal panel indicator light models are engineered with three primary head profiles: flat head, raised head (convex), and concave head. The raised head profile extrudes outward from the control surface, allowing engineers to view system status even from extreme side angles in dense factory control rooms.

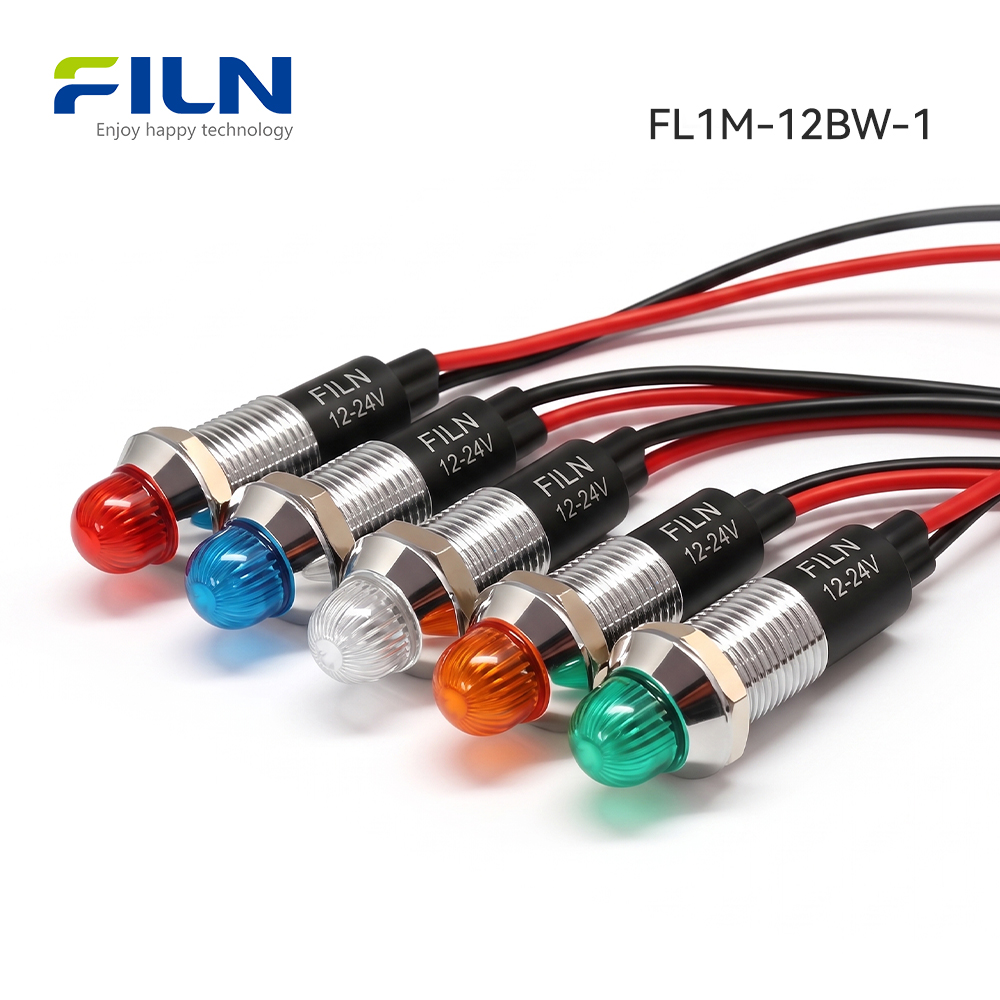

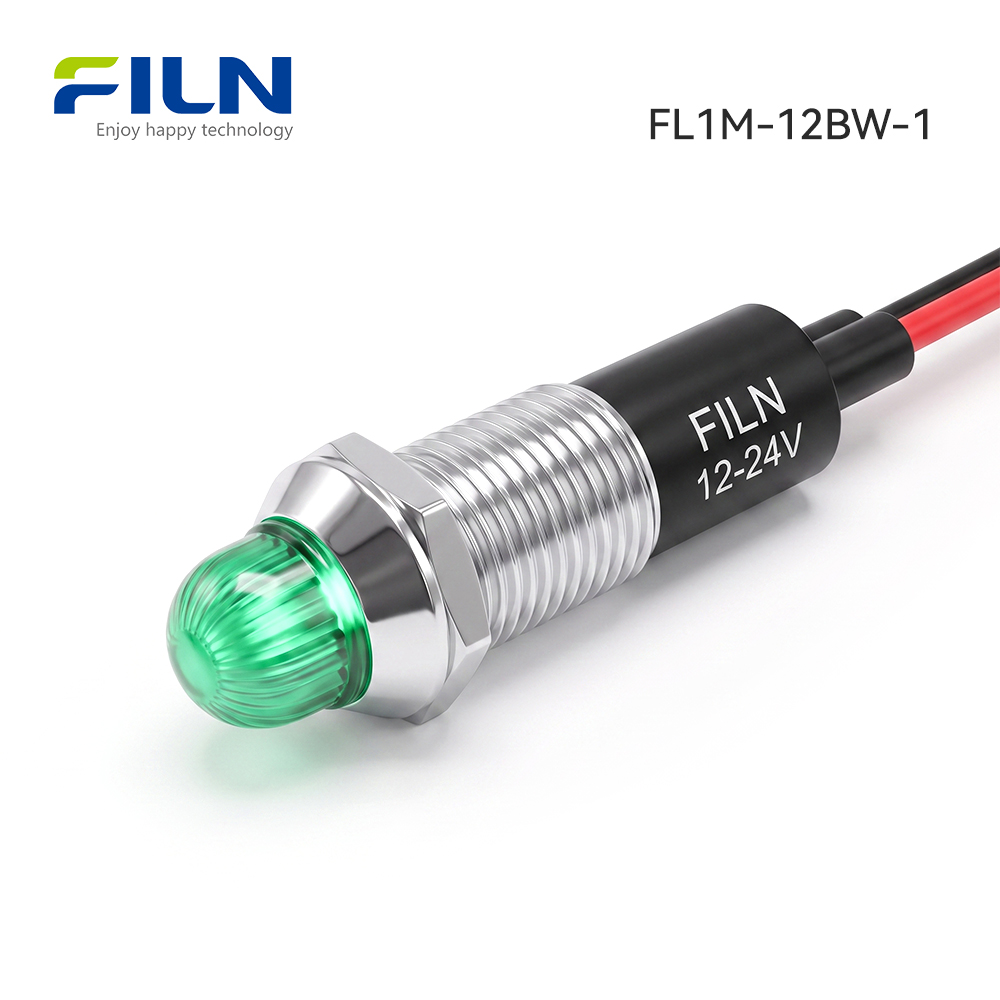

Product Overview: FILN FL1M-12BW-1
The FILN FL1M-12BW-1 panel indicator light represents an advanced visual signaling solution housed in a 12mm metal body. Electrically, the internal high-brightness LED chip works alongside a precision carbon film resistor, converting input electrical current into high-intensity illumination without generating excess heat. Mechanically, the threaded brass body passes through panel cut-outs and locks securely via a back-mounted hex nut and lock washer.
Compared to conventional plastic visual signals, this metal panel indicator light offers superior resistance to mechanical impacts, chemical sprays, and thermal expansion. The pre-wired 2PIN wire lead configuration eliminates assembly time on site. Certified under international standards including CE, VDE, RoHS, ISO9001, and CCC, this component is designed for seamless integration into global OEM control products.
Quick Specifications
| Description |
Metal panel indicator light with wires |
| Model Code |
FL1M-12BW-1 |
| Mounting Hole |
12 mm (0.472 inches) |
| Operating Voltage |
3V – 220V AC/DC (Custom voltages available) |
| LED Color |
Red, Green, Yellow, Blue, White, Bicolor, Tricolor |
| Waterproof Rating |
IP65 / IP67 Sealed |
| Wiring Type |
2PIN Wire Lead (Single wire length 20cm, total length 40cm) |
| Head Type |
Raised Head / Convex Dome (凸头) |
| Surface Finishing |
Smooth, flat, burr-free, anti-oxidation, crack-free plating |
| Included Accessories |
1x Indicator Body, 1x Waterproof Ring, 1x Washer, 1x M12 Nut |
| Assembly Quality |
Head and base securely press-fit, zero rotation, no shedding, no deformation |
Performance Parameters
| Parameter Name |
Technical Specification |
| Rated Working Voltage |
3V–240V DC/AC (Custom voltages per request) |
| AC Frequency |
50 Hz ~ 60 Hz |
| Rated Working Current |
≤ 20 mA |
| Rated Power Consumption |
Approx. 0.2 W |
| Insulation Resistance |
≥ 100 MΩ (Applied 500V DC between wire and shell) |
| Dielectric Strength |
1500V ~ 1800V AC, no breakdown or flashover |
| Operational Service Life |
50,000 Hours ~ 100,000 Hours |
| Waterproof Protection Grade |
IP65/67 Certified |
Component Materials Specification
| Accessory Name |
Material Used |
Engineering Function |
| Outer Shell |
Nickel-Plated Copper Alloy / Black Zinc-Aluminum Alloy |
Provides mechanical rigidity, EMI shielding, and anti-corrosion protection. |
| Lamp Holder |
PA66 Polyamide Nylon |
Delivers electrical insulation and flame retardancy for internal contacts. |
| Lampshade Lens |
PC Polycarbonate |
High impact strength and UV stability for maximum light transmittance. |
| Light Source |
High-Luminance Solid-State LED |
Generates bright visual output with minimal power consumption and long operational life. |
| Resistor |
Carbon Film Resistance Element |
Regulates current flow to prevent LED overload under rated line voltages. |
| Wire Leads |
High-Temperature Insulated PVC Wire |
Ensures flexible electrical routing and current delivery without short-circuit risk. |
| Fixing Nut |
Copper Alloy / Nickel Plated Brass |
Threaded retention hardware for secure mechanical clamping to panel faces. |
| Sealing Ring |
Silica Gel (Silicone Rubber) |
Compresses under panel interface to guarantee IP67 waterproof seal. |
| Lock Washer |
Stainless Steel (Plum Blossom Gasket) |
Prevents rotational loosening caused by mechanical vibrations. |
Environmental Performance Testing
This technical specification defines the general operating parameters for the FILN Metal panel indicator light series under extreme industrial conditions.
| Environmental Test Standard |
Testing Conditions & Operational Thresholds |
| Operating & Storage Temperature Range |
-40℃ to +80℃ continuous operation |
| Operating Relative Humidity |
≤ 85% RH at +40℃ ambient temperature |
| High Temperature Survival Test |
96 continuous hours at 80 ± 2℃ without mechanical or optical decay |
| Low Temperature Survival Test |
96 continuous hours at -40 ± 2℃ without structural cracking |
| Constant Temp & Humidity Test |
96 hours at 40 ± 2℃ with 90% ~ 95% RH |
| Temperature Cycling Shock Test |
5 complete cycles alternating between -40℃ (30 min) and +85℃ (30 min) |
LED Optoelectronic Specifications
1. Absolute Maximum Ratings (Ta = 25°C)
| Parameter Symbol |
Absolute Maximum Threshold |
| Peak Forward Current (IFP) |
20 mA |
| Reverse Voltage (VR) |
5 V |
| Power Dissipation (PD) |
60 mW |
| Operating Temperature (TOPR) |
-40°C ~ +80°C |
| Storage Temperature (TSTG) |
-40°C ~ +100°C |
| Lead Soldering Temperature (TSOL) |
Max 260°C for 3 seconds maximum |
2. Electro-Optical Characteristics (Ta = 25°C)
| Parameter |
Test Conditions |
Value Range / Typical Value |
| Forward Voltage (VF) |
IF = 20mA |
2.8V (Min) ~ 3.2V (Max) |
| Reverse Current (IR) |
VR = 5V |
5 μA Maximum |
| Viewing Angle (2θ½) |
IF = 20mA |
60° Typical |
| Luminous Intensity (Iv) |
IF = 20mA |
500 mcd (Min) ~ 800 mcd (Max) |
| Recommended Forward Current (IF) |
Continuous |
20 mA Typical |
| Dominant Wavelength (λd) |
IF = 20mA (Green) |
520 nm ~ 525 nm |
| Junction Temperature (Tj) |
IF = 20mA |
125°C Maximum |
| Thermal Resistance (RJP) |
IF = 20mA |
8°C/W Typical |
Standard Test Conditions
Unless otherwise stated in engineering documentation, all electrical and optical parameters of each panel indicator light are measured under standard atmospheric conditions:
| Testing Environmental Parameter |
Standard Laboratory Range |
| Ambient Temperature |
5℃ to 35℃ |
| Relative Humidity |
45% to 85% RH |
| Atmospheric Air Pressure |
86 kPa to 106 kPa (860 mbar to 1060 mbar) |
Testing Calibration Note: Luminous intensity and dominant wavelength measurements are calibrated in full accordance with the CIE international standard human eye response curves. Measurement tolerances: Luminous intensity ±15%, Forward Voltage ±0.1V.

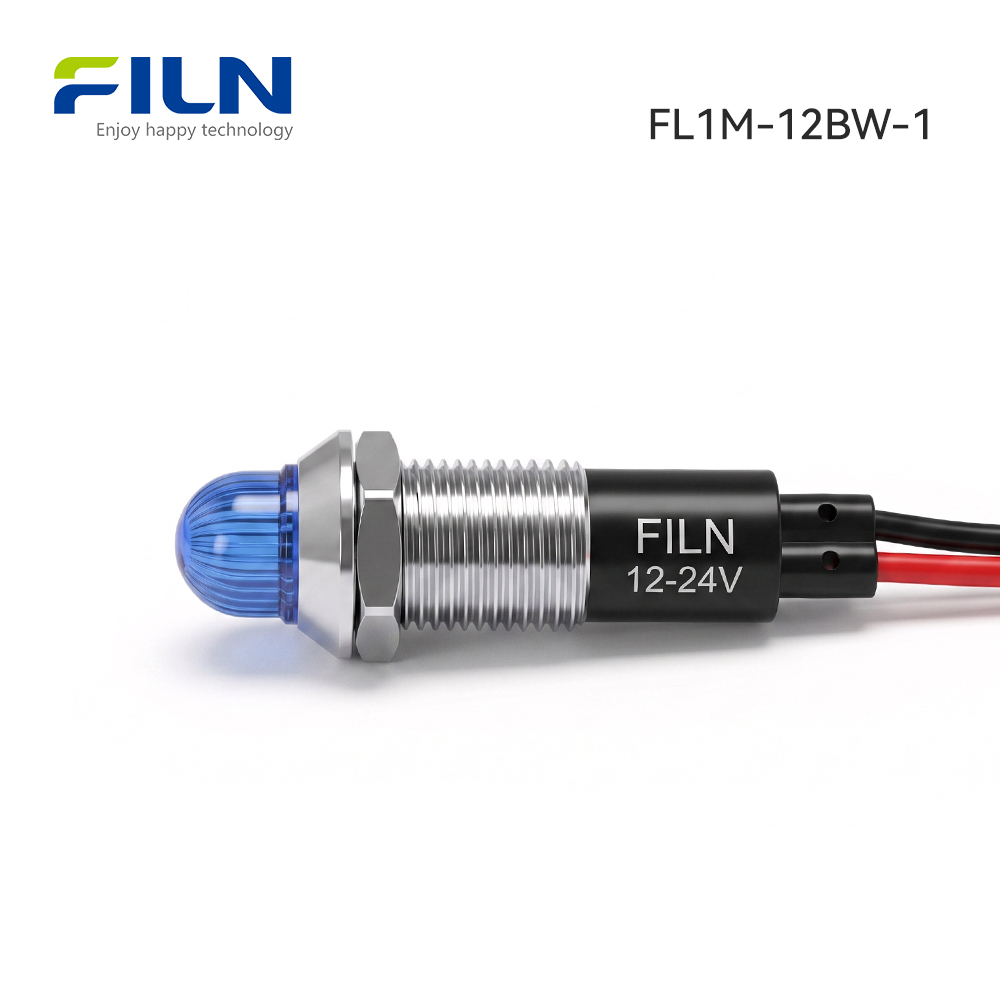

Applications Across Heavy Industries
While standard plastic indicator lamps degrade, yellow, and fracture under UV exposure, chemical vapors, or high operating temperatures, the metal panel indicator light provides reliable operational feedback in harsh industrial environments. Constructed from high-strength nickel-plated copper alloy or stainless steel with IP67 sealing, FILN panel indicator light models serve across demanding sectors:
1. Industrial Automation & CNC Machinery
Machine shop floors subject components to continuous vibration, cutting fluids, and airborne particulate. CNC operator panels rely on red, green, and yellow panel indicator light units to indicate active machining, program holding, or emergency stop states. Pre-wired internal potting guarantees that internal electrical connections remain secure against mechanical shock.
2. Outdoor Power & Renewable Energy Systems
EV charging stations, solar combiner boxes, and municipal power distribution panels require visual signaling that withstands extreme weather. Flush-mounted metal panel indicator light models offer vandal resistance and IP67 waterproof protection, indicating active charging states, insulation faults, or power feed continuity from -40°C to +80°C.
3. Rail Transit, Heavy Equipment & Marine Control
Excavator operator cabs and marine bridge consoles experience intense vibration and saltwater air. Stainless steel panel indicator light assemblies with silicone seal gaskets prevent saltwater intrusion and corrosion, signaling engine oil pressure drops, hydraulic line warnings, and battery charging statuses.
4. Commercial Vending, Security & Fueling Terminals
Publicly accessible access control terminals, automated ticketing machines, and fuel dispensers require impact-resistant metal housings to prevent tampering. Rugged panel indicator light units visually display door lock states, transaction approvals, or hazardous gas system interlocks.
5. Medical Sterilization & Food Processing Machinery
Food packaging and pharmaceutical lines undergo high-pressure washdowns with aggressive chemical cleansers. IP67-rated metal panel indicator light models maintain internal seal integrity under high-temperature fluid washdowns, giving clear visual cues during sterilization cycles.
Standard Color Codings & Multi-Color Signaling
In industrial control systems (conforming to IEC 60073 and EN 60073 standards), visual indicator colors communicate system status clearly to machine operators. Selecting the appropriate panel indicator light color prevents operational confusion and speeds response times:
| Color |
Standard Operational Meaning |
Typical Application Scenario |
| RED |
Emergency, Danger, Fault condition |
E-stop active, over-temperature alarm, safety trip, system failure. |
| GREEN |
Normal operation, System Ready, Safe |
Power supply active, motor running normally, safety interlock closed. |
| YELLOW / AMBER |
Warning, Caution, Abnormal condition |
Filter maintenance required, fluid level approaching threshold, standby mode. |
| BLUE |
Mandatory action required, Specific state |
Reset sequence required, manual initialization active, process cycle running. |
| WHITE |
Neutral status, Power presence confirmation |
Main disconnect switch closed, general illumination, line voltage present. |
For space-constrained enclosures requiring multi-status feedback, FILN manufactures dual-color (Bicolor) and triple-color (Tricolor) panel indicator light variants within a single 12mm metal housing. By changing polarities or energizing separate control leads, a single panel indicator light can transition seamlessly between Green (Ready), Yellow (Warning), and Red (Fault).

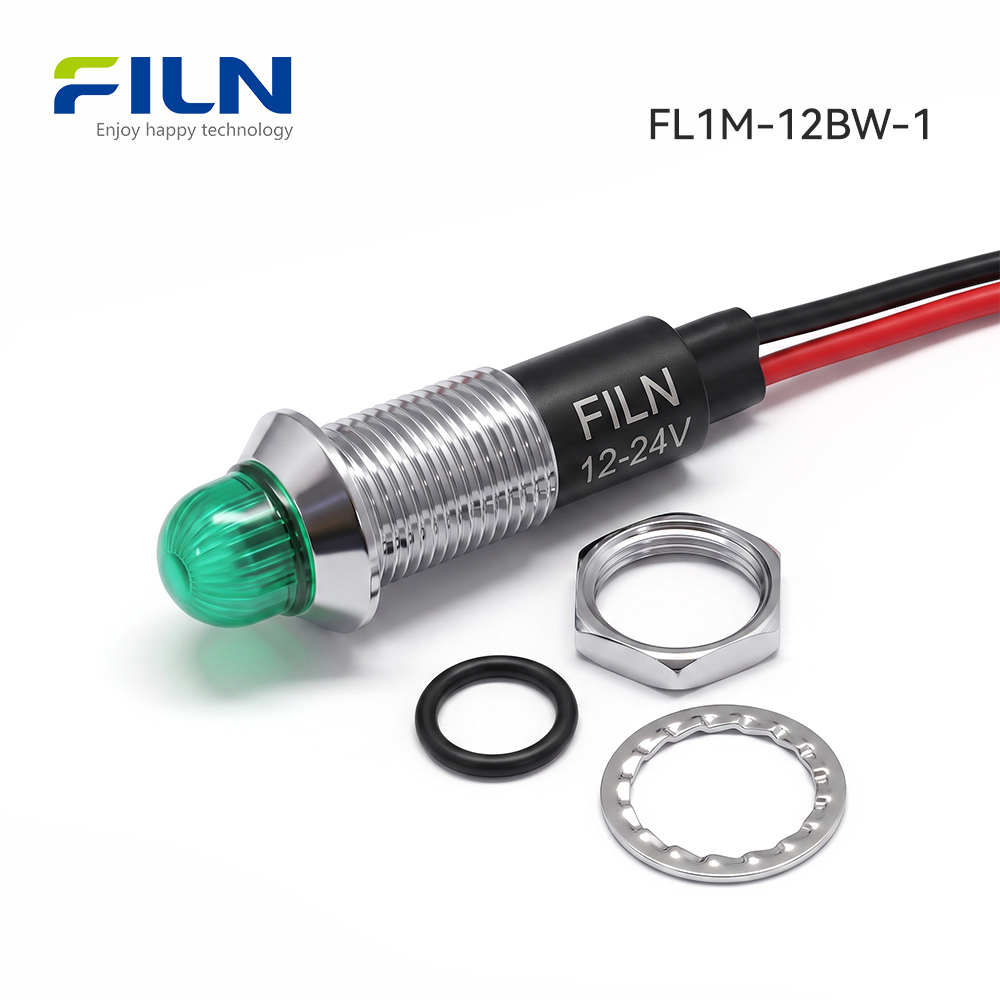

Step-by-Step Installation Guide
Proper mechanical installation guarantees IP67 seal performance and long-term service life for your panel indicator light. Follow these steps:
- Panel Cut-Out Preparation: Drill or punch a clean 12.1mm to 12.5mm circular mounting hole into the control panel surface. Remove all metal burrs and metal filings around the edge.
- Sealing Ring Alignment: Slide the included flexible silica gel O-ring onto the threaded body of the panel indicator light until it sits flush against the rear collar of the raised metal head.
- Front Panel Insertion: Insert the wire leads and threaded body through the front face of the panel cut-out, pushing firmly until the rubber O-ring makes even contact with the panel surface.
- Rear Hardware Assembly: From behind the panel wall, slide the stainless steel plum blossom lock washer over the wire leads onto the threaded body.
- Nut Torquing & Locking: Thread the M12 nickel-plated brass nut onto the body. Tighten using an appropriate wrench to a torque rating of 1.5 N·m to 2.0 N·m. Do not over-torque.
- Electrical Wiring Connection: Route the insulated 2PIN wire leads to your control system power supply or terminal blocks, ensuring proper polarity matching if operating on DC potential.

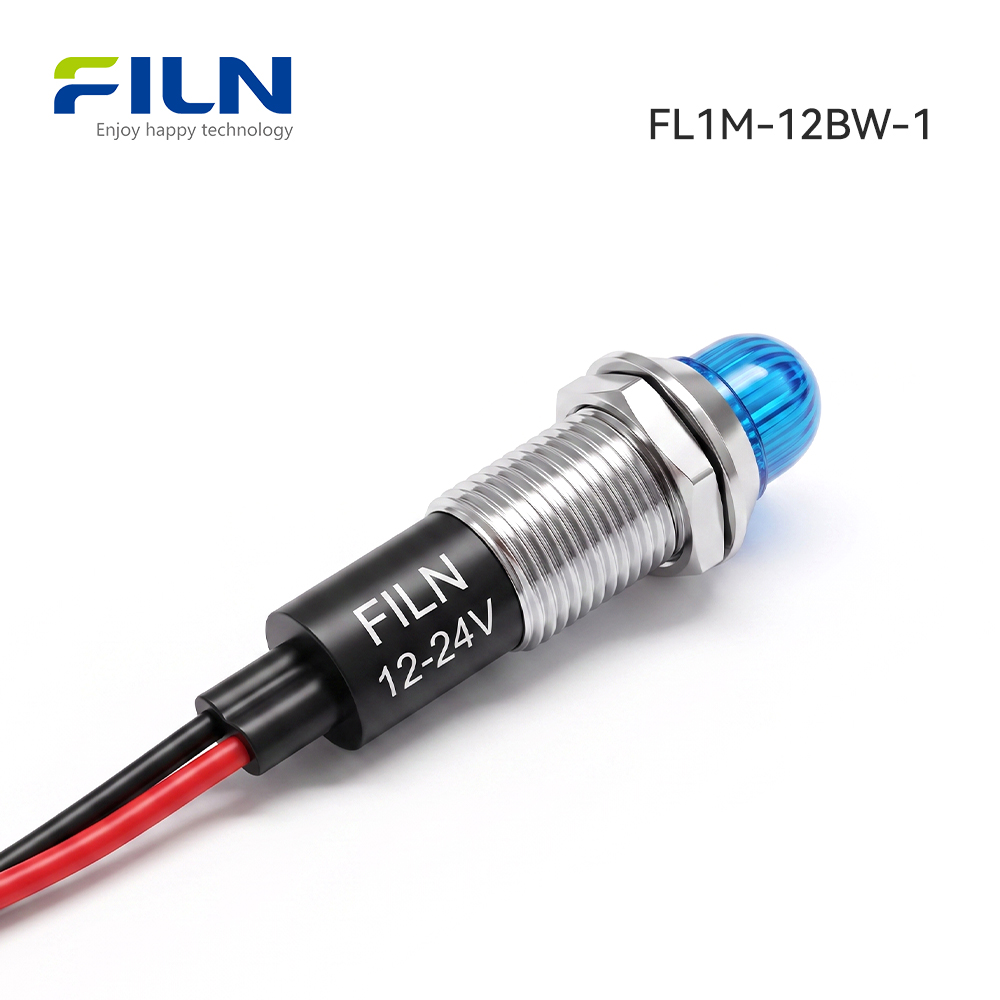

Electrical Wiring & Terminal Comparison Guide
Selecting between pre-wired wire lead terminals, pin solder terminals, and screw faston connections depends on panel assembly workflows and environment maintenance plans.
| Terminal Style |
Key Advantages |
Limitations |
Recommended Application |
| Pre-Wired Wire Leads (2PIN) |
Zero soldering required; potted tail resists moisture ingress and high vibration. |
Fixed wire length requires custom ordering for long runs. |
High-vibration machinery, outdoor cabinets, fast assembly. |
| Pin Solder Terminals |
Compact rear profile; direct connection for PCB integration. |
Requires manual soldering time; thermal damage risk if overheated. |
Compact electronics, custom circuit board panel interfaces. |
| Screw Faston Terminals |
Easy field replacements using standard tools; quick crimp connections. |
Larger rear depth footprint; screws can back out under vibration. |
Large power distribution boards, low-vibration enclosures. |
For pre-wired wire lead panel indicator light assemblies, electrician technicians can join line leads using lever nut quick connectors, high-reliability solder sleeves, or insulated crimp connectors. Safety Note: Always disconnect line voltage prior to making or servicing electrical connections.
Industry Knowledge Base: Engineering Guidance
Eliminating Phantom Illumination (Faint Glowing) in LED Systems
A common issue in modern industrial installations is “phantom illumination,” where an off-state LED panel indicator light glows faintly. This occurs when stray leakage current or capacitive coupling from adjacent parallel AC wiring induces a low voltage onto the signal circuit. Standard high-sensitivity LEDs illuminate at micro-ampere thresholds. FILN overcomes phantom illumination by incorporating internal bleeding resistors and threshold zener diodes into the custom panel indicator light driver circuit, bleeding off induced leakage voltage below 15V AC.
Preventing Premature LED Failures
To maximize operational lifespan across 100,000 hours, electrical designers must prevent over-voltage spikes and thermal buildup. Selecting a panel indicator light with internal current regulation ensures stable forward current even during line supply fluctuations. Furthermore, using a metallic brass body acts as a heat sink, pulling thermal energy away from the semiconductor junction.
B2B Buyer Decision & Housing Material Selection
Selecting the correct metallic alloy housing for your panel indicator light directly impacts cost performance and corrosion lifespan. FILN manufactures metal panel indicator lights across three metal grades:
| Material Option |
Key Strengths & Advantages |
Drawbacks / Limitations |
Best Environment Fit |
| Nickel-Plated Brass (Standard) |
Excellent cost efficiency, bright aesthetic, high impact strength, good thermal conductivity. |
Not suitable for prolonged acid immersion or high-salinity submersion. |
General industrial machinery, indoor control panels, CNC units. |
| Stainless Steel (304 / 316 Grade) |
Maximum corrosion resistance, withstands high chemical pressure washdowns, highly durable. |
Higher material and machining cost. |
Marine vessels, food processing equipment, chemical processing plants. |
| Black Anodized Zinc-Aluminum Alloy |
Modern anti-glare aesthetic, lightweight, high surface scratch resistance. |
Anodized layer can scratch if installed with rough tools. |
High-end audio equipment, luxury automotive dashboards, medical consoles. |
Recommended Alternative Models for Design Variations
If your mounting panel footprint requires smaller diameters or alternative connection types, review these companion product lines:
Why OEM Engineers & Procurement Managers Choose FILN
Sourcing industrial components directly from the manufacturing source eliminates middleman costs and ensures rapid technical support during custom engineering developments. FILN stands out as an established manufacturing partner:
| Factory Direct Supply |
Direct communication with product engineers; transparent wholesale pricing structures. |
| No Minimum Order Quantity |
Order 1 piece for prototype testing or 100,000 units for full production runs without surcharge. |
| Rapid Lead Times |
Standard catalog items ship within 24-48 hours; custom wire modifications ship within 7 days. |
| OEM & ODM Customization |
Custom lead wire gauges, special voltage inputs, custom lens colors, and laser-engraved symbol symbols. |
| Engineering CAD & 3D Support |
Instant delivery of STEP, IGES, and 2D drawing files for immediate integration into enclosure designs. |

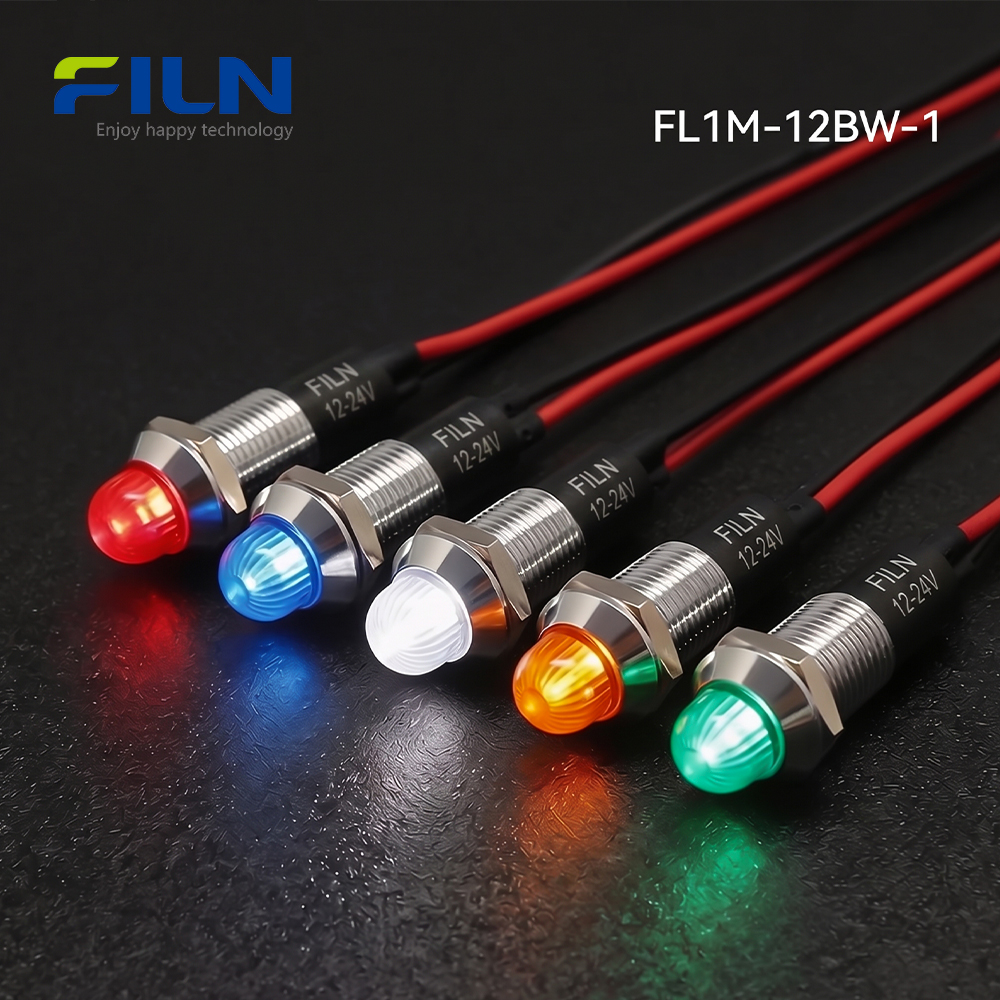

Factory Direct Manufacturing Capabilities
Yueqing Yulin Electronic Co., Ltd, operating under the international brand name FILN located in Wenzhou, Zhejiang, was established in 2006 as a dedicated electrical switch and signal light manufacturer integrating design R&D, automated production, and global sales. FILN products are deployed across more than 100 countries globally.
FILN operates a modern 10,000 m² production facility housing over 20 advanced automated assembly lines and an independent testing laboratory. Operating under strict ISO9001 quality management system protocols, FILN maintains full traceable quality control from raw material inspection to final optical testing. Our certified products (UL, CE, RoHS, REACH, TUV, CB) are widely specified across commercial kitchen appliances, energy storage units, EV chargers, automotive, marine, and security automation panels.
Beyond our standard panel indicator light lines, our production capabilities include metal pushbutton switches, rocker switches, toggle switches, micro switches, and custom wire harness assemblies.
Visit our primary website at www.filn.com or contact our technical sales team directly at inquiry@cnylin.com.cn for customized 3D models and instant bulk pricing.
Frequently Asked Questions (FAQ)
How to prevent phantom illumination (faint glowing) in 12v LED indicators?
Phantom illumination occurs when stray leakage current or capacitive coupling in adjacent wiring feeds low voltage into high-efficiency LEDs. FILN addresses this by integrating bleeding resistors into custom panel indicator light circuits to drain induced voltage below turn-on thresholds.
Can this IP67 indicator light be washed down with caustic chemicals?
Yes. When specified with 316 stainless steel bodies, the panel indicator light resists washdowns using caustic detergents in food processing and medical applications without seal failure.
What is the mounting hole size for the FL1M-12BW-1 panel indicator light?
This model requires a standard 12mm (0.472 inches) panel cut-out.
Does this panel indicator light support AC and DC voltage?
Yes. FILN builds internal current regulation drivers supporting continuous AC/DC voltages ranging from 3V to 240V.
What is the waterproof rating of this metal panel indicator light?
It achieves an IP67 protection rating when secured using the included silicone O-ring.
Can I order custom wire lengths for my panel indicator light?
Yes. FILN customize wire lengths, wire gauges, and pre-attached terminal connectors direct from our factory floor.
What head shapes are available for FILN 12mm metal indicator lights?
We offer three distinct head shapes: flat head, raised dome head, and concave head profiles.
What is the expected operational lifespan of the LED light element?
The high-luminance LED light source delivers between 50,000 and 100,000 operational continuous hours.
Are dual-color or triple-color options available in 12mm size?
Yes, FILN designs bicolor and tricolor LED options inside the 12mm metal panel indicator light housing.
Is there a minimum order quantity (MOQ) for custom panel indicator lights?
FILN supports engineering innovation with zero MOQ requirements, accommodating small sample testing and large volume orders alike.
Which certifications do FILN panel indicator lights carry?
Our indicator lights carry international certifications including CE, VDE, RoHS, ISO9001, and CCC.
What body housing materials can I select for my order?
You can select from nickel-plated copper alloy, 304 or 316 stainless steel, and black anodized zinc-aluminum alloy.
How does a raised dome lens improve signal safety?
The extruded dome housing allows illumination to scatter 180 degrees sideways, enabling operators to identify equipment status from acute angles.
What is the standard wire lead length for the FL1M-12BW-1?
Standard stock units ship with 20cm single wire leads (40cm total circuit wire length).
Can FILN supply 3D CAD STEP files prior to placing an order?
Yes. Contact our engineering support team to receive 3D CAD STEP files for enclosure modeling.
What operating temperature range can this indicator light endure?
It operates reliably across ambient temperatures from -40°C to +80°C.
How does metal housing compare to plastic in CNC machine applications?
Metal housings resist degradation from cutting fluids and prevent fracturing caused by mechanical impacts or vibration.
What accessories are included with each 12mm panel indicator light?
Each package contains 1x indicator light body, 1x waterproof silicone ring, 1x lock washer, and 1x M12 hex nut.
Where is the FILN indicator light manufacturing plant located?
Our ISO9001-certified 10,000 m² factory is located in Wenzhou, Zhejiang, China.
How fast can FILN ship catalog indicator light samples to the USA or Europe?
Standard catalog sample orders are dispatched via express air freight within 24 to 48 hours.
