120V LED Indicator Light Panel Mount Metal Signal Lamp UL CE Certified | FILN

Key Takeaways for Procurement Engineers

• Direct Manufacturer Supply: Crafted natively inside our production factory, removing distribution markups to maximize B2B procurement cost efficiency for bulk orders.
• High-Rigidity Shell Construction: Built with solid brass or black zinc alloy to replace fragile plastic housings, eliminating risks of cracking or high-temperature structural failure.
• Concave Optical Architecture: Features a recessed concave head profile that protects the optical face against side impact while delivering clear, focused signal tracking.
• Flexible Interconnection Interfaces: Standard 2PIN quick-connect terminal tabs support immediate mechanical plug-in connections or heavy-duty manual soldering setups.
• Broad Safety Compliance: Active certification through UL, CE, VDE, RoHS, and CCC ensures immediate validation for inclusion in export-oriented machinery projects.
• Fully Scalable Voltages: While optimized as a standard 120V LED indicator light, the underlying layout supports custom inputs spanning 3V to 250V AC/DC.
• Severe Environment Sealing: Integrated with robust silicone gaskets and lock washers to guarantee IP65/IP67 ingress security against pressurized water and grease.
• Zero Sourcing Friction: Flexible B2B manufacturing capabilities support open customization options without rigid minimum order quantity (No MOQ) limitations.

What is an Industrial 120V LED Indicator Light?

An industrial 120V LED indicator light is a heavy-duty panel-mounted optoelectronic device developed to transmit immediate machine statuses, diagnostic warnings, or live system monitoring alerts across electrical networks. Integrated directly into power control loops, its structural build comprises a solid metallic shell, an internal current-limiting carbon resistor network, a high-intensity luminescent LED, and dual-pin termination blocks. This specialized composition ensures reliable signaling for automated control systems, plant floor dashboards, and manufacturing machinery interfaces.

As an established indicator light factory, FILN manufactures comprehensive signaling solutions split into premium metal indicators and standard plastic indicators. To fit diverse panel specifications, our mounting configurations are produced across a wide physical range from 6mm up to 30mm diameters. Standard electrical interfaces can be ordered as integrated 2PIN quick-connect terminals or pre-assembled insulated wire lead styles. For the external body housing, industrial procurement teams can choose flat head, raised high head, or recessed concave head designs to perfectly match the protective shell requirements of the target system.

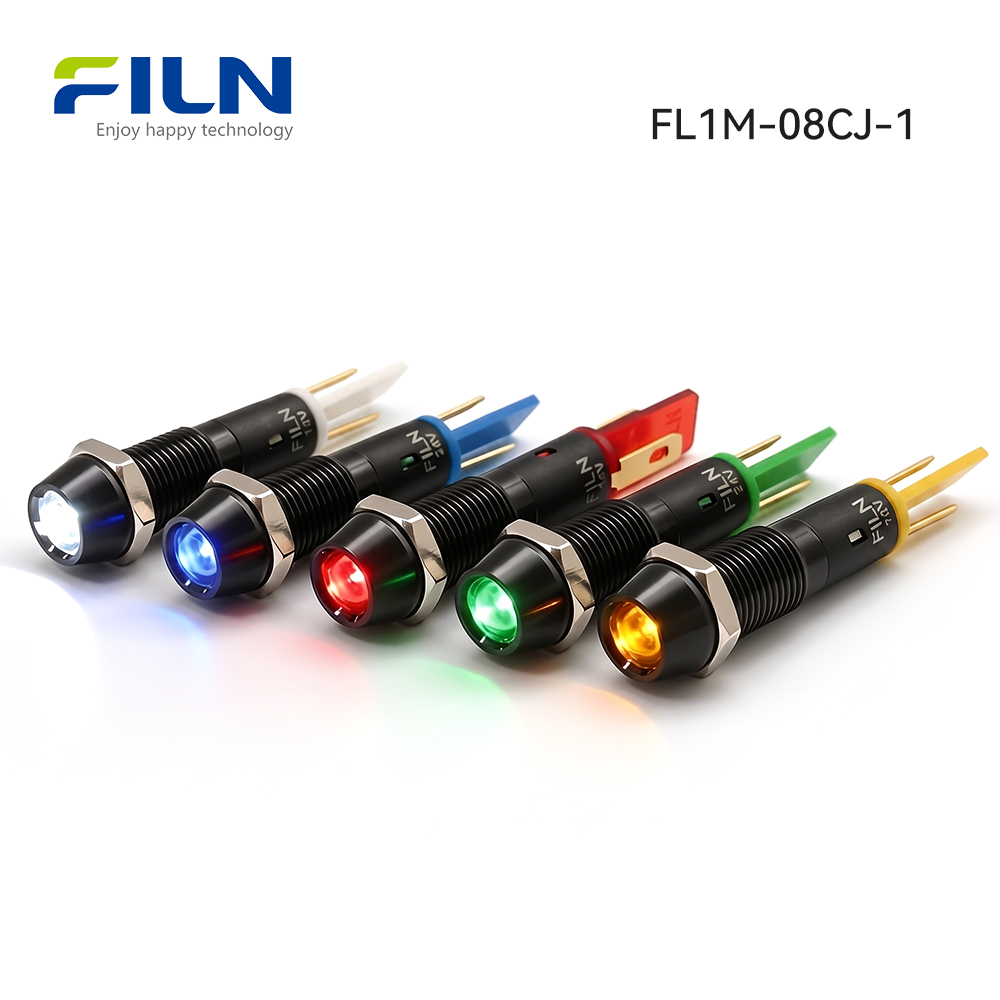

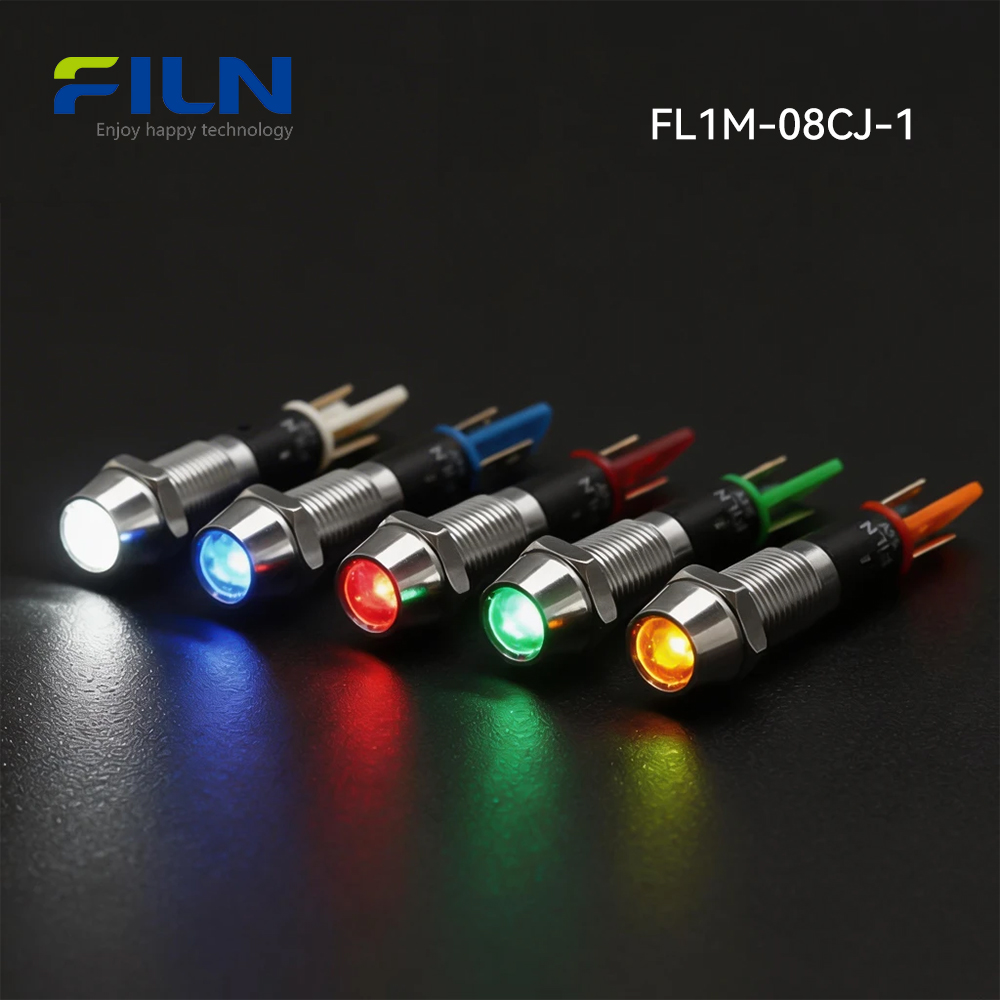

Comprehensive Product Overview

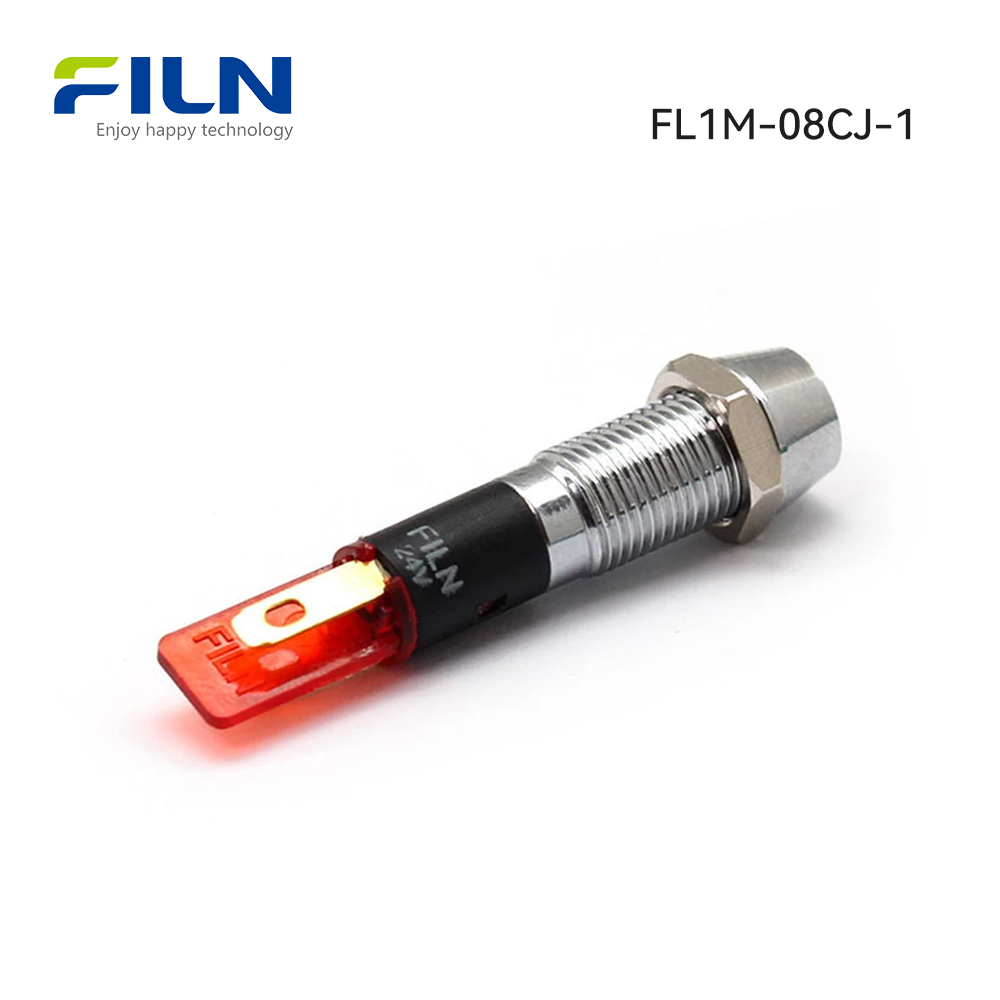

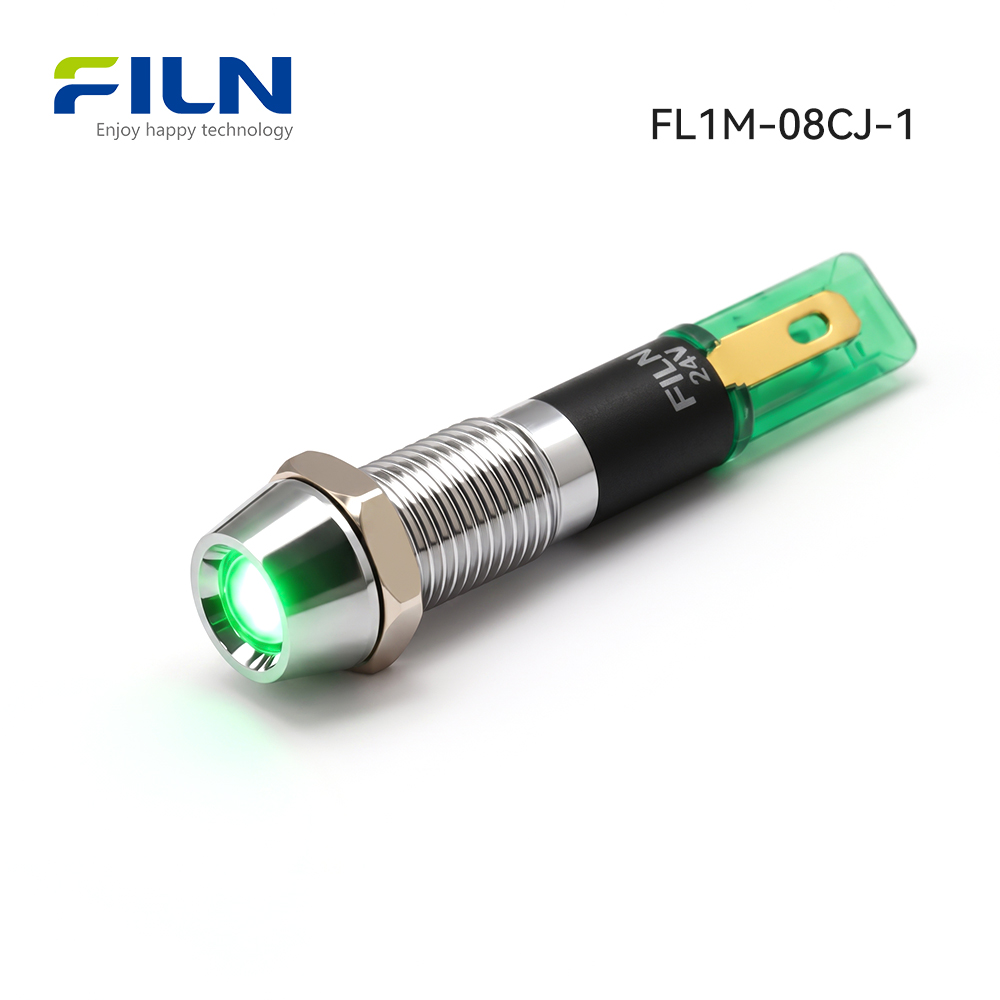

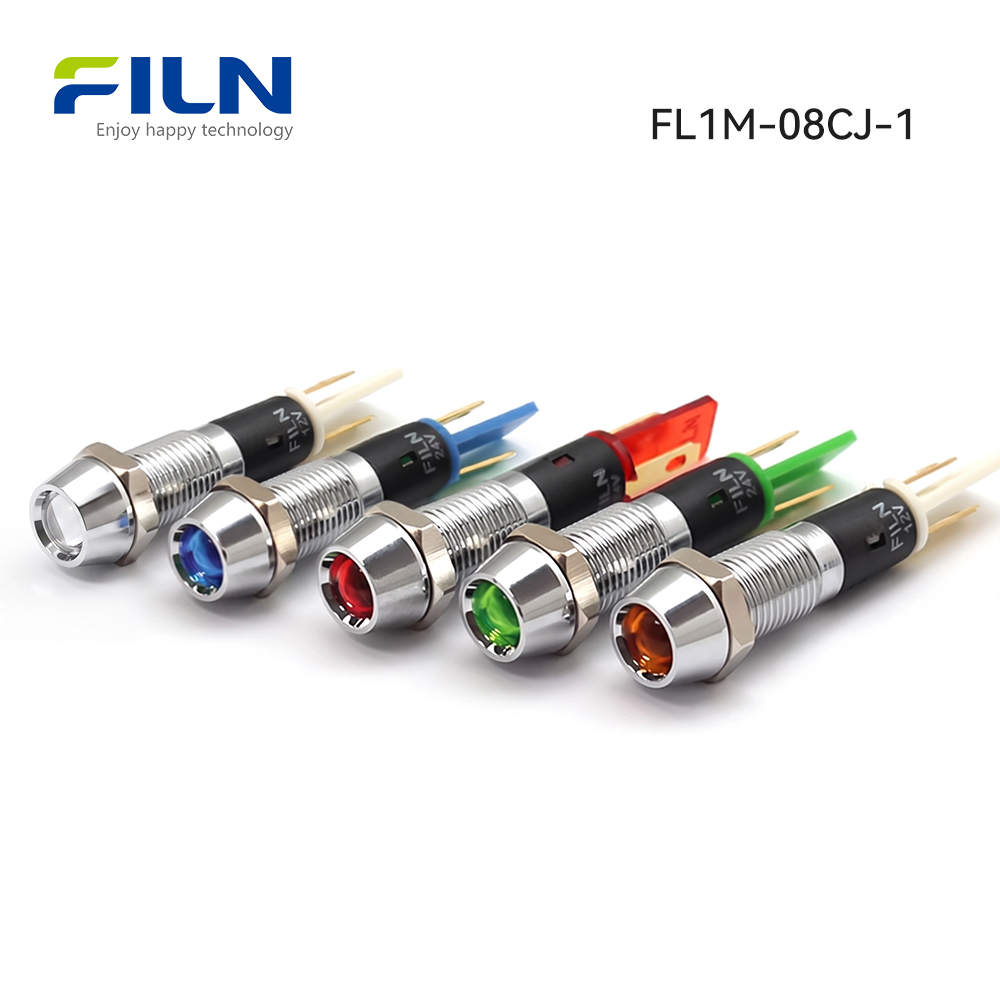

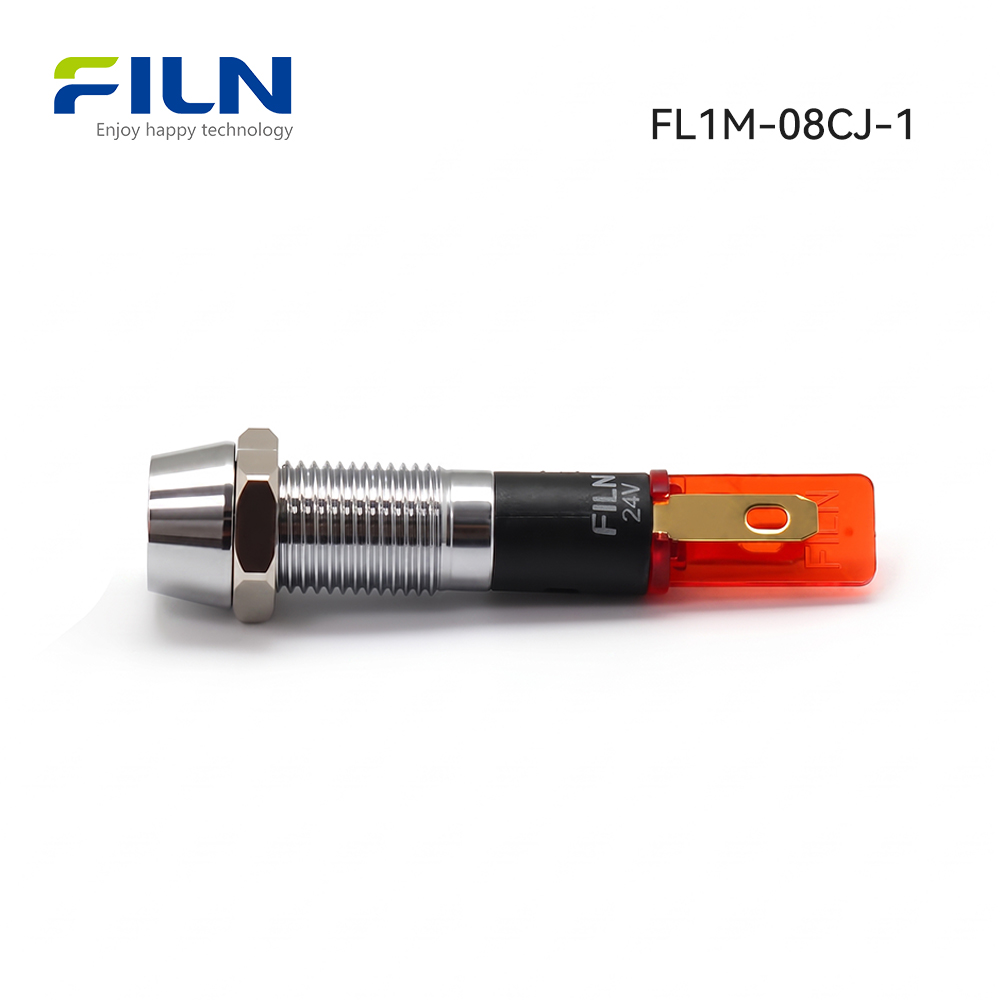

The FILN FL1M-08CJ-1 120V LED indicator light is an advanced solid-state panel monitor designed to convert incoming line voltage into a concentrated, clear visual signal via a high-output luminous source. From a mechanical standpoint, this component is installed into an 8mm cutout using a single-nut screw mounting method, applying tight compression across an included silicone ring to lock out environmental liquids. Electrically, an embedded carbon film resistor manages voltage drops across the internal circuit, protecting the device against grid fluctuations and ensuring smooth, long-term operation on 120V AC/DC systems or custom lines from 3V to 250V.

This specific 120V LED indicator light is built for heavy-duty installation within industrial processing controls, testing machinery consoles, marine distribution desks, and complex electrical cabinetry. The robust metal body provides excellent physical protection, completely avoiding the risks of thermal degradation, embrittlement, and chemical wear common to cheaper plastic alternatives. Backed by full UL, CE, VDE, RoHS, and ISO9001 compliance, this panel component ensures highly predictable status tracking under harsh industrial conditions.

Quick Technical Specifications

Operational Performance Parameters

Component Material Specifications

Environmental Performance Profiles

This testing protocol outlines the verified environmental operating parameters for the FILN Metal Indicator Light series. Engineered to withstand harsh industrial shifts, these robust assemblies undergo strict quality procedures to ensure long-term signaling performance across extreme global operating environments.

Electro-Optical LED Material Parameters

1. Absolute Maximum Ratings (Verified at T_ambient = 25°C)

2. Electro-Optical Diagnostic Baseline

Standard Engineering Test Conditions

Unless otherwise detailed by technical parameters, all electro-optical operational parameters are analyzed under the following baseline ambient environments:

Technical Calibration Rules: Absolute luminous output and dominant wave bands are verified following global CIE standard human eye response curves. Operational measurement limits carry an allowable tolerance of ±15% for absolute luminous intensity, and ±0.1V for forward operational voltage paths.

Industrial Application Scenarios

Built within high-strength copper alloys or rugged stainless steel shells, FILN industrial metal pilot indicators provide superior physical impact safety and long-term IP67 waterproof signaling across heavy-duty installations. Compared to standard plastic indicators that suffer from thermal cracking, UV discoloration, and chemical breakdown on active plant floors, these metal indicator units ensure consistent structural alignment under harsh factory conditions.

1. Industrial Automation Boards & Machine Tools

Inside CNC milling centers and automated processing assemblies, these components are mounted into master operators desks to track active circuit statuses. The durable metal housings resist wear from flying metal shavings, grease splashes, and coolant fluids, while the 2PIN termination pins remain securely in place under steady floor vibration.

2. Outdoor Infrastructure & Power Networks

In outdoor EV charging networks, solar junction arrays, and municipal power distribution kiosks, these modules provide dependable signaling across a broad temperature range of -40°C to +80°C. The unique recessed concave head design protects the optical lens from mechanical wear and vandalism, while keeping indicators clearly readable under variable sunlight conditions.

3. Transportation Panels & Marine Infrastructure

When integrated into operator dashboards on heavy earthmovers, agricultural fleets, and maritime vessel control boards, these indicators absorb heavy mechanical shocks. Marine-grade plating selections help protect against surface oxidation caused by continuous salt air exposure and high-humidity climates.

4. Public Terminals & Commercial Automation

In high-use environments such as public vending stations, fuel dispensing consoles, and security access interfaces, the solid metal casing prevents physical damage. They deliver clear, high-durability visual feedback while maintaining the long-term structural integrity needed for unmonitored public installations.

5. Medical Instruments & Food Processing Facilities

On food packaging lines and sanitizing setups that require regular chemical washdowns, the IP67 waterproof construction stops fluid infiltration during high-pressure spraying cycles. The smooth, flush-fitting exterior shell allows for fast cleaning while resisting degradation from standard sanitizing detergents.

Industrial Chromatic Signaling Standards

Industrial status colors conform to international safety regulations like IEC 60204-1 to keep machine signaling clear across plant floors. Standard color definitions include:

• RED (Emergency / Critical Fault): Alerts operators to immediate dangerous errors, circuit trip events, or vital safety shutdowns. Requires immediate intervention before restarting machinery.
• GREEN (Normal / Safe Operation): Verifies that monitored assemblies are running smoothly within correct parameters, indicating the zone is safe to approach.
• YELLOW (Abnormal State / Cautionary Alert): Flags unusual thermal spikes, load deviations, or non-critical errors before they lead to full system damage.
• BLUE (Mandatory Operator Command): Highlights a required manual task, such as a material top-off, system reset, or preset validation step before continuing a cycle.
• WHITE (General Utility Status): Provides neutral tracking for general system monitoring, such as showing active grid voltage or live electrical lines.

To give engineering teams more options when designing complex status panels, our factory builds custom dual-color and triple-color LED arrays within a single 8mm metal frame. This multi-color layout lets a single indicator position track various system changes, saving dashboard space and simplifying control layout designs.

Step-by-Step Installation Guide

Follow these steps to mount and seal the 8mm concave head 120V LED indicator light into an external control console:

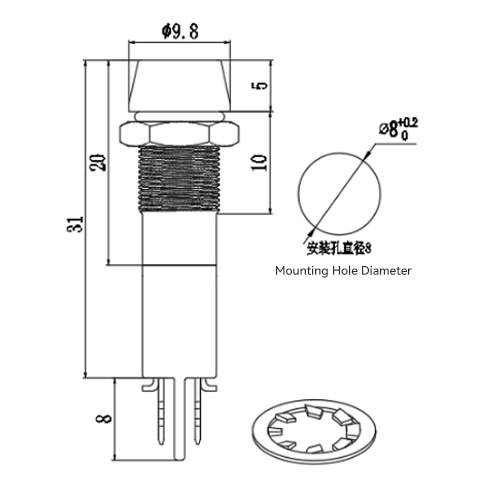

1. Panel Cutout Preparation: Punch a clean 8mm (0.315 inch) circular hole through the face panel. Deburr the raw metal edges to ensure a smooth, flat mounting surface.

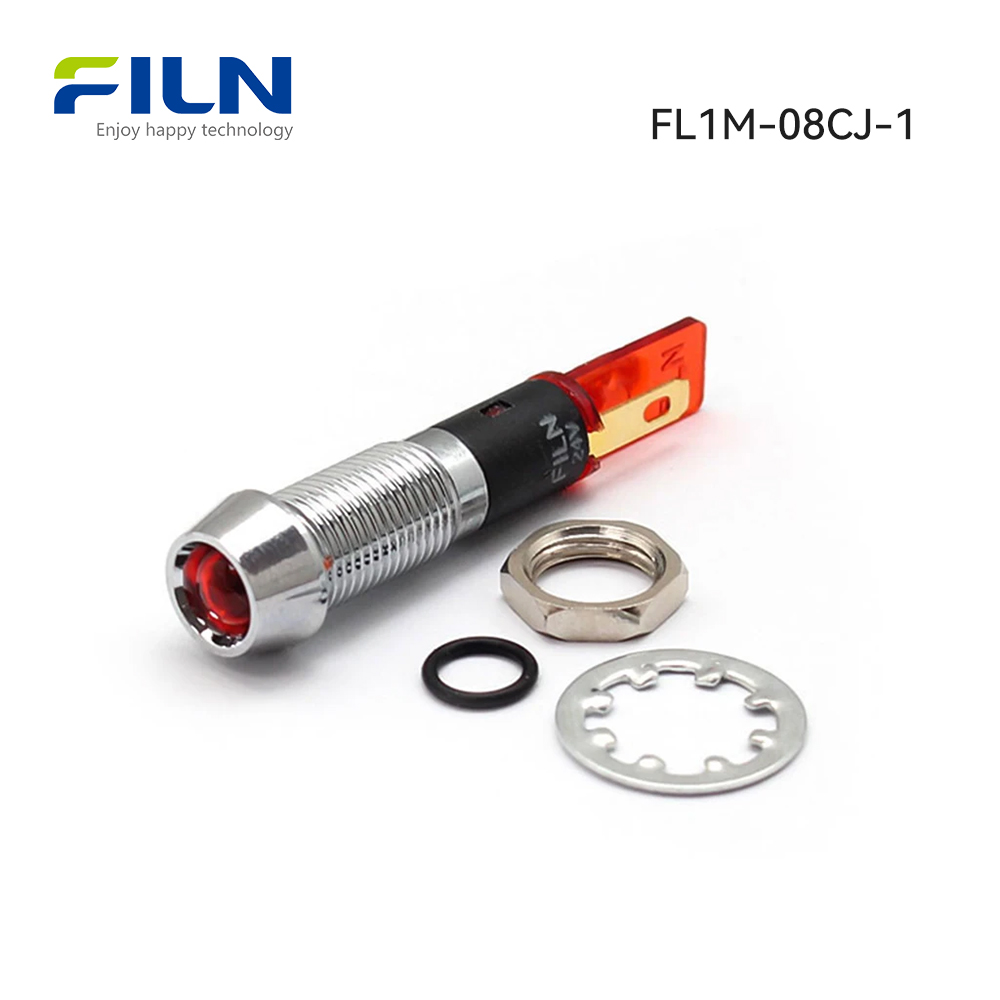

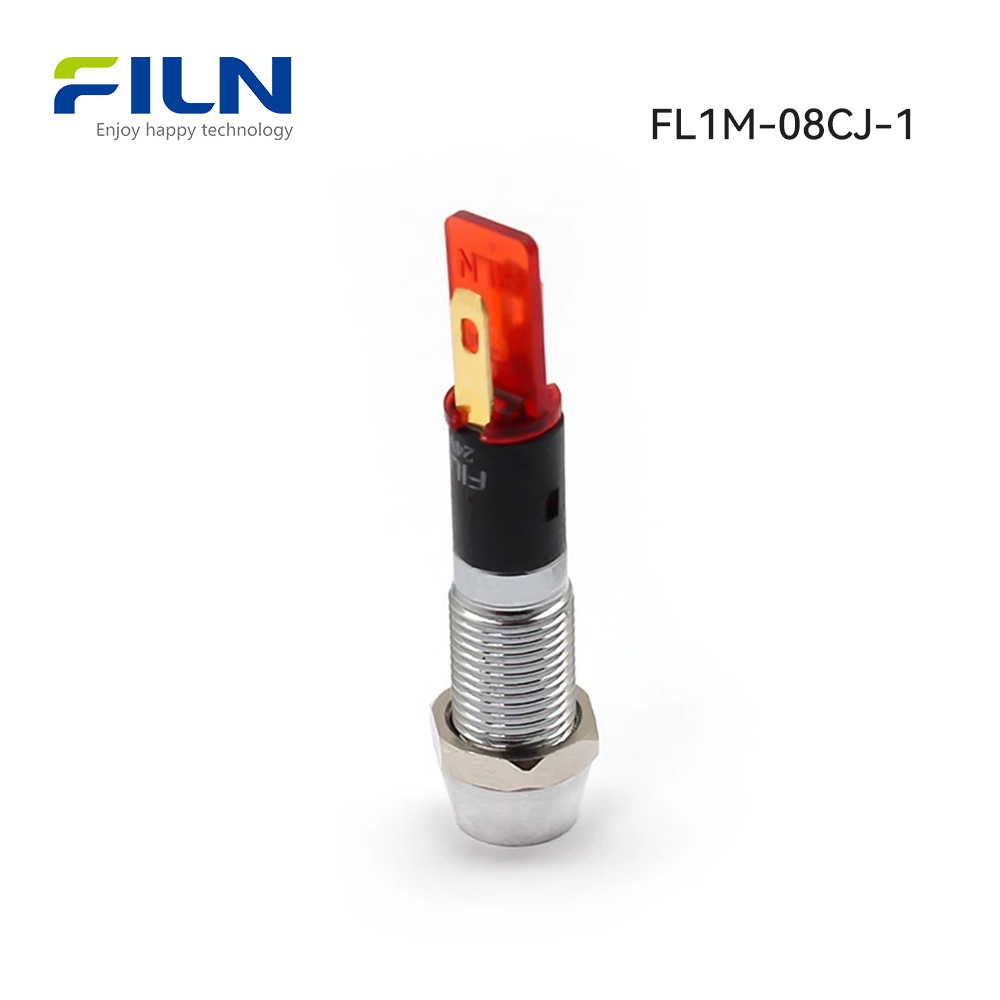

2. Sealing Gasket Alignment: Place the included high-elasticity silicone washer over the rear terminal tabs, sliding it up flush against the exterior front lens flange.
3. Module Insertion: Insert the un-nutted terminal base down through the front of the prepared panel cutout until the silicone gasket presses flat against the exterior face.
4. Rear Compression Tightening: Slide the stainless-steel lock washer over the rear threaded barrel from behind the panel, then thread on the copper hex nut. Torque the nut down to securely lock the housing.
5. Electrical Lead Hookup: Connect your circuit wires to the 2PIN terminal tabs using standard spade sleeves or a direct solder joint, then apply insulation to protect the terminal points.

Wiring Schematics & Termination Comparison

When wiring the FL1M-08CJ-1 2PIN terminal assembly, connections can be completed using quick lever wire terminals, direct soldering, or quality electrical tape insulation. These methods ensure a stable, continuous electrical connection and prevent loose wires in high-vibration factory environments.

CRITICAL ELECTRICAL SAFETY RULE: Always shut off the main power distribution grid and verify the circuit is dead before handling any electrical leads. Handling live wiring poses dangerous electrical shock hazards.

Choosing between 2PIN solder terminals and pre-wired insulated leads involves several application trade-offs:

Industrial Signaling Knowledge Center

A common issue with low-voltage or line-driven LED pilot indicators on long industrial cable runs is “ghost illumination” or faint glowing when the circuit should be off. This faint glow is typically caused by small stray leakage currents or induced voltages from parallel AC wiring lines. Because high-efficiency LEDs require very little energy to illuminate, even minor inductive coupling can light them up. To prevent this phantom glowing, engineers can add a parallel bleed resistor or use an integrated leakage shunt circuit to drain off background electrical noise.

Regular maintenance for IP67-rated indicators should focus on inspecting the silicone face gaskets for signs of environmental drying or cracking, and checking that the rear terminal nuts remain torqued down. If an indicator stops glowing completely, maintenance teams should first verify the circuit voltage across the 2PIN connections using a digital multimeter. If the input power reads normal but the light remains unlit, the internal resistor or LED chip has likely failed from a voltage spike, meaning the module should be replaced.

B2B Buyer Procurement Matrix

Sourcing engineers should analyze several critical parameters before finalizing bulk indicator light procurement orders:

• Voltage Precision Matching: Verify input parameters with the circuit design (e.g., standard 120V lines vs. low-voltage 12V or 24V factory grids).
• Installation Hole Limitations: Align panel cutout dimensions exactly (this model uses a standard 8mm footprint). See alternative styles at our 8mm Metal Indicator Light Directory.
• Housing Material Grades: Use plated copper or stainless steel for corrosive settings, or black zinc alloy to reduce glare.
• Head Style Geometries: Use recessed concave profiles for surface protection, flat heads like the FL1M-08FJ-1 Flat Series for flush designs, or raised high heads like the FL1M-08SJ-1 High Series for wide visibility.
• Safety Standards Verification: Check for active UL, CE, and VDE marks to ensure compliance with international trade requirements.
