Key Technical Takeaways
- Factory-Direct Infrastructure: Source directly from the FILN production plant to eliminate middleman margins, speed up supply pipelines, and request custom wire lead lengths.
- Optimal 10mm Panel Cutout: The compact 10mm installation footprint is ideal for space-saving panel integration across high-density electrical arrays and command boards.

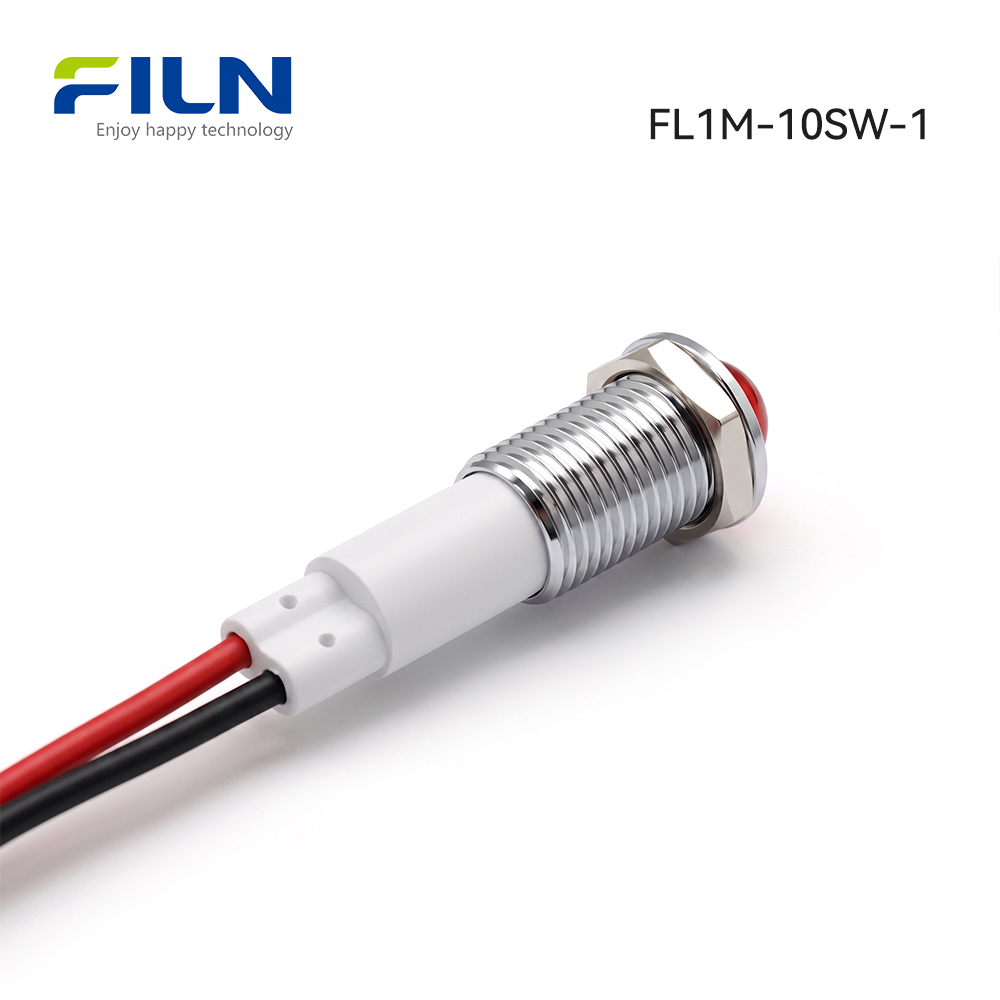

- Pre-Installed 2PIN Wire Leads: Supplied with twin 20cm insulated cables (40cm combined path length) to remove manual soldering tasks and accelerate field wiring.

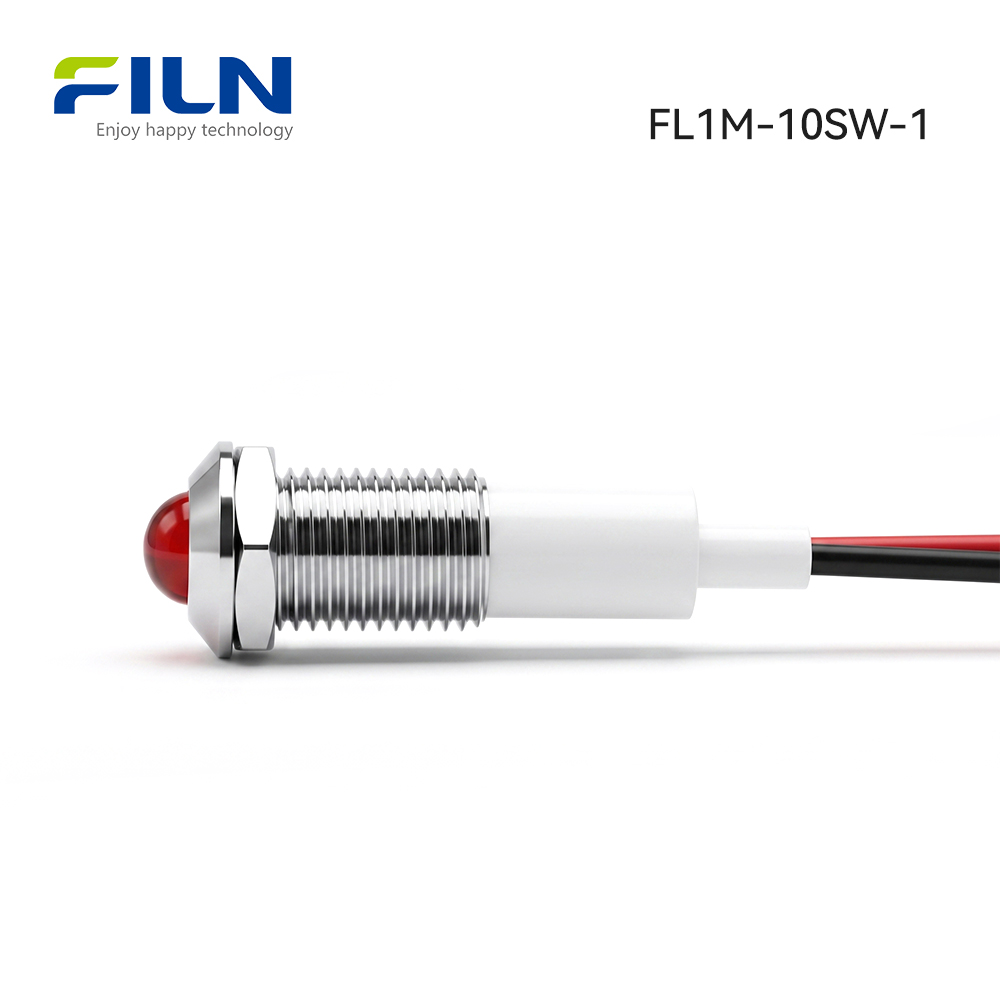

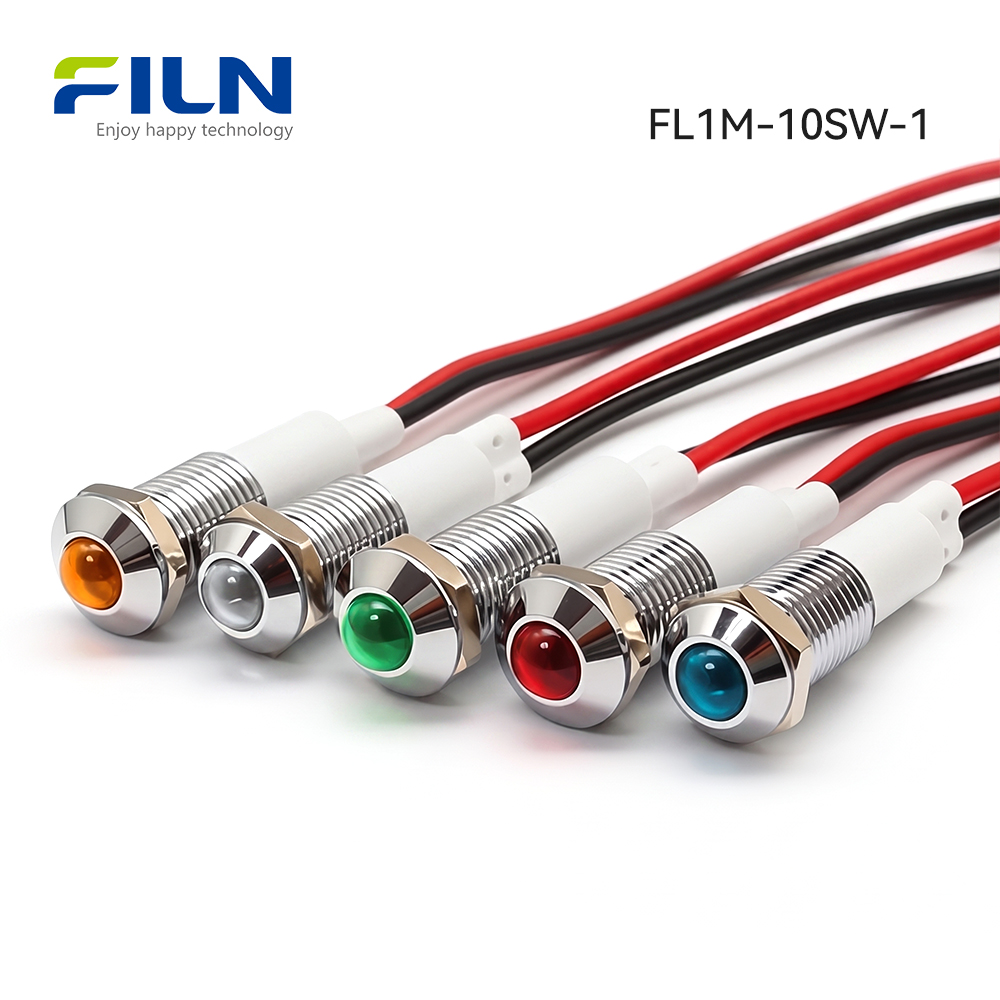

- Prominent Convex Profile: The protruding head features a clear circular ring-illuminated layout that projects light clearly, ensuring excellent operator recognition.
- High-Hardness Metal Body: Engineered with a machined metal frame that offers superior hardness and structural integrity compared to standard plastic alternatives.
- Tailored Voltage Configurations: Operates reliably across a broad 3V to 220V AC/DC span, with custom operational voltages built to order by our engineering team.
- IP65 Ingress Security: Outfitted with a premium silicone seal ring and single M6 hex nut backing to deliver dependable waterproof protection.
- Extreme Thermal Adaptation: Built to operate smoothly within challenging industrial environments ranging from -40°C up to +80°C.
- Global Compliance Standards: Fully evaluated and verified under leading international frameworks including CE, VDE, RoHS, ISO9001, CCC, and UL.
What is an Industrial 12 Volt Indicator Light?
An industrial 12 volt indicator light is a ruggedized panel-mount signal lamp engineered to provide immediate visual status updates to machine operators. These tracking units convert electrical currents into highly visible light paths, showing whether a specific circuit is energized, idling, safe, or faulted. FILN manufactures an extensive selection of panel signal hardware, ranging from standard plastic indicators to premium metal 12 volt indicator light housings with installation cutouts from 6mm to 30mm.
To meet different wiring preferences, engineering teams can choose between quick-connect pin terminals, blade tabs, or a direct insulated wire lead design. Our heavy-duty metal pilot lights are shaped into clean flat profiles, prominent convex profiles, or recessed concave designs. This gives system architects the exact mechanical styling needed for high-quality control equipment. Choosing a premium 12 volt indicator light ensures your machinery has long-lasting performance and a professional look.
Comprehensive Product Overview

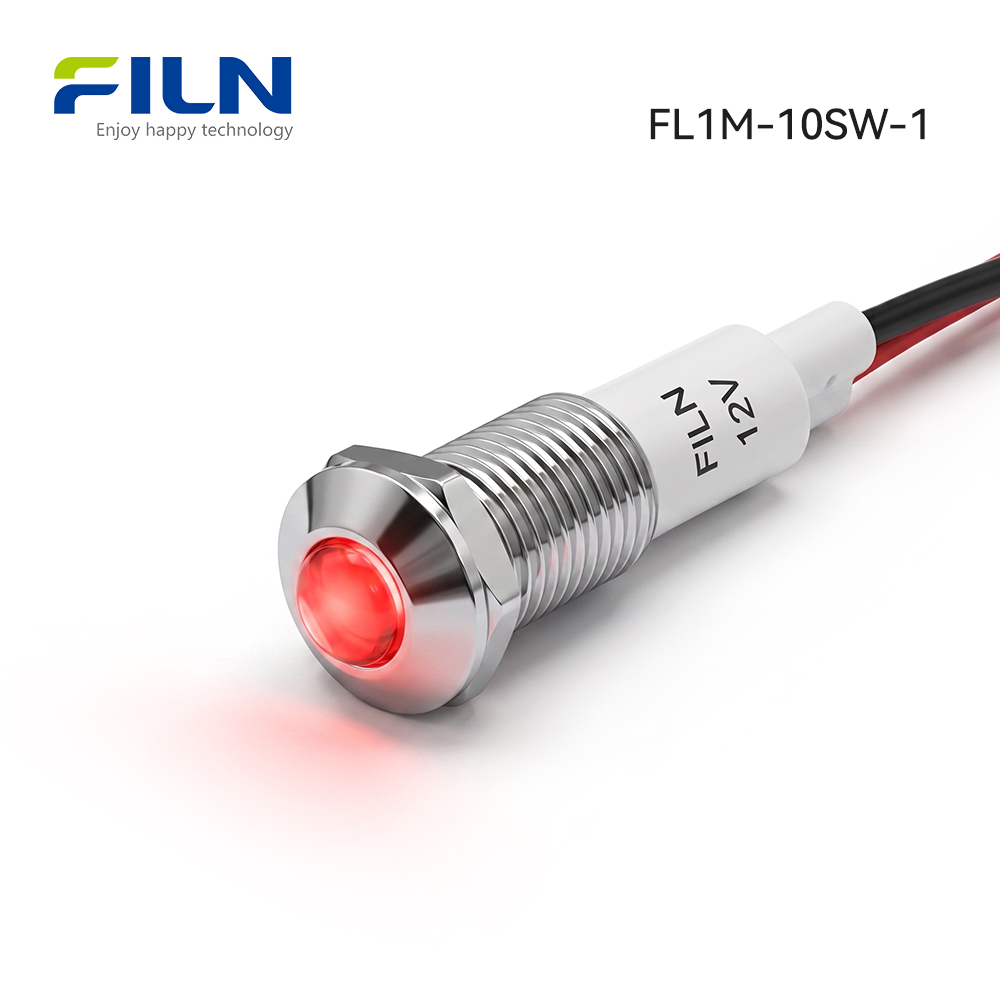

The 10mm convex 12 volt indicator light functions as a highly durable solid-state signal source built for demanding environments. Utilizing an integrated semiconductor core, the diode array projects a focused beam through a circular polycarbonate lens ring. This provides bright, clear light while drawing less than 20mA of current, keeping heat buildup minimal inside sealed electrical enclosures.
Encased in a machined metal shell, this premium 12 volt indicator light resists physical impacts, tool strikes, and constant machine vibration. The pre-installed 2PIN wire lead design removes fragile contact pins, preventing connection breaks caused by installation stress or handling. Full certification under global engineering guidelines ensures these components integrate cleanly into equipment built for international trade markets.
Quick Specifications Table
| Specification Parameter |
Technical Data Value |
| Product Classification |
Pre-wired 2PIN metal 12 volt indicator light |
| Mounting Cutout Size |
10MM / 0.394 Inches |
| Operating Input Voltage |
3-220V AC/DC (Tailored parameters fully customizable by our factory) |

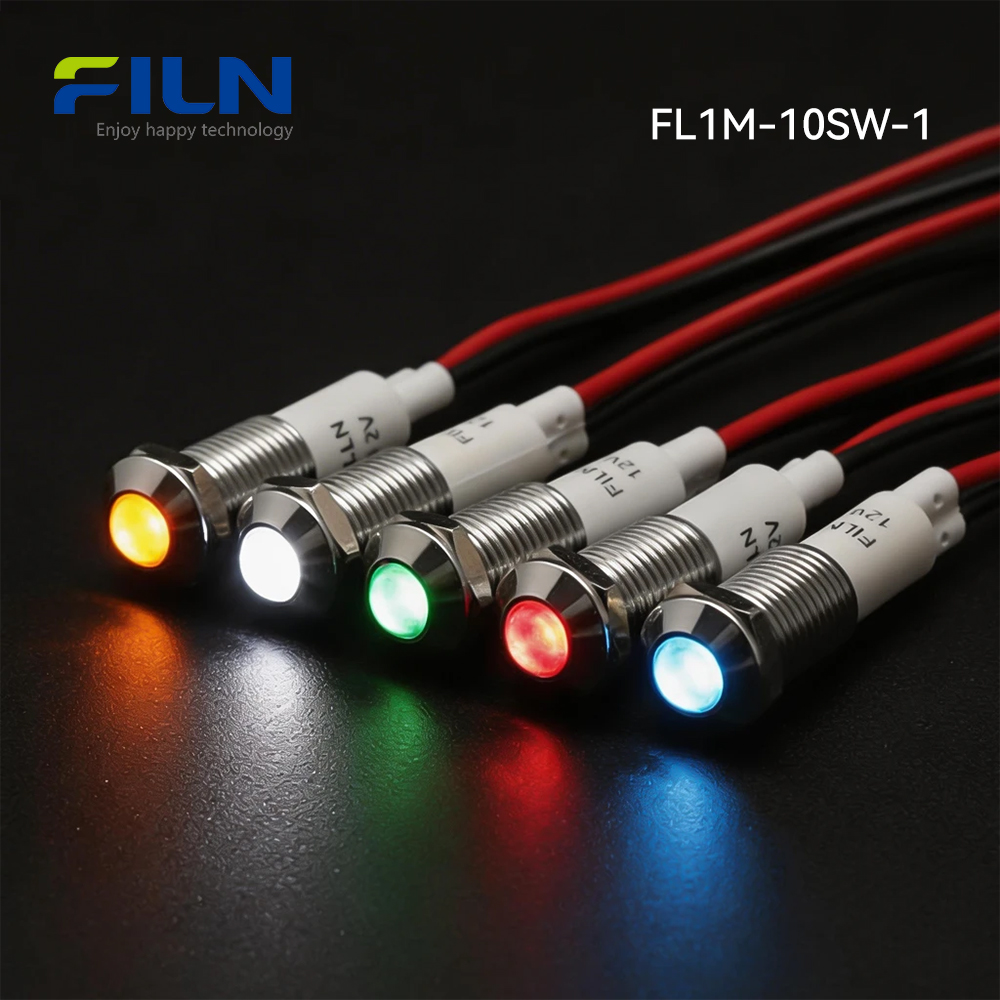

| Available LED Colors |
Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W) |
| Waterproof Protection Level |
IP65 Ingress Grade achieved via included seal ring and gasket |
| Wiring Termination Setup |
2PIN Wire Leads (Single wire length 20cm, combined path length 40cm) |
| Housing Head Profile |
Convex Head Design (Delivers bright, noticeable circular ring-illumination) |

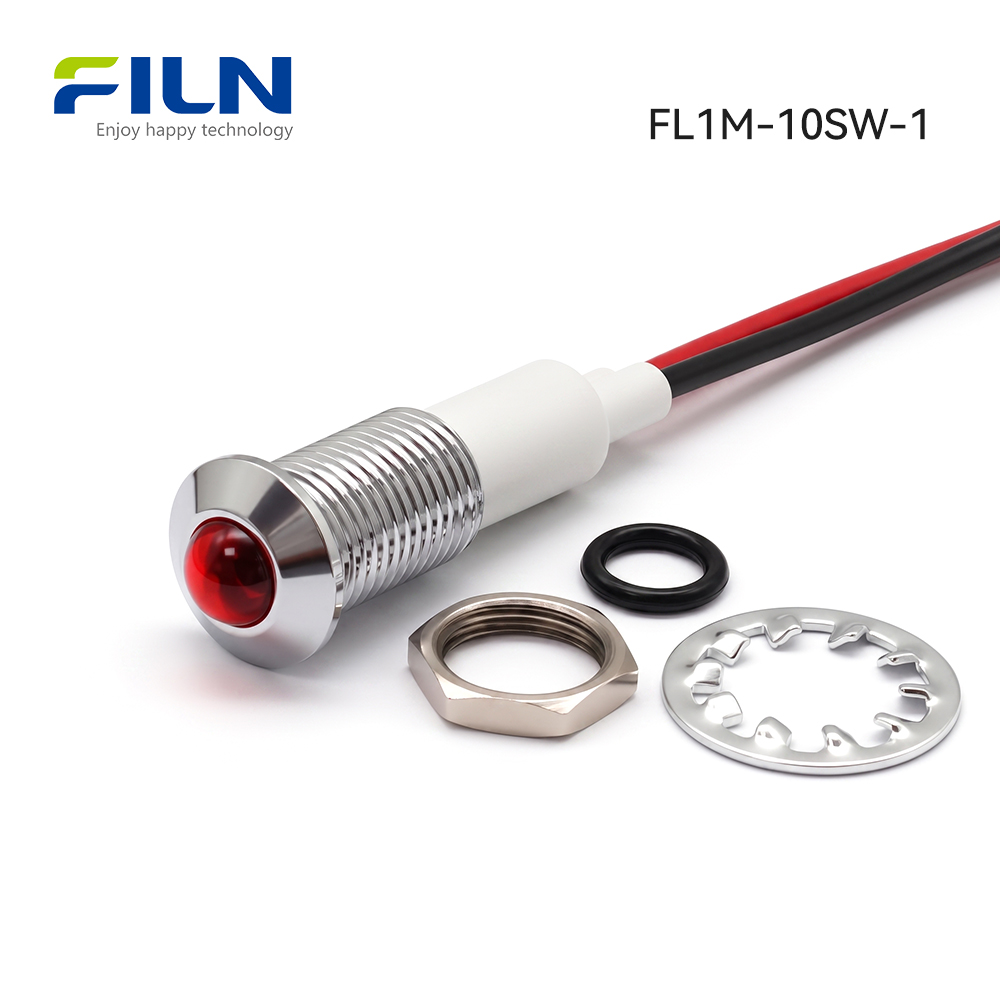

| Included Product Accessories |
1X Indicator Light, 1X Waterproof Ring, 1X Gasket, 1X M10 Hex Nut |
| Surface Quality Finish |
Smooth surfaces free from rough burrs, corrosion plating defects, or cracks |
| Mechanical Structural Fit |
Firmly bonded head lens components to prevent loose spinning or shifting |
Performance Parameters
| Electrical & Mechanical Parameters |
Standard Baseline Thresholds |
| Rated Voltage Limits |
3V–220V DC or AC (Fully customizable based on system specifications) |
| AC Grid Operating Frequency |
50 Hz to 60 Hz Ranges |
| Rated Active Current |
≤ 20 mA |
| Rated Power Dissipation |
Approximately 0.2 Watts for the 12 volt indicator light circuit |
| Insulation Electrical Resistance |
≥ 100MΩ (Tested under DC 500V from cable conductors to housing) |
| Dielectric Insulation Strength |
1500V to 1800V AC; zero dielectric breakdown arcs or voltage flashing |
| Total Operating Lifetime |
50,000 Hours to 100,000 Hours continuous use tracking |
| Waterproof Protection Class |
IP65 Protection Standard |
Component Materials Breakdown
| Accessory Part Name |
Material Selected |
Engineering Purpose |
| Outer Shell Body |
High-hardness Copper Alloy or Stainless Steel options |
Delivers rugged structural defense against tool impacts and prevents environmental wear on the 12 volt indicator light shell. |
| Internal Lamp Base |
Polyamide PA66 Nylon |
Ensures high internal insulation resistance and handles wiring heat. |
| Translucent Lens Ring |
Polycarbonate (PC) |
Maintains bright, clean light dispersion and prevents yellowing from UV exposure. |
| Luminescent Core |
High-Brightness Semiconductor LED Array |
Provides bright visual tracking across long service lifetimes. |
| Current Resistor |
Carbon Film Resistor Component |
Limits incoming forward currents to match the required 12 volt indicator light parameters. |
| External Wire Leads |
Polyvinyl Chloride (PVC) Sheathed Cable |
Provides excellent flexibility along with durable electrical isolation. |
| Fastening Hex Nut |
Machined Copper Alloy (M6 specifications) |
Maintains a secure, tight grip even under intense machine vibration. |
| Waterproof O-Ring |
High-Elasticity Silica Gel Washer |
Compresses cleanly to block liquid ingress behind the console plate. |
| Lock Gasket |
Stainless Steel Flat Gasket |
Grips the rear of the panel plate to prevent backing out over time. |
Environmental Endurance Limits
This technical chart details the structural testing thresholds configured for our 12 volt indicator light product line, ensuring structural reliability for industrial integration worldwide.
| Environmental Stress Test Profile |
Parameters & Evaluation Conditions |
| Operating & Storage Temperatures |
-40°C to +80°C Active Limits / -40°C to +100°C Storage Range Bounds |
| Operating Relative Humidity |
≤ 85% RH measured continuously at +40°C ambient atmosphere |
| High-Temperature Heat Bake |
96 straight hours under 80±2°C stress; the 12 volt indicator light runs perfectly post-test |
| Low-Temperature Cold Soak |
96 straight hours under -40±2°C stress; lens rings remain structurally sound |
| Constant Damp Heat Exposure |
96 straight hours at 40±2°C with 90% to 95% RH; zero insulation loss |
| Thermal Shock Cycling Profile |
Cycles between -40°C (30 min) and 85°C (30 min) for 5 rounds; zero structural faulting |
LED Element Engineering Specifications
1. Absolute Maximum Ratings
| Critical Safe Limit Parameter |
Absolute Maximum Value |
| Maximum Forward Current (IFP) |
20 mA |
| Reverse Voltage Threshold (VR) |
5 V |
| Total Power Dissipation Limits (PD) |
60 mW inside the 12 volt indicator light module |
| Lead-Free Solder Heat Tolerance (TSOL) |
Maximum 260°C for a duration not exceeding 3 seconds |
2. Electro-Optical Characteristics
Measured under normal ambient room conditions of Ta=25°C:
| Electro-Optical Characteristic |
Testing Conditions |
Performance Value Bounds |
| Forward Voltage Drop (VF) |
IF = 20mA |
2.8V Minimum to 3.2V Maximum limits |
| Reverse Leakage Current (IR) |
VR = 5V |
Upper baseline cutoff boundary of 5μA |
| Luminous Viewing Angle (2θ1/2) |
IF = 20mA |
Typical distribution curve centered at 60° |
| Luminous Intensity (Iv) |
IF = 20mA |
500 mcd Minimum to 800 mcd Maximum intensities |
| Dominant Color Wavelength |
IF = 20mA |
Dedicated chromatic distributions matching selected R/G/Y/B/W LED elements |
| Thermal Path Resistance (RJP) |
IF = 20mA |
Typical internal thermal path performance of 8°C/W |
Standard Technical Test Baselines
Unless modified by special documentation, all electrical benchmarks for our 12 volt indicator light arrays are collected under these environmental baselines:
- Ambient Environment Temperature: 5°C to 35°C Range
- Relative Testing Atmospheric Humidity: 45% to 85% Scale Bounds
- Barometric Operating Pressure: 86 Kpa to 106 Kpa (860 mbar to 1060 mbar)
Technical Measurement Notes: Luminous output curves are calibrated in alignment with the international CIE human eye response curve matrix. The standard tolerance threshold for physical light measurements is ±15%, while input voltage verification tolerances are limited to within ±0.1V.
Deployment Applications Across Industries
The FILN heavy-duty metal 12 volt indicator light features an impact-resistant alloy shell and an IP65 protection rating. While traditional plastic indicators are prone to cracking or fading due to heat fatigue or weather exposure, this convex metal 12 volt indicator light provides dependable service across harsh industrial setups. This component series is widely integrated into various electrical devices, experimental equipment, distribution cabinets, and green energy power systems.
Industrial Automation & Production Lines
CNC machine tools and heavy assembly systems rely on a robust 12 volt indicator light setup for status tracking. This ensures the panel interface remains highly functional even when exposed to lubricants, metal shavings, and constant factory vibration.
Outdoor Power Enclosures & Renewable Grids
EV charging stations, solar combiner systems, and city power grids deploy our metal indicators to handle intense sunlight and changing weather. The wide -40°C to +80°C thermal tolerance keeps signaling systems active through freezing winters and intense summer heat.
Transit Systems, Heavy Vehicles, & Marine Engineering
Excavator dashboards, control consoles, and marine bridge systems use pre-wired indicators to avoid terminal breakage from severe movement. The plated alloy body provides reliable protection against salt-air wear and humidity.

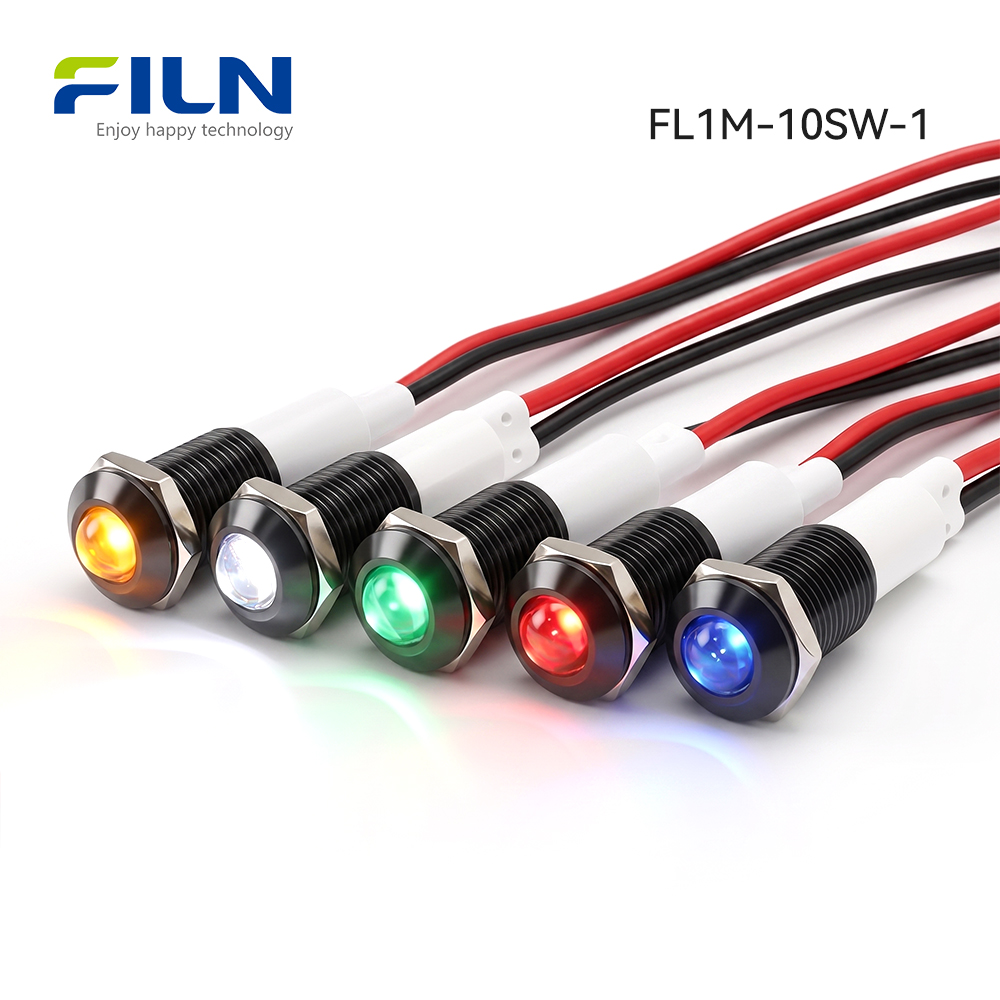

Chromatic Signaling Frameworks (R/G/Y/B/W)
Modern control room layouts utilize standard indicator colors to help technicians react quickly and prevent dangerous operator errors:
- Red (R): Signals an immediate emergency stop, equipment failure, or safety trip that requires swift attention.
- Green (G): Verifies a normal system state, confirming that automated lines are running smoothly within spec limits.
- Yellow (Y): Acts as a warning alert, flagging issues like thermal overloads or pressure drops that need monitoring.
- Blue (B): Highlights mandatory operator steps, such as parameter resets, fluid refills, or manual cycle triggers.
- White (W): Serves as a neutral power monitor, confirming that mains voltage is present across the distribution panel.
To support complex status setups, FILN manufactures diverse-color LED configurations for the 12 volt indicator light range. These multi-status systems help design engineers save console space by tracking different states through a single 10mm layout.
Step-by-Step Mechanical Installation
Follow these engineered deployment steps to ensure a secure, long-lasting installation for the 10mm panel-mount 12 volt indicator light assembly:
- Panel Preparation: Drill a clean 10mm circular diameter hole into the product panel plate, making sure to deburr any rough metal edges.
- Seal Placement: Slide the provided silicone waterproof ring onto the threaded metal body of the indicator.
- Front Insertion: Feed the pre-wired 2PIN insulated wire lead tails through the cutout opening from the front face plate side until the convex head profile is positioned properly.
- Rear Nut Fastening: Slide the backing gasket onto the body from the back, then tighten the single M6 lock nut to compress the seal ring and achieve IP65 water protection.
- Electrical Termination: Once firmly anchored, proceed with normal wiring connection to your live electrical circuit loops.
Electrical Interface Termination Comparison Guide
Choosing the right termination design prevents wiring failures and maintains long-term signaling path integrity. This pre-wired 12 volt indicator light model uses dual 20cm flexible cables (giving a total path length of 40cm) to streamline layout wiring. Terminal leads can be completed using quick-connect block terminal strips, direct wire soldering with heat-shrink sleeves, or high-grade electrical wrapping.
ELECTRICAL SAFETY DISCLOSURE: Always turn off the primary power grid before handling electrical wire terminations or making adjustments. Verifying dead circuits helps prevent component shorting and protects assembly technicians from hazardous shocks.
| Connection Architecture |
Core Technical Advantage |
Operational Drawback / Constraint |
| Pre-Wired 2PIN Cable Lead Setup |
Speeds up panel integration and avoids on-site soldering labor. Offers excellent resistance to constant machinery shaking. |
Fixed cable lengths require careful spacing checks during early panel engineering phases. |
| Traditional Plug-In / Blade Terminals |
Enables fast quick-disconnect swaps during regular preventative maintenance cycles. |
Requires larger panel depth clearances and can loosen in high-vibration systems. |
| Solder Pin Terminal Connections |
Allows custom on-site wiring extensions; minimizes the indicator’s rear profile. |
Increases installation labor and risks joint failure if subjected to constant machine shake. |
Industrial Knowledge Center
A common challenge in modern electrical control engineering is ghost voltage illumination (faint glowing) in low-power LED signal lines. This occurs when small induced voltages leak into indicator pathways along closely bundled wire channels. Because advanced solid-state indicators operate with very low power draws, even micro-amperage stray currents can cause the lens ring to glow faintly. This can confuse panel operators tracking system statuses.
Integrating a reliable 12 volt indicator light with precise internal resistance metrics helps resolve these operational anomalies. Routine upkeep should focus on inspecting locknut torques and cleaning the lens faces with mild, non-caustic solutions to avoid chemical clouding.
B2B Procurement Decision Matrix
When sourcing panel-mount signal indicators for major industrial systems, purchasing teams should evaluate these core design options:
- Chassis Material Resilience: Select plated metal housings for systems exposed to high impacts, frequent washdowns, or outdoor weather conditions.
- Lens Profile Visibility: Convex head designs stand out noticeably to deliver clear, bright circular illumination while projecting perfectly for wide-angle operator checking.
- Termination Strategy: Pre-wired 2PIN configurations speed up large-scale equipment assembly, while solder pin alternatives allow on-site wire tailoring.
To view our broader 10mm product lines, visit our main category at the 10mm LED Indicator Light Selection Hub. For immediate commercial acquisition, click to access our Direct B2B Ordering Portal.
Additionally, you can explore related configurations such as our Standard Flat Head 10mm Wire Lead Indicator Light, the Short Body 8mm Convex Metal Indicator Light, or our Traditional 8mm Plug-In Pin Indicator Light options.
Why Procurement Teams Partner with FILN
Factory-Direct Logistics: Cuts out middleman markups, giving B2B buyers clear and direct wholesale pricing channels for every 12 volt indicator light order.
Flexible MOQ Frameworks: Supports engineering design tests and low-volume custom system builds without strict ordering penalties.
Fast Production Turnaround: Automated lines turn around essential parts quickly, helping projects stay on track.
Full OEM/ODM Engineering: Modifies wire parameters, adjusts built-in resistance, and delivers custom shell branding to meet exact product plans.
Global Delivery Networks: Secure air and maritime logistics ensure parts reach production floors on schedule.
Rigorous Quality Control: Every production batch undergoes full electro-optical validation in our ISO9001 certified testing lab.
Direct Engineering Support: Work directly with industrial switch engineers to clear up layout challenges and panel planning questions.
Certified Safety Track Record: Simplifies international regulatory approval with fully maintained compliance files across our signal lamp product range.
Factory Direct Supply & Capacity
Yueqing Yulin Electronic Co., Ltd. (operating under the global FILN brand name) was established in 2006 in Wenzhou. As an industrial manufacturer of rugged panel switches and indicators, our high-durability products serve engineering customers in more than 100 countries. FILN operates a modern 10,000 m² plant running over 20 advanced production lines alongside an independent quality verification laboratory. Guided by strict ISO9001 quality systems, FILN maintains high reliability across all component batches.
Our comprehensive production ranges from industrial indicators and push buttons to rocker switches and toggle assemblies. We specialize in custom solutions for power storage, EV charging arrays, maritime interfaces, and commercial equipment. Our engineering team handles design issues directly, providing 3D CAD modeling files and component data sheets to simplify procurement.
Review our engineering resources at www.filn.com or submit project files directly to inquiry@cnylin.com.cn.
Frequently Asked Questions
How do you prevent phantom illumination (faint glowing) in industrial LED indicators?
This occurs when induced currents leak into signal lines along tightly bundled wiring paths. FILN addresses this by optimizing built-in resistor values or introducing optional zener shunts, ensuring the indicator ring activates only when true control voltages are present.
Can this IP65 indicator light handle heavy manufacturing washdown cycles?
Yes, the plated metal bodies paired with high-impact polycarbonate lenses withstand standard cleanings. For extreme corrosive chemical exposures, our premium stainless steel configurations provide optimal durability.
What are the primary benefits of selecting a convex head 12 volt indicator light?
The protruding convex lens profile projects nicely past the front plate to give maximum visibility from side angles. Combined with a bright ring-illuminated layout, it tracks equipment status effectively over a wide room workspace.
Does FILN support custom wire lead modifications for the 2PIN cables?
Yes. As a factory-direct manufacturer, we can modify wire lead lengths, adjust insulation ratings, or apply pre-crimped terminal connectors to match your exact wiring harness plans.
What is the estimated working lifecycle of an industrial 12 volt indicator light?
Under standard operational currents (under 20mA), our solid-state indicator diodes deliver a long life expectancy between 50,000 and 100,000 hours, keeping long-term upkeep costs low.
Can these 10mm indicators handle high-vibration heavy machinery layouts?
Yes, the pre-wired 2PIN layout completely removes fragile solder terminal tabs that can crack under stress. Secured by our steel lock gasket, the light remains firmly anchored under constant shaking.
What regulatory certifications are maintained across your component catalog?
Our indicator families hold full safety compliance files for international markets, simplifying regulatory tracking for global equipment exports.
Are custom operational voltages like 9V or 24V supported alongside standard 220V lines?
Yes. Internal resistors are precisely tuned during assembly to support flexible operational voltages spanning from 3V up to 220V AC or DC configurations.
What is the minimum order quantity for specialized OEM indicator orders?
FILN maintains no strict MOQ limits on standard modifications, helping engineering teams prototype designs and scale up production smoothly.
How does the silica gel seal washer prevent moisture entry behind the plate?
The high-elasticity silicone gasket compresses cleanly against the panel face plate when the rear nut is torqued, creating a dependable moisture barrier that meets IP65 standards.
Is it possible to request 3D STEP files for engineering panel verification?
Yes. Our design engineering team can supply standard 3D STEP files and technical layout drawings to streamline your CAD checking and panel testing processes.
Why are metal indicator bodies preferred over plastic structures in factories?
Plastic options are prone to drying out, cracking under impacts, and heat warping. Plated metal housings bring high impact protection and hardness, significantly extending control panel service life.
What optical color variations are provided for signal arrays?
We provide single-color options in Red, Green, Yellow, Blue, and White. We also offer dual and triple-color options to handle multi-status tracking within a single panel space.
What is the insulation resistance baseline threshold for safety testing?
Every indicator maintains an insulation resistance value greater than or equal to 100MΩ when tested at DC 500V across the conductors and the metal shell, ensuring high circuit safety.
How do I place bulk wholesale orders or ask for custom quotes?
You can reach our sales desk directly at inquiry@cnylin.com.cn. Share your build blueprints and quantity requirements, and we will return a formal commercial quote within 24 hours.
What is the maximum panel thickness handled by the mounting body?
The threaded body on our indicators safely handles standard industrial panel faces up to 6mm thick while ensuring proper thread engagement with the M6 hex nut.
How are these indicators packaged to avoid shipping damage on overseas orders?
Indicators are packed in grid compartments inside reinforced outer boxes to avoid bent wires and scratched metal finishes during long ocean transit paths.
Does the wire sheath meet standard industrial safety guidelines?
Yes. The flexible PVC-sheathed wire lead is built for high electrical safety and thermal stability, meeting typical benchmarks for control panel wiring arrays.
Can these LED indicators run on standard AC utility grids?
Yes. Our indicators operate on both AC and DC setups. Internal current resistors and rectifiers maintain smooth lighting performance across typical 50/60Hz power lines.
What is the dielectric insulation testing threshold for this line?
The component family handles voltages between 1500V and 1800V AC without dielectric breakdown or arcing, offering dependable circuit safety during high voltage spikes.
