Panel Indicator Light 16MM Flat Head 3-480V with 20cm Wire Leads| FILN Manufacturer

Key Engineering & Procurement Takeaways

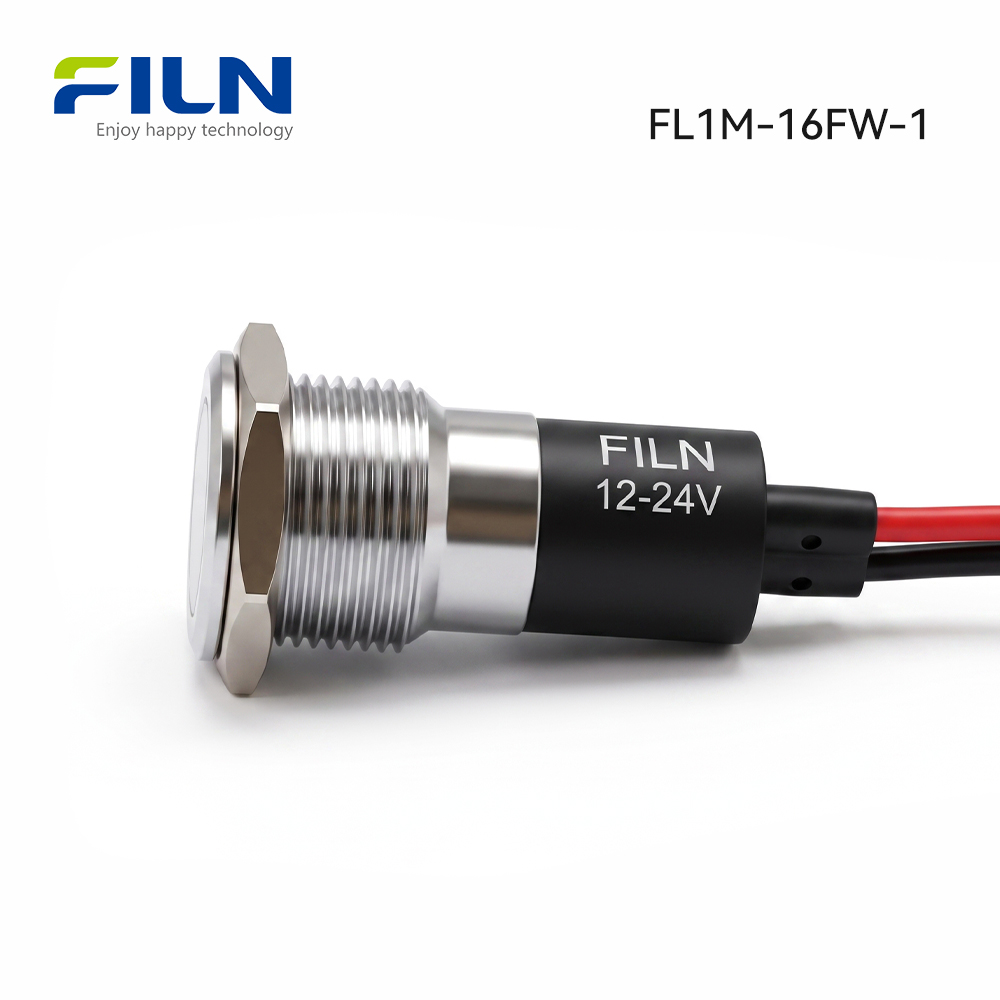

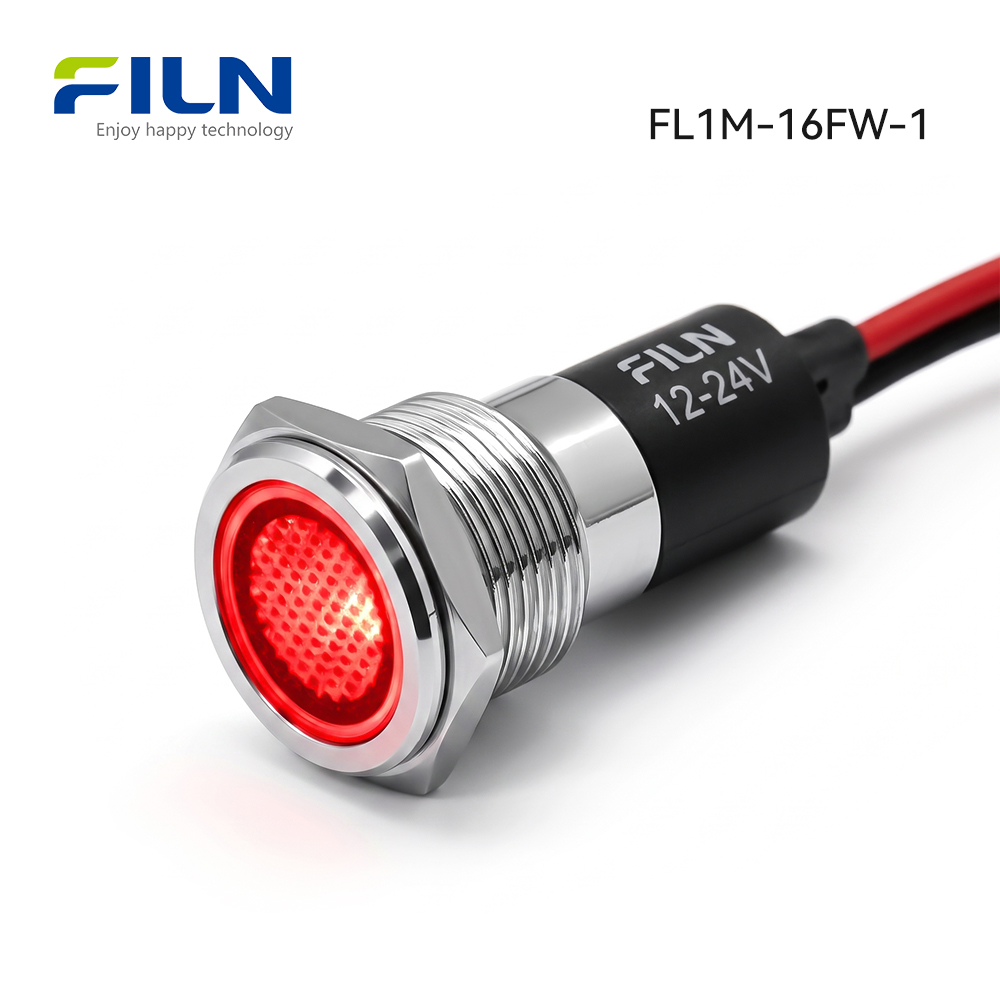

• Product Identity: FILN 16mm metal panel indicator light engineered for clear status visualization in industrial environments.
• Mounting Specification: Standard 16mm panel cutout diameter utilizing a secure single-nut threaded mounting mechanism.
• Electrical Versatility: Supports custom operating voltages from 3V to 480V AC/DC with a non-polar LED lamp bead design.

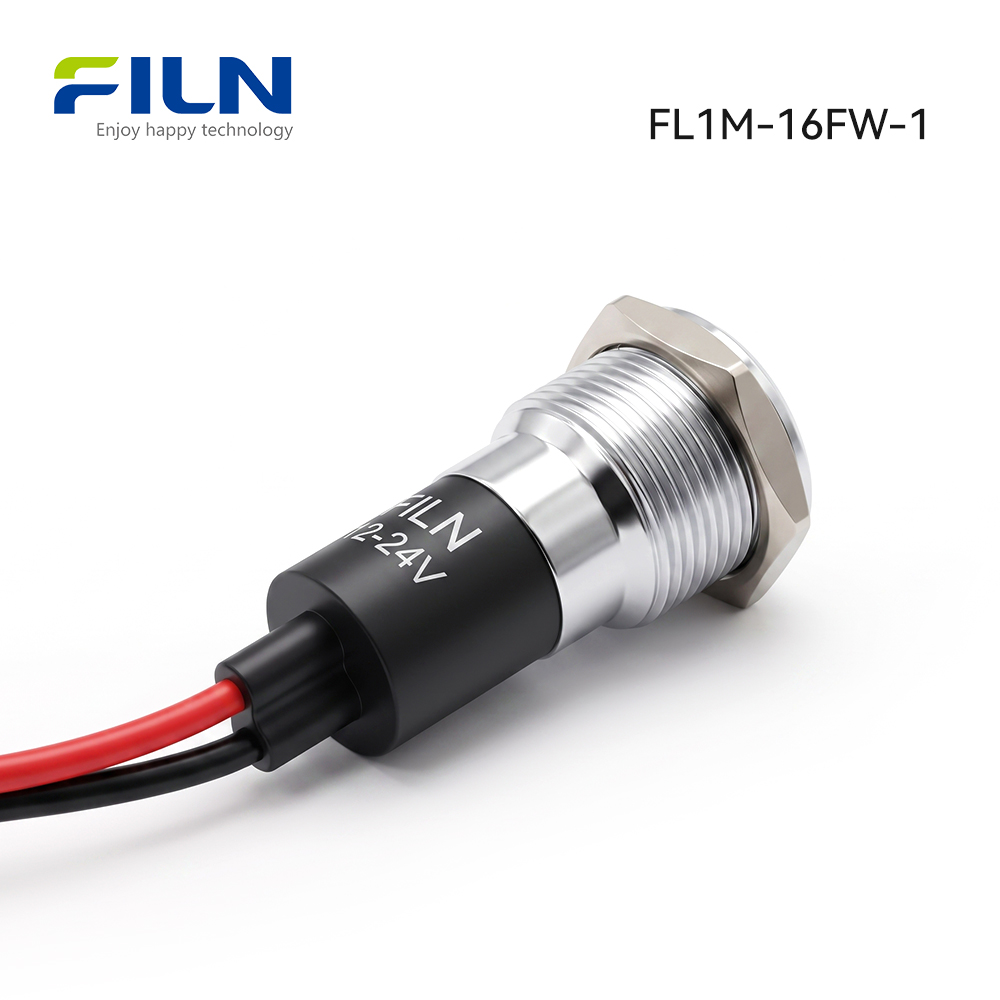

• Wiring Configuration: 2PIN pre-wired setup featuring 20cm insulated wire leads for direct circuit integration.
• Protection Rating: IP65 waterproof and dustproof performance achieved via integrated silicone sealing gaskets.
• Head Style: Flat head design delivering a flush, professional aesthetic on control panel surfaces.
• Material Composition: Durable metal alloy shell providing enhanced mechanical strength and impact resistance over plastic bodies.

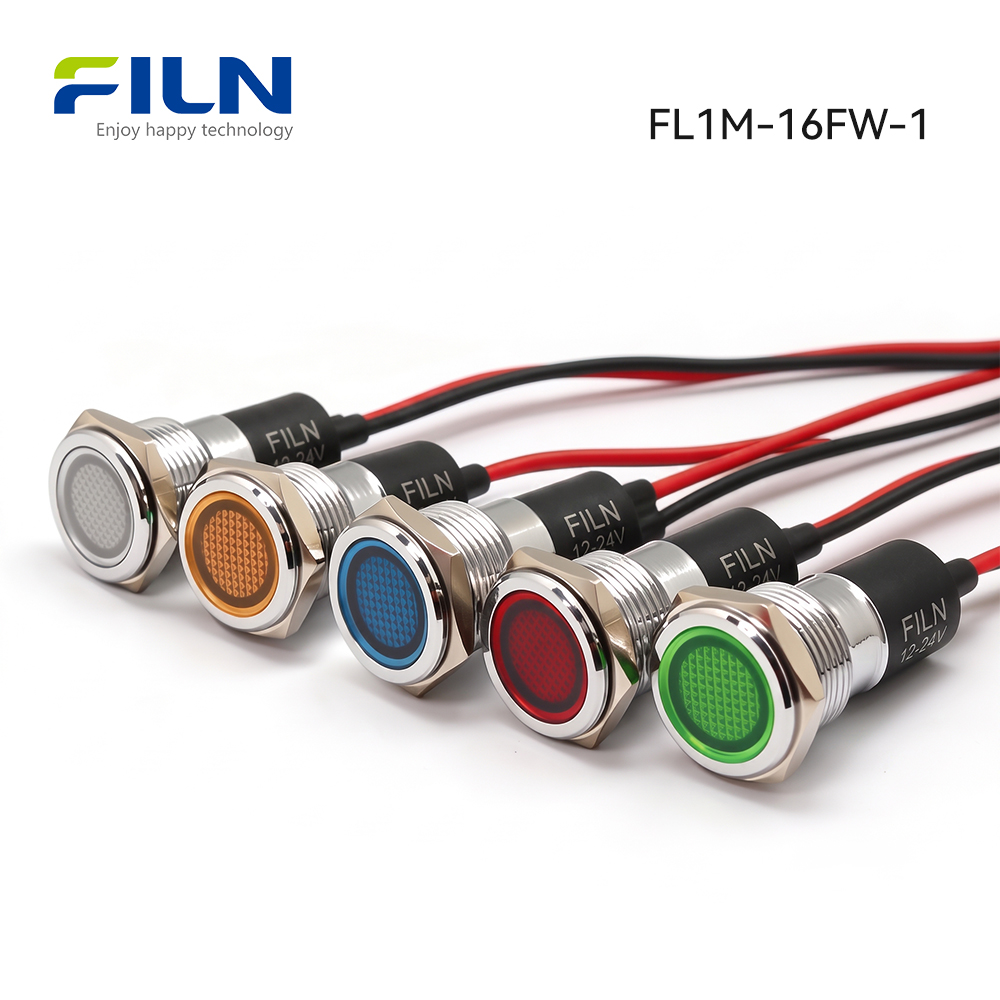

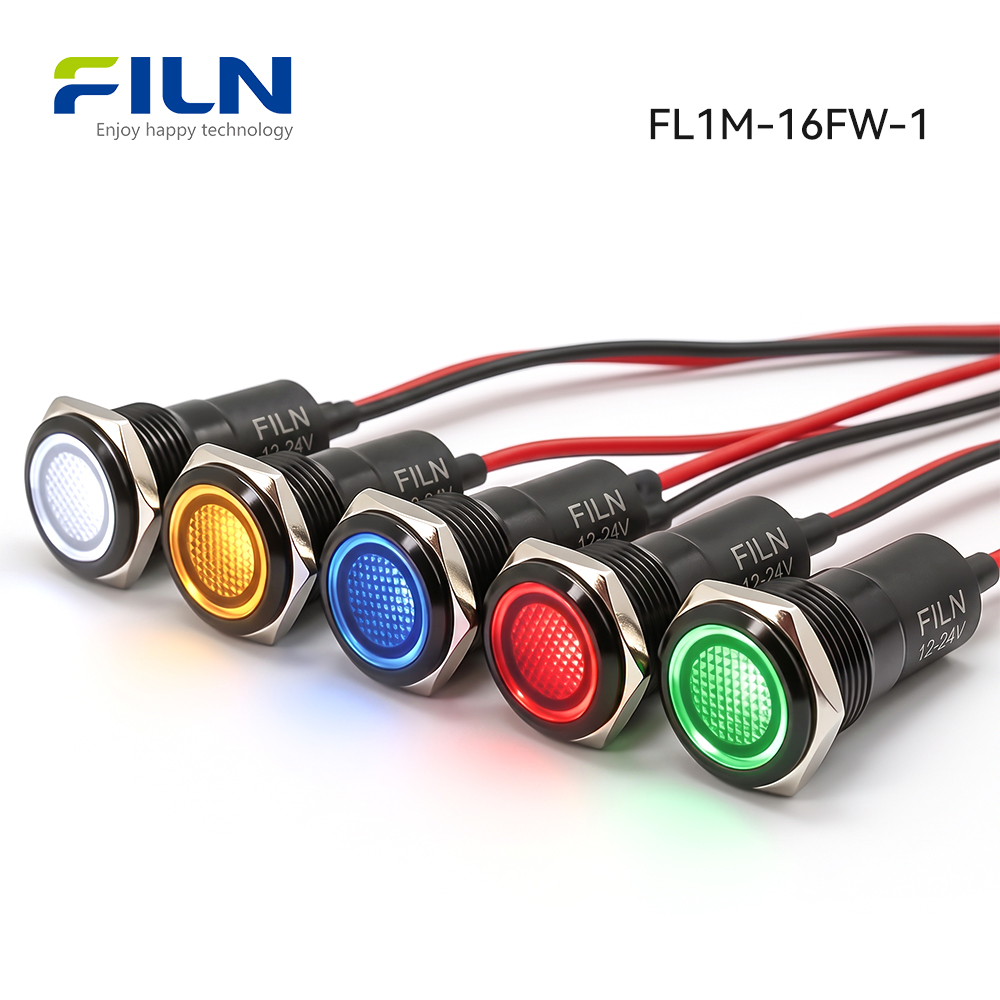

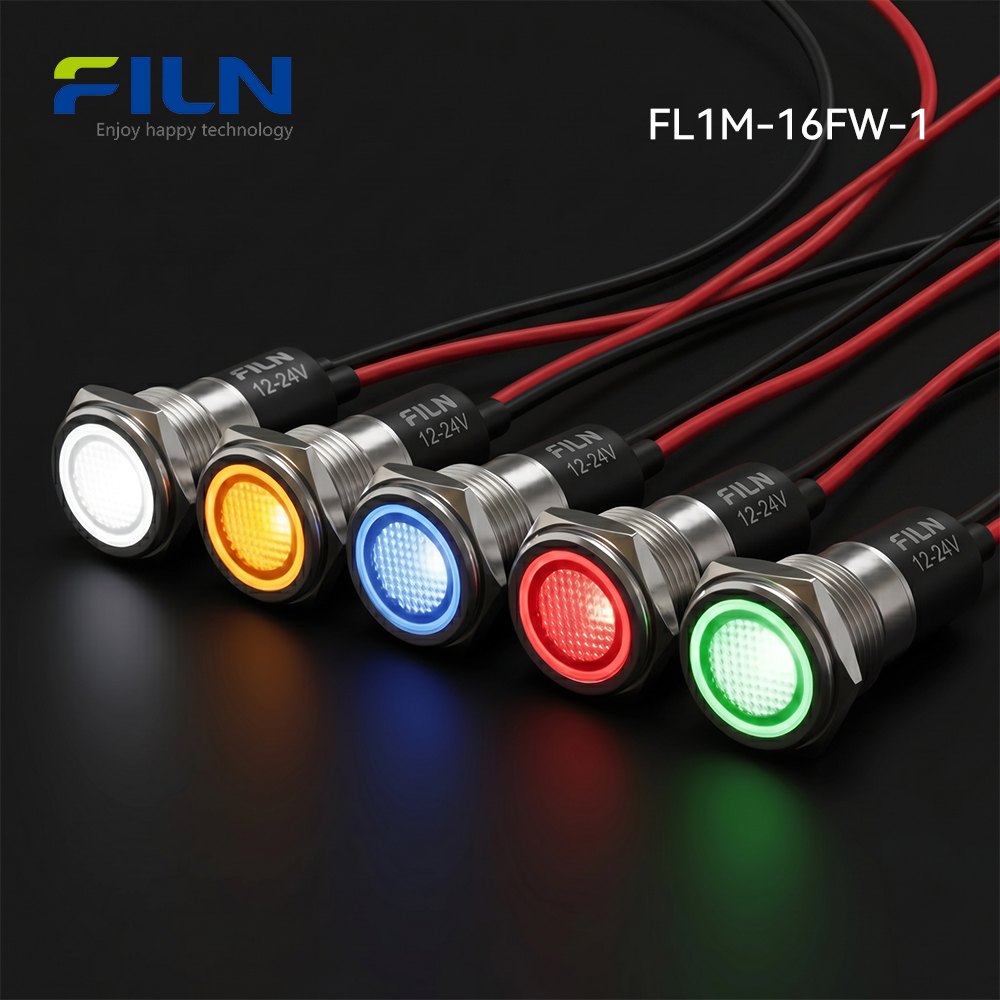

• Illumination Options: Available in Red, Green, Yellow, Blue, and White LED color configurations.
• Global Certifications: Manufactured under strict ISO9001 standards with UL (Certificate E498776), CE, VDE, RoHS, and CCC compliance.
• Manufacturer Support: Factory direct wholesale, OEM/ODM customization, 3D STEP models, and dedicated engineering support.

What is a Panel Indicator?

A panel indicator, frequently designated as a pilot light or signal lamp, is an electromechanical device mounted onto control boards, machinery housings, and electrical distribution enclosures to visually communicate operational states, power conditions, or fault warnings. The primary function of a panel indicator is to relay real-time system status to operators safely and instantaneously. FILN manufactures a comprehensive range of signaling solutions, offering both metal indicator light and plastic housing variants across standardized mounting diameters from 6mm to 30mm. Electrical engineers can specify terminal pin connections or pre-wired cable configurations depending on assembly constraints. Furthermore, metal indicator light models are available in flat head, prominent head, and recessed head geometries, allowing specifiers to match aesthetic and functional requirements across diverse industrial environments.

Product Overview & Engineering Principles

The FL1M-16FW-1 panel indicator integrates solid-state semiconductor optoelectronics with a heavy-duty mechanical housing to ensure long operational lifespans and vibration resistance. Electrically, the internal high-brightness LED operates in conjunction with a precision current-limiting resistor, translating input voltages ranging from low-voltage DC up to industrial 480V AC levels into stable luminous output. Mechanically, the assembly utilizes a threaded metal barrel secured by a rear fastening nut, clamping firmly against control panels while compressing an O-ring seal to block moisture and particulate ingress. Industrial automation engineers deploy this panel indicator to eliminate ambiguity in complex control workflows, relying on its clear visual signaling for power-on verification, cycle completion, and emergency alarm monitoring. Certified to rigorous international standards, this series guarantees reliable performance in harsh manufacturing facilities.

Quick Technical Specifications

Performance Parameters & Electrical Ratings

Component Materials & Construction

Every material utilized in the construction of the FILN panel indicator is selected for maximum industrial durability, electrical insulation, and chemical resistance. The table below outlines the specific material breakdown for each component part.

Environmental Performance & Test Specifications

This specification establishes the operational parameters for the metal indicator light series under extreme environmental stressors.

LED Optoelectronic Specifications

1. Absolute Maximum Ratings

Safety limits that must not be exceeded under any operational condition:

• Max Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature (TOPR): -40°C ~ +80°C
• Storage Temperature (TSTG): -40°C ~ +100°C
• Lead Soldering Temperature (TSOL): Max. 260°C for 3 seconds max.

2. Electro-Optical Characteristics (Ta = 25°C)

Standard Atmospheric Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under the following standard environmental conditions:

• Ambient Temperature: 5°C ~ 35°C
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Measurement Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement is ±15%, and voltage measurement tolerance is ±0.1V.

Applications by Industry

The FILN metal indicator light is manufactured with high-strength copper alloy or stainless steel housings, offering exceptional impact resistance and an IP65 waterproof rating. While plastic indicators are prone to aging, cracking, and high-temperature deformation over prolonged use, metal indicator lights excel in harsh operating environments subject to mechanical vibration, frequent switching, and high reliability demands.

1. Industrial Automation & Machinery Manufacturing

This sector represents the primary application domain where machinery experiences continuous mechanical vibration and exposure to cutting fluids.

• CNC Machine Tools: Control panels equipped with red, green, and yellow signal lights to indicate normal operation, standby mode, and emergency stop status while resisting coolants and metal shavings.
• Automated Production Line Control Cabinets: Installed on large PLC distribution cabinets to provide clear visual feedback on power distribution circuits.
• Hydraulic & Pneumatic Equipment: Integrated into oil pump startup panels where vibration resistance prevents wire fatigue and loose terminations.

2. Outdoor Power & New Energy Distribution Systems

Outdoor infrastructure requires high resistance to UV radiation, extreme temperature fluctuations, and severe weather.

• EV Charging Stations: Outdoor DC and AC charging pedestals equipped with flat metal panel indicators showing standby, charging, and fault states.
• Solar Photovoltaic Combiner Boxes: Deployed in solar farms and municipal outdoor enclosures operating reliably between -40°C and +80°C.

3. Rail Transit, Heavy Vehicles & Marine Equipment

Vehicles and maritime vessels require shock-absorbent components capable of withstanding saltwater corrosion.

• Construction Machinery Dashboards: Excavators and cranes utilize robust signal lamps for hydraulic pressure and braking fault alerts.
• Marine & Port Control Consoles: Stainless steel plated indicator lights resist salt fog corrosion in maritime environments.

4. Commercial Vending & Public Access Equipment

Publicly accessible hardware requires vandal-resistant components that withstand physical impact.

• Self-Service Kiosks: Vending machines and ticketing terminals utilize metal indicator lights alongside push buttons.
• Access Control Panels: Stainless steel intercom panels feature clear status illumination for door lock states.

5. Medical Equipment & Food Processing Machinery

Processing machinery subjected to rigorous washdown and sanitization protocols.

• Food Packaging Lines: IP65 sealed metal indicators withstand high-pressure chemical washdowns without internal corrosion.
• Sterilization Autoclaves: High-temperature equipment utilizes durable signal lights to denote heating and venting cycles.

LED Indicator Color Meanings and Application Guide

Color selection is critical for conveying intuitive operational statuses on electrical control panels. Below is the standard application guide for the five primary LED colors offered by FILN.

• Red: Denotes danger, emergency stop, fault conditions, or abnormal system stoppage.
• Green: Signifies normal operation, safe conditions, power-on confirmation, or system readiness.
• Yellow / Amber: Indicates caution, warning states, pre-heating cycles, or anomalous parameters requiring operator attention.
• Blue: Used for mandatory action signals, specific operating modes, or general status confirmation.
• White: Serves as a neutral power indicator, general illumination status, or system availability marker.

Note: Color conventions may vary based on specific industry standards (IEC/NEC), regional regulations, and machine builder protocols. Dual-color and tri-color configurations are available upon request.

Installation Guide

Proper mechanical mounting ensures long-term stability and IP65 waterproof sealing on control panels. Follow these structured steps for correct installation:

1. Prepare Tools: Gather a punch tool, drill with a 16mm hole saw or step bit, wire strippers, and a torque wrench.
2. Panel Preparation: Mark the exact center point on the control panel and drill a clean 16mm circular mounting hole. Ensure the surrounding metal surface is free of burrs, grease, or paint buildup.

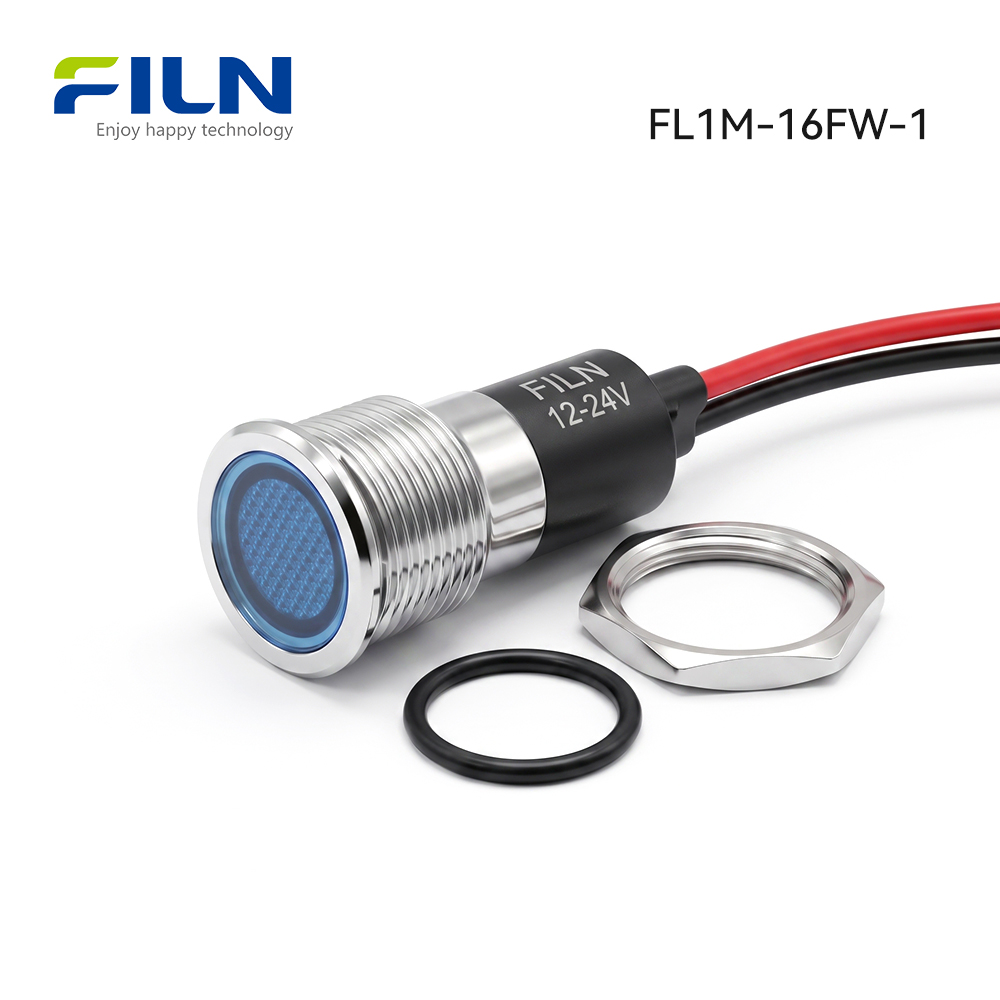

3. Insert Indicator: Slide the silicone waterproof O-ring onto the threaded metal barrel. Insert the metal indicator light from the front side of the panel.
4. Secure Fastening: Thread the included M16 metal locking nut onto the rear barrel from the back of the panel. Tighten securely to compress the O-ring and prevent shifting.
5. Connect Wiring: Route the 20cm pre-wire leads to the power source using insulated quick-disconnect terminals, solder, or electrical tape.
6. Post-Installation Inspection: Verify that the indicator is firmly seated with no skewing, and test electrical continuity before powering on the system.

Wiring Guide & Connection Methods

Understanding the differences in wiring configurations ensures optimal electrical reliability across varying control panel architectures.

Comparison: Pin Terminals vs. Pre-Wired Leads

Wiring Instructions

The FL1M-16FW-1 features direct 2PIN wire leads (20cm length). These leads can be securely linked to the main circuit using quick-connection terminal blocks, soldered connections, or professional electrical insulating tape to guarantee joint stability.

Safety Warning: Always cut off main electrical power before performing any wiring operations. Because this product incorporates a non-polar LED lamp bead design, wiring polarity is flexible, but electrical isolation must be verified prior to energizing.

Industry Knowledge Center

Engineering reliable control panels requires adherence to component selection best practices. Metal indicator lights prevent premature failure modes commonly experienced with plastic counterparts, such as ultraviolet embrittlement and thermal warping. By utilizing high-conductivity copper alloy shells and precision internal resistors, FILN ensures stable optical performance across millions of operational cycles. Maintenance engineers should periodically inspect mounting nuts in high-vibration settings to ensure sealing integrity remains uncompromised.

Buyer Decision Guide & RFQ Checklist

Material Selection Guide

FILN offers metal indicator lights in various shell materials to suit distinct environmental exposure levels:

Specification-to-Decision Framework

• Mounting Hole (16mm): Determines physical panel compatibility. Confirm cutout dimensions prior to fabrication.
• Voltage (3V–480V): Ensures electrical compatibility. Match voltage rating precisely to prevent dimming or LED burnout.
• IP65 Rating: Guarantees dust and water jet protection for demanding factory floors.

Procurement RFQ Checklist

When requesting a quotation or technical samples from FILN, please provide the following details to ensure rapid processing:

• Product Model (e.g., FL1M-16FW-1)
• Mounting Hole Size (16mm)
• Operating Voltage & Current Type (AC/DC)
• LED Color (Red, Green, Yellow, Blue, White)
• Wiring Requirement (20cm wire lead length or custom)
• Target Order Quantity & Destination Market

FILN Manufacturing & Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd., operating under the globally recognized brand FILN, is a specialized electrical component manufacturer established in 2006 in Wenzhou, Zhejiang. Integrating research, development, precision production, and global sales, FILN operates a modern 10,000 m² manufacturing facility featuring over 20 advanced production lines and an independent testing laboratory. Driven by strict ISO9001 quality management standards, FILN delivers exceptional electrical performance and innovative design across indicator lights, push button switches, rocker switches, and toggle switches.

FILN products carry prestigious international certifications including UL (Certificate E498776), CE, VDE, RoHS, SGS, CCC, and TUV. Our engineering team specializes in custom solutions, working directly with B2B clients to resolve complex wiring, voltage, and environmental protection challenges. FILN components are exported to over 100 countries, powering applications in household appliances, energy storage systems, EV charging infrastructure, automotive modifications, and industrial automation.
