1. How do you prevent phantom illumination (faint glowing) in a 12v LED blue light indicator?
Phantom illumination caused by stray capacitance in parallel wiring runs can be eliminated by connecting a shunt resistor or bypass capacitor in parallel across the indicator’s 2PIN leads. This safely drains stray currents below the LED activation threshold.
2. Can this IP67 metal blue light indicator be washed down with caustic cleaning chemicals?
Yes, the rugged copper alloy or anodized shell and silicone O-ring are designed to withstand standard commercial washdown procedures. For highly acidic or aggressive environments, contact our engineers to order 316 stainless steel housings.
3. What is the standard wire lead gauge and insulation thickness used on the FL1M-10BW-1?
The standard pre-wired configuration uses high-grade recognized PVC insulated copper wire, optimized for quick stripping and reliable terminal crimping in automated wire strip processes.
4. Does FILN offer custom lead lengths beyond the standard 20cm/40cm setup?
Yes, as a factory direct manufacturer, FILN can customize wire lengths from 5cm to over 5 meters to meet specific wire harness routing and layout requirements.
5. Is the internal carbon film resistor replaceable if the control loop voltage changes?
No, the internal ballast resistor is completely sealed within the epoxy resin base to secure an IP67 rating. We recommend ordering a specific voltage variant (such as 12V, 24V, or 220V) to match your target system loop.
6. What international compliance markings are permanently stamped on the indicator shell?
FILN indicators carry visible international compliance marks—including CE, VDE, RoHS, and CCC—stamped on the housing or listed on the packaging box to streamline on-site inspections.

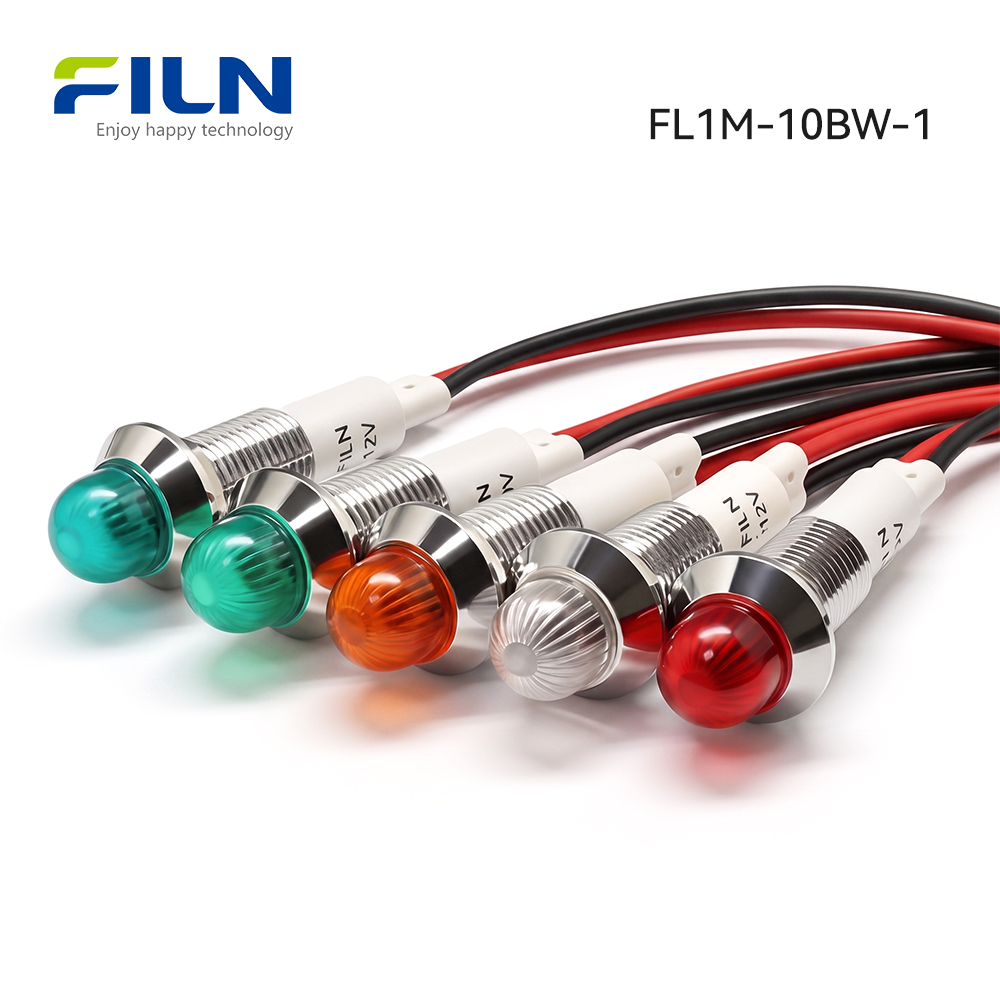

7. How does the ball-style dome head compare to a standard flat lens for visibility?
The elevated ball dome head extends past the panel surface to provide a wide 60° viewing angle, making it easy for operators to spot status updates from across the production area.
8. What is the minimum ordering volume required for bulk custom wholesale configurations?
FILN maintains a zero rigid MOQ policy, allowing engineers to order low quantities for prototyping before committing to high-volume manufacturing runs.
9. What causes a solid-state blue light indicator to prematurely fail or lose brightness?
Premature failure is typically caused by continuous overvoltage transients or ambient temperatures exceeding 80°C, which degrade the internal LED junction.
10. Can this 10mm metal pilot light run on both Alternating Current (AC) and Direct Current (DC)?
Yes, our internal circuit setups support both AC and DC wiring topologies across our specified voltage ratings.

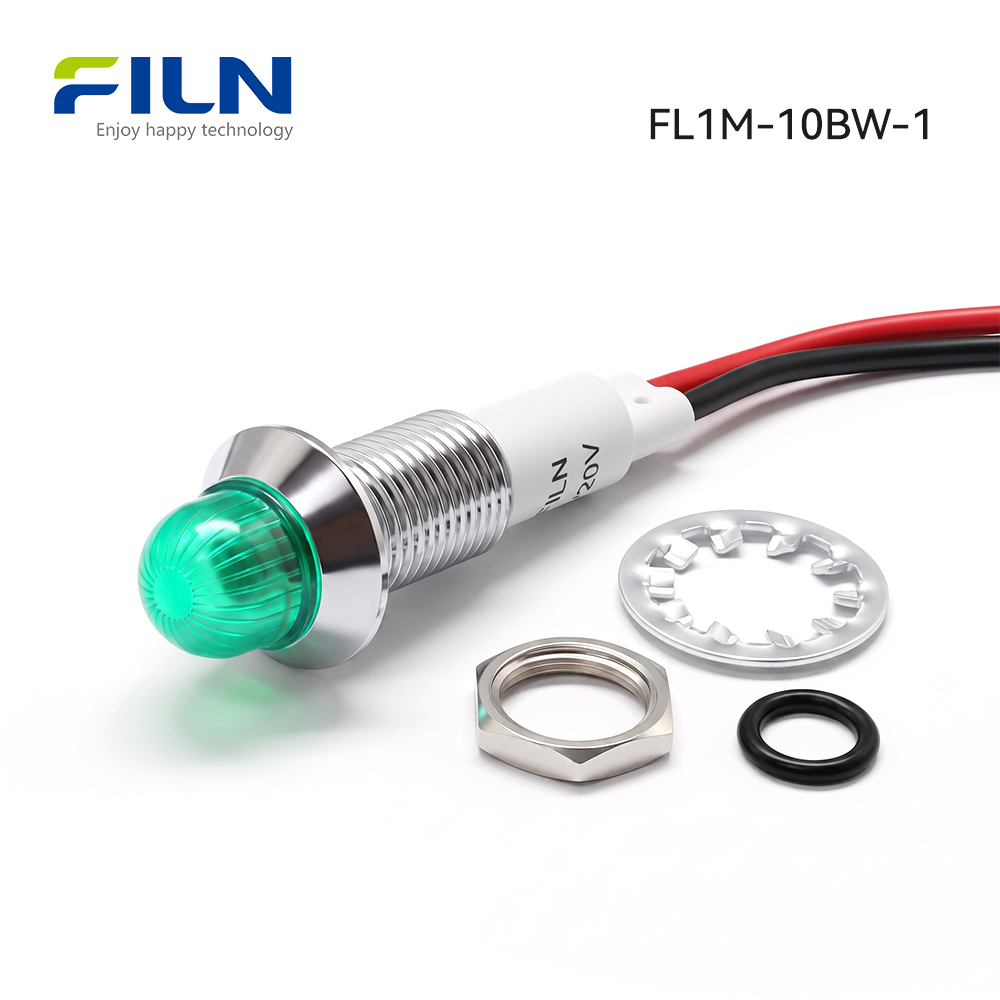

11. How does the plum blossom lock washer prevent loosening on high-vibration panels?
The multi-tooth design of the stainless steel plum blossom washer bites into the back of the panel, absorbing continuous mechanical vibration and keeping the backing hex nut secure.
12. Does the polycarbonate lens crack or discolor under long-term outdoor solar UV exposure?
FILN uses UV-stabilized polycarbonate (PC) formulation mixes, which prevent yellowing, clouding, or cracking under typical solar exposure.
13. Can I request a 3D STEP step file or CAD mechanical drawing for layout pre-modeling?
Yes, our engineering department provides comprehensive 3D STEP models and detailed CAD dimension sheets upon request to simplify panel layout design.
14. What are the insulation resistance limits between the internal wire core and outer shell?
The indicator provides an insulation resistance rating of ≥100 MΩ when evaluated at DC 500V, ensuring excellent electrical isolation and safety.
15. What is the typical peak power draw of the FL1M-10BW-1 during active loop runtime?
The unit runs at a low nominal power draw of approximately 0.2 Watts, which minimizes thermal loading inside densely packed electrical enclosures.
16. Are custom laser-etched legend symbols available on the indicator head face?
Yes, our ODM division can laser-etch specific symbols or custom labels on flat-head and convex indicator designs to meet your process needs.
17. How does FILN package components to prevent damage during international shipping?
Indicators are packed in structured grid boxes inside heavy-duty corrugated cartons to keep wire leads organized and protect the metal finishes during long-distance transit.
18. Is this component rated for use in sub-zero industrial refrigeration control boxes?
Yes, the FL1M series is rated down to -40°C, making it suitable for industrial cold-storage facilities and extreme northern climates.
19. What color coordinates define the pure blue signal output on the FILN LED line?
The high-output blue LED emits within a dominant spectrum of 520nm to 525nm, delivering high contrast against bright industrial ambient lighting.
20. How do I request a formal price quote or volume discount structure for corporate accounts?
Please email your project specifications, estimated annual volumes, and layout requirements directly to our sales team at inquiry@cnylin.com.cn for a complete quote within 24 hours.
