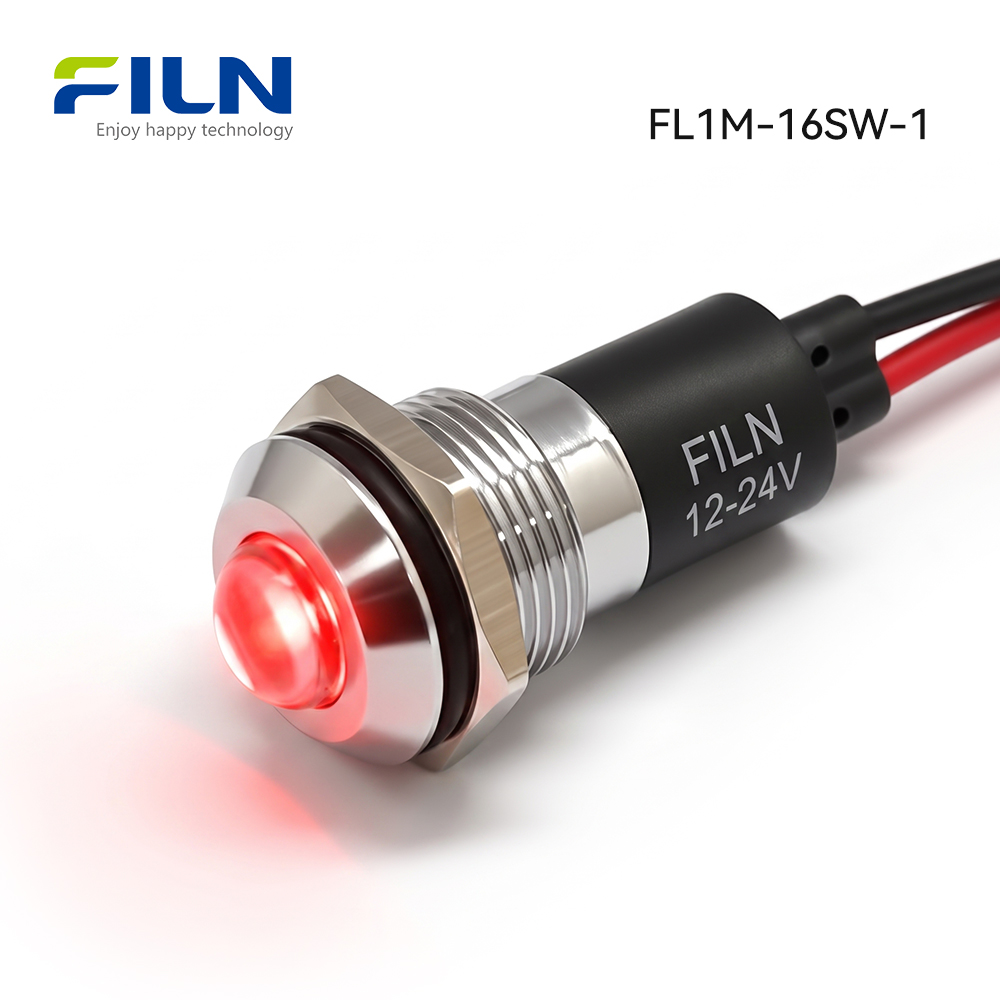

120v Pilot Light with 16mm Convex Head LED Light and 20cm Wire Leads | FILN

Executive Summary & Commercial Overview

This professional 120v pilot light is an engineered industrial status indicator designed by FILN, a specialized electrical component manufacturer with extensive OEM and ODM capabilities. Featuring a robust 16mm mounting size and a distinct raised head design, this metal indicator light delivers exceptional brightness and structural durability for electrical control panels, automation machinery, power distribution cabinets, and heavy equipment. Built with a heavy-duty copper alloy shell and an integrated IP65 waterproof sealing ring, it replaces fragile plastic indicators in demanding environments characterized by mechanical shock, vibration, and thermal exposure. Global B2B buyers, control panel builders, and industrial equipment manufacturers can source this reliable component in bulk or custom configurations, supported by rigorous ISO9001 quality controls, UL certification (Certificate Number: E498776), and full compliance with CE, VDE, RoHS, and CCC standards. For technical inquiries, custom lead lengths, or wholesale quotations, engineering support is available directly through the factory supplier.

Key Takeaways for Technical Buyers

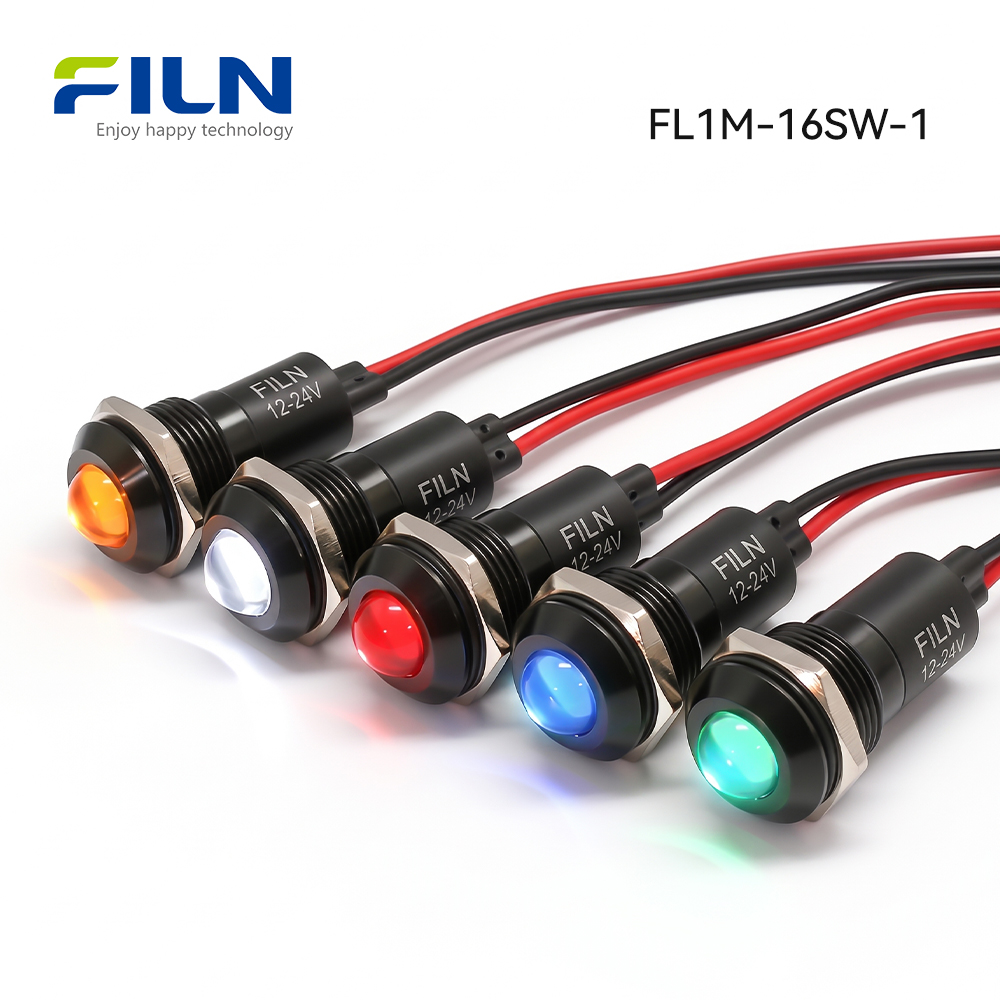

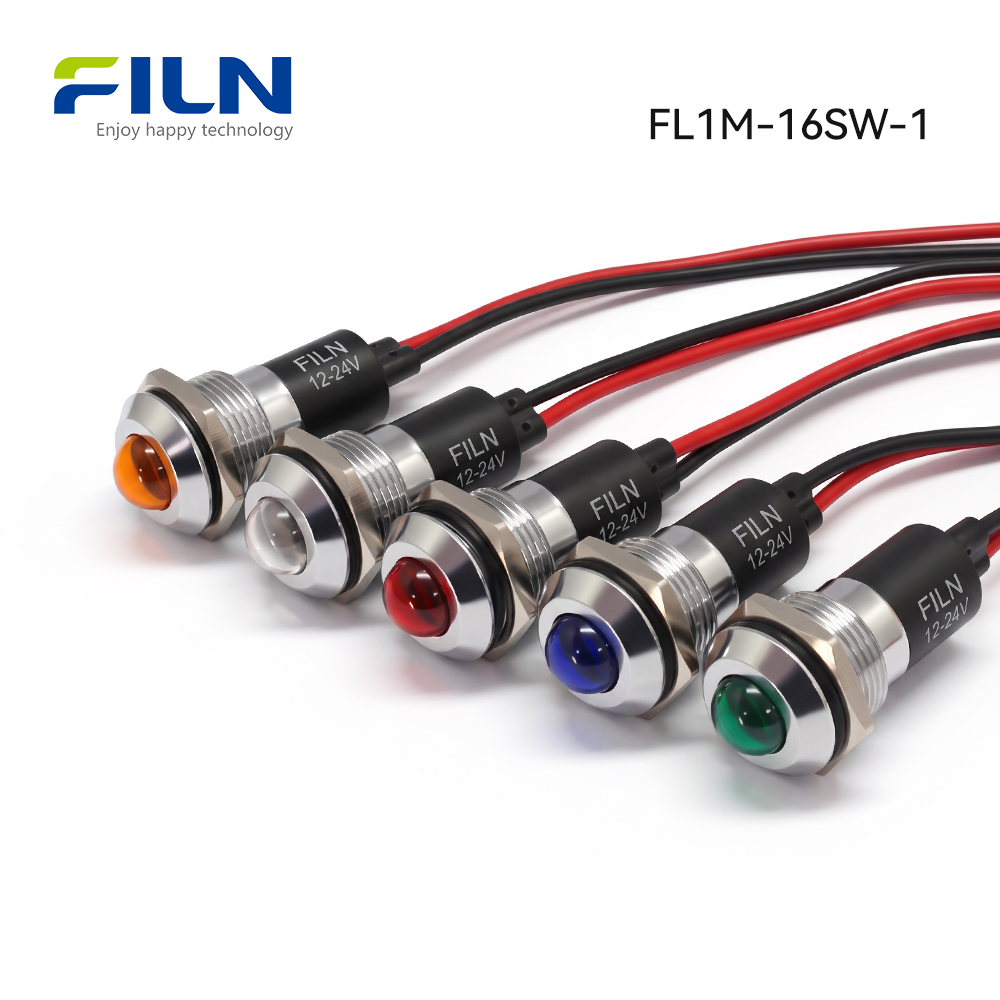

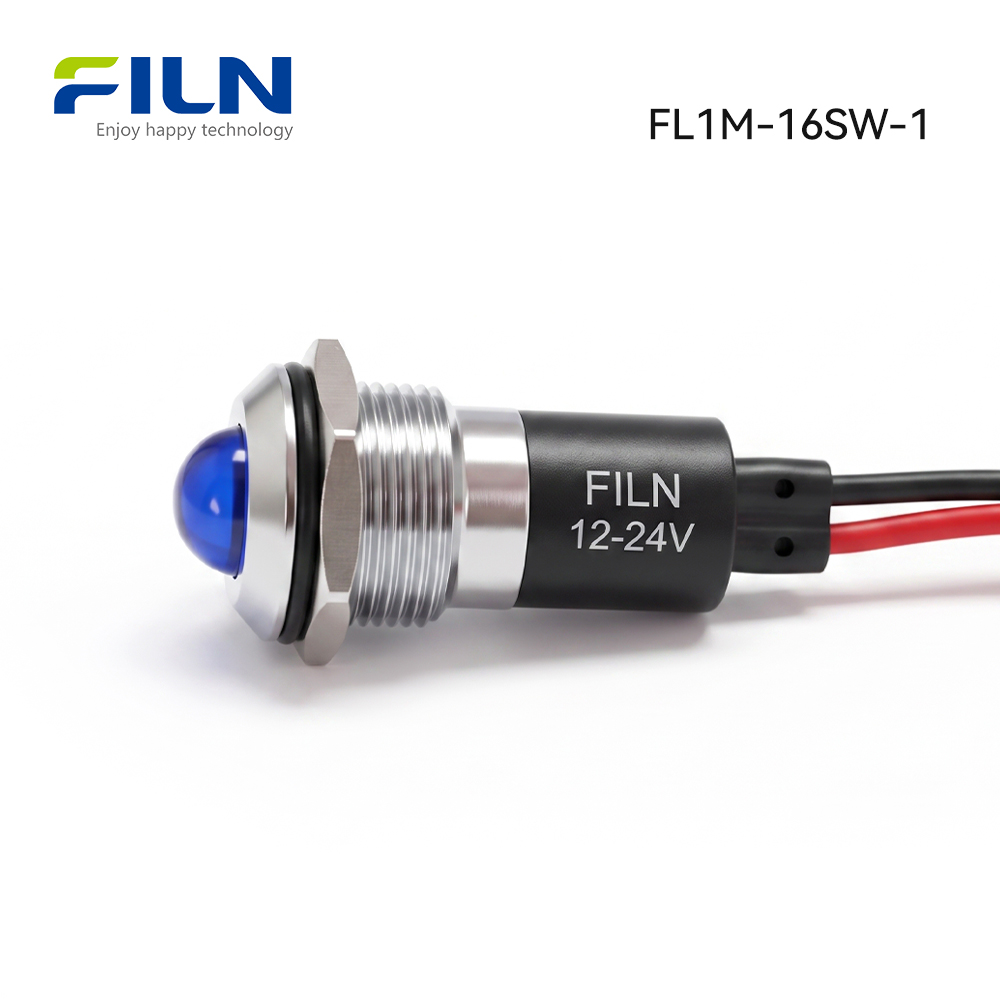

• Product Identity: Professional 16mm raised head metal indicator light designed for clear visual status signaling across industrial control panels.
• Core Specifications: Standard 16mm panel mounting hole size with custom voltage support ranging from 3V to 480V AC/DC.
• Material Composition: Heavy-duty copper alloy shell provides superior impact resistance and mechanical stability compared to standard plastic alternatives.
• Electrical Performance: Integrated high-brightness LED luminescent source operating at low power consumption with long working life.
• Environmental Protection: IP65 waterproof rating achieved via precision O-ring sealing, preventing dust and moisture ingress.

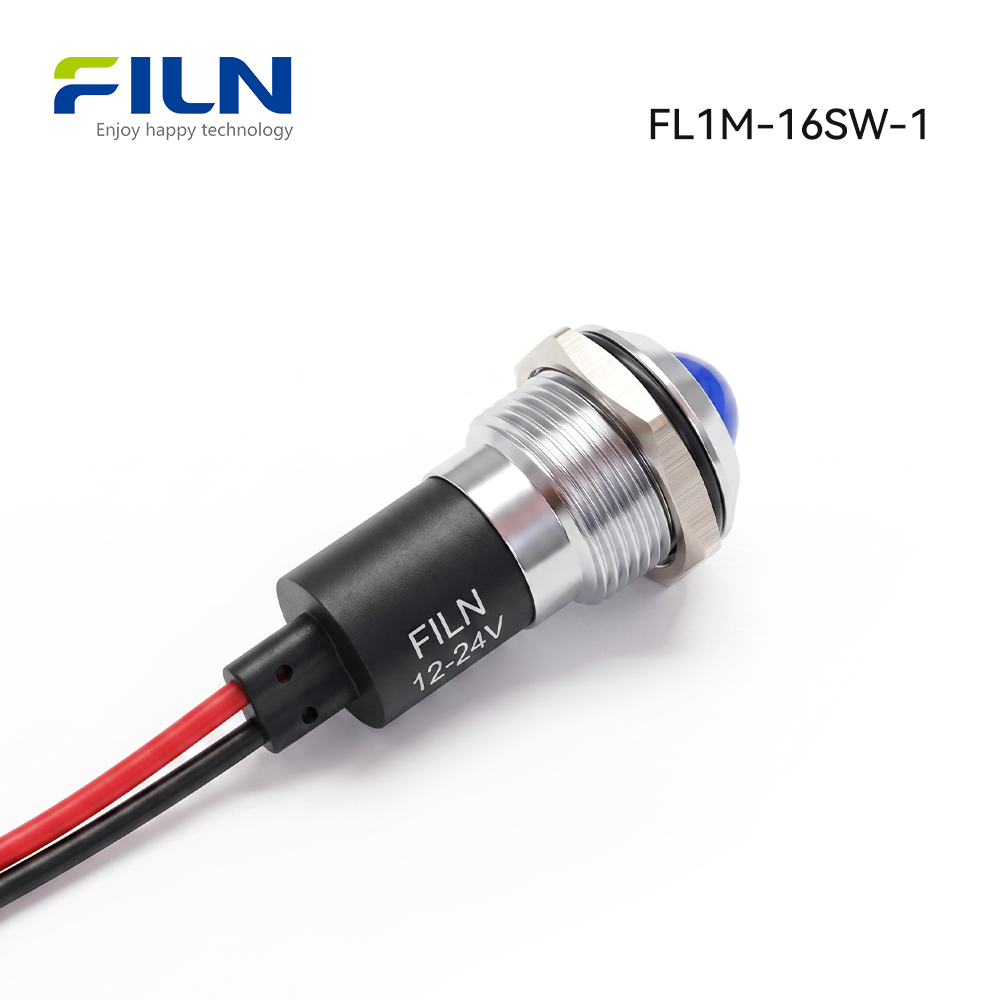

• Wiring Configuration: 2-pin pre-wired harness design allows secure electrical connection and faster assembly times.
• Target Applications: Widely utilized in electrical equipment, experimental devices, power distribution cabinets, and renewable energy systems.

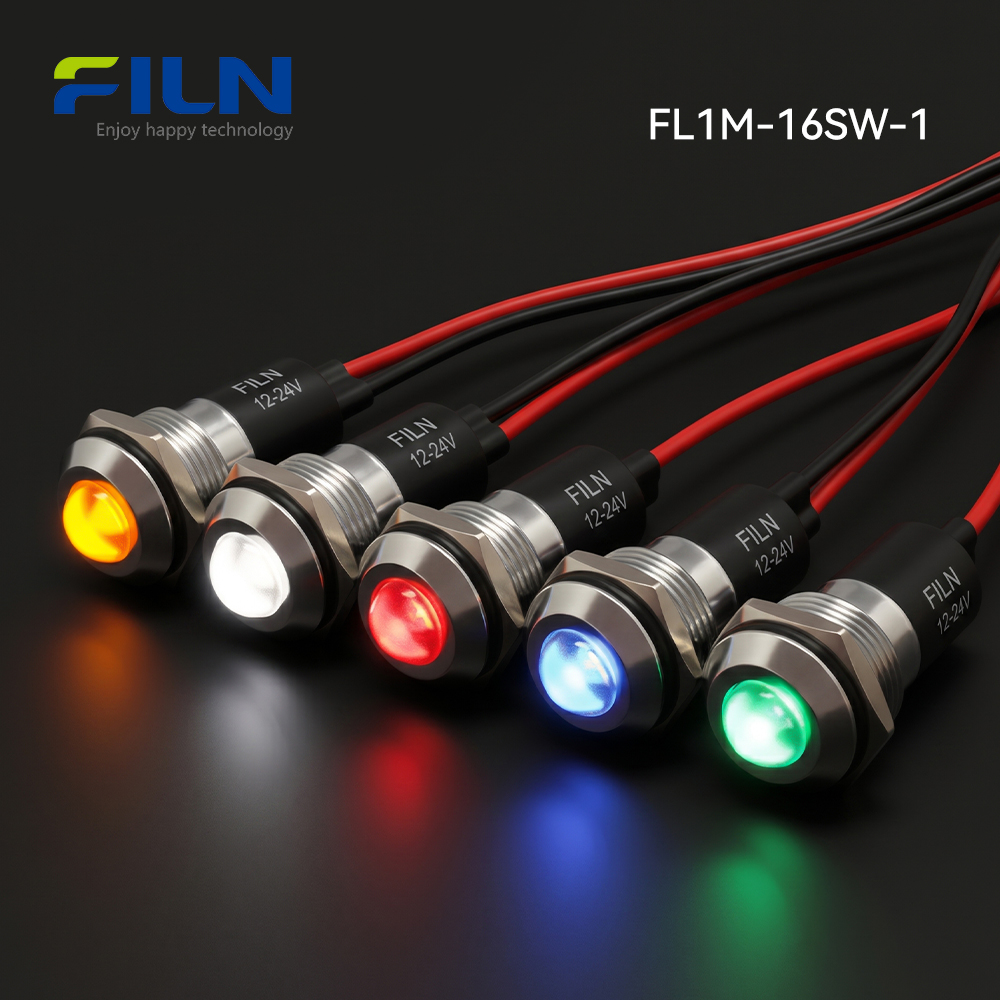

• Customization Options: Available in red, green, yellow, blue, and white LED colors with customizable wire lengths and terminal connectors.
• Verified Compliance: Backed by formal UL certification (Certificate Number: E498776), CE, VDE, RoHS, CCC, and ISO9001 factory manufacturing standards.
• Procurement Flexibility: Direct factory supply supporting wholesale orders, bulk purchasing, and custom OEM manufacturing solutions.

What is a 120v Pilot Light?

A 120v pilot light is an essential electrical signaling device used on control panels and industrial machinery to visually display operating states, power conditions, or fault alerts. The structural design incorporates a precision-machined metal housing, an internal high-intensity LED illumination circuit with current-limiting resistance, and a protruding lens assembly that emits high-visibility light from multiple viewing angles. Indicator lights are manufactured in two primary housing classifications: metal indicator lights and plastic indicator lights, spanning standardized installation diameters from 6mm to 30mm. Electrical termination is engineered in two distinct formats: pin-type terminal connections and direct wire-lead configurations. Specifically, metal indicator variants feature three distinct head geometries including flat head, raised head, and recessed head options, allowing engineers to select the optimal aesthetic and operational profile for specific panel requirements.

FILN produces comprehensive series of industrial indicators, including a dedicated selection of metal indicator lights engineered for high-vibration and harsh operational environments. To explore the full spectrum of available metal indicator solutions, view the complete collection through the all metal indicator lights product page.

Product Overview & Engineering Principles

The engineered 120v pilot light functions by transforming electrical energy into clear optical status signals. Mechanically, the assembly relies on a threaded single-nut mounting mechanism that secures the cylindrical body firmly through pre-drilled panel apertures. A high-grade silicone O-ring compresses against the mounting surface to form an effective barrier against water and particulate infiltration. Electrically, current passes through internal current-limiting components to energize the solid-state LED semiconductor, producing consistent illumination without excessive heat generation.

Industrial advantages include superior resistance to mechanical fatigue, stable performance across wide temperature spans, and long operational service intervals. Certified under rigorous international standards and utilizing robust copper alloy construction, this product is optimized for demanding control system architectures. For immediate purchasing and product variant specifications, review the 16mm panel indicator purchase page.

Quick Specifications

Performance Parameters

Component Materials & Structural Analysis

The structural integrity and long-term reliability of the indicator light rely on carefully selected engineering materials. Each component is engineered to withstand industrial stressors, thermal cycling, and chemical exposure.

Environmental Performance Specifications

This specification defines the general operating range and environmental resilience parameters for the metal indicator light series under extreme industrial working conditions.

LED Technical Specifications

The internal LED optical engine is engineered to strict semiconductor parameters to ensure uniform luminosity and reliable long-term electrical performance.

1. Absolute Maximum Rating

2. Electro-Optical Characteristics

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters presented in this documentation are measured under the following standardized atmospheric testing conditions:

Technical Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement is ±15%, and the tolerance of voltage measurement is ±0.1V.

Applications by Industry

Metal indicator lights utilize high-strength copper alloy or stainless steel metal shells, providing exceptional impact resistance and an IP67 waterproof/dustproof rating suitable for industrial and high-end commercial applications. While plastic indicator lights are prone to aging, cracking, and high-temperature deformation over time, metal indicator lights are specifically engineered to adapt to harsh working conditions, frequent operation, and high-reliability requirements. Typical application sectors include:

1. Industrial Automation & Machine Manufacturing

This sector represents the primary application environment for metal indicators, which face continuous mechanical vibration, oil splashes, and debris impact.

• CNC Machine Tools & Machining Centers: Control panels utilize red, yellow, and green metal indicators where green indicates normal operation, yellow signifies standby/warning, and red denotes emergency stop or fault conditions. Metal shells resist cutting fluid and metal shavings.
• Automation Production Line Control Cabinets: Large distribution and PLC control cabinets integrate 6mm and 8mm metal indicators compatible with AC220V and DC24V power supplies to display power circuit status.
• Hydraulic & Pneumatic Equipment: Applied in oil pump start/stop and pressure overload monitoring. Because equipment vibration is severe, integral wire-lead metal indicators secure internal LEDs and resistors firmly against wire detachment.

2. Outdoor Power & Renewable Energy Distribution Systems

Outdoor equipment is subject to intense sunlight, precipitation, and extreme temperature differentials, demanding superior weather resistance.

• New Energy Charging Piles: DC and AC public charging stations integrate flat head metal status indicators where flashing blue/green indicates charging status, solid light indicates completion, and flashing red indicates ground fault. IP67 sealing ensures resilience against vandalism and weather.
• Outdoor Distribution & Photovoltaic Combiner Boxes: Solar power stations and municipal outdoor enclosures utilize indicators to display high-voltage closing and inverter running status across -40°C to 80°C temperature ranges.

3. Railway Transportation, Utility Vehicles & Marine Equipment

Vehicles and marine vessels experience continuous shock and vibration, alongside corrosive salt-mist environments.

• Engineering Vehicle Control Consoles: Excavators, cranes, and bulldozer dashboards utilize status lamps for oil pressure, coolant temperature, and brake faults under dusty, high-vibration conditions.
• Marine & Port Control Equipment: Ship cabins and deck control panels employ electroplated stainless steel metal indicators to resist marine salt corrosion, backed by silicone O-rings preventing water ingress.

4. Commercial Self-Service Devices & Public Access Facilities

Public equipment is vulnerable to physical impact and vandalism, where plastic components easily break.

• Vending & Ticketing Machines: Paired with vandal-resistant metal switches to indicate coin acceptance, dispensing, and change status.
• Fuel Dispenser Panels: Hazardous fuel areas require robust electrical isolation, which metal indicator shells provide to enhance operational safety.
• Residential Intercom & Access Control: Stainless steel access panels utilize red and green indicators to signify door lock status.

5. Medical Equipment & Food Processing Machinery

These industries require frequent washdowns and sterilization, demanding high standards of cleanliness and water resistance.

• Food Filling & Packaging Equipment: Subjected daily to high-pressure hot water and chemical cleaning agents; IP67 metal indicators withstand spray jets without internal corrosion.
• Medical Sterilization Equipment: High-temperature autoclaves utilize indicators to distinguish heating, sterilization, and exhaust phases.

Application Summary: Standard plastic indicators degrade and yellow under ultraviolet exposure, while workshop oils corrode plastic housings and continuous vibration loosens pin terminals. FILN metal indicators utilize copper alloy bodies, silicone O-ring seals, and integral wire-lead structures to resolve these failures, representing the preferred component for reliable industrial equipment.

LED Indicator Color Meanings and Application Guide

Indicator light colors provide instant visual communication of machine states. Understanding standard color assignments ensures effective control panel design and operator safety. Note that color conventions can vary by equipment manufacturer, control system design, industry standard, and regional requirements. FILN offers single-color, dual-color, and tri-color configurations.

• Red: Typically denotes danger, emergency stop, fault conditions, or abnormal system states requiring immediate operator intervention.
• Green: Indicates normal operation, safe conditions, system ready status, or power active confirmation.
• Yellow / Amber: Signals caution, warning thresholds, standby status, or pre-operational parameters requiring attention.
• Blue: Frequently used for general status confirmation, information prompts, or specific functional modes (e.g., active charging state).
• White: Serves as a neutral power indication, circuit continuity check, or general illumination confirmation.

Technical Installation Guide

Proper mechanical and electrical installation is critical for ensuring the longevity and waterproof integrity of the indicator light. Follow these standard technical procedures during panel integration.

1. Verify Requirements: Confirm that the mounting aperture and operating voltage match the specific indicator model specifications.
2. Prepare Panel Aperture: Drill or punch a clean 16mm circular hole in the equipment control panel, ensuring no burrs or sharp edges remain around the rim.

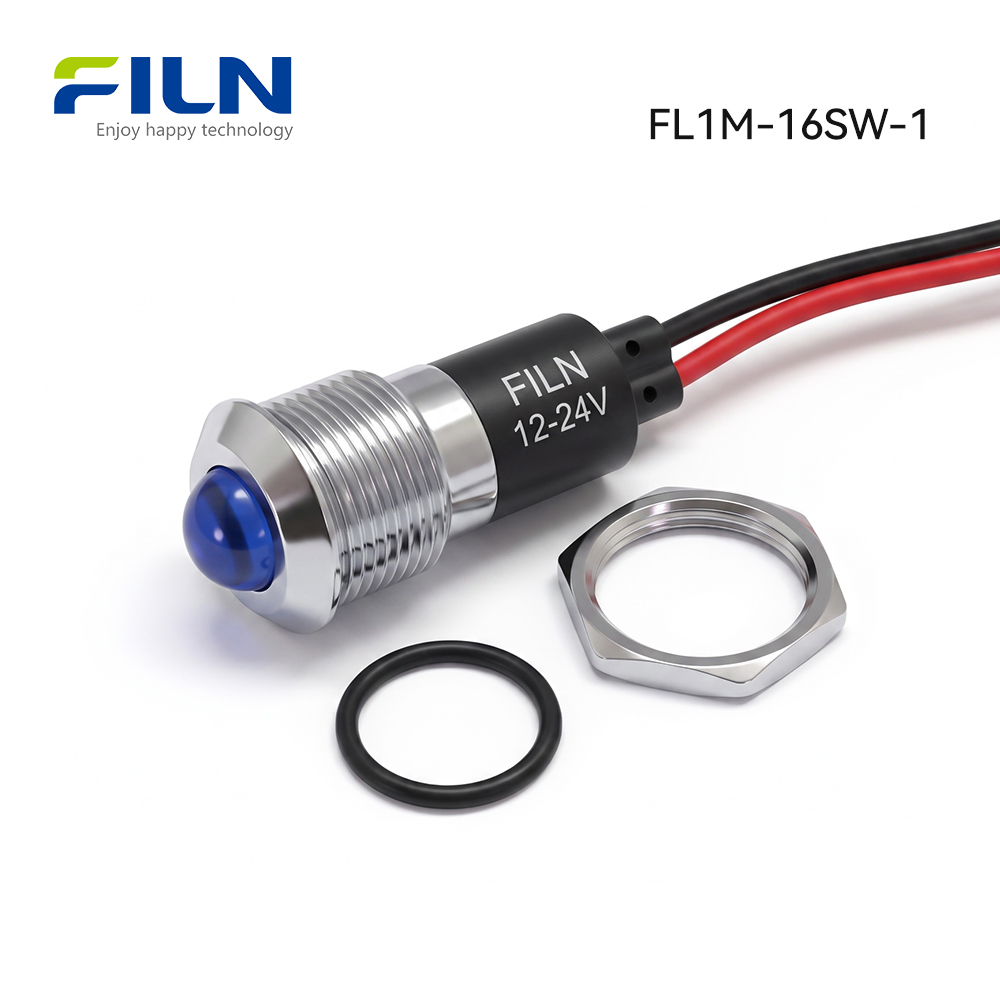

3. Position Waterproof Ring: Place the provided silicone waterproof sealing gasket onto the threaded body of the indicator.
4. Insert Indicator: Insert the indicator assembly from the front side of the control panel through the prepared 16mm hole.
5. Secure Locking Nut: Thread the metal locking nut onto the rear housing barrel and tighten securely to compress the sealing O-ring against the panel surface.
6. Connect Electrical Leads: Route the pre-wired leads to the control circuit, ensuring correct polarity and voltage matching.
7. Insulate Connections: Secure and insulate all electrical junctions using appropriate connectors or heat-shrink tubing.
8. Final Inspection: Energize the circuit to verify correct illumination and inspect panel sealing integrity.

Wiring and Connection Guide

Understanding the distinction between wiring methods is essential for efficient panel assembly. Pin-type indicators require soldering or terminal receptacles attached directly to rear pins, whereas direct wire-lead indicators arrive equipped with integrated factory wiring harnesses.

Direct wire-lead indicators can be connected securely to the main circuit using quick-link terminal connectors, professional soldering, or insulated electrical tape wrapping, ensuring stable and vibration-resistant electrical contact.

Safety Notice: Always ensure that power is completely cut off and verify zero voltage using appropriate testing equipment before performing any electrical wiring or maintenance.

For alternative pin-type configurations in similar dimensions, consider the 12mm pin type raised head indicator light.

Industry Knowledge Center

Engineering indicator lights requires understanding core operating principles, selection criteria, and maintenance best practices. Status indicators bridge human operators and automated electrical systems by converting complex voltage signals into clear optical feedback. Selecting components built to recognized industrial standards ensures regulatory compliance, reduces unplanned downtime, and protects capital equipment. Routine maintenance involves inspecting panel seals, verifying secure wire connections, and monitoring optical intensity across operational life cycles.

Buyer Decision Guide & RFQ Checklist

Selecting the correct metal indicator light involves matching electrical and environmental specifications to application requirements. FILN manufactures indicators using brass nickel-plated shells, stainless steel shells, and zinc-aluminum alloy shells.

Specification-to-Decision Framework

• Mounting Hole: Determines physical compatibility with existing panel cutouts (e.g., 16mm).
• Voltage: Determines electrical compatibility with control circuit inputs (e.g., 120v).
• LED Color: Determines status indication meaning according to operational safety standards.
• IP Rating: Determines environmental suitability against dust and moisture ingress (IP65/IP67).
• Material: Affects corrosion resistance, mechanical durability, and aesthetic finish.

RFQ Checklist for Buyers

Providing these specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements efficiently:

• Product type & model number (e.g., FL1M-16SW-1)
• Mounting hole size (16mm)
• Working voltage and AC/DC type (e.g., 120V AC)
• LED color (Red, Green, Yellow, Blue, White)
• Head type (Raised, Flat, Recessed)
• Shell material (Brass nickel-plated, Stainless steel, Zinc-aluminum)
• Waterproof requirement (IP65 / IP67)
• Wiring method and wire length
• Certification requirements (UL, CE, RoHS)
• Order quantity and target destination market

Explore alternative sizing options such as the 10mm raised head metal wire indicator, the 12mm raised head metal indicator light, or the 14mm raised head metal wire indicator. For more choices, visit the 14mm metal indicator light collection.

FILN Manufacturing and Engineering Capabilities

FILN operates as an established electrical component manufacturer combining advanced R&D, precision tooling, automated assembly, and stringent quality control laboratories. Professional engineering support is available for global buyers seeking custom electrical specifications, bespoke wire harnesses, tailored voltage ratings, and specialized OEM/ODM manufacturing. Sample support, small-batch pilot runs, and high-volume mass production are fully supported to meet demanding supply chain schedules.

Factory Direct Supply & Company Background

Factory Introduction: Yueqing Yulin Electronic Co., Ltd., operating under the brand name FILN and located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, development, production, and sales. Premium FILN brand products are distributed in over 100 countries worldwide. FILN operates a modern 10,000 m² manufacturing facility equipped with over 20 advanced production lines and an independent testing laboratory. Driven by rigorous scientific processes and the ISO9001 quality management system, FILN ensures continuous innovation and superior electrical performance. Certified products including UL (Certificate Number: E498776), CE, RoHS, REACH, TUV, and CB are widely utilized in kitchen appliances, energy storage systems, EV charging infrastructure, automotive engineering, marine installations, and security equipment.

Production Capabilities: Specializes in indicator lights, pushbutton switches, rocker switches, toggle switches, and other small electrical components, offering comprehensive custom manufacturing solutions.

Quality System: Certified under ISO9001, CE, VDE, RoHS, SGS, UL, IP65, and TUV standards.

Export Markets: Global distribution across North America, Europe, Asia-Pacific, and international markets.

Manufacturing Advantages: Professional engineers provide direct technical liaison, excelling in custom solution development for complex industrial applications.

Official Resources: Visit our website at www.filn.com or contact our engineering sales team via email at inquiry@cnylin.com.cn.

Frequently Asked Questions
