Key Technical Takeaways
- Factory-Direct Infrastructure: Buy directly from the specialized FILN manufacturing plant to avoid middleman fees, streamline supply chains, and access custom wire lead configurations.
- Optimal 10mm Cutout Layout: The 10mm flat-head installation footprint is specifically optimized for space-efficient mounting within modern control consoles and electrical boards.
- Pre-Assembled 2PIN Leads: Features dual 20cm pre-stripped insulated wires (40cm total path) to completely eliminate on-site soldering labor and accelerate system wiring.

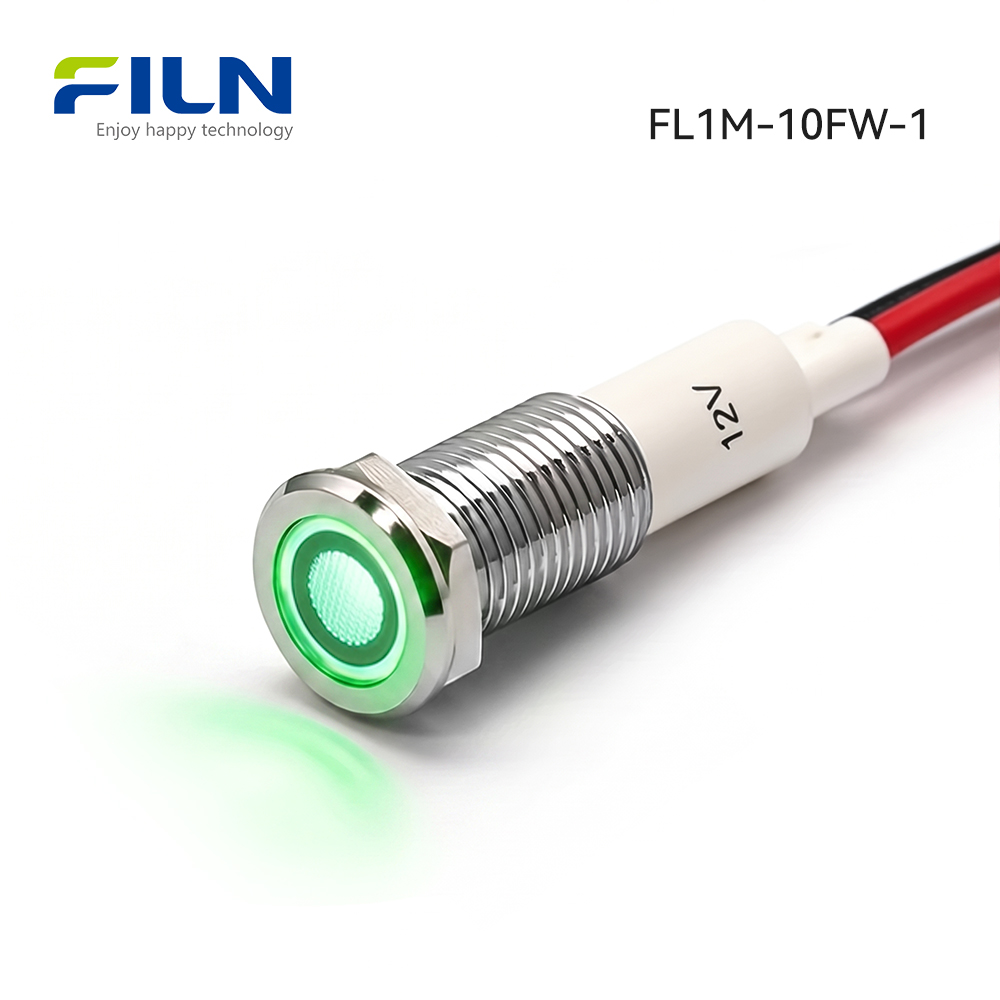

- Clean Circular Ring Lighting: The flush flat-surface lens integrates a vivid circular ring layout that shines brightly, ensuring clean status recognition.
- Robust Metal Construction: Heavy-duty metal construction brings superior structural strength and hardness compared to fragile plastic models, avoiding premature failure from mechanical impacts.
- Broad Voltage Adaptability: Runs reliably anywhere within a 3V to 220V AC/DC operating range, fitting both low-voltage logic setups and high-voltage power lines.
- Reliable Moisture Ingress Protection: Uses an integrated silicone seal ring combined with an M6 hex clamping nut to maintain a secure IP65 waterproof rating.
- Severe Environmental Thresholds: Built to function perfectly across a comprehensive industrial temperature range from -40°C up to +80°C.
- International Regulatory Approvals: Comprehensively verified under leading CE, VDE, RoHS, ISO9001, and CCC compliance testing frameworks for straightforward international deployment.
What is an Industrial Power Light Indicator?
An industrial power light indicator is a rugged, panel-mounted electrical accessory built to give clear visual feedback about a machine’s operating status. These visual markers translate incoming current loops into bright light tracks, letting supervisors monitor whether a system is powered, idling, or faulted. FILN manufactures a comprehensive selection of industrial status components, divided cleanly into durable metal indicator light housings and standard plastic indicator light structures, available in cutout sizes from 6mm to 30mm.
To fit various panel layouts, engineering teams can specify quick-connect pin terminals, spade connectors, or a direct insulated wire lead interface. Our metal indicator light products are precisely shaped into flush flat heads, prominent convex heads, or recessed concave head front profiles. This allows system builders to implement the exact mechanical styling required for custom operator panel interfaces. Incorporating a high-quality blue led indicator light into your design ensures high-contrast visibility and a professional appearance.
Comprehensive Product Overview

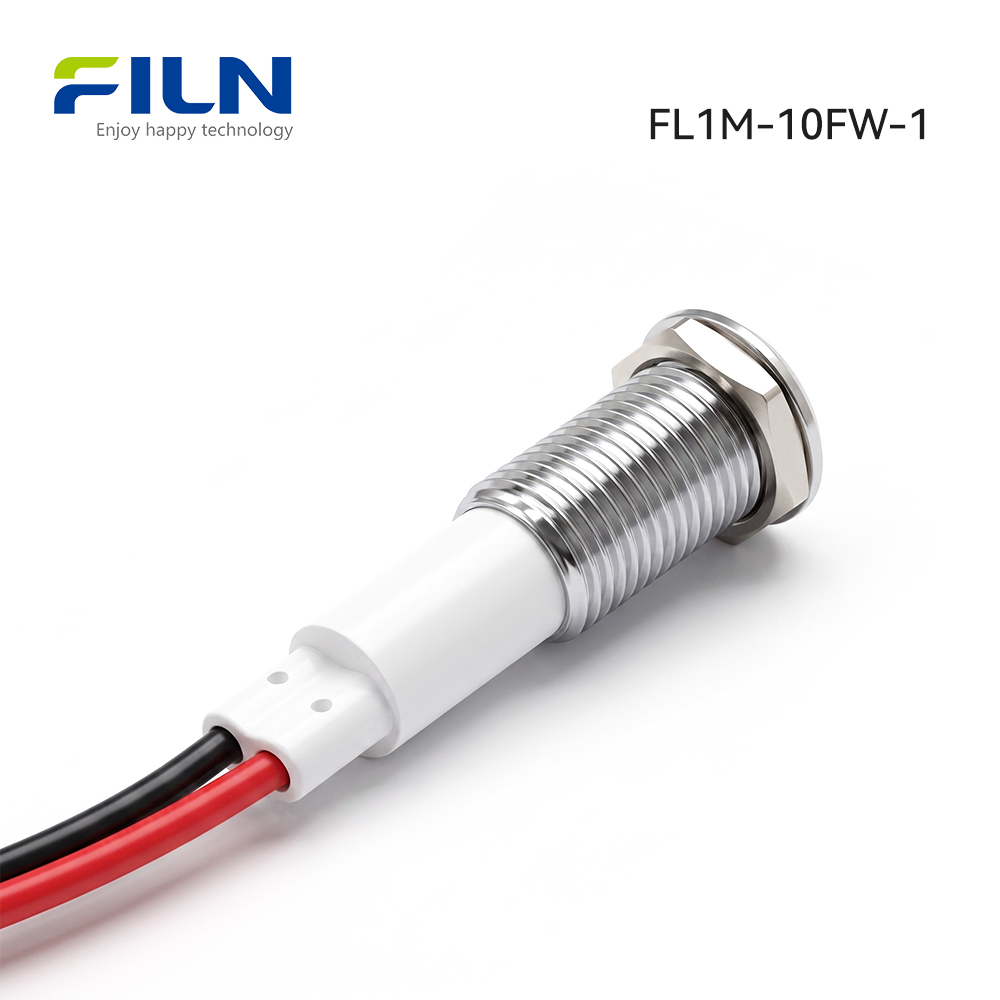

The 10mm flat power light indicator works as a robust solid-state signaling source designed to operate reliably inside modern equipment panels. Using an internal semiconductor architecture, the diode array sends a focused stream through a durable circular polycarbonate lens ring. This gives high-intensity brightness while drawing under 20mA of current, which minimizes thermal generation inside sealed electrical enclosures.
Encased in a machined copper alloy frame, this blue led indicator light resists high impacts and ongoing machine shake. The 2PIN direct wire lead interface removes fragile terminal pins, preventing wire breaks caused by regular handling or physical stress. Full verification under global industrial rules ensures that these parts integrate cleanly into systems destined for international B2B markets.
Quick Specifications Table
| Specification Parameter |
Technical Data Value |
| Product Description |
Metal power light indicator with wires / Low-profile flush signal light |
| Mounting Hole Cutout |
10mm / 0.394 Inches |
| Operating Input Voltages |
3V to 220V AC/DC (Tailored parameters built to order by our factory) |
| Available LED Colors |
Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W) |
| Waterproof Protection Standard |
IP65 Ingress Rating achieved with supplied seal and gasket |
| Wiring Connection Setup |
2PIN Wire Lead (Single wire 20cm, combined path length 40cm) |
| Head Type Housing Shape |
Flat Head Profile (Flush mount with bright, bright circular ring-illumination) |
| Included Product Accessories |

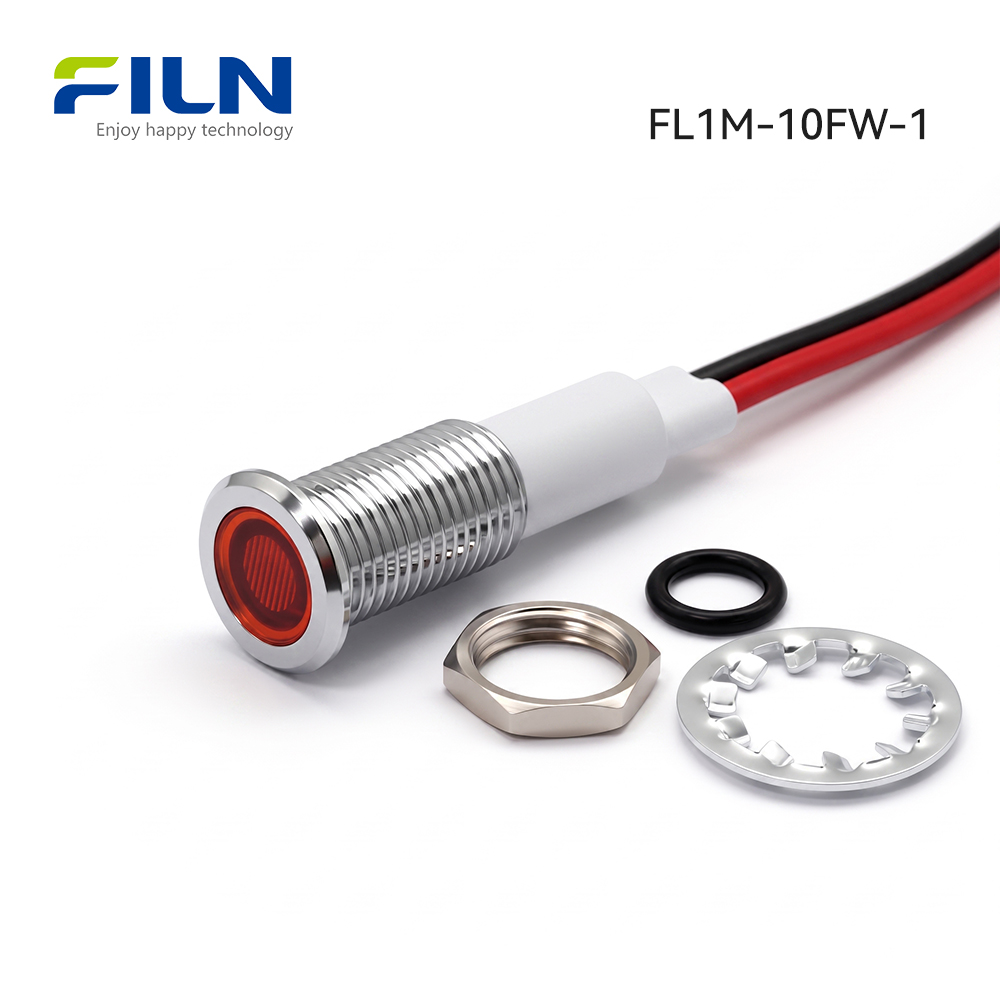

1X Indicator Light, 1X Waterproof Ring, 1X Gasket, 1X M10 Hex Nut |
| Surface Quality Finish |
Smooth surfaces with zero rough burrs, oxidation, or fine cracks |
| Mechanical Structural Fit |
Head components firmly bonded; prevents loose spinning or distortion |
Performance Parameters
| Electrical & Mechanical Parameters |
Standard Baseline Thresholds |
| Rated Voltage Limits |
3V–220V DC/AC (Completely customizable based on specs) |
| AC Grid Operating Frequency |
50 Hz to 60 Hz Ranges |
| Rated Active Current |
Less than or equal to 20 mA |
| Rated Power Dissipation |
Approximately 0.2 Watts |
| Insulation Electrical Resistance |
≥ 100MΩ (Tested under DC 500V from cable to housing) |
| Dielectric Insulation Strength |
1500V to 1800V AC; zero dielectric breakdown arcs or flashing |
| Total Operating Lifetime |
50,000 Hours to 100,000 Hours continuous use |
| Waterproof Seal Protection |
IP65 Protection Class Standard |
Component Materials Breakdown
| Accessory Part Name |
Material Selected |
Engineering Purpose |
| Outer Shell Body |
High-hardness Copper Alloy or Stainless Steel options |
Delivers structural armor against physical impacts and prevents environmental wear. |
| Internal Lamp Base |
Polyamide PA66 Nylon |
Ensures high insulation resistance and handles extreme assembly heat. |
| Translucent Lens Ring |
Polycarbonate (PC) |
Maintains clear light dispersion and avoids yellowing from UV exposure. |
| Luminescent Light Core |
High-Brightness Semiconductor LED |
Provides high visibility with minimal power draw. Utilizing a premium blue led indicator light chip guarantees standard compliance. |
| Current Resistor |
Carbon Film Resistor |
Limits incoming forward currents to extend the semiconductor’s lifecycle. |
| External Wire Leads |
Polyvinyl Chloride (PVC) Sheathed Cable |
Provides excellent wiring flexibility along with reliable circuit isolation. |
| Fastening Hex Nut |
Machined Copper Alloy (M6 specifications) |
Maintains a firm grip even under constant machinery shake. |
| Waterproof O-Ring |
High-Elasticity Silica Gel |
Compresses smoothly to stop moisture entry behind the panel face plate. |
| Lock Gasket |
Stainless Steel Flat Gasket |
Bites into back panel textures to prevent the assembly from backing out over time. |
Environmental Endurance Limits
This technical document outlines the general environmental performance limits for the FILN metal power light indicator series. It guarantees structural reliability for industrial deployments worldwide.
| Environmental Stress Test Profile |
Parameters & Evaluation Conditions |
| Operating & Storage Temperatures |
-40°C to +80°C Working Limits / -40°C to +100°C Max Storage Bounds |
| Operating Relative Humidity |
≤ 85% RH measured continuously at +40°C air conditions |
| High-Temperature Heat Bake |
96 straight hours under 80±2°C stress; runs perfectly post-test |
| Low-Temperature Cold Soak |
96 straight hours under -40±2°C stress; lens rings remain structurally sound |
| Constant Damp Heat Exposure |
96 straight hours at 40±2°C with 90% to 95% RH; zero insulation loss |
| Thermal Shock Cycling Profile |
Cycles between -40°C (30 min) and 85°C (30 min) for 5 rounds; zero structural faulting |
LED Element Engineering Specifications
1. Absolute Maximum Ratings
| Critical Safe Limit Parameter |
Absolute Maximum Value |
| Maximum Forward Current (IFP) |
20 mA |
| Reverse Voltage Threshold (VR) |
5 V |
| Total Power Dissipation Limits (PD) |
60 mW |
| Lead-Free Solder Heat Tolerance (TSOL) |
Maximum 260°C for a duration not exceeding 3 seconds |
2. Electro-Optical Characteristics
Captured under standard structural room conditions of Ta=25°C:
| Electro-Optical Characteristic |
Testing Conditions |
Performance Value Bounds |
| Forward Voltage Drop (VF) |
IF = 20mA |
2.8V Minimum to 3.2V Maximum bounds |
| Reverse Leakage Leakage (IR) |
VR = 5V |
Upper baseline cutoff boundary of 5μA |
| Luminous Viewing Angle (2θ1/2) |
IF = 20mA |
Typical value distribution curve centered at 60° |
| Luminous Flux Output |
IF = 20mA |
500 mcd Minimum to 800 mcd Maximum intensities |
| Dominant Color Wavelength |
IF = 20mA (Blue) |
520 nm to 525 nm active spread for a rich blue led indicator light spectrum |
| Thermal Path Resistance (RJP) |
IF = 20mA |
Typical internal thermal path performance of 8°C/W |
Standard Technical Test Baselines
Unless modified by special documentation, all electro-optical parameters are collected under these environmental baselines:
- Ambient Structural Temperature: 5°C to 35°C Range
- Relative Testing Air Humidity: 45% to 85% Scale Bounds
- Barometric Pressure Threshold: 86 Kpa to 106 Kpa (860 mbar to 1060 mbar)
Technical Measurement Notes: Luminous output profiles and active wavelengths are calibrated in alignment with the international CIE human eye response curve matrix. The standard tolerance threshold for physical light measurements is ±15%, while voltage verification tolerances are limited to within ±0.1V.
Deployment Applications Across Industries
The FILN heavy-duty metal power light indicator features an impact-resistant alloy housing and an IP65 protection rating. While regular plastic indicator models often crack and discolor due to heat fatigue or weather exposure, this flush metal power light indicator delivers dependable tracking across severe setups. This component series is extensively integrated into various electrical devices, experimental equipment, distribution cabinets, and green energy power grids.
Industrial Automation & Production Workstations
CNC machine tools and heavy-duty factory lines rely on these flat metal indicators for status mapping. For example, an ultra-reliable blue led indicator light is frequently used to track custom automation cycles or safety lockouts. This ensures the panel interface remains functional even when exposed to lubricants, metal shavings, and regular floor vibration.
Outdoor Power Cabinets & Renewable Infrastructure
EV charging stations, solar combiner systems, and city distribution panels deploy these low-profile indicators to handle intense sunlight and weather. The wide -40°C to +80°C thermal range keeps signaling systems active through sharp winter drops and extreme summer heat waves.
Transit Systems, Heavy Vehicles, & Marine Controls
Excavator dashboards, control systems, and marine bridges use pre-wired indicators to avoid terminal breakage from heavy shaking. The plated metal housings provide reliable protection against salt-air wear and continuous moisture ingress.
Chromatic Signaling Frameworks (R/G/Y/B/W)
Modern control room layouts utilize standard indicator colors to help technicians react quickly and prevent dangerous operator errors:
- Red (R): Signals an immediate emergency stop, equipment failure, or safety trip that requires swift attention.
- Green (G): Verifies a normal system state, confirming that automated lines are running smoothly within spec limits.
- Yellow (Y): Acts as a warning alert, flagging issues like thermal overloads or pressure drops that need monitoring.
- Blue (B): The blue led indicator light highlights mandatory operator steps, such as parameter resets, fluid refills, or manual cycle triggers.
- White (W): Serves as a neutral power monitor, confirming that mains voltage is present across the distribution panel.
To support more complex status configurations, FILN manufactures diverse-color LED circuits. These multi-status systems help design engineers save valuable console space by tracking multiple states through a single 10mm layout.
Step-by-Step Mechanical Installation
Follow these engineered deployment steps to ensure a clean, long-lasting install for the 10mm panel-mount power light indicator assembly:
- Panel Preparation: Drill a clean 10mm circular diameter hole into the product panel plate, making sure to deburr any rough metal edges.
- Seal Placement: Slide the provided silicone waterproof ring onto the threaded metal body of the indicator.
- Front Insertion: Feed the pre-wired 2PIN insulated wire lead tails through the cutout opening from the front face plate side until the flat head sits flush.
- Rear Nut Fastening: Slide the steel backing gasket onto the body from the back, then tighten the single M6 lock nut to compress the seal ring and achieve IP65 water protection.
- Electrical Termination: Once firmly anchored, proceed with normal wiring connection to your live electrical circuit loops.
Electrical Interface Termination Comparison Guide
Choosing the right termination design prevents wiring failures and maintains long-term signaling path integrity. This 2PIN pre-wired setup uses dual 20cm flexible cables (giving a total path length of 40cm) to streamline layout wiring. Terminal leads can be completed cleanly using quick-connect block terminal strips, direct wire soldering with heat-shrink sleeves, or high-grade electrical wrapping.
ELECTRICAL SAFETY DISCLOSURE: Always turn off the primary power grid before handling electrical wire terminations or making adjustments. Verifying dead circuits helps prevent component shorting and protects assembly technicians from hazardous shocks.
| Connection Architecture |
Core Technical Advantage |
Operational Drawback / Constraint |
| Pre-Wired 2PIN Cable Lead Setup |
Speeds up panel integration and avoids on-site soldering labor. Offers excellent resistance to constant machinery shaking. |
Fixed cable lengths require careful spacing checks during early panel engineering phases. |
| Traditional Plug-In / Blade Terminals |
Enables fast quick-disconnect swaps during regular preventative maintenance cycles. |
Requires larger panel depth clearances and can loosen in high-vibration systems. |
| Solder Pin Terminal Connections |
Allows custom on-site wiring extensions; minimizes the indicator’s rear profile. |
Increases installation labor and risks joint failure if subjected to constant machine shake. |
Industrial Knowledge Center
A common challenge in modern electrical control engineering is ghost voltage illumination (faint glowing) in low-power LED signal lines. This occurs when small induced voltages leak into indicator pathways along closely bundled wire channels. Because advanced solid-state indicators operate with very low power draws, even micro-amperage stray currents can cause the lens ring to glow faintly. This can confuse panel operators tracking system statuses.
Integrating a reliable blue led indicator light with precise internal resistance metrics helps resolve these operational anomalies. Routine upkeep should focus on inspecting locknut torques and cleaning the lens faces with mild, non-caustic solutions to avoid chemical clouding.
B2B Procurement Decision Matrix
When sourcing panel-mount signal indicators for major industrial systems, purchasing teams should evaluate these core design options:
- Chassis Material Resilience: Select plated metal housings for systems exposed to high impacts, frequent washdowns, or outdoor weather conditions.
- Lens Profile Visibility: Flush flat head designs align perfectly to deliver clear, bright circular illumination while saving space on tight panels.
- Termination Strategy: Pre-wired 2PIN configurations speed up large-scale equipment assembly, while solder pin alternatives allow on-site wire tailoring.
To view our broader 10mm product lines, visit our main category at the 10mm LED Indicator Light Selection Hub. For immediate commercial acquisition, click to access our Direct B2B Ordering Portal.
Additionally, you can explore related configurations such as our Small-Scale 8mm Flat Wire Lead Indicator, the Ultra-Short Body 8mm Metal Indicator Light, or our Traditional 8mm Plug-In Pin Indicator Light options.
Why Procurement Teams Partner with FILN
Factory-Direct Logistics: Cuts out middleman markups, giving B2B buyers clear and direct wholesale pricing channels.
Flexible MOQ Frameworks: Supports engineering design tests and low-volume custom system builds without strict ordering penalties.
Fast Production Turnaround: Automated lines turn around essential parts quickly, helping projects stay on track.
Full OEM/ODM Engineering: Modifies wire parameters, adjusts built-in resistance, and delivers custom shell branding to meet exact product plans.
Global Delivery Networks: Secure air and maritime logistics ensure parts reach production floors on schedule.
Rigorous Quality Control: Every production batch undergoes full electro-optical validation in our ISO9001 certified testing lab.
Direct Engineering Support: Work directly with industrial switch engineers to clear up layout challenges and panel planning questions.
Certified Safety Track Record: Simplifies international regulatory approval with fully maintained compliance files across our blue led indicator light product range.
Factory Direct Supply & Capacity
Yueqing Yulin Electronic Co., Ltd. (operating under the global FILN brand name) was established in 2006 in Wenzhou. As an industrial manufacturer of rugged panel switches and indicators, our high-durability products serve engineering customers in more than 100 countries. FILN operates a modern 10,000 m² plant running over 20 advanced production lines alongside an independent quality verification laboratory. Guided by strict ISO9001 quality systems, FILN maintains high reliability across all component batches.
Our comprehensive production ranges from industrial indicators and push buttons to rocker switches and toggle assemblies. We specialize in custom solutions for power storage, EV charging arrays, maritime interfaces, and commercial equipment. Our engineering team handles design issues directly, providing 3D CAD modeling files and component data sheets to simplify procurement.
Review our engineering resources at www.filn.com or submit project files directly to inquiry@cnylin.com.cn.
Frequently Asked Questions
1. How do you prevent phantom illumination (faint glowing) in industrial LED indicators?
This occurs when induced currents leak into signal lines along tightly bundled wiring paths. FILN addresses this by optimizing built-in resistor values or introducing optional zener shunts, ensuring the indicator lens activates only when true control voltages are present.
2. Can this IP65 indicator light handle heavy manufacturing washdown cycles?
Yes, the plated copper alloy bodies paired with high-impact polycarbonate lenses withstand standard cleanings. For extreme corrosive chemical exposures, our premium stainless steel configurations provide optimal durability.
3. What are the primary benefits of selecting a flat head power light indicator?
The flush flat lens profile sits perfectly low-profile to avoid accidental snags. Combined with a bright ring-illuminated layout, it gives clean visual feedback while saving space on tight panels.
4. Does FILN support custom wire lead modifications for the 2PIN cables?
Yes. As a factory-direct manufacturer, we can modify wire lead lengths, adjust insulation ratings, or apply pre-crimped terminal connectors to match your exact wiring harness plans.
5. What is the estimated working lifecycle of an industrial blue led indicator light?
Under standard operational currents (under 20mA), our solid-state indicator diodes deliver a long life expectancy between 50,000 and 100,000 hours, keeping long-term upkeep costs low.
6. Can these 10mm indicators handle high-vibration heavy machinery layouts?
Yes, the pre-wired 2PIN layout completely removes fragile solder terminal tabs that can crack under stress. Secured by our stainless steel lock gasket, the light remains firmly anchored under constant shaking.
7. What regulatory certifications are maintained across your component catalog?
Our indicator families hold full compliance files for international markets, simplifying regulatory tracking for global equipment exports.
8. Are custom operational voltages like 9V or 24V supported alongside standard 220V lines?
Yes. Internal resistors are precisely tuned during assembly to support flexible operational voltages spanning from 3V up to 220V AC or DC configurations.
9. What is the minimum order quantity for specialized OEM indicator orders?
FILN maintains no strict MOQ limits on standard modifications, helping engineering teams prototype designs and scale up production smoothly.
10. How does the silica gel seal washer prevent moisture entry behind the plate?
The high-elasticity silicone gasket compresses cleanly against the panel face plate when the rear nut is torqued, creating a dependable moisture barrier that meets IP65 standards.
11. Is it possible to request 3D STEP files for engineering panel verification?
Yes. Our design engineering team can supply standard 3D STEP files and technical layout drawings to streamline your CAD checking and panel testing processes.
12. Why are metal indicator bodies preferred over plastic structures in factories?
Plastic options are prone to drying out, cracking under impacts, and heat warping. Plated metal housings bring high impact protection and hardness, significantly extending control panel service life.
13. What optical color variations are provided for signal arrays?

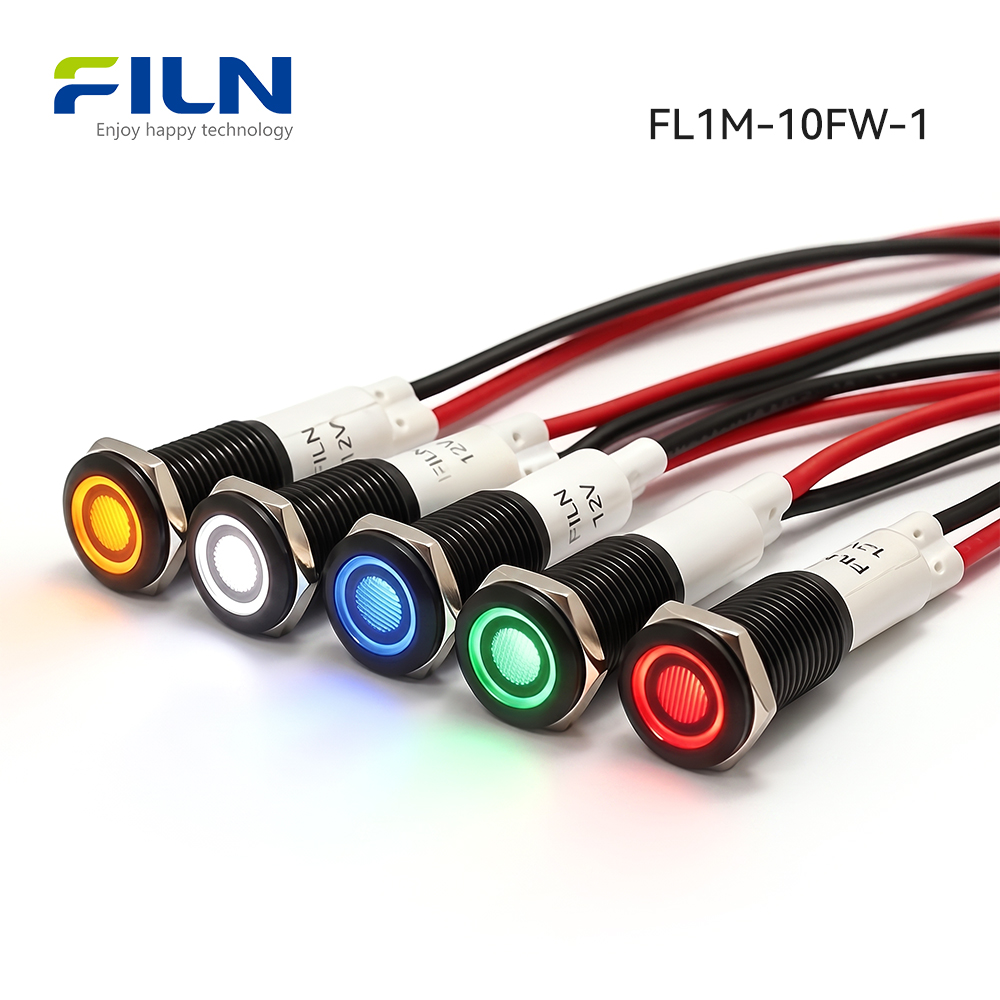

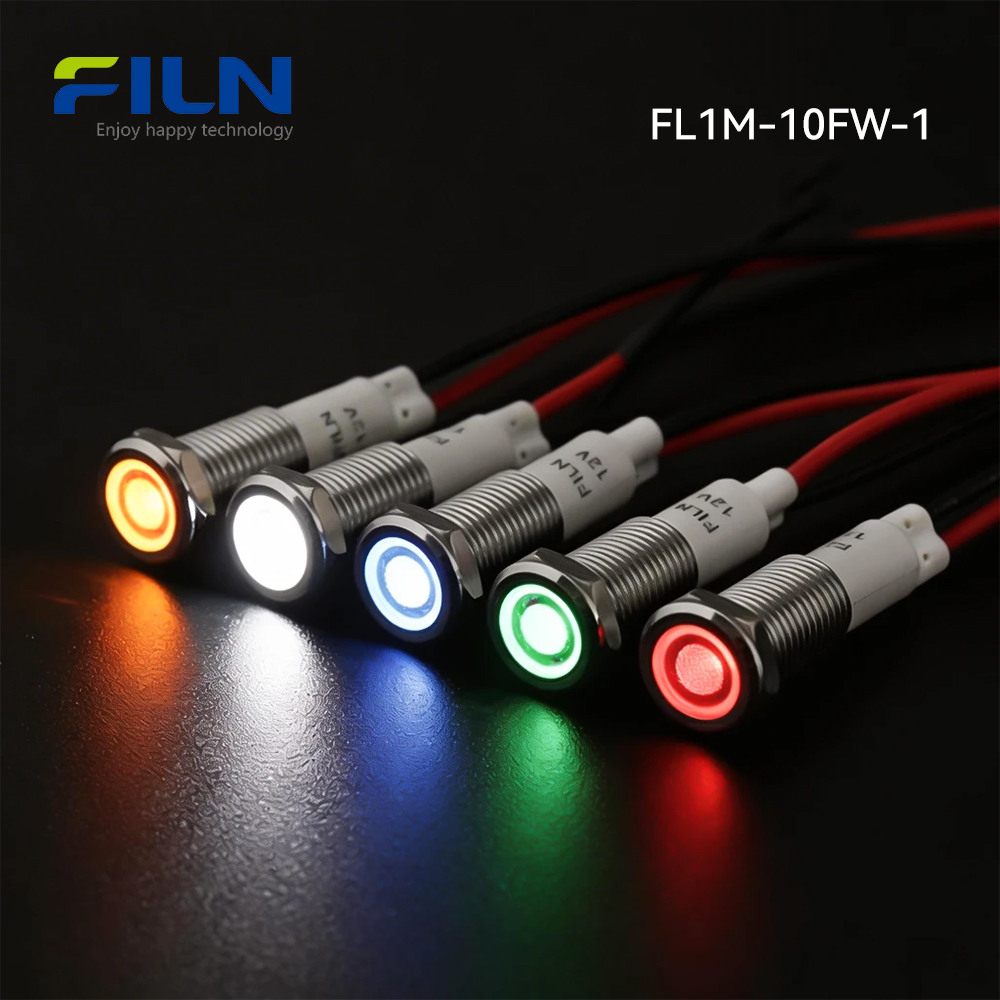

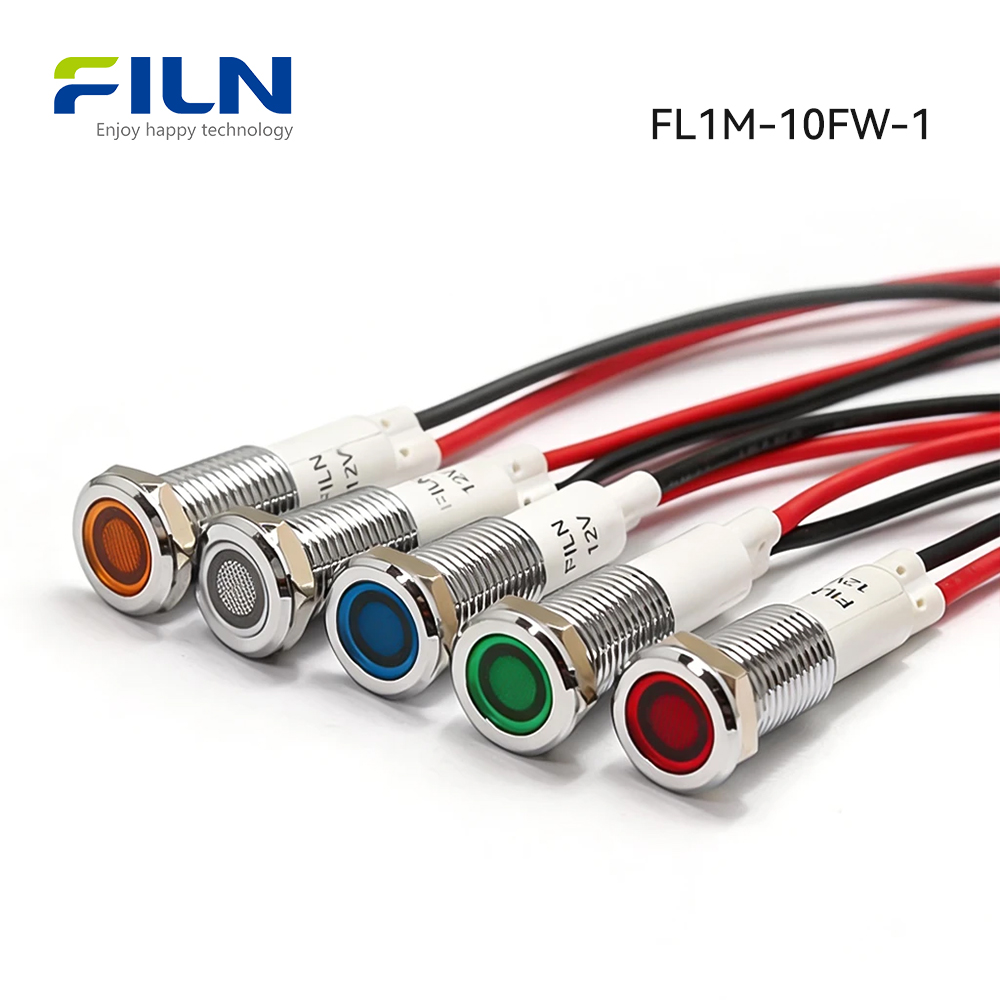

We provide single-color options in Red, Green, Yellow, Blue, and White. We also offer dual and triple-color options to handle multi-status tracking within a single panel space.
14. What is the insulation resistance baseline threshold for safety testing?
Every indicator maintains an insulation resistance value greater than or equal to 100MΩ when tested at DC 500V across the conductors and the metal shell, ensuring high circuit safety.
15. How do I place bulk wholesale orders or ask for custom quotes?
You can reach our sales desk directly at inquiry@cnylin.com.cn. Share your build blueprints and quantity requirements, and we will return a formal commercial quote within 24 hours.
16. What is the maximum panel thickness handled by the mounting body?
The threaded body on our indicators safely handles standard industrial panel faces up to 6mm thick while ensuring proper thread engagement with the M6 hex nut.
17. How are these indicators packaged to avoid shipping damage on overseas orders?
Indicators are packed in grid compartments inside reinforced outer boxes to avoid bent wires and scratched metal finishes during long ocean transit paths.
18. Does the wire sheath meet standard industrial safety guidelines?

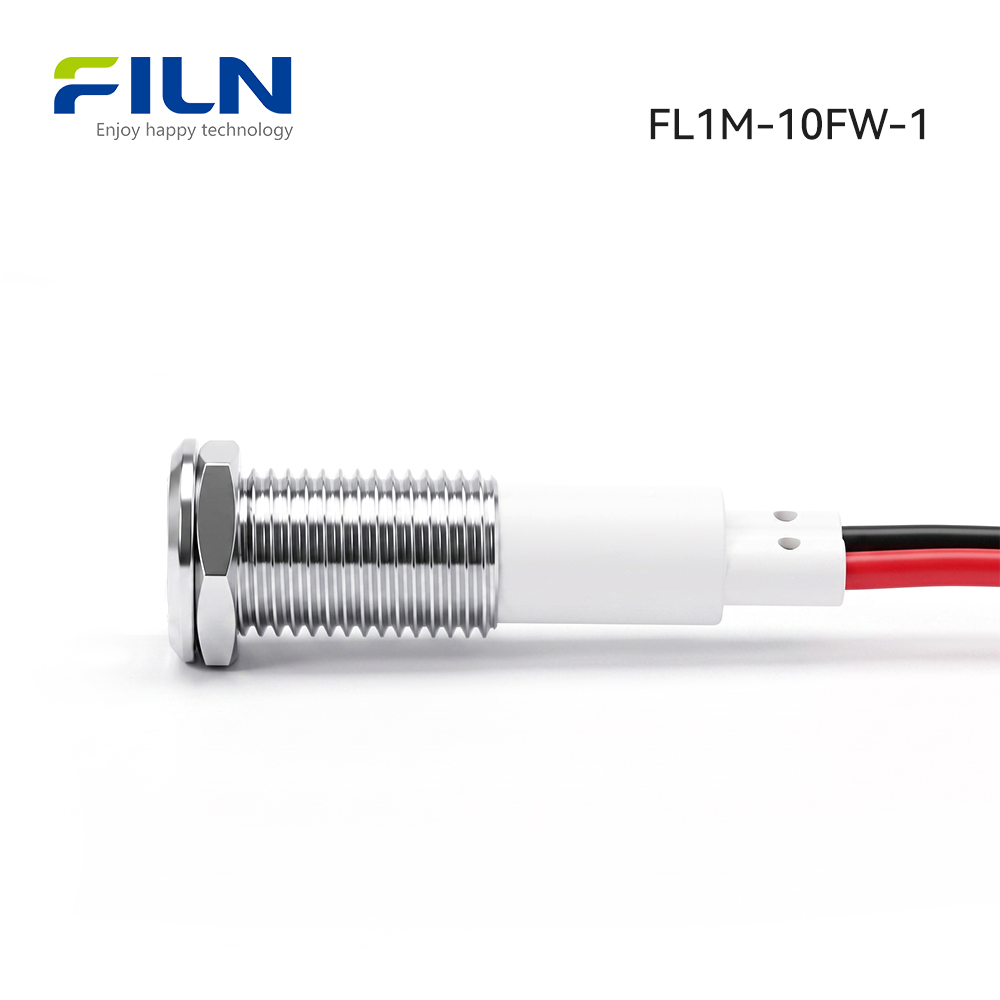

Yes. The flexible PVC-sheathed wire lead is built for high electrical safety and thermal stability, meeting typical benchmarks for control panel wiring arrays.
18. Can these LED indicators run on standard AC utility grids?
Yes. Our indicators operate on both AC and DC setups. Internal current resistors and rectifiers maintain smooth lighting performance across typical 50/60Hz power lines.
What is the dielectric insulation testing threshold for this line?
The component family handles voltages between 1500V and 1800V AC without dielectric breakdown or arcing, offering dependable circuit safety during high voltage spikes.
