Product Drawing

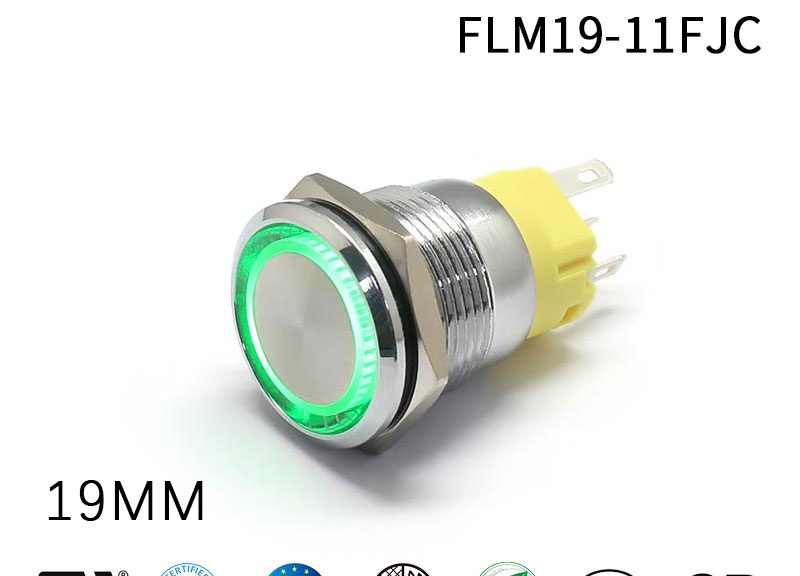

What is a 12 volt Momentary Push Button Switch?

The 12 volt momentary push button switch is a switch that controls the on-off of a circuit.

“12 Volt” means it is suitable for use in equipment circuits with 12 volt power.

“Momentary” means that the switch is effective only when pressed or held down. When you release the button, the switch immediately returns to its initial state.

“Push button switches”are the most common type of small electrical appliances, and are widely used in various industries, according to the material can be divided into metal pushbutton switches and plastic pushbutton switches, according the function is divided into momentary and latching pushbutton switches, also according to the size and also the color to distinguish between the types of pushbutton switches. FILN offers a full range of pushbutton switches.

Product Parameters:

Production Series	FLM19-11FEJ	Light Guide Button	PC plastic
Button Shape	round	Actuator	304 Stainless steel
Button LED Color	Red blue green yellow white	Housing Sleeve	H59 nickel plated brass/304Stainless steel
Mechanical Life	The 500 thousand time	Button Pin	H62 copper alloy
Electrical Life	The 100 thousand time	Rubber Ring	SIL silica gel
Protection Level	IP67 IK09	Nut	H59 nickel plated brass
Rated Voltage	36V（DC） 250V（AC）	Housing	PA66+GF20% nylon
Rated Current	5A（DC）5A（AC）	Light Source	LED
Rated Power	180W（DC）1250W（AC）	Resistor	Metal film
Operating Temperature	-25℃~+85℃	Contact	AgCdO12

Both circuit setups are viable options depending on your needs, but they offer different advantages and disadvantages. Knowing how the 12V push-button switch operates in each setup helps you choose the right configuration for your application.

Video of other button switch wiring

Customization Advantages of FILN 12 volt momentary push button switch

The FILN 12 volt momentary push button switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

 Why Customization is Important for 12 volt momentary push button switch?



Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN 12 volt momentary push button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.



1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.



2. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.



3. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.

Customizable Button Symbols



One of the most prominent features that can be customized in a FILN 12 volt momentary push button switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.



1. User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.



2. Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.



3. Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Voltage Options



Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.



1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.



2. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.



3. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN 12 volt momentary push button switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

Comprehensive Guide to 12 Volt Momentary Push Button Switches

The 12 Volt Momentary Push Button Switch is a versatile and essential component in various electrical applications, with its unique functionalities making it stand out in the electrical market. Whether you’re exploring how to wire it properly, comparing it with other switches, or delving into innovations and customizations, understanding this switch is crucial. This comprehensive guide will walk you through the safety precautions, differentiation from other types, comparisons to different voltage switches, emerging designs, and the wide array of customization options available for a 12 Volt Momentary Push Button Switch. Let’s explore this fascinating world of switches to uncover the innovation and practicality they bring to our everyday lives.

What Is a 12 Volt Momentary Push Button Switch and How Does It Work?

Definition and Functioning

A 12 Volt Momentary Push Button Switch is a type of switch that only remains activated as long as it’s being pressed. Once released, it returns to its default state. These switches are commonly found in applications like car ignitions and doorbells. For more specific details, you can visit here.

Types and Designs

12 Volt Momentary Push Button Switches come in various designs, such as waterproof or heavy-duty switches. The heavy-duty 12-volt push-button starter switch, for example, is robust and made for industrial use. Waterproof designs like the 12v momentary waterproof round switch ensure durability in harsh environments.

Wiring and Connectivity

Wiring a 12 Volt Momentary Push Button Switch can be quite straightforward. Diagrams such as the 12v push button switch wiring diagram can guide you through the process. A standard connection involves connecting the switch to a power source and the device you wish to control. Learn more about wiring a 12mm momentary switch here.

Where Are 12 Volt Momentary Push Button Switches Used?

Automotive Applications

12 Volt Momentary Push Button Switches are widely used in cars for ignition systems, providing a quick and reliable start. For instance, a momentary car push button ignition switch can be found here.

Industrial Machinery

In heavy machinery, these switches are employed to control various functions. They offer precise control and are often preferred for their robustness, like the waterproof momentary switch.

Home Appliances

Everyday gadgets and appliances also incorporate these switches, ensuring convenience and user-friendliness.

What Are the Types of 12 Volt Momentary Push Button Switches?

On-Off Push Button Switch

The 12 volt on-off push button switch allows you to control a device by simply pressing and releasing the button.

On/Off On Momentary Switch

This switch enables three different functions: on, off, and a momentary on state. Check out the 16mm 12v push button switch panel for more insights.

Waterproof Push Button Switch

12v push button switch waterproof designs are vital for outdoor or wet environments.

Normally Open and Closed Momentary Switch

12v momentary switches may come in normally open or closed configurations. Learn about the 12v momentary switch normally open and 12v momentary switch normally closed here.

How to Wire a 12 Volt Momentary Push Button Switch?

Understanding the Wiring Diagram

12v push button switch wiring diagrams provide a visual guide on how to connect the switch. The 12v momentary switch wiring must be done carefully to ensure proper functionality.

Tools and Materials

You’ll need appropriate wires, connectors, and tools like a soldering iron or wire stripper.

Step-by-Step Guide

Follow a systematic approach by connecting the wires to the appropriate terminals, grounding the system, and testing for functionality. Visit here for a detailed guide.

What Factors Should Be Considered When Buying a 12 Volt Momentary Push Button Switch?

Application Requirements

Understanding the specific need for the switch, such as the 12-volt on/off on momentary switch or heavy duty 12 volt push button starter switch, is essential.

Environmental Conditions

If you’re looking for a waterproof option, the waterproof momentary push button switch might be a suitable choice.

Voltage and Current Ratings

Ensure that the switch meets the voltage and current requirements of your application.

Quality and Brand

Reputable brands usually offer quality products with reliability and durability.

How to Maintain and Troubleshoot a 12 Volt Momentary Push Button Switch?

Regular Inspection

Periodically check the switch for any signs of wear or damage.

Cleaning

Keep the switch free from dust and debris, especially if it’s a 12mm push button 12 volt switch.

Troubleshooting Common Issues

Understanding the 12v momentary switch normally open or closed and its wiring can help in diagnosing common problems. Visit here for more insights.

Professional Assistance

In some cases, professional assistance may be required to ensure the proper functioning of the switch.

How to Choose the Right 12 Volt Momentary Push Button Switch for Your Needs?

Assessing the Requirements

Know your requirements, such as whether you need a double push button switch 12v red/green or something more specific.

Comparing Different Models

Evaluate various options available on sites like Indicator Light to find the best match.

Considering the Budget

Find a switch that fits within your budget without compromising on quality or features.

Reading Reviews and Ratings

Customer reviews can provide insights into the reliability and efficiency of a switch.

Seeking Professional Guidance

Consulting with experts or manufacturers can be very helpful in making the right choice.

What Are the Latest Trends in 12 Volt Momentary Push Button Switch Technology?

Miniaturization

Smaller, compact switches like the red small 2-pin momentary switch are becoming popular for sleek designs.

Smart Integration

Integration with smart devices allows for remote control and monitoring.

Enhanced Durability

Developments in materials and designs are leading to more robust and long-lasting switches.

Eco-Friendly Options

The focus on sustainability is leading to the creation of environmentally friendly switches.

Innovations in Aesthetics

Modern switches are not just functional but are also designed to be visually appealing.

By understanding various aspects of the 12 Volt Momentary Push Button Switch, you can make informed decisions on purchasing, wiring, maintaining, and utilizing these vital components in your devices and systems. Whether you need a 12v push button switch waterproof or 12v momentary switch wiring diagram, knowing the essential details ensures efficiency and reliability in your applications.

What Safety Precautions Should Be Taken When Handling a 12 Volt Momentary Push Button Switch?

Understanding the Specifications

Before handling or installing a 12 Volt Momentary Push Button Switch, understanding its specifications, including voltage and current ratings, is vital. Working within these parameters ensures safety.

Using Proper Tools

Utilizing the right tools, such as insulated screwdrivers and pliers, can prevent accidental shocks or damages to the switch.

Following Wiring Guidelines

Adhering to the appropriate 12v momentary switch wiring diagram ensures proper connections and prevents potential malfunctions. Detailed guides can be found at this link.

Wearing Protective Equipment

Using gloves and eye protection minimizes risks when handling electrical components.

Compliance with Regulations

Ensure that your installation meets all local electrical codes and regulations for safety.

How to Differentiate Between a 12 Volt Momentary Push Button Switch and Other Types of Switches?

Momentary vs. Latching Switches

While a 12 Volt Momentary Push Button Switch returns to its default state when released, latching switches maintain their position until manually changed. You can find a momentary push button switch 4-pin here.

Voltage Ratings

Different switches are rated for various voltage levels. A 12 Volt Momentary Push Button Switch is specifically designed for 12V applications.

Form Factors

Comparing the physical appearance, size, and terminal configurations can also help differentiate between different types of switches.

Functional Differences

Understanding the specific function, such as whether the switch is normally open or normally closed, can further distinguish it from others.

How Does a 12 Volt Momentary Push Button Switch Compare to Other Voltages?

12 Volt vs. Higher Voltage Switches

A 12 Volt Momentary Push Button Switch is suitable for low-power applications, while higher voltage switches are used in industrial settings or heavy machinery.

Efficiency and Compatibility

The efficiency and compatibility of the switch with the intended device are vital considerations. Using a switch rated for the correct voltage ensures optimal performance.

Availability and Cost

12 Volt switches are generally more widely available and may be more cost-effective than other voltage-rated switches.

What Innovations Are Emerging in 12 Volt Momentary Push Button Switch Designs?

Touch Sensitivity

Incorporating touch-sensitive technology allows for more intuitive control and sleeker designs.

Wireless Connectivity

Innovations in wireless technology enable remote control and integration with smart home systems.

Enhanced Materials

The use of advanced materials contributes to more durable and resistant switches, such as the waterproof momentary switch found here.

Energy Efficiency

Energy-efficient designs help in reducing power consumption, aligning with global sustainability goals.

What Customization Options Are Available for 12 Volt Momentary Push Button Switches?

Custom Shapes and Sizes

Manufacturers offer various shapes and sizes, catering to specific design needs and preferences.

LED Integration

Incorporating LED indicators, such as in the double push button switch 12v red/green, provides visual feedback.

Color Choices

From vibrant colors to more subdued tones, customization in color enhances aesthetics.

Engraving and Branding

Some suppliers offer engraving or branding services, allowing for personalized or branded switches.

Specific Functional Requirements

Customized switches can also meet specific functional requirements, such as particular voltage, current ratings, or waterproofing needs.

Conclusion

The 12 Volt Momentary Push Button Switch plays an essential role in various applications ranging from automotive to industrial machinery. By delving into its types, functionalities, wiring guidelines, safety precautions, and emerging trends, users can make educated choices tailored to their specific needs. Whether it’s selecting a 12v momentary switch normally closed or exploring waterproof options, understanding these switches inside and out can pave the way for innovation, efficiency, and safety in numerous fields.

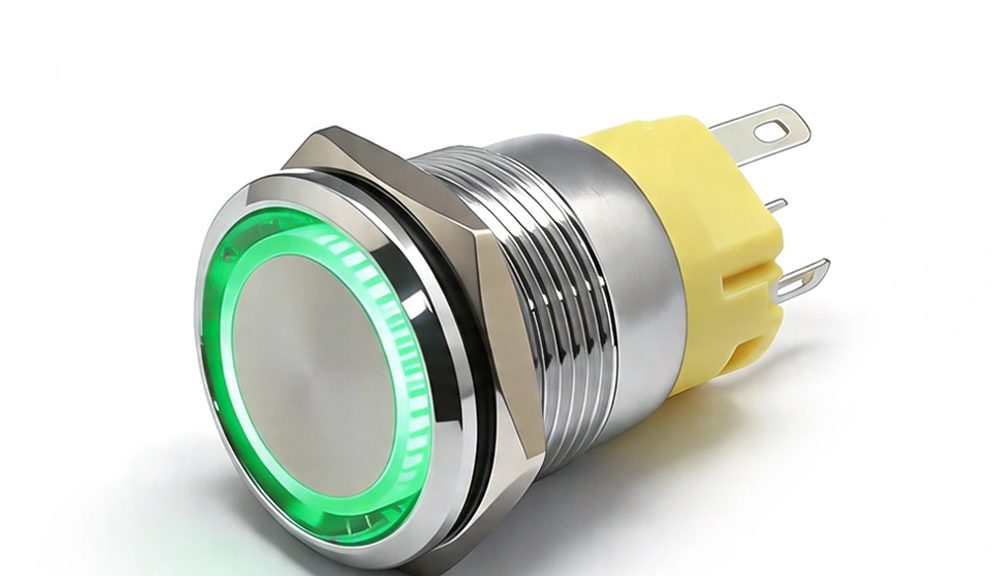

Features of 12 Volt Momentary Push Button Switches:

The 19mm push button switch is specifically designed for equipment operating on a 12V power supply. However, at FILN, we can customize switches to match the voltage requirements of your power supply, regardless of whether it exceeds 12V.

The primary function of this 19mm momentary push button switch is to complete the circuit when pressed, allowing current to flow and activating the connected device or circuit. It is commonly utilized in various applications such as automotive electronics, power tools, industrial equipment, and DIY projects, enabling tasks like motor control, alarm triggering, and lighting system operation.

FILN Highlight Button Introduction:

We have recently developed a new line of 12 volt momentary push button switches that offer brighter and more visually appealing lighting effects compared to ordinary switches. These switches were created based on a customer’s idea and designed by our talented team to meet the specific requirements of various applications.

Currently, our product range includes different sizes such as 16mm, 19mm, and 22mm, and we are continuously working on developing more variations of this type of momentary push button switch in the future.

In addition to these momentary push button switches, we also offer a range of metal push button switches. These switches are constructed using metal materials and encompass various types such as metal membrane switches.

We strive to deliver innovative and high-quality solutions to meet the diverse needs of our customers, and we are excited to introduce our latest line of 12 volt momentary push button switches with enhanced lighting effects.

Rocker-Type Double-Contact Switch Assembly

The switch component of our metal push button switch is a rocker-type double-contact switch assembly.

It consists of a switch base, a bracket mounted on the switch base, a static reed fixed on the switch base, a lower static reed, and an upper static reed. The movable contact is hinged to the cantilever end of the movable reed provided on the bracket, with the other end connected to a tension spring.

The switch’s push block extends from the upper surface of the switch base and touches the lower end of the button.

Advantages of Metal Momentary Push Button Switch

By adopting a rocker-type double-contact switch assembly, our metal momentary push button switch offers faster switching action and better touch stability during use. It can operate within a wider current and voltage range.

Self-Locking and Momentary Push Button Switch

Our metal push button switch can function as both a self-locking and a momentary switch.

A self-locking switch refers to a button switch that stays in its pressed position after the first press, remaining locked until pressed again to unlock it.

This type of switch is commonly used in devices that require a manual toggle on/off operation, often with accompanying indicator lights.

Features of the Momentary Push Button Switch

A momentary push button switch, also known as a self-resetting button, turns on when pressed and turns off when released. It does not retain its pressed position.

Our metal momentary push button switch can be illuminated with a ring-shaped light and is available in various colors such as red, green, yellow, blue, and white.

It can also offer dual-color or three-color options by combining different LED connections.

Voltage and Wiring Options

The voltage range for our push button switch is from 3V to 380V, with popular options being 12V, 24V, and 220V. We provide a default wiring harness of 5 wires, 20 cm long, with AWG20 or AWG18 wires. Customers can contact us for additional wiring harness requirements.

Contact Information

For any push button light switch needs, please email us at sales2@filn.com.cn.

If you have questions or ideas regarding the momentary push button switch, our engineer, Louis Lin, can be reached at inquiry@cnylin.com.cn.

We are happy to assist you in finding the right solution for your requirements.

Product Drawing

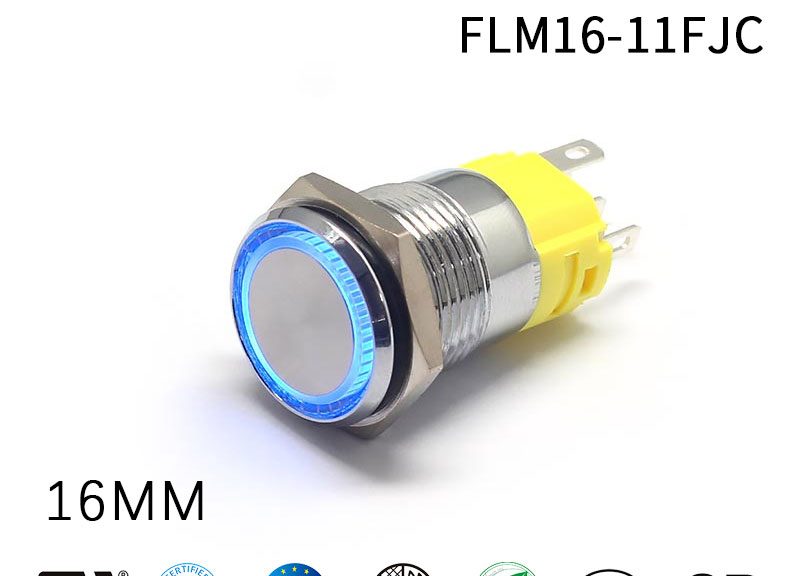

Product Parameters:

Production Series	FLM16-11FJC	Light Guide Button	PC plastic
Button Shape	round	Actuator	304 Stainless steel
Button LED Color	Red blue green yellow white	Housing Sleeve	H59 nickel plated brass/304Stainless steel
Mechanical Life	The 500 thousand time	Button Pin	H62 copper alloy
Electrical Life	The 100 thousand time	Rubber Ring	SIL silica gel
Protection Level	IP65 IK09	Nut	H59 nickel plated brass
Rated Voltage	36V（DC） 250（AC）	Housing	PA66+GF20% nylon
Rated Current	5A（DC）5A（AC）	Light Source	LED
Rated Power	180W（DC）1250W（AC）	Resistor	Metal film
Operating Temperature	-25℃~+85℃	Contact	AgCdO12

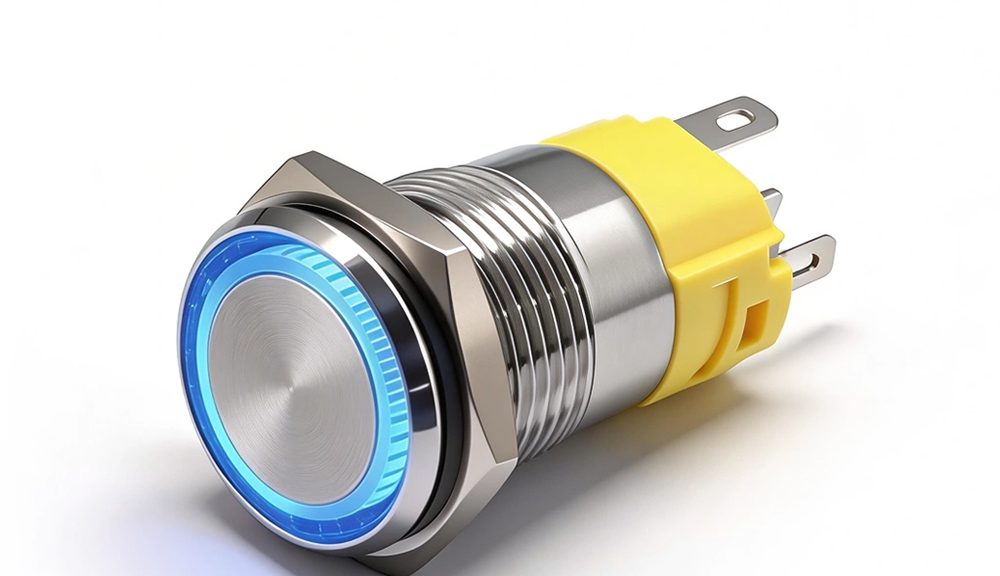

How to Wire a momentary button switch ?

For the normally open function:

If you want the LED to turn on separately and the device to start working when the LED Ring Switch is pressed down:

• Connect the C pin and LED pin of the LED Ring Switch to the positive pole of the power supply.
• Connect the positive pole of the LED Ring Switch’s light to the positive pole of both the power supply and the device.

For the normally closed function:

If you want the LED Ring Switch to be on while working:

• Connect one pole of the LED Ring Switch to the positive poles of the power supply and the device.
• Connect the C pin of the LED Ring Switch to the other pole of the power supply.
• Connect the LED pin and NC (normally closed) pin of the LED Ring Switch together, and connect them to the other pole of the device.

For the combined function:

For switches with combined pins, typically having 5 pins including 2 LED pins, C pin, NO (normally open) pin, and NC pin, the addition of the NC pin provides a normally closed function. This allows the switch to be used in different scenarios.

If the LED lamp indicates the switch position, such as for a grinder with both forward and reverse turns, where NO controls the forward turn and NC controls the reverse turn. This single switch can fulfill two functions, replacing the traditional approach of using two switches for one device. This not only saves costs but also simplifies the operation at the terminal.

Video of other button switch wiring

Customization Advantages of FILN momentary button switch

The FILN momentary button switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

Why Customization is Important for momentary button switch ?



Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN momentary button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.



1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.



2. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.



3. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.

Customizable Button Symbols



One of the most prominent features that can be customized in a FILN momentary button switch is the button symbol. Customers can opt for various light symbols depending on their specific needs.



1. User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.



2. Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.



3. Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.

Customizable Button Connectors



The FILN momentary button switch also offers customizable button connectors, making it easier for customers to use the switch in their unique setups.



1. Ease of Installation: Custom connectors can make the installation process simpler and quicker, saving both time and money.



2. System Compatibility: Different systems may require different types of connectors. Customization ensures that the push button switch can be integrated seamlessly.



3. Durability: The type of connector can also affect the durability of the switch, especially in harsh conditions.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN momentary button switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.

Related products:

What is an LED Ring Switch?

The LED ring switch is also one of a family of pushbutton switches whose most obvious difference is that they feature a ring-shaped LED light indicator in the pushbutton section.

Embedded within the light indicator is a ring-shaped LED strip that glows and displays different colors to provide visual indication.

The LED light can change according to the state of the switch, for example, the button is pressed the indicator is red, release the button can become green, or it can be one color and always show one color.

Comprehensive Guide to Momentary Button Switch

momentary push button switch normally open.
The momentary button switch is an incredibly versatile and essential component found in numerous applications, from consumer electronics to heavy-duty industrial machinery. This comprehensive guide delves into the different types of momentary button switches, their wiring methods, how to distinguish them from regular push buttons, maintenance techniques, and how to make the right purchase. Whether you’re a beginner looking to understand the basics or a professional seeking intricate details, this article offers valuable insights and practical information about momentary button switches, making it a must-read for anyone interested in this subject.

What is a Momentary Button Switch and How Does it Function?

A momentary button switch, or a Push Button Momentary Switch as it’s often referred to, is a type of switch that only remains active as long as it’s being pressed or activated. Here, we’ll explore three different perspectives on its functions:

User Perspective

It’s noteworthy that, For users, this switch offers ease of control, commonly found in applications like doorbells, reset buttons, or car ignition systems. When the button is released, the circuit is broken, returning to its normal state.

Technical Perspective

From a technical standpoint, the momentary button switch can be either normally open (NO) or normally closed (NC). The wiring and connectivity of these switches can be explored at how to wire a push button switch. Interestingly, In a fascinating turn, Industrial Perspective In an industrial context, these switches are used for controlling machinery and emergency stop functions. Their momentary nature ensures that accidental activation or deactivation is minimized.

What are the Different Types of Momentary Button Switches?

Momentary button switches are available in various forms, such as momentary push-button switch normally open, normally closed momentary switch, momentary rocker switch, and others. Understanding these types is essential for different applications:

Momentary Push Button Switch Normally Open

A normally open momentary push button switch remains open until pressed. Upon pressing, the circuit is closed, and current flows.

Normally Closed Momentary Switch

Contrarily, a normally closed momentary switch stays closed, and pressing the button opens the circuit, interrupting the current flow. For applications like alarms or safety devices, this type might be preferred. momentary push button switch wiring.

Momentary Rocker Switch

A momentary rocker switch provides a rocking mechanism, allowing for intuitive control in automotive or electronic applications.

How to Wire a Momentary Push Button Switch?

Wiring a momentary push button switch is an essential skill for DIY enthusiasts or professionals. Here are three angles to look at this:

For Basic Applications

For simple applications like doorbells or hobby projects, wiring a momentary switch is relatively straightforward. Surprisingly, A handy guide for wiring can be found at this link.

For Advanced Installations

For more complex installations involving LED indicators or other electronics, precise wiring is crucial. More information on wiring push-button switches with LEDs is available here.

For Automotive Use

Wiring a momentary button switch in vehicles may require adherence to specific guidelines. You can explore how to wire a push-button starter switch here.

What are the Considerations for Choosing a Momentary Button Switch?

Selecting the right momentary button switch requires careful consideration of factors such as application, specifications, and environment.

Application Considerations

Understanding the application is key, whether it’s a momentary switch for starting a car, or a waterproof switch for outdoor usage.

Specification Requirements

momentary switch normally open.
Choosing the right specifications, including voltage, current rating, and materials, ensures compatibility and durability.

Environmental Factors

The environmental conditions, such as moisture and temperature, must be considered, especially if a waterproof metal push-button stop switch is needed. More information on waterproof switches can be found here.

How to Understand Momentary Switch Diagrams?

Understanding momentary switch diagrams is vital for wiring or troubleshooting. Here’s an exploration from different viewpoints:

For Beginners

A basic diagram shows how the switch connects within a circuit. Beginners can refer to this link for a simple illustration.

For Intermediate Users

For those with some experience, diagrams including additional components like LEDs or resistors may be involved.

For Professionals

Professionals may encounter multifunctional switches or complex circuits. Resources like emergency stop diagrams are available here.

---

How to Distinguish between a Momentary Switch and a Push Button?

The terms “momentary switch” and “push button” are often used interchangeably, but there are distinctions to be made:

Definitions

A momentary switch is a subtype of push button, specifically designed to revert to its normal state when released. Meanwhile, not all push buttons are momentary; some remain in the actuated state. momentary switch vs push button.

Applications

Surprisingly, Momentary switches are primarily used in applications where temporary activation is needed. Conversely, standard push buttons might be used for toggling power on and off.

Visual Appearance

While there may be visual similarities, momentary switches often come with specific markings or color codings to denote their momentary nature. Information about push-button switches with power symbols can be explored here.

What are the Common Uses of Momentary Push Button Switch with LED?

Momentary push button switches with LEDs provide visual feedback, enhancing usability. Here’s a breakdown from various perspectives:

In Consumer Electronics

These switches are widely used in gadgets like music players or gaming consoles, where the LED indicates active modes or settings.

In Industrial Controls

In industrial environments, momentary push button switches with LEDs can signal machine states or warnings.

In Automotive Applications

In vehicles, such switches may control features like headlights or cruise control, with the LED serving as a status indicator. Interestingly, ## How Do You Maintain a Momentary Switch? Maintaining a momentary button switch prolongs its lifespan and ensures reliable operation. It’s noteworthy that, Here are key perspectives:

Regular Inspection

momentary push button switch with led.
Regularly inspecting the switch for signs of wear, corrosion, or damage helps in early detection of potential problems.

Cleaning

Keeping the switch clean, especially in dusty or dirty environments, prevents malfunction.

Replacement

Knowing when to replace a faulty switch is vital. A timely replacement ensures that the overall system continues to function properly. In a fascinating turn,

How to Buy a Momentary Button Switch?

Purchasing the right momentary button switch requires attention to various factors:

Identify Needs

Understanding the specific needs, such as whether a waterproof momentary switch or an emergency stop push button is required, helps in selecting the right product. In a fascinating turn,

Compare Options

In a fascinating turn, Comparing options from different suppliers, considering factors like price, quality, and features, ensures the best choice.

Consider Support

Looking for suppliers that provide support, technical information, and quick delivery contributes to a smooth purchase process. You can explore various options at this link. It’s noteworthy that,

Conclusion

Momentary button switches are essential components in various applications, from consumer electronics to industrial machinery. Understanding the different types, wiring methods, considerations for selection, and proper maintenance ensures optimal use and performance. By considering different perspectives and leveraging available resources, one can make informed decisions about momentary button switches for any application. In a fascinating turn, The provided links offer further insights and specific details tailored to various needs and skill levels. Remarkably,

Momentary Button Switch Prices in the USA

A momentary button switch is a vital component used in electrical circuits. It is essential to be well-informed about its pricing before making a purchase. In this article, we will explore the price ranges of various types of momentary button switches in the USA.

Flow Chart of Sources and their Availability

To provide you with comprehensive information, we have gathered data from multiple sources. Here is a flow chart summarizing the availability of price data:

1. Home Depot
   • Price data: Available
2. Made-in-China
   • Price data: Available
3. AliExpress
   • Price data: Not available
4. All Electronics
   • Price data: Available
5. Amazon
   • Price data: Not specified

Detailed Price List

Here is a detailed breakdown of the price ranges for momentary button switches from each source:

Source	Price Range	Notes
Home Depot	$10 – $150	Average price
Made-in-China	$0.01 – $100	Price per button switch
AliExpress	Not specified	Specific price data not available
All Electronics	$2.50	Normally-open momentary red pushbutton
Amazon	Varied based on product	Depends on size and color

Please note that these prices are approximate and may vary depending on the supplier, retailer, and location. It is recommended to check with specific suppliers, retailers, or online marketplaces for the most accurate and up-to-date pricing information on momentary button switches.

Conclusion

When considering the purchase of momentary button switches, it is crucial to explore various sources and stay updated on pricing. While some platforms like AliExpress didn’t provide specific pricing, others like Home Depot and Made-in-China offered a wide range. Happy shopping!

Remember, having a clear understanding of momentary button switch prices will help you make informed decisions and ensure you get the best value for your money.

LED Ring Switch Features:

LED Ring Switches are becoming more and more common in modern electronic devices, these pushbutton switches are used in a wide range of industries, providing a more intuitive, easy to use and fun way to control switches.

The LED Ring Switch’s ring design offers several advantages.

First, it provides more intuitive visual feedback, allowing the user to see the status of the switch by looking at the LED light of the pushbutton switch. For example, the pushbutton switch LED lights up when the switch is energized and does not light up when the switch is de-energized.

Secondly, the ring design makes the switch easier to recognize and touch, especially in the dark light environment. In addition, the luminous effect of the LED strip can also add to the aesthetics and attractiveness of commercial kitchen equipment and other appliances.

It is commonly used for switching control of commercial kitchen equipment or home appliances, such as juicers, coffee makers, and outdoor power equipment.

16MM LED Ring Switch Details:

The product features an LED Ring Switch design, with a visually appealing light-emitting head and a circular line pattern. The LED illumination creates a beautiful effect when turned on.

The product’s metal shell is available in three materials: stainless steel, brass (with options for chrome plating or nickel plating), and black electrophoresis-treated aluminum. Stainless steel offers the best corrosion resistance. Brass variants have a smoother and more aesthetically pleasing surface but are prone to corrosion and may develop verdigris over time. The black electrophoresis-treated aluminum provides a durable and vibrant finish, resistant to fading and scratching. Other color options, such as red, green, or blue, are also achievable through the electrophoresis process.

The product is designed with a 16mm mounting hole and can be securely installed using a copper nut screw for tight fixation.

The LED Ring Switch offers various push button shapes, including high-head, flat-head, and concave-head designs. The unique concave-head shape sets it apart in the market, with plastic gears of the ring lampshade inverted on the metal surface.

This design creates a distinctive play of light and shadow when the switch is illuminated, enhancing its advanced and aesthetically pleasing appearance.

The internal structure of the LED Ring Switch consists of a shell, contact, and pin. It comes in different structure types, such as ordinary press knob, mushroom head, self-locking, self-reset, rotary handle, with indicator lamp, with lamp symbol, and key types, among others.

The switch typically adopts a water structure, comprising a nut, reset spring, static contacts, dynamic contacts, and housing. It is commonly designed as a composite type, featuring a pair of normally closed contacts and a pair of normally open contacts. Some products can increase the number of contact pairs through series connections of multiple elements.

Here’s a description of the functions of the 16 mm LED ring switch:

1. Normally closed function: In its default state, when the LED Ring Switch is not pressed, the dynamic contact is connected to the static contact above, forming normally closed contacts.
2. Normally open function: When the LED Ring Switch is not pressed, the dynamic contact is disconnected from the static contact above, creating normally open contacts.
3. Self-reset function: Pressing down the LED Ring Switch disconnects the normally closed contacts. Releasing the switch allows the reset spring to restore it to its original operating state.
4. Self-locking function: Pressing down the switch disconnects the normally closed contacts. Releasing the switch maintains the current working state. To restore the original operating state, the switch needs to be pressed again, triggering the reset spring.

The LED Ring Switch is available in a variety of colors, including red, green, yellow, blue, white, and more. It can also be produced as two-color or three-color variants.

With a waterproof rating of IP67, the LED Ring Switch is suitable for outdoor use, providing reliable performance in various weather conditions.

The product has a current rating of 5A at 250V, making it suitable for use in mechanical products with a power consumption under 1000W. The push button switch has a mechanical life of 500,000 times, ensuring its durability and longevity.

The LED Ring Switch has obtained certifications such as UL, CE, and RoHS, guaranteeing the stability and quality of the product.

To facilitate wiring installation, the product comes with a specialized socket wiring harness, ensuring convenient and efficient installation.

How to Install a LED Ring Switch?

How to Test a LED Push Button Switch?

The rated current of the product is 5A 250V, so the power is below 5A 250V or even a low voltage and current can be electrified.

Our production flow line has a test of the push button starter switch.

The technicians specially customized the test table of the switch, when the circuit is on, there are two LED lights (red light and green light), when the switch is inserted into the connector, the switch ring is on (switch’s beads is normal), red light is on (NC function is normal), press the button, green light is on (NO function is normal), so that the function test of the switch is completed, which is convenient and easy to operate.

Get FILN LED Ring Switch Samples/Products.

Usually, the per box of the product is 50 pieces, and the weight is 1 KG. If your purchase quantity is small and need it urgently, please place order at www.cnfiln.com, we will arrange the delivery within 24 hours.

If your purchase quantity is large and need to custom the product’s circuit, please email us, our email address is sales2@filn.com.cn.
