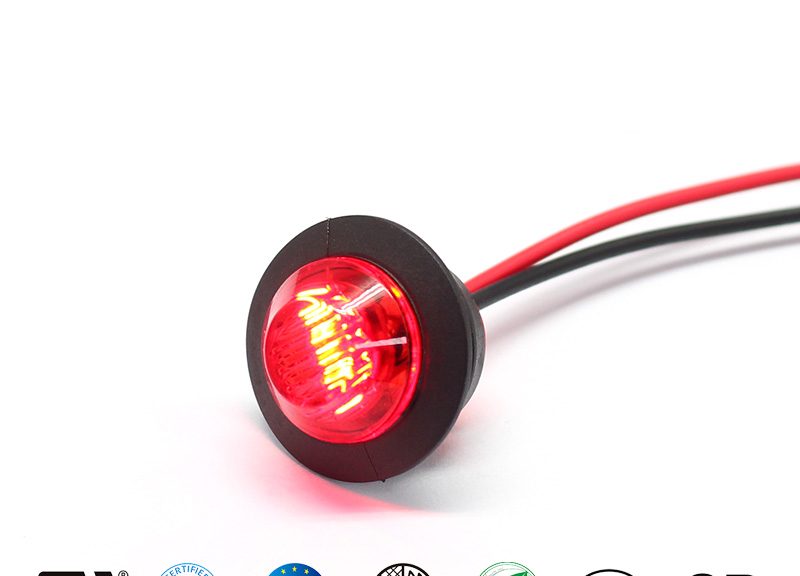

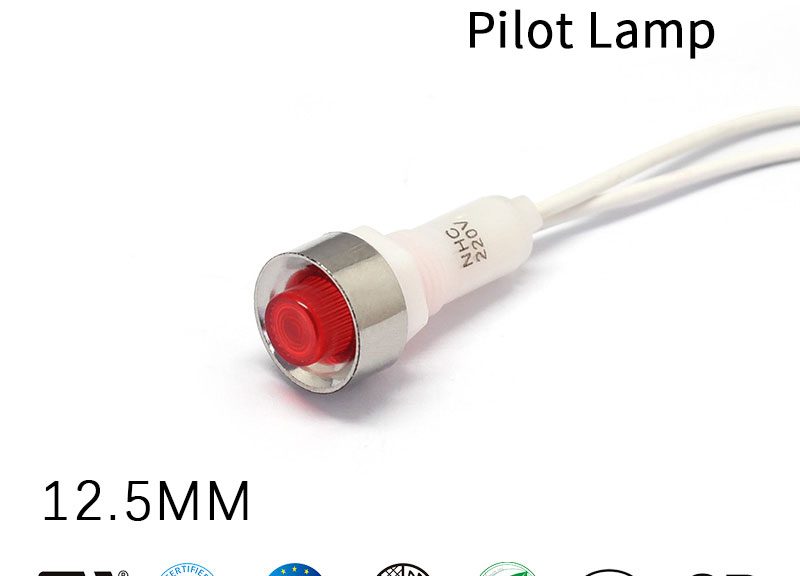

FILN Circular Plastic Pilot Lamp Red 12V Various Equipment Indicator Lights

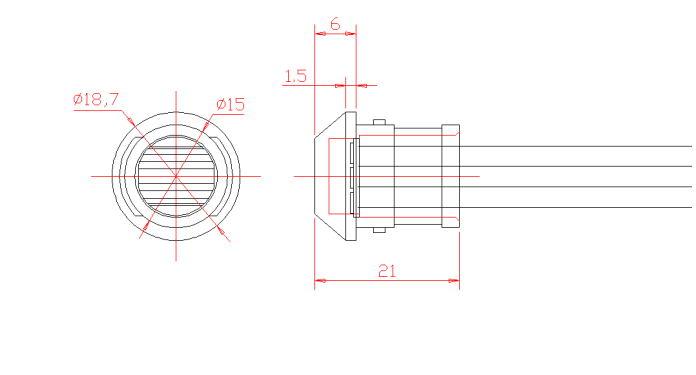

The 12.5 mm mounting hole of this plastic pilot lamp is a threaded mounting hole. The shell is generally white. The double white line in the picture is because of the neon bulb or LED, regardless of the positive and negative poles.
We can also make other wire colors. Generally, we use AWG22 wire. Neon bulbs can be made of 110v, 220v or 380v. Other voltages are not available. The price advantage of neon bulbs is cheap, but the quality is also very good.
The neon bulb is wired separately to the switch. When the switch is closed, the current of the neon bulb is turned on and emits a weak light. The power consumption of the neon bulb is small, but the biggest problem is that the service life is relatively short. A good neon bulb can only work 30,000 About hours, the neon bulbs of inferior quality are even less than 10,000 hours.
How to distinguish the quality of neon bulbs?
The first method:
Hold one pin of the neon bulb with your finger, and touch the tip of the soldering iron you are using to the other pin of the neon bulb. If the neon bulb can glow (not very bright), it is good.
If it is a neon bulb that has been soldered in the circuit, you can solder any pin of the neon bulb, touch the soldered pin with the tip of the soldering iron, and touch the other pin with your finger (sometimes you don’t need to touch it) , A good neon bulb will also glow.
This method is very useful when repairing home appliances. It is safe and convenient to judge the quality of neon bulbs without powering on the appliances.
The second method:
Hold one end of the neon tube with your left hand, and rub the plastic barrel with your right hand on your hair to make the barrel generate static electricity, and then the barrel will quickly primary the neon tube end.
If the neon pilot lamp and the neon tube are normal, you can see the sparkle flashing between its internal poles, and then it goes out. The brightness may not be too bright, and it is best to be in a dark place. If the neon lamp, neon tube, or neon bulb under test is faulty, it will not turn on.
If it is to test the “jumping bubble” neon bulb in the starter, the capacitor needs to be disconnected.
LED, also known as a light-emitting diode, is recognized as the mainstream of the development of lighting sources in the next 10 years. The power consumption of the small LED pilot lamp is only about 1/3 of the same illuminance, and the service life can reach more than 100,000 hours.
The current problem of LED plastic pilot lamp application in switch indication is that the cost is relatively high. At the same time, LED, as a lighting source that is not yet fully mature, has unsatisfactory performance in terms of stability.
The light source is stable. Compared with ordinary diodes, LEDs have the advantages of small size, bright colors, low power consumption, high luminous efficiency, fast response speed, vibration resistance and long service life.
It has a wide range of uses in modern society, such as lighting, flat panel displays, medical devices, etc., through the combination of electrons and holes to release energy to emit light. It is widely used in the field of lighting. Light-emitting diodes can efficiently convert electrical energy into light energy.
5 mm LED pilot lamp has low bead decay: the luminous decay of 50,000 hours is only three-thousandths, and the consistency of the product is good;
5 mm LED pilot lamp beads efficient light distribution: the unique light distribution design can make the light emitted by the chip more evenly distributed, reducing the glare and glare;
5 mm LED pilot lamp beads to have a long life: After testing, the average life of the lamp is more than 50,000 hours, and the color rendering is good: the color rendering of this series is more than 70.
1. Look at the brightness: the brightness of the LED is different, and the price is different. The LED used in the fixture should meet the laser class Ⅰ standard.
2. Test antistatic ability: LEDs with the strong antistatic ability and strong antistatic ability have a long life and high price. Generally, only LEDs with antistatic properties greater than 700V can be used for LEDs.
3. Test whether the consistency of wavelength is up to standard: LEDs with the same wavelength and wavelength have the same color. If the color is required to be consistent, the price is high. It is difficult for manufacturers without LED spectrophotometers to produce products with pure colors.
4. Test for leakage: Leakage current LED is a unidirectional conductive luminous body. If there is a reverse current, it is called leakage. LEDs with large leakage current have a short life and low price.
5. Look at the light-emitting angle: LEDs with different light-emitting angles have different light-emitting angles. Special lighting angle, higher price. Such as the full diffusion angle, the price is higher.
6. Evaluate the service life: The key to different qualities of life is life, and life is determined by light decay. Low light decay, long life, long life, high price.
7. Distinguish the grade of the chip: The luminous body of the chip LED is a chip, and the price of different chips is very different. Chips in Japan and the United States are more expensive. Generally, the prices of chips from Taiwan and China are lower than those in Japan and the United States.
8. Distinguish the size of the chip: the size of the chip. The size of the chip is expressed by the length of the side. The quality of the large chip LED is better than that of the small chip. The price is proportional to the size of the chip.
9. Check whether the safety performance is up to standard: The colloid of ordinary LED is usually epoxy resin, and the price of LED with anti-ultraviolet and fire retardant is more expensive. High-quality outdoor LED lighting should be anti-ultraviolet and fireproof.
Each product will have a different design. Different designs are suitable for different purposes. The reliability of LED lighting includes electrical safety, fire safety, applicable environmental safety, mechanical safety, health and safety, and safe use time. And other factors. From the perspective of electrical safety, it should comply with relevant international and national standards.
The neon bulbs and LEDs selected by Yulin Electronics are of good quality, so our pilot lamps are better sold globally. You can search for our pilot lamps on AliExpress, Alibaba and other platforms, and our pilot lamps The lamp has passed many certifications, such as UL, CE, ROHS, and IP waterproof rating certifications. Both showed good results.
If you are interested in this pilot lamp, you can contact us directly. Or our engineer: Louis Lin, his email is inquiry@cnylin.com.cn
Pilot Lamp: A Comprehensive Guide to Understanding and Utilizing Led Indicator Lights
Pilot lamps, a ubiquitous and essential component in various applications, play a vital role in conveying critical information through visual cues. From industrial machinery to household appliances, the use of pilot lamps, including led pilot light 12v and led pilot light 120v options, has transformed the way we monitor and control devices. This comprehensive guide delves into the various aspects of pilot lamps, including the types, applications, selection criteria, and innovative advancements in this field. Whether you’re an engineer, a homeowner, or simply curious about this fascinating technology, read on to explore how pilot lamps illuminate our world and enhance safety, efficiency, and convenience.
What is a Pilot Lamp and How Does It Work?
Pilot lamps, or pilot lights, are devices used to indicate the operating state of a machine or appliance. Utilized in various industrial and residential settings, these lamps offer key insights into equipment functionality.
Definition and Functions
A pilot lamp is an electric lamp that shows whether an electrical device is on or off. It functions as an immediate visual cue for operators. You can find more information on different types of led indicator lamps at this link.
Working Principle
The pilot lamp is often connected to the operating circuit of the device. When the device is powered on, the pilot light will glow. If there’s an interruption in the power flow, the light turns off, signaling the operator.
Applications
These lamps find use in various applications, including industrial machinery, household appliances, and automotive dashboards. Led pilot lights, especially in 12v and 120v forms, are preferred due to their energy efficiency.
What are the Different Types of Pilot Lamps?
Understanding the various types of pilot lamps is crucial for selecting the right lamp for specific applications.
LED Pilot Light 12v
12v LED pilot lights are often used in automotive and low-voltage industrial applications. They provide bright illumination with low power consumption. More on 12v pilot green led indicator light here.
LED Pilot Light 120v
The 120v LED pilot lamps are suitable for household appliances and some industrial machines. They offer higher voltage requirements and are often used as indicator lamps in these contexts.
LED Indicator Pilot Lamp
LED Indicator Pilot Lamps are used to show various operating states. They’re energy-efficient and come in different colors for different indications. Here’s a place to find led pilot light indicators.
Pilot LED Light Bar
Pilot LED light bars are used in vehicles, providing bright, directional lighting. These are different from standard pilot lights, serving a lighting purpose rather than an indication function.
How to Choose the Right Pilot Lamp for Your Needs?
Selecting the right pilot lamp is vital for ensuring accurate indication and compatibility with your device.
Determine the Voltage Requirement
Identifying the voltage requirement, such as 12v or 120v, is essential in choosing the right LED pilot light.
Consider the Application
The specific application, whether industrial or household, will determine the type of pilot lamp needed. For example, a two-color led indicator light could be suitable for a complex machine that needs different indications (link).
Choose the Right Color
The color of the pilot light can convey different messages. Red may signify a warning, while green may indicate normal operation. Here’s a place to find different color options.
How to Install and Maintain a Pilot Lamp?
Proper installation and maintenance are vital for the efficiency and longevity of a pilot lamp.
Installation Guide
- Determine the Location: Identify the proper location for the lamp based on visibility and accessibility.
- Select the Right Lamp: Choose the lamp according to voltage and application requirements.
- Wire Correctly: Connect the lamp to the operating circuit, ensuring proper polarity.
- Secure the Lamp: Use proper mounting hardware to secure the lamp in place.
- Test the Lamp: Power on the device and check the pilot lamp for proper operation.
Maintenance Tips
- Regular Inspection: Regularly inspect the lamp for any signs of damage or wear.
- Clean Carefully: Clean the lamp with a soft cloth, avoiding any abrasive materials.
- Replace if Necessary: If the lamp fails or becomes dim, replace it with a suitable model.
You can find different types of indicator lights suitable for various applications at this link.
What are the Common Problems with Pilot Lamps and How to Troubleshoot Them?
Problems and Solutions
- Lamp Doesn’t Light Up: Check the wiring, connection, and fuse. If the issue persists, the lamp may need to be replaced.
- Flickering Lamp: This may be due to a loose connection or fluctuating voltage. Tightening connections and stabilizing voltage might solve the problem.
- Dim Light: This could be a sign of a nearing end-of-life for the lamp. Replacing it with a new one, like this option, might be necessary.
Troubleshooting Tips
- Consult the Manual: Always refer to the user manual for specific troubleshooting guidelines.
- Use Proper Tools: Utilize appropriate tools for checking connections and voltages.
- Seek Professional Help: If the problem is complex, don’t hesitate to consult a professional technician.
What are the Latest Innovations in Pilot Lamps?
Technology never ceases to evolve, and the field of pilot lamps is no exception. Here’s a look at some of the latest trends and innovations.
Energy Efficiency
Energy-efficient models like 8mm IP65 coffee120v led indicator light are becoming more common, minimizing energy consumption while providing bright illumination.
Miniaturization
The development of miniaturized lamps like 8mm auto 12v mini led indicator lights is a growing trend, allowing for more compact designs and applications.
Multicolor Indication
Multicolor pilot lamps offer the ability to show different states with one lamp, enhancing the usability of the indicator lamps in complex machinery.
Connectivity and IoT Integration
With the growth of the Internet of Things (IoT), pilot lamps may soon be connected to networks, allowing remote monitoring and control.
How to Buy Pilot Lamps?
Understanding the purchasing process is essential for acquiring the perfect pilot lamp for your application.
Identify Your Requirements
Know your voltage, color, and application requirements. Specific lamps like 8mm 12v vending blue led indicator light might be suitable for vending machines, for example.
Choose a Reputable Supplier
Selecting a trustworthy supplier ensures quality and reliability. Here’s a link to a reputable supplier.
Compare Prices
Consider different options and compare prices to find the best deal.
Check Warranty and Support
Always verify the warranty and support services provided by the supplier to ensure a smooth experience post-purchase.
Conclusion
Pilot lamps play a critical role in various applications, serving as essential indicators of operating states. With a wide array of options available, understanding the basics, types, installation methods, and latest trends is crucial in making an informed decision. Whether it’s a simple led pilot light 12v for a car dashboard or
a complex indicator lamp for industrial machinery, selecting the right lamp contributes to safety, efficiency, and functionality. The continuous innovations in this field offer exciting possibilities for future developments, making pilot lamps an enduring and evolving aspect of modern technology.
Future Prospects and Technological Advancements in Pilot Lamps
The evolution of pilot lamps doesn’t stop at current trends. With the integration of more advanced technologies and growing environmental concerns, pilot lamps are expected to see significant changes in design, functionality, and application.
Integration with Smart Technologies
Smart technology integration enables remote control and monitoring of pilot lamps. With IoT, pilot lamps can be part of a networked system, offering centralized control and diagnostics.
Eco-friendly Designs
With a global push towards sustainability, the development of eco-friendly pilot lamps, especially LED variants like 19mm 12v led indicator light with reflector, is a growing trend. These designs minimize energy consumption and reduce waste.
Customization
Customizable pilot lamps that cater to specific industry needs are becoming more prevalent. These can include specific color coding, symbols, or multi-functionality, tailored to unique applications.
Enhanced Durability
Developments in materials and design are leading to pilot lamps that can withstand harsher environments, including extreme temperatures, vibrations, and corrosions. Products like 8mm IP67 277v indicator light are examples of such innovations.
Collaborative Development
Manufacturers are increasingly collaborating with end-users to develop pilot lamps that meet precise requirements. This collaboration ensures that the final product aligns perfectly with the needs of the application.
Frequently Asked Questions (FAQs) About Pilot Lamps
What is the Difference Between a Pilot Lamp and Indicator Lamp?
Pilot Lamp: Primarily serves to show the on/off status of a device.
Indicator Lamp: Can be used to indicate various operating conditions, not limited to on/off status. For more details on LED indicator lamps, click here.
How Long Does a Typical LED Pilot Light Last?
An LED pilot light typically lasts 30,000 to 50,000 hours, depending on usage and quality. LED lights are generally more durable and energy-efficient than traditional bulbs.
Can Pilot Lamps be Used in Outdoor Settings?
Yes, specific pilot lamps are designed for outdoor use, providing weather resistance and durability. Products like 8mm red flashing led indicator light can be used in outdoor applications.
What Safety Precautions Should be Taken While Handling Pilot Lamps?
Handling pilot lamps requires care in wiring, installation, and maintenance. Ensuring proper voltage compatibility, following the manufacturer’s instructions, and regular inspection are key safety measures.
Can I Replace a Traditional Pilot Lamp with an LED Variant?
Yes, LED pilot lights, such as double color metal pilot indicator light, can often replace traditional lamps, offering benefits like energy efficiency and longer lifespan. Make sure to check compatibility before replacement.
A Final Word on Pilot Lamps
Understanding the intricacies of pilot lamps – from their basic functions to advanced technological trends – enables users to make informed decisions, ensuring optimal performance and reliability. With numerous options, such as led pilot light 12v, led pilot light 120v, led indicator pilot lamp, indicator lamp, pilot led light bar, and pilot lights in the house, there’s a suitable solution for every need. The continuous innovation in design, functionality, and application signifies that pilot lamps will remain a vital component in various industries, contributing to safety, efficiency, and technological advancements.
Guide to Choosing the Right Pilot Lamp for Different Applications
Selecting the right pilot lamp for a specific application is crucial for optimal functionality and efficiency. Understanding the various aspects that influence this choice will ensure that you find the perfect fit for your needs.
Consider the Voltage
Choosing the correct voltage is essential. For instance, if your system requires a 12V indicator, you may consider products like the 12V pilot green led indicator light. Always refer to the specifications and guidelines provided by the manufacturer.
Determine the Mounting Type
The mounting type depends on the application and the space available. Whether it’s panel mounting, surface mounting, or a specialized setup, knowing the requirements will aid in selection.
Select the Appropriate Color
Colors in pilot lamps are often used to signify different statuses. For example, red might indicate an error, while green shows normal operation. Customizable options like 10mm RGB colors 12V red indicator light offer flexibility in color choice.
Evaluate the Environment
The environmental conditions where the pilot lamp will be used, such as temperature, humidity, and exposure to chemicals, must be considered. Products like 8mm IP65 coffee 120V led indicator light are designed for specific environmental resistances.
Assess the Material
Material selection should align with the application’s demands. Metal casings might be preferred for industrial environments, while plastic could be suitable for less demanding settings.
Think About the Functionality
Pilot lamps can have various functionalities, such as flashing, steady illumination, or multi-color indications. Determine what functions are required for your specific needs.
Compatibility with Existing Systems
Ensuring that the chosen pilot lamp is compatible with the existing systems and controls is essential for seamless integration.
Focus on Durability and Quality
Look for quality products that offer durability and comply with necessary standards and certifications. Products like 22mm jemco 12V led pilot indicator light are known for their quality and reliability.
Budget Considerations
Lastly, considering the budget without compromising essential features ensures that you get value without overspending. Bulk purchases for industrial applications might also offer cost-saving opportunities.
By considering these factors, you can select the right pilot lamp that aligns with your requirements. Whether it’s led pilot light 12v, led pilot light 120v, led indicator pilot lamp, or other specialized options, taking the time to assess the needs of the application ensures efficiency, safety, and satisfaction.
Utilizing Pilot Lamps in Home Environments
Pilot lamps are not only used in industrial settings but also find applications in residential environments. They offer an effective way to indicate the operational status of various home appliances and systems.
Integration with Home Appliances
Many home appliances, such as ovens, washing machines, and heating systems, utilize pilot lights to indicate different operational states. LED options like 8mm 12V vending blue led indicator light are common in modern appliances.
Energy Efficiency
Using energy-efficient LED pilot lights in house settings helps in reducing energy consumption. They are a preferred option for environmentally conscious households.
Customization and Aesthetics
Modern pilot lamps offer customization options that can match the aesthetics of your home décor. Choices in colors, shapes, and designs add to the visual appeal.
Safety Indications
Pilot lamps can also serve as safety indicators, signaling issues or malfunctions in home systems, thereby providing timely alerts.
Cost-Effective Solutions
LED pilot lights, such as 6mm 12v led green indicator light, are often more cost-effective over time due to their long lifespan and energy efficiency.
Convenience and Control
With smart technology integration, controlling and monitoring pilot lights in the house can be done remotely via smartphones or other devices.
In conclusion, the application of pilot lamps in residential settings enhances convenience, efficiency, safety, and aesthetics. Selecting the right product that aligns with your home’s specific needs ensures a harmonious and functional integration. Whether it’s an LED pilot light for your oven or a sophisticated indicator lamp for your smart home system, the possibilities are vast and versatile.
Conclusion
The world of pilot lamps is diverse and expansive, encompassing various applications across industries and homes. From their fundamental roles in machinery and equipment to their evolving integration with smart technologies, pilot lamps continue to be an indispensable part of our daily lives. Understanding the nuances of different products, such as led pilot light 12v, led pilot light 120v, led indicator pilot lamp, indicator lamp, pilot led light bar, and pilot lights in house, empowers users to make informed decisions. The continuous innovation in design, functionality, and application signifies that pilot lamps will remain a vital component in various fields, contributing to safety, efficiency, and technological advancements. Whether it’s selecting the right product or exploring future trends, this comprehensive guide provides insights and answers to all your pilot lamp-related questions.
Pilot Lamp Prices in the USA: A Comprehensive Guide
When it comes to understanding the price range of various types of pilot lamps in the USA, it’s essential to do a thorough search. In this article, we will provide you with a detailed breakdown of pilot lamp prices, along with some helpful visuals to assist you in your search.
Flow Chart: Pilot Lamp Price Search Process
To begin your search for the perfect pilot lamp, it’s important to have a clear understanding of the process. The flow chart above outlines the steps you can take to find the best price for your desired pilot lamp.
Pie Chart: Approximate Price Distribution of Various Pilot Lamps
To give you an idea of the price distribution for different types of pilot lamps, we have created a pie chart. This chart provides an approximate breakdown of the price ranges you can expect when purchasing a pilot lamp.
Table: Pilot Lamp Price Details
Here is a table that provides specific details on the prices of various pilot lamps available in the market:
| Product Name | Source | Price (USD) |
|---|---|---|
| Baomain LED Indicator Pilot Light AD16 L22 AC 110V | Amazon.com | $9.99 |
| Chanzon 10pcs 5mm LED Pilot Diode | Amazon.com | $5.99 |
| FILN 3Pcs 10MM Indicator Light Led light 110v 120v Metal | Amazon.com | $10.99 |
| Pilot Lamp Lights Aluminum Black Anodized | ||
| Garland / US Range 1936103 Indicator Lamp-Amber- 28v | WebstaurantStore | Not specified |
| Indicator Light Manufacturers in the USA from OMCH | OMCH | Not specified |
Please note that the prices mentioned above are approximate and may vary depending on the specific seller, quantity, and any additional features or specifications of pilot lamps. It is recommended to visit the respective websites or contact the sellers directly for accurate and up-to-date pricing information for pilot lamps.
List of Pilot Lamp Types and Their Prices
Here is a list of different pilot lamp types along with their respective prices:
- Baomain LED Indicator Pilot Light AD16 L22 AC 110V from Amazon.com: Priced at $9.99 USD.
- Chanzon 10pcs 5mm LED Pilot Diode from Amazon.com: Available for $5.99 USD.
- FILN 3Pcs 10MM Indicator Light Led light 110v 120v Metal Pilot Lamp Lights Aluminum Black Anodized from Amazon.com: Costs $10.99 USD.
- Garland / US Range 1936103 Indicator Lamp-Amber- 28v from WebstaurantStore: Price is not specified.
- Indicator Light Manufacturers in the USA from OMCH: Specific pricing information is not provided.
These are just a few examples of pilot lamps available in the market. The prices mentioned above are subject to change and may vary depending on the specific seller and any additional features or specifications of the pilot lamps.
In conclusion, when searching for pilot lamp prices in the USA, it is important to consider factors such as the type of pilot lamp, the seller, and any additional features or specifications. By utilizing the flow chart, pie chart, and table provided in this article, you can gain a better understanding of the price range and make an informed decision when purchasing a pilot lamp.
| Product Item | |
| Panel Mount Diameter | 12.5mm |
| Contact Way | Pins |
| Install Way | screw terminal |
| Lamp Type | LED |
| Rated voltage | AC/DC, 3V、6V、12V、24V、220V、380V |
| Lamp Color | red yellow blue green white |
| Product Design | Flat head |
| Shell Material | PC |
| Base Material | PA66 nylon |
| Terminal Material | brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
| Component Name | Material |
| Lens | PC plastic |
| Metal Body | H59 brass or 304 stainless steel |
| Wahser | T10 Cold Rolled Steel |
| Rubber Ring | SIL silica gel |
| Nut | H59 nickel plated brass |
| Housing | PA66 nylon |
| Light Source | LED |
| Resistor | Metal film |
| Cable | PTFE AWG22 0.3mm² |
| Plug-in | C2680 RoHS brass |
| Items | Parameter |
| Rated Voltage | 3V-780V DC or AC |
| Rated Current | 20mA |
| Rated Power | 0.2W |
| Insulation and Voltage Resistance | 1800V |
| Working Life | 100000h |
| Electrical Life | 100000 |
| Cold-resistant | -40℃ |
| Heat-resisting | 80℃ |
