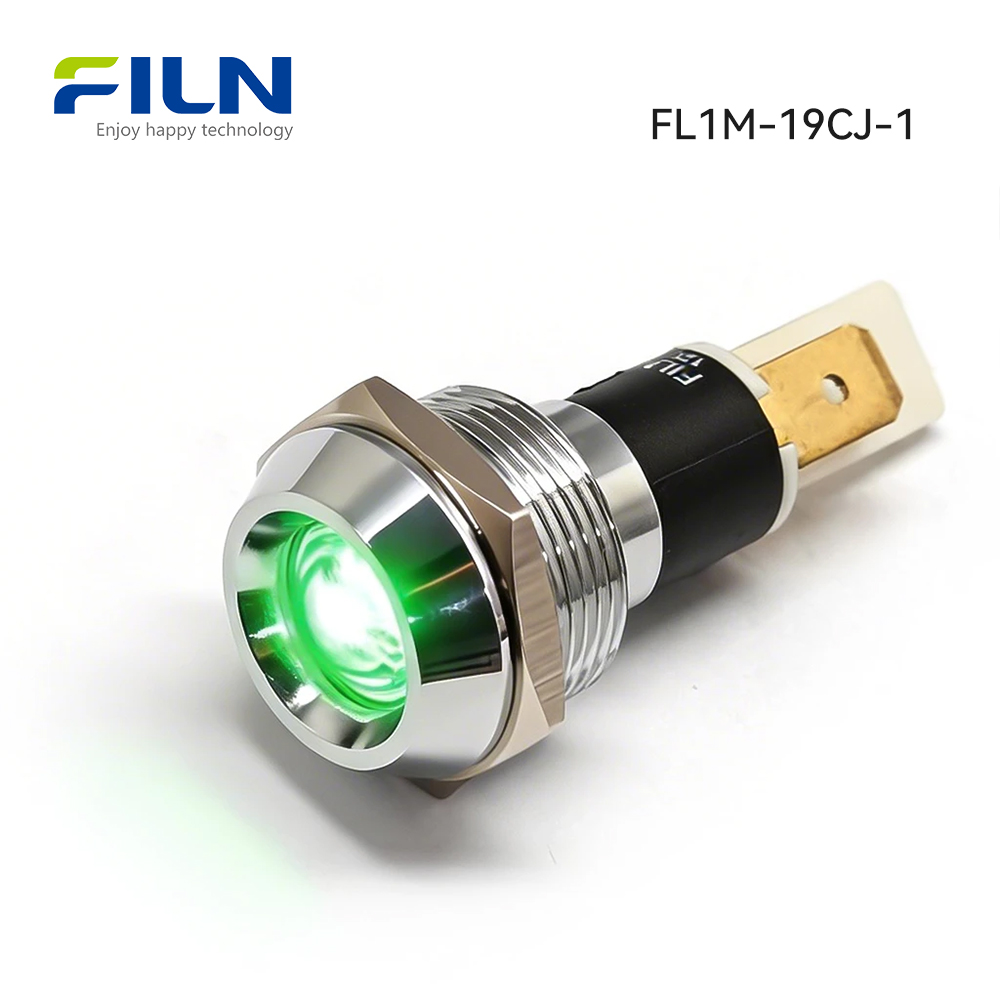

19mm Metal 12V LED Indicator Light With Reflector

The following is the introduction of this 19mm Metal 12V LED indicator light With Reflector



This is a 19mm Metal 12V LED Indicator Light, which is widely used in automation equipment and medical equipment.

1. The shell of the 19mm METAL 12V LED indicator light is made of brass material and processed by a CNC lathe (due to the high precision of the shell copper parts, all production is slow, and a CNC lathe can only produce 100 shells a day), The metal shell is electroplated with nickel, the appearance is precise and the atmospheric grade is very beautiful, if you are using the seaside or where there is sulfuric acid corrosion, you can use stainless steel 316 material, which can resist corrosion.

2. The head of the 12V LED INDICATOR LIGHT is designed as a concave head, and the indicator cap is designed inside. The indicator cap is seamlessly connected to the copper parts, which can achieve the waterproof IP67 function. If you want waterproof IP68, we only need to fill the head with glue can.

3. The LED of the 12V LED INDICATOR LIGHT adopts the non-polar LED developed by FILN itself. It does not need to be divided into positive and negative levels when used on DC. Customers can connect the wires at will. The service life of the LED design is very long and can reach 80,000 hours. The lighting design of the LED is a 180-degree flashing design.

4. The plastic of the 12V LED INDICATOR LIGHT is made of German Bayer material, which can withstand high temperatures up to 160 degrees and can pass any environmental protection test.

5.The connection method of the 5.12V LED INDICATOR LIGHT is terminal connection. Its feet are of 6.3 international standard size and can be connected to any 6.3 plug spring.

6.12V LED INDICATOR LIGHT has passed the US UL certification and the EU CE certification, and can be sold and served in the European and American markets.

Q&A about 12V LED Indicator Light



– What is the minimum order quantity for 12V LED indicator light?

FILN company is a factory specializing in the production of indicator lights. There is no MOQ. If you need samples, FILN company will provide samples for free.



– What is the shelf life of the 12v LED INDICATOR LIGHT?

The shelf life of all indicator lights from FILN is 5 years. If there is any problem in 5 years, FILN company will replace it free of charge.



If you have any questions about the indicator light, please contact us [email protected]



Popular categoried : metal push button , flat head metal button switch

Product Item FL1M-19CJ-1
Panel Mount Diameter 19mm
Contact Way Pins
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC, 3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design concave head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Component name Material
Lens PC plastic
Metal Body H59 brass or 304 stainless steel
Wahser T10 Cold Rolled Steel
Rubber Ring SIL silica gel
Nut H59 nickel plated brass
Housing PA66 nylon
Light Source LED
Resistor Metal film
Cable PTFE AWG22 0.3mm²
Plug-in C2680 RoHS brass
Items Parameter
Rated Voltage 3V-780V DC or AC
Rated Current 20mA
Rated Power 0.2W
Insulation and Voltage Resistance 1800V
Working Life 100000h
Electrical Life 100000
Cold-resistant -40℃
Heat-resisting 80℃
