Product Drawings:

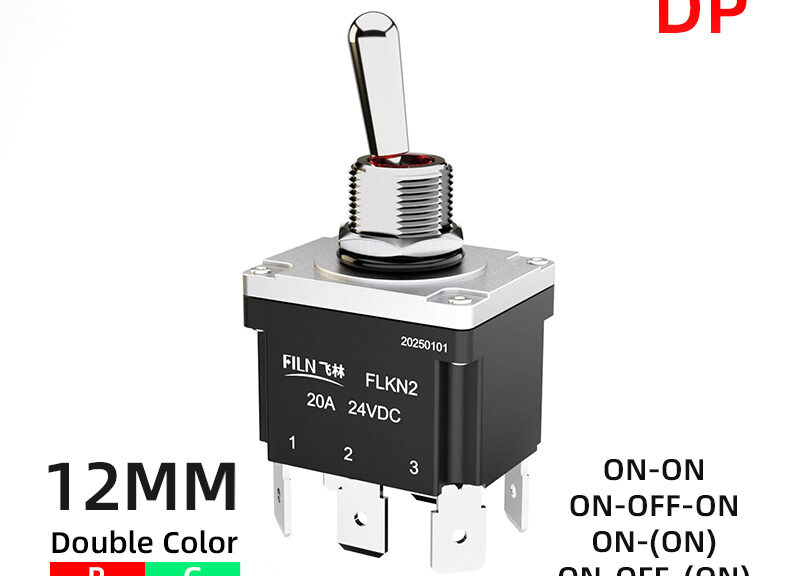

Toggle switch drawing

FILN, a leading manufacturer of toggle switches, brings you the 12MM DPDT Toggle Switch, designed to meet the needs of a wide range of industrial, automotive, and consumer applications. This toggle switch is durable, waterproof, and customizable, offering a variety of functions for precise control. Let’s explore why FILN’s DPDT toggle switch is a must-have for your next project.

filn toggle switch

The Main Technology Performance:

Item Parameter
Function ON-ON
ON-OFF-ON
ON-(ON)
ON-OFF-(ON)
(ON)-OFF-(ON)
Rated voltage 16A 125/250VAC, 20A 24VDC
Rated current
Insulated resistance ≥100MΩ/500VDC
Dielectric strength 1500VAC/5mA 60s
Endurance 10,000 cycle
Ambient temperature -40℃～+85℃
Protection degree IP67

What is a DPDT Toggle Switch?

A DPDT toggle switch (Double-Pole Double-Throw) is a type of electrical switch that allows you to control two separate circuits using one switch. It has six terminals (pins) – two for each of the two poles, and each pole can be switched between two positions. Unlike a Single-Pole Toggle Switch (SPST), which only controls one circuit, the DPDT toggle switch can handle more complex wiring and control.

DPDT switches are used when you need to switch between two different sets of connections for each of the circuits, offering greater flexibility. They are ideal for applications requiring multiple controls, such as in industrial machines, automotive circuits, and audio systems.

Key Features of FILN’s 12MM DPDT Toggle Switch

FILN’s 12MM DPDT Toggle Switch is packed with features that make it a versatile and reliable option:

  • 6 Pins: The switch comes with six pins, allowing for multiple circuit configurations and flexibility in applications.
  • LED Light: The switch features an LED light in red and green, providing visual indication of the switch’s position. This is particularly useful in dark environments.
  • Waterproof IP67 Rating: The switch is IP67 waterproof, making it resistant to dust and able to withstand temporary immersion in water. This feature makes it ideal for outdoor or industrial environments where exposure to moisture and dirt is common.
  • Smooth Threaded Installation: The switch features a smooth threaded design for easy and secure mounting.
  • Durability: The toggle switch is made from high-quality materials designed to withstand frequent use and harsh conditions.

What Does IP67 Waterproof Rating Mean?

The IP67 rating stands for Ingress Protection, where “6” indicates that the switch is fully dustproof, and “7” means the switch can withstand being submerged in water up to 1 meter deep for up to 30 minutes. This makes FILN’s DPDT toggle switch perfect for environments where water resistance and dust protection are essential, such as in:

  • Outdoor machinery
  • Marine electronics
  • Heavy-duty industrial equipment

The IP67 rating ensures that the 12MM DPDT toggle switch continues to operate even under the harshest conditions.

Available Toggle Switch Functions

FILN’s 12MM DPDT Toggle Switch offers several toggle positions for different control options:

  • ON-ON: Both positions are active, meaning the switch connects both poles to one of the circuits, offering two on positions.
  • ON-OFF-ON: This allows you to switch between two different circuits and include an off position in between, perfect for controlling devices that require on/off/on functionality.
  • ON-(ON): One pole is permanently on, and the other toggles between two positions.
  • ON-OFF-(ON): This function includes an off position between two on positions.
  • (ON)-OFF-(ON): The switch is normally off, but with two on positions, allowing for alternative control.

These options provide flexibility for a variety of applications, giving you control over multiple circuits or states.

Applications of DPDT Toggle Switches

FILN’s 12MM DPDT toggle switch is a highly versatile switch that can be used in numerous industries:

  • Industrial Applications: Control machines, lighting systems, and more with ease.
  • Automotive Use: Toggle between different car functions, such as lights or fans.
  • Marine: Switch between different circuits on boats or marine equipment.
  • Consumer Electronics: Use in various consumer products that require complex control systems.

Its customizable features and waterproof capabilities make it suitable for a wide range of environments.

Applications of Toggle Switches

How to Order Toggle Switches from FILN

Ordering from FILN is simple and straightforward. Here’s a step-by-step guide:

  1. Visit Our Website: Go to FILN Toggle Switch and browse our toggle switch offerings.
  2. Choose Your Specifications: Select the type of switch you need, along with any custom features you require.
  3. Contact Us: Reach out to our sales team for a quote or any questions.
  4. Place Your Order: Once you’ve confirmed the details, we’ll process your order and ship it promptly.

Why Choose FILN’s DPDT Toggle Switch?

Here are a few reasons why FILN is the best choice for your toggle switch needs:

  • Cost-Effective: FILN offers factory-direct pricing, eliminating the need for middlemen and allowing us to pass on the savings to you.
  • Customization: FILN can customize switches to meet your specific requirements. Whether you need a different LED color or unique switch functionality, we can accommodate your needs.
  • Bulk Order Discounts: For large quantities, FILN provides significant discounts, making it more affordable for businesses and bulk buyers.

Customization Options for DPDT Toggle Switches

At FILN, we understand that each application is unique. That’s why we offer customization options for our DPDT toggle switches, including:

  • LED Colors: Choose from different colors like red, green, or even custom colors.
  • Switch Functions: Customize the switch to your preferred ON-OFF configurations.
  • Materials and Finishes: Select from various metal, plastic, or other durable materials to suit your application.

Durability and Performance of FILN’s Toggle Switches

FILN’s 12MM DPDT Toggle Switch is built to last. With its robust design and high-quality materials, this switch offers excellent performance in harsh conditions. Whether you’re in an industrial environment, outdoor settings, or using it for automotive or marine purposes, you can count on FILN’s toggle switch for long-term reliability.

Pricing and Discounts for Bulk Orders

The price of FILN’s 12MM DPDT toggle switch depends on several factors, such as the material, LED color, and quantity ordered. As a factory-direct manufacturer, FILN offers competitive prices and bulk discounts for large orders, ensuring that businesses get the best value.

One-on-One Engineering Support at FILN

FILN’s experienced engineers are available to assist you with product selection and customization. Whether you need guidance on switch functionality or installation tips, our one-on-one engineering support ensures that you get the perfect solution for your application.

Customer Reviews and Feedback on FILN’s DPDT Toggle Switch

Here’s what some of our satisfied customers have to say about FILN’s 12MM DPDT toggle switch:

  • “The toggle switches we purchased from FILN have been essential for our industrial equipment. Their durability and ease of use are unmatched!”
  • “FILN’s customization options allowed us to get the perfect DPDT toggle switch for our marine project. The waterproof feature is a game-changer.”

Installation Guide for the 12MM DPDT Toggle Switch

Installing the 12MM DPDT toggle switch is straightforward:

  1. Connect the wires to the appropriate pins based on your configuration.
  2. Mount the switch securely using the provided hardware.
  3. Test the switch to make sure it’s functioning as expected.

If you need any help, our team is always ready to provide installation support.

Conclusion

FILN’s 12MM DPDT Toggle Switch is a powerful, customizable, and durable solution for any project. With its IP67 waterproof rating, six-pin design, and various toggle functions, this switch is ideal for industrial, automotive, marine, and consumer electronics. Contact FILN today to learn more or place an order!

FAQs

1. What is the difference between a DPDT and a SPDT toggle switch?

A DPDT (Double-Pole Double-Throw) switch controls two circuits, while an SPDT (Single-Pole Double-Throw) switch controls just one circuit.

2. Can the 12MM DPDT toggle switch be used outdoors?

Yes, it has an IP67 waterproof rating, making it perfect for outdoor and marine applications.

3. How do I install the 12MM DPDT toggle switch?

Installation is easy. Connect the wires, mount the switch, and test its functionality. FILN offers full installation guidance if needed.

4. Can I customize the LED color of the switch?

Yes, FILN offers custom LED colors, such as red, green, and others.

5. How much do bulk orders of the 12MM DPDT toggle switch cost?

Pricing varies based on order size and customization. Contact FILN for bulk order pricing and discounts.

Lighted Toggle Switch R&G Dual Colors 4 Pin Waterproof Toggle Switch

Product Drawings:

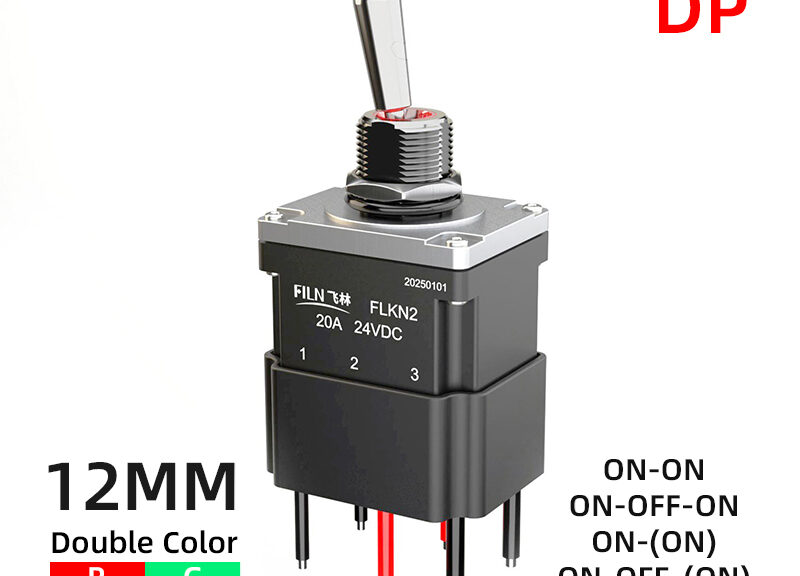

Toggle switch drawing

When it comes to electrical control, lighted toggle switches offer a unique combination of functionality and aesthetics. These switches not only control electrical circuits but also provide visual cues through built-in illumination. FILN, a leader in toggle switch manufacturing, offers a variety of lighted toggle switches designed to meet a wide range of needs. Whether you’re working on a home project or an industrial application, these switches provide both visibility and reliability.

In this guide, we’ll explore the different types of lighted toggle switches, their features, benefits, and common applications. We’ll also dive into why FILN’s LED toggle switches are ideal for a wide variety of uses.

filn toggle switch

The Main Technology Performance:

Item Parameter
Function ON-OFF
(ON)-OFF
ON-(OFF)
Rated voltage 16A 125/250VAC, 20A 24VDC
Rated current
Insulated resistance ≥100MΩ/500VDC
Dielectric strength 1500VAC/5mA 60s
Endurance 10,000 cycle
Ambient temperature -40℃～+85℃
Protection degree IP67

What is a Lighted Toggle Switch?

A lighted toggle switch is a type of toggle switch that incorporates illumination, typically through an LED light built into the switch itself. This added feature helps to visually indicate the switch’s position, making it easier for users to identify whether the circuit is in the “on” or “off” state, especially in low-light environments. These switches are commonly used in vehicles, industrial machinery, home appliances, and many other applications where visibility and control are important.

Types of Lighted Toggle Switches

There are several types of lighted toggle switches, each offering unique features depending on the application. Below are the most common variants:

Illuminated Toggle Switch

An illuminated toggle switch lights up when activated, providing clear visual feedback. This type of switch is commonly used in automotive, marine, and industrial applications where users need to easily identify whether a switch is in the “on” or “off” position.

LED Toggle Switch

A LED toggle switch features an LED light integrated into the toggle mechanism. These switches are energy-efficient and often come in various colors such as red, green, blue, and amber. LED toggle switches are ideal for applications where the aesthetic value of the switch is just as important as its functionality.

Toggle Switch with Light

The term toggle switch with light is used to describe any toggle switch that incorporates a built-in light. This can refer to both illuminated toggle switches and LED toggle switches. These switches provide a clear visual signal to the user, especially in poorly lit areas or in environments where switches may be hard to locate.

Toggle Switch with LED

A toggle switch with LED is a specific type of lighted toggle switch that features LED lights. This type of switch is ideal for users who need a more durable, energy-efficient, and long-lasting illumination compared to traditional incandescent bulbs. The toggle switch with LED is perfect for high-usage areas like control panels, machinery, and vehicles.

FILN’s 12MM Metal Lighted Toggle Switch: Features and Specifications

FILN’s 12MM metal lighted toggle switch offers excellent performance, longevity, and visual appeal. Here’s a closer look at its key features:

4-Pin Connection Design

Our lighted toggle switch uses a 4-pin connection design, which allows for multiple wiring options. This provides flexibility in how you integrate the switch into your circuit, whether you’re working with simple or complex electrical systems.

Smooth Threading for Easy Installation

The switch is equipped with smooth threading, ensuring easy and secure installation. The smooth threads help to prevent any potential damage to the switch during the installation process, which makes setup easier and faster.

Multiple Functional Options

FILN’s lighted toggle switches offer various functional configurations, including:

  • ON-OFF
  • (ON)-OFF
  • ON-(OFF)

These multiple options give you the flexibility to choose the right configuration for your electrical needs.

Durable and Long-Lasting

Our metal lighted toggle switches are made with high-quality materials that are built to last. The metal housing ensures durability and protection against environmental wear, making it suitable for both indoor and outdoor applications.

Why Choose a Lighted Toggle Switch?

Improved Visibility

One of the biggest advantages of using a lighted toggle switch is that it improves visibility, especially in dark or dimly lit environments. The built-in light clearly shows whether the switch is on or off, preventing mistakes that could lead to safety hazards.

Enhanced Aesthetics

Lighted toggle switches often add a touch of style and elegance to electrical systems. With their clean, illuminated design, these switches are perfect for environments where aesthetics are important, such as in automotive interiors, home theater systems, or high-end appliances.

Energy-Efficiency

Many lighted toggle switches use LED lights, which are known for being energy-efficient. LED toggle switches consume less power than traditional incandescent bulbs, making them ideal for long-term use in both low-power and high-power applications.

Ease of Use

Lighted toggle switches offer an easy-to-use solution for controlling electrical circuits. The light indicator ensures that the user always knows the status of the switch, which is particularly helpful in complex systems with multiple switches.

How Does the Price of a Lighted Toggle Switch Vary?

The price of a lighted toggle switch can vary based on several factors, such as material, functionality, and order volume. Here’s a breakdown of these factors:

Material

The material of the switch can affect the price. For example, metal toggle switches tend to cost more than plastic ones due to their durability and resistance to wear and tear. FILN offers both metal and plastic options, depending on your needs and budget.

Functionality

The functionality of the switch will also influence the price. More complex switches with multiple positions or additional features (such as multi-color LED lighting) may cost more than simple ON-OFF illuminated switches.

Order Volume

As a factory-direct supplier, FILN offers bulk pricing for larger orders. The more switches you purchase, the more affordable the unit price becomes, making lighted toggle switches more cost-effective for large-scale projects.

Applications of Lighted Toggle Switches

Automotive Applications

Lighted toggle switches are commonly used in automotive applications. Whether it’s for controlling lights, fans, or other electrical systems in a vehicle, these switches provide clear visibility, ensuring drivers can easily monitor the status of different functions.

Industrial Use

In industrial settings, LED toggle switches are used to control machinery, lighting, and other electrical systems. The added illumination makes it easy to see the status of various switches in a factory or warehouse environment, enhancing both functionality and safety.

Home Electronics and DIY Projects

Lighted toggle switches are also popular in home electronics and DIY projects, especially for custom-built electrical systems or home theater setups. The combination of aesthetics and functionality makes them a preferred choice for these applications.

Marine and Outdoor Equipment

In marine and outdoor environments, lighted toggle switches are used to control everything from navigation lights to power systems. The built-in light ensures the switch can be seen in low-light conditions, which is critical when operating equipment in dark or dimly lit environments.

Applications of Toggle Switches

How to Order Toggle Switches from FILN

Ordering from FILN is simple and straightforward. Here’s a step-by-step guide:

  1. Visit Our Website: Go to FILN Toggle Switch and browse our toggle switch offerings.
  2. Choose Your Specifications: Select the type of switch you need, along with any custom features you require.
  3. Contact Us: Reach out to our sales team for a quote or any questions.
  4. Place Your Order: Once you’ve confirmed the details, we’ll process your order and ship it promptly.

Conclusion

Whether you’re in the automotive, industrial, or home electronics field, lighted toggle switches from FILN provide an excellent combination of functionality, aesthetics, and durability. Our 12MM metal illuminated toggle switches with LED options are designed to meet the needs of various applications, ensuring both reliability and ease of use. Choose FILN for all your toggle switch needs and enjoy top-quality products at competitive prices.

FAQs

1. What makes a toggle switch “lighted”?

A lighted toggle switch features a built-in light, often an LED, which indicates the switch’s status (on or off).

2. Are lighted toggle switches energy-efficient?

Yes, most lighted toggle switches use LEDs, which are highly energy-efficient compared to traditional bulbs.

3. What applications are lighted toggle switches used for?

They are used in automotive, industrial, marine, home electronics, and DIY projects where visibility and aesthetics are important.

4. Can I customize the LED color on the toggle switch?

Yes, FILN offers customization options for LED toggle switches, including different colors and wiring configurations.

5. How do I install a lighted toggle switch?

Our 12MM metal toggle switches come with smooth threading for easy installation, and they use a 4-pin connection for flexibility in wiring.

FILN Toggle Switch with Wire 12MM Metal Waterproof Toggle Switch

Product Drawings:

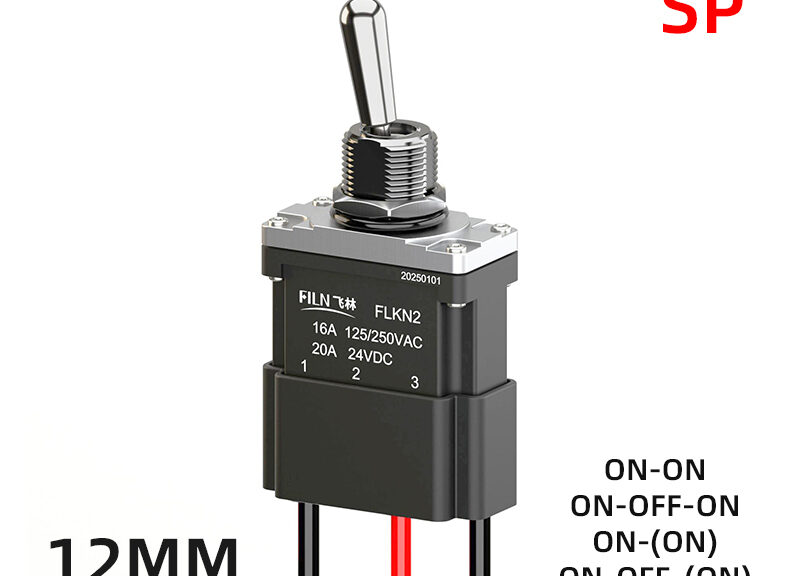

Toggle switch drawing

When it comes to controlling electrical circuits, toggle switches with wire are a popular choice due to their simplicity and reliability. Whether you’re working on a small DIY project or a large industrial application, these switches offer convenience and ease of use. In this guide, we’ll take an in-depth look at FILN’s toggle switch with wire offerings, their types, features, benefits, and applications.

filn toggle switch

The Main Technology Performance:

Item Parameter
Function ON-ON
ON-OFF-ON
ON-(ON)
ON-OFF-(ON)
(ON)-OFF-(ON)
Rated voltage 16A 125/250VAC, 20A 24VDC
Rated current
Insulated resistance ≥100MΩ/500VDC
Dielectric strength 1500VAC/5mA 60s
Endurance 10,000 cycle
Ambient temperature -40℃～+85℃
Protection degree IP67

What is a Toggle Switch with Wire?

A toggle switch with wire is a toggle switch that comes pre-wired with leads or cables, making installation more straightforward. These switches are designed to connect directly to electrical circuits, allowing for a faster and more secure setup. They are often used in a variety of applications, from automotive to industrial and home electronics, due to their ease of use and flexibility.

Types of Toggle Switches with Wire

There are several variations of toggle switches with wire, each designed to meet specific needs and applications. Here are some of the most commonly used types:

Wired Toggle Switch

A wired toggle switch features a pre-attached wire, often coming with either a 2-pin or 3-pin connection. The wire typically has color-coded leads to indicate which is live and which is neutral, ensuring that installation is both safe and easy. This type of switch is ideal for projects requiring quick setup and reliable performance.

Toggle Switch with Leads

Similar to the wired toggle switch, a toggle switch with leads comes with wire leads attached to the switch. These leads may vary in length depending on your specific needs. This option provides more flexibility for users who need to connect the switch to specific points in their electrical system.

Toggle Switch with Cable

A toggle switch with cable typically features a longer cable attached to the switch, allowing users to install the switch at a greater distance from the electrical panel. This is especially useful in situations where the switch needs to be placed in a location that is not directly near the power source.

Electrical Toggle Switch with Wire

An electrical toggle switch with wire is designed specifically for use in electrical systems, ensuring a safe and reliable connection. These switches are engineered to handle various voltage levels and come in a variety of configurations, from simple ON-OFF to more complex multi-position switches.

FILN’s 12MM Metal Toggle Switch with Wire: Key Features

FILN’s toggle switch with wire options include a 12MM metal toggle switch, designed for both durability and versatility. Here’s a breakdown of its key features:

3-Pin Design

Our toggle switch with wire comes with a 3-pin design, providing enhanced functionality. The 3-pin configuration allows for multiple wiring options, including the ability to control different circuits or use more complex switching functions.

Smooth Threading

The switch features smooth threading, ensuring that it fits securely and easily into your electrical setup. This smoothness helps to prevent any issues with installation, reducing the risk of damage to the components or wires.

Multiple Functional Options

FILN’s 12MM toggle switch with wire is available in several functional configurations to meet your needs:

  • ON-ON
  • ON-OFF-ON
  • ON-(ON)
  • ON-OFF-(ON)
  • (ON)-OFF-(ON)

These various configurations provide flexibility for a wide range of electrical systems, allowing users to control circuits in the way that best suits their application.

Why Choose a Toggle Switch with Wire?

Easier Installation

One of the biggest advantages of a toggle switch with wire is that it simplifies installation. With the wires already attached to the switch, users don’t need to worry about soldering or connecting additional wires, which saves time and effort.

Enhanced Safety

Pre-wired switches are also safer because they reduce the chance of improper connections or shorts. With color-coded leads and standardized wire connections, it’s easier to ensure that the switch is installed correctly.

Convenient and Flexible

A toggle switch with wire offers more flexibility in terms of where and how you can install the switch. With longer cables and varying lead lengths, users can install the switch in different locations without worrying about reaching power sources or circuits.

How Does Price Impact Toggle Switches with Wire?

The price of a toggle switch with wire is influenced by several factors, including the type of material used, the functionality of the switch, and the order quantity. Here’s a breakdown of these factors:

Material

The material used for the switch will play a major role in determining its price. For example, metal toggle switches are typically more expensive than plastic alternatives due to their durability and resistance to wear and tear. FILN’s metal toggle switches with wire are made from high-quality materials to ensure long-lasting performance.

Functionality

More advanced toggle switches with multiple functions (such as ON-OFF-ON or (ON)-OFF-(ON)) generally cost more than basic ON-OFF switches. However, FILN provides these advanced options at competitive prices, making them affordable for both small and large orders.

Quantity

As a manufacturer, FILN offers bulk pricing, so the more switches you order, the better the price. This is especially beneficial for customers looking to buy toggle switches with wire in large quantities.

Applications of Toggle Switches with Wire

Automotive Applications

In the automotive industry, toggle switches with wire are used to control various electrical systems, including lights, ignition, and fans. The pre-wired design makes installation easy, saving time during the assembly process.

Industrial Use

In industrial settings, toggle switches with wire are often used to control machines, lighting, and other heavy-duty electrical systems. FILN’s robust metal switches are ideal for harsh environments and heavy use.

Home Electronics

Toggle switches with wire are also commonly used in home electronics, particularly in DIY projects or custom-made electrical systems. Their versatility makes them a great choice for anyone looking to control devices with ease.

Applications of Toggle Switches

Why Choose FILN for Your Toggle Switch with Wire Needs?

FILN is a leading manufacturer of toggle switches with wire, offering top-notch products at competitive prices. Here’s why you should choose us:

  • High-Quality Manufacturing: FILN ensures that all our switches are made with the highest standards of quality, durability, and reliability.
  • Customization: We provide tailored solutions to meet your specific needs, whether it’s a custom wire length or a unique switch configuration.
  • Competitive Pricing: As a factory direct supplier, FILN offers bulk discounts to help you get the best value for your purchase.
  • Fast Delivery: We pride ourselves on fast and reliable shipping, ensuring that your order arrives on time.

How to Order Toggle Switches from FILN

Ordering from FILN is simple and straightforward. Here’s a step-by-step guide:

  1. Visit Our Website: Go to FILN Toggle Switch and browse our toggle switch offerings.
  2. Choose Your Specifications: Select the type of switch you need, along with any custom features you require.
  3. Contact Us: Reach out to our sales team for a quote or any questions.
  4. Place Your Order: Once you’ve confirmed the details, we’ll process your order and ship it promptly.

Conclusion

If you’re in need of a toggle switch with wire, FILN offers a range of high-quality, customizable switches to suit your needs. From automotive to industrial applications, our 12MM metal switches with wires offer durability, ease of installation, and flexibility. Choose FILN for your toggle switch with wire solutions and enjoy superior customer service, competitive pricing, and high-performance products.

FAQs

1. What are the main benefits of using a toggle switch with wire?

The main benefits include easier installation, enhanced safety, and greater flexibility in installation locations.

2. What types of wiring options are available for toggle switches with wire?

FILN’s toggle switches with wire come with color-coded leads and varying wire lengths, including options for 3-pin and 2-pin configurations.

3. Can I customize the length of the wires on a toggle switch?

Yes, FILN offers customizable wire lengths to suit your specific needs.

4. How do I determine which toggle switch configuration to use?

The configuration depends on your application. Basic ON-OFF switches are ideal for simple circuits, while more complex options like ON-OFF-ON are better for controlling multiple circuits.

5. Are your toggle switches suitable for heavy-duty applications?

Yes, FILN’s metal toggle switches with wire are designed for heavy-duty use, making them perfect for industrial and automotive applications.

FILN 12MM SPDT Toggle Switch: Durable, Waterproof, and Customizable Solutions for Your Electrical Needs

Product Drawings:

Toggle switch drawing

When it comes to reliable, high-quality electrical components, FILN stands as a trusted manufacturer of toggle switches. With years of experience and a strong reputation in the industry, FILN specializes in producing durable, customizable toggle switches to meet a wide range of needs. One of their standout products is the 12MM SPDT Toggle Switch, known for its robustness and versatility. Whether you need it for industrial, automotive, or personal applications, this toggle switch offers excellent performance and reliability. Let’s dive into the specifics of this incredible product.

filn toggle switch

The Main Technology Performance:

Item Parameter
Function ON-ON
ON-OFF-ON
ON-(ON)
ON-OFF-(ON)
(ON)-OFF-(ON)
Rated voltage 16A 125/250VAC, 20A 24VDC
Rated current
Insulated resistance ≥100MΩ/500VDC
Dielectric strength 1500VAC/5mA 60s
Endurance 10,000 cycle
Ambient temperature -40℃～+85℃
Protection degree IP67

What is a SPDT Toggle Switch?

SPDT stands for Single Pole Double Throw. In simpler terms, an SPDT toggle switch has a single input (pole) and two output options (throws). It allows you to connect a device to either one of two circuits, making it ideal for various control applications.

This type of toggle switch is commonly used in electrical circuits that need to switch between two settings. For instance, it might control a light or machine that has two modes or operates in different conditions. With its simple yet effective design, SPDT switches are indispensable in modern electrical systems.

Key Features of FILN’s 12MM SPDT Toggle Switch

FILN’s 12MM SPDT Toggle Switch stands out due to its exceptional quality and features:

  • Material: Constructed from metal for durability and strength.
  • Size: 12MM diameter, perfect for compact spaces.
  • Connection: Features screw terminals for secure, easy installation.
  • Waterproof: Rated IP67, ensuring reliable performance even in wet conditions.
  • Pins: Comes with 3 pins, offering flexibility in installation.
  • Light: Non-illuminated, keeping the switch simple and functional.
  • Smooth Installation: The installation thread is designed to be smooth for easy setup.

IP67 Waterproof Rating: What Does it Mean for You?

An IP67 rating signifies that the toggle switch is completely dust-tight and can be submerged in water for up to 30 minutes at a depth of 1 meter. This feature is essential for switches used in outdoor environments or in machines exposed to harsh conditions like water, dust, or moisture.

For example, if you’re installing the switch in machinery that operates outdoors or in wet environments, this high waterproof standard ensures that your toggle switch will continue to function smoothly without any issues, even under harsh weather conditions.

The Versatility of FILN’s Toggle Switch Options

FILN’s 12MM SPDT Toggle Switch offers several functional configurations, giving you the flexibility to select the best fit for your application:

  • ON-ON: The switch has two stable positions, each activating a different circuit.
  • ON-OFF-ON: This configuration allows the user to toggle between two active circuits with an off position in the middle.
  • ON-(ON): One active position with another momentary position for specific functions.
  • ON-OFF-(ON): Similar to the ON-OFF-ON configuration but with momentary positions.
  • (ON)-OFF-(ON): A variation where the switch activates in the on positions and remains off when toggled to the middle.

Each configuration provides different functionalities for different needs, making this toggle switch extremely versatile.

Applications of SPDT Toggle Switches in Various Industries

The SPDT toggle switch is widely used in multiple industries, including:

  • Automotive: Control systems for lights, horns, or other electrical components.
  • Industrial: Used in machinery to switch between power circuits.
  • Marine: Vital for switching circuits in boats and watercraft.
  • Consumer Electronics: Found in a range of devices where switching between modes is required.

Customization options ensure that no matter your specific need, you can find a tailored solution.

Applications of Toggle Switches

Why Choose FILN as Your SPDT Switch Supplier?

Choosing FILN as your SPDT switch supplier comes with numerous advantages:

  • Direct Manufacturer: As a factory-direct supplier, FILN eliminates middlemen, ensuring lower costs and higher quality control.
  • Bulk Orders: With a focus on bulk orders, FILN offers discounts for large volume purchases.
  • Customization: FILN provides tailored solutions for unique needs, whether you require special materials or specific configurations.

The Customization Advantage: Tailor Your Toggle Switch

FILN is known for offering customized toggle switches to suit specific requirements. From altering the switch’s material to adjusting the functionality, FILN’s skilled engineers will work with you to design a switch that fits perfectly into your system.

How to Install FILN’s 12MM Toggle Switch

Installing the 12MM SPDT Toggle Switch is straightforward. Here’s a quick guide:

  1. Prepare the Installation Area: Make sure the switch’s location is clear and ready for installation.
  2. Secure the Switch: Screw the switch into place using the provided installation thread.
  3. Connect the Wires: Use the screw terminals to connect the wiring.
  4. Test the Switch: After installation, toggle the switch to ensure proper functionality.

Durability of FILN Toggle Switches

FILN’s toggle switches are built to last, thanks to their high-quality materials and design. Whether you’re using them in industrial settings, vehicles, or consumer devices, these switches are engineered for long-lasting performance even in demanding environments.

Pricing and Bulk Discounts

The price of FILN’s 12MM SPDT Toggle Switch depends on factors like material choice and functionality. However, as a direct manufacturer, FILN offers competitive pricing, especially for bulk orders. If you’re purchasing in large quantities, be sure to inquire about bulk discounts to maximize your savings.

The Role of Professional Engineering Support

FILN’s team of toggle switch engineers provides personalized, one-on-one support to help with product selection, customization, and troubleshooting. This ensures that you get the exact product you need, backed by professional guidance throughout the process.

Customer Reviews and Feedback on FILN Toggle Switches

Customers have consistently praised FILN’s toggle switches for their durability, ease of installation, and reliable performance. Testimonials highlight the switches’ robust design and versatile functionality, making them a favorite among both individual customers and businesses alike.

Conclusion

FILN’s 12MM SPDT Toggle Switch is an excellent choice for anyone looking for a reliable, durable, and customizable switch for their electrical systems. With its IP67 waterproof rating, smooth installation, and versatile functionality, it’s ideal for a variety of applications across different industries. Whether you need a standard or customized solution, FILN provides expert support to help you get the right product.

FAQs

1. What is the difference between SPDT and DPDT toggle switches?

SPDT stands for Single Pole Double Throw, meaning it connects to one circuit with two possible paths. DPDT, or Double Pole Double Throw, offers two separate circuits, each with two paths. SPDT switches are simpler and more compact, ideal for many general-purpose applications.

2. Can FILN’s toggle switches be used outdoors?

Yes, FILN’s 12MM SPDT Toggle Switch comes with an IP67 waterproof rating, making it ideal for outdoor use in wet or dusty environments.

3. How can I customize my toggle switch?

FILN offers full customization options, including material choice, functionality (e.g., ON-ON, ON-OFF-ON), and more. Contact their engineering team to discuss your requirements.

4. What industries use SPDT toggle switches?

SPDT toggle switches are widely used in automotive, industrial, marine, and consumer electronics industries due to their flexibility and durability.

5. How do I know which toggle switch is right for my application?

FILN offers expert engineering support to help you select the right toggle switch based on your specific needs. Contact FILN for personalized assistance.

Metal 3Pin OFF ON OFF Toggle Switch IP67 Waterproof Toggle Switch

Product Drawings:

Toggle switch drawing

Toggle switches are crucial components used in various electronic and electrical applications. If you’re looking for high-quality toggle switches, FILN is a professional manufacturer that specializes in producing off-on-off toggle switches. This article will explore the types, uses, and benefits of these switches, including their customizable features.

filn toggle switch

The Main Technology Performance:

Item Parameter
Function ON-OFF-ON
ON-(ON)
ON-OFF-(ON)
(ON)-OFF-(ON)
Rated voltage 16A 125/250VAC, 20A 24VDC
Rated current
Insulated resistance ≥100MΩ/500VDC
Dielectric strength 1500VAC/5mA 60s
Endurance 10,000 cycle
Ambient temperature -40℃～+85℃
Protection degree IP67

What is an Off-On-Off Toggle Switch?

An off-on-off toggle switch is a type of electrical switch that allows users to toggle between three positions: off, on, and on. It is commonly used in situations where a circuit needs to be controlled in multiple ways, often in both industrial and residential applications.

Different Types of Toggle Switches

Three-Position Toggle Switch

The three-position toggle switch offers versatility, providing options to toggle between three settings. It is designed to be used in circuits where you need to alternate between multiple operational modes, like controlling different appliances or devices.

Electrical Toggle Switch

Electrical toggle switches are designed specifically for electrical applications, and they ensure the safe and reliable transmission of electricity. They are often found in machinery, industrial systems, and automotive circuits.

Metal Toggle Switch

Metal toggle switches are known for their durability. These are particularly used in heavy-duty applications where the switch might be exposed to external conditions, such as extreme temperatures or vibrations. The metal construction ensures longevity and resistance to wear and tear.

Momentary Toggle Switch

A momentary toggle switch only stays in the on position for as long as you hold it. It is commonly used in applications where you only need the circuit to stay active momentarily, such as in push-to-talk devices or emergency stop buttons.

Features of FILN’s 12MM Metal Toggle Switch

At FILN, we manufacture 12MM metal toggle switches that come with a variety of functionalities and materials, including options for customization. Our toggle switches come with the following features:

  • Three-Pin Connection: The toggle switch is designed with three pins, making it easy to integrate into various applications.
  • Smooth Threading: The switches come with smooth threading for easy installation and a secure fit.
  • Multiple Functional Options:
    • ON-OFF-ON
    • ON-(ON)
    • ON-OFF-(ON)
    • (ON)-OFF-(ON)

This versatility allows our switches to be used for a wide range of electrical applications.

The Importance of Material in Toggle Switches

Why Material Matters

The material used in the production of a toggle switch greatly influences its performance and durability. Different materials can affect the switch’s ability to handle high electrical loads, its resistance to environmental factors, and its lifespan.

  • Metal Toggle Switches: Durable and able to withstand high temperatures and physical stress.
  • Plastic Toggle Switches: Lightweight but may not be suitable for heavy-duty applications.

FILN’s metal toggle switches are crafted from high-quality metals, ensuring that they perform optimally even in demanding conditions.

How Do Toggle Switches Work?

Toggle switches work by providing a simple mechanical mechanism that allows users to control the flow of electricity within a circuit. By flipping the toggle to different positions, users can either open or close the circuit, activating or deactivating electrical equipment.

  • ON: The circuit is complete, and electricity can flow.
  • OFF: The circuit is broken, and no electricity flows.
  • Momentary: The circuit closes only when the toggle is engaged, returning to its original state once released.

Applications of Off On Off Toggle Switch

Industrial Applications

Toggle switches, particularly the off-on-off variety, are frequently used in industrial equipment, controlling machines and electrical systems. Their durability and ease of use make them ideal for factory automation and manufacturing systems.

Residential Uses

From controlling lighting systems to managing appliances, off-on-off toggle switches are widely used in homes. They allow users to easily toggle between different lighting settings or even control electrical appliances like fans and heaters.

Automotive and Marine Systems

In the automotive industry, toggle switches are used to control various electrical systems in vehicles, from lights to sound systems. Similarly, in marine applications, toggle switches help manage the operation of boat electrical systems.

Applications of Toggle Switches

Benefits of Choosing FILN’s Toggle Switches

  • Durability: Our toggle switches are built to last, with metal constructions that can endure harsh environments.
  • Customizability: FILN offers personalized options for both functionality and design, ensuring your switches meet your precise requirements.
  • Cost-Effectiveness: As a manufacturer, we offer competitive prices, especially on large orders.
  • Fast Turnaround: We pride ourselves on quick delivery times for both custom and stock switches.

How to Order Toggle Switches from FILN

Ordering from FILN is simple and straightforward. Here’s a step-by-step guide:

  1. Visit Our Website: Go to FILN Toggle Switch and browse our toggle switch offerings.
  2. Choose Your Specifications: Select the type of switch you need, along with any custom features you require.
  3. Contact Us: Reach out to our sales team for a quote or any questions.
  4. Place Your Order: Once you’ve confirmed the details, we’ll process your order and ship it promptly.

Price Ranges for Off-On-Off Toggle Switches

Prices for toggle switches vary depending on materials, functionalities, and order quantities. As a factory, FILN can offer very competitive prices, especially for bulk orders. The key price factors include:

  • Material Type: Metal switches typically cost more than plastic switches.
  • Functionality: Multi-position switches may be priced higher due to their complexity.
  • Customization: Custom-designed switches usually come with a premium price tag.

Conclusion

Off-on-off toggle switches are a versatile and reliable option for controlling electrical circuits in various applications. Whether you need a standard switch or a customized solution, FILN provides high-quality switches tailored to your needs. With a wide range of functions and material options, FILN’s toggle switches are perfect for both industrial and residential uses.

FAQs

1. What is the difference between a momentary toggle switch and a regular toggle switch?

A momentary toggle switch stays on only when held down, while a regular toggle switch remains in the “on” position until manually switched off.

2. How can I customize a toggle switch for my project?

FILN offers personalized design options, from the material and size to the functionality of the switch. Our engineers will guide you through the process.

3. Can I get a bulk discount on toggle switches?

Yes, FILN offers significant price reductions for bulk orders. Contact us for more details.

4. Are FILN toggle switches suitable for outdoor use?

Yes, our metal toggle switches are designed to be durable and weather-resistant, making them suitable for outdoor and industrial applications.

5. What is the lead time for custom toggle switches?

Lead time depends on the complexity of the customization, but we generally provide fast turnaround times. Contact us for specific timelines.

FILN MINI Toggle Switch 6MM ON-OFF Switch

The mini toggle switch is a compact metal switch with a mounting size of 6mm. Also known as SMTS-102, the MINI toggle switch is available in two current specifications, 12V 1A and 220V 1A, making it suitable for a wide range of electrical and electronic products. In addition, the miniature toggle switch has a long service life of up to 100,000 cycles, ensuring long-lasting performance.



The base of the mini toggle switch near me can be produced in three different colors, red, blue, and black, to meet the personalized demands of different customers. The black mini toggle switch is the most popular, with its compact size and exquisite appearance making it ideal for use in electrical and electronic devices such as audio effects units, diffusers, toggle light switches, and desk lamps. The 3-way mini toggle switch guitar is also widely used, and the 12 volt mini toggle switch can be easily installed on a circuit board for simple circuit control and operation. The base of the 12V mini toggle switch has two 6mm nuts, one of which is fixed to the device and the other is used to secure the switch, making it very convenient to use.

FILN Indicator Lamp LED 0.24 IN Green Light Without Lampshade

Comprehensive Guide to Indicator Lamp LED: Everything You Need to Know

In the rapidly advancing world of technology, the utilization of indicator lamp led in various applications is becoming more prevalent. From small signaling devices to complex industrial machinery, LED indicator lamps have revolutionized the way we interact with and control equipment. This comprehensive guide delves into everything you need to know about different types of indicator lamp led, such as 12-volt led indicator lights, led indicator light 220v, led panel indicator lights, and much more. Whether you are a professional engineer or simply curious about the latest technology, understanding the characteristics, applications, and selection criteria for these innovative devices will enhance your knowledge and perhaps inspire your next project. Read on to explore the fascinating world of LED indicator lamps!

What are LED Indicator Lamps, and Why are They Important?

Indicator Lamp LED, or LED Indicator Signal Lamps, have become a crucial part of modern electronics and appliances. These lamps offer visual cues that inform users about the status of a device, process, or system.

Understanding LED Indicator Lamps

LED (Light Emitting Diode) indicator lamps are small, energy-efficient lights that can display different colors to signal various statuses. They are widely used in electronics, machinery, and automotive applications. Learn more about LED indicator lamps here.

Importance of Indicator Signal Lamps

These lamps act as a visual alert system, providing instant information about the operational state. Whether it’s a power on/off status, warning sign, or a system malfunction, indicator signal lamps offer quick and intuitive feedback.

Varieties of LED Indicator Lamps

From simple LED indicator light 220v to sophisticated led panel indicator lights, LED indicators come in various designs and functionalities, suitable for different applications. Explore different types of indicator lamps here.

How Do 12 Volt LED Indicator Lights Work?

The operation of 12-volt LED indicator lights is both fascinating and highly efficient. These lights are designed to work on a specific voltage, offering a versatile range of applications.

Structure and Functionality

12-volt LED indicator lights consist of a semiconductor that emits light when a current passes through it. They are commonly used in vehicles, boats, and small electronic devices. Discover more about 12-volt LED indicator lights here.

Advantages of Using 12 Volt LED Lights

Compared to traditional bulbs, 12-volt LED lights are more energy-efficient, durable, and provide better brightness. These advantages make them a preferred choice in many applications.

Common Applications

These lights can be found in car dashboards, boats, battery-powered devices, and more. Whether signaling a turning direction or indicating battery status, 12-volt LED indicator lights are ubiquitous.

What are the Specifications of 120V LED Panel Indicator Lights?

120V LED panel indicator lights are often used in various control panels and dashboards. They come with specific features and specifications that enhance their utility.

Understanding 120V LED Panel Indicator Lights

These lights operate at 120 volts and are commonly used in industrial and household applications. Their robust design allows them to be mounted on panels easily. Find out more about 120v led panel indicator lights here.

Key Features and Specifications

Some common features include water resistance, different color options, brightness levels, and more. Knowing these specifications can help users choose the right light for their needs.

Installation and Usage

Proper installation and understanding of the usage are crucial for the effective functioning of these lights. Guidelines and compatibility checks are essential for optimal performance.

How to Choose the Best LED Indicator for Android Devices?

LED indicators for Android devices provide notifications and alerts related to calls, messages, battery status, etc.

Understanding LED Indicator for Android

These small lights on Android devices give quick visual cues about various notifications. They can be customized to display different colors for different types of alerts.

Choosing the Right LED Indicator

Factors like compatibility, color options, brightness, and energy efficiency play a role in choosing the right LED indicator for Android devices. Learn more about Android LED indicators here.

Customization and Control

Many Android devices allow users to customize LED indicators to their preferences. Understanding how to control and customize these lights enhances the user experience.

What Makes a 120V LED Indicator Light Circuit Special?

A 120V LED Indicator Light Circuit is a specially designed circuit to control and power a 120V LED indicator light. Here’s an exploration of its special features and functionalities.

Structure of a 120V LED Indicator Light Circuit

The circuit consists of components like resistors, capacitors, and a diode that work together to power the LED light efficiently. More about the structure can be found here.

Functionality and Purpose

The circuit’s purpose is to control the current flow to the LED, ensuring optimal brightness and preventing any damage due to overcurrent. It’s essential for the LED’s long-lasting performance.

Common Applications and Uses

120V LED Indicator Light Circuits are used in various applications like machinery, control panels, appliances, etc. Understanding their applications helps in their effective utilization.

How to Install 8mm IP65 Coffee120V LED Indicator Light?

8mm IP65 Coffee120V LED Indicator Lights are specific types of indicator lights with unique features like waterproofing and an 8mm size.

Understanding 8mm IP65 Coffee120V LED Lights

These are specialized LED indicator lights designed to be waterproof (IP65 rated) and operate at 120V. Their 8mm size makes them suitable for specific applications. Learn more about these lights here.

Installation Steps and Guidelines

Installing these lights requires careful attention to their specifications and following the proper steps. Guidelines include securing the correct mounting, wiring, and ensuring waterproofing.

Common Usage and Benefits

These lights are commonly used in situations where water resistance is needed. Their compact size and robust features make them beneficial for various applications.

What are the Varieties of 8mm Mini IP67 277V Indicator Lights?

8mm Mini IP67 277V Indicator Lights are small yet powerful lights designed to operate at 277 volts with an IP67 waterproof rating.

Features of 8mm Mini IP67 277V Indicator Lights

These lights are designed for specific voltage requirements and provide a waterproof solution for various applications. Explore the features of these lights here.

Varieties and Options

There are several varieties of these lights available, offering different colors, brightness levels, and mounting options. Knowing the varieties helps in choosing the right light.

Applications and Uses

From industrial machinery to outdoor lighting, these lights find applications in various fields. Understanding their applications can guide the correct selection and usage.

FILN Indicator Lamp LED 0.24 IN Green Light Without Lampshade



Why Choose 8mm Red Flashing LED Indicator Light?

The 8mm Red Flashing LED Indicator Light offers unique functionalities that make it stand out from other indicator lights. Here’s why one might choose this particular type of light.

Features of 8mm Red Flashing LED Indicator Light

This light flashes in red, providing a distinct visual cue. It’s often used to signal warnings or alerts. Discover more about this unique light here.

Applications and Uses

Red flashing lights are commonly used in emergency systems, alarms, machinery, etc. Their flashing nature makes them quickly noticeable, enhancing their effectiveness as a signaling tool.

Considerations When Choosing

Factors like flashing frequency, brightness, compatibility, and more must be considered when choosing this light. Understanding these factors ensures the correct selection for specific needs.

How to Find the Perfect 8mm 12V Vending Blue LED Indicator Light?

Finding the perfect 8mm 12V Vending Blue LED Indicator Light requires understanding its features, applications, and considerations that guide the selection process.

Understanding 8mm 12V Vending Blue LED Lights

These specific blue LED lights are designed for vending machines and other similar applications. They operate at 12 volts and come in an 8mm size. Learn more about these lights here.

Applications and Uses

These lights are specifically designed for vending machines, kiosks, and similar devices. Their blue color and size make them suitable for signaling various statuses in these applications.

Selection Criteria and Considerations

Choosing the right light requires considering factors like voltage, size, color, brightness, and compatibility. Proper understanding and evaluation of these factors ensure the right selection.

What are the Features of 8mm 110V Metal Blue Meat Grinder Indicator Light?

The 8mm 110V Metal Blue Meat Grinder Indicator Light is a specialized LED light designed for meat grinders. Here’s an exploration of its unique features.

Understanding 8mm 110V Metal Blue Meat Grinder Indicator Light

This indicator light is designed to work with meat grinders, providing visual cues related to the grinder’s status. Its metal construction adds to its durability. Explore more about this unique light here.

Key Features and Benefits

The key features include its blue color, 110V operation, metal construction, and compatibility with meat grinders. These features enhance its functionality in the specific application.

Common Applications and Usage

Besides meat grinders, this light may find applications in other machinery that requires durable and distinct visual signaling. Understanding its applications ensures proper usage and integration.

Exploring 10mm 120V LED AC Power Indicator Light

The 10mm 120V LED AC Power Indicator Light is a versatile and commonly used LED indicator for AC power applications. Here’s a detailed exploration of this light.

Understanding 10mm 120V LED AC Power Indicator Light

This light is designed to operate at 120 volts and comes in a 10mm size. It’s commonly used to indicate AC power status in various devices and appliances. Discover more about this light here.

Key Features and Benefits

The light’s main features include its compatibility with AC power, size, color options, and brightness levels. These features make it versatile and adaptable to various applications.

Applications and Common Uses

This light finds applications in household appliances, industrial machinery, power tools, etc. Understanding its common uses helps in effective integration and utilization.

Unraveling the Features of 10mm Metal IP67 Signal Red Indicator Light

The 10mm Metal IP67 Signal Red Indicator Light is a specialized type of LED indicator with specific features suitable for various applications.

Understanding 10mm Metal IP67 Signal Red Indicator Light

This signal red indicator light comes with an IP67 waterproof rating and a metal construction, designed for robust and resilient applications. Learn more about this light here.

Key Features and Specifications

Its key features include its waterproof rating, red color, metal construction, and compatibility with various systems. These features enhance its utility in different applications.

Common Applications and Benefits

These lights are used in outdoor applications, industrial machinery, emergency systems, etc. Their robust features make them suitable for situations requiring durability and reliability. In this comprehensive guide, we have explored various aspects of indicator lamp LED, including their types, specifications, applications, and selection criteria. The understanding of these lights is essential for their effective utilization across different fields. Whether you are looking to install an LED indicator in your car, machine, or any electronic device, the information provided here will guide you in making the right choice. From simple household applications to complex industrial uses, LED indicators are an integral part of modern technology, enhancing safety, efficiency, and convenience.

What Are the Characteristics of 10mm 110V Flashing White LED Indicator Light?

The 10mm 110V Flashing White LED Indicator Light is a versatile signaling device, and understanding its characteristics is vital for optimal application.

Understanding 10mm 110V Flashing White LED Indicator Light

This particular LED light flashes at 110 volts, featuring a white color and 10mm size. It is commonly used in various applications where flashing signals are required. Learn more about this light here.

Key Features and Benefits

The main features include the flashing function, white color, and 110V operation. These attributes make it suitable for alerting and signaling purposes across different applications.

Common Applications and Considerations

This light is used in alarms, machinery, emergency systems, etc. Careful consideration of its characteristics ensures its proper integration and application.

How to Choose the Best 8mm 24V Green LED Metal Pilot Lamp?

Selecting the right 8mm 24V Green LED Metal Pilot Lamp requires understanding its features, applications, and the factors to consider during the selection process.

Understanding 8mm 24V Green LED Metal Pilot Lamp

This 8mm, 24V green LED pilot lamp has a metal construction, making it suitable for a variety of industrial applications. Explore more about this lamp here.

Key Features and Specifications

The lamp’s key features include its green color, 24V operation, metal construction, and size. These attributes contribute to its functionality and suitability in different applications.

Applications and Selection Considerations

Commonly used in control panels, machines, and other industrial setups, understanding its applications and selection criteria is essential to make the right choice.

Understanding the 16mm 220V Metal Signal Yellow Indicator Lamp

The 16mm 220V Metal Signal Yellow Indicator Lamp is a specialized signaling device. This section explores its characteristics and applications.

Understanding 16mm 220V Metal Signal Yellow Indicator Lamp

This 16mm, 220V yellow indicator lamp has a metal construction and is designed to signal various statuses in different applications. Learn more about this lamp here.

Key Features and Benefits

The lamp’s main features include its yellow color, 220V operation, metal construction, and compatibility with various systems. These features make it adaptable and functional.

Applications and Common Uses

This lamp is used in control systems, machinery, outdoor applications, etc. Understanding its uses helps in its effective integration and application.

How to Select the Perfect 22mm 240V Red LED Flashing Buzzer?

Selecting the perfect 22mm 240V Red LED Flashing Buzzer involves understanding its unique characteristics, applications, and considerations guiding the selection process.

Understanding 22mm 240V Red LED Flashing Buzzer

This specific buzzer not only provides a visual red LED flash but also an audible alert at 240 volts. It is designed for applications requiring both visual and auditory signals. Explore more about this buzzer here.

Key Features and Specifications

Its unique features include the combination of visual flashing and auditory alerting, red color, and 240V operation. These features contribute to its functionality in specific applications.

Applications and Selection Considerations

This buzzer is typically used in alarms, emergency systems, industrial controls, etc. Understanding its applications and selection criteria is vital for making the right choice.

Exploring the 30mm 380V Blue Flashing Buzzer LED Indicator Light

The 30mm 380V Blue Flashing Buzzer LED Indicator Light is a multifunctional signaling device. Here’s an exploration of its features, applications, and considerations guiding the selection.

Understanding 30mm 380V Blue Flashing Buzzer LED Indicator Light

This 30mm blue flashing buzzer operates at 380 volts and provides both visual and auditory signals. It’s designed for robust and demanding applications. Discover more about this light here.

Key Features and Specifications

Its unique features include the combination of flashing blue light and auditory buzzing, 380V operation, and compatibility with various systems. These attributes enhance its utility.

Common Applications and Benefits

These lights are used in industrial controls, alarms, machinery, etc. Understanding its robust features and applications ensures proper selection and utilization.

LED Indicator Lamp Price Guide

When it comes to purchasing LED indicator lamps, it’s essential to have an idea of the price range. In this article, we will explore the approximate costs of different types of indicator lamps in the USA. So, let’s dive in and discover the prices of these illuminating devices!

Price Range of LED Indicator Lamps

To give you an overview of the costs, we have compiled a table showcasing the price range for various LED indicator lamps:

LED Indicator Lamp Type Price (USD)
19mm Red LED Pilot Indicator Light with Wire Not Specified
8MM LED Indicator Bulb Electric Water Heater Switchboard $0.59

Please note that the prices mentioned above are approximate and may vary depending on the specific seller, quantity, and any additional features or specifications of LED indicator lamps.

Detailed Analysis of LED Indicator Lamp Prices

19mm Red LED Pilot Indicator Light with Wire

One popular option is the 19mm Red LED Pilot Indicator Light with Wire. This type of indicator light is available on Indicatorlight.com. Unfortunately, specific pricing information is not available in the search results. To get accurate and up-to-date pricing information, it is recommended to visit the website or contact the seller directly.

8MM LED Indicator Bulb Electric Water Heater Switchboard

Another option to consider is the 8MM LED Indicator Bulb suitable for electric water heater switchboards. Indicatorlight.com offers this product at a specific price of $0.59 USD. This indicator bulb provides a cost-effective solution for monitoring the status of your electric water heater.



Conclusion

LED indicator lamps are essential components in various applications, providing visual cues and status indications. Understanding the price range of these lamps can help you make informed decisions while considering your budget and specific requirements.

Remember, the prices mentioned in this article are approximate and subject to variation. To obtain accurate pricing information, it is advisable to visit the respective websites or contact the sellers directly.

Next time you are in the market for LED indicator lamps, refer to this article to gain insights into the approximate costs and make a well-informed purchase decision. Happy shopping!

Latest Indicator Lamp LED



The 1/4″ hole panel mount pilot lights is a custom made LED indicator lgihtes by FILN , it is a very cost effective indicator lamp LED, you can find it on www.digikey.com under the model number 5100h5 .

But FILN has upgraded and optimised it, its LED beads are electrodeless LEDs, you don’t have to separate the positive and negative poles when wiring, no matter it’s DC or AC, it’s very convenient to wire it up, it’s sold at a very high price on digikey, if you purchase a large quantity, FILN’s indicator lamp LEDs have a strong advantage, half the price of digikey’s LEDs.

                  More Indicator Light

LED indicator lights, also known as LED pilot lights or indicator lamps, have revolutionized the way we monitor and understand the status of devices and appliances. In this article, we will delve into the features, advantages, and customizability of these advanced LED pilot lights, with a focus on FILN’s optimized 1/4″ HOLE PANEL MOUNT series.

Understanding LED Indicator Lights:

LED indicator lights are innovative devices that utilize light-emitting diodes (LEDs) to display crucial information about the operation and status of various appliances and electronic devices. These lights are commonly referred to as both LED indicator lights and LED pilot lights, with slight variations in terminology.

Features and Benefits of LED Indicator Lights:

a. Energy-Efficiency: LED pilot lights consume minimal power, offering significant energy savings compared to traditional indicator lamps, promoting environmental sustainability.

b. Extended Lifespan: Thanks to the inherent durability of LEDs, these indicator lights have a longer operational life, reducing maintenance costs and frequent replacements.

c. Heat-Free Operation: LED indicator lights produce little to no heat during operation, ensuring user safety and minimizing fire risks in sensitive applications.

d. Customizable Colors: LED pilot lights are available in various colors, including red, green, yellow, blue, and white, allowing for tailored visual indications based on specific needs.

e. Versatile Voltage Options: FILN’s optimized pilot lights support a wide range of voltage options, from 1.8V to 220V, enabling seamless integration into diverse electrical systems.

FILN’s Enhanced LED Indicator Light：

FILN’s 1/4″ HOLE PANEL MOUNT PILOT LIGHTS represent a remarkable advancement in LED indicator technology. Featuring FILN’s proprietary infinite LED technology, these lights can effortlessly handle both direct and alternating current without any concern for polarity, simplifying installation for users.

  1. Cost-Effective Solutions: While the 5100H5 model of these LED pilot lights is available on DIGIKEY, purchasing directly from FILN in larger quantities yields significant cost advantages. FILN’s commitment to optimizing performance and affordability ensures that their pilot lights are offered at half the price of those found on distributors like DIGIKEY.
  2. Specifications of FILN’s Mini Pilot Lights: a. Installation Size: The 1/4″ HOLE PANEL MOUNT design allows for easy integration into a wide array of equipment and control panels. b. Wire Length: With a wire length of 200mm, these pilot lights provide flexibility in installation and positioning. c. Pilot Light Size: The compact 0.25 (6.35mm) size ensures minimal space consumption while providing clear and vivid indications.
  3. Versatility in Voltage and Color Options: a. Voltage Customization: FILN caters to unique requirements by offering voltage options ranging from 1.8V to 220V, accommodating various electrical setups. b. Color Variety: Customers can choose from an array of colors, with red pilot lights being the most popular choice due to their widespread recognition for alerting critical conditions.

LED indicator lights, commonly referred to as LED pilot lights, are instrumental in providing visual cues for monitoring device status in modern appliances, electronics, and industrial equipment. FILN’s optimized 1/4″ HOLE PANEL MOUNT series showcases the remarkable capabilities of LED technology, offering energy-efficient, durable, and customizable solutions. By choosing FILN’s cost-effective pilot lights, users can elevate their applications’ performance while ensuring safety and reliability.

LED Pilot Light Indicator Metal Indicator Light 6MM

SUMMARY

The FILN FL1M-06SW-2 is an industrial-grade LED Pilot Light Indicator manufactured by Yueqing Yulin Electronic Co., Ltd. Designed for demanding global environments including the United States, Germany, and Canada, this heavy-duty 6mm panel-mount signal lamp features a robust convex head crafted from premium chrome-plated copper alloy or black zinc-aluminum alloy. Engineered for high-reliability applications, it operates across a highly customizable voltage range from 3V to 220V AC/DC, drawing less than 20mA. Equipped with integrated 20cm dual PVC wire leads (40cm total loop), a silicone waterproof O-ring, and a secure M6 nut assembly, it delivers guaranteed IP67-rated ingress protection. Global procurement professionals, OEM buyers, and automation integrators trust FILN indicators due to rigorous certifications (CE, VDE, RoHS, ISO9001, CCC), zero MOQ limits, and documented field success resolving premature plastic cracking and phantom illumination in heavy machinery control cabinets.

KEY TAKEAWAYS FOR INDUSTRIAL PROCUREMENT

  • Factory-Direct Customization: FILN provides rapid turnaround on engineering modifications including custom lead lengths, custom resistance values, and voltage mapping from 3V to 220V AC/DC.
  • Superior Material Integrity: Metallic housing options (silver chrome-plated copper alloy or black finished zinc-aluminum alloy) prevent environmental degradation, thermal cracking, and mechanical impact failures.
  • Ingress Sealing: High-performance silicone O-rings combined with precise thread execution yield a reliable IP67 protection rating, sealing against high-pressure washdowns, oil ingress, and dust.
  • Integrated Wiring Efficiency: Factory-soldered 2-pin pre-wired configurations simplify panel assembly operations, lowering field connection costs and optimizing space inside tight junction boxes.
  • Advanced LED Optical Performance: Features ultra-bright solid-state illumination with wide viewing angles, optimal color rendering parameters (R/G/Y/B/W), and calibrated luminous outputs reaching 800mcd.
  • Comprehensive Compliance Signaling: Fully certified under CE, VDE, RoHS, ISO9001, and CCC frameworks, facilitating accelerated regulatory compliance approvals for export-oriented OEM machinery.
  • Vibration Dampening Design: Solid encapsulated circuitry protects internal carbon film resistors and chip bonds from continuous harmonic vibrations typical in mining and stamping systems.
  • Optimized Layout Aesthetics: Compact 6mm mounting profile coupled with a prominent convex head provides excellent visibility from wide angles, improving workplace operator safety.

WHAT IS AN LED PILOT LIGHT INDICATOR?

An LED Pilot Light Indicator is a specialized, low-power panel-mounted signaling component engineered to communicate systemic statuses—such as operational readiness, faults, power availability, or sequence steps—to equipment operators. Structurally, the assembly consists of an internal solid-state light-emitting diode, an integrated voltage-limiting resistor, a durable metallic or polymeric body casing, and electrical termination points. Operating via electro-luminescence, these indicators turn electrical currents into visible light with very low heat emission, outperforming old filament lamps in efficiency, response time, and lifespan.

Modern industrial control layout designs require diverse component choices to fit distinct environment types. FILN manufactures two main classes: high-durability metal indicators and economical engineering plastic indicators. Mounting diameters span from ultra-compact 6mm up to heavy-duty 30mm configurations to suit varying panel densities. Electrical connection configurations are split between rigid pin terminals for printed circuit board or socket integration and flexible, pre-wired leads for direct wire harness consolidation. The external metallic lenses are further styled into flat, convex, or concave profiles, allowing control platform engineers to optimize tactile clearance and visibility fields.

FILN Industrial Metal LED Pilot Light Indicator Product Range

COMPREHENSIVE PRODUCT OVERVIEW

The FILN FL1M-06SW-2 stands out in industrial automation signaling, offering a high-reliability option for modern control panels. This 6mm pre-wired metal indicator uses a high-luminescence LED chip coupled with a high-stability carbon film resistor to maintain stable light output across voltage variants from 3V up to 220V AC or DC. The core machinery relies on an internal circuit that drops line voltage down to safe operating diode parameters. This prevents thermal overload while maintaining a uniform, clear signal status that operators can rely on.

Mechanically, its convex head assembly maximizes light dispersion across wider viewing fields, making it easier to check statuses from a distance. The solid-state design handles mechanical shock, structural vibrations, and sudden pressure changes that often cause conventional indicator light filaments to fail. Encased within a robust metal housing with a high-grade silicone sealing ring, it provides verified IP67 moisture and particulate protection. This makes it an ideal choice for power distribution equipment, laboratory research arrays, automated control cabinets, and high-precision machinery systems globally.

QUICK SPECIFICATIONS

Specification Parameter Technical Data Description
Product Description Metal indicator light with wires
Model Nomenclature FL1M-06SW-2
Mounting Hole Diameter 6.0 mm / 0.236 inches
Operating Voltage Options 3V to 220V AC/DC (Customizable voltage architectures available)
Available LED Chroma Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W)
Waterproof Ingress Rating IP65 / IP67 certified front panel execution
Wiring Termination Type 2-PIN insulated electrical wire lead type (Pre-soldered)
Wire Length Layout Single lead length: 20cm | Total external wiring path: 40cm
Head Structural Profile Convex structural profile / style for expanded visibility
Finishing & Quality Smooth surface, perfectly flat without micro-burrs, oxidation-free, structural micro-crack free
Assembly Requirements Precision seated head and base components, zero axial rotation, detachment-proof, distortion-free
Included Hardware Accessories 1X LED pilot light indicator, 1X silicone waterproof ring, 1X stainless washer, 1X M6 brass hex nut

PERFORMANCE PARAMETERS

Performance Metric Nominal Rating Value
Rated Operating Voltage 3V–240V DC/AC (Engineered to match targeted application parameters)
Alternating Current Frequency 50 Hz ~ 60 Hz
Rated Current Threshold ≤ 20 mA at standard operational load
Nominal Power Consumption Approximately 0.2 Watts
Insulation Resistance ≥ 100 MΩ (Evaluated under DC 500V testing between active lead wire and metal shell)
Dielectric Strength / Breakdown Tolerance 1500V~1800V AC, exhibiting zero flashover or insulating breakdown anomalies
Operational Life Cycle 50,000 hours to 100,000 continuous hours depending on thermal profiles
Enclosure Sealing Level IP67 rating according to IEC 60529 standard metrics

COMPONENT MATERIALS MANIFEST

Accessory Component Material Grade Selection Engineering Implementation Reason
Indicator Shell Chrome-Plated Copper Alloy / Black Finished Zinc-Aluminum Alloy Provides mechanical crush resistance, structural stability, and surface protection against corrosive agents.
Internal Lamp Holder Polyamide 66 (PA66) Engineering Plastic Delivers exceptional mechanical stiffness, high dielectric insulation, and tracking resistance.
Optical Lampshade Polycarbonate (PC) Optics Grade Ensures high optical clarity, UV aging resistance, and high structural impact durability.
Luminescent Source High-Brightness Solid-State LED Chip Array Optimizes luminous density, lowers current draw, and eliminates catastrophic filament breaking.
Dropping Resistor High-Stability Carbon Film Resistor Array Maintains precise ohms drift properties over wide ambient temperatures to prevent current spikes.
External Wireway Polyvinyl Chloride (PVC) Insulated Solid-Core Copper Leads Ensures superior conductor flexibility, reliable dielectrics, and clean wire routing layout options.
Locking Nut Machined Copper Alloy Allows high-torque tightening without thread striping, ensuring continuous mechanical seating.
Waterproof O-Ring High-Elasticity Silica Gel (Silicone) Maintains positive compliance pressure under extreme temperature drops, blocking moisture paths.
Lock Washer Stainless Steel (Plum Blossom Gasket Design) Provides mechanical bite into the rear panel surface to arrest rotational slipping from structural vibrations.

ENVIRONMENTAL PERFORMANCE SPECIFICATIONS

This technical testing framework outlines the performance limits for the FILN Industrial Metal LED Pilot Light Indicator series. It validates operational stability across severe industrial deployments globally.

Environmental Stress Test Testing Criteria Method Parameters Observed Quality Standard Requirement
Temperature Envelope Operational and structural storage profiling mapped from -40°C to +80°C Maintains stable internal electrical insulation; no physical or mechanical deformation.
Operating Humidity Range Relative humidity values up to ≤85% monitored at constant +40°C ambient temperature Zero moisture condensation paths forming within the encapsulated LED housing chamber.
High Temperature Endurance Subjected to constant thermal exposure at 80±2°C for 96 continuous hours No degradation of the optical PC lens; color integrity and lumen levels remain stable.
Low Temperature Resistance Subjected to a deep freeze soak at -40±2°C for 96 continuous hours No material cracking or brittleness in the PVC wire insulation or internal PA66 holder.
Humidity Steady State Tested at 40±2°C with relative humidity levels held between 90% and 95% RH for 96 hours Insulation resistance matches parameters; zero micro-corrosion on metal contacts.
Thermal Shock Cycling Alternates between -40°C (30 min) and +85°C (30 min) for 5 complete, consecutive cycles Zero physical delamination or fracturing at the metal-to-plastic assembly boundaries.

LED OPTOELECTRONIC DETAILED SPECIFICATIONS

1. Absolute Maximum Ratings (Ta = 25°C)

Electro-Chemical Stress Parameter Symbol Designation Absolute Safety Boundary Limit Value
Maximum Forward Current IFP 20 mA
Maximum Reverse Voltage VR 5 V
Total Power Dissipation Envelope PD 60 mW
Operating Thermal Boundaries TOPR -40°C to +80°C
Storage Thermal Boundaries TSTG -40°C to +100°C
Lead Solder Thermal Limits TSOL Max. 260°C for 3 seconds maximum duration

2. Electro-Optical Characteristics (Ta = 25°C)

Optical Optoelectronic Parameter Testing Conditions Parameter Range Bounds Value
Forward Voltage Drop (VF) IF = 20mA 2.8 V (Minimum Limit) ~ 3.2 V (Maximum Limit)
Leakage Reverse Current (IR) VR = 5V 5 μA (Upper Absolute Maximum Cap)
Viewing Spreading Angle (2θ1/2) IF = 20mA 60° Spatial Distribution (Typical Standard)
Luminous Intensity Output IF = 20mA 500 mcd (Minimum Value) ~ 800 mcd (Maximum Value)
Recommended Drive Current Continuous Load 20 mA (Nominal Operational Centerpoint)
Dominant Color Wavelength IF = 20mA (Green) 520 nm ~ 525 nm Chroma Bandwidth Range
Maximum Internal Junction Temp IF = 20mA Limit 125°C Solid State Core Boundary
Thermal Resistance Interface RJP Standard 8°C / W (Typical Matrix Transmission Efficiency)

STANDARD ATOMOSPHERIC LAB TEST CONDITIONS

Unless specified in individual data sheets, all electrical and optoelectronic performance measurements are taken under the following standardized laboratory environmental parameters:

Atmospheric Condition Factor Standard Laboratory Metric Settings
Ambient Temperature Envelope 5°C to 35°C Range Scale
Relative Humidity Saturation 45% to 85% Absolute Capacity Mapping
Barometric Air Pressure Mapping 86 Kpa to 106 Kpa / 860 mbar to 1060 mbar

Engineering Quality Notes: Luminous intensity data and dominant spectral color wavelengths are fully calibrated and verified against the CIE international standard human eye spectral response curve. Allowed tolerances: luminous intensity measurements variance ±15%, forward driving voltage tracking error variance ±0.1V.

INDUSTRIAL APPLICATIONS BY HARSH SECTOR

Industrial equipment requires rugged signaling systems to maintain reliable uptime. Conventional engineering plastics often crack, yellow, and suffer mechanical wear when exposed to continuous UV rays, alkaline washdowns, or constant machinery vibrations. FILN heavy-duty metal indicators resolve these failures by using precision-machined copper alloy or black zinc-aluminum housings to shield internal solid-state components.

1. Industrial Automation & CNC Machine Manufacturing

Modern machining centers expose components to continuous harmonic vibrations, cutting oils, and flying metallic debris. The FILN 6mm convex metal indicator fits cleanly into dense control panel layouts. It uses pre-wired 2-pin connections to eliminate the loose terminals or broken connections common with traditional tab terminals on stamping machinery or heavy hydraulic control systems.

2. Outdoor Power Infrastructure & EV Charging Stations

Outdoor electrical cabinets, solar combiners, and commercial EV charging stations face constant weather changes and potential physical impacts. The IP67 sealing profile, supported by a high-elasticity silicone O-ring, prevents rain, snow, and fine dust from reaching internal electronics. This protection ensures reliable signaling across temperature ranges from arctic cold down to -40°C up to solar heating at +80°C.

3. Marine Automation & Harsh Transit Engineering

Salt fog and seawater exposure quickly corrode standard indicator housings, causing electrical ground faults. FILN’s chrome-plated brass or black-coated alloy housings resist oxidation and salt corrosion. Combined with stainless steel lock washers, they hold securely under the continuous vibrations found in commercial shipping engine rooms and heavy earthmoving equipment.

4. Public Vending, Fuel Dispensers & Anti-Vandal Subsystems

Unmonitored public kiosks, outdoor automated fuel dispensers, and security entry systems need strong physical protection. The solid-state LED design behind a thick metal casing resists impact damage and prevents mechanical tampering, making it an excellent choice for demanding public environments.

5. Medical Instrumentation & Food Processing Lines

Food packaging and clinical sterilization equipment undergo regular high-pressure chemical washdowns. The smooth, non-porous metal housing resists caustic sanitizers and grease buildup, preventing contamination and ensuring stable electrical insulation under demanding sanitization schedules.

FILN Industrial LED Pilot Light Indicator Applied in Global Automation Frameworks

CHROMATIC SIGNALING LOGIC AND SPECIALIZED SELECTION

Industrial indicator color selections must follow international engineering standards (such as IEC 60073) to ensure clear, safe communication for operators. The standard color configurations represent specific operational states:

  • Red (R): Indicates critical faults, emergency stops, danger zones, or immediate power shutdowns. It signals that immediate corrective action is needed.
  • Green (G): Confirms safe operating conditions, completed cycles, nominal fluid flows, or system readiness. It indicates normal, safe operations.
  • Yellow/Amber (Y): Signals warnings, standby modes, thermal limits, or unusual status conditions. It prompts operator monitoring to prevent potential system faults.
  • Blue (B): Shows mandatory operator actions, such as input overrides, mechanical resets, or recipe changes. It indicates an action is required before restarting automation.
  • White (W): Serves as a neutral indicator for general power status, live mains circuits, or basic tracking metrics where no fault or safety risk is present.

To support advanced control interfaces, FILN provides custom multi-color indicators, including dual-color and triple-color configurations within a single housing. These space-saving designs allow a single 6mm indicator to transition smoothly between states—such as shifting from Green for normal operation to Red for a fault condition—reducing panel space requirements while maintaining clear status signaling.

STEP-BY-STEP MECHANICAL INSTALLATION GUIDE

Follow this mechanical guide to ensure a correct IP67 seal and secure mounting on your control panel surface.

  1. Verify Panel Cutout Dimensions: Standardize a clean circular panel cutout hole to exactly 6.0mm using a high-precision punch or machine bit. Ensure all micro-burrs and paint runs are smoothed flat around the cutout edge.
  2. Position the Sealing Gasket: Fit the silicone waterproof ring onto the metal housing body, seating it cleanly against the underside of the convex head.
  3. Insert the Assembly: Route the 2-pin pre-wired leads through the cutout from the front of the panel, pushing the threaded indicator body forward until the silicone gasket rests flat against the exterior panel surface.
  4. Secure the Rear Hardware: Slide the stainless steel lock washer over the wire leads from behind the panel onto the threaded body, followed by the M6 hex nut.
  5. Final Torque Adjustment: Hand-tighten the M6 nut, then apply a final torque calibration using a wrench to compress the front silicone gasket. Avoid over-tightening to protect the threads and sealing ring.
Technical Diagram Describing Installation Steps for Pre-Wired Metal Pilot Indicators

WIRING SCHEMATIC INTEGRATION GUIDE

Proper electrical termination is critical for ensuring stable current flow and avoiding intermittent signal drops over long-term operations. Pre-wired indicators and standard tab-terminal indicators suit different installation preferences:

Pre-wired indicators feature factory-soldered leads that provide a secure, vibration-resistant connection within an encapsulated housing. The 20cm dual-wire configuration simplifies routing in deep panels and connects easily to spring-cage terminal blocks, inline splice connectors, or soldered wire extensions sealed with heat-shrink tubing.

Electrical Safety Note: Always disconnect the primary power source before performing any electrical terminations or handling wiring harnesses to prevent the risk of electrical shock or component damage.

INDUSTRY KNOWLEDGE CENTER

A common problem in industrial automation wiring is “phantom illumination” or faint glowing in LED indicators when the control circuit is turned off. This happens because long, bundled parallel wire runs can generate stray electromagnetic capacitance, inducing a small leakage voltage. Because high-efficiency LEDs require very little power to light up, this residual voltage can cause them to glow faintly, which can confuse operators tracking system statuses.

To prevent phantom lighting, FILN designs its internal circuits with optimized leakage current thresholds. For applications with high induced voltages, engineers can use an integrated shunt resistor parallel to the LED core. This bleeds away low-level capacitive leakage below the threshold, ensuring the indicator remains completely dark until the primary control circuit applies full operating voltage.

B2B PROCUREMENT AND BUYER DECISION MATRIX

When specifying a panel-mount LED Pilot Light Indicator for global OEM projects, procurement professionals evaluate several core factors to ensure reliability and minimize design risk:

  • Housing Selection: Choose chrome-plated copper alloy for general mechanical protection, or black zinc-aluminum alloy to reduce panel glare and improve contrast in high-ambient lighting.
  • Voltage Mapping: Confirm line voltage requirements (e.g., 24VDC for PLC controls, 110V/220VAC for primary mains distribution) to match internal resistor parameters perfectly.
  • Termination Type: Use pre-wired configurations for fast installation in high-vibration applications, or tab terminals for modular wire-harness connections.
  • Regulatory Certifications: Ensure compliance markers (CE, VDE, RoHS, UL) match the import requirements of your target markets (such as the US, Germany, or Canada).
Explore the full range of heavy-duty metal indicators:
View All Industrial Metal Indicator Light Products

WHY ELECTRICAL ENGINEERS CHOOSE FILN

Global engineering groups and industrial distributors partner with FILN because of its focused manufacturing model, which removes typical supply chain bottlenecks. Operating as a direct factory rather than a trading broker, FILN eliminates minimum order quantities (Zero MOQ), allowing development engineers to purchase small quantities for prototyping before scaling to full production runs.

FILN’s internal engineering support helps streamline component selection. Whether modifying wire harnesses, creating custom resistor configurations for specific voltages, or providing 3D CAD modeling files for mechanical clearance checks, our team helps accelerate product design and regulatory approvals.

FILN Advanced Industrial Manufacturing Infrastructure Overview

FACTORY SUPPLY CAPABILITIES

Established in 2006 in Wenzhou, Zhejiang, Yueqing Yulin Electronic Co., Ltd. (operating under the global FILN brand) has developed into a specialized manufacturer of industrial electromechanical switches and panel indication components. The company operates a modern 10,000 m² manufacturing plant equipped with over 20 automated production lines and an independent testing laboratory, ensuring precision and consistent build quality across high-volume production runs.

Our product range includes metal indicator lamps, heavy-duty pushbuttons, rocker switches, toggle controls, and specialized wire harness assemblies. Managed under the ISO9001 quality system, our products carry respected international certifications, including CE, VDE, RoHS, SGS, UL, TUV, and CCC, supporting export integration into markets across North America, Europe, and the Asia-Pacific region.

FILN Automated Indicator Light Production Lines and Assembly Workshop

Contact our engineering support team directly at:
inquiry@cnylin.com.cn
or visit our primary digital platform at
www.filn.com.

Frequently Asked Questions (Technical & Commercial)

1. How do you prevent phantom illumination (faint glowing) in 12V LED indicators?

Phantom illumination is caused by induced stray voltages from parallel AC power cables. FILN solves this by building internal leakage-filtering bypass networks into the indicators, clamping stray currents and ensuring the LED light illuminates only when receiving a true signal voltage.

2. Can this IP67 indicator light be washed down with caustic chemicals?

Yes. The combination of a nickel-plated copper alloy body, polycarbonate lens, and silicone seal allows the indicator to withstand standard sanitation washdowns. For highly acidic or corrosive chemical environments, we recommend specifying our grade 316 stainless steel housing upgrades.

3. What is the specific panel mounting hole size required for model FL1M-06SW-2?

This specific model requires a standard 6mm (0.236 inch) circular panel cutout to accommodate the threaded main body sleeve during installation.

4. What wire specification and lead length are supplied with this miniature pilot light?

The indicator comes pre-wired with a 2PIN insulated PVC wire configuration. Each individual lead measures 20cm, providing a total wire loop length of 40cm for circuit routing.

5. Can the FILN 6mm metal indicator be powered directly by 220V AC systems?

Yes. The internal circuitry handles a broad range from 3V up to 220V AC/DC, allowing direct connection to 220V industrial power without needing external current-limiting resistors.

6. What geometric head type options are available for this product line?

Model FL1M-06SW-2 features a high-visibility raised convex head. FILN also manufactures flat head and recessed concave head variations to match different panel ergonomics.

7. Which international product safety certifications does this indicator hold?

The product line is fully certified and compliant with CE, VDE, RoHS, ISO9001, and CCC safety standards, simplifying compliance validation for export machinery.

8. What accessories are included in a standard factory direct product kit?

Each package contains 1x indicator light assembly, 1x flexible silicone waterproof sealing ring, 1x stainless steel lock washer, and 1x M6 brass hexagonal retention nut.

9. Is there an minimum order quantity (MOQ) restriction for custom orders?

FILN maintains a zero MOQ policy on standard and modified components, helping engineers with early-stage prototyping and small-batch equipment runs.

10. How do pre-wired indicators compare to traditional solder-pin terminal models?

Pre-wired indicators accelerate panel wiring and provide excellent vibration resistance due to their potted internal bases. Solder-pin models offer flexible wire length choices but require more manual installation labor.

11. What lens material is used to protect the internal LED chip?

We use optical-grade polycarbonate (PC), selected for its high light transmission, excellent impact strength, and reliable thermal stability under continuous operation.

12. Does FILN offer alternative metal shell surface finishes?

Yes. Customers can select between our standard bright nickel-plated copper alloy housing or a black-coated zinc-aluminum alloy shell configuration.

13. What colors can be ordered for high-visibility machine state signaling?

We supply five primary single colors: Red, Green, Yellow, Blue, and White. Custom dual-color and multi-color LED matrices can also be manufactured upon request.

14. What is the estimated operational lifespan of the internal solid-state LED?

The premium LED chips are rated for a continuous operating lifespan ranging from 50,000 to 100,000 hours, depending on ambient operating temperatures.

15. Can these indicators operate in freezing or high-heat environments?

Yes. The components are engineered and tested to sustain stable operation across an ambient thermal range from -40°C up to +80°C.

16. How does the stainless steel plum blossom gasket assist with installation safety?

The gasket grips the back of the panel face as the M6 nut is tightened, preventing the indicator housing from spinning or loosening under high machine vibration.

17. Are 3D CAD files and technical drawings available prior to purchasing?

Yes. Engineers can contact our sales team at inquiry@cnylin.com.cn to request complete STEP models, dimensional schematics, and full data sheets.

18. What is the typical production lead time for large wholesale volumes?

Standard configurations ship quickly from factory stock, while high-volume bulk or custom wiring runs are typically completed and dispatched within 7 to 15 business days.

19. Can these miniature pilot indicators be used in maritime or coastal environments?

Yes. The nickel-plated metal shell and IP67 silicone seal resist salt spray and moisture, making them a reliable choice for marine instrument boards.

20. How do I purchase the 6mm mini LED pilot light indicator online?

You can order directly through our secure platform at https://www.cnfiln.com/products/6mm-mini-led-pilot-light-indicator or email our sales team for volume B2B contract pricing.


Premium 6mm Metal Indicator Lamp with 20cm Wires CE VDE Certified | FILN

SUMMARY

The FILN FL1M-06CW-4 is a premium industrial 6mm metal indicator lamp equipped with pre-wired 2PIN insulated leads, specifically engineered for high-reliability signal broadcasting. Manufactured by a specialized factory, this heavy-duty indicator lamp features a precision-machined concave head available in silver-plated copper alloy or black-anodized zinc-aluminum alloy shells, delivering superior physical impact resistance compared to fragile plastic alternatives. Supporting wholesale ordering, bulk customization, and direct factory procurement, it operates reliably across a versatile 3V to 220V AC/DC voltage threshold. Certified by CE, VDE, RoHS, and ISO9001, this waterproof IP67 indicator lamp ensures structural integrity and high-brightness illumination for commercial control cabinets, food processing equipment, and global industrial automation networks. Global procurement managers and electrical engineers trust the factory-direct supply chain of FILN to solve critical field failures caused by thermal degradation and high-vibration loosening in harsh operating environments.

Key Takeaways

  • Heavy-Duty Metallurgy: Built with premium copper alloy or black zinc-aluminum alloy to prevent physical cracking, oxidation, and structural deformation in high-stress industrial applications.
  • Factory-Direct Customization: Sourced directly from the FILN production facility with support for tailored voltage configurations ranging from 3V to 220V AC/DC to match specific control circuit requirements.
  • Pre-Wired 2PIN Configuration: Eliminates manual terminal soldering by providing standard 20cm individual line lengths (40cm total length) for rapid, plug-and-play assembly line integration.
  • Ingress Protection Rating: Equipped with heavy-duty silicone O-rings and integrated wire potting to achieve certified IP67 dustproof and waterproof sealing for wet environments.
  • Global Compliance Standards: Fully compliant and rigorously tested under CE, VDE, RoHS, CCC, and ISO9001 protocols to ensure international compliance for OEM machinery export.
  • Multi-Chromatic Flexibility: Available in red, green, yellow, blue, and white LED options utilizing high-luminance chips rated for an operational lifespan exceeding 50,000 hours.
  • Compact Panel Layout: Designed for an ultra-precise 6mm mounting hole dimension, maximizing space utilization on dense electrical control panels and operator interfaces.
  • Vibration Proof Engineering: The continuous single-nut thread mounting mechanism combined with solid wire leads avoids contact resistance failures common in pin-type indicator lamp alternatives.

What is an Industrial Indicator Lamp?

An industrial indicator lamp is a specialized optoelectronic component engineered to broadcast real-time status signals, system warnings, and operational feedback across automated electrical networks. Structurally composed of an internal solid-state LED chip, current-limiting carbon film resistor, heavy-duty metallic housing, and hermetically sealed wire leads, this hardware bridges human operator awareness with raw machine status. Unlike standard commercial lighting, an industrial indicator lamp must withstand prolonged electrical spikes, thermal fluctuations, and chemical exposure without suffering luminous decay or physical fracturing.

Modern manufacturing frameworks categorize these signaling units into metal indicator lamps and plastic indicator lamps to align with distinct environmental stresses. The mounting footprint ranges flexibly between 6mm and 30mm hole diameters to accommodate miniature remote control boxes as well as massive main distribution frameworks. Termination layouts are bifurcated into rigid pin terminals for printed circuit board mounting or direct wire lead terminations for traditional control cabinet point-to-point connections.

For ergonomic optimization, the metallic indicator lamp variants feature three distinct structural profiles: flat head, prominent convex head, or recessed concave head styling. These physical variations allow engineering teams to choose the exact visual dispersion angle and physical protection layer required for manual control interfaces, ensuring high visibility while preventing accidental impact strikes from heavy workshop machinery.

FILN Metal Indicator Lamp Variations and Dimensions

Product Overview

The FILN FL1M-06CW-4 indicator lamp is a highly engineered, small-footprint visual monitoring unit optimized for dense industrial electrical assemblies. Operating on a basic optoelectronic principle, the inner semiconductor junction converts electrical energy directly into narrow-spectrum visible light, regulated internally by a precision carbon film resistor that stabilizes current across varying supply ranges from 3V up to 220V AC/DC. The physical envelope utilizes a concave head design, which shelters the high-transmittance polycarbonate lens inside a protective metal bezel to prevent external shearing forces from damaging the optical surface.

Mechanically, the assembly relies on a robust single-nut thread engagement system that locks the component into a 6mm panel cut-out. A high-density silicone waterproof ring compresses beneath the flange to seal out liquids, achieving a verified IP67 rating that withstands industrial wash-downs and airborne contaminants. Electrical termination is achieved via dual pre-installed PVC insulated copper wires, creating an uninterrupted conductive path that eliminates common contact degradation and cold solder joints seen in standard pin-type control devices.

Designed primarily for power distribution cabinets, automated testing benches, and industrial processing machinery, this indicator lamp delivers superior mechanical strength, excellent thermal dissipation, and comprehensive regulatory compliance. Its manufacturing process adheres strictly to CE, VDE, RoHS, CCC, and ISO9001 quality metrics, ensuring global compatibility for premium original equipment manufacturers (OEMs) who export complex machine systems to highly regulated European and North American industrial hubs.

Quick Specifications

Technical Parameter Specification Details
Product Description Metal indicator light with wires
Model Identifier FL1M-06CW-4
Mounting Hole Diameter 6.0 mm / 0.236 inches
Operational Voltage Range 3V to 220V AC / DC (Custom configurations available upon request)
Available LED Colors Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W)
Waterproof & Dust Ingress Rating IP65 / IP67 certified seal
Termination / Wiring Type 2PIN insulated direct wire lead type
Wire Specification Dual discrete wire leads, 20cm single wire length (40cm total linear length)
Head Geometric Profile Concave head / (Recessed low-profile design)
Surface Finish Quality Smooth, uniform surface finish, entirely free of burrs, oxidation defects, or structural fissures.
Assembly Structural Integrity Head optics and base assemblies are permanently locked; zero internal rotation, zero component detachment, zero skewing, or mechanical deformation under pressure.
Included Kit Hardware Accessories 1x Indicator Lamp body, 1x Silicone Waterproof O-Ring, 1x Stainless Steel Flat Gasket, 1x M6 Hex Locking Nut

Looking for complete 6mm dimensional blueprints or 3D STEP models? Email our engineering support desk for immediate CAD technical assistance.

Performance Parameters

Performance Metric Certified Target Thresholds
Rated Working Voltage 3V to 240V DC / AC range (Tailored precisely to customer control system layouts)
Alternating Current Frequency 50 Hz to 60 Hz matching grid standards
Rated Operating Current ≤ 20 mA at standard steady-state load
Power Consumption Rating Approximately 0.2 Watts for extreme energy efficiency
Insulation Resistance ≥ 100 MΩ (Evaluated under continuous DC 500V testing between internal conductor and outer shell)
Dielectric Insulation Strength 1500V to 1800V AC, demonstrating zero electrical breakdown, zero insulation arcing, or flashover anomalies
Operational Lifespan 50,000 hours to 100,000 hours under continuous uninterrupted operation
Ingress Protection Rating IP67 certified environmental seal
Compliance Approvals CE, VDE, RoHS, CCC, ISO9001 quality infrastructure certified

Component Materials Analysis

Accessory Name Material Selection Engineering Purpose and Mechanical Advantage
Outer Shell (Housing) Bright Copper Alloy / Black Zinc-Aluminum Alloy Delivers immense impact resistance and shielding. Copper provides classic wear protection, while the black anodized zinc-aluminum compound limits atmospheric corrosion.
Internal Lamp Holder Polyamide 66 (PA66 Nylon) Provides exceptional electrical dielectric properties, high mechanical stiffness, and thermal resistance up to high operating limits to insulate internal conductors.
Lampshade Optical Lens Polycarbonate (PC Optical Grade) Ensures optimal light transmissivity and wide-angle beam diffusion. Resistant to thermal cracking, yellowing under ultraviolet light, and workshop impacts.
Luminescent Light Source High-Brightness Solid-State LED Ensures instant luminous feedback with minimal heat generation, maintaining stable chromatic output across prolonged multi-year duty cycles.
Current Dropping Resistor Precision Carbon Film Resistor Regulates incoming forward current to prevent semiconductor over-stressing, protecting internal electronics from sudden control network voltage surges.
Wireway Leads Polyvinyl Chloride (PVC) Sheathed Copper Guarantees continuous electrical flexibility and robust current conduction, resisting chemical degreasers, mechanical bending stresses, and standard environmental aging.
Hexagonal Nut Heavy Duty Copper Alloy Ensures flawless mechanical thread engagement during panel tightening, preventing thread-stripping errors under extreme torque.
Waterproof O-Ring Seal High Elasticity Silicone (Silica Gel) Maintains structural elasticity down to extreme freezing temperatures and up to intense heat, ensuring a tight seal against moisture ingress.
Plum Blossom Lock Gasket Corrosion Resistant Stainless Steel Bites into the rear panel surface to counteract vibration forces, maintaining permanent physical torque and preventing structural loosening.

Environmental Reliability Profile

Environmental Stress Test Standard Operational Boundaries and Testing Criteria
Application Scope This detailed hardware specification establishes the general operational and environmental testing range for the entire FILN Metal Indicator Light series.
Component Nomenclature Metal Indicator Lamp (Industrial Wired Specification)
Operating & Storage Limits Continuous deployment capability spanning from -40°C up to +80°C environmental limits.
Operating Relative Humidity ≤ 85% relative humidity sustained at an ambient environment temperature of +40°C.
High Temperature Durability Sustained testing profile for 96 continuous hours at a controlled temperature of 80 ± 2°C with zero degradation.
Low Temperature Endurance Sustained testing profile for 96 continuous hours at a sub-zero temperature of -40 ± 2°C with zero structural cracking.
Constant Humidity Evaluation 96 continuous hours of environmental exposure at 40 ± 2°C with an aggressive 90% to 95% relative humidity (RH) without breakdown.
Thermal Cycling Resistance 5 consecutive automated cycles alternating rapidly between -40°C (for 30 minutes) and 85°C (for 30 minutes) to verify joint integrity.

Electro-Optical LED Specifications

1. Absolute Maximum Ratings (Semiconductor Safety Limits)

Critical Boundary Parameter Maximum Safe Numerical Limit
Maximum Forward Peak Current (IFP) 20 mA maximum continuous execution
Sustained Reverse Voltage (VR) 5 V threshold ceiling
Total Power Dissipation Capacity (PD) 60 mW limit
Operational Ambient Temperature (TOPR) -40°C to +80°C operational envelope
Storage Thermal Limits (TSTG) -40°C to +100°C storage range
Lead-Free Soldering Thermal Boundary (TSOL) Maximum 260°C sustained for a maximum duration of 3 seconds only

2. Electro-Optical Characteristics (Measured at Ta = 25°C Ambient)

Electro-Optical Property Testing Verification Condition Parametric Performance Windows
Forward Voltage Drop (VF) IF = 20mA 2.8V (Minimum baseline value) to 3.2V (Maximum ceiling value)
Leakage Reverse Current (IR) VR = 5V 5 μA maximum permissible leakage cap
Luminous Viewing Angle (2θ1/2) IF = 20mA 60° typical viewing angular dispersion
Luminous Intensity (Brightness) IF = 20mA 500 mcd (Minimum target) to 800 mcd (Maximum typical intensity)
Recommended Driving Current Steady-State Application 20 mA standard baseline optimization
Dominant Peak Wavelength (λd) IF = 20mA (Green Spectrum example) 520 nm to 525 nm wavelength band
Max Internal Junction Temperature (Tj) IF = 20mA continuous load 125°C thermal junction threshold
Thermal Resistance Factor (RJP) IF = 20mA junction to pin 8°C / W typical thermal dissipation resistance

Standard Inspection Test Conditions

Except where explicitly stated otherwise by special technical customer agreements, all core electrical ratings, internal insulation values, and optical light outputs summarized in this catalog are evaluated strictly under the following standardized laboratory atmospheric baselines:

Environmental Metric Mandatory Inspection Atmospheric Setting
Ambient Laboratory Temperature Controlled range between 5°C and 35°C
Relative Humidity Baseline Continuous range from 45% to 85% RH
Standard Ambient Air Pressure 86 kPa to 106 kPa (Equivalent to 860 mbar to 1060 mbar barometric scale)

Methodology Notes: All recorded values for total luminous intensity and dominant spectral wavelengths are calibrated precisely in accordance with the International Commission on Illumination (CIE) standard human eye spectral response curves. Standard tolerances for luminous intensity verification are held to ±15%, and forward voltage instrumentation measurements are bound to an accuracy of ±0.1V.

Industrial Applications and Use-Cases

The implementation of a heavy-duty metal indicator lamp is essential in harsh modern manufacturing environments where traditional plastic indicators fail due to cracking, yellowing, and thermal stress. Constructed from robust copper alloys or black anodized zinc, these solid-state indicators deliver unmatched impact resistance, chemical shielding, and an IP67 protection barrier. They are specifically engineered to provide visual data across critical automation environments, remote field assets, high-vibration systems, and sanitization facilities.

1. Industrial Automation & Heavy Machinery Manufacturing

Modern plant floors subject electrical controls to persistent mechanical vibrations, cutting fluid splatters, and accidental structural tool strikes. In high-speed CNC machining centers, automated milling cells, and complex assembly lines, these metal units are integrated into operator stations to display critical status signals. Green lights indicate normal operation, yellow alerts operators to standby or pre-fault conditions, and red provides high-visibility emergency shutdown or diagnostic failure signaling. By using pre-wired configurations instead of vulnerable pin connections, internal components resist loosening caused by persistent harmonic equipment vibration.

2. Outdoor Renewable Infrastructure & Commercial Power Distribution

Outdoor grid installations require reliable operation under direct sunlight exposure, intense rainfall, and freezing ambient temperatures. Commercial DC fast chargers and public EV charging infrastructure use low-profile concave indicator lamps to convey active charging status, completion notifications, or electrical fault alerts to users. Because these units are built with an IP67 rating and a heavy-duty metal chassis, they resist vandalism, moisture entry, and thermal degradation within outdoor distribution frameworks and solar combiner boxes.

3. Heavy Transport, Logistics Vehicles, and Marine Engineering

Heavy logistics vehicles and marine systems operate in environments defined by severe physical shocks and highly corrosive atmospheres. Excavators, mobile crane consoles, and harbor control stations require indicator lamps that resist salt fog corrosion and airborne debris. Stainless steel or treated copper alloy indicator shells combined with high-performance silicone sealing washers prevent moisture from penetrating behind control panels, ensuring stable operation under high-stress conditions.

4. Public Self-Service Infrastructure & Commercial Security Systems

Unsupervised public hardware systems require high physical durability to minimize maintenance overhead. Vending machines, automated ticketing kiosks, and outdoor access control systems use metal-bodied indicators to guide users through payment and authentication sequences. The metal shell provides excellent physical protection, making it very difficult for external impacts to compromise the internal circuit.

5. Advanced Medical Systems & Industrial Food Processing Hardware

Food production and medical processing facilities must maintain strict cleanliness standards, requiring frequent high-pressure wash-downs using chemical cleaners. IP67-rated metal indicators prevent internal components from being degraded by chemical exposure or moisture ingress. They are widely used in commercial autoclaves, packaging lines, and fluid control systems to track processing stages without risking chemical contamination or physical failures.

Real-world Factory Deployment of FILN Metal Indicator Lamps

Chromatic Standards & Selection Criteria

Industrial automation standards require a clear, structured color convention for control panel indicators to ensure workplace safety and efficient operations. The selection of an indicator lamp color must match standard international industrial frameworks (such as IEC 60204-1 and NFPA 79), preventing operator confusion during critical system changes. FILN offers five standard monochromatic options, alongside advanced bi-color and tri-color configurations, allowing engineering teams to design clear, highly functional control interfaces.

  • Red (Emergency / Fault State): Indicates immediate system faults, dangerous over-temperature limits, safety trips, or emergency stop conditions. Red requires immediate operator attention to mitigate equipment damage or safety hazards.
  • Green (Normal / Safe Operation): Confirms that automated loops are operating within nominal parameters, structural circuits are powered safely, or a machine cycle is running correctly. It denotes a safe operational environment.
  • Yellow / Amber (Abnormal State / Warning Condition): Flags non-critical parameter deviations, transitional thermal limits, or pre-fault states. It alerts operators that a system condition requires monitoring before it becomes a failure.
  • Blue (Mandatory Action Status): Used for signals that require a specific operator intervention, such as manual calibration sequences, fluid resets, or configuration verifications.
  • White (General System Power / Neutral Indicator): Provides neutral tracking of utility power availability, active main circuit connections, or general system execution without indicating an active fault or cycle.

In complex layouts with limited space, standard monochromatic indicator lights can be replaced by FILN dual-color or tri-color integrated indicators. These multi-chromatic systems allow a single 6mm panel location to cycle through different color states (such as flashing green for processing, solid green for completion, and red for a fault), simplifying panel designs and maximizing display density for space-constrained interfaces.

Step-by-Step Installation Guide

Proper physical installation is essential to maintain the IP67 ingress rating and ensure long-term operation of a panel-mounted indicator lamp. Follow these step-by-step engineering instructions to mount and secure the pre-wired FL1M-06CW-4 indicator lamp into a standard control enclosure panel interface.

  1. Panel Punch Preparation: Drill or punch a clean, circular 6.0mm (0.236 inch) hole through the layout faceplate. Deburr the edges completely to remove any sharp metal fragments that could damage the silicone sealing ring or compromise the ground connection.
  2. Sealing Washer Placement: Slide the provided high-elasticity silicone waterproof O-ring over the rear wire leads, positioning it flush against the upper flange of the metal indicator body.
  3. Panel Alignment: Feed the dual 2PIN wire leads through the front of the 6mm panel opening, gently pressing the indicator body down until the silicone washer sits flat against the outer panel surface.
  4. Rear Hardware Assembly: From the back of the panel, slide the stainless steel plum blossom lock washer over the wires, followed by the M6 brass hex nut.
  5. Torque Tightening: Hand-tighten the M6 hex nut along the threaded body. Use a small wrench to torque the nut to its final specification, ensuring the lock washer bites slightly into the rear panel surface to prevent loosening from equipment vibration. Do not over-torque, to avoid distorting the silicone seal.
  6. Circuit Connection: Route the pre-wired 20cm leads into the terminal block or control circuit, ensuring clean cable management and adequate strain relief.
MANDATORY ELECTRICAL SAFETY RECORD: Always isolate the main distribution breaker and verify that the power supply is off before executing any wiring or installation steps. Working on live circuits can cause electrical shock, equipment damage, or personal injury.
Engineering Diagram for Metal Indicator Lamp Mechanical Mounting

Electrical Wiring Methodology

Selecting and executing the correct electrical termination method is critical for maintaining stable current flow and avoiding field connection failures. Industrial control systems generally utilize either pin terminal indicators or pre-wired indicator lamp configurations, each presenting distinct mechanical and electrical trade-offs:

  • Pin Terminal Disadvantages in High-Vibration Enclosures: Standard pin-style indicators require manual soldering or quick-connect spade receptacles at the rear of the device. In high-vibration applications like stamp presses, mining machinery, or heavy marine systems, these rigid mechanical spade connections can suffer from terminal creep, contact resistance buildup, or physical disconnection.
  • Wired Lead Advantages for Quick Integration: Pre-wired configurations feature insulated conductors permanently potted into the indicator housing during manufacturing. This construction creates an airtight seal that protects internal connections from moisture, oxidation, and mechanical pull-out forces.

To terminate the dual 2PIN wire leads of the FL1M-06CW-4 indicator lamp safely, engineering teams typically implement one of three standard connection methods:

  1. Lever-Actuated Quick-Connect Terminals: Strip 9mm of outer PVC insulation from the lead tips, insert the bare copper strands into a lever-operated terminal block (e.g., WAGO terminal architecture), and snap the lever shut. This creates a secure, maintenance-free connection that resists vibration.
  2. Soldered In-Line Splicing: Splice the copper strands directly onto the field circuit wire, apply rosin-core electrical solder to form a solid metallic bond, and seal the joint with heat-shrinkable polyolefin tubing to prevent short circuits.
  3. Heavy-Duty Industrial Electrical Tape Wrap: Join the conductors using an approved twist splice or crimp sleeve, then wrap the joint securely with premium vinyl electrical tape, extending at least 2cm past the exposed metal to ensure reliable insulation.

Regardless of the chosen termination method, always confirm that the power supply is completely disconnected prior to touching bare wires to eliminate the risk of accidental short circuits or personal injury.

Industry Knowledge Center

Preventing Phantom Illumination in LED Systems

A common problem encountered by field maintenance teams is phantom illumination, where an LED indicator emits a faint, continuous glow even when the control circuit is switched off. This occurs because highly sensitive, low-current LED chips can be activated by residual stray voltages, which are typically caused by electromagnetic induction or capacitive coupling across long, tightly packed wire runs. To resolve phantom lighting, engineers can install a parallel shunt resistor or a small ceramic capacitor across the indicator terminals to bleed off induced voltages, ensuring the LED only illuminates when full control voltage is intentionally applied.

The Limitations of Plastic Indicators in Industrial Workspaces

Using standard plastic indicators in heavy industrial environments often leads to premature failures. Plastic housings can degrade and become brittle when exposed to continuous ambient UV radiation or harsh airborne chemical degreasers. Over time, physical impacts, thermal expansion cycles, or high-pressure spray downs can crack the plastic body, allowing water or moisture to penetrate behind the panel. Upgrading to a metal-housed indicator provides a rugged, long-term solution that eliminates body cracking and reduces equipment downtime.

Proactive Enclosure Maintenance Best Practices

To maintain system reliability, facility operators should include pilot indicators in their regular preventive maintenance routines. Technicians should inspect the outer silicone sealing rings for signs of dry rotting, check that the rear hex locking nuts remain correctly torqued, and verify that wire lead insulation is free of physical chafing. Periodically cleaning dust layer accumulations from the optical lens ensures optimal visual clarity and maintains clean signal broadcasting across the plant floor.

B2B Buyer Decision Guide

Procurement agents, industrial buyers, and OEM engineering managers must evaluate key technical factors when sourcing panel indicators to prevent field failures and minimize total cost of ownership. Use this structured decision-making guide to verify that your selected indicator lamp matches your specific mechanical and electrical environmental constraints:

  • Voltage Configuration Verification: Ensure the internal dropping resistor matches your control loop’s voltage. Specifying the exact operational voltage (e.g., 12V DC, 24V DC, or 110V/220V AC) prevents premature over-current damage or insufficient luminous brightness.
  • Housing Metallurgy Selection: Choose chrome-plated copper alloy for excellent wear resistance and general industrial use. For applications exposed to outdoor elements or harsh chemicals, choose an anodized black zinc-aluminum alloy or premium stainless steel housing to maximize corrosion protection.
  • Termination Strategy Planning: Use pin terminals for compact, automated wave-soldered circuit boards. For complex industrial control cabinets and field machinery exposed to continuous vibration, specify pre-wired leads to simplify installation and eliminate loose terminal connections.
  • Optical Profile Selection: Select a convex or flat head profile for wide, multi-directional viewing angles on overhead displays. For high-traffic or rough environments, specify a concave head design, which sets the lens back into a protective bezel to guard against physical impacts.

By aligning these mechanical and electrical parameters with your application requirements, procurement teams can source components that provide long-term reliability, simplify factory-floor assembly, and carry the necessary regulatory certifications for global market entry.

Why Global Engineers Choose FILN

FILN is a globally recognized manufacturer of industrial electrical components, specializing in high-durability signal indicators and custom switch solutions. For nearly two decades, engineering teams and commercial procurement departments worldwide have relied on FILN’s advanced production capabilities, strict quality controls, and specialized design services. By controlling the complete manufacturing process from raw materials to final electrical testing, FILN delivers reliable, certified components that perform consistently in demanding industrial applications.

Factory-Direct Value Eliminates intermediary markups by dealing directly with the original production factory, optimizing cost structures for high-volume wholesale accounts and commercial OEMs.
Flexible Order Quantities Supports prototyping and small-batch testing by offering a No Minimum Order Quantity (No MOQ) policy on standard product lines.
Efficient Lead Times Utilizes highly automated production machinery and lean manufacturing workflows to accelerate delivery schedules and minimize supply chain delays.
Comprehensive OEM/ODM Support Provides full engineering support to modify wire lengths, change shell materials, add custom connectors, or develop specialized electrical footprints.
Global Logistics Reach Coordinates prompt, secure international freight deliveries to key manufacturing markets across North America, Europe, and the Asia-Pacific region.
Rigorous Quality Assurance Subjects every production lot to comprehensive automated testing for insulation resistance, dielectric breakdown, and luminous uniformity prior to packaging.
FILN Heavy Duty Advanced Manufacturing Facilities and Testing Laboratory

Factory Direct Supply & Production Capability

Established in 2006, Yueqing Yulin Electronic Co., Ltd., operating under the global premium brand name FILN, is an innovative electrical component manufacturer based in Wenzhou, Zhejiang. The company operates a modern 10,000 square meter production facility equipped with more than 20 advanced automated manufacturing lines and an independent testing laboratory. Operating under strict ISO9001 quality management systems, FILN exports high-performance electrical components to over 100 countries, supplying reliable solutions for commercial kitchen appliances, power generation, electric vehicle charging systems, marine control panels, and automated security arrays.

FILN’s comprehensive product catalog includes an array of miniature indicator lights, heavy-duty metal pushbutton switches, industrial rocker switches, toggle switches, and fully customized wire harness assemblies. Our manufacturing processes utilize automated testing to guarantee compliance with international safety and environmental standards, maintaining full certifications including UL, CE, RoHS, REACH, TUV, CB, and VDE. Experienced product engineers communicate directly with procurement teams to resolve design challenges and deliver tailored, high-performance solutions.

Official Enterprise Digital Communication Portal

Primary Technical Website: www.filn.com

Direct Engineering RFP Email: inquiry@cnylin.com.cn

FILN Automated Industrial Indicator Lamp Assembly Lines and Quality Control Lab

Frequently Asked Questions

How to prevent phantom illumination (faint glowing) in 12v LED indicators?

Phantom illumination is caused by stray voltages resulting from capacitive coupling or electromagnetic induction along parallel wire runs. Engineers can eliminate this faint glow by connecting a parallel shunt resistor or ceramic bypass capacitor across the indicator terminals to bleed off the leakage voltage.

Can this IP67 indicator light be washed down with caustic chemicals?

Yes, the FL1M-06CW-4 features an IP67-rated chrome-plated copper or anodized black alloy housing and high-grade silicone sealing rings. This configuration resists common industrial chemical sanitizers, degreasers, and high-pressure spray downs without suffering material degradation or internal water entry.

What is the exact mounting hole size needed for this metal indicator lamp?

This specific indicator requires an exact circular panel punch diameter of 6.0 mm (equivalent to 0.236 inches). The panel edge must be thoroughly deburred before installation to ensure the waterproof silicone O-ring seats properly and seals effectively.

Does FILN support custom wire lead lengths for bulk commercial wholesale orders?

Yes, as a specialized manufacturing plant, FILN provides comprehensive OEM customization. We can adjust the pre-wired length from the standard 20cm specification to any required dimension, add specialized multi-pin quick connectors, or modify wire insulation types to fit high-volume industrial requirements.

What are the available operating voltage configurations for the FL1M-06CW-4?

This indicator lamp line supports a highly adaptable operational range spanning from 3V up to 220V AC or DC. The factory installs a precision internal carbon film dropping resistor during assembly to match the component to the customer’s specific voltage requirements.

Why is a concave head style preferred over a prominent convex indicator lamp layout?

The recessed design of a concave head positions the optical lens behind a solid metal bezel. This configuration provides superior physical protection in rough environments, preventing external impacts from shearing or breaking the light-emitting surface.

What quality certifications does this industrial indicator lamp carry?

FILN products undergo comprehensive compliance testing and hold active certifications from CE, VDE, RoHS, CCC, and ISO9001. These approvals ensure international regulatory compliance for equipment builders exporting machinery globally.

What is the anticipated functional working life of the internal LED chip?

The solid-state illumination element is rated to deliver a functional life between 50,000 hours and 100,000 hours under standard duty cycles. This extended lifespan reduces field maintenance overhead compared to old filament bulbs.

Is there a Minimum Order Quantity (MOQ) for custom voltage configurations?

FILN maintains a flexible No MOQ policy for standard configurations and prototyping runs. This allows engineering teams to acquire precise quantities for testing and small-batch equipment builds before committing to high-volume commercial production.

How does a pre-wired termination configuration compare to pin-terminal variants under vibration?

Pre-wired indicators feature insulated copper leads that are permanently potted into the housing during manufacturing. This construction creates an airtight seal and prevents connections from working loose under the constant vibration typical of heavy machinery.

What housing material options can be selected for the FL1M-06CW-4?

Buyers can specify either a silver-finished, chrome-plated copper alloy body or a heavy-duty black anodized zinc-aluminum alloy shell, matching the aesthetic and environmental requirements of the control panel layout.

Can I request a comprehensive 3D STEP data file for mechanical clearance layout modeling?

Yes, our engineering department provides complete 3D component files, 2D blueprints, and detailed data sheets. Technical documentation can be requested by emailing our support desk directly at inquiry@cnylin.com.cn.

What specific components are included in each packaged indicator installation kit?

Each individual kit includes 1x pre-wired metal indicator lamp body, 1x high-elasticity silicone waterproof ring, 1x stainless steel plum blossom lock washer, and 1x heavy-duty M6 hex locking nut, providing all hardware required for stable panel mounting.

How does the internal current-limiting carbon film resistor affect device protection?

The precision carbon film resistor regulates incoming current to match the internal LED chip’s safety parameters, absorbing voltage spikes and preventing premature burnout from electrical surges in the control loop.

What are the operating temperature boundaries for this industrial indicator lamp?

The component is certified to operate reliably within an environmental temperature range of -40°C to +80°C, allowing deployment in freezing outdoor environments as well as hot industrial processing areas.

Are bi-color or tri-color configurations available within the 6mm metal indicator lineup?

Yes, FILN designs and manufactures advanced multi-chromatic indicators. This allows engineering teams to display multiple operating states from a single 6mm panel location, simplifying dense control console interfaces.

What insulation resistance threshold does the FL1M-06CW-4 maintain?

The indicator maintains a certified insulation resistance of ≥ 100MΩ, evaluated under a continuous 500V DC test between the active electrical conductors and the outer metal housing to verify dielectric integrity.

How do I request an official quotation for volume wholesale distribution?

Commercial procurement teams can request comprehensive tier-structured price sheets and lead-time estimates by contacting our enterprise sales team directly through our global email portal at inquiry@cnylin.com.cn.

What material is used for the optical diffusion lens of this indicator lamp?

The lens is molded from optical-grade Polycarbonate (PC), which ensures excellent light transmission, high impact resistance, and long-term stability against yellowing from UV exposure.

Where is the official manufacturing plant of FILN electrical components located?

All FILN products are engineered and manufactured at our modern 10,000 square meter facility located in Wenzhou, Zhejiang, China, operating under strict international ISO9001 quality management protocols.
