Key Technical Specifications & Takeaways

• Precision Engineering: Designed with a standard 6mm (M6) mounting hole diameter for tight, space-constrained industrial control panels.
• Flexible Voltage Configurations: Supports wide-range electrical systems with configurable input options from 3V to 220V AC/DC.

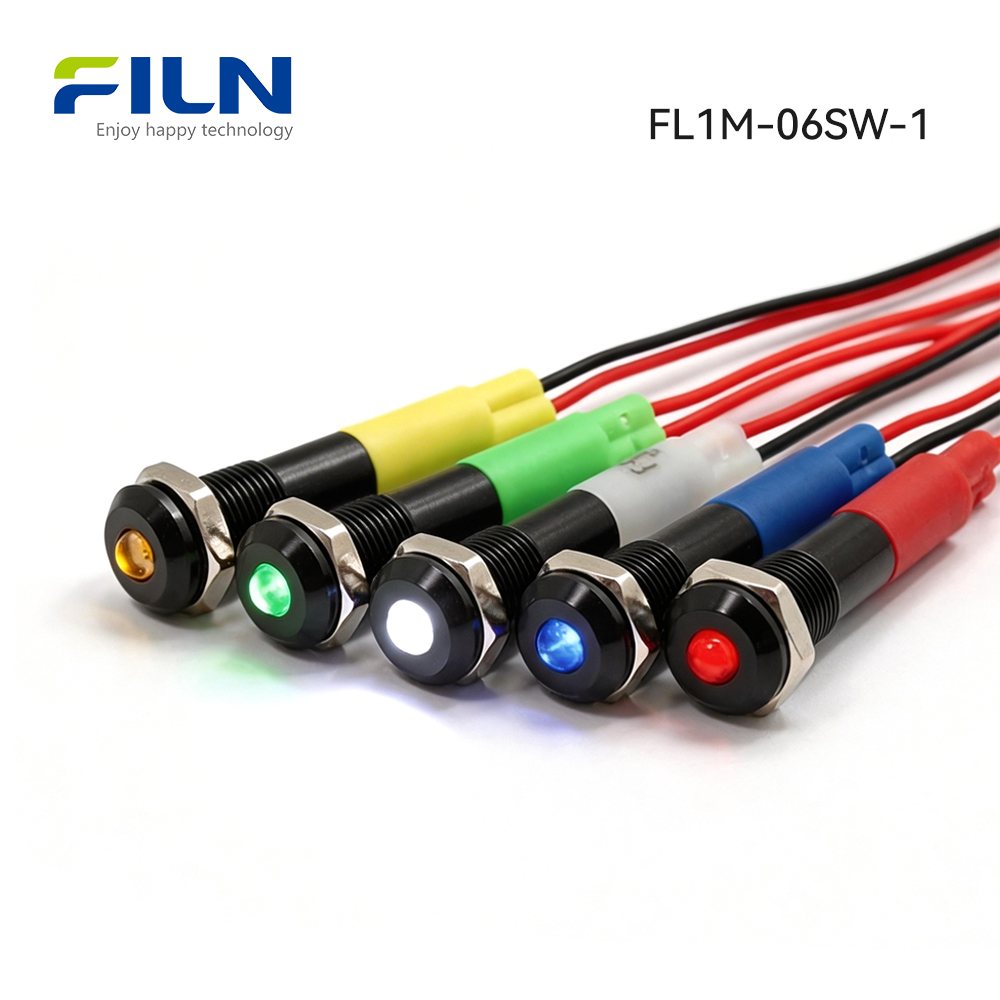

• Industrial Casing Durability: Available in premium plated copper alloy or black zinc-aluminum alloy housings, offering vastly superior impact resistance over standard commercial plastics.
• Pre-Wired Efficiency: Integrated with a 2PIN wire lead configuration (20cm single wire, 40cm total length) to minimize installation labor and remove soldering failure points.

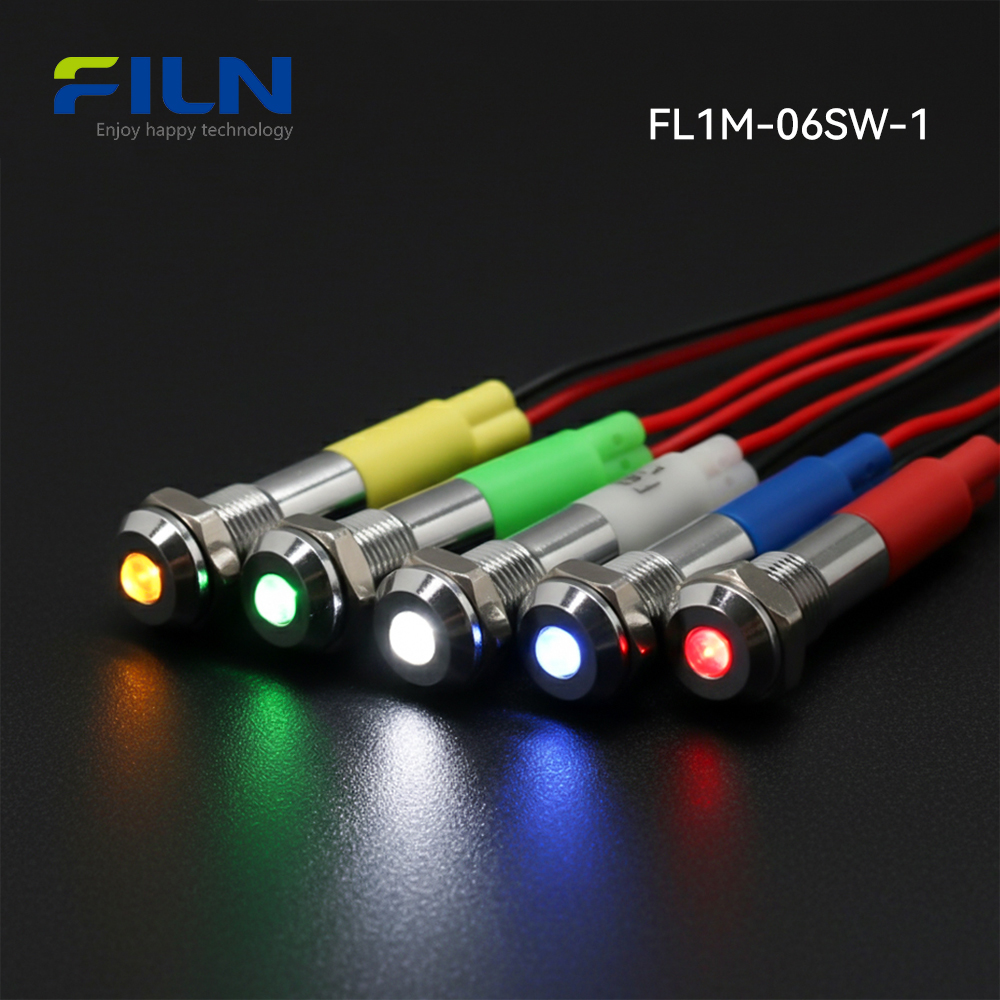

• High-Visibility Optical Output: High-head (convex) configuration maximizes horizontal viewing angles across five standard industrial colors (Red, Green, Yellow, Blue, White).
• International Regulatory Compliance: Full engineering validation backed by formal CE, VDE, RoHS, ISO9001, and CCC certifications for North American and European grid compatibility.
• Environmental Sealing: Achieves complete IP65/IP67 ingress protection using an included heavy-duty silicone O-ring to withstand harsh fluid splashbacks.
• Optimized Logistics: Dispatched direct from the FILN manufacturing plant with zero MOQ requirements, direct access to 3D CAD modeling sheets, and engineering-level consultation.

What is a Pilot Lamp LED?

A pilot lamp led is a dedicated optoelectronic hardware component used as a status indicator or signaling device within an electrical circuit layout. These visual signaling units convert electric current into high-intensity directional light, notifying automation technicians and system operators of power states, active operational cycles, safety interlocks, or equipment system faults.

FILN manufactures comprehensive indicator configurations categorized into metal-bodied and plastic-bodied variants, spanning panel cutout sizes from 6mm to 30mm. Regarding electrical termination, procurement specialists can select between hardwired solder pins or direct wire lead configurations. The metal-housed indicator assemblies are further customized with flat head, convex (high) head, or concave head geometry options to meet precise mechanical envelope and optical visualization criteria.

Product Overview & Operating Principles

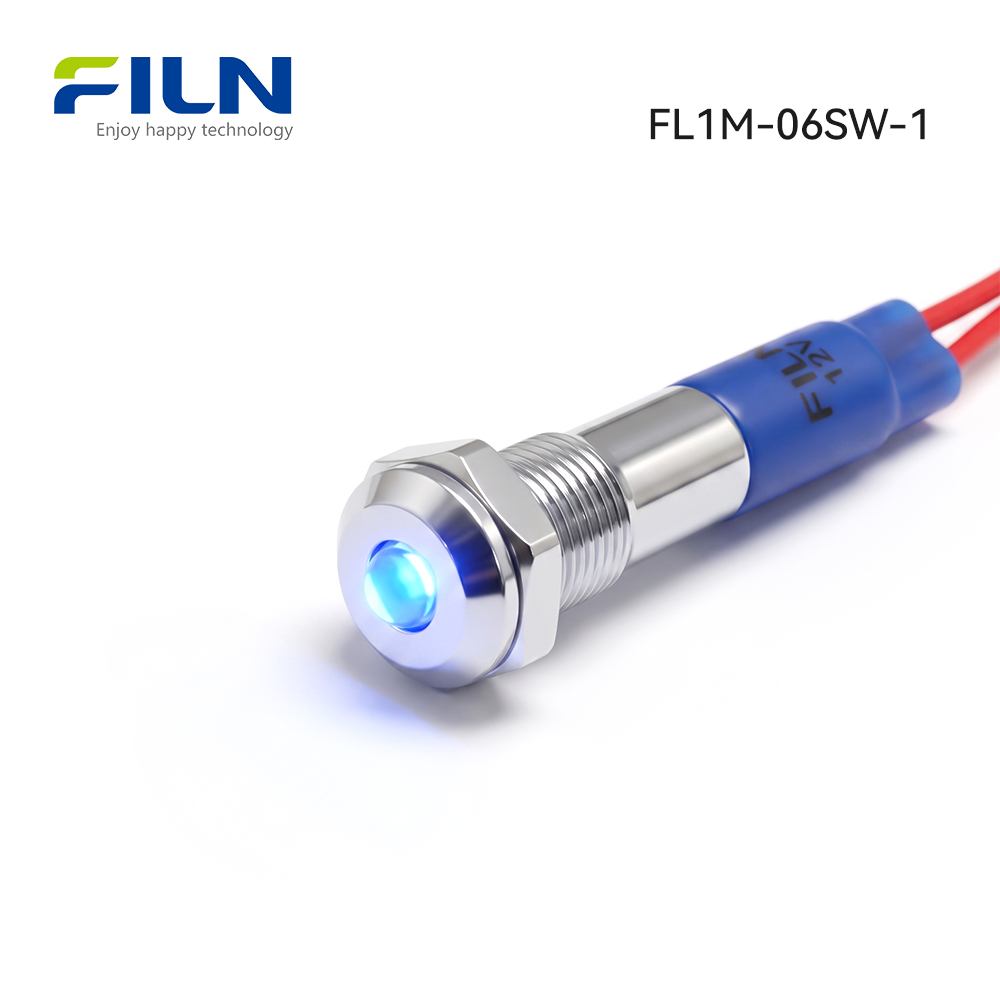

The FILN FL1M-06SJ-1 pilot lamp led serves as a reliable signaling element within high-density control panels. Operating on basic solid-state electroluminescence principles, the integrated semiconductor chip emits a narrow spectrum of monochromatic light upon forward biasing. This internal semiconductor element is paired with an integrated current-limiting resistor to protect the circuit matrix against voltage fluctuations and overcurrent degradation.

Mechanically, the convex or high-head configuration extends past the panel surface plane, optimizing light dispersion and visual identification from lateral sightlines. Heavy-duty construction featuring either silver-plated copper or black-anodized zinc-aluminum alloy allows this element to resist physical impacts and vibrations. This makes it an ideal alternative to weak, breakable plastic indicator lights. It satisfies rigorous plant floor specifications across automated processing cells, power distribution networks, and laboratory test bays.

Quick Technical Specifications Table

Detailed Performance Parameters

Component Material Matrix

Environmental Performance Profiles

This specification outlines the general operational boundaries for the FILN metal-bodied pilot lamp led series.

Optoelectronic Semiconductor Specifications

1. Absolute Maximum Ratings

2. Electro-Optical Characteristics

Measurements recorded at stable ambient room temperature (Ta = 25°C).

Standard Engineering Test Conditions

Unless specified by an engineering addendum, all mechanical, electrical, and optical parameters are calibrated and recorded under the following standard environmental atmospheric conditions:

Note: Luminous intensity output values and dominant color spectral coordinates conform strictly to standard CIE international human eye response curves. Measurement tolerances for luminous intensity are capped at ±15%, with forward voltage calibration metrics held within ±0.1V bounds.

Industrial Applications & Deployment Scenarios

Metal-housed pilot lamps provide superior resilience compared to commercial plastic signaling units, which are prone to UV yellowing, stress fractures, and thermal deformation under continuous plant floor operation. Built with high-strength copper alloy shell bodies and sealed with precision silicone gaskets, these components perform reliably across a variety of demanding industrial sectors.

1. Industrial Automation & Machine Manufacturing

In machining cells and CNC processing stations, these 6mm indicators serve as high-visibility status checkpoints. The high-head convex profile allows operators to identify machine states across long factory floor distances. The sealed metal bodies are impervious to cutting fluids, oil spray, and flying metallic debris. Hardwired pre-wired leads prevent connection fatigue caused by ongoing motor-driven machine vibrations.

2. Outdoor Electrical & Renewable Energy Distribution

Outdoor EV charging stations and solar photovoltaic combiner boxes require indicators that can withstand weather extremes. These IP67 indicators remain sealed against rain, ice, and dust storms. They operate reliably within a -40°C to +80°C thermal envelope, ensuring continuous signaling performance through winter freezes and summer heatwaves.

3. Transit Infrastructure, Heavy Equipment & Marine Control Consoles

Earthmoving equipment, cranes, and marine control panel arrays subject internal electronics to ongoing mechanical shock and salty environments. Using stainless steel or specialized chrome-plated alloys prevents salt spray rust on shipboard instrumentation. The secure rear-locking nut prevents panel loosening during rough off-road operations.

4. Public Vending, Fuel Dispensing & Commercial Security Terminals

Public ticketing systems, automated teller machines, and fuel pumps require impact-resistant components to prevent vandalism. Metal-shelled indicators provide excellent structural isolation. This reduces the risk of cracked components and unauthorized access to high-voltage internal circuit connections.

5. Medical Instruments & Food Processing Machinery

Food processing lines and sanitization bays use chemical washdowns and high-pressure steam cleanings daily. The IP67 fluid barrier prevents moisture from penetrating the indicator body, protecting internal components from chemical corrosion and preventing line downtime.

Chromatic Coding Standards

Adhering to standard industrial chromatic conventions (such as IEC 60204-1 and OSHA signaling guidelines) ensures that operators can quickly interpret panel states. Misinterpreting indicator colors can lead to operational errors or safety risks on the plant floor.

• Red (Emergency / Critical Fault): Signals an immediate threat, system trip, emergency stop activation, or critical safety violation. Red requires immediate intervention to mitigate equipment damage.
• Green (Normal Operations / Safe State): Indicates regular system operation, closed safety interlocks, or energized circuits running safely within normal bounds.
• Yellow / Amber (Abnormal State / Warning Condition): Flags non-critical boundary crossings, high temperature thresholds, or transitional process steps. Yellow tells operators to monitor the system before a critical fault occurs.
• Blue (Mandatory Operator Actions Required): Identifies processes that require manual intervention, such as reset inputs, configuration changes, or fluid replenishment steps.
• White (Neutral Power / Circuit Status Matrix): Provides clear confirmation of main line supply connections, phase tracking, or general live circuit monitoring.

For complex control interfaces with limited panel space, FILN offers specialized bi-color and tri-color integrated LED options. These multi-color configurations allow a single 6mm cutout to display multiple circuit states, improving panel layout efficiency.

Step-by-Step Mechanical Installation Guide

Proper mechanical installation is essential to maintain the IP67 environmental seal and ensure the indicator remains securely positioned on the panel.

1. Panel Cutout Preparation: Punch or drill a clean 6.0mm (0.236 inch) circular mounting hole into the control panel substrate. Ensure the hole is deburred and free of sharp edges to protect the sealing gasket.

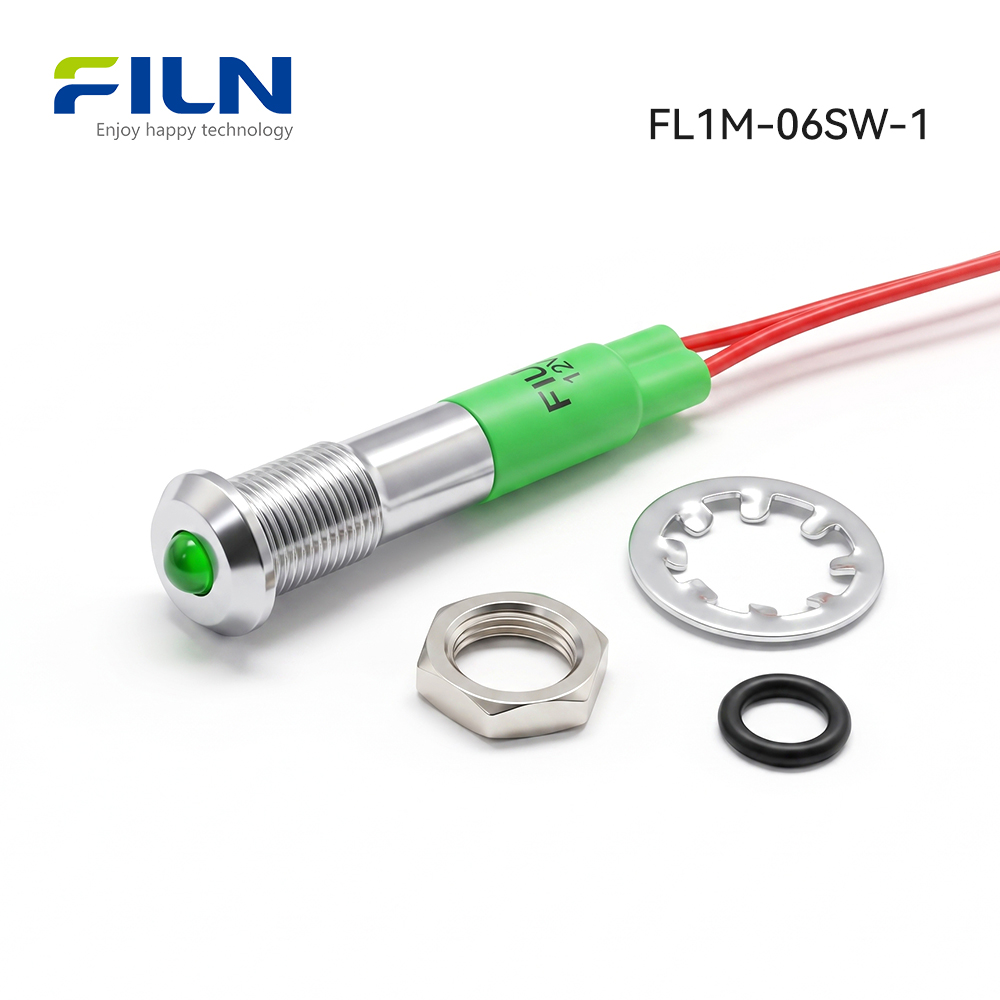

2. O-Ring Placement: Fit the silicone waterproof O-ring onto the metal body of the indicator, positioning it flush against the underside of the high-head bezel.
3. Inserting the Component: Route the 2PIN wire leads through the panel cutout from the front side, pushing the threaded metal shaft into the hole until the silicone gasket presses flat against the panel face.
4. Rear Lock Hardware Assembly: From the back side of the panel, slide the stainless steel plum blossom locking washer over the wire leads and onto the threaded shaft.
5. Nut Torque Securement: Thread the M6 copper hex nut onto the body. Tighten the nut to the specified torque using a panel wrench, compressing the front silicone gasket to establish an environmental seal.

CRITICAL SAFETY NOTICE: Disconnect and lock out all upstream electrical power supplies before handling wire connections or performing panel maintenance to prevent severe electrical shock or arc flash hazards.

Electrical Wiring Guide

Selecting the correct termination type depends on your specific assembly workflow and field maintenance requirements. Pin-terminal indicators use rigid metal solder tabs extending from the rear housing, making them well-suited for modular wiring plug connections or direct wire soldering.

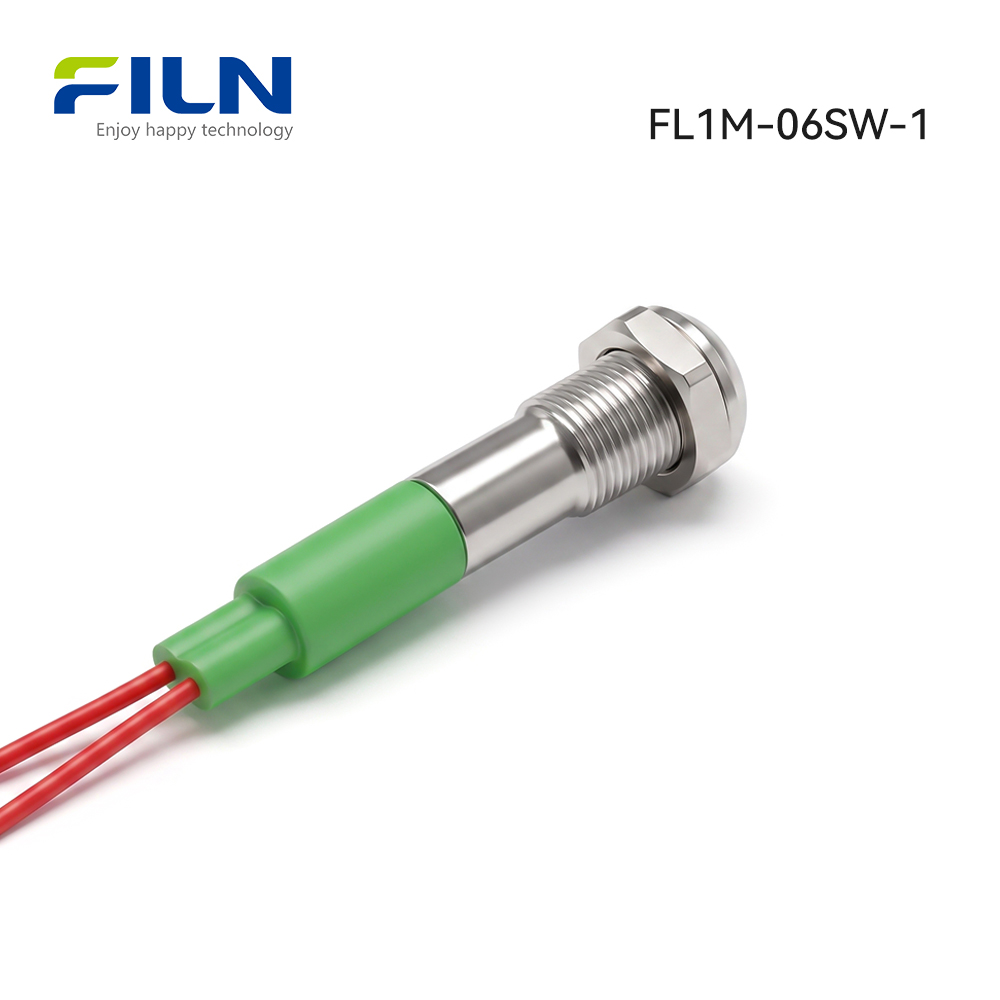

In contrast, the pre-wired FL1M-06SJ-1 series features factory-insulated 2PIN wire leads (20cm single wire, 40cm total length). This design eliminates the need for on-site terminal soldering, reducing installation labor and removing potential cold-solder failure points. Field technicians can connect these wire leads using lever-actuated terminal blocks, inline crimp splices, or industrial heat-shrink solder sleeves to ensure dependable long-term conductivity.

Industry Knowledge Center

Industrial control circuits require careful layout design to ensure high performance and prevent signal interference. Phantom illumination (faint glowing) is a frequent issue where an indicator remains dimly lit even when the control switch is open. This is typically caused by induced stray voltages from long parallel wire runs or low-level leakage currents through solid-state PLC output cards.

To prevent phantom glowing, engineers can install a shunt resistor across the indicator terminals to bleed off induced voltages below the LED’s forward threshold. FILN can also integrate custom leakage-bypass resistors directly into the indicator housing during manufacturing, saving engineering time during field deployment.

Routine maintenance should include checking that the rear mounting nut remains torqued to specification, especially on high-vibration machinery. The smooth polycarbonate lenses should be cleaned with non-abrasive, chemically neutral agents to maintain optimal visual clarity.

Industrial Buyer Decision Matrix

Procurement specialists must evaluate several key technical factors when choosing signaling components to avoid operational issues or compliance non-conformities during final machine commissioning:

• Voltage Level Selection: Match the internal indicator resistor configuration with the source control circuit voltage (e.g., 24VDC for PLCs, 110VAC/220VAC for main line panels) to prevent overvoltage burnout or undervoltage dimness.
• Enclosure Protection Matching: Ensure the indicator’s IP rating matches or exceeds the panel enclosure standard (such as NEMA 4X or IP67) to maintain environmental sealing.
• Termination Method Efficiency: Evaluate production labor costs. Pre-wired lead configurations save assembly time on large production runs, while pin terminals are ideal for modular plug-in maintenance systems.
• Regulatory Certifications: Verify formal CE, VDE, and UL compliance tracking to guarantee seamless approval from electrical inspection authorities.

Why Industrial Design Engineers Choose FILN

Global industrial equipment builders and system integrators choose FILN as their primary component partner because of our focus on manufacturing precision, strict quality control, and responsive technical support. By managing the entire production process from raw material to final certified assembly, we deliver predictable component performance and reliable supply chains.

Factory Direct Supply & Technical Capabilities

Yueqing Yulin Electronic Co., Ltd., operating under the global brand name FILN, was established in 2006 in Wenzhou, Zhejiang. As an electrical components manufacturer, FILN features an advanced 10,000 m² production footprint equipped with over 20 specialized automated assembly lines and an independent product testing laboratory.

Our manufacturing processes are certified to the ISO9001 quality management framework. FILN specializes in producing high-reliability pilot lights, anti-vandal push button switches, industrial rocker switches, toggle switches, and custom wire-harness configurations. Our global distribution channels serve clients in more than 100 countries, supported by formal product compliance certifications including UL, CE, RoHS, REACH, TUV, and CB.
