Mini LED Signal Lamp Factory Direct | IP67 Waterproof Metal Wiring CE Certified | FILN

Key Technical Takeaways & Procurement Insights

• Precision Miniature Architecture: Engineered with a compact 6mm (0.24 inch) mounting profile, perfect for high-density control arrays and spatial-constrained industrial interfaces.

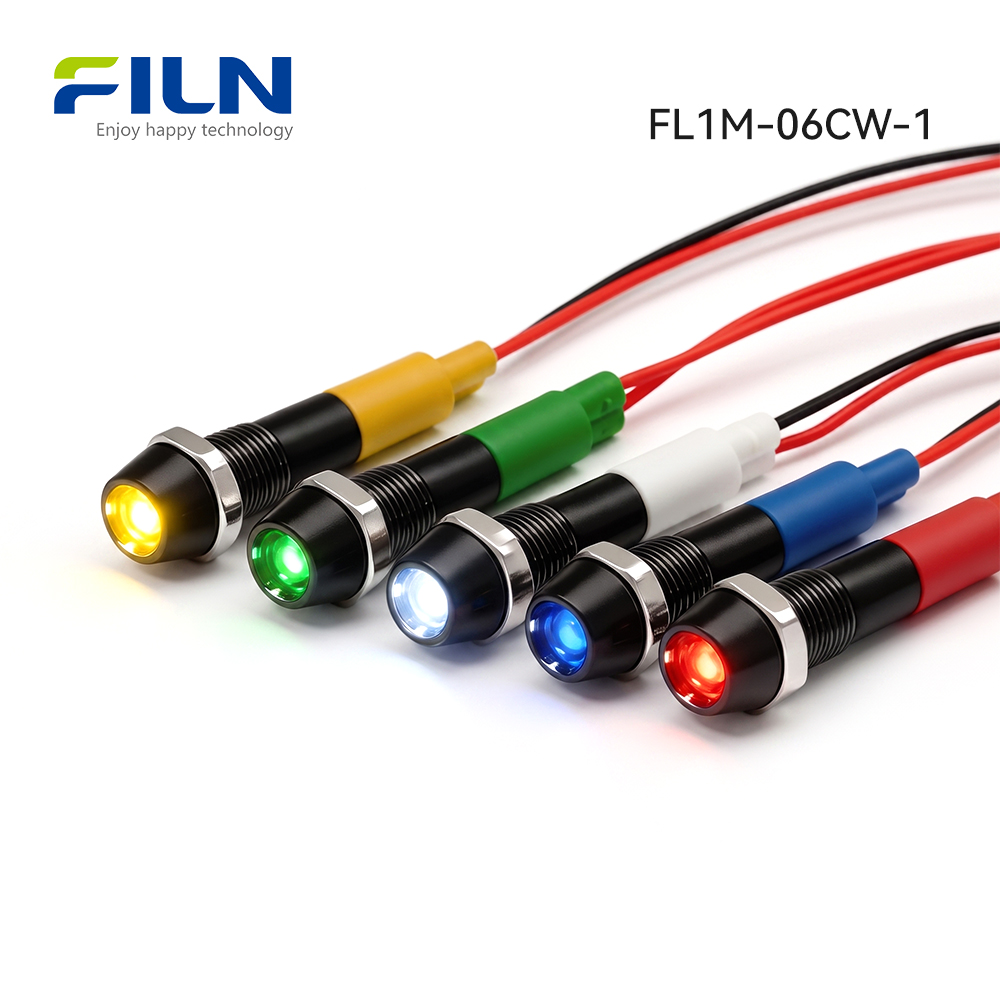

• Heavy-Duty Shell Metrology: Available in high-tensile silver copper alloy or premium black-anodized zinc-aluminum alloy to resist mechanical impact and chemicals.
• Robust Pre-Wired Integration: Outfitted with dual-core 2PIN wire leads (20cm individual, 40cm total length) ensuring seamless, direct-connect circuit field integration.
• Universal Voltage Adaptability: Custom internal resistance matrices support operation from 3V up to 220V AC/DC configurations based on procurement demands.
• Optimized Concave Optics: The specialized concave head geometry protects the lens array while ensuring sharp, high-visibility directional illumination.
• Hermetic Environmental Sealing: Integrated high-elasticity silicone O-rings provide IP65/IP67 ingress barriers against high-pressure water jets and industrial airborne particulates.
• Rigorous Industrial Certifications: Fully certified under global compliance frameworks including CE, VDE, RoHS, ISO9001, and CCC for critical infrastructural use.
• Factory-Direct Customization: Supplied directly from FILN’s advanced production plant with flexible tailoring for wire gauges, lengths, and specialty electrical limits.

What is an Industrial Mini LED Signal Lamp?

An industrial mini led signal lamp is a specialized solid-state visual notification device designed to convey real-time system states, warning parameters, and operational feedback to human operators within automated machinery setups. Structurally composed of a solid-state semiconductor LED chip nested inside an armored metal housing, this hardware replaces obsolete incandescent pilot lights by delivering superior electro-optical efficiency, intense illumination, and exceptional resistance to physical distortion.

FILN provides an expansive design portfolio consisting of both advanced metallic and engineered plastic indicators ranging from 6mm to 30mm mounting dimensions. Termination architectures include rigid solder pin terminals and direct factory-installed wire lead configurations. For mechanical customization, the metal housings feature flat-head, prominent convex, or protective concave shapes to allow control engineers to align panel components with distinct ergonomic and tactile operator layouts.

Comprehensive Product Overview

The FILN 6mm mini led signal lamp (FL1M-08CJ-1) functions on an advanced electrical-to-optical conversion principal utilizing top-tier semiconductor chips. When an electrical potential is established across the 2PIN wire leads, forward-biased current flows through an internal carbon film current-limiting resistor network, generating a focused, ultra-bright light emission through a heavy-duty polycarbonate diffuser lens.

Mechanically, the single-nut mounting thread structure establishes a tight seal on automation interfaces, distribution panels, testing consoles, and laboratory instrument enclosures. By isolating internal circuitry within a solid alloy shell backed with premium PA66 terminal bases, this indicator survives harsh industrial shocks, high vibrations, and chemical clean-downs. With comprehensive certifications like CE, VDE, RoHS, and ISO9001, it guarantees long-term operational safety across infrastructure projects in North America, Europe, and the Asia-Pacific region.

Quick Technical Specifications Table

Electrical, Mechanical & Environmental Performance

Industrial Material Composition Matrix

Environmental Performance & Climatic Stress Profiles

This engineering document details the general application parameters and operational boundaries for the FILN metallic mini led signal lamp portfolio. It ensures reliable long-term performance across harsh outdoor and demanding indoor industrial environments.

Solid-State LED Optoelectronic Specifications

1. Absolute Maximum Ratings

2. Electro-Optical Performance Parameters (at Ta=25°C)

Standard Atmospheric Test Environments

Unless explicitly noted otherwise via specialized laboratory documentation, all electrical, physical, structural, and optoelectronic properties published across this technical specification are verified under the following standardized environmental conditions:

Metrology Standardization Profile Note: Luminous output tracking, structural focus vectors, and dominant spectrum color wavelengths are precision-calibrated in absolute accordance with the CIE international human eye response curve standards. Measurement tolerances include a ±15% variance threshold for luminous intensity metrics and a strict ±0.1V margin for forward component voltage tracking.

Heavy-Duty Applications Across Industrial Sectors

The metallic mini led signal lamp portfolio engineered by FILN utilizes rugged copper alloys and black anodized surfaces to manage intense physical shock and chemical cleanings. While plastic warning lamps are prone to thermo-mechanical cracking and aging, metallic indicators retain complete sealing alignment. This makes them ideal for manufacturing plants, automated assembly floors, and heavy infrastructure projects.

1. Industrial Automation & Machinery Production

Modern production lines subject control interfaces to continuous mechanical vibrations and cutting fluid exposure. The FILN 6mm indicator serves as a dependable status readout on high-speed CNC centers, tracking active processing states, standby conditions, or emergency system faults. Pre-wired assemblies prevent internal lead disconnects or loose wire contacts, even when mounted near powerful heavy-duty hydraulic pumps.

2. Outdoor Smart Grid Infrastructure & EV Charging Stations

Outdoor grid equipment requires high weather durability across extreme temperature shifts. Integrated into high-power DC fast-charging terminals and remote solar combiner boxes, FILN’s IP67 metal housings resist vandalism and harsh weather. They provide clear visual feedback for system status, grid connection stability, or leakage faults, even during extreme sub-zero winters or hot summer conditions.

3. Transit Systems, Engineering Vehicles & Marine Systems

Heavy machinery operates over rough terrain, while maritime vessels face constant salt-mist exposure. FILN indicators mount securely in earthmover cabins and shipboard bridge consoles. Choosing stainless steel or chrome finishes prevents corrosion from seawater, while integrated silicone gaskets prevent water ingress into control circuitry.

4. Public Self-Service Terminals & Explosion-Isolation Enclosures

Vandal-resistant construction is vital for unattended commercial kiosks, ticketing machines, and automated fuel dispensers. The high-strength alloy housing provides robust protection against impact and mechanical wear, while sealing vital electronic circuits away from dust and flammable atmospheres.

5. Specialized Medical Technology & Food Processing Equipment

Sanitary environments rely on regular chemical washdowns and high-temperature cleaning. FILN metal indicators withstand chemical spraydowns on food packaging lines and tracking cycles inside medical autoclives. They resist chemical degradation and ensure long-term, sterile operation.

Industrial LED Color Coding Coding & Operational Semantics

Adhering to global safety standards including IEC 60073 and OSHA compliance, the spectral output options of the mini led signal lamp are meticulously color-coded to communicate precise mechanical system properties:

• Red (R) – Critical Threat Protocol: Signals immediate emergency shutdowns, severe circuit overloads, thermal runaway failures, or acute safety breaches. It requires immediate operator action to prevent asset loss or injury.
• Green (G) – Nominal Operational Authorization: Indicates regular safe operations, completed startup loops, or fully functional circuits. It confirms the system is safe to operate or approach.
• Yellow/Amber (Y) – Preemptive Alert Matrix: Flags non-critical abnormalities, parameter drift, preventive maintenance cycles, or minor temperature spikes. It advises caution before a condition escalates.
• Blue (B) – Mandatory Action Notification: Highlights distinct operator tasks, remote command adjustments, or mandatory fluid resets that do not involve emergency conditions.
• White (W) – Neutral System Telemetry: Offers clear reference tracking for active power states, online system connectivity, or auxiliary loop illumination.

For versatile multi-tier tracking arrays, FILN engineers dynamic bi-color and tri-color LED matrices into a single miniature housing. This allows a single 6mm panel location to cycle through different color states, maximizing panel space and enhancing modern human-machine interface designs.

Step-by-Step Panel Integration & Installation Guide

Follow this direct mechanical integration guide to install the FILN miniature status lamp. This procedure ensures a secure mount and maintains optimal IP67 environmental sealing integrity:

1. Panel Punch Preparation: Drill or punch a clean circular 6.0mm hole into the target interface sheet. Ensure all surface burrs and sharp metal shavings are completely cleared.

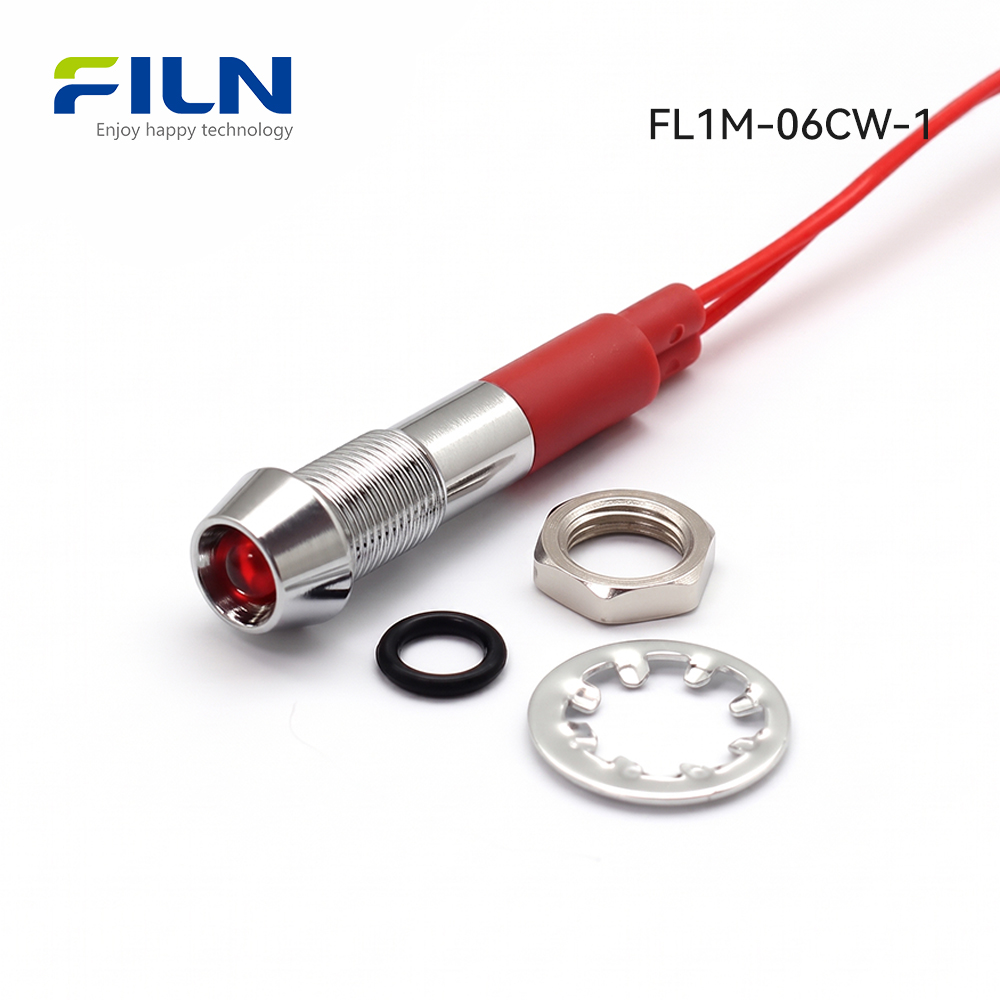

2. Sealing Alignment: Seat the premium silicone waterproof O-ring onto the threaded body of the indicator light, ensuring it sits flush against the rear face of the concave metallic head.
3. Enclosure Insertion: Route the 2PIN insulated connection wires through the panel cutout from the exterior side, sliding the threaded stem smoothly into position.
4. Rear Lock Fastening: From the inner side of the panel, slide on the stainless steel plum blossom tension washer, then thread on the machined M6 brass hex nut. Torque the locknut to a secure fit without over-tightening.
5. Circuit Field Termination: Verify the target power supply matches the indicator’s rated voltage, then splice the flexible 20cm wire leads into the system control loop.

Technical Wiring Configurations & Termination Analysis

Selecting the correct electrical connection type depends heavily on the vibration levels, maintenance schedules, and assembly requirements of your control panel. Below is a comparative engineering analysis outlining the structural trade-offs between spade pin terminals and pre-wired lead configurations:

For pre-wired metal indicators, secure connections can be made using fast-link spring terminals, insulated butt-splices, or direct soldering insulated with polyolefin heat-shrink tubing.
Critical Safety Advisory: Always isolate and disconnect the main power grid before adjusting any electrical connections or handling panel wiring.

Industrial Electronics Maintenance & Knowledge Base

In large-scale industrial plants, a common issue with high-efficiency LED indicators is “phantom illumination” or faint glowing when the control circuit is turned off. This behavior is typically caused by residual induction currents or leakage currents traveling through long, bundled wire harnesses. Because high-performance LEDs require very little power to light up, even small induced voltages can cause them to glow dimly.

To address this issue, FILN engineers customize the internal shunt resistance matrices of our indicators to bleed off trace induction currents below 5V, ensuring the lamp remains completely dark when turned off. For ongoing maintenance, technical teams should inspect panel sealing rings every year to ensure they remain elastic, and use basic multimeters to check that power distribution rails match the indicator’s specified voltage ratings.

B2B Buyer Procurement & Specification Guide

When procuring component batches for large production runs or custom OEM contracts, procurement managers and electrical engineers must carefully evaluate specific environmental and electrical requirements:

• Voltage Configuration: Match the internal resistor design with your system’s power supply (e.g., 12VDC, 24VDC, 110VAC, or 220VAC) to prevent premature burnout or insufficient brightness.
• Housing Material: Choose nickel-plated copper alloy for excellent chemical and physical resistance, or opt for black-anodized zinc-aluminum alloy when dealing with high-glare control panel environments.
• Wire Lead Lengths: Calculate your internal cabinet wire routing distances prior to ordering to determine if the standard 20cm/40cm harness satisfies your assembly needs without extra splicing.
• Regulatory Compliance: Ensure all components carry vital global certifications (CE, UL, VDE, RoHS) to guarantee smooth import clearance and compliance with municipal engineering standards.

Why Control System Engineers Specify FILN Components

FILN is a premier, specialized manufacturer of industrial switches and signaling indicators, serving critical infrastructure and manufacturing sectors worldwide. By bypassing intermediary distributors, we give global OEMs direct access to advanced engineering capabilities, flexible customization options, and reliable batch-to-batch quality control.

Our manufacturing facility features a zero-MOQ policy for standard catalog components, fast prototyping services, and short production lead times. Whether you need custom lead wire assemblies, specific internal resistors, or unique housing colors, our engineering team works directly with your technical personnel to deliver reliable solutions for complex panel layouts.

Factory-Direct Supply Infrastructure

Established in 2006, Yueqing Yulin Electronic Co., Ltd. (brand name FILN) is located in Wenzhou, Zhejiang, and operates a modern 10,000 m² manufacturing complex. Our facility features more than 20 advanced, automated production lines alongside a fully independent electrical testing laboratory. Driven by the ISO9001 quality management framework, FILN designs and builds high-performance indicator lamps, rugged metal pushbuttons, robust rocker switches, and heavy-duty toggle switches for clients in over 100 countries.

Our complete catalog meets rigorous international compliance standards, including UL, CE, RoHS, REACH, TUV, CB, and CCC certifications. This ensures dependable safety and performance across automotive, marine, food service, material handling, and green energy systems worldwide.

Official Global Enterprise Portal: www.filn.com
Direct Procurement Inquiry Mailpoint: inquiry@cnylin.com.cn

Frequently Asked Questions (Technical Reference)
